Introduction

Diluted magnetic semiconductors (DMS) have been extensively investigated due to their potential in spintronics applications and for discovering fundamental spin-related phenomena1,2,3,4. To stabilize the long-range spin order in bulk DMS materials, two main magnetic interaction mechanisms have been proposed: (1) direct interactions between the dopants (through their overlapped wave functions) and (2) indirect interactions through itinerant carriers5,6,7. The former requires a high dopant concentration, while the latter uses spin-polarized itinerant holes at a low dopant concentration7. On the other hand, over the last 5-years, intrinsic two-dimensional (2D) magnetic materials have received significant attention due to their intrinsic long-range spin order and benefits in atomic-size magnets as promising candidates for miniaturized spintronics devices. Moreover, despite promising progress in different 2D van der Waal magnetic materials like Cr2Ge2Te68, FexGTe2(FGT)9,10, and VSe211, their limitations of working ambient conditions (due to low Curie temperature (TC) and high surface energy), pose a challenge for the scientific community12,13. While recently inaugurated ultra-thin non-van der Waal materials like Cr2 × 3(X = S, Se, and Te) give another glimpse of hope to overcome these difficulties, a lot is to wait for the practical device applications14,15,16. Consequently, the search for atomically thin magnetic materials has stretched to the artificially induced magnetism in 2D transition metal dichalcogenide (TMD) 2D diluted magnetic semiconductors (DMS)17,18,19,20,21,22,23,24. Besides, recent reports show that 2D materials with heavy atoms like tungsten (W) are good candidates for which long-range magnetic ordering is kept pronounced by the relativistic electron-atom effect—spin-orbit coupling (SOC) on W atom dstates25,26,27.

Recent experimental discoveries of Janusversions of TMD (MXY, X≠Y; M = TM, X/Y = S, Se, and Te) have shown that they possess out-of-plane piezoelectric polarization and strong Rashba effect due to their unequal potential on the two faces28,29,30,31,32,33,34. Accordingly, the most studied possible applicationsare photo-catalytic water splitting, a catalyst for the hydrogen evolution reaction (HER), gas sensing devices, optoelectronics, and electromechanical devices35,36,37,38,39,40,41,42. Additionally, artificially induced magnetism in WSSe (i.e., doping, adsorption, and proximity effect) has been reported to show valley polarization43,44. Recently, X.W. Zhao et al. have demonstrated that big valley polarization up to 58meV and 62meV can be obtained for V doping or Cr adsorption on the Se-surface of WSSe, respectively43. Moreover, X. C. She et al. have predicted that varying stacking configurations of WSSe-CrI3heterostructure valley polarization can be tuned44. Kai Chen et al. showed the adsorption effect of transition metal (TM) atoms V, Cr, Mn, Fe, and Co on both surfaces of WSSe, showing the possible magnetization of WSSe via charge transfer45. Besides, they have observed that the induced magnetism for TM adsorbed onto the S surface of WSSe is stronger than Se-Surface-adsorption due to electrostatic potential and the easy axis for Fe adatom switches from in-plane (on-S surface) to off-plane (on-Se surface). Although some efforts have been made in the computational study of TM-doped/adsorbed magnetic WSSe43,45,46,47,48, a comprehensive and systematic approach is still lacking.

In this work, we conducted first-principles calculations to elucidate the magnetic properties of TMs (V, Cr, Mn, Fe, Co) both doped and adsorbed WSSe. The careful observation of the relationship between rearranged structure, d-p-d hybridization, and magnetic anisotropy energy (MAE) shows that the atomic/ionic size of TM has a crucial impact on the d-d orbital overlap and, therefore, on bond length/angle and position of defect states. Long-range ferromagnetic(FM) order is shown in the V-doped WSSe system, which is maintained by the SOC of the W atom, which is in line with the previous reports of other TMD25,26,27. A local symmetry breaking observed in Fe/Co-doped and Mn/Fe-adsorbed on the S-surface of WSSe causes an enhanced MAE. Moreover, the magnetic anisotropy calculation for both TM doped and adsorbed WSSe revealed the c-axis as the easy axis and reasoned out the origin of the in-plane easy axis observed in the V/Cr adsorbed system and its relation with the spin-density distribution.

The paper is divided into three sections below arranged as: (I) Formation/Binding energies structural parameters, and magnetic moment; (II) Electronic states and spatial distribution of spin-density; and (III) Magnetic anisotropy Energy. The summarized presentation done in this work will serve as a guide for the scientific community’s further exploration of 2D DMS.

Computational details

All the spin-polarized first-principle calculations were performed by the commercially available Vienna Ab initio Simulation Package (VASP)49. The generalized gradient approximation (GGA) parametrized by Perdew-Burke-Ernzerhof (PBE) is employed to describe the exchange-correlation function50,51. For the 3dtransition metal (TM) elements, adding Hubbard U51 could improve the description of the localized electronic orbitals. However, it is not straightforward to apply the Hubbard U in defect formation energy calculations, which require using identical Uvalues when calculating the total energy of the defect supercell and the chemical potential of the TM dopant52. Also, the same TM element in different valence states, such as a dopant and adatom, may require different Uvalues53. Given this uncertainty, we did not include the Hubbard Ucorrection in this work. The PBE version of the projector augmented-wave (PAW) was employed to treat valence electrons with plane-wave basis set cutoff energy of 500 eV. We build the model of the 4 × 4 × 1 pristine single-layer WSSe (48 atoms); the vacuum layer is set to 20 Å to avoid the effects generated by the periodic boundary conditions. The Brillouin zone is sampled by a Monkhorst mesh of 3 × 3 × 1 k-points54. The formation energy (Eform) is calculated as Eform= EWSSe(Dopped)– EWSSe(Pure)– (µTM– µW). To determine the adsorption strength between the TM-WSSe monolayer, we used Eads = EWSSe(ads)– EWSSe(Pure)– (µTM), where EWSSe(Dopped) and EWSSe(Pure) are the total energies of dopped and pure WSSe monolayer, respectively. µTM is the chemical potential of the transition metal atom taken from energy per atom of the body-centered cubic (bcc) structure, and µWis the chemical potential of the W atom52. Spin density is defined as the difference between the spin-down and spin-up charge densities (ρ↓-ρ↑). Magnetic anisotropy energy (MAE) is defined as the difference between energies corresponding to the magnetization in the in-plane and out-of-plane directions (EMAE = E⊥ − E║). Therefore, a positive (negative) value of MAE indicates an in-plane (out-of-plane) easy axis. After self-consistent ground states were achieved, noncollinear and non-self-consistent calculations were performed to evaluate the total energies. In all MAE calculations, spin-orbit interaction was taken into consideration.

Result and discussion

Formation/Binding energies, structural parameters, and magnetic moments

Schematic representations of stable supercell structures of the dopped and adsorbed systems are shown in Fig. 1. The pristine Janus WSSe has bond lengths of 2.42 Å and 2.53 Å for W-S (la) and W-Se (lb), respectively, in line with the literature35,37,43,55. The planar average electrostatic potential shows the broken symmetry of two faces. To induce magnetism in pristine WSSe, we considered both substitutional doping of the W atom and surface adsorption of magnetic transition metal (TM) elements of V, Cr, Mn, Fe, and Co. Substitutional doping of the W atom causes chalcogenide (S and Se) atoms to get closer/away to/from the TM atom, forming different bond lengths, la and lb, Fig. 1(a). For the adsorption system, referring to previous works, a catalytically active face (i.e., S-Side) with the most stable adsorption site (where the adatom is right on the top of the W atoms) is investigated (Fig. 1(b))40,43,45,46,56.

Figure. 1
Figure. 1
Full size image

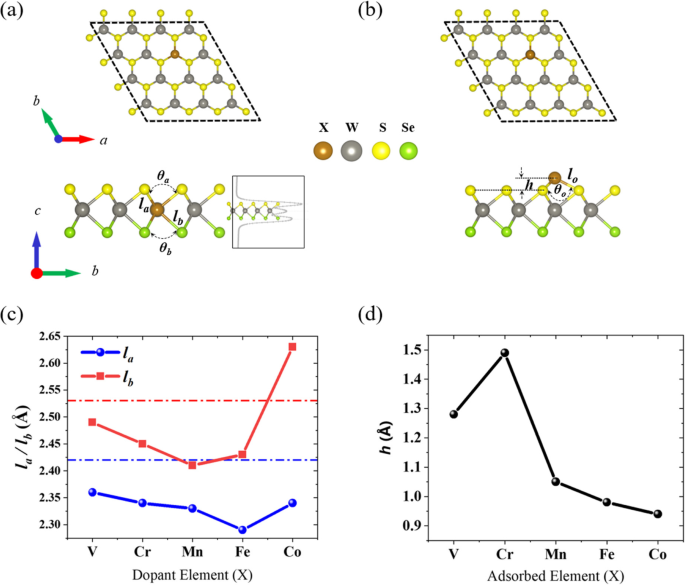

(Color Online) Schematic representation of relaxed structures of 4 × 4 supercell systems applied and structural parameters. Top and side view of TM dopped WSSe (a), and TM adsorbed WSSe (b). Structural parameters, angles; θa, θb, θo, and bond lengths; la, lb, lo, and adsorption height ho are marked for each case, and the values are presented in Tables 1 and 2. (c) Bond lengths; X-S (la) and X-Se(lb) for each dopant atom in a doped X-WSSe system. Horizontal dashed lines show the pristine WSSe la and lb values and solid lines are used to guide the eyes. Average values are taken for local symmetry-breaking bonds in Fe and Co dopant atoms (d) Adsorption height (h) for each adatom is measured as the vertical distance from the unperturbed S atoms. The inset at (a) bottom shows the electrostatic potential of pristine WSSe along the c-axis.

Table 1 Dopped System Formation Energy (Ef) bond length (la and, lb), bond angles (θa and θb), and Magnetic moments for Tungsten (Mw), Transition Metal (Mx), Chalcogenide atom (MS/Se), total Moment (Mtot).
Full size table
Table 2 Adsorbed System Formation Energy (Ef) bond length (lo), bond angle(θo), adsorption height (ho), and Magnetic moments for Tungston (Mw), Transition Metal (Mx), Chalcogenide atom(MS/Se), total Moment(Mtot).
Full size table

The dopped and adsorbed system’s calculated formation and binding energies and structural and magnetic parameters are listed in Tables 1 and 2. An increasing formation energy (Ef) is shown from V to Co dopant elements. A seamless substitution is predicted for the V dopant (~ 0.008 eV), while a small energy ~ 0.5 eV for the Cr dopant indicates a feasible endothermic reaction process57. For Mn, Fe, and Co cases, slightly higher energies are required, comparable with reported results on other TMD materials like MoS217. However, increasing binding energy for Cr, Mn, Fe, and Co is observed for the adsorbed system (Table 2), indicating a relatively easier adsorption process for Mn, Fe, and Co dopants. For V-adsorbed WSSe, however, the adsorption energy comes (-2.2 eV) comparable with that of Fe (-1.98 eV) and Co (-2.62 eV). Besides, the adsorption energies for all TM atom cases show lower than – 0.5 eV, which implies a possibility of chemisorption58,59. It is worth noting that the nearly zero formation energy shown in the V-dopant calculation result shows a deficiency in the GGA approximation in the PBE framework. With the DFT + U framework, the dependence of formation energy on empirical values representing localized 3d states for V-doped WSSe is shown in Fig. S1.

Regarding the structural parameters in the dopped system, despite the lower electronegativity of the TM atom (V (3.20), Cr (3.27), Mn (3.34), Fe (3.42), Co (3.49), eV) than that of W (6.78 eV)60, for all cases, except Co-Se bond, the TM-S/Se bond length is shorter than that of the W-S/Se bond length (Fig. 1(c)). This can be attributed to the smaller atomic size of the TM atom. For the adsorbed system, on the other hand, the adsorption height (h) for V (1.29 Å) and Cr (1.49 Å) adatoms is longer than Mn (1.05 Å), Fe (0.98 Å), and Co (0.94 Å) (Fig. 1(d)).A similar result of decreasing adsorption height has been reported for Fe, Co, and Ni adsorption on WSSe40,45 and MoS221. This decreasing adsorption height (therefore X-S bond length) trend shows a close relationship with the calculated binding energies and the crystal field splitting of d orbitals of TM atoms, as will be discussed in the next section.

Considering the symmetry of the system, for the case of Fe and Co doping, a symmetry-lowering distortion is observed where two chalcogenides are moved inwardly while one moves outward, reducing the system’s symmetry from C3v symmetry to Cs61,62 (Table 1). Similarly, for the adsorbed system case, Mn and Co cause a symmetry-lowering distortion from C3v symmetry to Cs (Table 2).

When checking the total magnetic moments, the extra valence holes/electrons added to the system give magnetic moments of 0.88, 0, 1, 2, and 3µB for V, Cr, Mn, Fe, and Co, respectively (Table 1). Whereas for the adsorbed X case, lone pairs from the X atoms give a total magnetic moment of 5, 6, 3, 2, and 1 µB for V, Cr, Mn, Fe, and Co, respectively (Table 2). The non-integer spin moment observed in doped V-WSSe hints at itinerant electrons mediating magnetic interaction19,25,27. Net spin moments for the nearest W and S/Se atoms are given in Tables 1 and 2. In both doped and adsorbed systems, higher magnetic moments on the nearest W atom are shown where longer X-S/Se bond lengths (la, lb, and lo) are observed. This reflects a weak d-p-d hybridization with the dopant, suggesting relatively localized states in defect 3d-orbitals63. On the other hand, shorter X-S/Se bond lengths align with relatively lower magnetic moments on the nearest W atoms, indicating a stronger d-p-d hybridization with the dopant/adsorbed atoms, as explained in the following section.

Electronic states and spatial distribution of spin states

Next, we closely follow the effects of these dopant/adsorbed atoms on the electronic and magnetic behavior of the host material. The introduction of magnetic dopant atoms disrupted structural symmetry (due to a change in local potential) and breaks time-reversal symmetry (due to exchange energy on local d states of TM atoms). The d-p-d hybridization between TM-S/Se-W atoms is then the connection that carries the magnetic disruption all the way to produce a spatial covering of spin states (i.e., the stronger the hybridization between d-orbitals dW – dX and pS/Se– dX, the more spatially distributed spin biased states)25.

Doped system

Figure 2 shows the d-orbital PDOS and spin density plot of the TM-atom doped WSSe system (Elemental projection of DOS is shown in Fig. S2). According to ligand field theory, the dopant atom’s d-states split into a three-fold degenerate t2g (dxz, dyz, dxy) and twofold degenerate, eg \(\left(d_{z^{\mathit2}},\;d_{x^{\mathit2}-y^{\mathit2}}\right)\) orbital states in a perfect octahedral crystal field. Moreover, the structural distortion of octahedron makes the eg state further split into A1 \(\left(d_{z^{\mathit2}}\right)\) and doubly degenerate E2 \(\left(d_{xy},\mathit\;d_{x^{\mathit2}-y^{\mathit2}}\right)\) states while the t2g state is divided into E1 (dxz, dyz,) and E2 (dxy) as shown in Fig. 2(a)64,65.

Figure. 2
Figure. 2
Full size image

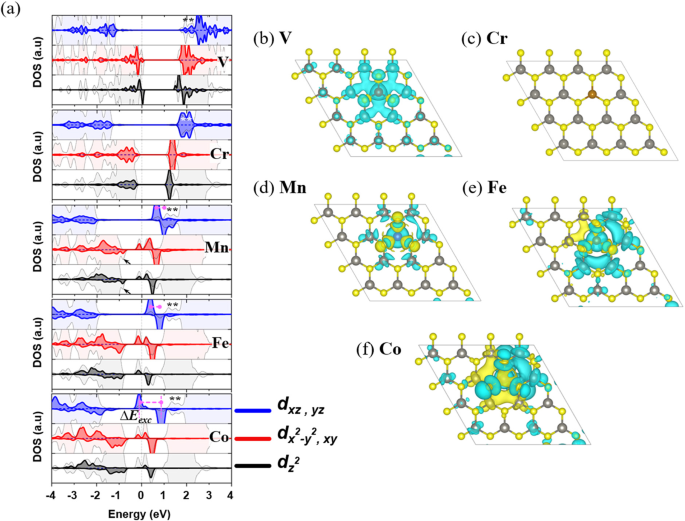

(Color Online) X-WSSe Dopped System: (a) d-Orbital projected density of states of transition metal elements (X) and W atom. Thin-line shaded plots show respective d-orbitals \(\left(d_{xz,\mathit\;yz},\;d_{x^{\mathit2}-y^{\mathit2},\;xy},\;\mathrm{and}\;d_{z^{\mathit2}}\right)\) of W atoms. Pink-colored horizontal dashed lines show the exchange energy within the dxz and dyz orbitals (∆Eexc). The asterisks ‘ ** ’ denote the antibonding d xz, yz states of host W atom. (b)-(e) Spin density isosurface plots. Green and cyan colors represent positive and negative spin states. The isosurface value is set to 6E-4 e/Bohr3. Note that states below Fermi energy in PDOS plots in (a) are to be related to the spin-density plots (b)–(f).

Regarding p-d-p hybridization with the host material, both V and Cr dopants show substantial d-d orbital overlap with the host material’s respective d-orbitals (bonding and antibonding states). Since the dxz, yzorbitals are directed to the ligand atoms forming strong sigma bonding states, we can probe the bonding character and the magnetic interaction along these bonds66. The intensity of the overlap of these orbitals reflects the strength of the d-p-d hybridization, which lowers the potential disturbance of foreign elements (dopant atoms) to the system. Looking at the non-bonding states of dxz, yz orbitals in Fig. 2(a) (i.e., peaks marked with ‘**’ in conduction band minimum within dxz, yz states), it is clearly shown that V and Cr-dopant show a strong overlap with the host materials’ dxz, yz states. However, for Mn, Fe, and Co dopants, a decreasing overlap is observed, showing a decreasing d-p-d hybridization. Moreover, closely checking the exchange energies within defect dxz, yz orbitals, as we go from V, Mn, Fe, and Co, the exchange energy in dxz, yz orbitals increases from 0.03, 0.08, 0.21, and 0.58 eV (Fig. 2(a)) indicating a more localized defect state and therefore, a decreasing d-p-d hybridization with the host material. Note that the exchange energies in dopant atom will create the corresponding asymmetry in the unperturbed states (deep states/far below from Ef) at the valence band maximum of W atoms through strong d-p-d hybridization. If the strong d-p-d hybridization is observed, the deep states show spin asymmetry of states. For instance, for the Mn-doped WSSe, a small shoulder peak in VBM of \(d_{x^{\mathit2}-y^{\mathit2},}\;_{xy}\;\mathrm{and}\;d_{z^{\mathit2}}\) states around 0.9 eV shows induced spin-polarized states with an exchange energy of 0.16 eV (see arrow-pointed peaks in Fig. 2(a)) showing the possibilities of long-range order in Mn doped WSSe6,67. However, for Fe and Co dopants, there is no clear asymmetry in the deep states, showing less likely to form a spin-polarized band for long-range order. Note that for Mn, Fe, and Co dopants, the extra electrons are in \(d_{xy},\;d_{x^{\mathit2}-y^{\mathit2}},\;\mathrm{and}\;d_{z^{\mathit2}}\) states and are pinned to the Fermi level with sharp peaks localized (see two peaks Fig. 2(a) below and above Fermi level in DOS plots).

To further assess orbital character and magnetic moment in dopped WSSe, we further checked the asymmetry of DOS in X/W atoms near and far states from Fermi and spin-density plots. Seemingly, a symmetrical spin up and down states are shown in V and Cr doped cases in dxz, yz, states, while unsymmetrical DOS is observed for dxz, yz, states in Mn, Fe and Co dopped cases. Whereas for the A1\(\left(d_{z^{\mathit2}}\right)\) and E2\(\;\left(d_{xy},\;d_{x^{\mathit2}-y^{\mathit2}}\right)\), the unsymmetrical behavior is shown even for V and Cr doped cases, including all Mn Fe and Co dopped cases (Fig. 2(a)). This shows the different energy costs (i.e., exchange energy) for the states of d-orbitals inside the crystal field. The higher the exchange energy in defect d-states, the less dimer is formed through the d-p-d hybridization. Therefore, the exchange energy in each orbital hints the orbital overlap and magnetic moment character. For instance, in the V-doped case, the calculated d-orbital exchange energy (∆Eex) with a specific magnetic quantum lm number shows dxz, yz = 0.03 eV, \(d_{x^{\mathit2}-y^{\mathit2},}\;_{-xy}\) = 0.045 eV, \(d_{z^{\mathit2}}\) = 0.143 eV. This indicates relatively strongly localized \(d_{z^{\mathit2}}\) states than \(d_{xz,\;yz}\;\mathrm{and}\;d_{x^{\mathit2}-y^{\mathit2}}\) orbitals. And thanks to strong hybridization through dxz, yz states, similar exchange energy is observed in W atoms therefore spin polarized states in \(d_{z^{\mathit2}}\) states of W atoms. This is confirmed with the spin density plot in Fig. 2(b), where a lobe on W atoms is directed along \(d_{z^{\mathit2}}\) states (c-axis), showing extra net spin moment along \(d_{z^{\mathit2}}\).

Furthermore, the spatial distribution shown in the spin density plots Fig. 2(b-f) hints at the localized or itinerant carrier magnetic moments of the dopant or host material W and S/Se atoms25,26,27,67. For instance, the significant spatial distribution of spin density in V-WSSe in Fig. 2(b) supports abundant d-state DOS overlap between the V and W atoms shown in Fig. 2a. In contrast, a localized spin density is shown for other dopant materials, Mn, Fe, and Co (Fig. 2(d-f)), indicating less hybridized d defect states. Note that the increased spatial distribution of local spin density from Mn, Fe, to Co, only reflects an increasing size of magnetic moment (i.e., 1, 2, 3µB) from extra electrons as impurity level. Note that, for Cr-doped WSSe, as there are no spin-polarized states shown in PDOS plotting (Fig. 2(a)), zero spin density is shown in Fig. 2(c).

Moreover, an asymmetrical distribution of spin density in Fe and Co (Fig. 2(e) and (f)) reflects asymmetrical bond lengths around the dopant atom, as listed in Table 1. Therefore, for Fe and Co dopants, the structural symmetry breaking induces an AFM/FM interaction for the shorter/longer magnetic interaction distances between dopant-W and S(Se) atoms57. A similar result where asymmetrical spin density resulted from Fe adatom adsorbed on MoS2S vacant is reported in61. On the other hand, all W and S/Se atoms are in a symmetrical FM interaction with the dopant V atoms, while for the Mn case, AFM/FM interaction exits for W/S(Se) atoms, respectively. Note that the magnetic interaction with the neighboring W/S(Se) atoms shows variation based on the empirical values of U for DFT + U results (Fig. S3).

Adsorbed system

Figure 3 shows the d-orbital PDOS and spin density plot of the TM-atom adsorbed on the S-face of WSSe, (Elemental projection of DOS is shown in Fig. S4). The d-orbitals of X adatom on WSSe do not split as much as it was for the doping case. Moreover, the d-states show reduced hybridization with the host material, as is shown in the slight overlapping of defect d-states and host d-states (Fig. 3(a)) compared to the doped system.

Figure. 3
Figure. 3
Full size image

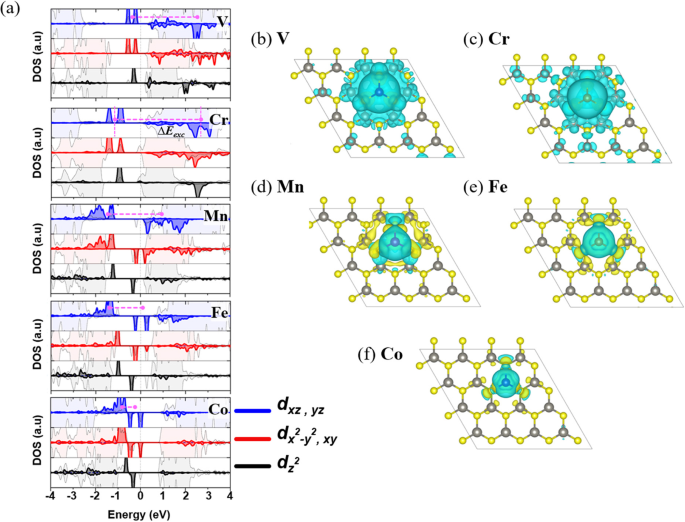

(Color Online) WSSe-X Adsorbed System: (a) d-Orbital projected density of states of transition metal elements (X) and W atom. Thin-line shaded plots show respective d-orbitals \(\left(d_{xz,\;yz},\;d_{x^{\mathit2}-y^{\mathit2},\;\;xy},\;\mathrm{and}\;d_{z^{\mathit2}}\right)\) of W atoms. Pink-colored horizontal dashed lines show the exchange energy within the d xz and d yz orbitals (∆E exc). The asterisks ‘ ** ’ denote the antibonding d xz, yz states of host W atom. (b)-(e) Spin density iso-surface plots. Green and cyan colors represent positive and negative spin states. The isosurface value is set to 6E-4 e/Borh3. Note that states below Fermi energy in PDOS plots in (a) are to be related to the spin-density plots (b) –(f).

Moreover, in Fig. 3(a) a relatively narrow width of d-states and predominantly localized spin-density are shown for both V and Cr adatoms (Fig. 3(b) and (c)), which goes in line with the fact that both V and Cr have a relatively higher adsorption height. Whereas for adatoms of Mn, Fe, and Co, with relatively lower adsorption heights (Fig. 1(d)), d-orbitals are relatively dispersed (i.e., wider width DOS in Fig. 3(a)). For a given adatom, a more dispersed DOS for d-orbital confirms an integrated adatom, while a narrow and non-overlapped (with the host material) DOS reflects a less integrated adatom. Therefore, Mn, Fe, and Co integrate more with the host material WSSe than V and Cr adatoms. This, again, is in line with a decreasing exchange energy cost in dxz, yz orbital (orbital directed to the ligand S atoms). The dxz, yz orbital exchange energy cost for each adatom is 3.1, 4.2, 2.4, 1.2, and 0.6 for V, Cr, Mn, Fe, and Co, respectively (Fig. 3(a)). Moreover, compared to V and Cr adatoms, \(d_{x^{\mathit2}-y^{\mathit2},\;\;xy}\) orbital have larger overlap with \(d_{x^{\mathit2}-y^{\mathit2},\;xy}\) orbitals of W atom for Mn, Fe, and Co adatoms thereby increasing the binding energy and shortening the adsorption height. Therefore, a general simple picture is that the adsorption height reflects the bonding and, hence, d-p-d hybridization, which directs electronic and magnetic properties.

Moreover, here we need to consider the ionic radii effect as we go from V+5, Cr+6, Mn+1, Fe+2 to Co+3(0.4, 0.35, 0.7, 0.67, 0.64)68, which dictates the spatial overlap of orbitals and localization of bonding electrons. For a given adatom element (i.e., with the same electronegativity), the smaller the atomic size, the lower the overlap of orbitals and less hybridization68. Therefore, a general picture can be deducted considering the ionic radii together with adatom’s electronegativity (that can lead to the absorption height) and hence dictates magnetic exchange interactions distances (i.e., between TM-W), which resulted in FM (V and Cr) and AFM (Mn, Fe, and Co) magnetic exchange interactions. This can be understood as when the shared electrons hop between sites within a shorter distance, an AFM interaction tends to lower energy. In contrast, in the more extended interaction, the FM interaction favors lowering the system’s energy63,69. For the V-WSSe case, for instance, the FM spin interaction exists for both interactions between the V -S/Se and the V-W atoms (shown as the same color in Fig. 3(b)). In the Mn-WSSe doped case, the Mn-W interaction shows FM, while Mn-S/Se shows AFM interactions (shown as the different colors in Fig. 3(d))70.

Magnetic Anisotropy Energy (MAE)

In the following section, we systematically presented the MAE results, thereby presenting the easy axis and its relation with the d-states of a magnetically ‘seasoned’ WSSe. Figure 4. shows the MAE results for both doping (Fig. 4(a)) and adsorbed (Fig. 4(b)) systems for which the easy axis lies mainly along the c-axis for both systems. For V and Cr adsorbed cases, however, the easy axis lies in the a-b plane. This difference can be roughly attributed to the adsorption height (h), in which both V and Cr atoms have relatively longer adsorption heights than the rest of the adatoms. This result is in line with ample reports where the adsorption height influences a switch in the easy axis of the adsorbed system71,72,73,74. However, the origin of MAE in a crystal can be understood by treating the SOC as a perturbation in the crystal field of the system. Therefore, a clear SOC and orbital contribution map is essential.

Figure. 4
Figure. 4
Full size image

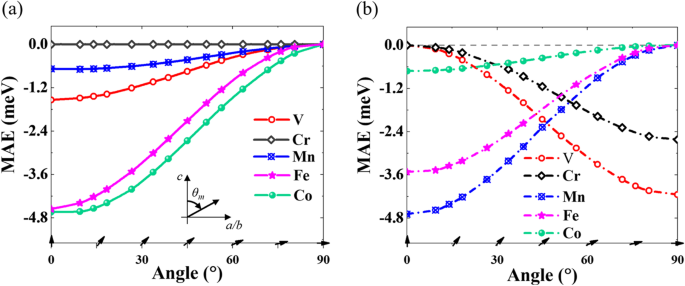

(Color Online) Magnetic Anisotropy in (a) Dopped and (b) Adsorbed System. Note that in the Cr-dopped system, there is no magnetism, as shown in Fig. 2(c). Inset in (a) shows angle θm swept from the c-axis to the a-b plane. Note that a relative energy value is displayed, i.e., the lowest number shows the easy axis. The arrows at the horizontal axis showing spin directions are a guide to the eye.

Magnetic anisotropy is mainly dictated by two significant contributions: (1) Orbital moment anisotropy (spin-conserving) and (2) Magnetic dipole moment (spin-flipping)75,76. Neglecting the spin-flip term (because of low proportions of either majority or minority states near the Fermi level, (Figs. 2(a) and 3(a)), accounting SOC in the doped/adsorbent WSSe, lowers the energy of a system by, \(H=-\xi\:\widehat L\cdot\widehat S=-\widehat S\:\cdot\Lambda\cdot\widehat S=DS+E\left(S_x^2-S_y^2\right)\)76,77 (here \(\:\xi\:\) is SOC constant), where \(\Lambda\) is the tensor of the SOC, \(\:D=\:\Lambda_{zz}-\frac{\left(\Lambda_{xx}+\Lambda_{yy}\right)}2\:\) and \(\:E=\frac{\left(\Lambda_{xx}\:-\Lambda_{yy}\right)}2\:\). Where, \(\Lambda_{xx},\Lambda_{yy}\:,\Lambda_{zz}\:\)are the diagonal elements of SOC tensor given by

$$\Lambda_{ii}={\xi\:}^2{\textstyle\sum_{nm}}\frac{\left\langle m\vert{\widehat L}_i\vert n\right\rangle\left\langle m\vert{\widehat L}_i\vert n\right\rangle}{E_n-E_m}$$
(1)

where \(\:{\widehat{L}}_{i}=\:{\widehat{L}}_{x},\:{\widehat{L}}_{y},\:{\widehat{L}}_{z}\) stands for three anisotropic components of the orbital moment operator \(\:\widehat{\varvec{L}}\), \(\left|\mathrm n>\right.\mathrm{and}\:{\mathrm E}_{\mathrm n}\:\left(\left|\mathrm m>\right.\mathrm{and}\:{\mathrm E}_{\mathrm m}\:\right)\:\)are the wavefunctions and the corresponding eigen-energies of the occupied (unoccupied) electron states, respectively (i.e., near Fermi states). The above equation indicates that the gap in the localized electronic states around Fermi energy (i.e., denominator energy values, occupied and unoccupied states) is inversely related to the calculated unquenched orbital moments61,75,77,78.

To understand the relationship between calculated MAE results and d-states, d-orbital resolved MAE is a suitable probing method. In the X-WSSe system, the diagonal elements of SOC tensor \(\Lambda\)have the unquenched orbital moment operators \(<d_{xy}\vert\boldsymbol L\boldsymbol z\vert d_{x^{\mathit2}-y^{\mathit2}}>\) as its primary contributor (Figs. S5 and S6). According to Eq. (1), this can be reasoned as; since \(d_{xy}\;\mathrm{and}\;d_{x^{\mathit2}-y^{\mathit2}}\) orbitals are dominant near Fermi energy (Figs. 2(a) and 3(a)) the denominator in Eq. (1), (\(\:{E}_{n}-{E}_{m}\)), will have a lower value (i.e., a small energy gap), thereby mounting the contribution of |Lz| operator. In Fig. 5, a matrix representation of two dominant operators |Lz| and |Lx| in both doped (Fig. 5(a) and (c)) and adsorbed (Fig. 5(b) and (d)) systems is shown. In all TM elements, the nearest W atom in the adsorbed case contributes more to MAE than the doped case. Moreover, the contribution of X and W atoms is directed to the same easy axis except for Cr-adatom, which in both |Lz| and |Lx| operators opposing contribution from X and W atom is shown. This is reflected in a reduced total MAE shown in Fig. 4(b) compared to the V-adatom. For the V-WSSe adsorbed system, on the other hand, the contribution of |Lz| and |Lx| operators oppose each other, showing a possible tunability of MAE via external stimuli.

Furthermore, a local distortion of symmetry in both dopped (Fe and Co) and adsorbed systems (Mn and Co) is shown to enhance the system’s MAE by removing the degenerate states of E1 and E2 [19,34]. By removing the degenerate dxy and dx2−y2 states, the energy gap denominator in Eq. (1) decreases further, enlarging the SOC tensor’s diagonal elements75,79. Moreover, the density of states near fermi gets enlarged which will cause the MAE increase according to Eq. (1).

Figure. 5
Figure. 5
Full size image

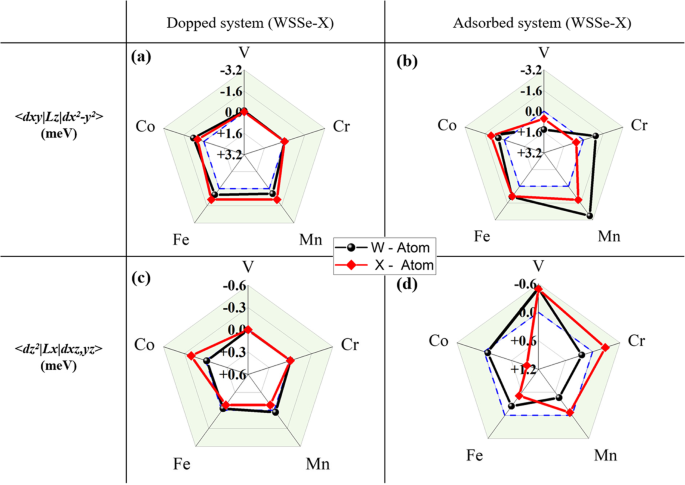

(Color Online) Orbital resolved MAE matrix for X and nearest W atoms. Contribution of two unquenched orbital operators |Lz| and |Lx| in Dopped (a, c) and Adsorbed (b, d) WSSe-X system. (a) and (b) \(<d_x\vert Lz\vert d_{x^{\mathit2}-y^{\mathit2}}>\!\!/\) (c) and (d) < dz2|Lx|dxz, yz>. The blue dashed line represents a zero MAE value. Note that for both |Lz| and |Lx| operators, positive/negative sign contribution stabilizes the easy axis along the c-axis/a-b plane.

However, the easy axis switch (i.e., from doped to adsorbed system) of V atom and in-plane easy axis in Cr-adsorbed can be explained with the magnetic spin-flip term (i.e., quadrupole term, or magnetic dipole moment) included in the Hamiltonian of SOC75,76,80 as given by:

$$\:{H}_{}^{SOC}=\frac{\xi\:}{4}{\varDelta\:m}_{orb}+\frac{21}{2}\frac{{\xi\:}^{2}}{{\varDelta\:}_{exc}}{m}_{T}$$
(2)

Here, ∆morb and mT are the orbital moment anisotropy and magnetic dipole moment, respectively, and ξ and ∆exc are the SOC constant and exchange splitting of the corresponding materials, respectively. The first and second terms in Eq. (2) are the spin-conserving and spin-flip terms, respectively. According to Bruno’s model (which neglects the spin-flip term in Eq. (2)), MAE is proportional to the difference between orbital moments along the easy and hard directions77,81,82. However, the orbital moment anisotropy remains positive in all the adatoms, as shown in Fig. S7(b). Therefore, MAE’s other contribution comes from the spin-flip term. The spin-flip term of MAE is described by the magnetic dipole moment, indicating that the origin of the perpendicular MAE can be attributed to the shape of spin density rather than the orbital moment anisotropies77,79. This aligns with the spin density shown in Fig. 3(b) and (c), where a significant oblate spin distribution is seen around adatoms V and Cr. Moreover, as shown in Fig. 3(a), only for the adsorbed V and Cr atom cases, there are no same-spin \(d_{xy}\;\mathrm{and}\;d_{x^{\mathit2}-y^{\mathit2}}\) states below and above Fermi energy, while there are plenty of opposite-spin \(d_{xy}\;\mathrm{and}\;d_{x^{\mathit2}-y^{\mathit2}}\) states near Fermi energy. This will cause the spin-conserving term to diminish. Therefore, the flip term in the Hamiltonian dominates MAE in which the contribution favors the a-bplane easy axis75,77. Consequently, we conclude that for both V and Cr-adsorbed systems, the finite quadrupole-like orbital distortion through spin-flipped electron hopping is dominant and originates from relatively strongly localized d-states of V and Cr ions79.

Considering the elemental contribution of MAE, we have found that the heavy W atom in the host material has a significant contribution in both doped and adsorbed system cases (Fig. 5). Furthermore, site-dependent MAE plots in V and Co systems show that W atoms’ contribution falls as we move away from the dopant/adsorbed atom (Fig. S8).

Table 3 Comparative summary table. An inclusive Doped and Adsorbed System structural, d-p-d hybridization (d-p-d), stability, and MAE results in comparison. Ionic radii (ṙ), Difference in Electronegativity (∆χ) = (χ)W- (χ)X, Bond length difference from the host W-S/Se bond length (%) ∆lb / ∆la, Stability measured as Ef or Eb for doped and adsorbed system respectively. Note that d-p-d hybridization (d-p-d) is expressed in a qualitative word based on V-WSSe results as a base.
Full size table

Table 3 shows a representative summary table of the relationship between atomic (ionic) radii, stability of the system (formation energy/binding energy), and electronegativity of the dopant (adatom). Considering the stability of the system, V-doped and Co-adsorbed systems are comfortably formed (i.e., very little energy required for V-dopant and larger binding energy for Co adatom), whereas for induced MAE value and c-axis direction, Co-doped and Mn-adsorbed possess the highest values along the c-axis. On the other hand, for long-range magnetic order, the V-doped system is best as observed in well-overlapped DOS and spatial distribution of spin density, which shows strong d-p-dhybridization with host WSSe while Mn-dopped system also shows a substantial overlap of DOS, matching to the possible long-range magnetic order reported67.

Conclusion

In summary, we have systematically studied the effects of defect states of transition metal atoms (V, Cr, Mn, Fe, and Co) on doped and adsorbent Janus WSSe on the basis of the first-principles calculations. Throughout the study, we focused on three main points: (1) structural parameters (i.e., bond length and adsorption heights), (2) d-p-d hybridization and defect states, and (3) magnetic anisotropy. We have tried to elucidate the relationship between these three aspects in light of magnetic exchange interactions and spatial spin density distribution. Spatial spin-density distribution, which is directly related to a long-range magnetic ordering, results from a well-integrated adatom/dopant and, therefore, the induced slight onsite exchange energy in W atoms. Considering the relationship of spin-density distribution with MAE, the MAE for both dopant and adatom is mainly contributed from the spin-conserving term of SOC Hamiltonian (which is insensitive to spin-density distribution); however, for polarized lobe spin-density distribution, the spin-flip term (i.e., spin dipole moment) becomes significant, and dictates the easy axis, as was observed in V and Cr adatoms. From our results, we have shown that:

  1. (1)

    On the doped system, the size of ionic size and the relative electronegativity of the atom dictate the d-p-d hybridization (and, therefore, the splitting of defect states) and, consequently, the stability of the doped system. On the other hand, the symmetry breaking of X-S/Se bonds (from C3v symmetry to Cs) leads to an enhanced MAE.

  2. (2)

    In the adsorbed system, the adsorption height, which is governed by the atomic size of the adatoms, dictates the position of defect states and, therefore, the stability of the adsorbed system. Again, the symmetry breaking in the X-S/Se bond leads to enhanced MAE, while the easy axis is shown to be influenced by spin density distribution.

The finding in this theoretical report serves as a guide for further exploration of the magnetic properties of doped/adsorbent WSSe and other 2D materials to search for long-range magnetic orderings.
