Characterization of entropy measures with connection number based indices of boric acid hydrogen-bonded 2D lattice sheets

Abstract

The cut method is a computational approach utilized to predict the fundamental activities of physicochemical properties of chemical networks, also called topological indices. The connection number is a new idea, that gives interesting and good results of the topological indices (TIs) and entropy measures (EMs) for structural representation of chemical compounds and networks. The physical density of chemical networks is characterized by these indices. In this paper, we determined the computational results for indices based on connection numbers for a two-dimensional lattice sheet of hydrogen-bonded boric acid. Boric acid, an inorganic compound, is not very harmful when applied to the skin or consumed. Finally, graphical and numerical comparisons of topological numbers including the number of borate hydrogen-bonded double lattice forms are also included in this study.

Introduction and literature review

In mathematical chemistry, chemical graph theory uses graph theory to explore the topological structure or networks of chemical compounds. Chemical graph theory is fruitful in many areas of mathematical chemistry. Atoms and their bonds in a chemical structure are represented by the vertices and edges of the chemical graph, respectively. Graph theory is crucial for predicting molecular structure using the Topological Index (TI)¹. TI’s research is important for drug research and provides insight into molecular behaviour and properties. These parameters derived from molecular imaging provide a numerical approximation of specific molecular features that are non-uniform in image migration. Their importance lies in the ability to measure the difference between physical or chemical processes based on changes in molecular structure. The TI’s assist in the numerical evaluation of molecular structures, providing a real way to measure physicochemical and structural properties prior to compound production². By examining changes in index values, researchers can capture connections or expectations between molecular structures and desired functions or properties, such as mutagenicityor carcinogenicity, given by³.

The hypothetical work has significant ability to streamline drug design processes, identifying potent anti-HIV agents⁴, anti-cancer compounds⁵, lowering support on costly trial-and-error synthesis approaches. The flexibility of topological indices increases theoretical explorations, advancing in organic synthesis planning, compound classification, and bioactivity estimations. While these techniques have indicated varying degrees of success, ongoing innovations in chemical and topological knowledge, linked with the incorporation of information technology, are estimated to improve their reliability and efficiency in the future.

This article related with the application of entropy measures and other topological indices in molecular descriptors to assess structure-function relationships of different molecules and materials. It discusses recent improvements in entropy measures and their connection with other topological indices, such as information theoretic indices. The aim is to determine the appropriate topological indices and their entropy measures for some molecular structures. Graphs are very important for characterizing and studying molecules and atoms, with vertices and edges, denoting atoms and bonds. The analysis of graph complication via entropy has been considered by various disciplines, including computer science, statistical physics, chemistry, and life sciences. Entropy measures have been used in several research areas, including chemical sciences, mathematical information theory, social sciences, ecology, health sciences, and genetics.

The Randic index-formerly known as the branching index-is especially helpful for determining how much a saturated hydrocarbon’s carbon atom framework is branching. The first and second Zagreb indices were first introduced in⁶ by Gutman and Transjistic, who utilized them to explain branching problems. The study of chirality⁷, molecular complexity^8,9, ZE isomerism¹⁰, and benzenoid hydrocarbons¹¹ includes the fields in which these Zagreb indices and their different types are used. Furthermore, the overall Zagreb indices are used to find multilinear regression models^12,13. According to^14,15, the connection between the ABC index and the thermodynamic properties of alkanes are considerable. To learn more about the calculation of graph topological indices, see^16,17,18,19.

Recently a new concept, the connection number based indices are introduced and the researchers have started working on these connection number based TIs rapidly. Tang et al.²⁰ and Ali et al.²¹ determined exact values of connection number based indices and their modified versions for subdivision-related operations on graphs. Cao et al.²² gave the upper bounds for connection based Zagreb indices of product-related graphs. Ahmad et al.²³ exact values of connection number based indices for Backbone DNA Networks. The connection number based indices for cellular neural networks²⁴, wheel related graphs²⁵, triangular chain structures²⁶ and Skin Cancer Drugs²⁷ are calculated. Further article related to connection number indices are listed in^28,29,30.

In the discipline of topological indices, entropy measures are being used more and more because they provide practical information on the information content and fundamental complexity of molecular networks³¹. The measurement of fundamental complexity and multiplicity in molecular graphs is one of the most familiar utilities of entropy measures in topological indices³². The degree of disorder or uncertainty in molecular structures can be determined using entropy-based indices; this degree of uncertainty is normally associated with properties like molecular stability, reactivity, and biological activity³³. Several entropy metrics have been particularly constructed to be used with topological indices³⁴. Additionally, entropy metrics in topological indices are helpful in a variety of fields, including bioinformatics, materials science, chemoinformatics, and drug discovery, see^35,36,37. The concept of entropy was introduced by Chen et al.³⁸, and is defined as

$$\begin{aligned} ENT_{\Omega }=\sum \limits _{\wp \Im \in E(G)} \frac{\Omega (\wp \Im )}{\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im )}\log \Big \{\frac{\Omega (\wp \Im )}{\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im )}\Big \}. \end{aligned}$$

(1.1)

• 1. The first Zagreb connection index entropy: if $\Omega (\wp \Im )=\Big (\xi _\wp + \xi _\Im \Big ).$ Then

  $$\begin{aligned} FZCI(G)=\sum \limits _{\wp \Im \in E(G)} \left( \xi _\wp +\xi _\Im \right) =\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.2)

  By using this equation in Eq. (1.1), we get the first Zagreb connection index entropy:

  $$\begin{aligned} ENT_{FZCI(G)}=\log (FZCI(G))-\frac{1}{FZCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big [\xi _\wp +\xi _\Im \Big ]^{\xi _\wp +\xi _\Im }\Big \}. \end{aligned}$$

  (1.3)

• 2. The second Zagreb connection index entropy: if $\Omega (\wp \Im )=\Big (\xi _\wp \times \xi _\Im \Big ).$ Then

  $$\begin{aligned} SZCI(G)=\sum \limits _{\wp \Im \in E(G)} \left( \xi _\wp \times \xi _\Im \right) =\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.4)

  By using this equation in Eq. (1.1), we get the second Zagreb connection index entropy:

  $$\begin{aligned} ENT_{SZCI(G)}=\log (SZCI(G))-\frac{1}{SZCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big [\xi _\wp \times \xi _\Im \Big ]^{\xi _\wp \times \xi _\Im }\Big \}. \end{aligned}$$

  (1.5)

  The remaining entropies were found in^34,39, that are defined as:

• 3. The Randić connection index entropy: if $\Omega (\wp \Im )=\Big (\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}\Big ).$ Then

  $$\begin{aligned} RC(G)=\sum \limits _{\wp \Im \in E(G)} \Big (\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}\Big )=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.6)

  By using this equation in Eq. (1.1), we get the Randić connection index entropy:

  $$\begin{aligned} ENT_{RC(G)}=\log (RC(G))-\frac{1}{RC(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big [\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}\Big ]^{\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}}\Big \}. \end{aligned}$$

  (1.7)

• 4. The sum connectivity connection index entropy: if $\Omega (\wp \Im )=\Big (\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}\Big ).$ Then

  $$\begin{aligned} SCCI(G)=\sum \limits _{\wp \Im \in E(G)} \Big (\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}\Big )=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.8)

  By using this equation in Eq. (1.1), we get the sum connectivity connection index entropy:

  $$\begin{aligned} ENT_{SCCI(G)}=\log (SCCI(G))-\frac{1}{SCCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}\Big )^{\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}}\Big \}. \end{aligned}$$

  (1.9)

• 5. The atom-bond connectivity connection index entropy: if $\Omega (\wp \Im )=\sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}.$ Then

  $$\begin{aligned} ABCCI(G)=\sum \limits _{\wp \Im \in E(G)} \sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.10)

  By using this equation in Eq. (1.1), we get the atom-bond connectivity connection index entropy:

  $$\begin{aligned} ENT_{ABCCI(G)}=\log (ABCCI(G))-\frac{1}{ABCCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}\Big )^{\sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}}\Big \}. \end{aligned}$$

  (1.11)

• 6. The geometric-arithmetic connection index entropy: if $\Omega (\wp \Im )=\frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }.$ Then

  $$\begin{aligned} GACI(G)=\sum \limits _{\wp \Im \in E(G)} \frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.12)

  By using this equation in Eq. (1.1), we get the geometric-arithmetic connection index entropy:

  $$\begin{aligned} ENT_{GACI(G)}=\log (GACI(G))-\frac{1}{GACI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }\Big )^{\frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }}\Big \}. \end{aligned}$$

  (1.13)

• 7. the augmented Zagreb connection index entropy: if $\Omega (\wp \Im )=\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2}\Big )^3.$ Then

  $$\begin{aligned} AZCI(G)=\sum \limits _{\wp \Im \in E(G)} \Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2}\Big )^3=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.14)

  By using this equation in Eq. (1.1), we get the augmented Zagreb connection index entropy:

  $$\begin{aligned} ENT_{AZCI(G)}=\log (AZCI(G))-\frac{1}{AZCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2}\Big )^3\Big )^{\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2}\Big )^3}\Big \}. \end{aligned}$$

  (1.15)

• 8. The symmetric division degree connection index entropy: if $\Omega (\wp \Im )=\Big (\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im } \Big ).$ Then

  $$\begin{aligned} SDDCI(G)=\sum \limits _{\wp \Im \in E(G)} \Big (\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im } \Big )=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.16)

  By using this equation in Eq. (1.1), we get the symmetric division degree connection index entropy:

  $$\begin{aligned} ENT_{SDDCI(G)}=\log (SDDCI(G))-\frac{1}{SDDCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im } \Big )^{\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im }}\Big \}. \end{aligned}$$

  (1.17)

• 9. The harmonic connection index entropy: if $\Omega (\wp \Im )=\Big (\frac{2}{\xi _\wp +\xi _\Im }\Big ).$ Then

  $$\begin{aligned} HCI(G)=\sum \limits _{\wp \Im \in E(G)} \Big (\frac{2}{\xi _\wp +\xi _\Im }\Big )=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.18)

  By using this equation in Eq. (1.1), we get the harmonic connection index entropy:

  $$\begin{aligned} ENT_{HCI(G)}=\log (HCI(G))-\frac{1}{HCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\frac{2}{\xi _\wp +\xi _\Im }\Big )^{\frac{2}{\xi _\wp +\xi _\Im }}\Big \}. \end{aligned}$$

  (1.19)

• 10. The inverse sum connection index entropy: if $\Omega (\wp \Im )=\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }\Big ).$ Then

  $$\begin{aligned} ISCI(G)=\sum \limits _{\wp \Im \in E(G)} \Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }\Big )=\sum \limits _{\wp \Im \in E(G)} \Omega (\wp \Im ), \end{aligned}$$

  (1.20)

  By using this equation in Eq. (1.1), we get the inverse sum connection index entropy:

  $$\begin{aligned} ENT_{ISCI(G)}=\log (ISCI(G))-\frac{1}{ISCI(G)}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }\Big )^{\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }}\Big \}. \end{aligned}$$

  (1.21)

Main results

In this study, we determined the TIs and entropy measures based on connection numbers for the structure of boric acid. Boric acid, is well known an inorganic compound used for cleaning and food preservation, its chemical formula H3BO3 or B(OH)3, also known by several names such as orthoboric acid, boracic acid, hydrogen borate, and acidum boricum, it has been utilized since ancient Greece^40,41. This flexible material is used in many different productions, such as the production of jewellery, LCD displays, nuclear reactors, pH-regulating buffers in swimming pools, lubricants and flame retardants. The importance of boric acid in the discipline of inorganic chemistry cannot be exaggerated^40,41.The solubility of the chemical is significantly influenced by temperature. In order to control neutron reactivity in the core of the reactor, boric acid is dissolved in the reactor coolant and acts as a soluble neutron absorber, soluble poison, or chemical shim⁴². The existence of a high boron level shows the commencement of a fuel cycle and acts to balance additional reactivity within the core⁴³. Fuel burn-up, temperature changes, core reactivity, and the build-up of additional poisons such as xenon and samarium all influence to the quantity being decreased throughout the fuel cycle⁴⁴. The first crystals of boric acid were constructed by Wilhelm Hornberg in 1702, who named it sal sedativum Hombergi (sedative salt of Hornberg). In the construction of boric acid, planar BO3 units are bonded by hydrogen bonds, forming a polymeric layer structure, boric acid is considered as a 2D sheet in the Fig. 2, for further detail⁴⁵.

In this section, we computed topological indices for the boric acid hydrogen-bonded 2D lattice sheets using the data from the edge partition with connection numbers. The Fig. 1 is a graph of Unit cell boric acid hydrogen-bonded 2D lattice sheets. Let the graph $\mathfrak {BAH}_{p,q}$ be a boric acid hydrogen-bonded 2D lattice sheets with $E_{\wp ,\Im }$ are edges with end vertices have connection number $\xi _{\wp }$ and $\xi _{\Im }.$ The order and size of the graph $\mathfrak {BAH}_{p,q}$ are $28pq+14p+28q$ and $36pq+16p+32q-2.$ We partitioned the edges based on the connection numbers of the end vertices are as follows: 2, 3; 3, 3; 3, 4; 3, 5; 4, 4; 4, 5; 4, 6. Now, we determine the cardinalities of these edge partitions. The number of edges of each type ($\xi _\wp , \xi _\Im$) are shown in Table 1

Table 1 The edge partition of $\mathfrak {BAH}_{p,q}$ based on the connection numbers of the end vertices.

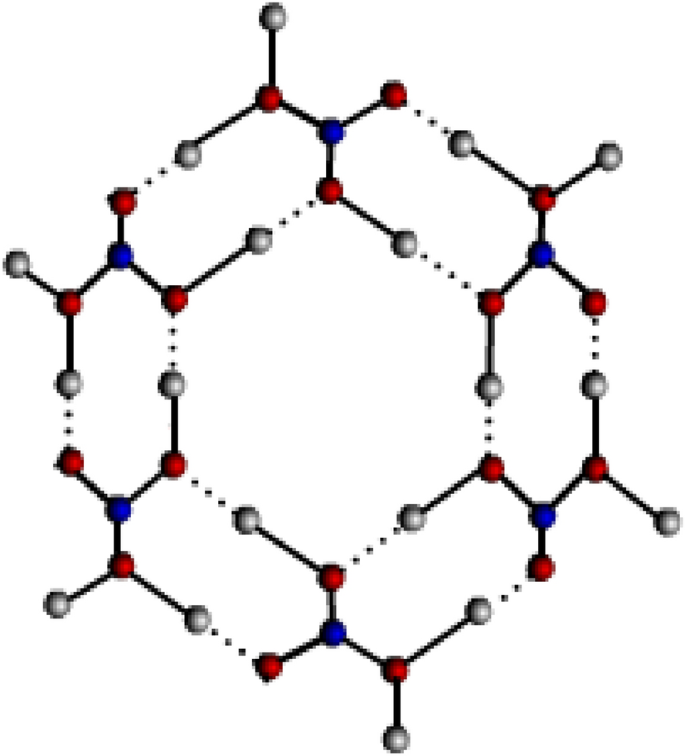

Fig. 1

Unit cell of boric acid hydrogen-bonded 2D lattice sheets.

Topological indices

By using the values of Table 1, the first Zagreb connection index calculated as:

$$\begin{aligned} FZCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\xi _\wp +\xi _\Im \Big )\nonumber \\&= (2p+4q+2)(2+3)+(2p+6q+6)(3+3)+(4p+4q-4)(3+4)+(4p+8q+4)(3+5)\nonumber \\&\quad +(24pq+2p+6q-6)(4+4)+(2p+4q+2)(4+5)+(12pq-6)(4+6)\nonumber \\&= 312 pq +116 p +232 q -40 \end{aligned}$$

(2.22)

By using the values of Table 1, the second Zagreb connection index calculated as:

$$\begin{aligned} SZCI(\mathfrak {BAH}_{p,q})&= \sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\xi _\wp \times \xi _\Im \Big )\nonumber \\&= (2p+4q+2)(2\times 3)+(2p+6q+6)(3\times 3)+(4p+4q-4)(3\times 4)+(4p+8q+4)(3\times 5) \nonumber \\&\quad + (24pq+2p+6q-6)(4\times 4)+(2p+4q+2)(4\times 5)+(12pq-6)(4\times 6)\nonumber \\&= 672 pq +210 p +422 q -122 \end{aligned}$$

(2.23)

By using the values of Table 1, the Randić connection index calculated as:

$$\begin{aligned}RC(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}\Big )\nonumber \\&=(2p+4q+2)(\frac{1}{\sqrt{2\times 3}})+(2p+6q+6)(\frac{1}{\sqrt{3\times 3}})+(4p+4q-4)(\frac{1}{\sqrt{3\times 4}})+(4p+8q+4)(\frac{1}{\sqrt{3\times 5}}) \nonumber \\&\quad + (24pq+2p+6q-6)(\frac{1}{\sqrt{4\times 4}})+(2p+4q+2)(\frac{1}{\sqrt{4\times 5}})+(12pq-6)(\frac{1}{\sqrt{4\times 6}})\nonumber \\&= \left( 6+\frac{4 \sqrt{6}}{3}\right) pq +\left( \frac{\sqrt{6}}{3}+\frac{7}{6}+\frac{2 \sqrt{3}}{3}+\frac{4 \sqrt{15}}{15}+\frac{\sqrt{5}}{5}\right) p +\left( \frac{2 \sqrt{6}}{3}+\frac{7}{2}+\frac{2 \sqrt{3}}{3}+\frac{8 \sqrt{15}}{15}+\frac{2 \sqrt{5}}{5}\right) q \nonumber \\&\quad -\frac{\sqrt{6}}{6}+\frac{1}{2}-\frac{2 \sqrt{3}}{3}+\frac{4 \sqrt{15}}{15}+\frac{\sqrt{5}}{5} \nonumber \\ &=8.4495 pq + 4.6179 p + 9.2477 q + 0.41702 \end{aligned}$$

(2.24)

By using the values of Table 1, the sum Connectivity connection index calculated as:

$$\begin{aligned}SCCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}\Big )\nonumber \\&=(2p+4q+2)(\frac{1}{\sqrt{2+ 3}})+(2p+6q+6)(\frac{1}{\sqrt{3+ 3}})+(4p+4q-4)(\frac{1}{\sqrt{3+ 4}})+(4p+8q+4)(\frac{1}{\sqrt{3+ 5}})\nonumber \\&\quad +(24pq+2p+6q-6)(\frac{1}{\sqrt{4+ 4}})+(2p+4q+2)(\frac{1}{\sqrt{4+ 5}})+(12pq-6)(\frac{1}{\sqrt{4+ 6}})\nonumber \\&=\left( 6 \sqrt{2}+\frac{8 \sqrt{10}}{5}\right) pq +\left( \frac{2 \sqrt{5}}{5}+\frac{\sqrt{6}}{3}+\frac{4 \sqrt{7}}{7}+\frac{3 \sqrt{2}}{2}+\frac{2}{3}\right) p +\left( \frac{4 \sqrt{5}}{5}+\sqrt{6}+\frac{4 \sqrt{7}}{7}+\frac{7 \sqrt{2}}{2}+\frac{4}{3}\right) q\nonumber \\&\quad +\frac{2 \sqrt{5}}{5}+\sqrt{6}-\frac{4 \sqrt{7}}{7}-\frac{\sqrt{2}}{2}+\frac{2}{3}-\frac{3 \sqrt{10}}{5} \nonumber \\&=12.280015 pq + 6.0108 p + 12.033 q - 0.1058 \end{aligned}$$

(2.25)

By using the values of Table 1, the atom-bond connectivity connection index calculated as:

$$\begin{aligned}ABCCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }} \nonumber \\&=(2p+4q+2)\sqrt{\frac{2+3-2}{2\times 3}}+(2p+6q+6)\sqrt{\frac{3+3-2}{3\times 3}}+(4p+4q-4)\sqrt{\frac{3+4-2}{3\times 4}}\nonumber \\&\quad +(4p+8q+4)\sqrt{\frac{3+5-2}{3\times 5}}+(24pq+2p+6q-6)\sqrt{\frac{4+4-2}{4\times 4}}+(2p+4q+2)\sqrt{\frac{4+5-2}{4\times 5}}\nonumber \\&\quad +(12pq-6)\sqrt{\frac{4+6-2}{4\times 6}}\nonumber \\&=\left( 6 \sqrt{6}+\frac{16 \sqrt{3}}{3}\right) pq +\left( \sqrt{2}+\frac{4}{3}+\frac{2 \sqrt{15}}{3}+\frac{4 \sqrt{10}}{5}+\frac{\sqrt{6}}{2}+\frac{\sqrt{35}}{5}\right) p\nonumber \\&\quad +\left( 2 \sqrt{2}+4+\frac{2 \sqrt{15}}{3}+\frac{8 \sqrt{10}}{5}+\frac{3 \sqrt{6}}{2}+\frac{2 \sqrt{35}}{5}\right) q +\sqrt{2}+4-\frac{2 \sqrt{15}}{3}+\frac{4 \sqrt{10}}{5}-\frac{3 \sqrt{6}}{2}+\frac{\sqrt{35}}{5}-2 \sqrt{3} \nonumber \\&= 21.6251 pq + 10.267 p + 20.510 q - 0.5932 \end{aligned}$$

(2.26)

By using the values of Table 1, the Geometric-arithmetic connection index calculated as:

$$\begin{aligned}GACI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})} \frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }\nonumber \\&=(2p+4q+2)\Big (\frac{2\,\sqrt{2\times 3}}{2+3}\Big )+(2p+6q+6)\Big (\frac{2\,\sqrt{3\times 3}}{3+3}\Big )+(4p+4q-4)\Big (\frac{2\,\sqrt{3\times 4}}{3+4}\Big ) \nonumber \\&\quad +(4p+8q+4)\Big (\frac{2\,\sqrt{3\times 5}}{3+5}\Big )+(24pq+2p+6q-6)\Big (\frac{2\,\sqrt{4\times 4}}{4+4}\Big )+(2p+4q+2)\Big (\frac{2\,\sqrt{4\times 5}}{4+5}\Big )\nonumber \\&\quad +(12pq-6)\Big (\frac{2\,\sqrt{4\times 6}}{4+6}\Big )\nonumber \\&= \left( 24+\frac{32 \sqrt{6}}{5}\right) pq +\left( \frac{4 \sqrt{6}}{5}+4+\frac{16 \sqrt{3}}{7}+\sqrt{15}+\frac{8 \sqrt{5}}{9}\right) p +\left( \frac{8 \sqrt{6}}{5}+12+\frac{16 \sqrt{3}}{7}+2 \sqrt{15}+\frac{16 \sqrt{5}}{9}\right) q \nonumber \\&\quad -\frac{8 \sqrt{6}}{5}-\frac{16 \sqrt{3}}{7}+\sqrt{15}+\frac{8 \sqrt{5}}{9}\nonumber \\&=35.7576 pq + 15.780 p + 31.599 q - 2.0177 \end{aligned}$$

(2.27)

By using the values of Table 1, the augmented Zagreb connection index calculated as:

$$\begin{aligned}AZCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2}\Big )^3\nonumber \\&=(2p+4q+2)\Big (\frac{2\times 3}{2+3-2}\Big )^3+(2p+6q+6)\Big (\frac{3\times 3}{3+3-2}\Big )^3+(4p+4q-4)\Big (\frac{3\times 4}{3+4-2}\Big )^3\nonumber \\&\quad +(4p+8q+4)\Big (\frac{3\times 5}{3+5-2}\Big )^3+(24pq+2p+6q-6)\Big (\frac{4\times 4}{4+4-2}\Big )^3+(2p+4q+2)\Big (\frac{4\times 5}{4+5-2}\Big )^3\nonumber \\&\quad +(12pq-6)\Big (\frac{4\times 6}{4+6-2}\Big )^3\nonumber \\&= \frac{7984 }{9} pq +\frac{8933175649 }{37044000}p+\frac{6022267633 }{12348000}q-\frac{1698872383}{12348000}\nonumber \\&= 779.1111 pq + 241.15 p + 487.71 q - 137.58 \end{aligned}$$

(2.28)

By using the values of Table 1, the symmetric division degree connection index calculated as:

$$\begin{aligned}SDDCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im } \Big )\nonumber \\&=(2p+4q+2)\Big (\frac{2^2+3^2}{2\times 3}\Big )+(2p+6q+6)\Big (\frac{3^2+3^2}{3\times 3}\Big )+(4p+4q-4)\Big (\frac{3^2+4^2}{3\times 4} \Big )\nonumber \\&\quad +(4p+8q+4)\Big (\frac{3^2+5^2}{3\times 5} \Big )+(24pq+2p+6q-6)\Big (\frac{4^2+4^2}{4\times 4} \Big )+(2p+4q+28)\Big (\frac{4^2+5^2}{4\times 5} \Big )\nonumber \\&\quad +(12pq-6)\Big (\frac{5^2+5^2}{4\times 6} \Big )\nonumber \\&= \frac{248 }{3} pq +\frac{203 }{6}p+\frac{202 }{3}q-\frac{23}{6}=74 pq+33.833 p + 67.333q - 3.8333 \end{aligned}$$

(2.29)

By using the values of Table 1, the harmonic connection index calculated as:

$$\begin{aligned}HCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\frac{2}{\xi _\wp +\xi _\Im }\Big ) \nonumber \\&=(2p+4q+2)\Big (\frac{2}{2+3}\Big )+(2p+6q+6)\Big (\frac{2}{3+3} \Big )+(4p+4q-4)\Big (\frac{2}{3+4}\Big )+(4p+8q+4)\Big (\frac{2}{3+5}\Big )\nonumber \\&\quad +( 24pq+2p+6q-6)\Big (\frac{2}{4+4} \Big )+(2p+4q+2)\Big (\frac{2}{4+5}\Big )+(12pq-6)\Big (\frac{2}{4+6}\Big )\nonumber \\&= \frac{46 }{5} pq +\frac{2869 p}{630}+\frac{5753 q}{630}+\frac{253}{630}=8.4 pq+4.554 p + 9.1317q + 0.40159 \end{aligned}$$

(2.30)

By using the values of Table 1, the inverse sum connection index calculated as:

$$\begin{aligned}ISCI(\mathfrak {BAH}_{p,q})&=\sum \limits _{\wp \Im \in E(\mathfrak {BAH}_{p,q})}\Big (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }\Big ) \nonumber \\&=(2p+4q+2)\Big (\frac{2\times 3}{2+3}\Big )+(2p+6q+6)\Big (\frac{3\times 3}{3+3} \Big )+(4p+4q-4)\Big (\frac{3\times 4}{3+4}\Big )+(4p+8q+4)\Big (\frac{3\times 5}{3+5}\Big ) \nonumber \\&\quad +(24pq+2p+6q-6)\Big (\frac{4\times 4}{4+4} \Big )+(2p+4q+2)\Big (\frac{4\times 5}{4+5}\Big )+(12pq-6)\Big (\frac{4\times 6}{4+6}\Big )\nonumber \\&=\frac{432 }{5} pq + \frac{17767 }{630}p+\frac{17812 }{315}q-\frac{1249}{126}=76.8 pq+ 28.202 p + 56.546 q - 9.9127 \end{aligned}$$

(2.31)

Table 2 The numerical values of connection number-based TIs of $\mathfrak {BAH}_{p,q}$.

Table 3 The numerical values of connection number-based TIs of $\mathfrak {BAH}_{p,q}$.

The numerical values of connection number-based of all above TIs for $\mathfrak {BAH}_{p,q}$ are shown in Tables 2 and 3 (Fig. 2).

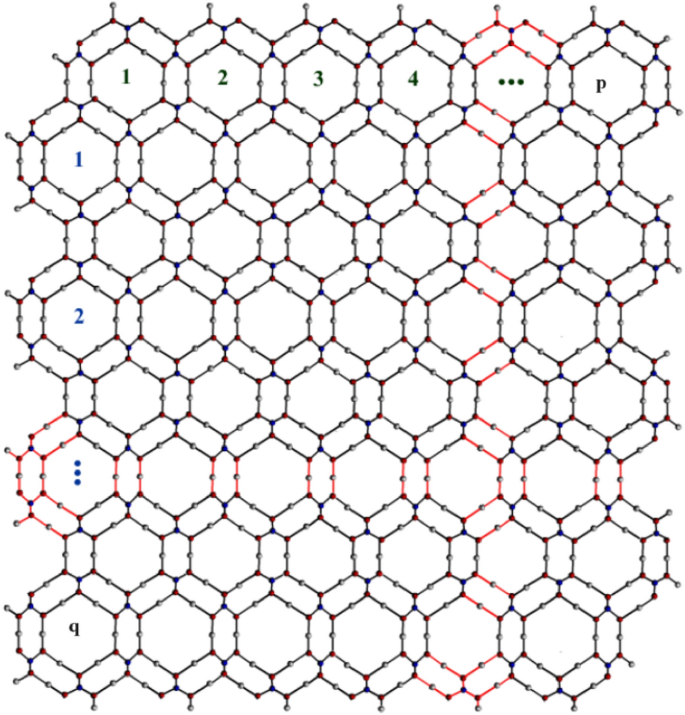

Fig. 2

Boric acid hydrogen-bonded 2D lattice sheets.

Entropy measures

By putting the value of Eq. (2.22) in Eq. (1.3), we obtain the first Zagreb connection index entropy as:

$$\begin{aligned}ENT_{FZCI(\mathfrak {BAH}_{p,q})}&=\log (FZCI(\mathfrak {BAH}_{p,q})) -\frac{1}{FZCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \xi _\wp +\xi _\Im \right) ^{(\xi _\wp +\xi _\Im )}\Big \} \nonumber \\&=\log (312 pq +116 p +232 q -40) -\frac{1}{312 pq +116 p +232 q -40}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \xi _\wp +\xi _\Im \right) ^{(\xi _\wp +\xi _\Im )}\Big \} \nonumber \\&=\log (312 pq +116 p +232 q -40) -\frac{1}{312 pq +116 p +232 q -40}\log \Big \{2^{73} 3^{24} 5^{15} 7^7 \left( p +2 q +1\right) ^{3}\nonumber \\&\left( p +3 q +3\right) \left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.32)

By putting the value of Eq. (2.23) in Eq. (1.5), we obtain the second Zagreb connection index entropy as:

$$\begin{aligned}ENT_{SZCI(\mathfrak {BAH}_{p,q})}&=\log (SZCI(\mathfrak {BAH}_{p,q})) -\frac{1}{SZCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \xi _\wp \times \xi _\Im \right) ^{(\xi _\wp \times \xi _\Im )}\Big \}\nonumber \\&=\log (672 pq +210 p +422 q -122 ) -\frac{1}{672 pq +210 p +422 q -122 }\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \xi _\wp \times \xi _\Im \right) ^{(\xi _\wp \times \xi _\Im )}\Big \} \nonumber \\&=\log (672 pq +210 p +422 q -122 ) -\frac{1}{672 pq +210 p +422 q -122 }\log \Big \{2^{215} 3^{75} 5^{35} \left( p +2 q +1\right) ^{3}\nonumber \\&\left( p +3 q +3\right) \left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.33)

By putting the value of Eq. (2.24) in Eq. (1.7), we obtain the Randić connection index entropy as:

$$\begin{aligned}ENT_{RC(\mathfrak {BAH}_{p,q})}&=\log (RC(\mathfrak {BAH}_{p,q})) -\frac{1}{RC(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}\right) ^{\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}}\Big \}\nonumber \\&=\log (8.4495 pq + 4.6179 p + 9.2477 q + 0.41702) \nonumber \\&\quad -\frac{1}{8.4495 pq + 4.6179 p + 9.2477 q + 0.41702}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}\right) ^{\frac{1}{\sqrt{\xi _\wp \times \xi _\Im }}}\Big \} \nonumber \\&=\log (8.4495 pq + 4.6179 p + 9.2477 q + 0.41702) \nonumber \\&\quad -\frac{1}{8.4495 pq + 4.6179 p + 9.2477 q + 0.41702}\log \Big \{44.352 \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.34)

By putting the value of Eq. (2.25) in Eq. (1.9), we obtain the sum connectivity connection index entropy as:

$$\begin{aligned}ENT_{SCCI(\mathfrak {BAH}_{p,q})}&=\log (SCCI(\mathfrak {BAH}_{p,q})) -\frac{1}{SCCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{1}{\sqrt{\xi _\wp + \xi _\Im }}\right) ^{\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}}\Big \}\nonumber \\&=\log (12.280015 pq + 6.0108 p + 12.033 q - 0.1058)\nonumber \\&\quad -\frac{1}{12.280015 pq + 6.0108 p + 12.033 q - 0.1058}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{1}{\sqrt{\xi _\wp + \xi _\Im }}\right) ^{\frac{1}{\sqrt{\xi _\wp + \xi _\Im }}}\Big \} \nonumber \\&=\log (12.280015 pq + 6.0108 p + 12.033 q - 0.1058) \nonumber \\&\quad -\frac{1}{12.280015 pq + 6.0108 p + 12.033 q - 0.1058}\log \Big \{39.626752 \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.35)

By putting the value of Eq. (2.26) in Eq. (1.11), we obtain the atom-bond connectivity connection index entropy as:

$$\begin{aligned}ENT_{ABCCI(\mathfrak {BAH}_{p,q})}&=\log (ABCCI(\mathfrak {BAH}_{p,q})) -\frac{1}{ABCCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}\right) ^{\sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}}\Big \} \nonumber \\&=\log (21.6251 pq + 10.267 p + 20.510 q - 0.5932) \nonumber \\&\quad -\frac{1}{21.6251 pq + 10.267 p + 20.510 q - 0.5932}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}\right) ^{\sqrt{\frac{\xi _\wp +\xi _\Im -2}{\xi _\wp \times \xi _\Im }}}\Big \} \nonumber \\&=\log (21.6251 pq + 10.267 p + 20.510 q - 0.5932) \nonumber \\&\quad -\frac{1}{21.6251 pq + 10.267 p + 20.510 q - 0.5932}\log \Big \{68.21376 \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.36)

By putting the value of Eq. (2.27) in Eq. (1.13), we obtain the geometric-arithmetic connection index entropy as:

$$\begin{aligned}ENT_{GACI(\mathfrak {BAH}_{p,q})}&=\log (GACI(\mathfrak {BAH}_{p,q})) -\frac{1}{GACI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }\right) ^{\frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }}\Big \} \nonumber \\&=\log (35.7576 pq + 15.780 p + 31.599 q - 2.0177 ) \nonumber \\&\quad -\frac{1}{35.7576 pq + 15.780 p + 31.599 q - 2.0177 }\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }\right) ^{\frac{2\,\sqrt{\xi _\wp \times \xi _\Im }}{\xi _\wp +\xi _\Im }}\Big \} \nonumber \\&=\log (35.7576 pq + 15.780 p + 31.599 q - 2.0177 ) \nonumber \\&\quad -\frac{1}{35.7576 pq + 15.780 p + 31.599 q - 2.0177 }\log \Big \{469.06368 \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.37)

By putting the value of Eq. (2.28) in Eq. (1.15), we obtain the augmented Zagreb connection index entropy as:

$$\begin{aligned}ENT_{AZCI(\mathfrak {BAH}_{p,q})}&=\log (AZCI(\mathfrak {BAH}_{p,q})) -\frac{1}{AZCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2})^3\right) ^{(\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2})^3}\Big \} \nonumber \\&=\log (779.1111 pq + 241.15 p + 487.71 q - 137.58) \nonumber \\&\quad -\frac{1}{779.1111 pq + 241.15 p + 487.71 q - 137.58}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( (\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2})^3\right) ^{(\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im -2})^3}\Big \} \nonumber \\&=\log (779.1111 pq + 241.15 p + 487.71 q - 137.58) \nonumber \\&\quad -\frac{1}{779.1111 pq + 241.15 p + 487.71 q - 137.58}\log \Big \{1.4856704 \times 10^{151} \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.38)

By putting the value of Eq. (2.29) in Eq. (1.17), we obtain the symmetric division degree connection index entropy as:

$$\begin{aligned}ENT_{SDDCI(\mathfrak {BAH}_{p,q})}&=\log (SDDCI(\mathfrak {BAH}_{p,q})) -\frac{1}{SDDCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im }\right) ^{\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im }}\Big \} \nonumber \\&=\log (74 pq+33.833 p + 67.333q - 3.8333) \nonumber \\&\quad -\frac{1}{74 pq+33.833 p + 67.333q - 3.8333}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im }\right) ^{\frac{\xi _\wp ^2+\xi _\Im ^2}{\xi _\wp \times \xi _\Im }}\Big \} \nonumber \\&=\log (74 pq+33.833 p + 67.333q - 3.8333) \nonumber \\&\quad -\frac{1}{74 pq+33.833 p + 67.333q - 3.8333}\log \Big \{3.000617106\times 10^{7} \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.39)

By putting the value of Eq. (2.30) in Eq. (1.19), we obtain the harmonic connection index entropy as:

$$\begin{aligned}ENT_{HCI(\mathfrak {BAH}_{p,q})}&=\log (HCI(\mathfrak {BAH}_{p,q})) -\frac{1}{HCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{2}{\xi _\wp +\xi _\Im }\right) ^{\frac{2}{\xi _\wp +\xi _\Im }}\Big \}\nonumber \\&=\log ( 8.4 pq+4.554 p + 9.1317q + 0.40159) \nonumber \\&\quad -\frac{1}{ 8.4 pq+4.554 p + 9.1317q + 0.40159}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{2}{\xi _\wp +\xi _\Im }\right) ^{\frac{2}{\xi _\wp +\xi _\Im }}\Big \} \nonumber \\&=\log ( 8.4 pq+4.554 p + 9.1317q + 0.40159) \nonumber \\&\quad -\frac{1}{ 8.4 pq+4.554 p + 9.1317q + 0.40159}\log \Big \{44.632064 \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.40)

By putting the value of Eq. (2.31) in Eq. (1.21), we obtain the inverse sum connection index entropy as:

$$\begin{aligned}ENT_{ISCI(\mathfrak {BAH}_{p,q})}&=\log (ISCI(\mathfrak {BAH}_{p,q})) -\frac{1}{ISCI(\mathfrak {BAH}_{p,q})}\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }\right) ^{\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }}\Big \} \nonumber \\&=\log (76.8 pq+ 28.202 p + 56.546 q - 9.9127) \nonumber \\&\quad -\frac{1}{76.8 pq+ 28.202 p + 56.546 q - 9.9127 }\log \Big \{\prod \limits _{\wp \Im \in E(G)}\left( \frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }\right) ^{\frac{\xi _\wp \times \xi _\Im }{\xi _\wp +\xi _\Im }}\Big \} \nonumber \\&=\log (76.8 pq+ 28.202 p + 56.546 q - 9.9127 ) \nonumber \\&\quad -\frac{1}{76.8 pq+ 28.202 p + 56.546 q - 9.9127 }\log \Big \{1.8484736\times 10^{6} \left( p +2 q +1\right) ^{3}\left( p +3 q +3\right) \nonumber \\&\left( p +q -1\right) \left( 12 p q +p +3 q -3\right) \left( 8 p q -3\right) \Big \} \end{aligned}$$

(2.41)

Conclusion

The hydrogen-bonded 2D lattice sheets of boric acid play an important role in its thermodynamic and entropic properties, that have a broad range of applications in materials/data science, catalysis, energy storage etc. The active character of hydrogen bonds in these sheets, along with the correlated entropy changes, make boric acid an stimulating material for further research in both theoretical and particles. In this article, we studied some well-known connection number-based topological indices and determined their entropies. The numerical values of these connection number-based entropy measures for $\mathfrak {BAH}_{p,q}$ are shown in Tables 4 and 5. From Tables 2 and 3, we observe that

$$\begin{aligned} & RC(\mathfrak {BAH}_{p,q})<SCCI(\mathfrak {BAH}_{p,q})<ABCCI(\mathfrak {BAH}_{p,q})<FZCI(\mathfrak {BAH}_{p,q})<SZCI(\mathfrak {BAH}_{p,q}) \\ & HCI(\mathfrak {BAH}_{p,q})<GACI(\mathfrak {BAH}_{p,q})<SDDCI(\mathfrak {BAH}_{p,q})<ISCI(\mathfrak {BAH}_{p,q})<AZCI(\mathfrak {BAH}_{p,q} ) \end{aligned}$$

From Tables 4 and 5, we observe that

$$\begin{aligned} & ENT_{RC(\mathfrak {BAH}_{p,q})}<ENT_{SCCI(\mathfrak {BAH}_{p,q})}<ENT_{ABCCI(\mathfrak {BAH}_{p,q})}<ENT_{FZCI(\mathfrak {BAH}_{p,q})}<ENT_{SZCI(\mathfrak {BAH}_{p,q})} \\ & ENT_{HCI(\mathfrak {BAH}_{p,q})}<ENT_{GACI(\mathfrak {BAH}_{p,q})}<ENT_{SDDCI(\mathfrak {BAH}_{p,q})}<ENT_{ISCI(\mathfrak {BAH}_{p,q})}<ENT_{AZCI(\mathfrak {BAH}_{p,q} ) } \end{aligned}$$

By Comparing the Tables 2, 3, 4 and 5, we can see that the greater the TIs, the entropy measure is greater. Also, the graphical representation of Entropy measures of the results are shown in Fig. 3.

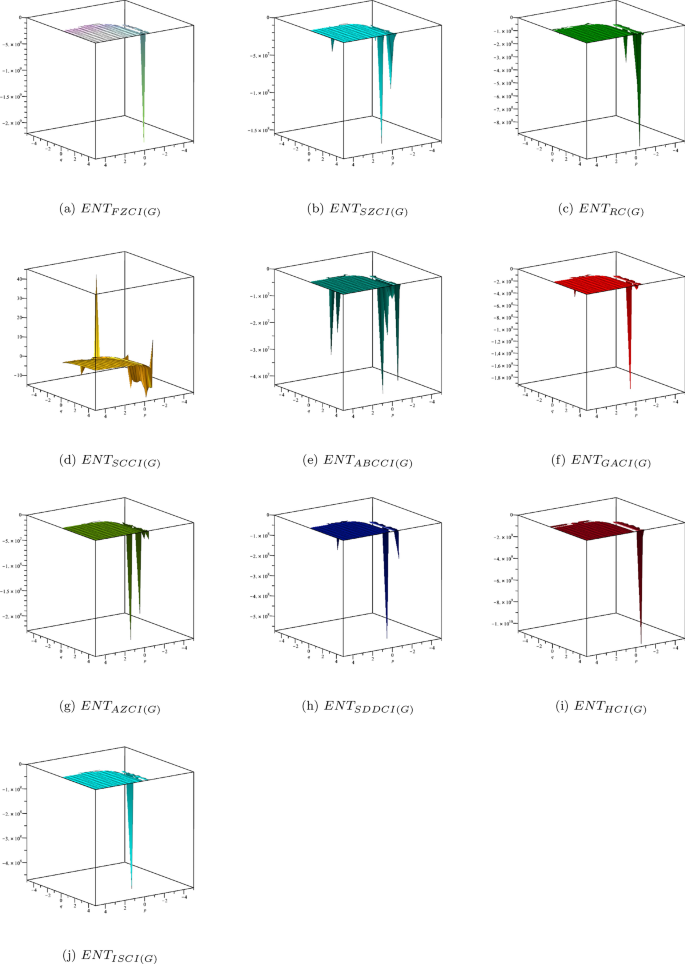

Fig. 3

Numerical values for different connection number based entropies, the data is taken from the Tables 2, 3, 4 and 5.

Table 4 The numerical values of connection number-based entropy measures of $\mathfrak {BAH}_{p,q}$.

Table 5 The numerical values of connection number-based entropy measures of $\mathfrak {BAH}_{p,q}$.
