Introduction

Parkinson’s disease (PD) and dementia with Lewy bodies (DLB) are neurodegenerative diseases marked by abnormal alpha-synuclein (aSyn) accumulation in the brain1. Degeneration of dopaminergic neurons in the substantia nigra that project into the striatum2 serves as a biomarker for neuronal aSyn diseases3, and reflects degeneration of the nigrostriatal dopaminergic pathway. This degeneration is usually assessed in clinical practice using molecular imaging techniques such as dopamine transporter (DaT) radioligand [123I]FP-CIT uptake through single photon emission computed tomography (SPECT)4. Alpha-synucleinopathies have a long prodromal stage before the emergence of overt neurological features such as parkinsonism and/or dementia. These prodromal stages include patients with idiopathic rapid eye movement behavior disorder (iRBD), and different subtypes of prodromal DLB (pDLB)5,6, such as pDLB with mild cognitive impairment (MCI-pDLB). Notably, nigrostriatal degeneration assessed by DaT-SPECT is among the strongest risk markers of short-term phenoconversion from prodromal to overt alpha-synucleinopathy stages, especially if a semi-quantitative7,8 instead of a visual approach is applied5. In DaT-SPECT, the specific to non-displaceable binding ratio (SBR) is measured and compared to a healthy control distribution of SBR in the striatum using Z-scores9. Therefore, SBR Z-score analysis aids in both the diagnosis of overt aSyn and assessing the risk of phenoconversion of prodromal aSyn.

Two biological definitions based on the presence of pathological alpha-synuclein aggregates, a hallmark of both PD and DLB, irrespective of clinical presentations, have recently been proposed3,10. Both highlight the role of molecular imaging with fluorodopa or with tracers for the dopamine transporter (DaT-SPECT) to detect dopaminergic degeneration and neurodegeneration3,10, while only one10 suggests the use of MRI advanced techniques for evaluating substantia nigra neurodegeneration as an investigational biomarker. As the relative availability of molecular imaging techniques may be heterogenous among centers and considering the common use of MRI as a gateway exam in subjects with suspected neurodegenerative diseases, recent years have seen increased interest in MRI-based approaches to study the extent of in vivo nigrostriatal degeneration11,12,13,14,15.

Quantitative susceptibility mapping (QSM) is a magnetic resonance imaging (MRI) technique that reconstructs spatial maps of magnetic susceptibility (\(\chi\)) from the raw phase component of the MRI signal16,17,18,19,20. QSM has identified changes in \(\chi\) in the substantia nigra between healthy controls and degenerative Parkinsonisms, such as PD21,22,23,24, attributable to an increase in the concentration of paramagnetic iron in the form of ferritin in the substantia nigra. Recently, QSM has also identified increases in \(\chi\) in the substantia nigra in iRBD patients compared to healthy controls, alongside the expected \(\chi\) increases in PD patients12,13, indicating that the accumulation of iron may occur years prior to the appearance of overt clinical symptoms. Other work has identified significant correlations between DaT-SPECT SBR scores and \(\chi\) in the substantia nigra of PD patients14,25 and iRBD patients13,25. Visual assessment using susceptibility weighted imaging (SWI) also found that iRBD patients can display a loss of dorsal nigral hyperintensity correlated with greater dopaminergic degeneration11,12,15.

QSM, alongside transverse relaxation rate (R2*) mapping, provides insights into the pathological causes behind these identified \(\chi\) changes, such as increased iron and/or decreased myelin content. However, QSM provides bulk tissue \(\chi\) estimates, whereby all susceptibility sources within a voxel are averaged providing a single value. Therefore, any subtle pathological changes that specifically affect paramagnetic (\(\chi ^+\)) or diamagnetic (\(\chi ^-\)) sources are difficult to distinguish. The novel \(\chi\) source separation technique, DECOMPOSE26, disentangles the signal from \(\chi ^+\) and \(\chi ^-\) sources by calculating the paramagnetic component susceptibility (PCS) and the diamagnetic component susceptibility (DCS) allowing for a more nuanced investigation; for example, changes in PCS may be attributable to iron whereas DCS changes are more attributable to myelin changes and/or calcium deposition. DECOMPOSE has had success in identifying whole-brain DCS changes in Alzheimer’s disease (AD)27 and its value in clinical research is growing28. It is important to note that DECOMPOSE may not always result in a larger effect size compared to QSM when measuring susceptibility-based changes. For instance, in cases where both iron deposition and demyelination occur simultaneously in the same region, QSM would likely show a greater overall effect size because it captures the combined impact of both factors. In contrast, DECOMPOSE separates these effects, potentially yielding smaller but more specific measurements for each individual component.

We set out to investigate changes in \(\chi\), PCS and DCS using standard QSM and DECOMPOSE, across patients along the prodromal to overt alpha-synucleinopathy continuum, compared to control subjects, attempting to further understand the specific mechanisms of tissue composition changes in the substantia nigra and striatum. We also investigated correlations between DaT-SPECT SBR Z-scores with \(\chi\), PCS and DCS in the substantia nigra and in the putamen and caudate, with the aim of supporting \(\chi\) as a possible biomarker for assessing substantia nigra neurodegeneration and introducing PCS and DCS as additional biomarkers with complimentary and novel information.

Methods

Participants

A total of 87 consecutive participants were recruited for this study, including 26 healthy controls (HCs), 34 prodromal aSyn and 27 overt aSyn, who attended the Memory Clinic of the IRCCS Ospedale Policlinico San Martino, Genova, Italy due to cognitive, motor or sleep complaints. All participants underwent MRI acquisition and prodromal aSyn patients also underwent DaT-SPECT.

Visual quality control of MRI images resulted in the removal of 9 patients (3 HC, 4 prodromal and 2 overt aSyn) from further analysis due to the presence of artifacts, such as gross subject motion. Therefore, a total of 78 participants underwent analysis (23 HC, 30 prodromal and 25 overt aSyn). See Table 1 for demographic information with specific diagnoses in the prodromal and overt aSyn groups.

For all prodromal and overt aSyn participants, scores from the Movement Disorder Society-Sponsored Revision of the Unified Parkinson’s Disease Rating Scale, Part III (MDS-UPDRS III) were recorded. Cognitive assessments were available for all prodromal aSyn and DLB patients through the Mini-Mental State Examination (MMSE), while PD patients in the overt aSyn group had Montreal Cognitive Assessment (MoCA) scores, which were subsequently converted to MMSE scores29. At the time of examination, neither the prodromal aSyn nor DLB patients were undergoing medical treatment. However, PD patients were receiving medical intervention (Levodopa equivalent daily dose [LEDD] mean dose 620.30 mg, SD 161.49 mg; see Table 1).

Diagnostic protocol

Diagnoses were made based on the following criteria: MDS clinical diagnostic criteria for PD30, International Classification of Sleep Disorders – Third Edition (ICSD-3) criteria for iRBD31, revised criteria from the DLB Consortium for DLB32 and research criteria for pDLB6. We defined as prodromal alpha-synucleinopathy patients those that satisfied either iRBD or pDLB criteria. A healthy control cohort comprised age-matched individuals with no history of neurological or psychiatric disorders. These volunteers were recruited from among family members and acquaintances of patients and hospital staff.

Data acquisition and processing

MRI acquisition

Whole-brain magnitude and raw phase data were acquired for all participants on a Siemens Prisma 3T MRI system (IRCCS Ospedale Policlinico San Martino, Genova, Italy) using a multi-echo 3D gradient echo (GRE) sequence optimised for QSM33 with eight echoes at TE1/TE/TEmax = 5.6/5.6/44.8 ms; TR = 51 ms; flip angle 18\(^\circ\); 1\(\times\)1\(\times\)1 mm3 resolution; 224\(\times\)224\(\times\)144 matrix size; GRAPPA = 2; partial Fourier 6/8 in both PE directions; BW = 340 Hz/px; adaptive coil combine with pre-scan normalize on; acquisition time = 8 min 45 s; pure-axial acquisition34.

Structural brain images were also acquired in the sagittal plane via a T1-weighted MPRAGE with TR = 2300 ms; TE = 2.96 ms; TI = 900 ms; flip angle 9\(^\circ\); 1\(\times\)1\(\times\)1 mm\(^3\) resolution; 256\(\times\)256 matrix size; GRAPPA = 2; BW = 240 Hz/px; acquisition time = 5 min 30 s. T1-weighted images were rigidly registered to the combined GRE magnitude images for each patient via FSL FLIRT35,36.

MRI processing

For each participant, an R2* map, susceptibility map, and PCS and DCS maps were reconstructed (Figure 1). All image reconstructions were carried out using Matlab 2019b (MathWorks, USA), as follows.

R2* maps were calculated via the Auto-Regression of Linear Operations (ARLO) method37 from the MEDI Toolbox38.

Susceptibility maps were reconstructed in accordance with the International Society for Magnetic Resonance Imaging (ISMRM) Electromagnetic Tissue Study Group’s (EMTP) recommendations39 using STI Suite (https://people.eecs.berkeley.edu/~chunlei.liu/software.html from UC Berkeley, Berkeley, CA, USA). A brain mask was calculated from the T2*-weighted magnitude image averaged across all echoes using the Brain Extraction Tool (BET) from FSL40. A total field map was obtained from a non-linear fit of the complex data over all echoes41, and residual phase wraps were unwrapped using Laplacian phase unwrapping42 followed by background field removal using the variable-kernel sophisticated harmonic artifact reduction for phase data (V-SHARP) approach43. Tissue bulk susceptibility, \(\chi\), maps were then calculated using the iLSQR method44.

Maps of PCS and DCS were calculated using DECOMPOSE26 whereby a QSM calculated at each echo were used to create a 3-pool signal model of paramagnetic, diamagnetic and magnetically neutral material. Only the first five echoes were used in DECOMPOSE reconstructions as later echoes often suffered from a low signal-to-noise ratio and phase artefacts, which were more easily dealt with by the non-linear fitting in the QSM processing.

The caudate, putamen and substantia nigra were segmented automatically using MRI Cloud45,46 and eroded by a 1 mm spherical kernel to avoid partial volume effects.

Fig. 1
figure 1

Axial and coronal views (from left to right) of combined MRI gradient echo (GRE) magnitude, R2*, QSM, and DECOMPOSE paramagnetic and diamagnetic component susceptibility (PCS and DCS, respectively) maps in an example healthy control participant.

Full size image

[\(^{123}\)I]-Ioflupane SPECT

Assessment of nigrostriatal dopaminergic function in the prodromal aSyn group was carried out by a clinically routine 123I-ioflupane contrast injection (DaTSCAN, GE Healthcare) according to established guidelines47 on a two-headed GE Millennium VG camera. Semi-quantification of DaT-SPECT images was carried out by DaTQUANT™software (GE Healthcare) with bilateral partial volume corrected SBR values at the putamen and caudate levels, using occipital lobe tracer uptake values as reference. Age and sex-corrected Z-scores were then calculated with reference to an established healthy control cohort as previously described8.

Prodromal aSyn patients were then subdivided into two groups based on the presence of a DaT-SPECT Z-score below -1 (prodromal positive) or above -1 (prodromal negative) in the most affected putamen8,9, with 11 patients being named prodromal negative and 19 prodromal positive (Table 1). This cut-off was chosen based on recent studies investigating the most sensitive cut-off for the identification of iRBD patients that later converted to PD/DLB as well as for prodromal and overt DLB8,9,48,49.

Statistical analysis

Variables were tested for normality using the Shapiro-Wilk’s test with a significance threshold of p < 0.01. Bulk \(\chi\), PCS, DCS and R2* values in all ROIs were corrected for age by residualisation based on a linear fit50,51,52 of susceptibility/R2* against age in the HC group.

Demographics and clinical characteristics were compared across all groups (HC, prodromal negative, prodromal positive and overt aSyn) and across only patient groups (prodromal negative, prodromal positive and overt aSyn) when appropriate with significant level p = 0.05. Differences in age, Hoehn & Yahr stages, MDS-UPDRS III and MMSE were assessed using non-parametric Kruskal-Wallis H-tests with post-hoc t-tests. Differences in sex were assessed using a chi-squared test followed by post-hoc chi-squared tests comparing each group individually. All post-hoc statistical tests were FDR-corrected for multiple comparisons.

Four group two-tailed analysis of covariance (ANCOVA) was then performed in the substantia nigra from both hemispheres to investigate differences between age-corrected \(\chi\), PCS, DCS and R2* across disease groups with sex included as a confounding factor. Here, \(\eta ^2\) was used as a measure of the effect size. Post-hoc Welch’s t-tests were carried out to identify which groups were significantly different to one another, with FDR-corrected q < 0.05 indicating statistical significance and Cohen’s d representing the effect size for the t-tests.

Within the prodromal alpha-synucleinopathy group, \(\chi\), PCS and DCS in the putamen, caudate and substantia nigra were correlated to DaT-SPECT SBR Z-scores at the putamen and caudate level using linear regressions with p-values FDR-corrected for multiple comparisons.

Finally, SBR Z-scores and DCS in the most affected putamen, alongside \(\chi\) and PCS in the substantia nigra corresponding to the side of the most affected putamen, were correlated against clinical MDS-UPDRS III and MMSE scores. If the residuals of the correlation were non-normal, the correlation was made against the log(MDS-UPDRS III + 1) or log(MMSE).

All statistical analysis was performed using Python 3.11.7 with the Scipy package.

Ethics declaration

This study was ethically approved by the regional ethics board “Comitato Etico Regionale (CER) Liguria” (N. Registro CER Liguria: 168/2022 – DB id 12248) and was, therefore, performed in accordance with the ethical standards laid down in the 1964 Declaration of Helsinki and its later amendments. All enrolled patients and healthy volunteers provided their informed consent.

Results

Demographics and clinical characteristics

Ages across cohorts were non-normal and not significantly different (p = 0.225) while ratio of male/female was significantly different (p = 0.022) across the four groups. No individual group differences from post-hoc tests comparing the ratio of male/female survived FDR correction. There were no significant differences in disease duration between prodromal patients with negative and positive DaT-SPECT (p = 0.312). A non-parametric Kruskal-Wallis test revealed significant differences in Hoehn and Yahr stages between disease groups (p = 0.005), with post-hoc tests showing that the overt aSyn group had a significantly higher Hoehn and Yahr stage than the prodromal negative group (p = 0.002). Hoehn and Yahr stages were not significantly different between prodromal negative and positive groups or between prodromal positive aSyn and overt aSyn groups. Kruskal-Wallis groupwise comparison showed significant differences in MDS-UPDRS III across the three disease groups (p < 0.001), with post-hoc tests showing significantly higher MDS-UPDRS III in the overt group compared to both prodromal negative and prodromal positive aSyn groups (p < 0.001 for both). No significant differences were observed between prodromal negative and prodromal positive aSyn groups. No differences in MMSE between the disease groups were found (p = 0.948).

Substantia nigra susceptibility differences across groups

As seen in Figure 2, the distributions of \(\chi\), PCS, DCS and R2* were not significantly different from the normal distribution. One-way ANCOVA revealed significant differences in mean and PCS in the substantia nigra between groups (q < 0.001 for both). Sex was not found to be a significant covariate for \(\chi\), PCS, DCS or \(R_2^*\). Post-hoc t-tests revealed significantly higher substantia nigra \(\chi\) in the overt aSyn group compared to HC and prodromal negative aSyn (q < 0.001 and q = 0.005, respectively), which were complemented by the same findings in PCS (q = 0.002 and q = 0.003 between HC and prodromal negative aSyn subjects, respectively). The prodromal positive aSyn group had a significantly higher \(\chi\) and PCS in the substantia nigra compared to the HCs as well (q = 0.039 and q = 0.033). The prodromal positive aSyn group also had a significantly higher PCS compared to the prodromal negative aSyn group, but not in \(\chi\). There were no significant differences in substantia nigra mean R2* or DCS according to ANCOVA tests (q = 0.252 and 0.274, respectively), although for R2* an uncorrected t-test between HC and overt aSyn of p = 0.049 suggest an expected trend of increased R2* in overt aSyn patients compared to HCs, in line with susceptibility findings. Specific details and effect sizes can be found in Table 2.

Fig. 2
figure 2

Mean \(\chi\), PCS, DCS and R2* in the substantia nigra across groups. One-way ANCOVA revealed significant differences in \(\chi\) and PCS between groups, with post-hoc t-tests indicating significantly higher substantia nigra \(\chi\) and PCS in overt aSyn and prodromal positive aSyn patients compared to both HCs and prodromal negative aSyn patients. Overt aSyn patients also exhibit higher \(\chi\) and PCS in the substantia nigra than prodromal negative aSyn patients. However, a difference between prodromal positive aSyn and prodromal negative aSyn patients was only observable in the PCS. * indicates q < 0.05, ** indicates q < 0.01 and *** q < 0.001; HC: healthy controls; PNaSyn: prodromal negative alpha-synucleinopathies; PPaSyn prodromal positive alpha-synucleinopathies; OaSyn: overt alpha-synucleinopathies; ppb: parts per billion.

Full size image

Correlations of DaT-SPECT, susceptibility and clinical scores

DaT-SPECT SBR Z-scores at the putamen level were significantly negatively correlated with \(\chi\) and PCS measured in the substantia nigra (q = 0.028 for both; Figure 3A and 3B). Significant negative correlations were also identified between DAT-SPECT SBR Z-scores and DCS at the putamen level (q = 0.028; Figure 3C. The same correlations of SBR Z-scores at the putamen level and standard QSM \(\chi\) in the putamen were not identified (q = 0.378).

Fig. 3
figure 3

Significant negative linear correlations in the prodromal alpha-synucleinopathy group were identified between DaT-SPECT SBR Z-scores in the putamen and \(\chi\) in the substantia nigra (A), PCS in the substantia nigra (B) and DCS in the putamen (C). Panels A and B indicate that greater dopaminergic degeneration at the putamen level, reflected by a lower SBR Z-score from DaT-SPECT, is associated with an increase in concentration of paramagnetic sources (greater \(\chi\) and PCS), attributable to iron accumulation. Panel C shows that greater dopaminergic degeneration at the putamen level is also correlated with a decrease in the concentration of diamagnetic sources in the putamen.

Full size image

After FDR correction, no significant correlations were identified between clinical MDS-UPDRS III or MMSE scores and DaT-SPECT SBR Z-scores and DCS in the most affected putamen, nor with \(\chi\) and PCS in the substantia nigra (Figure 4).

Fig. 4
figure 4

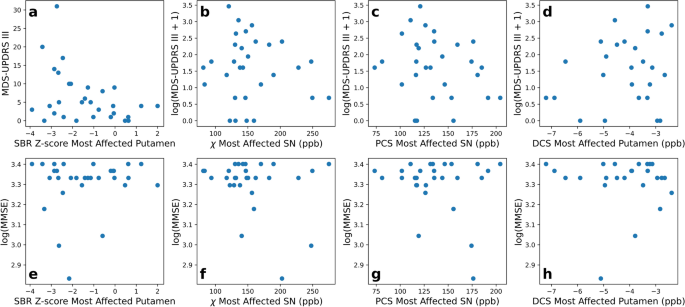

Clinical MDS-UPDRS III scores in the most affected putamen (top row) and mini-mental state examination (MMSE) scores (bottom row) in the prodromal alpha-synucleinopathy group against (a, e) DaT-SPECT Z-scores in the most affected putamen, (b, f) bulk susceptibility in the most affected substantia nigra, (c, g) PCS in the most affected substantia nigra, and (d, h) DCS in the most affected putamen. No significant correlations were identified post-FDR correction.

Full size image

A summary of all correlations investigated can be found in Table 3.

Discussion

In this study, we applied QSM and the novel susceptibility source-separation method DECOMPOSE26 to investigate changes in \(\chi\), and its para/diamagnetic components (PCS and DCS), alongside R2* in the substantia nigra across patients with prodromal and overt stages of alpha-synuclein disease compared to healthy controls. We identified a clear increase of bulk susceptibility (\(\chi\)) in overt alpha-synucleinopathy patients compared to both HCs and prodromal patients with a negative DaT-SPECT. For the first time, we found increased mean PCS in the substantia nigra of prodromal patients with positive DaT-SPECT compared to HCs and prodromal patients with a negative DAT-SPECT. Finally, we identified significant correlations between the DaT-SPECT SBR Z-scores at the putamen level, a biomarker of nigrostriatal dopaminergic function, and \(\chi\) and PCS in the substantia nigra and DCS in the putamen. These results suggest that susceptibility imaging may be a candidate metric to evaluate substantia nigra neurodegeneration in alpha-synucleinopathies, providing complimentary and/or overlapping information to DaT-SPECT in the future.

Magnetic susceptibility in tissue is a correlate for paramagnetic sources (e.g. iron) and diamagnetic sources (e.g. myelin)19,53. Ferrous iron can induce cell loss and aSyn aggregation in the substantia nigra14,54, making susceptibility a correlate of interest for aSyn disease. An increase in bulk magnetic susceptibility, \(\chi\), calculated from QSM, can be attributable to an increased concentration of paramagnetic sources or a decreased concentration of diamagnetic sources. To understand this, \(\chi\) is often used alongside R2* as it is a measure of the concentration of susceptibility sources irrespective of their para/diamagnetism. An increase in \(\chi\) alongside an increase in R2* indicates an increased concentration of paramagnetic susceptibility sources, whereas an increase in \(\chi\) alongside a decrease in R2* is attributable to a reduced concentration of diamagnetic sources. However, \(\chi\) and R2* are estimates of the mean bulk susceptibility, averaging both paramagnetic and diamagnetic material19, making it difficult to separate pathological changes that affect both types of sources simultaneously. Susceptibility source separation methods26,55,56 provide a more detailed and specific view of changes in tissue composition.

While a significant difference in sex was identified between groups (p = 0.022, Table 1), our ANCOVA analysis revealed that sex was not a significant covariate of \(\chi\), PCS, DCS or \(R_2^*\). This agrees with the vast majority of literature that has not identified any sex-dependence on measured susceptibility57. Therefore, susceptibility-based findings across groups in this study are not affected by the differences in sex of the cohorts.

In patients in overt stages of alpha-synucleinopathies and prodromal stages with positive DaT-SPECT, an increase in mean bulk \(\chi\) in the substantia nigra was observed compared to HCs and prodromal negative aSyn patients using standard QSM, consistent with literature13,15,21,22,23,24,58,59,60 (Figure 2). DECOMPOSE, however, showed increased PCS in prodromal alpha-synucleinopathy patients with positive DaT-SPECT compared to those with negative DaT-SPECT in the substantia nigra, not evident in \(\chi\) changes. This significant PCS increase in prodromal aSyn patients with positive DaT-SPECT suggests that DECOMPOSE-QSM can identify more subtle, early susceptibility alteration, prior to the onset of overt motor symptoms as reflected by the low average prodromal MDS-UPDRS III score of 6.40 showing minimal motor symptoms in the prodromal cohort. No significant differences in PCS in the substantia nigra of prodromal positive and overt aSyn patients indicate iron accumulation in the substantia nigra occurs in the prodromal stages with a plateau effect. This is further supported by the lack of differences between HC and prodromal negative aSyn groups. This aligns with recent literature12,61 showing early iron accumulation in PD with no stage-wise differences within PD patients, i.e. Hoehn & Yahr stage I vs IV. The lack of group differences in mean DCS in the substantia nigra suggests iron accumulation, rather than myelin reduction that may be observed once neuronal loss has occurred62, drives deterioration. Large standard deviations DCS boxplots (Figure 2) may have contributed to this lack of findings, therefore, further investigation with larger sample sizes is needed. Overall, \(\chi\) and PCS may be useful non-invasive MRI metrics for evaluating substantia nigra neurodegeneration in alpha-synucleinopathies, even in prodromal stages.

DaT-SPECT imaging is widely used to assess nigrostriatal dopaminergic integrity in neurodegenerative parkinsonism63 and can be used in the prediction of phenoconversion from prodromal to overt alpha-synucleinopathy stages, especially when used in conjunction with clinical features7,8. However, DaT-SPECT is of limited availability and requires the injection of a radiopharmaceutical labelled with \(\gamma\)-ray emitting \(^{123}\)I. In this study, DaT-SPECT SBR Z-scores at the putamen level were significantly negatively correlated with \(\chi\) and PCS in the substantia nigra in prodromal aSyn patients (Figure 3). The deterioration of the dopaminergic pathway assessed by DaT-SPECT is associated with nigrostriatal neuron deterioration in the substantia nigra projecting into the striatum. It is not, therefore, surprising that greater dopaminergic degeneration as reflected by a lower SBR Z-score from DaT-SPECT, is correlated with a higher mean \(\chi\) and PCS in the substantia nigra, attributable to iron accumulation, and thus neuronal loss54,64. This correlation between DaT-SPECT and \(\chi\) in prodromal alpha-synucleinopathies aligns with literature showing significant correlations between posterior putamen DaT-SPECT uptake and in the substantia nigra pars reticularis, compacta and nigrosome 1 (N1) in iRBD patients13. Proper segmentation of substantia nigra substructures like N1 is challenging, especially at the electromagnetic tissue properties (EMTP)-study group’s recommended QSM resolution of 1 mm isotropic for clinical applications39. Identifying similar correlations of \(\chi\)13 (and more, PCS/DCS) in the whole (un-parcellated) substantia nigra with DaT-SPECT at this resolution suggests easier clinical transferability.

Alongside correlations between DaT-SPECT SBR Z-scores and substantia nigra \(\chi\) and PCS, we identified significant negative correlations between SBR Z-scores and DCS at the putamen level in prodromal aSyn patients. A decrease in DCS is indicative of a loss of diamagnetic sources, such as myelin, thereby increasing the average \(\chi\). [\(^{123}\)I]FP-CIT uptake in the putamen is linked with nigral neuronal density65 indicating that dopaminergic cell loss in the substantia nigra is linked to greater dopaminergic projections loss in the striatum. At clinical presentation of overt PD, between 40-60% of dopaminergic neurons are already degenerated in the substantia nigra66,67 with up to 80% of the axonal terminals in the striatum being lost, particularly in the putamen67,68,69. Axonal loss of dopaminergic neurons in the striatum has been shown to occur in the prodromal phases of alpha-synucleinopathies67,70,71,72. It has been reported that dopaminergic neurons vulnerable to idiopathic PD, are those with long, thin and poorly myelinated axons, whereas those neurons with thicker and more heavily myelinated axons are more resistant to pathology73,74,75,76,77. Therefore, we could associate the reduction in the concentration of diamagnetic sources with the loss of thinly myelinated axon terminals in the putamen from degenerated nigrostriatal neurons. Although, we would expect the effect of myelin to be small due to the unmyelinated or lightly myelinated axonal terminals. This, however, must be weighed against the substantial loss of axonal terminals that occur in prodromal alpha-synucleinopathies; a loss of many lightly myelinated axons may still be detectable by measuring the DCS. Further radiological/pathological validation is required.

The lack of correlations of MDS-UPDRS III and MMSE scores, measures of motor disability and mild cognitive impairment, respectively, with DaT-SPECT, \(\chi\), PCS and DCS are not surprising given the investigation took place in the prodromal cohort, with patients that have not become symptomatic of overt alpha-synucleinopathies yet. Prodromal negative and prodromal positive aSyn patients showed no differences in MDS-UPDRS III or MMSE, which, therefore, would suggest any dopaminergic degeneration measured by DaT-SPECT has not yet manifested itself as motor and cognitive symptoms. These results agree with those of Varga et al.13 where no correlations were found between bulk \(\chi\) in the whole-brain with MDS-UPDRS III disability scores nor MoCA cognitive scores in both iRBD and Parkinson’s disease patients. However, Uchida et al.14 did identify significant positive correlations between bulk \(\chi\) in the putamen with MDS-UPDRS III and significant negative correlations between bulk \(\chi\) in the caudate with MoCA cognitive scores in Parkinson’s disease. While differences in inclusion criteria, the extent and variability of motor/cognitive impairment and medical intervention could represent the key factors underlying the observed differences among studies, further investigations in larger cohorts including both early and advanced prodromal stages are required to better understand these associations.

Limitations include relatively small sample sizes for the DaT-SPECT separated prodromal aSyn groups. Larger sample sizes would strengthen the statistical findings. Additionally, the prodromal and overt aSyn groups included different diagnoses (iRBD/pDLB for prodromal and PD/DLB for overt). With larger samples, these could be included as confounding covariates in a more complex model to better understand subtle differences between aSyn phenotypes. DaT-SPECT SBR Z-scores were only available for the prodromal group; future work should include DaT-SPECT data from both prodromal and overt stages to propose \(\chi\), PCS and DCS as biomarkers for substantia nigra neurodegeneration across the alpha-synucleinopathy continuum.

Strengths include the novel MRI approach, allowing more specific investigations into paramagnetic and diamagnetic changes compared to standard QSM; the use of DECOMPOSE in a clinically standardized MRI acquisition33,39; and the availability of both MRI-QSM and DaT-SPECT data in the same prodromal group, enabling head-to-head comparison of these techniques, minimally explored in the literature, especially in prodromal alpha-synucleinopathies13,15,25.

Table 1 Demographic information of patients who underwent analysis. The prodromal aSyn group comprised iRBD and pDLB patients with mild cognitive impairment (MCI-pDLB), and overt aSyn comprised PD and DLB patients. Prodromal aSyn patients underwent a DAT-SPECT scan to assess the function of the dopaminergic pathway, leading to a splitting of the prodromal group based on positive/negative DAT-SPECT defined as SBR of the most affected putamen being less than or greater than -1, respectively. Disease duration is defined as the time between diagnosis and MRI examination for this study. P-value column provides the p-value from group-wise statistical tests comparing demographics; significant p values from post-hoc statistical tests are provided in parentheses.
Full size table
Table 2 Results for one-way ANCOVA for groupwise comparisons of mean \(\chi\), PCS, DCS and R2*. ANCOVA with post-hoc Welch’s t-tests were carried out with Cohen’s d reflecting the effect size. FDR-corrected q-values are shown for both group-wise tests and post-hoc tests. Bold entries indicate significance at the q < 0.05 level
Full size table
Table 3 Summary of statistical results of linear regressions investigating correlations between DaT-SPECT in the putamen and caudate with susceptibility, PCS and DCS in the substantia nigra, putamen and caudate. Clinical comparisons of MDS-UPDRS III and MMSE clinical scores with DaT-SPECT and DCS in the most affected putamen, and \(\chi\) and PCS in the most affected substantia nigra are also shown.
Full size table

In conclusion, bulk magnetic susceptibility, \(\chi\), and its paramagnetic component, PCS, can detect iron accumulation in the substantia nigra during the prodromal stages of alpha-synucleinopathies prior to phenoconversion to overt stages. Higher \(\chi\) and PCS, indicating greater iron accumulation, and lower |DCS|, indicating possible axonal loss in the nigrostriatal terminals of the putamen, correlate with greater dopaminergic degeneration in the putamen as assessed by DaT-SPECT. Magnetic susceptibility and its paramagnetic and diamagnetic components calculated from DECOMPOSE may serve as non-invasive biomarkers for assessing substantia nigra neurodegeneration and dopaminergic function from prodromal to overt alpha-synucleinopathy stages.
