Introduction

Renewable materials like biomass contains inorganic and organic complex compound that is obtained from the agricultural, animal residues, plantation, and forestry1,2,3,4. Biomass has recently emerged as a promising class of renewable resource due to their distinct advantages such as no competition with land for foodstuffs and food production, no emission of hazardous materials in its utilization, fast-growing characteristic, abundant availability, and low economic value1,2,3,5,6,7. Renewable energy from biomass is one of the most promising energy sources and its use has been increased in the world. Many countries harvest large quantities of agroforestry waste and utmost of which is contained of biomass that can be employed as fuel to get thermal and electrical energy. Hence, the conversion of agroforestry waste into energy can decrease the environmental impact of its disposal and enhance the value of the waste8,9,10. This waste is an outstanding biological source for various products, for instance animal feed, bioethanol, biogenic silica, biochar, and cellulose9,10. Since each of this waste possesses its composition, the end co-product (i.e. the ash) differs according to the physical and chemical properties of the biomass and the kind of it undergoes combustion as well11.

Due to the growing demand for silicate compounds and silica in construction materials, electronic devices, pigments, catalysts, drug delivery systems or pharmaceutical drugs, polymer nanocomposites, sensors and thermal insulators12,13, the need to develop new production methods has been increased. Hence, waste obtained from agricultural substrates becomes the most sustainable and cheapest sources for the manufacture of silica5,9. These wastes possess large silica content and can be employed for large-scale manufacture because of the cheap cost of the raw material and the silica quality attained5,9. Silicon has a protective function in plants that concentrate in the husks and it is picked up from the soil during the growth of the plant and its compound solubility is a result of temperature, soil pH and presence of bacteria14,15,16. Silicon dioxide (SiO2) or conventionally known as silica is one of the essential materials in the world17. It can present in many amorphous and crystalline forms and exists in different technological uses associated with its unique optical, electrical, mechanical, and piezoelectric properties18. Biogenic silica (bio-silica), i.e. bio-precursor, is an outstanding substitute to synthetic silica because of its density, structure, and variable composition9.

Raw materials particularly obtained from agricultural byproduct like rice husk and rice straw can substitute the conventional and expensive silica production19,20. Rice husk (RH) and rice straw (RS) are the two major agricultural by products available during rice production. Rice is a cereal grain that plays a critical role in the food and nutrition security for world nations. Besides its food security rice can generate a large amount of husk and straw. Rice husk and straw can generate waste if they are not properly disposed of or managed. Rice husk and rice straw are not recommended as livestock feed because of their low nutrient value. However, they are used for heat generation in boilers and as fuel in rural areas. After being used as fuel, they generate ash, which is often disposed of improperly, creating environmental challenges such as fly ash, which contributes to air pollution. However, this waste contains valuable material. The chemical composition of RH and RS is similar to that of other lignocellulosic resource and largely made of structural carbohydrates (cellulose and hemicellulose) and lignin. RH has cellulose, hemicellulose and lignin occupied from 28.6–43.3%, 18–43% and 18–43%, respectively and also has varying ash consists of 17–20%, whereas the cellulose, hemicellulose, lignin and ash content of RS can vary between 32.0–38.6%, 19.7–35.7%, 13.5–22.3% and 10–17%, correspondingly21,22. However, RH and RS possess high contents of silica in spite of most residue of crops23. The largest silica content in rice belonged to the husk. Ash content of RH and RS is between 10 and 20%21,22, and their ash possesses an approximate silica (SiO2) content of 75–95% in a hydrated amorphous form like silica gel23. Many researchers presented that the rice husk (RH) treated by thermal method can be converted into high-purity silica6,24,25, valuable carbon-based materials26, and other ceramic compounds (e.g. nitride and silicon carbide)27,28,29. For instance, Halimah et al. (2019) reported the SiO2 extraction with high purity from RH by using the cold acid leaching approach30. Beidaghy Dizaji et al. (2019) also investigated the utilization of RH and RS as renewable energy materials for the production of high-grade biogenic silica. They pointed out that combustion for a longer time and higher temperatures can enhance the silica purity up to 97 wt.%5. Recently, Khoshnood Motlagh, et al. (2022) used RH and RS as the substrate for parallel silica and activated carbon production. They pointed out that the most vital superiority of RH to RS was its higher silica extraction yield from the initial biochar31.

Nevertheless, the proper use of rice waste (i.e. RH and RS) as a silica feedstock is still required. In reality, using RH and RS as the silica substrate will be useful not only for environmental aspect but also for economical point of view32,33,34,35. Even though several research works have been carried out on silica production from rice husk and straw ashes5,23,32,33,36,37,38,39,40,41,42,43,44,45,46,47, the synergic effect of hybrid RH/RS due to the different ash content and optimization of the ash digesting process variables by mixing with sodium hydroxide concentration (NaOH) solution for extraction of high-quality biogenic silica from RH/RS have not yet been investigated in detail. Hence, different from previous reports, our study employed response surface method (RSM) to optimize the ash digesting process variables including NaOH concentration (1–3 M), temperature (60–120 °C) and time (1–3 h.) and to study a synergistic effect between RH/RS by blending with NaOH solution in the extraction of silica form RH/RS material. RSM encompasses statistical and mathematical techniques that are vital for optimization (needs less experiment runs) and studying the interaction between the variables and can handle various variables at the same time as well48,49,50. Central composite design ( CCD) was employed for extraction silica from RH and RS as the method is more efficient and practical design which is ideal for consecutive experimentation51. The results of this work reveal that hybrid RH/RS as a promising raw material for biogenic silica production that could be employed in construction, ceramics, pharmaceutical industry and cosmetic and production of nanosilicate materials as well.

Experimental method

Raw materials

The plant raw materials (i.e. RH and RS) were collected at Fogera Woreda, South Gondar in Ethiopia. Sodium hydroxide pellets (NaOH, 99.8%, Norbright, China), potassium bromide (KBr pellets, Merck, India) and hydrochloric acid (HCL, 37%, India) were found from local distributors/suppliers. All the chemicals employed were analytical grade and employed as received without any further purification. Distilled (DI) water was employed throughout the extraction of silica.

Raw material preparation

At first, the RH and RS were washed with water to remove dust, sand and other particles. Then it was dried in oven at 110 °C for 12 h. to remove water52. Subsequent, RH and RS were ground using a grinding mill and the sample was passed through 2 mm mesh size sieve (AS PER IS: 460) and particles no < 2 mm in size were employed in for the extraction of silica in our experiments53. Then, few preliminary experments were performed with varying the mixture of RH (%) and RS (%). Based the trial laboratory results, the mixture of 70 wt.% of RH and 30 wt.% RS, which resulted in high ash content, was selected for the current work. Moreover, in the present study, RH/RS has been used standing for 70 wt.% of RH and 30 wt.% RS hybrids. The complete pictural illustration showing step-by-step experimental procedures in silica production from RH/RS ash is provided in Fig. 1. Furthermore, all the experiments were performed in triplicate, and the average analysis results of the data were provided.

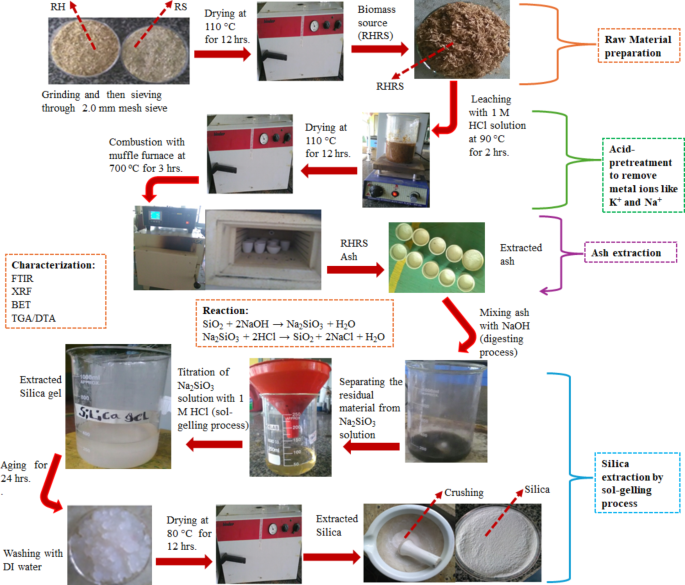

Fig. 1
figure 1

Schematic flow chart illustrates the step-by-step procedure to extract silica from RH/RS.

Full size image

Silica extraction by sol-gelling process

Acid pretreatment

It was carried out to remove alkali, alkali earth metal and transition metal impurities such as K, Na, Ca, Mg, Al, Fe etc. from the RH/RS material. These metals can decrease the final purity of the silica yield such as porosity, colour and specific surface area. Acid leaching is important to produce the ash which is free from organic and carbonaceous matter during combustion process. Leaching the sample with 1 M of HCl yields high quality silica52,54. The RH/RS sample was taken in to a beaker that contains 1N HCL solution of 500 ml and then heated with hot plate at temperature of 90 °C for 2 h (hrs.) under constant string with a magnetic stirrer at 500 rpm. Subsequently the leached material was filtered in a paper filter and then washed with DI water many times until the pH of the solution recorded up to 755. Finally, the acid treated solid material was put inside the oven and dried at temperature of 110 °C for 12 h. before the calcinations process.

Ash production

The pre-oven dried acid leached material was calcinated in a muffle furnace at temperature of 700 °C for 3 h. in the presence of air41. After calcination cycles, the recovered ashes were labelled and put inside a desiccator.

Ash digestion of RH/RS in NaOH

The resulting RH/RS ash was then mixed with NaOH (digesting process) and kept at 500 rpm (constant agitation) to create sodium silicate (Na2SiO3) solution (Eq. 1). The approach adopted is essentially showed by Falk et al.42. Next, the mixture was filtered in filter paper and then the filtered Na2SiO3 solution was allowed to cool to room temperature. The digestion process was done by using 1:10 solid/liquid (g/ml) ratio56,57.

$${\text{SiO}}_{{2}} + {\text{2NaOH}} \to {\text{Na}}_{{2}} {\text{SiO}}_{{3}} + {\text{H}}_{{2}} {\text{O}}$$
(1)

Response surface method (RSM)

In this study, central composite design (CCD) was employed by using the Design-Expert 7.1 software (trial version). RSM that consists of statistical and mathematical techniques are is vital for modelling and analysing problems in which the response is determined by numerous factors. The main objective of the response surface is to attain an optimize response factors48,49,50. RSM was used to optimize the ash digestion process variables in NaOH for extraction of silica from the RH/RS. Here, the central composite design (CCD) from RSM, which is more practical than other approaches, was employed to optimize and study the interaction effects of ash digestion process variables namely NaOH concentration, digestion temperature and digestion time. The range of the parameters is presented in Table 1. Here, few trial experments were performed to identify the ranges of the ash digesting parameters. These trials results are consistent with results from previous study reported somewhere else56,57. To model the influence of these parameters on the extracted silica yield, 20 experiments were generated using CCD. The results were analysed using ANOVA with the aid of Design Expert version 7.1 software.

Table 1 Independent parameter ranges for the RSM designs.
Full size table

In the process optimizing, the response can be directly related to selected factors by quadratic or linear models. A quadratic model (Eq. 2)58,59,60,61,62,63,64,65,66 is the appropriate model since there are only three levels for each factor.

$$\text{Y }={ \upbeta o }+ \sum_{\text{i }= 1}^{\text{k }= 3}{{\text{X}}_{\text{i}}\upbeta }_{\text{i}} + \sum_{\text{i }= 1}^{\text{k }= 3}{{\text{X}}_{\text{i}}^{2}\upbeta }_{\text{ii}} + \sum_{\text{i }= 1}^{2} \sum_{\text{j }=\text{ i}+1}^{\text{k }= 3}{{\text{X}}_{\text{i}}{\text{X}}_{\text{j}}\upbeta }_{\text{ij}} +\text{ ei}$$
(2)

where βo is a coefficient (constant); Xj and Xi are the factors; Y is the response; βii, βij, and βi are the coefficients (interaction) of quadratic, second-order and linear terms, correspondingly; k is the number of examined factors and; ei is the error60,63,67,68,69,70. These variables were selected according to the preliminary experimental results as the critical parameters nominated as X1, X2, and X3.

The correlation coefficient, R2, was employed to scrutinise the fit of the quality of model (i.e. polynomial). The probability value (Prob > F) and the model adequate precision and Fisher variation ratio (F-value) as well are the crucial indicators that validate the significance and adequacy of the used model48,59,60,71.

Sol-gelling process

Subsequently, the resulting solution was titrated with 1 M HCl (sol-gelling process, Eq. (3)) under constant stirring 600 rpm until the pH of the solution reached 742.

$${\text{Na}}_{{2}} {\text{SiO}}_{{3}} + {\text{2HCl }} \to {\text{ SiO}}_{{2}} + {\text{2NaCl}} + {\text{H}}_{{2}} {\text{O}}$$
(3)

Then after 24 h. of ageing time, the silica gel was easily cracked and firstly washed with DI water. The filtered gel was washed with DI water for several times until free of sodium chloride (NaCl) and then dried in the oven at 110 °C for 12 h. Finally, the resulting gel was crushed in a pestle and agate mortar and stored in a vacuum desiccator for further characterization32,40,42. The yield of extracted silica from RH/RS was calculated according to Eq. (4). The employed approach is basically demonstrated by previous studies presented somewhere else40,72.

$$\text{Percent yield of silica }(\text{\%}) = \frac{\text{Mass of extracted silica }(\text{g})}{\text{Mass of ash }(\text{g})} \times 100$$
(4)

Characterization

Proximate analysis of biomass sample estimates volatile matter (VM), moisture, ash and fixed carbon (FC) content in a fuel material as described by the American Society for Testing and Materials (ASTM) standards73,74. Though originally established for coal sample, proximate analysis has been acquired for different solid fuels and biomass as well74,75. The proximate analysis was estimated based on the approach reported by Racero-Galaraga et al.[74]and Hosseinpour et al.75. The thermogravimetric (TG) and differential thermal (DT) analysis of RH/RS were conducted on a BJHENVEN HCT-1 instrument. Fourier transform infrared spectroscopy (FTIR, Model Jasco-6600, Japan) was employed to identify the functional groups in the sample by creating an infrared absorption spectrum. The RH/RS material and extracted silica spectra were obtained with wavelength range of between 4000–500 cm−1 regions by employing a spectrometer with a detector at 4 cm−1 resolution and 25 scan rates. X-ray fluorescence spectroscopy (Siemens Model SRS 3000, XRF) was employed for determination of silica (SiO2) content and other chemical impurities exist in the extracted silica materials. The Surface area and pore volume of the extracted sample were conducted by using Brunner-Emmet-Teller (BET) (Quanta chrome Instruments, version 11.0, Quanta chrome Nova Win model).

Results and discussion

Proximate analysis of RH/RS

The proximate analysis results of the raw material (i.e. RH/RS) are presented in Table 2. The results were consistent with the previous studies reported somewhere else76,77,78,79,80,81,82,83,84,85,86,87. The proximate analysis of biomass comprises vital variables like ash, moisture, fixed carbon, and volatile matter, all of these are essential for evaluating its viability of energy74. Moisture affects combustion efficiency, as high moisture content lowers the calorific value by requiring additional energy to evaporate the water before effective combustion can occur74. The moisture content of RH/RS sample was found to be 6.6 (wt. %) (Table 2), which was in agreement with the previous studies76,77. Ash, final inorganic residue substance after the combustion of biomass is, which is a standard measurement for solid fuels74,88. The ash analysis result showed that an average ash content of 20.5 wt.% was obtained for RH/RS material (Table 2), indicating a high percentage value of ash yield due to the synergistic effects between RH and RS, that will result in highest yield of silica. This result is basically matched with the previous studies83,84,85 . VM, which comprises of the gases released through the beginning steps of combustion, helps in combustion stability and fuel ignition74,89,90. The VM values obtained for RH/RS (67.1 ± 0.78 wt.%, Table 2) is in agreement the previously reported results78,79. Moreover, FC, indicates the portion of carbon content remaining after volatiles and moisture have been expelled, is related to the calorific value and aids as a main indicator for the energy potential’s of biomass74,91. The FC was estimated based on the ASTM Standard D 3172–89 by subtracting the moisture, VM, and ash content from the initial biomass weight (i.e. FC, wt.%. = 100 − (ash, wt.% + moisture, wt.% + VM, wt.%.)92. The FC values found in this work (5.8 ± 0.35 wt.%. ) is different from the previous result (11.1 wt.%.)86,87. This difference could be due to the kind of rice, geographical-linked condition, climate, and planting time54. Lastly, biomass basically possesses a VM/FC ratio of > 4.093,94. In this study, the VM/FC ratio for the RH/RS material is about 11.6, indicating the main form of combustion will occur through the volatile species gas-phase oxidation93,95.

Table 2 Proximate analysis results of RH/RS material (dry basis, wt.%).
Full size table

TG and DT analysis of RH/RS

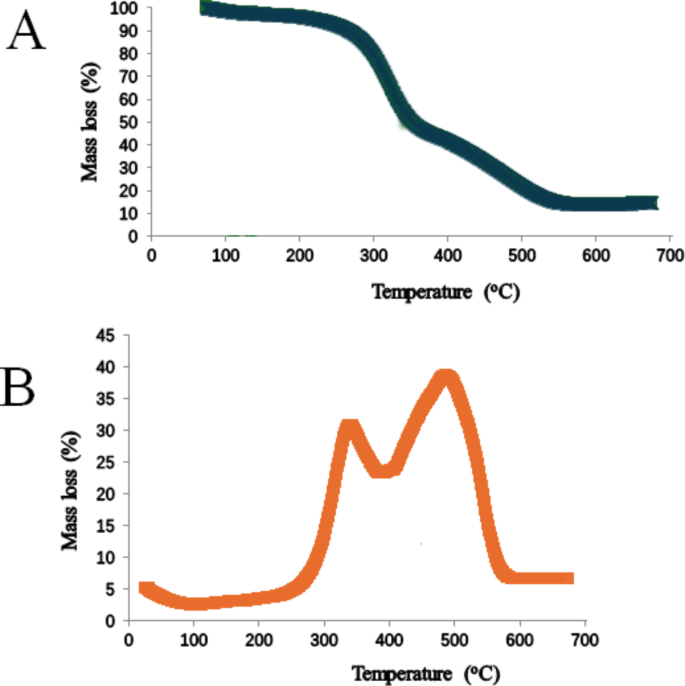

TG/DT analysis was employed to examine the presence of organic constitutes in the RH/RS. (Fig. 2). 10 mg of sample was kept in corundum crucible and then heated up to a 700 ◦C temperature at 20 ◦C per minute heating rate in the air atmosphere. It can be observed that four temperature stages have been obtained. The first stage (80–220 °C) demonstrated that the mass loss happened at temperature between 80–220 °C. This can be due to the loss of adsorbed moisture and other volatile components96,97. The loss of these components was verified by the discovery of the same temperature for TGA and DTA profile at < 175 °C.

Fig. 2
figure 2

Thermogravimetric (TG) and differential thermal (DT) plots of RH/RS.

Full size image

The second stage indicated a large mass reduction within 200–350 °C. This mass reduction occurred because of the thermal degradation of hemicellulose and cellulose as main organic constituent in the RHRS96,97,98,99. This is verified by the occurrence of exothermic peak at approximately 345 °C in the DTA analysis.

The third stage (between 380–585 °C) revealed the mass loss which was owing to degradation of lignin96,97,98. This was verified by the discovery of exothermic peak at about 485 °C in the DTA plot.

In the fourth stage (> 590 °C), no mass reduction was detected97,98. The degradation rates are no longer significant and no mass loss detected as all volatile organic constituents were converted entirely. The ash residual is mostly the silica (non-combustible)97.

The TGA/DTA results demonstrated that the heat treatment, can eradicate organic constituents, is crucial to be performed prior to silica production process32,47,97,100.

Surface functional groups analysis using FTIR

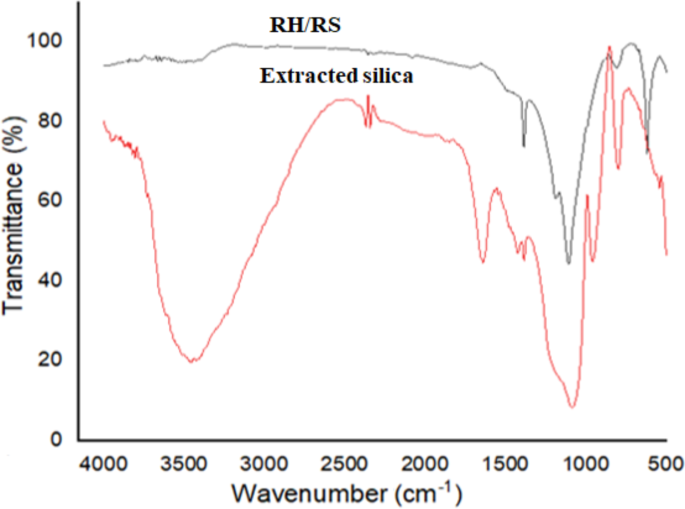

Figure 3 shows the FTIR spectra of the raw RH/RS material and the extracted silica. For both samples, the peaks about 1100 and 870 were assigned to CHOH and Si–O-Si stretching correspondingly while the peak around 618 cm-1 ascribed to Si–H groups97,101,102,103. Also, these two samples possessed peaks at 1000, 700 and 450, in which these peaks were ascribed to Si–O-Si asymmetric stretching, Si–O-Si symmetric stretching and Si–O-Si stretching, correspondingly (Fig. 3). However, for RH/RS, we obtained a peak which was not attained in the silica. For instance, in the FTIR spectra of RH/RS (black, Fig. 3), the peak about 3250 cm-1 showed the presence of free OH groups. The RH/RS bands around 1600–1750 cm-1 assigned to the stretching of C = O that may be ascribed to the aromatic groups of lignin and hemicelluloses104,105. The C = C stretching vibrations of RH/RS around 1500–1600 cm-1 showed the alkenes and aromatic functional groups and the peak around 1383 cm-1 and 1250 cm-1 were ascribed to the presence of CH2 and CH3102,105. Similarly, in the FTIR spectra of the extracted silica (Fig. 3 (red), different from RH/RS, the bands around 500 and 1000 cm-1 assigned to the O-Si–O symmetrical stretching vibrations which is similar with the previous findings106,107. Moreover, the spectra between 1000 and 1500 cm-1 indicated the existence of O-Si–O vibration in extracted silica that attributed to the vibration of asymmetrical stretching bands which is identical to the study reported somewhere else108. Furthermore, for silica, the bands around 3550 and 3750 cm-1 assigned to the free water band because of the H2O molecules stretching vibration109. This result also agreed with the previous works108,110. Finally, the peak for extracted silica detected between 550 and 700 cm-1 demonstrated the formation of crystalline, what typically noticed as crystalline silica108,111.

Fig. 3
figure 3

FTIR spectra of raw RH/RS (black) and extracted silica (red).

Full size image

XRF analysis

XRF was employed to identify the purity and chemical compositions of silica extracted from the RH/RS (Table 3). To verify the composition and purity, XRF was performed for extracted silica at the optimized ash digesting process conditions as a proof for laboratory result. The XRF result showed that silica (SiO2) content was 98.74 wt.%. purity. This higher value (98.74 wt.% ) was attributed to the decrease in the impurities (i.e. other metal oxides) due to the acid leaching during sol-gelling process97, which fitted well with the experimental value (i.e., 97.35 wt.%., optimized value obtained from Table 4). The values are in good agreement with other studies reported elsewhere31,42,97,112,113,114. This result demonstrates that the RH/RS is one of the promising materials for biogenic silica resources.

Table 3 Chemical constituents of extracted silica.
Full size table
Table 4 Optimization results derived by CCD for silica yield.
Full size table

Surface area and porosity

Table 5 presents the BET surface area, pore diameter and total pore volume of extracted silica.

Table 5 BET surface area of extracted silica.
Full size table

According to Table 5, the extracted silica possessed a BET surface area of 225 m2/g and pore volume of 0.41 (cm3/g). The higher pore volume and surface area values are largely ascribed to the effect of acid (HCl) leaching treatment that resulted in the hydrolysis of cellulose and hemicellulose into smaller components which might degrade easier in combustion process97. The smaller average pore diameter of silica (about 58.61 Å) indicated that acid leaching treatment resulted in reduced pore diameter. The surface area value obtained is in agreement with the result obtained by Bakar et al.97 and Mahmud et al.114.

Model development and statistical analysis

In this study, the Design-Expert 7.1 software (trial version) was employed to examine the experimental data regression analysis and to plot the response surface curves. In order to determine the influence of the factors and their interactions effect, the statistical variables have been estimated by employing Analysis of variance (ANOVA) in the optimal Central Composite Design (CCD) test48,59,60. The NaOH concentration ranged from 1 to 10 M, the temperature ranged from 60–120 °C and time 1 to 3 h., high (coded + 1) and low (coded − 1) set points, for ash digestion process variables have been selected according to the values achieved in preliminary tests. Table 6 presents the required experimental variables and ranges for-ash digestion process in NaOH in that have been employed in the current study. The experimental results of 20 runs of the design of experiments using CCD on three factors is shown in Table 6.

Table 6 Experimental variables in actual and coded units and experimental response (silica yield) for the CCD.
Full size table

The experimental analysis of our results (Table 6) provides to mathematical relationship that convey silica yield as function of interaction and individual contribution of parameters (Eq. 5). Hence, in terms of a coded variables, the final regression model (second-order polynomial) for silica extraction (wt.%)) is indicated in Eq. 5:

$${\text{Silica}}\;{\text{yield}}\;\left( {{\text{wt}}.\% } \right) = + {9}0.0{1} + {6}.00*{\text{A}} + {7}.{1}0*{\text{B}} + {5}.{31}*{\text{C}} + {6}.{75}*{\text{A}}*{\text{B}} + {7}.{5}0*{\text{A}}*{\text{C}} - {38}.{45}*{\text{A}}^{{2}}$$
(5)

where the positive sign presents the synergistic effects and the negative sign shows the antagonistic effects.

The test for significance of the individual model and regression model coefficients with lack of fit test was conducted to fit a good model. Often, the significant variables have been ranked according to the P-value (probability value) or F-value with 95% confidence level. Table 7 presents the ANOVA of regression factors for the data obtained by using Eq. 5 for silica extraction from RH/RS. The smaller ‘P’ value and the larger F-value (Prob. > F), indicate more significant of the model for corresponding coefficient35. The F-value of 21.74 revealed that the model is significant for silica yield. Moreover, the model terms are not significant only when the Prob. > F values of are > 0.1000 whereas values < 0.05 indicate the significant model terms115. In this case, A, B, C, AB and AC are significant model terms on response while interactional effects between BC, B2 and C2 are not significant model terms that had limited effect. These not significant terms were excluded in order to enhance the model.

Table 7 ANOVA for analysis of variance and adequacy of the response surface quadratic model for silica extraction for CCD obtained by the Design Expert 7.1 software.
Full size table

The model adequate precision ratio of 12.319 , which is > 4, revealed the adequacy of the signal model116. Thus, the model developed can be employed to guide the design space. The Lack of fit F- statistic value of 1.97 suggests that the Lack of fit is not significant since the P values is > 0.05 (Table 7). The non-significant lack of fit in Table 7 implies that the quadratic model is statistically significant and can be employed for further analysis. Furthermore, the multiple correlation coefficient (R2) value of 0.9514 was obtained for silica extraction, which is > 0.80, revealing that only 4.86% of the total variation might not be described by the empirical model. For a good fit of a model, the R2 should be at least 0.8 as described by Joglekar et al.117. The High R2 results reveals good similarity between the actual and predicted values in the range of experiment. Similar results had been demonstrated and discussed elsewhere59,118.

In general, it is crucial to check the adequacy of real system approximation with the developed model in order to verify the data analysis of the experiment119. By employing the diagnostic plots, like studentized residuals versus normal probability plots, the adequacy of the model can be checked. The normal probability of studentized residual plot was presented in Fig. 4 for extraction of silica from RH/RS. It has been found from Fig. 4 that there was neither response transformation nor any apparent problem with normality. It can be found that there was a normal distribution of data (Fig. 4). The predicted silica yield and internally studentized residual is presented in Fig. 5. This indicates that the variance of original value is constant for the entire response values (i.e. the random scatter plot) and there was no need for response factors transformation. Figure 6 shows the actual versus the predicted percentage for silica extraction from RH/RS. It was discovered that the values of adjusted R2 (Adj R2) and R2 were 90% and 95% correspondingly. The result of R2 indicated up to what level perfectly developed model can appraised the data points (experimental) and the value of adjusted R2 described the quantity of variation about mean described by the developed model. Thus, the model is found to be adequate. Similar results were shown and discussed by previous reports59,118,120,121,122.

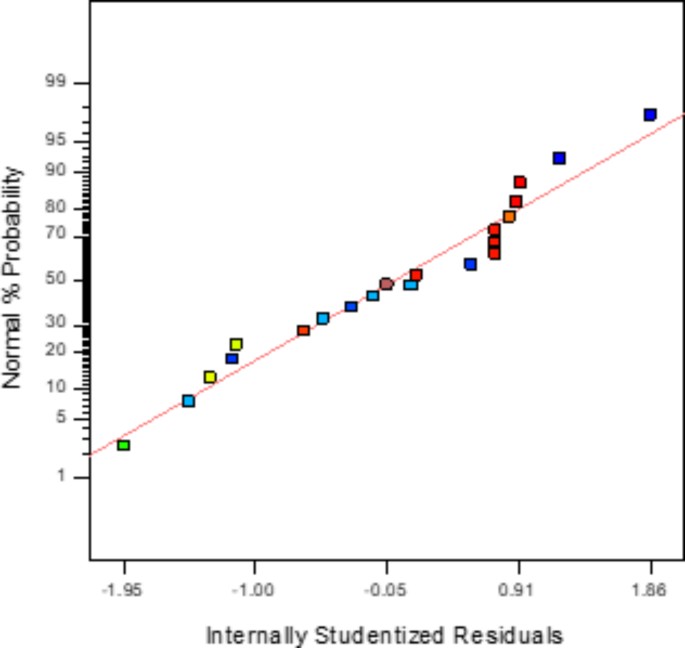

Fig. 4
figure 4

Studentized residuals versus normal percentage probability plot for silica extraction.

Full size image
Fig. 5
figure 5

Predicted silica extraction of RH/RS and studentized residuals plot.

Full size image
Fig. 6
figure 6

The observed values (experimental data) versus predicted values for silica extraction.

Full size image

Three-dimensional (3-D) response surface plots

The RSM assigned to CCD model was illustrated and examined to optimize the crucial variables and depict the response surface nature in the experiment59. Based on the ANOVA, the 3-D response plots were discovered according to the quadratic model from the combined effect of the three parameters on silica production from RH/RS. In each plot, as presented in Fig. 7, one variable was maintained constant while the other two factors were tested on silica yield in the experimental ranges. The combined effect of NaOH concentration (A) and temperature (B) on silica yield at constant time of 2 h. is demonstrated in Fig. 7A. It can be observed from the results, NaOH concentration (A) and temperature (B had lower effects on silica extraction from HR/HS owing to the low result of F statistics. Similarly, Fig. 7B presents the combined effect of NaOH concentration (A) and time (C) on silica production form HR/HS at 90 °C (constant temperature). The results indicated that interaction between the NaOH concentration and time possessed higher effect in silica yield. Similar results with analogous situations and supposition had been presented and discussed somewhere else59,60,121,122.

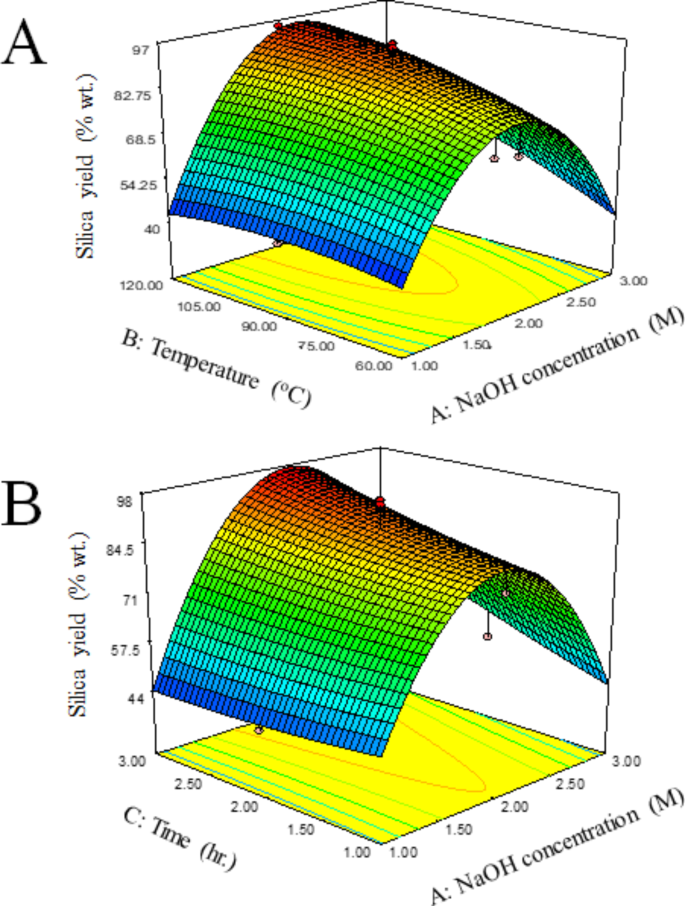

Fig. 7
figure 7

Response surface plots for the CCD for silica extraction as a function of: (A) NaOH conc. and temperature (at time 2 h.) (B) NaOH conc. and time (at temperature 90 °C).

Full size image

Optimization of ash digesting process variables by RSM

Profiling the desirability option and the predicted values in the Design-Expert 7.1 software (trial version) was employed for process optimization. The profile of desirability responses comprises stating the function for desirability for the dependent factor (silica yield, wt.%) by allocating a score for predicted values ranging from 0 (very undesirable) to 1 (very desirable). Based on the desirability score of 1.0 (Table 4), silica extraction was optimized at 97.35 wt.% at optimized ash digesting parameters of 2.07 M NaOH, temperature (95.42 °C) and 2.78 h. of digestion time. For validation at these optimized ash digesting parameters, the experiment was performed in triplicate and the results revealed that there was < 0.05% error between the actual (97.35 wt.%) and predicted (97.4 wt.%) values for the silica yield from RH/RS. The results were estimated and discussed on the bases of the analysis approached reported by Asfaram et al.59 and Agarwal et al.60. Hence, the present research concluded that designed model could predict the relation between the variables and silica yield.

Conclusion

In this study, silica extraction from RH/RS was optimized using CCD with RSM. The effects of three independent ash digestion process variables including NaOH concentration (1–3 M), temperature (60–120 °C) and time (1–3 h.) using a quadratic model for maximum silica production. The present study demonstrates that the temperature is the most significant parameter among the model terms, followed by NaOH concentration, then time for digestion of ash for silica production. At the optimized ash digesting variables, the experimental and predicted values, for the silica yield from RH/RS were found as 97.35 wt.% and 97.4 wt.%, correspondingly, with error less than 0.05%. Hence, the results indicated that the model developed could precisely predict the silica extraction. The extracted silica can be a potential material in construction, ceramics and silica gel application.
