Introduction

Transition metal oxides (TMOs) are a class of material possessing a wide range of unusual electric, magnetic, and optical properties as a result of a partially filled outermost d-shell. Current progress in the field of nanostructuring has promoted the development of TMO nanostructures with enhanced surface area that exhibit modified physical and chemical properties as compared to TMOs. For example, nanostructuring TiO2 increases the surface area-to-volume ratio exposing more active sites for catalytic reactions1, VO2 undergoes a well-known metal–insulator transition on size reduction2, ZnO nanorods exhibit enhanced ultraviolet emission due to quantum confinement effects making them suitable for use in optoelectronic devices3, Fe3O4 nanoparticles exhibit superparamagnetism at room temperature4. Existing in multiple oxidation states and the ability of TMOs to undergo reversible redox and intercalation reactions make them suitable for energy storage applications5.

Some TMOs exhibiting photocatalytic properties (like ZnO, TiO2) also generate Reactive Oxygen Species (ROS) such as superoxide anion(O2·−), hydrogen peroxide(H2O2), hydroxyl radical(·OH), and single oxygen (·O) that can cause oxidative stress in bacterial cells. This cellular damage can lead to cell membrane disruption, enzyme inactivation, and ultimately, bacterial cell death. In addition, some TMOs like CuO, ZnO, and Ag2O, can release metal ions (e.g., Cu2⁺, Zn2⁺, Ag⁺) into the bacterial cell membranes, hence leading to cellular contents leakage, and resulting in cell death. These combinations of properties make TMO effective antimicrobial agents, with potential applications in healthcare, food preservation, and environmental protection6. Nanostructures of TMOs possess enhanced antibacterial properties due to increased surface area, enhanced generation of reactive oxygen species (ROS), and improved interaction with bacterial cell membranes, hence making them efficient anti-microbial agents.

Among TMOs, vanadium oxide (VO) is established for its promising electrochemical properties in energy storage applications. However, challenges such as its low conductivity and structural stability are issues. As mentioned above, TMOs such as TiO2, ZnO, and CuO have antimicrobial properties. Nanostructuring further amplifies these effects, improving bacterial interaction and oxidative stress induction. Despite these advantages, the investigation of the antibacterial potential of VO-based compounds is needed.

This work reports the charge storage properties along with antibacterial properties of vanadium oxide (VO) and purchased coconut-shell derived activated carbon (AC)-based composite prepared via the hydrothermal technique. The nanocomposite samples were prepared by varying weight percent ratios of vanadium and AC. Further, these were characterized through SEM, TEM, and RAMAN. Their electrochemical properties were studied using CV (cyclic voltammetry), GCD (Galvanostatic charge–discharge), and EIS (Electrochemical impedance spectroscopy) in 3-electrode configurations. Additionally, the composites’ antimicrobial activity was evaluated by a well-diffusion method against gram-negative and gram-positive bacteria.

Experimental

Material and synthesis of nanocomposite samples

AC was purchased from Merck (up to 50 μm sized particles), and bulk VO2 (99% purity) was purchased from SRL Pvt. Ltd., India. The composite of vanadium oxide and activated carbon was prepared through a one-step hydrothermal process at 160 °C for 5 h.

AC and bulk VO2 were taken in weight ratios 1:3 and 3:1, and the resulting composites were named VO1/AC3 and VO3/AC1, respectively. The mixture (3 g AC with 1 g VO2) was mixed in DI water, and 5 ml H2O2 (30% concentration, CDH, India) was added to the solution. A reddish to reddish-brown color change was observed after stirring and sonicating for 1 Hr each. Later, the composition of AC and bulk VO2 was changed to 1 g and 3 g, respectively. After uniform dispersion of the solution, the contents were poured into a hydrothermal autoclave (100 ml) and treated at 160 °C for 5 h. After the autoclave cooled down, the contents of the autoclave were washed using DI water and ethanol alternately till a neutral pH was achieved. The product thus obtained was then dried in a muffle furnace at 150 °C for 2 h and then collected for testing and charge-storage evaluation.

Morphological and electrochemical evaluation

Scanning Electron Microscopy (SEM, Model: Zeiss Gemini 300) was done to observe the morphology of the composite, and Transmission Electron Microscopy (TEM, Model: TALOS F200X) analysis was done to study the internal structure of the material. RAMAN spectroscopy was done to analyze a sample’s chemical composition and structure and find the degree of graphitization obtained. Electrochemical Analysis was done to study the charge storage properties of the material through Cyclic Voltammetry (CV), Galvanostatic charge–discharge (GCD), and Electrochemical Impedance Spectroscopy (EIS).

Antibacterial study

The vanadium oxide NPs’ antibacterial activity against Escherichia coli (gram-negative (−)) and Staphylococcus aureus (gram-positive (+)) bacterial strains was determined using a well diffusion method. A cleaned and autoclaved petri dish was filled with nutrient agar medium and allowed to solidify. After solidification 5 circular wells (5 mm) were created using a borrer and 4 wells filled with different nanoparticles dispersed in distilled water at different concentrations (25, 50, 75, and 100 µL). One well filled with antibiotic ampicillin (1 mg/ml) was taken as a control. Afterward, 1 mL of bacteria culture (O.D. = 1 at 600 nm) was spread onto the medium using a spreader and incubated at 37 °C. After 24 h zone of inhibition of bacteria was measured to the antimicrobial activity of the prepared nanomaterial.

Results and discussion

Morphology

The SEM images of VO3/AC1 and VO1/AC3 are displayed in Fig. 1a,b, showing the presence of VO2 nanorods (VONRs) enwrapped around activated carbon.

Fig. 1
Fig. 1
Full size image

SEM image (a) and (b) VONRs in sample VO3/AC1, (c) and (d) a VONR enwrapped with AC in sample VO3/AC1 and VO1/AC3, respectively.

Due to the excess amount of VO2 in VO3/AC1, VONRs are formed in abundance, and AC can be seen enwrapped with the NRs in Fig. 1a. Small NRs of VO2 are visible in Fig. 1b inside the AC’s porous matrix where AC is in excess amount than VO2. The formation of NRs can be attributed to the self-assembly of nanocrystals, where the growth of nuclei into nanorods is anisotropic, i.e., growth rates vary along different crystallographic directions. In the case of V2O5, the layered structure of the material promotes faster growth along the c axes, leading to the formation of rod-like structures7. Figure 1c,d show TEM images of VO3/AC1 and VO1/AC3, respectively, where the formation of VO2 NRs enwrapped around AC is evident.

Raman analysis

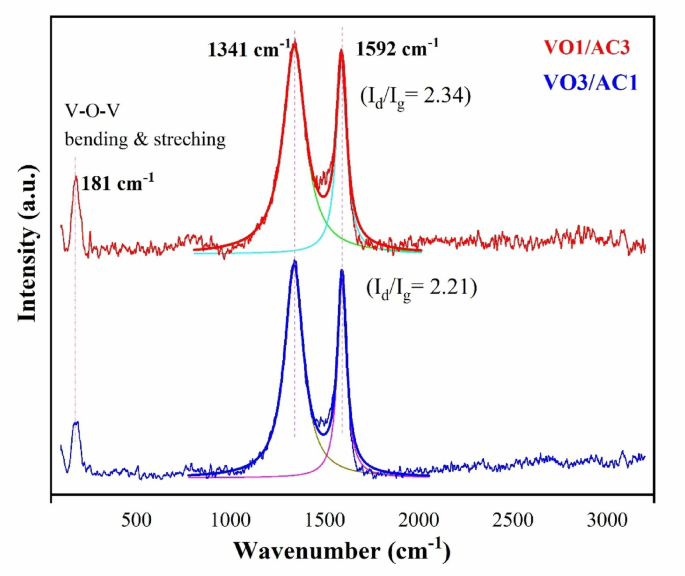

RAMAN bands of the material in Fig. 2 show the three prominent bands at 181, 1341, and 1592 cm−1. The low wavenumber band around 180 cm−1 is attributed to V─O─V bending/wagging and V─O─V stretching modes present in VO2, which is characterized by a layered structure8. In addition, the D and G bands located at 1341 and 1592 cm−1 are associated with carbon atoms in various hybridization modes, and higher intensity peaks for sample VO1/AC3 are due to the abundance of carbon. The integrated area ratios of D and G bands (ID/IG) are approximately 2.34 and 2.21 for VO1/AC3 and VO3/AC1, respectively9. The low value of ID/IG = 2.21 in the composite with higher AC content (VO3/AC1) indicates improved graphitization and fewer defects compared to the sample with less AC(VO1/AC3). Increased graphitization also leads to improvement in the conductivity of the composite10, which is also indicated by the low equivalent series resistance value of VO3/AC1 in EIS analysis.

Fig. 2
Fig. 2
Full size image

RAMAN spectra of VO1/AC3 and VO3/AC1 samples.

Antibacterial study

To study the effect of inhibition under S. aureus and E. coli bacterial culture after 24 h of incubation, vanadium and a sample containing more AC were selected for comparison (See Fig. 3).

Fig. 3
Fig. 3
Full size image

Diameter of inhibition under E. coli and S. aureus bacterial culture (24 h of incubation).

The activity of NPs and the control was performed against the specified bacterial strain. The inhibition zones’ diameters are presented in Table 1. The vanadium oxide NPs showed inhibition zones of 20 mm, 25 mm, 18 mm, and 30 mm in S. aureus and 15 mm, 14 mm, 20 mm, and 10 mm in S. aureus at 25,50,75, and 100 mg/mL concentrations, respectively10,11. Similarly, the inhibition zone produced by VO1/AC3 NPs were 10 mm, 15 mm, 20 mm, and 20 mm in S. aureus and 10 mm, 10 mm, 16 mm, and 25 mm at 25, 50, 75, and 100 mg/mL, respectively.

Table 1 Diameter of inhibition for different microorganisms.
Full size table

These results indicate that both vanadium oxide NPs and VO1/AC3 NPs exhibited antimicrobial effectiveness against S. aureus in a concentration-dependent manner, with larger inhibition zones observed at higher concentrations. Vanadium oxide NPs demonstrated superior antibacterial activity compared to VO1/AC3 NPs, as indicated by consistently larger inhibition zones. These findings highlight the potential for vanadium oxide-based nanomaterials in antimicrobial applications, which require further investigation to improve their mechanisms of action and effectiveness.

Electrochemical analysis

The materials were tested as active materials for supercapacitor electrodes by coating their slurry on a conducting substrate and using it as a working electrode. The charge storage properties were measured using a 3-electrode cell with the material VO3/AC1 and VO1/AC3 as a working electrode. Platinum wire and Ag/AgCl served as the as counter electrode, and reference electrode respectively,in a 1 Mole Na2SO4 electrolyte. TheCV, GCD, and EIS were used to evaluate the nature of charge storage, specific capacitance, and impedance behavior of the active material.

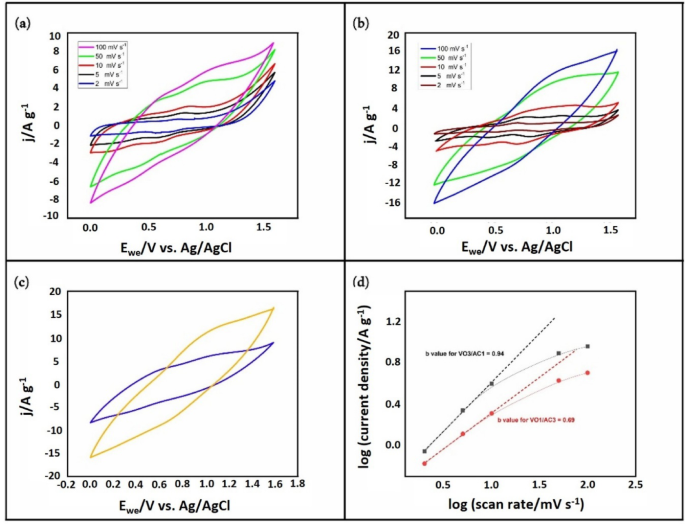

The redox peaks in CV curves, along with slant shapes in Fig. 4a,b, show a mixed mechanism of charge storage. This shows that the total capacitive current from both VO1/AC3 and VO3/AC1 is the result of EDLC current from AC and pseudocapacitive current from VO2 NRs. It can also be observed that the redox peaks in the CV of VO1/AC3 and VO3/AC1 are more prominent at lower scan rates due to the formation of a steady state between the electrochemical reaction and reactants. Also, the area enclosed by the CV loop is indicative of the charge stored by the material, which is larger for VO3/AC1 than VO1/AC3 at the same 100 mVs−1 scan rate, showing better charge storage12.

Fig. 4
Fig. 4
Full size image

(a) VO1/AC3, (b) VO3/AC1, (c) comparison of CVs at 100 mV s−1, (d) Calculated ‘b’ value of VO1/AC3 and VO3/AC1.

Further investigation of CV curves was done to calculate the b value, which is mathematically equal to the slope of the log (scan rate) versus log(current density) curve, as shown in Fig. 4c,d. Figure 4d represents the b values for VO1/AC3 and VO3/AC1 as 0.69 and 0.94, respectively. b value helps determine whether the charge storage is primarily governed by surface redox reactions (capacitive behavior) or diffusion-controlled processes (Faradaic behavior). b = 0.5 indicates a diffusion-controlled process, typically associated with faradaic reactions (like battery-type behavior where ion diffusion limits the rate of charge storage), and b = 1.0 indicates a capacitive process, meaning the charge is stored primarily via surface reactions (pseudocapacitance). Hence, b = 0.64 for VO1/AC3 is a marker of diffusion-limited charge storage, often associated with slower Faradaic processes in contrast to b = 0.94 for VO3/AC1, for which charge storage is capacitive dominated13.

Conclusively, VO₁/AC₃ (b = 0.69) demonstrates diffusion-limited charge storage, which is related to slow Faradaic processes, while VO₃/AC₁ (b = 0.94) demonstrates capacity-dominated charge storage, which allows for rapid charge–discharge cycles.

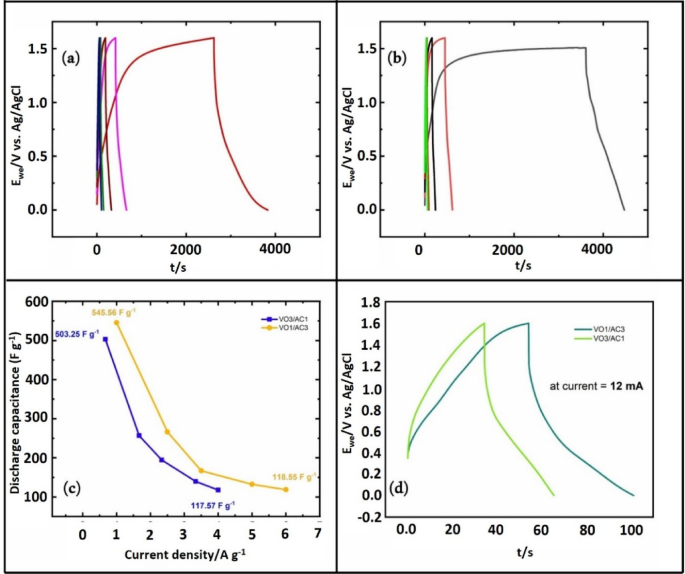

A galvanostatic charge–discharge test was performed to calculate and compare the discharge times of the electrodes, and specific capacitance was calculated using the Eq. (1). Further energy density and power density were also calculated through Eqs. (2) and (3), which are summarised in Table 2. The shape of the GCD curves has a plateau-like feature instead of straight lines. The non-linear shape points towards the Faradaic behavior of charge storage in the electrode, which is also evident from the presence of peaks in CV curves of the electrodes. Figure 5a,b show the voltage variation response of composites with increasing time at constant currents 2, 5,7,10, and 12 mA. The VO1/AC3 composite shows specific capacitance of 545.56, 266.29, 166.80, 132.40, and 118.55 while VO3/AC1 shows specific capacitance of 503.25, 256.77, 194.39, 139.87, and 117.57 at 2, 5, 7, 10, and 12 mA current, respectively depicted in Fig. 5c. Figure 5c also shows that the VO1/AC3 composite shows better capacitance and capacitive retention as compared to VO3/AC1, reflecting that AC is responsible for providing better charge storage and better synergy between components, vanadium oxide and carbon at a 1:3 weight ratio. However, the potential drop (IR drop), which is caused by an additional resistance, the uncompensated resistance, experienced by VO1/AC3 is larger as compared to VO3/AC1, showing that the internal resistance is larger in VO1/AC3 as seen in Fig. 5d. This assumption is supported by the results of the EIS analysis, which is discussed later.

Table 2 Electrochemical parameters in three cell study.
Full size table
Fig. 5
Fig. 5
Full size image

GCD curves for (a) VO3/AC1, (b) VO1/AC3, (c) variation of specific capacitance with various current density (2, 5,7,10, and 12 mA) for composite VO1/AC3 and VO3/AC1, (d) comparision of discharge time and potential drop for composite VO1/AC3 and VO3/AC1 at current 12 mA.

The values of discharge time were used for calculating specific capacitance (C) using the following equation14:

$${\text{C}} = \left( {{\text{I}} \cdot \Delta {\text{t}}} \right)/\left( {{\text{m}} \cdot \Delta {\text{V}}} \right)$$
(1)

where ‘I’ is the current, ‘m’ is the active mass loading, which is taken as 1 mg, Δt is the discharge time, and ΔV is the voltage window.

Also, energy density and power density were calculated through the following equations14:

$${\text{E}} = \left( {1/2} \right) \cdot {\text{C}} \cdot \Delta {\text{V}}^{2}$$
(2)
$${\text{P}} = {\text{E}}/\Delta {\text{t}}$$
(3)

The values of ‘C’, ‘E’, and ‘P’ are tabulated in Table 2.

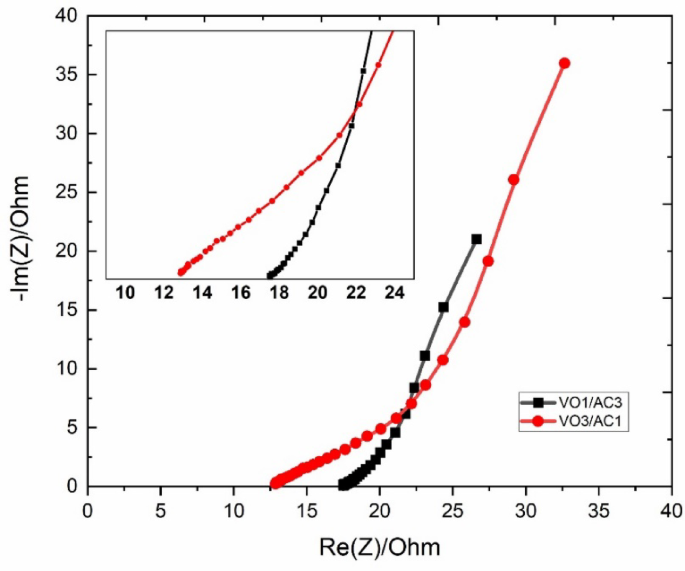

EIS testing was done to calculate the prepared electrodes’ equivalent series resistance Rs, charge-transfer resistance, and ion diffusion. The Nyquist plots of VO3/AC1 and VO1/AC3 electrodes are displayed in Fig. 6. The intercept of the curves on the x-axis gives the series resistance (Rs) of the electrodes, whereas in the high-frequency region, the semicircle diameter indicates the charge transfer resistance. The value of Rs for VO3/AC1 and VO1/AC3 was found to be 12.8 and 17.5, respectively and showed that the solution resistance increases.

Fig. 6
Fig. 6
Full size image

Nyquist plot of VO1/AC3 and VO3/AC1.

when the ratio of AC increased in the composite. As the ratio increases in the composite, the absence of a semi-circle in the high-frequency region shows indicates low charge transfer resistance and promote facile ion diffusion in the electrode material15. The result collaborates well with the values of potential drop obtained from the GCD curves.

The electrochemical results show that the higher ratio of the composite sample (VO3/AC1) offers less resistance as compared to the sample containing low vanadium oxide (VO1/AC3) of the composite; however, a higher ratio of AC is responsible for higher charge storage properties. Furthermore, the electrochemical parameters of vanadium and other metal oxide composites have been presented in Table 3.

Table 3 Electrochemical parameters of vanadium and other metal oxide composites.
Full size table

Conclusion

The composites synthesized by varying concentrations of VO2 and AC through hydrothermal were studied. Their anti-microbial and charge storage properties were investigated. SEM, TEM, and RAMAN spectroscopy confirmed the formation of vanadium oxide nanorods with AC. The higher AC content sample (VO3/AC1) exhibited better capacitance, energy density, and power density than the sample with less AC (VO1/AC3). The AC was found to contribute to a synergistic effect to the composite. Whereas, the calculated ‘b’ value of (VO3/AC1) exhibited capacitive-dominated charge storage, and the sample AC (VO1/AC3) exhibited diffusion-limited charge storage. The antimicrobial properties of pure vanadium oxide were found to be better than those of its composite with AC.
