Robust techno-economic optimization of energy hubs under uncertainty using active learning with artificial neural networks

Aya M. A. Heikal^1,2,
Shady H. E. Abdel Aleem³,
Ragab A. El-Sehiemy^4,5 &
…
Almoataz Y. Abdelaziz^1,6

Scientific Reports volume 15, Article number: 27197 (2025) Cite this article

2728 Accesses
4 Citations
Metrics details

Subjects

Abstract

Energy hubs (EHs) are considered a promising solution for multi-energy resources, providing advanced system efficiency and resilience. However, their operation is often challenged by the need for techno-economic trade-offs and the uncertainties related to supply and demand. This research presents a multi-objective optimizing framework for EH operations tackling these techno-economic aspects under uncertainty. Utilizing artificial neural networks (ANN)-based active learning (AL), the proposed approach dynamically enhances the model’s capability to achieve optimal scheduling and planning while considering complex, fluctuating energy demands and system constraints. The optimization approach under uncertainty provides robust predictive abilities across various scenarios, allowing the system to optimize energy management effectively, enhancing operational efficiency while minimizing overall energy losses, costs, and emissions. Results demonstrate significant improvements in system reliability, cost efficiency, and flexible operation, validating the effectiveness of ANN-based AL to optimize EHs management and ensure sustainable operation complexities. The AL algorithm enhances the ANN model’s predictive ability, resulting in a 57.9% decrease in operating costs and a 0.010682 loss of energy supply probability (LESP) value. It ensures energy efficiency while sustaining system flexibility, adapting to frequent load dynamics and intermittent renewable energy supply. The algorithm minimizes electrical and thermal deviations, achieving a balance of flexible operation with efficient energy management. Despite uncertainties and intermittent renewable energy supply, the AL optimizes renewables utilization and demand adjustments, reducing energy losses, costs, and emissions by 80.3The optimized system achieves an output of 13,687.8 kW per day. The system’s implementation is performed using MATLAB R2023b software, ensuring precision and efficiency.

Power quality improvement and energy management in hybrid microgrids using a dual-optimization approach

Article Open access 16 October 2025

Towards autonomous energy management: machine learning for effective auditing and optimization

Article Open access 10 November 2025

Optimal planning of integrated nuclear-hybrid renewable energy systems for electrical distribution networks based on artificial intelligence

Article Open access 17 July 2025

Introduction

Background and motivation

Renewable energy sources (RESs) utilization has become an inevitable trend of the global energy transition due to resource reserve constraints and the environmental issues associated with fossil fuels¹. As a green energy future with wide prospects, energy hubs (EH) are becoming a promising target for energy transition and have been improved rapidly. The fuel price policy and energy price mechanisms have also encouraged the rapid growth of EH². The share of RESs in the energy sector is expected to increase from 30% in 2023 to 35% in 2025. In addition, global energy consumption is predicted to rise by 4% in 2024 and 2025, which represents the highest rise in decades. Notwithstanding the increasing utilization of RESs, the overall rise in demand still exceeds the share of RESs in the energy sector, resulting in issues with environmental concerns toward $\:{\text{C}\text{O}}_{2}$ emissions and fossil fuels power generation. Mainly, it is recorded that the greenhouse gases (GHG) have risen by 0.72 kt $\:{\text{C}\text{O}}_{2}$/year in 2024 compared to 2020 and 2023, which recorded emissions at about 0.58 kt $\:{\text{C}\text{O}}_{2}$/year. Developed technologies for smart grids have provided new chances for integrating multiple energy resources into power networks³. The RES nature and environmental conditions variations cause intermittency and system output fluctuations, which could hinder the grid from meeting consumer needs¹. The stability of the power system depends on the accurate estimation of electrical demands. Therefore, developing an accurate forecast model for EHs power generation is a helpful way to address this issue⁶. Various approaches are performed in research studies to overcome these problems and enhance the performance of EH to increase its efficiency, as depicted in Fig. 1:

Accurate load prediction ensures EH stable operation⁷.
Integrated demand response (IDR) sets power consumption at peak hours to ensure EH’s optimal operation⁸.
Multi-carrier EH optimal scheduling ensures economical and stable performance⁹.
Muti-objective functions framework encourages optimal operation for EH¹⁰.
Demand response with uncertainties approaches can help ensure accurate load forecasting, ensuring power system reliability¹¹.

The EH aims to improve the performance of power systems without environmental and economic issues, making it a vital participant in the energy sectors and facilitating integration between advanced power management issues and energy storage solutions⁴. EH has paid attention to its environmental aspects and power sustainability. It integrates the electricity grid, RESs, and gas network, reducing pollution and ensuring system reliability⁴. Optimal scheduling and planning for EH are vital for system structures, as they ensure power sustainability and minimize overall operating costs. Various models have been proposed to perform uncertainty scenarios, including the particle swarm optimization (PSO) approach, benders decomposition algorithm, probabilistic, stochastic optimization, and robust methods with the presence of Photovoltaic (PV) modules and wind turbines (WT) in power systems⁵. In a restructured energy market, decisions made by consumers, operators, and generators may be impacted by integrating several units, such as combined heat and power (CHP), battery storage units (BS), steam generators (SGs), and power electronic devices⁶. Optimization algorithms may increase network performance, resilience, and flexibility through demand response plans and energy storage systems, helping EH achieve low operating costs and minimum environmental concerns⁷. Improving the predictive capabilities of the power system is imperative for optimizing the efficient functioning of the EH systems. Various factors, such as weather conditions and the unpredictable nature of RESs, can adversely affect EHs output⁶. Effectively managing these factors poses a significant challenge in maintaining system reliability⁸ and enhancing its capacity to meet electricity demands⁹. EH systems are integrated with a diverse range of components to enhance EH performance, which includes reducing energy losses, ensuring operational efficiency, and minimizing emissions and costs¹⁰. These components include BS, RESs, hydropower plants, diesel generators (DGs), steam generators, and natural gas stations (NG) connected to the grid alongside electric vehicles (EVs), as depicted in Fig. 2.

Sustainability is of chief significance⁸ especially concerning EH systems and the holistic assessment of their environmental, social, and economic ramifications to boost energy efficiency, curtail emissions, and cut costs. Although incorporating various RESs introduces complexities, BS techniques and demand response (DR) strategies bolster system adaptability⁸. This integration aligns sustainability indicators with the challenges of techno-economic trade-offs in EHs, facilitating a thorough examination of how EHs systems streamline energy usage, diminish emissions, and achieve cost efficiencies, notwithstanding the hurdles posed by multiple RESs. Optimizing EH operations according to demand response and BS units can increase reliability while decreasing costs and pollution. However, The concerns involve evaluating risk, considering rising electrical needs, and recognizing the optimal operation approach for EHs⁶.

Literature review

Several researchers have improved techniques that enhance EHs operation to achieve optimal scheduling and increased demand prediction ability for consumers’ requirements, as presented in Table 1. Recent EH advancements have focused on improving optimal scheduling, demand prediction, and sustainable power management through various modeling and optimization approaches. The increasing penetration of RESs, EVs, and demand-side flexibility has significantly impacted EH designs, highlighting the need for efficient and robust planning under uncertainty. The integration between RESs, such as solar PV, wind turbines, and hydro-power plants, plays a critical role in enhancing the economic and environmental performance of EHs¹¹. These technologies, combined with energy storage systems, enable demand-side flexibility and contribute to system reliability¹² which emphasizes the role of RESs in reducing procurement costs and enhancing system reliability through strategic energy consumption. The authors in¹³ improved their energy hub scheduling framework by integrating electrical and thermal storage system management and demand response strategies and proposed an innovative energy conversion pathway for renewable energy diversification.

Several studies have evaluated the coordinated operation of these components using model predictive control and multi-objective optimization. Meanwhile¹⁴, explored control strategies for storage systems in hub substations under site constraints and renewable variability. Artificial neural networks (ANNs) have gained prominence for load prediction, energy demand forecasting, and real-time control due to their ability to model nonlinear and dynamic behavior in complex systems. Deep learning methods, such as deep neural networks (DNNs) and convolutional neural networks (CNNs), have shown promise in improving short-term load forecasting accuracy¹⁵. ANN-based approaches are widely used for load prediction, although their performance depends heavily on hyperparameter tuning¹⁶. Recent hybrid approaches, including CNNs¹⁷ PSO-enhanced ANN¹⁸ and deep learning frameworks¹⁹ have significantly improved forecasting accuracy and computational performance.

Emerging works also emphasize the necessary need to balance capital and operational expenditures with environmental sustainability²⁰. Life cycle analysis, component degradation models, and predictive maintenance strategies have been embedded in EH designs to improve long-term viability²¹. Several studies have evaluated the coordinated operation of these components using model predictive control and multi-objective optimization. The authors in²² improved two-layer hosting capacity models for EV and RESs integration, resulting in cost savings of up to 12.3%. Hierarchical EH planning approach for optimizing MES configurations, using multi-objective optimization and Pareto front technique, improves cost-effectiveness and reliability²³.

EHs offer a promising framework for the optimal coordination of multi-energy systems (MESs), enabling efficient management of integrated energy carriers. Although MESs pose challenges such as high capital costs and operational uncertainties including equipment failures and fluctuating demand, they are gaining traction due to their potential for enhancing energy efficiency and reducing carbon emissions²⁴. However, further research is needed to address uncertainties and ensure reliable, adaptive energy management strategies in evolving energy power sectors. Robust and stochastic optimization frameworks have been widely adopted to address uncertainties in energy demand, generation, and market prices. Techniques such as information gap decision theory (IGDT)¹ two-stage stochastic programming²⁵ and scenario-based planning²⁶ have been applied to reduce operational risk and ensure cost-effective scheduling.

Robust and stochastic optimization frameworks have been widely adopted to address uncertainties in energy demand, generation, and market prices. Techniques such as information gap decision theory (IGDT)¹ two-stage stochastic programming²⁵ and scenario-based planning²⁶ have been applied to reduce operational risk and ensure cost-effective scheduling.

Distributed energy resources (DER), combining technologies like CHP, WT, PV, and power-to-gas (P2G) systems have been modeled using tools such as DER-CAM and HOMER²⁷ but many studies highlight the need for more advanced models that account for uncertainty and component interaction in dynamic environments. have been used to explore optimal design and economic efficiency; an integrated approach that combines renewable and non-renewable resources through EH modeling remains largely unexplored. According to research, IDR software can achieve load demand profile optimization and increase system reliability. Several works focus on managing uncertainty and risk in EH operations. The authors in²⁵ introduced a two-level optimization framework that reduced total EH cost using demand response and integrated energy programs. The integration of CHP units, EVs, BS, and P2G systems⁹ has been explored to increase energy efficiency and reduce reliance on the grid²⁸. In addition, risk-aware and stochastic models have also been used to enhance resilience, considering uncertainties in RES availability, energy prices, and equipment failures⁹.

The authors in²⁹ proposed a two-stage stochastic programming framework that was developed to optimize the participation of a virtual EH in day-ahead electricity markets while minimizing real-time imbalance costs. The proposed approach accounts for uncertainties and enhances decision-making under variability. Furthermore, the analysis confirms that adopting a risk-averse optimization strategy may lead to reduced profits but significantly improves the system’s resilience and preparedness against market and operational fluctuations. The authors in³⁰ presented a robust and sustainable day-ahead scheduling model that was proposed for a zero-energy hub by integrating stochastic programming with information gap decision theory (IGDT). This hybrid approach effectively manages uncertainty while ensuring operational reliability. The results demonstrate that incorporating just 10% demand-side flexibility leads to a 15.6% reduction in operational costs. Additionally, the risk-based modeling framework highlights the sensitivity of costs to different levels of uncertainty, offering valuable insights for resilient energy management. The authors³¹ in A risk-aware two-stage stochastic optimization model was proposed for managing hybrid multi-microgrid systems under uncertainty. The model effectively captures the impact of variable conditions on system performance. Results show that while the risk-averse strategy leads to an 8.4% reduction in overall profit, it successfully eliminates downside financial risk, thereby enhancing the financial security and reliability of system operations.

The authors in³² developed a robust planning framework for an energy hub (EH) incorporating hydrogen fueling and battery swapping infrastructure, utilizing a scenario-based modeling approach combined with Conditional Value-at-Risk (CVaR) to effectively handle uncertainties. The results demonstrate that implementing load redistribution can regulate approximately 10% of fluctuations in the load profile, leading to a 4.55% increase in overall profit. This highlights the framework’s ability to enhance both economic performance and operational stability in uncertain environments. The authors in³³ introduced a stochastic optimization framework for planning an advanced energy hub (EH) system integrated with flexible demand-side strategies. The model employs a scenario-based approach, including scenario reduction and downside risk assessment, to address both risk-neutral and risk-averse decision-making perspectives. The results indicate that the risk-averse strategy effectively reduces the expected downside risk by nearly 100%, while the implementation of a time-of-use pricing strategy achieves a 19.02% reduction in operational costs. These outcomes highlight the framework’s strong potential for mitigating the impacts of uncertainty and enhancing cost-effective energy management. Overall, ANNs have proven effective across multiple power system applications—including wind speed and PV output forecasting by enhancing control, prediction accuracy, and operational efficiency. ANN have proven effective in forecasting and optimizing EH operations under uncertainty. By training on historical data that captures variations in weather, energy prices, demand fluctuations, and outages, ANNs demonstrate strong adaptability across diverse demand response strategies. Studies show that ANNs outperform other intelligent optimization methods in predicting EH output power and maintaining a reliable balance between supply and electrical/thermal demands. Specifically, ANNs excel in converting meteorological data such as solar irradiance, temperature, wind speed into accurate power generation forecasts for PV and wind turbine systems. Their iterative training and ability to handle nonlinear, complex systems make them well-suited for dynamic EH environments. Additionally, accurate forecasting is critical for power planning, especially considering uncertainties in renewable output, market volatility, and demand surges. As EH systems integrate multiple renewable sources and face increasing operational complexities, ANN-based models offer a promising solution for enhancing economic performance, energy security, and system reliability.

Contributions and novelty

This study evaluates the proposed EH optimization framework across three scenarios: (i) a single-objective optimization approach while accounting for operational uncertainties, (ii) a multi-objective optimization framework incorporating uncertainty into the decision-making process, and (iii) implementing the ANN-based active learning (AL) approach within the multi-objective optimization framework under uncertainty, aiming to enhance adaptability and predictive performance. The system integrates diverse energy sources such as PV systems, WT, hydropower, NG, DGs, SGs, and CHP units, alongside grid-connected EVs and BS units. The findings highlight the framework’s adaptability, efficiency, and resilience in optimizing EH operations under varying uncertainty conditions. This work aims to:

Tackles multi-objective challenges by addressing the trade-offs between cost efficiency, system reliability, and resilience while enhancing overall performance and operational efficiency.
optimizes the integration of RESs, reduces supply-demand imbalances, and mitigates peak load issues through robust uncertainty management, resulting in a highly adaptive and efficient energy management system.
Analyzes the impact of uncertainties on the performance of EHs using ANN with advanced forecasting capabilities to predict energy demand based on dynamic factors such as weather variations, energy price fluctuations, unplanned outages, and changing load patterns. The incorporation of gas distribution factors (GDFs) into the analysis provides deeper insights into the interactions between gas generation units and overall system operations, demonstrating superior accuracy and robustness in predictive modeling.
Integrates AL with ANN to adapt under uncertain operating conditions, allowing the model to learn from dynamic system behaviors continuously. This integration enhances the predictive accuracy of the ANN by leveraging high-quality, relevant data, improving its responsiveness to sudden changes and uncertainties. Consequently, the proposed framework enables a more resilient and adaptive energy hub capable of addressing diverse operational challenges.
Additionally, this study performs a comprehensive evaluation of innovative solutions to tackle the techno-economic challenges in power systems, offering a strategic framework to optimize operational efficiency, enhance system reliability, and achieve cost-effectiveness while addressing environmental and sustainability goals. It focuses on minimizing operating costs, carbon emissions, and energy losses while minimizing the loss of energy supply probability (LESP) and reducing deviations between predicted and actual energy demands, while enhancing daily profits, peak-hour demand management, and long-term scalability. It offers a sustainable solution to address increasing energy demands and environmental objectives, providing valuable insights for the future development and practical implementation of energy hubs.

Organization

The remainder of this research is structured as follows: Sect. “Problem definition, EH configuration, and uncertainty approach” discusses the problem definition, configuration of EHs, and approach to modeling uncertainty. Section “EHs multi-objective optimization function” provides an in-depth explanation of the multi-objective optimization framework developed for the EHs. Section “Artificial neural network” introduces the artificial neural network methodology employed in this study. Section “Numerical results and their discussion” presents the numerical results, accompanied by a detailed discussion of their implications. Finally, Sect. “Conclusion” concludes the study by summarizing the key contributions, findings, and potential avenues for future research.

Table 1 Key contributions of the present work and comparative analysis with existing studies.

Full size table

Problem definition, EH configuration, and uncertainty approach

Due to rising energy needs and the need for sustainable solutions, EH effectively combines several energy resources to optimize dynamic operation on the generation side and with consumers.

Problem definition

Currently, EH has challenges finding accurate predictions for electrical and thermal needs and regulating the suitable GDFs between NG, DGs, SGs, and CHP modules, especially with integrating RESs, including a grid-connected EV and BS, which increases these issues. Inexactitude in power management and insufficient gas distribution between energy resources can lead to inadequate required power to meet electrical and thermal needs, rising operating costs, increasing carbon emissions, especially with continuously changing energy prices, and the intermittent nature of RESs due to irregular weather conditions. Furthermore, the use of intelligent control strategies as model predictive control (MPC), which can enhance electrical and thermal needs predicting and improve gas distribution approaches due to not taking them into account, poses challenges for EHs to adapt to continuous variations in demand profiles and operation costs, which consequently pose difficulties in achieving their sustainable targets. Considering these challenges, this research aims to improve a comparative approach that integrates ANNs with an uncertainty approach to get accurate predictions for electrical and thermal needs while achieving suitable GDF. The target is to present a robust strategy that ensures efficient power management and decreases operation costs and carbon emissions, thus ensuring sustainability and reliability for EHs.

EHs configuration

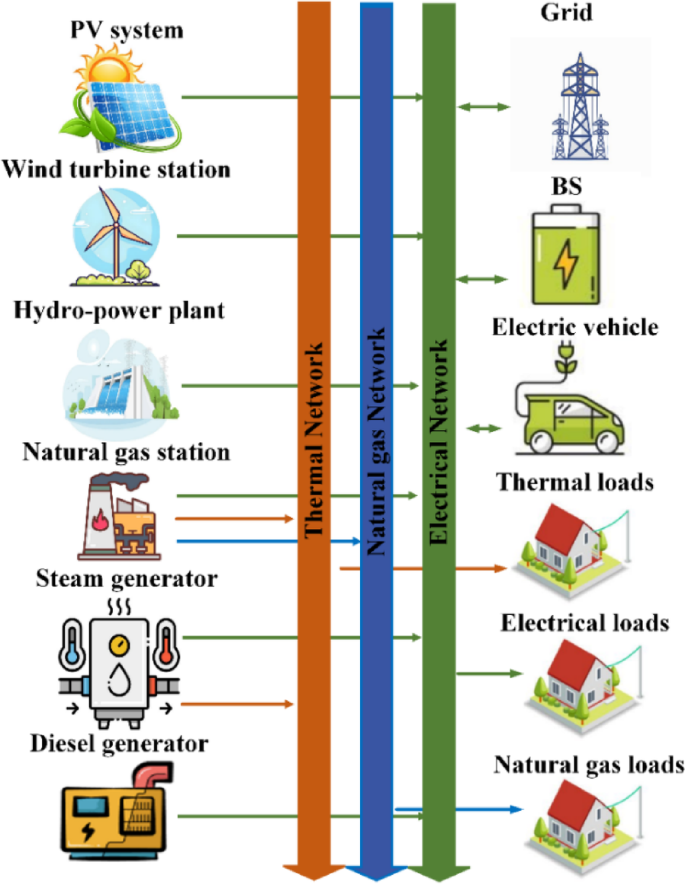

The proposed EH has been set up using the approach described in this study. The EH under investigation is shown in Fig. 3. The EHs structure combines multiple inputs and outputs to meet thermal and electrical demands. It includes grid-connected EVs, renewable energy generation units, a CHP unit, NG, SG, and NG modules integrated with a hydroelectric power plant, and a BS unit. The NG station supplies the thermal network, while EVs act as a BS unit, saving surplus energy for low demands and compensating for peak loads, improving system performance and reliability.

The proposed method leverages input datasets and constraint parameters to refine the ANN-based AL framework. This intelligent adaptation strengthens the model’s predictive accuracy for future energy demands and enables more effective regulation of GDF across generating units. By continuously learning from system performance and incorporating updated training data, the ANN-AL approach delivers a resilient and adaptive solution for optimizing EH operations. The strategy aims to reduce operational costs, lower emissions, and minimize energy losses—ultimately enhancing efficiency, reliability, and the overall energy management of EH systems.

WT module

The WT module under uncertainty in wind speed using a stochastic approach⁴⁴ is highly advanced in determining variation and continuous changes in weather conditions which impact output-generating power, are usually separated into four regions, as expressed in (1):

$$\:{P}_{wind\langle v\rangle}=\left\{\begin{array}{c}0\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:v<{v}_{cut\_in}\\\:{P}_{r}\left(\frac{{\left(v\right)}^{3}-{\left({v}_{cut\_in}\right)}^{3}}{{\left({v}_{r}\right)}^{3}-{\left({v}_{cut\_in}\right)}^{3}}\right)\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:{v}_{cut\_in}\le\:\:v<{v}_{r}\\\:{P}_{r}\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:{v}_{r}\le\:v<{v}_{cut\_out}\\\:0\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:v\ge\:{v}_{cut\_out}\\\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\end{array}\right.$$

(1)

where $\:\left(v\right)$, $\:{v}_{r}$,$\:\:{v}_{cut\_out}$, and $\:{v}_{cut\_in},$ represents the during-hour wind speed, rated wind turbine speed, cut-out wind turbine speed, and cut-in WT speed, respectively. $\:{P}_{r}\:\:$and $\:{P}_{wind\langle v\rangle}$ denote the rated and output wind turbine powers, respectively.

PV module

The PV module under uncertainty in temperature and irradiance using a stochastic approach⁴⁴ is highly advanced in overcoming unpredictable factors such as variation in load demands and weather conditions. The PV module output power is represented by (2):

$$\:{P}_{PV}={N}_{PV}\:{P}_{R}^{PV}\left(\frac{GI}{{GI}_{0}}\right)\left(1-{T}_{coff}\left({T}_{ambient}-25\right)\right){\eta\:}_{v}{\eta\:}_{R}$$

(2)

where $\:{P}_{PV}$ and $\:{P}_{R}^{PV}$, represent the PV module output power and PV-rated power.$\:\:{\eta\:}_{v}$ and $\:{\eta\:}_{R},\:$represents the inverter and PV relative efficiency.$\:\:{N}_{PV}$, represents the number of PV stations. $\:{T}_{amb}$ and $\:{T}_{coff},\:$represents the ambient temperature and temperature coefficient. $\:{GI}_{0}$ and $\:GI$ are the standard and global solar irradiance under operating.

DGs module

DGs are reliable, flexible, and cost-effective alternatives for providing immediate electricity during emergencies or off-grid locations, making them popular in residential, commercial, and industrial settings. The fuel consumption⁴⁵ $\:{F}_{DG}\left(t\right)$ required to obtain output power of the DGs is represented by (3), where $\:{P}_{n}^{DG}$, $\:{P}_{E}^{DG}$ are nominal power and output power, $\:{A}_{DG}$,$\:{B}_{DG}$ are intercept coefficient and fuel slope as follow:

$$\:\:\:{F}_{DG}\left(t\right)=\:{A}_{DG}\:{P}_{n}^{DG}+\:{B}_{DG}\:{P}_{E}^{DG}$$

(3)

NG, CHP and SGs modules

The NG module⁴³ has electrical output power and thermal output power⁷ which is used through CHP. The electrical output power⁷ $\:{P}_{E}^{NG}$ and thermal output power $\:{Q}_{th}^{NG},\:$are represented by (4) and (5).

$$\:{P}_{E}^{NG}={\eta\:}_{E}^{NG}\:{F}_{NG}\left(t\right)$$

(4)

$$\:{Q}_{th}^{NG}={\eta\:}_{th}^{NG}\:{F}_{NG}\left(t\right)$$

(5)

where $\:{\eta\:}_{E}^{NG}and\:{\eta\:}_{th}^{NG}$ represent the NG electrical and thermal efficiency⁴⁶ and $\:{F}_{NG}\left(t\right)$ represents NG gas input fuel.

The CHP unit provides electrical output power⁴⁷ $\:{P}_{E}^{CHP}$ and thermal output power $\:{Q}_{th}^{CHP}$ as represented by (6) and (7), where $\:{F}_{CHP}\left(t\right)$ represents CHP gas input fuel, $\:{\eta\:}_{E}^{CHP}and\:{\eta\:}_{th}^{CHP}$ represent the SGs’ electrical and thermal efficiency.

$$\:{P}_{E}^{CHP}={\eta\:}_{E}^{CHP}\:{F}_{CHP}\left(t\right)$$

(6)

$$\:{Q}_{th}^{CHP}={\eta\:}_{th}^{CHP}\:{F}_{CHP}\left(t\right)$$

(7)

The SG module provides electrical output power⁴¹ $\:{P}_{E}^{SG}$ and thermal output power $\:{Q}_{th}^{SG}$ as represented by Eqs. (8) and (9), where $\:{F}_{SG}\left(t\right)$ represents SGs gas input fuel⁴⁸ $\:{\eta\:}_{E}^{SG}and\:{\eta\:}_{th}^{SG}$ represents the SGs’ electrical and thermal efficiency.

$$\:{P}_{E}^{SG}={\eta\:}_{E}^{SG}\:{F}_{SG}\left(t\right)$$

(8)

$$\:{Q}_{th}^{SG}={\eta\:}_{th}^{SG}\:{F}_{SG}\left(t\right)$$

(9)

The gas input fuel is regulated, as expressed in Eqs. (10) and (11), by optimizing the GDF in EHs involving the NG module, DGs module, SG module, and CHP unit using an ANN with a stochastic approach to improve decision-making under operating conditions, considering efficiency, fuel costs, emissions, and power constraints.

$$\:x=\left[{x}_{NG}\:{x}_{DG}\:{x}_{SG}\:{x}_{CHP}\right]$$

(10)

where $\:x$ represents the GDF and its distribution between generating units, $\:{x}_{NG},\:{x}_{DG},\:{x}_{SG},\:{x}_{CHP}$ represents the share of gas distribution between the NG, DGs, SGs, and CHP modules.

$$\:x={x}_{NG}+\:{x}_{DG}+{x}_{SG}+\:{x}_{CHP}$$

(11)

The dataset serves as input to the ANN model, enabling optimal prediction of the GDF across generation units and demand profiles. By continuously training the model under varying operational conditions, the system can optimize EH performance, enhance reliability, and reduce costs and emissions. Effective ANN training involves minimizing validation and testing errors to ensure accurate forecasting under uncertainty. This method supports robust GDF optimization, promotes sustainable energy use, and improves integration of renewable sources and grid-connected EVs, all while achieving low operational costs and carbon emission.

Hydro-power plant

The hydro-power plant provides electrical output power⁴⁹ $\:{P}_{E}^{Hydro}$ as represented by (12), where $\:{\eta\:}_{t}\:and\:{\eta\:}_{g}\:,\:$are the turbine and generator efficiency, $\:{\uprho\:}\:$ is the water density, $\:g$ is the gravitational acceleration, $\:Q$ is the water flow rate, and $\:H$ is the hydraulic height.

$$\:{P}_{E}^{Hydro}=\:{\eta}_{t}\:{\eta}_{g}\:{\uprho\:}\:Q\:g\:H$$

(12)

BS unit and grid-connected EVs

The integration of Lead Acid battery⁵⁰ with grid-connected EVs in EHs aims to optimize power management, enhancing system stability and reliability³⁵. The EV operates as a dynamic storage unit, which in turn participates in peak shaving to meet grid demands⁵⁰. The BS ensures reliable storage energy utilization, decreasing dependency on fossil fuels. The energy exchange between the grid, EV, and BS is managed through an optimization approach to minimize costs and emissions. The state of charging (SoC) for BS unit $\:{SoC}_{BS}$ and for EVs $\:{SoC}_{EV}$¹⁴ denotes at time $\:\left(t\right)$, are represented as follows:

$$\:{SoC}_{EV}\left(t+1\right)={SoC}_{EV}\left(t\right)+\:{P}_{ch}^{EV}\:{\eta\:}_{ch}^{EV}\varDelta\:t-\:\frac{{P}_{dis}^{EV}\:}{{\eta\:}_{dis}^{EV}}\:\varDelta\:t$$

(13)

$$\:{SoC}_{BS}\left(t+1\right)={SoC}_{BS}\left(t\right)+\:{P}_{ch}^{BS}\:{\eta\:}_{ch}^{BS}\varDelta\:t-\:\frac{{P}_{dis}^{BS}\:}{{\eta\:}_{dis}^{BS}}\:\varDelta\:t$$

(14)

where $\:{P}_{ch}^{EV},\:{P}_{ch}^{BS},\:{P}_{dis}^{EV}$ and $\:{P}_{dis}^{BS}$ represents charging and discharging power flow, $\:{\eta\:}_{ch}^{EV},\:{\eta\:}_{ch}^{BS},{\eta\:}_{dis}^{EV}$ and $\:{\eta\:}_{dis}^{BS}$ represent charging and discharging efficiencies and $\:\varDelta\:t$ represents time interval.

Uncertainty approach

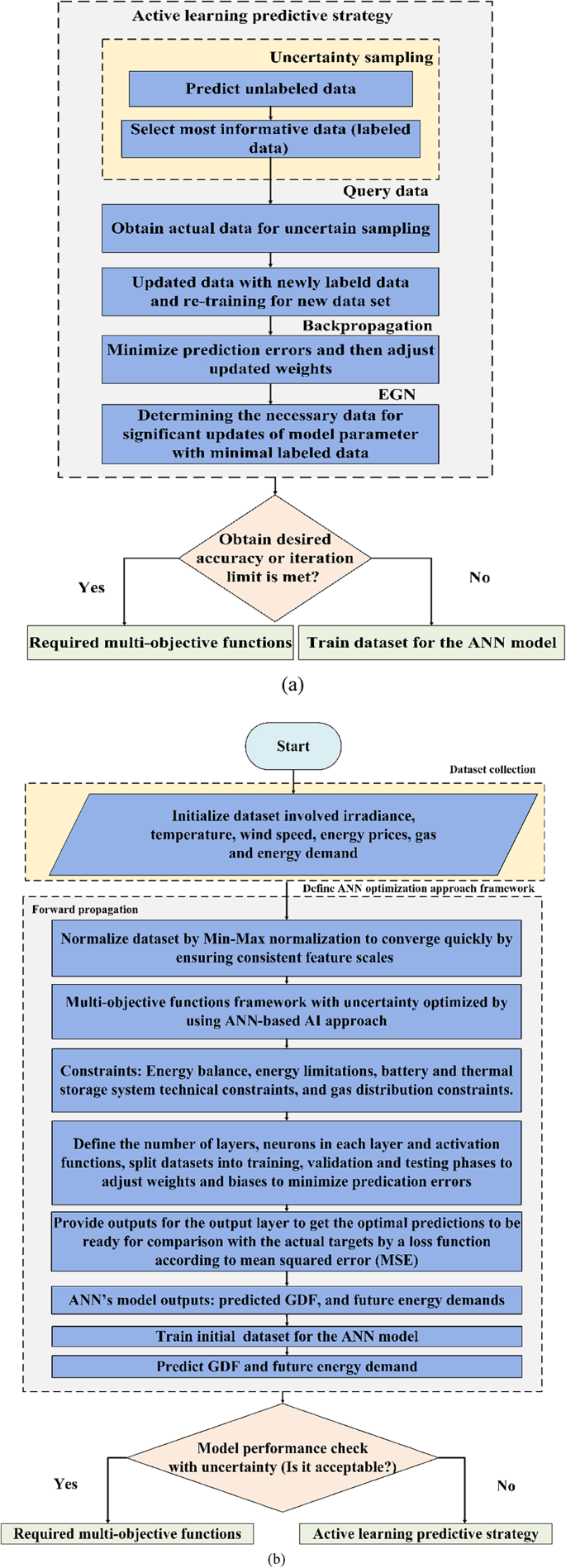

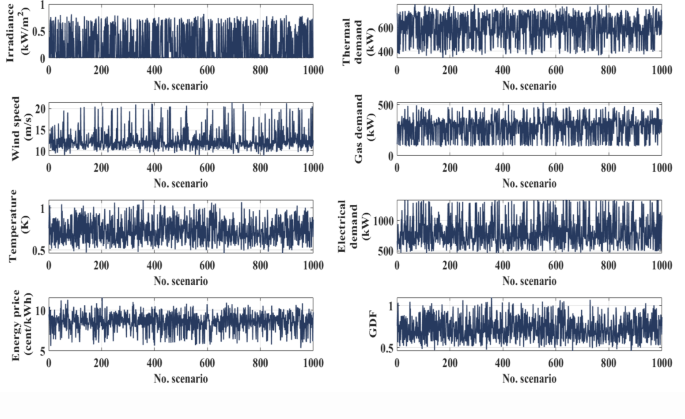

The uncertainty approach involves performing accurate scenarios to explain uncertainties and challenges clearly. Accurate estimations of uncertainties should be based on realistic methodologies⁵¹ and each methodology requires an accurate design¹. Uncertainty modeling simulates fluctuations in RESs, energy prices, and grid requirements⁵². Random distributions are used to adapt to the probabilistic nature of these variables. This study presents scenarios with defined probabilities to perform various system parameter uncertainties using ANN, uncertainty scenarios for energy needs, and gas distribution factors¹⁶. The ANN approach is trained on historical data sets to eliminate the mean squared error between predicted and actual outputs, enhancing its efficiency in reflecting uncertainties⁵³. The ANN approach offers intelligent and adaptive solutions, continually learning from training data to improve electrical and thermal demand prediction, optimize GDFs, and maximize EH performance¹⁸. This aims for a more reliable and efficient operation that accommodates RES nature and continuous changes in energy prices while satisfying grid requirements¹³.

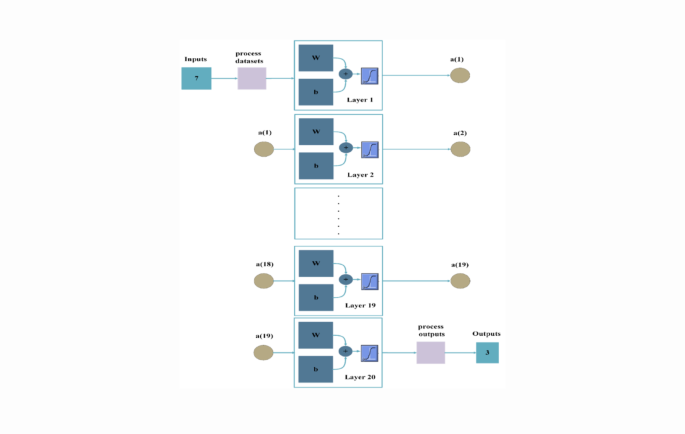

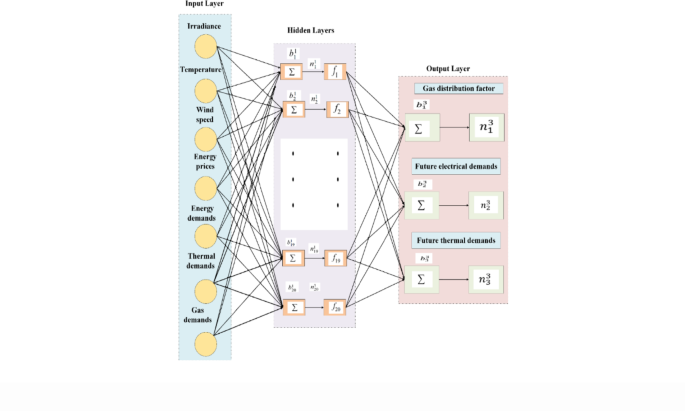

ANN is a powerful tool for predicting intricate patterns in complex datasets, providing optimal control for power systems⁵⁴. It helps address uncertainty and system complexity, enhancing EHs operation. The ANN-based AL approach⁵⁵ uses historical data on uncertainty parameters, preprocessed as labeled datasets ($\:{D}_{l}$) and unlabeled datasets ($\:{D}_{u}$), and trained to minimize prediction errors using backpropagation. A stochastic approach generates multiple scenarios, generating a spectrum of potential outcomes. These scenarios are then optimized to minimize operational costs and emissions while considering environmental constraints. The integration of the AL approach with ANN, as depicted in Fig. 4, improves its predictive performance by selecting informative points in the dataset and continuously updating to learn from training data, and ensuring the EH’s accuracy with fewer labeled scenarios⁵⁶ which in turn reduces complexity in computation and increases model efficiency⁵⁵. The effectiveness of the AL approach lies in its ability to accurately identify and select the most informative data points, which in turn accelerates performance by iteratively adapting and updating $\:{D}_{l}$ and retaining new datasets⁵⁶ to enhance system dynamic performance and achieve perfect predictions for GDF and future electrical and thermal demands. Due iterative method ensures the system operates efficiently under operating conditions while ensuring EH reliability while considering techno-economic aspects.

EHs multi-objective optimization function

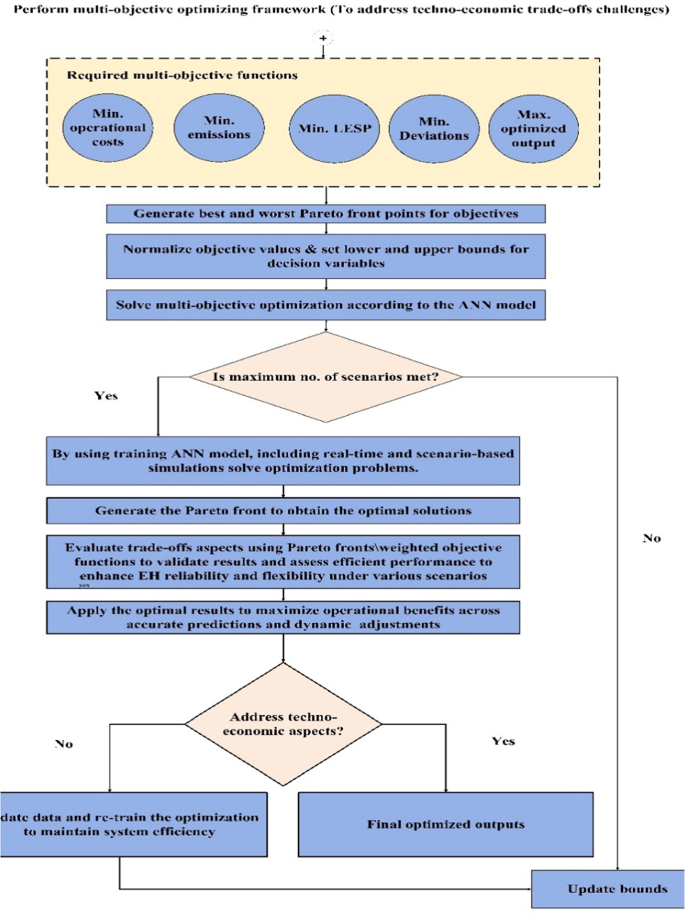

The proposed multi-objective functions can be performed mathematically, ensuring the system’s performance and reliable operation by considering technical and environmental impacts and system constraints. The main objective functions can be classified according to the target outcome, such as maximizing system efficiency, reducing costs, minimizing pollution, or ensuring system reliability. The EH model was developed using MATLAB software within a multi-objective framework, as shown in Fig. 5. Uncertainty was addressed through stochastic modeling, while the optimization process used integration between the ANN and AL approaches to enhance the model’s predictive capabilities.

Objective functions

The problem definition encompasses multiple objective functions, system constraints, and optimization methodologies. To ensure the solution’s applicability, the analysis must incorporate a comprehensive set of constraints, as outlined below:

Cost minimization

The cost-minimization objective aims to reduce the total operational costs of the EH system during power generation, distribution, and consumption. This includes minimizing expenses related to fuel, operations, maintenance, and other associated costs. Optimization considers the economic implications of various energy sources, energy storage systems, conversion technologies, and grid interactions to achieve an efficient and cost-effective energy management strategy.

The net electrical network power $\:{P}_{E}$ generated by RESs, DGs, NG, SGs, CHP, and hydropower plants, connected to the grid, is defined as the total power output from these resources⁷ as represented by (15):

$$\:{P}_{E}={{P}_{wind\langle v\rangle}+{P}_{PV}+P}_{E}^{Hydro}+\:{P}_{E}^{Grid}+\:{P}_{E}^{SG}+\:{P}_{E}^{DG}+{P}_{E}^{NG}+{P}_{E}^{CHP}$$

(15)

The thermal network power $\:{Q}_{th\:}$is defined as the total output power generated by the summation of the thermal outputs of DGs, NG, SGs, and CHP units⁴⁶ as represented by (16).

$$\:{Q}_{th}=\:{Q}_{th}^{NG}+\:{Q}_{th}^{SG}+{Q}_{th}^{CHP}$$

(16)

The operating cost for the electrical power $\:{C}_{E}$ generated by PV, WT, and hydropower plants, connected to the grid as represented by (17), where $\:{\pi\:}^{E}$ is the grid market price for electrical power ($/kWh):

$$\:{C}_{E}\left(s,t\right)=\:\:\sum\left({\pi\:}^{E}\left({{P}_{wind\langle v\rangle}+{P}_{PV}+P}_{E}^{Hydro}+\:{P}_{E}^{Grid}\right)\right)\:$$

(17)

The operation cost for the electrical and thermal power generated by DGs, NG, SGs, and CHP are $\:{C}_{E}^{fuel}$and $\:{C}_{th}^{fuel}$respectively as represented by (18) and (19), where $\:{\pi\:}^{fuel}$ is the fuel market price ($/kWh):

$$\:{C}_{E}^{fuel}\left(s,t\right)=\:\:\sum{\pi}^{fuel}\left({{x}_{DG}\:P}_{E}^{DG}+{{x}_{SG}\:P}_{E}^{SG}+{{x}_{NG}\:P}_{E}^{NG}+{{x}_{CHP}\:P}_{E}^{CHP}\right)$$

(18)

$$\:{C}_{th}^{fuel}=\:\:\sum\left({\pi}^{fuel}\left({{x}_{SG}\:Q}_{E}^{SG}+{{x}_{NG}\:Q}_{E}^{NG}+{{x}_{CHP}\:Q}_{E}^{CHP}\right)\right)\:\:\:\:$$

(19)

The overall operating cost $\:{C}_{O}^{E}$ for $\:EVs$ and $\:BS$⁵⁷ and overall operating cost $\:{C}_{O}^{th}$ for thermal storage unit as in (20) and (21) respectively, illustrated as follows:

$$\:{C}_{O}^{E}={C}_{EVs\:}+{C}_{BS}=\:\sum\limits_{t}{\pi}^{E}\:(\:\left({P}_{ch}^{EVs}+{P}_{ch}^{BS}\right)\:+\:\left({P}_{dis}^{EVs}+\:{P}_{dis}^{BS}\right)\:)\:.\:\varDelta t$$

(20)

$$\:{C}_{O}^{th}=\:\sum\limits_{t}{\pi}^{fuel}\:(\:{Q}_{ch}^{th}\:+\:{Q}_{dis}^{th})\:.\:\varDelta t$$

(21)

Thus, the total cost-minimizing objective function during power generation⁷ can be expressed as in (22), where $\:s$ is the number of scenarios and $\:{\rho\:}_{S}$⁴⁶ is the probability of these scenarios:

$$\:min\:{f}_{1}=\:\sum\limits_{s=1}^{S}{\rho}_{S}\sum\limits_{t=1}^{T}\left(\:{C}_{E}\left(s,t\right)+{C}_{E}^{fuel}\left(s,t\right)+{C}_{O}^{E}\left(s,t\right)+{C}_{th}^{fuel}\left(s,t\right)+\:{C}_{O}^{th}\left(s,t\right)+\sum\limits_{i}^{N}\left(\frac{{C}_{cap,i}+{C}_{O\&M,i}}{{L}_{i}}\right)\right)$$

(22)

where $\:i$ is index for each component, $\:{C}_{cap,i}$is capital cost for each unit, $\:{C}_{O\&M,i}$ is maintenance and operating cost over lifetime, and $\:{L}_{i}$ is lifetime of each component as in (23) and (24).

$$\:{C}_{cap,i}=\:{Capex}_{i}\:{Capacity}_{i}$$

(23)

$$\:{C}_{O\&M,i}=\:{Cost}_{O\&M,i}\:{Capacity}_{i}\:{L}_{i}$$

(24)

The specific parameters of each component for EH is presented as the following in Table 2.

Energy efficiency maximization

The objective focuses on improving the overall efficiency of the EH systems by optimizing energy conversion processes, reducing energy losses, and maximizing the integration and utilization of RESs. This optimization considers factors such as energy conversion efficiencies, demand-side management strategies, and load balancing to achieve optimal performance. The net profit⁵⁷ is determined by the difference between the total income generated through energy sales or services provided within the EH system and the associated costs as in (25):

$$\:profit=\:\sum\limits_{s=1}^{S}{\rho}_{S}\sum\limits_{t=1}^{T}({Income}^{E}-\:Cost)$$

(25)

The objective function aims to reduce LESP⁵⁷ and that obtained from a shortage in power⁵⁹ needed to meet electrical and thermal demands according to modeled time as in (26). The first part of the equation presents a shortage in power needed to meet electrical and thermal demands, where $\:{P}_{ST}$ and $\:\:{Q}_{ST}$ are electrical and thermal power shortages.

$$\:{min}{f}_{2}=\sum\limits_{s=1}^{S}{\rho}_{S}\sum\limits_{t=1}^{T}\left(\frac{{P}_{ST}(s,t)}{{D}_{E}(s,t)}\right)+\left(\frac{{Q}_{ST}(s,t)}{{D}_{th}(s,t)}\right)$$

(26)

Table 2 EH specific parameters for each component.

Full size table

Pollution minimization

This objective aims to minimize carbon emissions arising from energy generation and consumption. It focuses on optimizing the utilization of RESs, alleviating reliance on fossil fuels, and implementing energy efficiency measures. Additionally, it considers the carbon intensity of various energy sources, prioritizing the integration of low-carbon by regulating GDFs and carbon-free alternatives to achieve a more sustainable and environmentally responsible energy system⁷ where $\:{E}^{{co}_{2}}$ represents the carbon emission rate (kg/kWh). The emission rates⁴³ for the electrical and thermal power generated by DGs, NG, SGs, and CHP are $\:{E}_{E}^{fuel}$ and $\:{E}_{th}^{fuel}$ respectively as represented by (27) and (28):

$$\:{E}_{E}^{fuel}=\:\:\sum{E}^{{co}_{2}}\:\left({{x}_{DG}\:P}_{E}^{DG}+{{x}_{SG}\:P}_{E}^{SG}+{{x}_{NG}\:P}_{E}^{NG}+{{x}_{CHP}\:P}_{E}^{CHP}\right)$$

(27)

$$\:{E}_{th}^{fuel}=\:\:\sum\left({E}^{{co}_{2}}\:\left({{x}_{SG}\:Q}_{th}^{SG}+{{x}_{NG}\:Q}_{th}^{NG}+{{x}_{CHP}\:Q}_{th}^{CHP}\right)\right)\:\:\:\:$$

(28)

This objective seeks to minimize $\:{CO}_{2}$ emissions within the EH system, as a critical measure to address pressing environmental challenges and promote sustainable energy practices as in (29):

$$\:{min}{f}_{3}=\:\sum\limits_{s=1}^{S}{\rho}_{S}\sum\limits_{t=1}^{T}({E}_{E}^{fuel}\left(s,t\right)+{E}_{th}^{fuel}\left(s,t\right))$$

(29)

Optimal energy utilization

This objective seeks to enhance the integration and utilization of RESs within the EH systems. This involves optimizing the scheduling and dispatch of RES-generated power, ensuring coordination with BS units, managing the inherent intermittency of RESs, and improving the predictability of sudden fluctuations in their output. The approach incorporates RES output as well as power contributions from DGs, SGs, NG, CHP units, BS, and EVs capacities, while accounting for demand patterns to maximize RES penetration. The associated objective function minimizes the deviation between predicted optimal and actual levels of required electrical and thermal demands, as in (30). This framework can be formulated as a mathematical optimization problem, designed to identify optimal configurations and parameter values within the EH system to achieve the desired objectives of efficiency, reliability, and sustainability⁷.

$$\:{min}{f}_{4}=\:\sum\limits_{s=1}^{S}{\rho}_{S}\sum\limits_{t=1}^{T}(\left|{\widehat{D}}_{E}\left(s,t\right)-{D}_{E}^{actual}\right|+\left|{\widehat{D}}_{th}\left(s,t\right)-{D}_{th}^{actual}\right|)$$

(30)

The actual levels for required electrical and thermal demands are $\:{D}_{E}^{actual}$ and $\:{D}_{th}^{actual}$ respectively as represented by (31) and (32):

$$\:{D}_{E}^{actual}=\frac{\sum_{t=1}^{T}{D}_{E}}{T}$$

(31)

$$\:{D}_{th}^{actual}=\frac{\sum_{t=1}^{T}{D}_{th}}{T}$$

(32)

System constraints

To effectively address the techno-economic challenges associated with EH, the proposed approach must incorporate a comprehensive set of constraints to ensure optimal solutions are achieved:

Energy balance constraints

Energy balance constraints are designed to ensure that the generated power satisfies the required demand under each scenario. Specifically, these constraints address the balance for electrical and thermal power in EHs, respectively as given in (33) and (34):

$$\:{P}_{E}\left(s,t\right)+{P}_{ST}\left(s,t\right)+{P}_{dis}^{EVs}\left(s,t\right)+\:{P}_{dis}^{BS}\left(s,t\right)={D}_{E}\left(s,t\right)+{P}_{ch}^{EVs}\left(s,t\right)+{P}_{ch}^{BS}\left(s,t\right)$$

(33)

$$\:{Q}_{th}\left(s,t\right)+{Q}_{ST}(s,t)+\:{Q}_{dis}^{th}\left(s,t\right)=\:{D}_{th}\left(s,t\right)+{Q}_{ch}^{th}\left(s,t\right)$$

(34)

Energy limitations

Energy limitation constraints⁴⁷ define the minimum and maximum power boundaries for DGs⁷ as in (35), SGs as in (36), CHP as in (37), and NG as in (38) modules. The limitations for thermal storage units can be obtained as in (42).

$$\:{P}_{DG}^{min}\:\le\:\:{P}_{E}^{DG}\left(s,t\right)\:\le\:\:{P}_{DG}^{max}$$

(35)

$$\:{T}_{SG}^{min}\:\le\:\:{P}_{E}^{SG}\left(s,t\right)\:\le\:\:{T}_{SG}^{max}$$

(36)

$$\:{P}_{CHP}^{min}\:\le\:\:{P}_{E}^{CHP}\left(s,t\right)\:\le\:\:{P}_{CHP}^{max}\:\:\:$$

(37)

$$\:{P}_{NG}^{min}\:\le\:\:{P}_{E}^{NG}\left(s,t\right)\:\le\:\:{P}_{NG}^{max}\:\:\:$$

(38)

$$\:{Q}_{th}^{min}\:\le\:\:{Q}_{th}\left(s,t\right)\:\le\:\:{Q}_{th}^{max}$$

(39)

The constraints for BS units for discharging and charging states⁵⁷ can be obtained, where $\:{\mu\:}_{dis}^{BS}$ and $\:{\mu\:}_{ch}^{BS}$are binary values⁷ for BS in discharging and charging rates as in (40) and (41) respectively.

$$\:\frac{{P}_{dis}^{BS}\left(s,t\right)}{{\eta\:}_{dis}^{BS}}\:\le\:\:{P}_{dis}^{BS\_Max}.{\mu\:}_{dis}^{BS}\:\left(s,t\right)\:$$

(40)

$$\:{P}_{ch}^{BS}*\:{\eta\:}_{ch}^{BS}\:\le\:\:{P}_{ch}^{BS\_Max}.\:{\mu\:}_{ch}^{BS}\:\left(s,t\right)$$

(41)

The constraints for EVs for discharging and charging states can be obtained, where $\:{\mu\:}_{dis}^{EV}$ and $\:{\mu\:}_{ch}^{EV}$are binary values for EVs’ discharging and charging rates, as in (42) and (43), respectively.

$$\:\frac{{P}_{dis}^{EV}\left(s,t\right)}{{\eta\:}_{dis}^{EV}}\:\le\:\:{P}_{dis}^{EV\_Max}.{\mu\:}_{dis}^{EV}\:\left(s,t\right)\:$$

(42)

$$\:{P}_{ch}^{EV}*\:{\eta\:}_{ch}^{BS}\:\le\:\:{P}_{ch}^{EV\_Max}.\:{\mu\:}_{ch}^{EV}\:\left(s,t\right)$$

(43)

The constraints for thermal storage units for discharging and charging states⁵⁷ can be obtained, where $\:{\mu\:}_{dis}^{th}$ and $\:{\mu\:}_{ch}^{th}$are binary values for it in discharging and charging rates, as in (44) and (45), respectively.

$$\:\frac{{Q}_{dis}^{th}\left(s,t\right)}{{\eta\:}_{dis}^{th}}\:\le\:\:{Q}_{dis}^{th\_Max}.{\mu\:}_{dis}^{th}\:\left(s,t\right)\:$$

(44)

$$\:{Q}_{ch}^{th}*\:{\eta\:}_{ch}^{th}\:\le\:\:{Q}_{ch}^{th\_Max}.\:{\mu\:}_{ch}^{th}\:\left(s,t\right)$$

(45)

Thus, BS and thermal storage units are not capable of charging or discharging at the same time, these binary value limitations⁷ for BS are represented by (46), limitations for EVs as in (47), and limitations for thermal storage units as in (48), respectively.

$$\:\:{\mu\:}_{dis}^{BS}\:\left(s,t\right)+{\mu\:}_{ch}^{BS}\:\left(s,t\right)\le\:1$$

(46)

$$\:\:{\mu\:}_{dis}^{EV}\:\:\left(s,t\right)+{\mu\:}_{ch}^{EV}\left(s,t\right)\le\:1$$

(47)

$$\:\:{\mu\:}_{dis}^{th}\:\left(s,t\right)+{\mu\:}_{ch}^{th}\left(s,t\right)\le\:1$$

(48)

The constraints for electrical and thermal power shortages⁷ are set to ensure that the demand requirements in EH are met, as performed in (49) and (50), where $\:{{\upmu\:}}_{PST}^{E}$ and $\:{{\upmu\:}}_{PST}^{th}$ represents binary values for shortage in electrical and thermal power.

$$\:0\:\le\:\:{P}_{ST}\left(s,t\right)\:\le\:{D}_{E}\left(s,t\right)\:.\:\:{\mu\:}_{PST}^{E}\left(s,t\right)$$

(49)

$$\:0\:\le\:\:{Q}_{ST}(s,t)\:\le\:{D}_{th}\left(s,t\right)\:.\:\:{\mu\:}_{PST}^{th}\left(s,t\right)$$

(50)

Battery and thermal storage unit technical constraints

The technical constraints⁴ according to energy dynamics limitation for BS as in (51), EVs as in (52), and thermal storage unit as in (53), respectively.

$$\:{E}_{BS}^{Min}\le\:{E}_{BS}\left(s,t\right)\le\:{E}_{BS}^{Min}$$

(51)

$$\:{E}_{EV}^{Min}\le\:{E}_{EV}\left(s,t\right)\le\:{E}_{EV}^{Min}$$

(52)

$$\:{E}_{th}^{min}\le\:\:{E}_{th}\left(s,t,tss\right)\le\:{E}_{th}^{max}$$

(53)

The energy dynamics limitation⁴ for BS can be obtained as in (54), EVs as in (55), and thermal storage unit as in (56), respectively.

$$\:{E}_{BS}\left(s,t\right)=\:{E}_{BS}\left(s,t-1\right)+\left[\frac{{P}_{dis}^{BS}\:\left(s,t\right)}{{\eta\:}_{dis}^{BS}}-\:{P}_{ch}^{BS}\left(s,t\right)\:.\:\:{\eta\:}_{ch}^{BS}\right]\:$$

(54)

$$\:{E}_{EV}\left(s,t\right)=\:{E}_{EV}\left(s,t-1\right)+\left[\frac{{P}_{dis}^{EV}\:\left(s,t\right)}{{\eta\:}_{dis}^{EV}}-\:{P}_{ch}^{EV}\left(s,t\right)\:.\:\:{\eta\:}_{ch}^{EV}\right]$$

(55)

$$\:{E}_{th}\left(s,t\right)=\:{E}_{th}\left(s,t-1\right)+\left[\frac{{P}_{dis}^{th}\:\left(s,t\right)}{{\eta\:}_{dis}^{th}}-\:{P}_{ch}^{th}\left(s,t\right)\:.\:\:{\eta\:}_{ch}^{th}\right]$$

(56)

Gas distribution constraints

The technical constraints for regulating GDFs between DGs, SGs, NG, and CHP units are governed by the parameter efficiency for each generating unit, which is defined as the minimum allowable efficiency for total output power generated by these units. The technical constraint⁷ for the electrical network is as in (57), and the constraint for the thermal network is as in (58).

$$\:{{{P}_{wind\langle v\rangle}+{P}_{PV}+P}_{E}^{Hydro}+\:{P}_{E}^{Grid}+{P}_{E}^{NG}{x}_{NG}+{P}_{E}^{DG}{x}_{DG}+{P}_{E}^{SG}{x}_{SG}+{P}_{E}^{CHP}{x}_{CHP}\:\ge\:\:D}_{E}$$

(57)

$$\:{{Q}_{th}^{NG}{x}_{NG}++{Q}_{th}^{SG}{x}_{SG}+{Q}_{th}^{CHP}{x}_{CHP}\:\ge\:\:D}_{th}\:$$

(58)

The limitation of parameter efficiency for DGs⁴⁷ SGs, NG²⁷ and CHP⁴⁸ units can be expressed as in (59):

$$\:\frac{\sum_{i=1}^{x}{x}_{i}{\eta\:}_{i}}{\sum{x}_{i}}\:\ge\:\:{\eta\:}_{i}^{Min}\:,\:\:\:\:\:{x}_{NG}+\:{x}_{DG}+{x}_{SG}+\:{x}_{CHP}=1$$

(59)

.

Artificial neural network

This study employs a backpropagation algorithm to implement a multilayer perceptron (MLP) with a single hidden layer in a feed-forward architecture²². The proposed ANN comprises three layers: input, hidden, and output. The input layer includes seven neurons, $\:{x}_{i}{\epsilon}\:{u}^{d}$, where $\:u$ represents $\:{matrix}_{1x7}$, $\:d$ represents set dimension for the input dataset, as in (60). The hidden layer contains 20 neurons, while the output layer produces a three-dimensional vector, where $\:y$ represents ANN model output, representing GDFs, future electrical demands $\:{\widehat{D}}_{E}$, and future thermal demands $\:{\widehat{D}}_{th}$, as in (61). A compact network architecture is adopted to reduce computational complexity and accelerate training, making it well-suited for real-time energy hub applications requiring fast and efficient decision-making. The proposed neuron model consists of interconnected links, referred to as synapses, where $\:{w}_{ki}$ represents the connection weight of the $\:{i}_{th}\:$input unit. Each weight is multiplied by its corresponding input $\:{x}_{i}$, and the sum is adjusted by a bias term $\:{b}_{ki}$⁶⁰ to control the output summation, which is important for decreasing or raising the output summation,$\:\:{n}_{k}^{i}$. To limit the amplitude range of the output signals to a finite value, an activation function $\:{f}_{i}\left(n\right)$, resulting in the output signals⁶⁰ $\:{a}_{k}^{i}$ to reduce its amplitude range to a finite value. The proposed ANN structure highlights the model’s systematic design and functionality in effectively addressing the targeted problems as in Figs. 8 and 9.

$$\:u=[irradiance;\:temperature;\:wind\:speed;\:energy\:prices;\:{D}_{E};\:{D}_{th};\:gas\:demands\:]$$

(60)

$$\:y=[GDF;\:{\widehat{D}}_{E};\:{\widehat{D}}_{th}]$$

(61)

Dataset preparation plays a vital role in structuring input-target pairs, such as energy demand characteristics matched with system performance metrics. For EHs, this involves aligning energy and gas demand features with operational performance indicators to build a robust foundation for modeling and optimizing system dispatch. The framework accounts for critical factors influencing energy generation and consumption, including temporal variations, weather conditions, energy price fluctuations, and historical usage trends.

These input-target pairs are essential for predicting optimal GDFs across generation units and accurately forecasting future electrical and thermal demands. Additionally, system performance metrics, such as energy efficiency and reliability indices, serve as target outputs, further guiding the optimization of EH operations. The dataset undergoes $\:Min-Max$ normalization¹⁶ as expressed in (62), to ensure feature compatibility, numerical stability, and improved convergence rates during training.

$$\:\stackrel{\prime }{{x}_{i}}=\:\frac{{x}_{i}-min\left(u\right)}{{max}\left(u\right)-min\left(u\right)}$$

(62)

The proposed dataset undergoes a normalization process to scale all input features within a defined range, facilitating efficient pattern recognition by the ANN model. It is then divided into training, validation, and testing sets to ensure effective model training, parameter tuning, and performance assessment. During forward propagation, the input features pass through multiple ANN layers, where each neuron performs a weighted summation, adds bias terms, and applies activation functions⁶⁰. The resulting outputs are passed to the output layer, the output layer, where the model generates predictions. These predictions are then evaluated against actual target values using a loss function to quantify the prediction error. For regression tasks, the mean squared error (MSE)⁵⁵ as expressed in (63), is commonly employed, while cross-entropy loss is typically used for classification problems.

$$\:MSE=\frac{1}{N}\sum\limits_{i=1}^{N}{({y}_{i}-y)}^{2}$$

(63)

Backpropagation is a method used to adjust ANN parameters and update weights and biases iteratively to minimize errors. It uses the chain rule of differentiation to compute gradients of the loss function, ensuring precise parameter updates and improved model accuracy. Stochastic gradient descent (SGD) is used to minimize the loss function. The optimization process updates model parameters using mini batches of randomly selected data, enhancing learning capabilities for large-scale datasets. The training dataset is processed multiple times until predefined criteria are met.

To ensure the proposed approach’s robustness under various uncertainties, the discrepancy between the model’s optimal predictions and the actual data is assessed across different scenarios. The neural network’s predictive accuracy is evaluated using performance metrics such as the mean relative error (MRE), as in (64), and normalized root mean square error (NRMSE)⁵⁵ as in (65). In this study, the NRMSE was utilized to validate the model’s accuracy and to assess the similarity between optimal predicted and actual values. Ideally, an NRMSE value of 0 represents the highest model performance, indicating perfect agreement between optimal predictions and actual outcomes.

$$\:RMSE=\:\sqrt{MSE}\:=\:\sqrt{\frac{1}{N}\sum\nolimits_{i=1}^{N}{({y}_{i}-y)}^{2}}$$

(64)

$$\:NRMSE=\:\frac{RMSE}{mean\left(y\right)}$$

(65)

The proposed ANN-based prediction model is designed within a multi-objective optimization framework to deliver high precision in both training and forecasting tasks. Recognizing that inaccuracies in input parameter estimation can compromise model performance, an AL approach is employed to improve input computation. The model undergoes an iterative optimization cycle aimed at minimizing prediction errors, supported by comprehensive validation and testing to ensure robustness and dependability. The training process includes structured steps such as dataset preprocessing, forward propagation, loss evaluation, backpropagation, and dynamic weight adjustments, collectively enhancing the model’s accuracy and adaptability. To improve energy demand prediction and reduce operational costs in EHs, this study incorporates an ANN-based AL approach within a multi-objective optimization framework that accounts for uncertainties, operational constraints, load fluctuations, energy price volatility, and GDFs. The process begins with loading EH-related datasets and defining uncertainty parameters, followed by generating potential scenarios and identifying optimization functions based on sustainability metrics. The є-constraint method is used to solve the objective functions and determine optimal decision variables. An active learning strategy is then applied to select and label the most informative data points, updating the dataset and retraining the ANN to improve predictive accuracy. This iterative cycle continues until the model achieves the desired performance. By integrating optimization with adaptive learning, the proposed framework enhances prediction accuracy, improves system reliability, and achieves efficient EH operation using fewer labeled data samples.

Numerical results and their discussion

The paper explores the trade-offs of optimizing EHs management, aiming to balance cost-effectiveness, system reliability, and environmental sustainability. It uses a multi-objective functions model to consider uncertainty factors from weather variability⁶⁰ energy price fluctuations, unplanned outages, and dynamic demand changes. The study simulated 1,000 scenarios using historical datasets to predict future electrical and thermal demands and GDFs. The ANN-based AL approach improves the sustainability of EH operation by enhancing adaptability to nonlinear interactions, leveraging advanced learning from dynamic system behaviors, and iteratively selecting and updating informative datasets for training. The integration of AL approach improves the predictive and optimization capabilities of the ANNs, leading to reduced costs and improved system efficiency. The ANN-based AL framework ensures reliable predictions and minimizes the need for extensive labeled data, making it a crucial tool for optimizing system operations by addressing uncertainties and delivering reliable, efficient, and sustainable energy management solutions.

The paper presents numerical results and analysis demonstrating the effectiveness of an ANN-based AL framework in improving EH performance, system reliability, and energy efficiency, while finding optimal solutions for techno-economic trade-offs. It also discusses the influence of uncertainty on multi-objective optimization outcomes. The proposed EH system, depicted in Fig. 2, is developed to simultaneously reduce operational costs and emissions and improve system reliability. Its performance is assessed through three case studies conducted over a 24-hour period, in accordance with the formulated multi-objective optimization framework and the associated operational constraints. The entire system is implemented in MATLAB (version 2023b), facilitating accurate simulation and comprehensive evaluation of the EH’s behavior under various operational scenarios. The ANN-based AL approach improves EH performance by leveraging adaptive learning capabilities to make accurate predictions and dynamic adjustments. Iterative training on informative datasets enhances predictive accuracy, ensuring robust decision-making under uncertain operating conditions. This evaluation considers energy constraints to ensure feasible and sustainable solutions while optimizing system performance.

Although the integration between ANN and the AL approach with uncertainty modeling demonstrates high accuracy, they are sensitive to the quality and variety of the initial training data, which could affect early decision accuracy under uncertainty. The repetitive nature of active learning adds computational complexity, which may restrict real-time applicability in large-scale systems even as it lessens the effort required to categorize data. Furthermore, in extremely stochastic contexts, the ANN’s capacity for generalization may wane unless it is supplemented with reliable methods like ensemble or probabilistic modeling. The irradiance⁴⁶ temperature, wind speed⁴⁶ energy price data⁴³ along with thermal, gas, and electrical demand profiles thermal, gas and electrical demand profiles⁴³ were used to generate 1000 scenarios via Monte Carlo Simulation. This approach incorporates uncertainty analysis to enhance the robustness of the artificial neural network (ANN) by embedding variability and stochastic behavior into the input data. The generated scenarios, illustrated in Fig. 8, are seamlessly integrated into the modeling framework and serve as a critical training dataset during the learning phase.

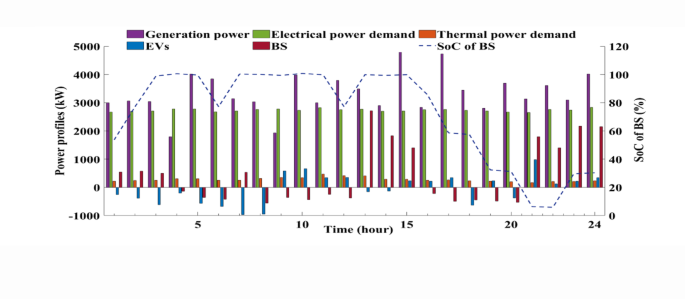

The proposed EH system is designed to effectively meet both electrical and thermal energy demands. Furthermore, the integration of grid-connected electric vehicles (EVs) and battery storage (BS) systems significantly enhances the system’s operational flexibility and overall reliability. This comprehensive evaluation underscores the resilience and adaptability of the proposed framework, demonstrating its capability to optimize energy hub performance across a diverse range of operating conditions and under uncertainty. The results highlight the system’s strength in accommodating dynamic energy profiles while maintaining efficient, reliable, and sustainable operation. Figure 9 presents the dynamics of output power generation and grid interaction during peak demand periods, highlighting the system’s operational efficiency and adaptability. Figure 10 depicts the 24-hour power trajectories and state of charge (SoC) of the BS, effectively capturing the interdependencies among generation output, electrical and thermal energy demands, and the contributions of EVs within the EH. Throughout the day, generation consistently surpasses electrical demand, with observed fluctuations reflecting the system’s responsive behavior in maintaining real-time supply-demand equilibrium. The SoC profile illustrated by the dashed line reveals the charging and discharging cycles of the BS, underscoring its vital function in reinforcing the system’s stability and operational flexibility.

These findings emphasize the synergistic integration of BS and EVs in satisfying energy requirements and enhancing power management. The ability to consistently meet or exceed demand signifies the robustness and reliability of the EH system. Concurrently, BS and EVs play instrumental roles in mitigating volatility and buffering supply irregularities. Nevertheless, the analysis also uncovers notable challenges in regulating EV power consumption and managing SoC dynamics during peak load intervals. These complexities underscore the need for sophisticated optimization frameworks to uphold system efficiency under variable and high-demand scenarios.

Ultimately, the evaluation affirms the effectiveness of the artificial neural network (ANN) combined with active learning (AL) methodology in augmenting the operational flexibility of the EH. The approach demonstrates strong capability in maintaining dependable performance amid peak demand conditions while adeptly navigating complex, time-varying operational landscapes, ensuring the energy hub’s stable and optimized functionality.

The proposed methodology is assessed through three distinct case studies, each designed to evaluate different aspects of the energy hub system under uncertainty:

• Case 1

Assesses system performance using a single-objective optimization approach while accounting for operational uncertainties.

• Case 2

Evaluates the system under a multi-objective optimization framework, incorporating uncertainty into the decision-making process.

• Case 3

Implements the ANN-based AL approach within the multi-objective optimization framework under uncertainty, aiming to enhance adaptability and predictive performance.

The performance is highly dependent on the appropriate selection of parameter values, as poor tuning can significantly impair effectiveness. To ensure optimal outcomes, extensive parameter tuning was performed. This involved a comprehensive range of test scenarios and multiple iterations to evaluate the impact of different configurations. Through systematic experimentation, the most effective parameter settings were identified. For clarity and completeness, the revised version includes a summary table outlining the final selected parameters based on these evaluations.

Table 3 Algorithms parameters used in the simulation.

Full size table

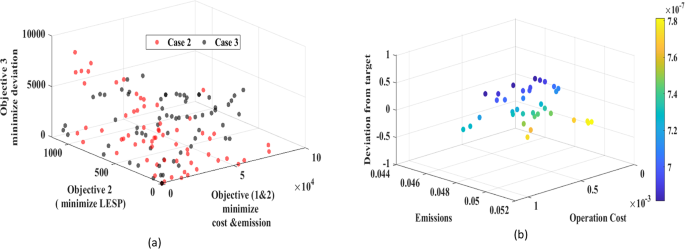

The multi-objective analysis depicted in Fig. 11 highlights the effectiveness of the proposed optimization framework in reconciling competing objectives, such as the minimization of operational cost, environmental emissions, and deviations from target load conditions. Figure 11(a) offers a comparative evaluation between Case 2 and Case 3, shedding light on the relative performance of each strategy. Case 3 exhibits a denser aggregation of solutions in the lower-left quadrant of the deviation and LESP axes, reflecting a higher degree of robustness in maintaining operational targets while minimizing environmental impact. In contrast, Case 2 displays a more dispersed solution space, with a noticeable presence of high-deviation outcomes, signaling reduced reliability under similar conditions. In addition, Fig. 11(b), the generated Pareto front, reveals a tightly clustered distribution of solutions along the cost and emission axis, with most configurations exhibiting minimal deviation from target values. This distribution indicates a high degree of convergence toward a well-balanced operational regime. The color gradient mapped onto the performance metric further underscores this coherence, revealing that lower-deviation solutions are frequently associated with more favorable cost and emission outcomes—demonstrating a strong alignment among the competing objectives within the optimization process. It ensured the superior performance of Case 3 in achieving a more favorable trade-off across the triad of objectives. Such insights align with core principles in evolutionary multi-objective optimization, where solution quality is assessed based not only on convergence toward the Pareto front but also on the diversity and dominance of solutions across the objective target. Figure 12 showcases the most optimal outcomes derived from the multi-objective optimization framework for both Case 2 and Case 3, providing a comparative assessment of their effectiveness in addressing complex techno-economic challenges. The ANN-based AL methodology, when integrated with uncertainty modeling, exhibits robust predictive capabilities across diverse operational scenarios. This enables the system to intelligently optimize energy management, enhance operational efficiency, and minimize energy losses, costs, and environmental emissions.

Furthermore, the approach supports dynamic modulation of energy demand in response to forecasted supply conditions, contributing to peak-load mitigation and reinforcing overall system stability. These results underscore the superior performance of the ANN-based AL strategy in resolving intricate techno-economic trade-offs. It consistently delivers well-balanced solutions characterized by heightened predictive accuracy, lower operational expenditures, reduced emissions, and improved system reliability.

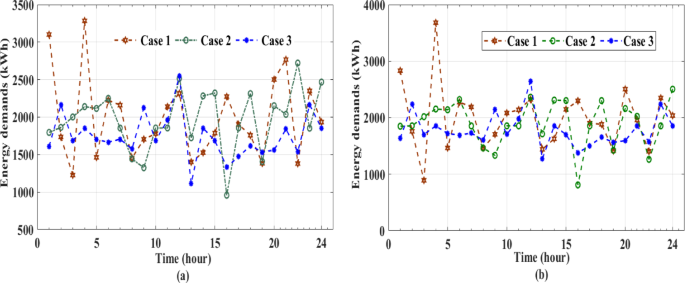

Figure 13 indicates that Case 1 provides more frequent fluctuations in energy demand, resulting in more deviations and less stability. Unlike in Cases 2 and 3, it produces fewer fluctuations in energy demand, especially in Case 3. Its performance has smoother, more consistent profiles, which ensures system stability and efficient energy management. The proposed approach’s effectiveness in accurately predicting future demand with uncertainty, effectively aligning with optimal energy levels, and maintaining minimal deviation ensures its reliability and capability to adapt to continuously changing energy demands, as illustrated in Fig. 14.

The cost-effectiveness of the EH system is achieved through the reduction of operational expenditures and the maximization of self-consumption, following the identification of an optimal solution that addresses techno-economic trade-offs. This economic advantage is further reinforced by the system’s ability to adaptively manage resources while maintaining operational efficiency. Figure 15 presents a comprehensive analysis of the EH’s performance across the different case studies, evaluating their influence on operational costs, emissions, LESP, and deviations between actual energy demands and their optimal targets over a 24-hour horizon.

Achieving an optimal balance between power generation and load demand is essential for maximizing the efficient utilization of BS systems and EVs within their operational constraints. Enhancing energy efficiency is critical not only for maintaining system reliability and sustainability but also for addressing the inherent techno-economic trade-offs faced by modern energy systems. This study systematically evaluates the impact of uncertainty on the performance and reliability of EHs across three distinct scenarios.

In Case 1, the system demonstrates a high dependency on electricity procurement from the grid, leading to elevated operational costs, increased carbon emissions, substantial deviations between forecasted and actual energy demands, and a heightened risk of unplanned outages. Case 2 introduces a multi-objective optimization framework under uncertainty, yielding improved system performance through cost reductions and enhanced operational reliability. Case 3 advances this approach by incorporating an uncertainty-aware learning mechanism that iteratively refines the training dataset. This enables adaptive scheduling, optimized performance, and improved system resilience under fluctuating conditions.

The findings further emphasize the pivotal role of BS and EVs in mitigating the adverse effects of operational uncertainties. Their dynamic capabilities significantly contribute to maintaining system stability and elevating overall energy efficiency. As uncertainties in energy consumption patterns driven by increasingly variable consumer behavior achieve significant scheduling and management challenges for EHs, the study incorporates hourly demand fluctuations into the optimization framework. This integration fosters a robust and adaptive operational strategy that ensures consistent performance across variable conditions. Ultimately, the results validate the proposed methodology, demonstrating that Case 3 delivers superior outcomes across all key performance indicators. These include significant reductions in operational costs and emissions, improved supply reliability, and enhanced system efficiency, underscoring the model’s robustness and suitability for real-world EH applications under uncertainty.

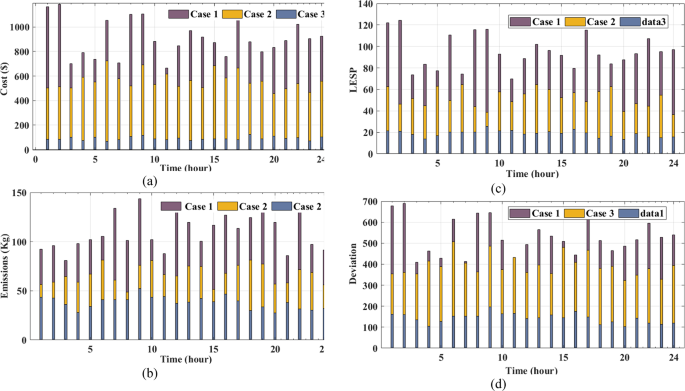

It is indicated that in Fig. 15(a), the third case study records significant cost minimizations, which ensure economic efficiency while sustaining flexible operations. Figure 15(b) illustrates the reduction in emissions across three case studies and records the most significant minimizations with the proposed approach, which ensures their effectiveness in addressing environmental aspects. The first case study records the highest LESP values, while the third one consistently has the lowest LESP, as in Fig. 15(c). The performance of EH with ANN-based AL approach consistently has the lowest value of deviations, enhancing its superiority in power system optimization as in Fig. 15(d).

The performance of EH under the three case studies is shown in Table 4, which presents the techno-economic analysis for each case as follows:
