Introduction

The purpose of the text below is to describe the causes of failure of a heavy industry machine. Machines of this type are usually complex structures created by a team of engineers. The safety of their operation is usually dependent on many factors. Usually, it is impossible to determine which of them are critical from the point of view of the global safety of a technical facility. The same applies to the machine discussed in the article. In the literature, many papers have been devoted to the root causes analysis of the occurrence of operational failures1,2,3,4,5,6,7,8,9. The technical object described in the article, which is bucket wheel excavator, belongs to the group of material handling machines and is used in open-pit mines, stockyards etc. Machines in this group are characterized by the fact that they are mainly produced in series of a few copies or as single machine. In addition, these are machines of considerable dimensions, the deadweight of which can reach several thousand tons. For this reason, errors in design, manufacturing and construction materials quality can significantly increase the likelihood of failures resulting from operation. Examples of machines from this group are shown in the Figs. 1 and 2.

Fig. 1
Fig. 1
Full size image

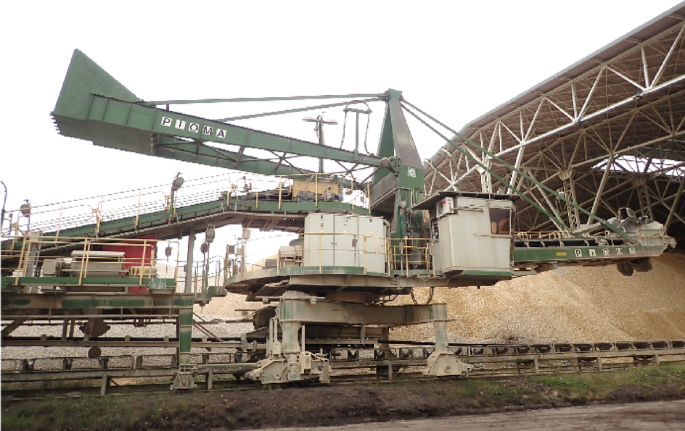

Bucket Wheel Reclaimer ŁZKS 125.16.

Fig. 2
Fig. 2
Full size image

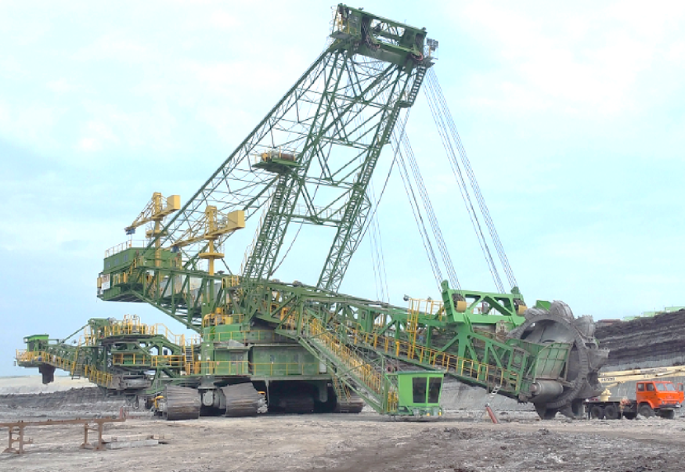

Bucket wheel excavator KWK 1200 M.

The cases of damage to the machines described in the article are already known in the literature on the subject. Due to their complex structure and numerous mechanisms, the causes of their failure vary. Thematically similar work was described in 201410. The mentioned work also applies to the discharge boom of the bucket wheel excavator. It describes the dynamic properties of the described part of the machine. On the basis of the FEM analysis, the research team identified unmanaged dynamic phenomena resulting from the structure of the carrying structure. Subsequently, design changes were proposed to improve the dynamic properties of the boom. They concerned the redesign of the discharge boom ties. From the point of view of the operational safety of the technical object described in the paper, the supporting elements are crucial11,12,13. In 2012, a paper describing the failures of tie rods of bucket wheel boom was also created14. As a result of cracks in the tie rods structure, discontinuities in the construction occurred. This caused the fall of the bucket wheel boom itself and the subsequent loss of stability by the entire machine. The cause of the failure, according to the information in the article, was “failure was a consequence of a brittle fracture by cleavage. The crack followed the heat-affected zone of a welded joint connecting a rectangular hollow section, member and a plate flange”14. The machines described in the article are also exposed to the formation of fatigue cracks, as in15,16. In the case of technical objects of such large dimensions, loss of stability is also a major threat; the effects of such an event are described in17.

The operational hazards, except of regular operational loads, of this type of machinery depend to a large extent on its use and place of operation. Machines used for material handling are mainly exposed to weather factors, lumps of transported materials, collisions with other technical objects, and wear and tear. In the case of mining machines, there are risks associated with mining, such as landslides, non-workable inclusions, etc.18. Wear and tear can be manifested by fatigue cracks that can occur in the structural nodes or components connecting individual parts of the machine. The second case is described in this article. Fatigue cracks are a big problem in these types of facilities for two main reasons. The first is the expected long service life19,20, often exceeding 30 years. The second is that some standards do not include a fatigue case21 in the design calculation or this case is not properly described. As the many years of experience of the research team shows, this is an erroneous assumption22. For such large objects, this can lead to failures or even disasters. In 2007, a paper by Prof. Dudek was written on mining machinery disasters in Poland23. He describes in detail the consequences and causes of their occurrence. From reading this book, it can be concluded that the machines described in the article are complex technical objects, and the causes of their failure have various causes. These include, among others: material fatigue, errors in operation, material defects and design errors.

The objective of this article is to determine the causes of the failure, which is described in the next chapter. First, an analysis of the incident and the situation in which it occurred was carried out. Subsequently, detailed examinations of the damaged element were carried out. The aim of the investigation was to answer whether the cause of the failure was a material defect or a construction error. The main objective is to make changes to the design of the machine that will ensure continued safe operation.

Description of failure and consequences

The case described in the article concerns damage to a component of a bucket wheel excavator, which in this case cooperated with self-propelled conveyor. Figure 3 shows the position of two machines relative to each other during normal operation. This bucket wheel excavator is used on site of operation to work with hard-mineable deposits. It was also designed for this purpose, and therefore it is characterized by a compact design. The failure in the presented case concerns the axle to which a luffing hydraulic cylinder (Fig. 4), controlling boom’s position, is attached. This is one of the pivot points of the discharge boom relative to the rest of the excavator. This makes it possible to rotate within the range of − 9.1° do + 9.8°. This range of motion allows the excavator to work with a belt conveyor or with a self-propelled belt conveyor.

Fig. 3
Fig. 3
Full size image

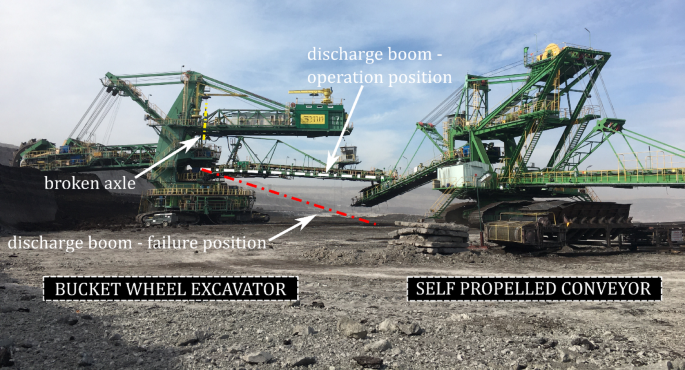

General view of the excavator and conveyor before the failure.

Fig. 4
Fig. 4
Full size image

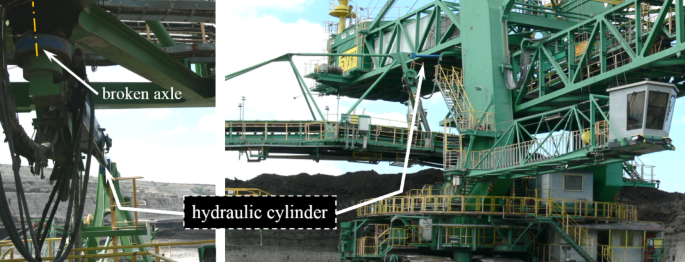

Location of luffing hydraulic cylinder.

The boom suspension in the area of the axis connecting it with the rest of the machine’s structure was damaged. It occurred in the form of a crack in the cross-section that prevented the axle from sliding out of the socket. Figure 5 shows a view of the axle immediately after a failure. Figure 6 presents a technical drawing of the axle with marked cross section that was cut during failure.

Fig. 5
Fig. 5
Full size image

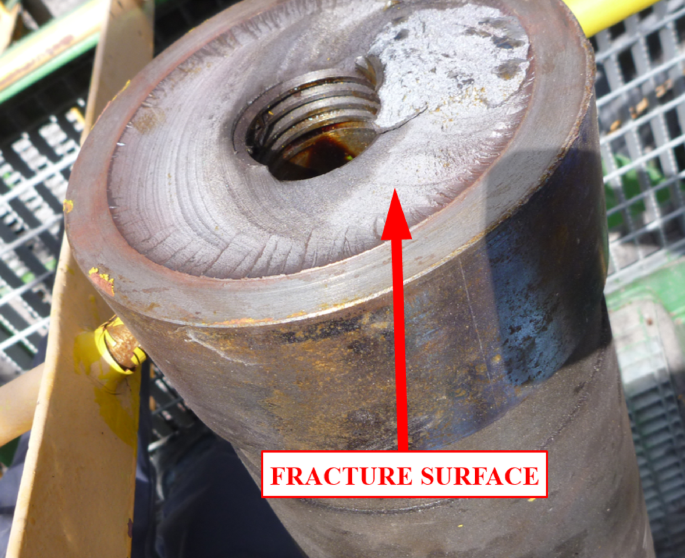

Post failure view of fatigue fracture of a vertical axle of a damaged discharge boom.

Fig. 6
Fig. 6
Full size image

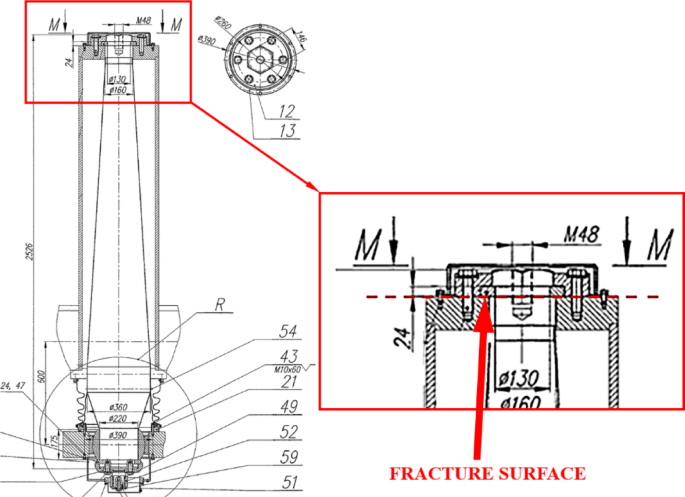

Drawing showing whole damaged axle with cross section where axle was cut—marked with a red line (well visible on the magnified part of the drawing).

The axle failure shown in Fig. 5 caused an uncontrolled movement in the vertical direction of the entire discharge boom. The maximum height at which the end of the boom can be raised is 11.3 m. This means that there is a risk that the boom will fall from this height if the axle fails. Such a situation was a consequence of the failure discussed. As a result of axle breakage, the discharge boom fell on a self-propelled conveyor belt. This resulted in significant financial losses. The reasons for these losses were as follows. The first concerns material damage related to machine damage. The structure of the boom itself as well as the self-propelled belt conveyor was damaged. A view of the damaged structures after the failure is shown in Figs. 7 and 8. The second concern financial losses due to them being taken out of service for several months. According to data available in the literature24, one month of inability to use these machines brings losses of € 148 000 due to the lack of production.

Fig. 7
Fig. 7
Full size image

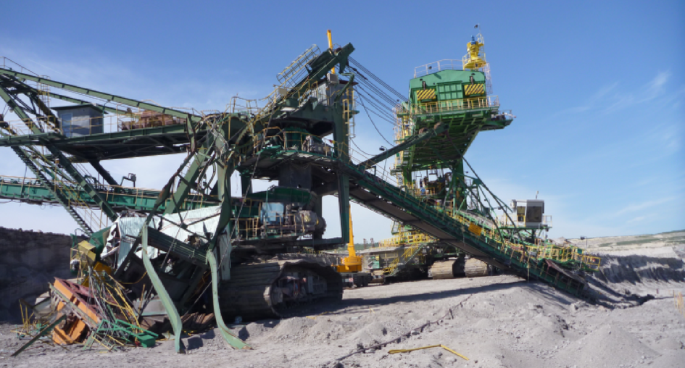

View of the self-propelled conveyor after failure.

Fig. 8
Fig. 8
Full size image

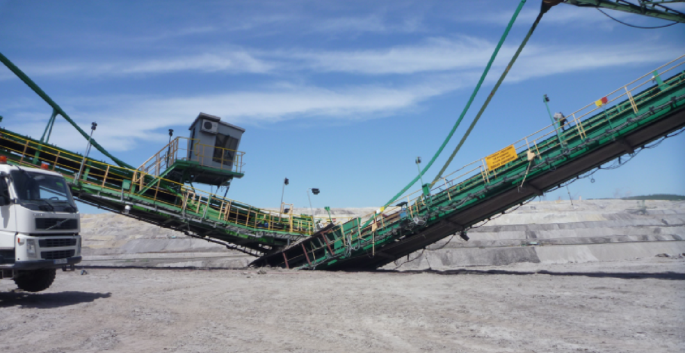

Discharge boom of bucket wheel excavator (left side) and self-propelled conveyor (right side) after failure.

The event shown in Figs. 7 and 9 had a huge impact on the operations of the owning company. It caused significant damage to the discharge boom of the bucket wheel excavator. For this reason, it had to be put out of service for many weeks to assess its technical condition and repair any damage found. An example of damage found during the technical assessment is shown in Figs. 9 and 10. Furthermore, the self-propelled conveyor belt was so badly damaged. It was necessary to rebuild a significant part of its carrying structure, especially the superstructure. This was associated with large financial losses and many months of difficult operation at the mine. Taking into account the above facts, it is important to find the cause of this failure. Especially since only 9 years have passed since the excavator was put into operation.

Fig. 9
Fig. 9
Full size image

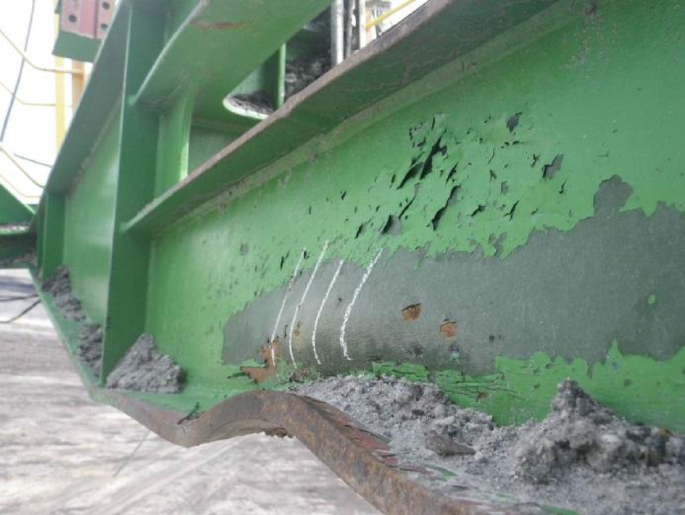

Exemplary damage after a failure of the carrying structure of the discharge boom—plastic deformation.

Fig. 10
Fig. 10
Full size image

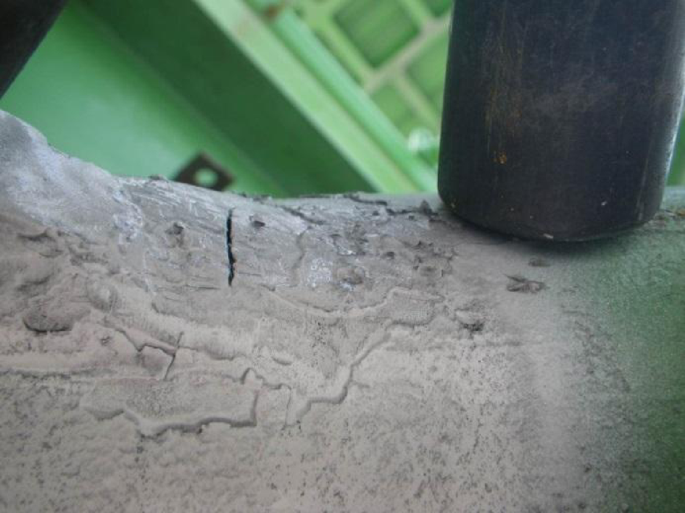

Examples of damage after a failure of the carrying structure of discharge boom—cracks.

Fracture and material microstructure analysis

Analysis of the material microstructure aimed at verification of the material grade used to manufacture axle and finding reasons of the failure. These analyses have been realized with the use of broken axle pieces. Few test pieces were used for metallographic, microscopic, and strength studies25,26,27,28,29.

Firstly, macroscopic and fractography analysis was performed with use of stereoscope (SMT-800 type) and scanning electron microscope (Hitachi S-3400N). Fracture fractography was realized after impact resistance test for two different samples, taken both in longitudinal as well as in transverse direction to axle axis. In Fig. 11 brittle fracture is clearly visible in cases of both specimens. Further analysis proves that for broken axle, there is a fatigue fracture with slip bands and origin point next to the surface, what is well visible in Fig. 12. Final rupture zone has features of a ductile and brittle fracture. This zone is about 20% of the fracture, which indicates that the safety factor of axle was about 5. Such fracture mode was the result of a unidirectional bending. The initiation of the fatigue fracture took place in the notch. It is shown in Fig. 13 as a cross section change with radius 0.84 mm, which is according to technical documentation of the axle25,26,27,28,29.

Fig. 11
Fig. 11
Full size image

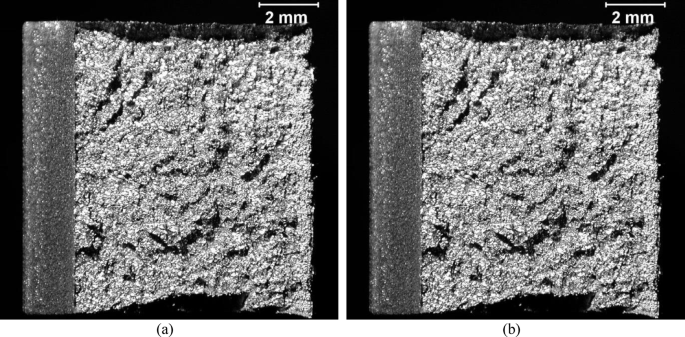

Brittle fracture on the sample taken along longitudinal (a) and in transverse direction (b) to axle axis.

Fig. 12
Fig. 12
Full size image

Fatigue fracture with well visible slip lines in two different sections. The arrow indicates the fatigue origin point.

Fig. 13
Fig. 13
Full size image

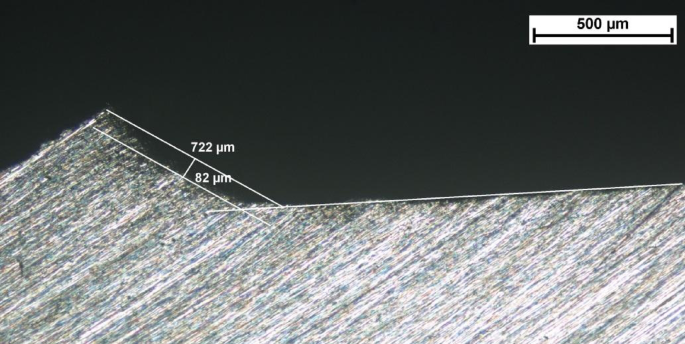

Section parallel to shaft axis with area of cross section change, where the fatigue origin point was located. The lines show the chord and dimensions of the pit due to edge fillet with radius 0,84 mm.

Next step was a microscopic research of samples in transverse axle cross sections. It was realized with the use of the metallographic microscope Olympus CK40M coupled with digital camera, in range of magnification from 50× to 1000×25,26. Before this, selected samples were a subject of micro-etching with use of Mi1Fe reagent. Received results showed clearly that microstructure is a nonhomogeneous ferritic-pearlitic structure, coarse-grained with bainite bands and a ferrite acicular structure having features of the Widmanstätten pattern (Fig. 14). Such a structure is a result of the cooling after hot processing. Strictly, such structure is not recommended for carrying structures elements subjected to high load due to the fact that Widmanstätten pattern is very sensitive to initiation and propagation of the fatigue fracture. It is obvious that such structure was responsible for huge decrease of the strength, mainly impact resistance of the axle and was reason of the fatigue crack initiation and growth. Definitely such material is not in accordance with material certificate, which clearly indicates that is should be material after hardening and tempering to hardness 235 ÷ 241 HB (highly tempered martensite). Brinell hardness tests conducted according to suitable standard showed that tested material has hardness much lower and equal to 211.38 ± 2.02 HB30.

Fig. 14
Fig. 14
Full size image

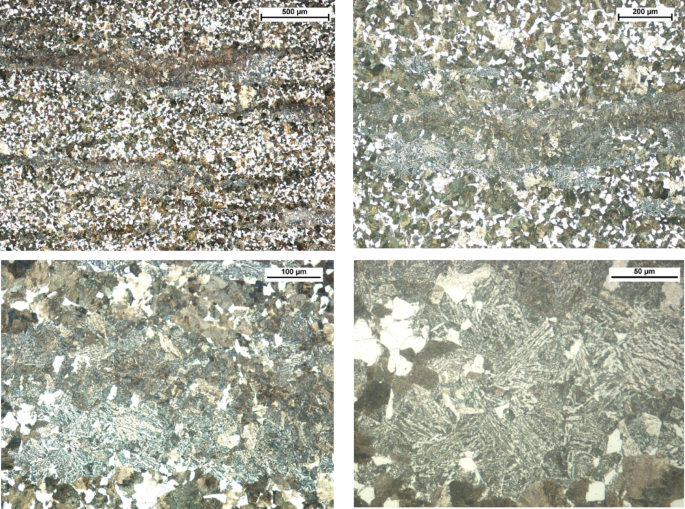

Nonhomogeneous ferritic-pearlitic structure, coarse-grained with bainite bands and a ferrite acicular structure having features of the Widmanstätten pattern seen in four different magnification.

Material properties were evaluated with use of tensile test according to suitable standard31. Test was conducted in temperature of 23 °C with use of testing machine VEB—model FPZ 100/1. In this case, three specimens have been tested. As a results, average values of the most important material properties have been evaluated and compared with material specification (Table 1). From Table 1 it is well visible that the material used to manufacture the broken axle differs greatly from the material according to the certificate.

Table 1 Mechanical properties of the material received after tensile tests and taken from the material certificate.
Full size table

Similar conclusions has been gathered after impact resistance investigation, that was realized with use of Charpy impact test32. Conducted test showed that impact work is equal to 11 J (kV150) or 13 J/cm2 (kcV150) and 9 J (kV150) or 11 J/cm2 (kcV150) in case of the longitudinal section and transverse section respectively. In the material certificate impact resistance is equal to 88.93 KCU2. In this case, according to the suitable standard PN-EN 10083-3 impact work (KV) should be at least 35 J, which is inconsistent with the real material used to manufacture the axle33.

FEM analysis

The load analysis was carried out on the basis of the data provided by the machine designer. Due to the nature of the damage, combination for the H1b—fatigue load case was taken into account according to the DIN22261-2 standard. Permanent loads (deadweight E, incrustation V) and live loads (excavated material F, dynamic loads D) were assumed. Table 2 presents calculated loads in the luffing cylinder for three considered positions of the discharge boom. This load in the luffing cylinder is the force acting on the suspension axle as shown in Fig. 15. The maximum calculated force is F = 1499 kN.

Table 2 Loads in the luffing cylinder for three considered positions of the discharge boom (H1b load case according to DIN22261-2 standard).
Full size table
Fig. 15
Fig. 15
Full size image

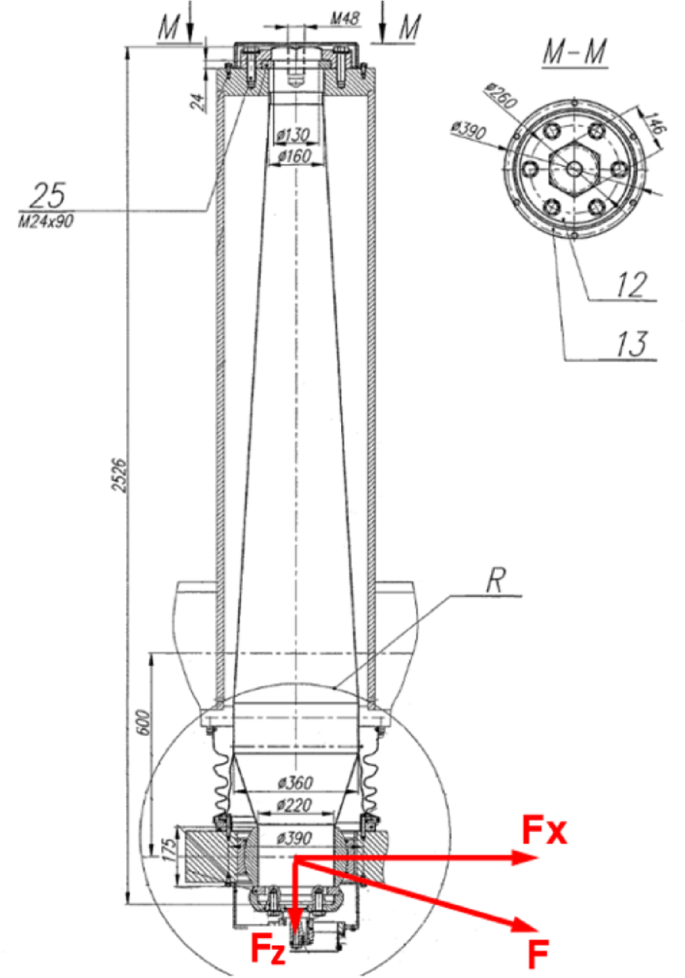

Diagram of load operation on the discharge boom suspension axle.

The next step was to create a geometrical model of the axis and its cooperating elements34. Solid finite elements were generated on the model in the upper support area (green color in Fig. 17), while in the rest of the model beam elements (blue color in Fig. 17) were considered. In addition, a constraint and a specified force were applied. In the most important part of the axle (area of breakage), the model was prepared with use of solid elements hexa 8 (in outer regions of axle) and tetra 10 (inner axle region). The rest part of the shaft has been modeled with use of beam elements. The connection between beam and solid elements of the axle was realized with use of special element Rigid Bar Element. The total number of elements in the model was almost 130 000 and the total number of nodes was over 146 000. The software used to run analysis of the basic axle model was NX I-deas(R) software ver. 6.1 and Siemens NX software ver. 2206 (https://plm.sw.siemens.com). In the complete calculation model, the contact connections in the upper axle bearing and the individual securing elements were also defined. The joint between the axle and fastener has been prepared with defined neighboring surfaces contact. These steps are shown in Figs. 16, 17 and 18.

Fig. 16
Fig. 16
Full size image

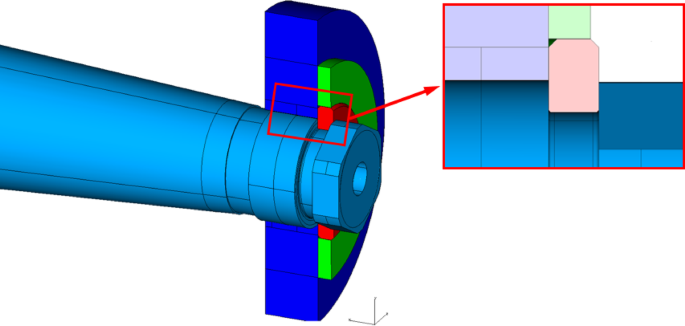

Details of the the geometrical model of axle and the securing elements (cross-section and detailed view).

Fig. 17
Fig. 17
Full size image

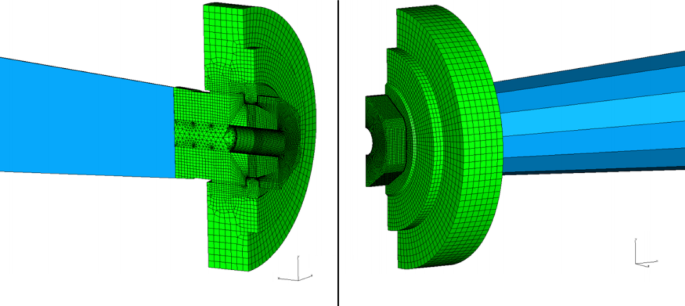

Details of the FEM model of axle and securing elements (cross-section view).

Fig. 18
Fig. 18
Full size image

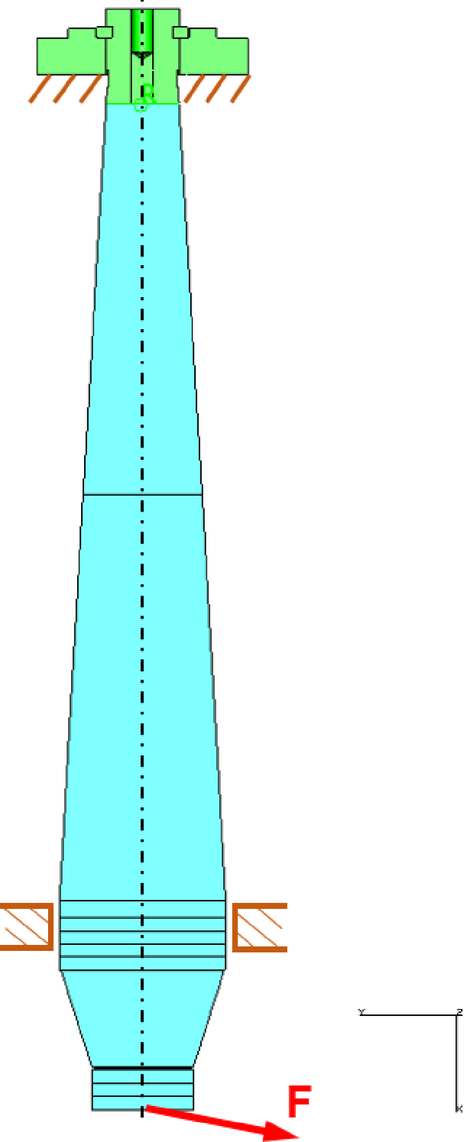

Computational model with applied boundary conditions.

Highly stressed areas were identified during the calculations for two variants of material characteristics:

  • Linear elastic material (Fig. 19) σHMHmax = 1280 MPa

  • Non-linear, elastic–plastic material (Fig. 20) σHMHmax = 471 MPa

Fig. 19
Fig. 19
Full size image

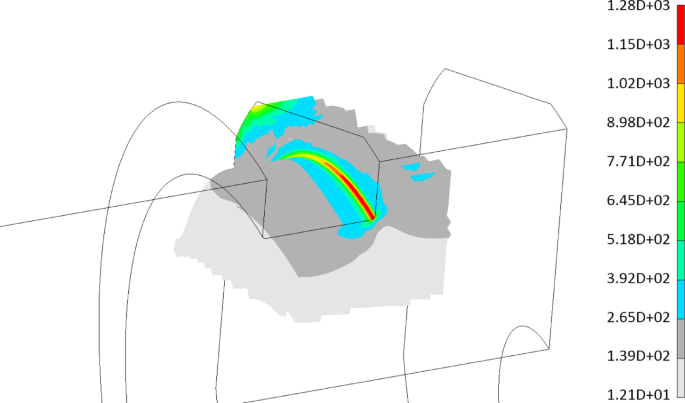

Equivalent Von Mises stress distribution in MPa—linear elastic material.

Fig. 20
Fig. 20
Full size image

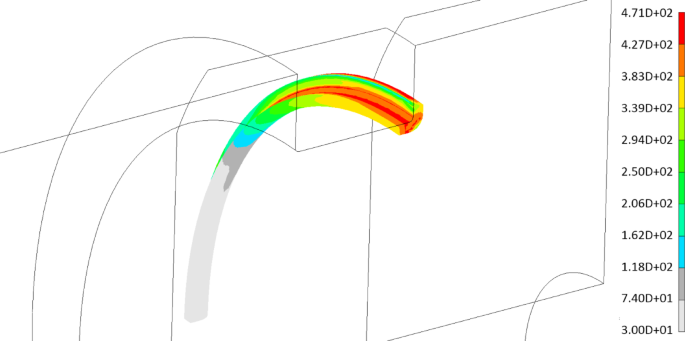

Equivalent Von Mises stress distribution in MPa—non-linear, elastic–plastic material.

The axle fracture did not occur at the point of highest stress level, but on the other side of the circlip groove. During the geometrical verification of the securing ring, it was found to be deformed due to the way the joint was constructed. As a result, the circlip partially took over the function of the radial bearing and caused an additional bending force at the axle end, generating stress concentration at the fracture site. A diagram of this phenomenon is shown in Fig. 21. Contact marks on both diameters are clearly visible on the protective ring, axle, and protective cover and are shown in Fig. 22.

Fig. 21
Fig. 21
Full size image

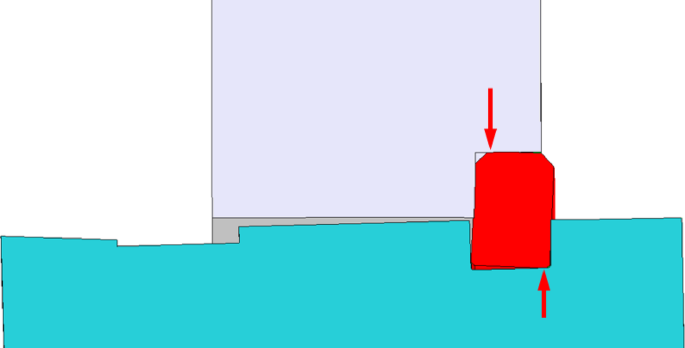

Diagram of the acting forces on the axle and the seat of the deformed circlip.

Fig. 22
Fig. 22
Full size image

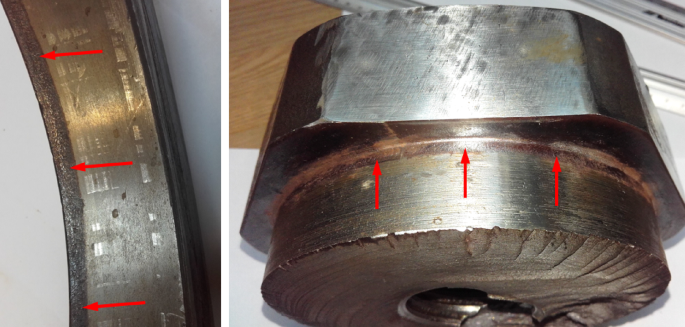

Contact marks on the protective ring and axle circlip groove.

For these types of working conditions, additional numerical simulations were carried out with consideration of non-linear, elastic–plastic material, and the stress effort of the critical region was identified. A variant was used where the discharge boom is in the low position, which corresponds to the maximum value of the total luffing cylinder force F (Table 2). The maximum stresses level in the fracture region increased by about 40% compared to the initial state (without ring deformation Fig. 20) and amounted to 649 MPa (Fig. 23). Under such operating conditions, at the point of axle breakage, there was a stress level in the low-cycle range, since the value of stresses in a cycle is in excess of the yield strength of a material (described in Table 1). It resulted in limited fatigue strength, which consequently contributed to the occurrence of failure.

Fig. 23
Fig. 23
Full size image

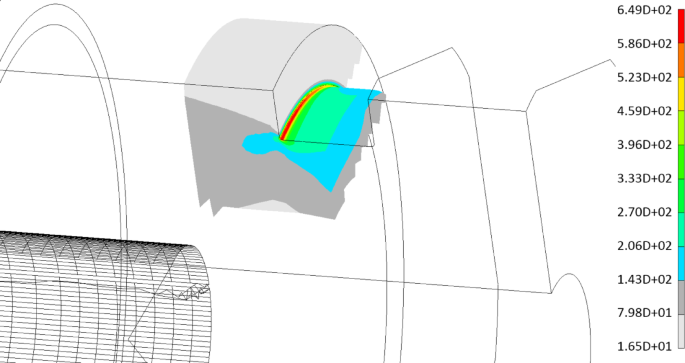

Equivalent Von Mises stress distribution in MPa—real boundary conditions.

Experimental verification of calculations

After repair, studies have been carried out to check the actual loads acting on the discharge boom axle. A measurement system with strain gauges located on the eye of the luffing hydraulic cylinder (Fig. 24) and data recorder was build. In the next step, the system was calibrated and the load on the suspension system was recorded in variable excavator operating conditions. This load recorded during the travel of the excavator, with the discharge boom perpendicular to the direction of travel, is shown in Fig. 25. Table 3 shows the maximum values of the load changes recorded during the tests.

Fig. 24
Fig. 24
Full size image

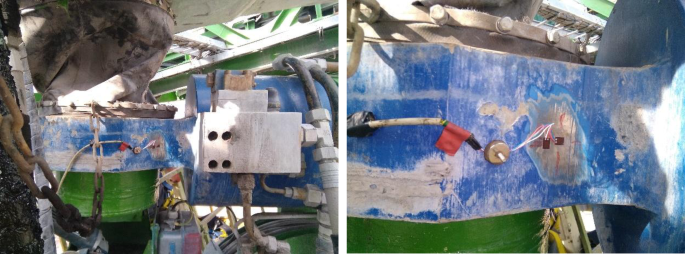

Location of strain gauges.

Fig. 25
Fig. 25
Full size image

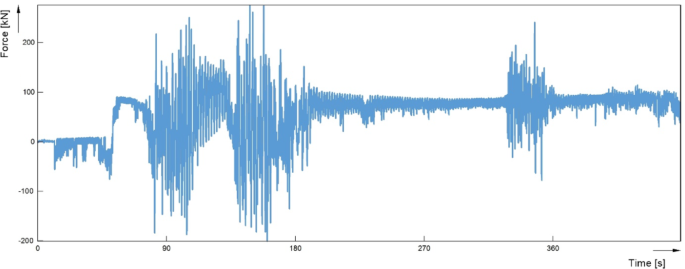

Course of recorded variable loads.

Table 3 Maximum values of the range of load changes recorded during tests.
Full size table

The operating loads acting on the axle, identified during tests consist of the self-weight of the boom including material incrustation (static component) and life loads presented in Table 3 (dynamic component). The static loads resulting from self-weight were verified by checking hydraulic luffing cylinder loads and no significant differences were observed in comparison to design data. The total operating loads acting on the axle were compared with the theoretical values calculated with consideration of the DIN22261-2 standard, presented in Table 2. The maximum theoretical load in the luffing cylinder equals:

$${\text{F}}_{{{\text{th}}}} = { 1499}\;{\text{kN}}$$

The maximum measured load in the luffing cylinder equals:

$${\text{F}}_{{{\text{exp}}}} = { 1769}\;{\text{kN}}$$

Identified total operating load acting on the axle is 18% higher than calculated according to the DIN22261-2 standard. During the measurements, an increase in loads was observed in the lower position of the boom, especially during machine traveling. The measurements were carried out for the full spectrum of technological loads of the excavator and the maximum values, resulting from all operational loads, were taken into account in the calculations.

Modification of the discharge boom suspension

In order to bring the machine back into operation it was necessary to modify the original suspension of the discharge boom where the broken axle is used. Modification was based on the change of its design and ensuring appropriate material quality. The final design of the axle is presented in Fig. 26 (upper support) and in Fig. 27a (overall view). Compared to Fig. 6 it is well visible that the sensitivity to fatigue crack in the notch was decreased due to replacement of the groove with two spherical bearings (GE-200AW and GE-180-AW Fig. 26) and an additional axle in the most vulnerable joint. The new suspension axle was manufactured from steel 40HM with a suitable microstructure without the Widmanstätten pattern to fulfill PN-EN 10083-3 standard33 requirements.

Fig. 26
Fig. 26
Full size image

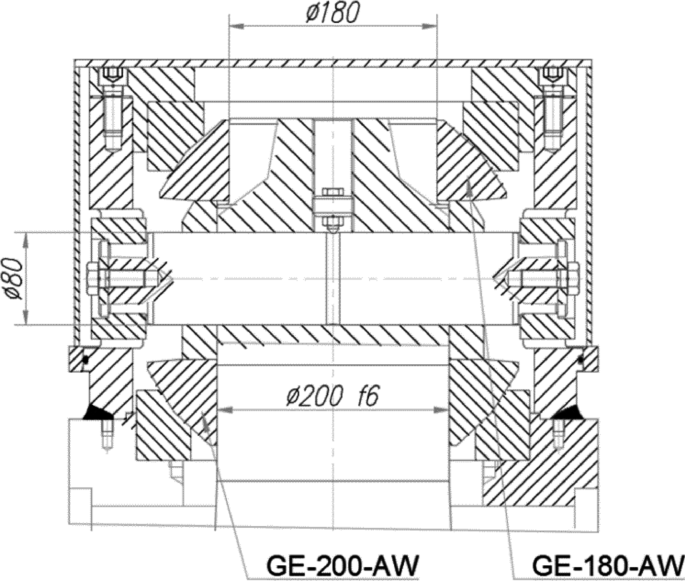

New design of the vertical axle upper support.

Fig. 27
Fig. 27
Full size image

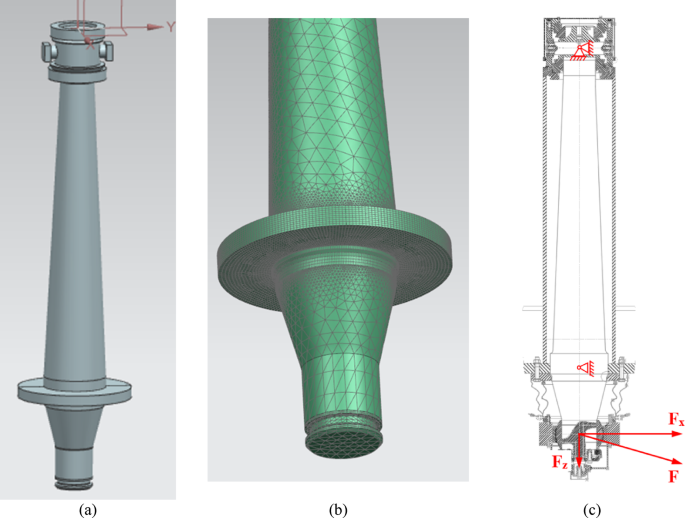

Geometrical (a) and discrete (b) model of the new design of the discharge boom suspension with scheme of the applied boundary conditions to the axle (c).

The new design of the axle and its upper support has been verified with use of FEM34. Firstly, a solid geometrical model of the axle and neighboring elements has been created (Fig. 27a). The neighboring elements considered in the simulation of both the original and modified axles are the upper and lower bearing hubs, the upper axle vertical support elements. In the upper part of the axle, contact connections were defined between these elements in order to correctly consider the load transmission. On this basis, model has been meshed with use of solid elements (Fig. 27b). Finally, a simulation model with boundary condition applied according to the scheme shown in Fig. 27 c has been created and then calculated. The force applied as a load acting onto axle was equal to F = 1769kN, which is maximal value received from tests on the real object described in previous section.

As a result equivalent Von Mises stress distribution has been received, which is shown in Fig. 28. From these calculations it is well visible, that maximal stresses are in the new axle in its lower part and the value of this stresses is much below yield point of the material, which is 643 MPa in case of steel 40HM. These results differ significantly compared to broken axle design, since maximal stresses are much lower and are not located in the notch placed in the upper support nut, close to lower axle support.

Fig. 28
Fig. 28
Full size image

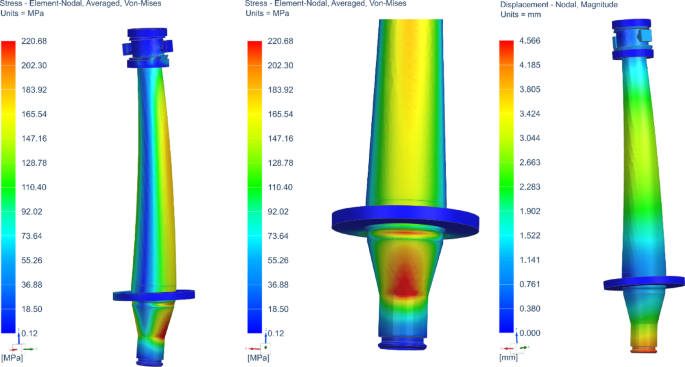

Equivalent Von Mises stress distribution along the structure of newly designed axle (overall view – left, area with maximal stresses—center) and displacement (on the right).

The fatigue strength of the new axle was calculated with the assumption, that maximal load identified during tests on real object is representative of fatigue load. Under such conditions, the allowable fatigue stress is equal to kg = 0.45Rm35. In case of axle made of steel 40HM and with consideration of material tests it was conservatively assumed that kg is equal to 337 MPa. Comparing maximal Von Mises stresses received thanks to FE analysis it can be concluded that:

$${\text{s}}_{{{\text{max}}}} = { 212}\;{\text{MPa }} < {\text{ k}}_{{\text{g}}} = { 749}*0.{45 } = { 337}\;{\text{MPa}}$$

It means that the allowable fatigue stress limit is not exceeded in the case of a new axle.

Discussion

Presented article was focused on failure analysis of the discharge boom suspension of the bucket wheel excavator. Unexpected axle damage occurred during regular operation of the machine. As a result of the failure of this element, the discharge boom fell to the self-propelled conveyor boom causing catastrophic failure. Extensive root cause analysis was carried out. The causes of the failure have been found due to the fracture and material analysis. Fracture of the broken cross section proved that it was mainly due to fatigue, which was supported by well-visible slip bands. The rapture zone of fracture was measured and compared with fatigue fracture zone to calculate the static safety factor. The static fracture zone was 20% of the section, which gives the static safety factor was about 5. The fatigue fracture initiation point was located in the notch of the axle (change of cross section in the groove visible in Fig. 6).

Material microstructure verification showed that there was an undesirable ferrite acicular structure with features of the Widmanstätten pattern. Such a structure is not suitable for carrying structural elements subjected to high loads, especially varying loads, because of its sensitivity to the initiation and propagation of fatigue crack. Investigation of the mechanical properties of the axle material proved that it was not compatible with the attached material certificate and should not be used in the case of such a demanding object.

A further step was focused on the axle strength analysis. It was made with the use of FEM and was aimed at evaluation of the stress level in the notch, where axle was broken under normative loads36. Obtained results proved that the maximal values of von Misses stresses were located exactly at the notch of the axle. This value was equal to 649 MPa in the case of elastic plastic material considered. Such stress concentration of the stresses that are changing during excavator operation, in conjunction with the notch effect and insufficient material microstructure, caused failure of the axle and as a consequence, fall of the excavator discharge boom. The plastic zone in the notch area is very small and the fatigue process in this zone occurred within the range of low-cycle fatigue strength. This caused the initiation of a fatigue crack, its development and complete fracture. The relatively high (5) static safety factor of the axle indicates its globally correct dimensions, but the structural notch and the resulting plastic deformations caused the initiation of the fatigue process and its development. It need to be underlined that strength calculations were performed for nominal loads that varies from real values what was proved by additional measurements on the real object after repair (18% greater force).

Ultimately, it can be stated that the described serious failure was caused by fatigue fracture. It was due to the combination of three important factors, which is schematically shown in Fig. 29. These factors were inappropriate material microstructure, notch effect, and cyclic load.

Fig. 29
Fig. 29
Full size image

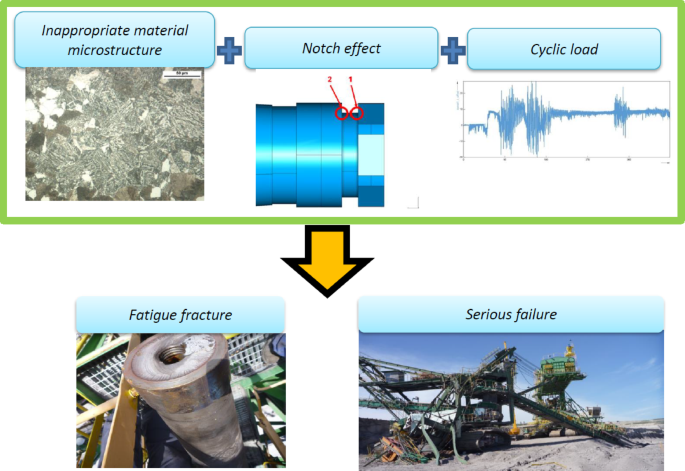

Scheme showing reasons of the serious failure.

The repair of the excavator was based on the change of its design and material. The final design of the axle is presented in Fig. 26. Compared to Fig. 6 it is well visible that sensitivity to fatigue crack in the notch was decreased thanks to replacement of the groove with two spherical bearings and additional axle in the most vulnerable joint. The new suspension axle was manufactured from material with a suitable microstructure without the Widmanstätten pattern. Also, the design of the axle was changed.

Conclusions

The conclusions related to failure of the discharge boom suspension of bucket wheel excavator are presented below.

  1. 1.

    Fracture of the broken cross section showed the fatigue phenomena by well-visible slip bands.

  2. 2.

    The static safety factor was calculated as 5 based on the rapture zone fracture cross section.

  3. 3.

    The fatigue fracture initiation point was located in the notch of the axle (in Fig. 6).

  4. 4.

    Material microstructure verification showed an undesirable ferrite acicular structure with features of the Widmanstätten pattern observed in the axle material, not suitable for carrying structural elements subjected to high loads

  5. 5.

    Based on FEA calculations the maximal values of von Misses stresses were located exactly at the fracture areas of the axle.

  6. 6.

    Such stress concentration of the variable stresses, in conjunction with the notch effect and material microstructure, caused failure of the axle.

  7. 7.

    The nominal design loads are lower for 18% than the one measured on the machine after repair. This is additional factor that contributed the failure of the axle.
