Introduction

Lung cancer is the leading cause of cancer mortality in the United States, accounting for approximately 20% of all cancer-related deaths1. The majority (over 70%) of lung cancer cases are diagnosed at advanced stages, significantly reducing the probability of cure and resulting in low survival rates1. The National Lung Screening Trial demonstrated that low-dose computed tomography (LDCT) can effectively detect lung cancer early and reduce lung cancer mortality by about 20%2. In response, many professional societies and organizations, such as the US Preventive Services Task Force (USPSTF), American Cancer Society, Centers for Medicare and Medicaid Services, National Comprehensive Cancer Network and American Society of Clinical Oncology, have issued guidelines recommending annual lung cancer screening with LDCT for individuals at high-risk for lung cancer3,4,5,6,7,8. For example, the 2013 USPSTF recommends annual LDCT screening for adults aged 55 to 80 years who have a 30 pack-year smoking history and currently smoke or have quit within the past 15 years3.

The effectiveness of lung cancer screening is dependent upon adherence to guideline-recommended screening intervals. Adherence in clinical trials such as the National Lung Screening Trial and the Dutch-Belgian Randomized Lung Cancer Screening Trial was high, often surpassing 90%2,9. Similarly, the USPSTF assumes perfect adherence to follow-up LDCT when projecting mortality benefits8. However, in real-world practice settings, LDCT adherence rates are considerably lower, ranging from 26 to 43%10,11,12,13,14,15,16. This practice gap may result from variations in institutional practices, diverse populations, and differing definitions of adherence. Identifying factors associated with LDCT adherence is essential for developing effective interventions and guiding policy actions that aim to enhance adherence and the effectiveness of lung cancer screening. Several studies have identified demographic and clinical factors, such as age, race, smoking status, insurance and screening site, that are significantly associated with adherence to initial and subsequent annual LDCT for lung cancer screening11,12,13,14,15,16,17. Despite these findings, limited studies have developed predictive models of LDCT adherence that incorporate pulmonary nodule findings and characteristics as potential predictors.

The Lung Imaging Reporting and Data System (Lung-RADS®) is a quality assurance tool used to categorize lung cancer risk and guide follow-up screening procedures to reduce false-positive findings and standardize lung cancer screening management18. Lung-RADS was developed by the American College of Radiology based on lung nodule characteristics detected by LDCT, including nodule size, multiplicity and texture19. Although Lung-RADS comprehensively reflects lung cancer risk in a categorical manner, the characteristics of the lung nodules themselves are important additional indicators of malignancy and may influence a patient’s decision to consistently return for follow-up screenings. For example, previous research has reported that nonsolid and part-solid types of nodules from LDCT are more likely to be malignant than solid nodules20,21,22. Additionally, while nodule size is a critical predictor of malignancy, studies have shown that the largest pulmonary nodule in an individual is not always malignant23. As the number of nodules increases, the presence of more uncertain characteristics can affect the accuracy of Lung-RADS assessments and influence a patient’s decision to adhere to lung cancer screening recommendations. However, information on pulmonary nodule characteristics is often documented in free-text clinical notes, such as radiology reports in electronic health records (EHR) systems, making it less accessible for research studies.

In the current study, we aimed to build statistical models to examine the demographic, clinical, and pulmonary nodule characteristics associated with follow-up LDCT adherence using both structured and unstructured EHR data from a large integrated health system. We used natural language processing (NLP) tools previously developed and validated to extract pulmonary nodule characteristics from clinical notes for modeling. This model can help identify patients who may be most likely to benefit from interventions aimed at improving lung cancer screening adherence and reducing the burden of lung cancer.

Results

Characteristics of study population

We identified 5,215 patients who received their initial LDCT in the UF IDR data, among whom 4,898 had the initial LDCT in Lung-RADS categories 1 to 4 A. After applying the exclusion criteria, 2,673 individuals (mean age = 66.8 ± 5.9 years) were included in the final data analysis (Fig. 1). We summarized the patient characteristics overall as well as stratified by Lung-RADS category in Table 1. The distribution of the Lung-RADS category in the analytic sample was 47.5%, 42.4%, 5.5%, and 4.7% for categories 1–4 A, respectively. Most of patients were non-Hispanic white (69.3%), residents in urban census tracts (65.8%), and slightly more than half were men (51.4%) or current smokers (54.4%). Over one third of patients had COPD (38.7%) and substantial burden of comorbidities (CCI ≥ 2) (36.9%). About one in four of patients (26.0%) had a family history of cancer. The most common insurance of primary payer was Medicare (64.9%). The median number of nodules identified in the initial LDCT was 3 nodules. The most common values for the nodule characteristics were < 6 mm for nodules size (70.0%), upper for nodule site (39.2%), right lung for nodule laterality (59.8%), and solid for nodule texture (26.7%).

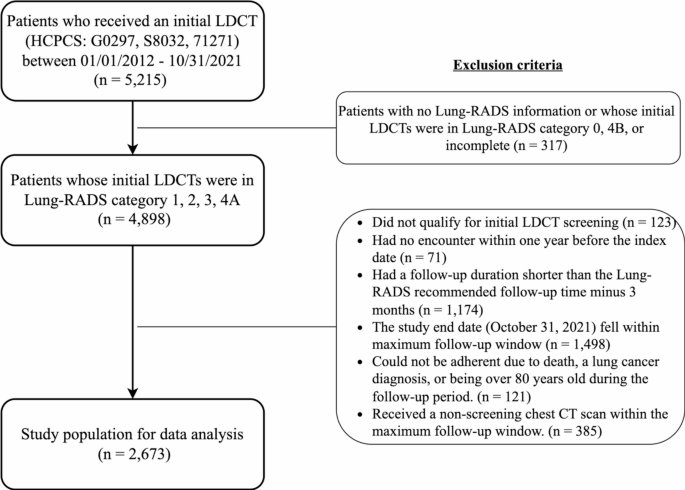

Fig. 1
figure 1

Study population flowchart.

Full size image
Table 1 Patient characteristics by Lung-RADS category. Values are n (%) except for number of outpatient visits, number of inpatient visits, number of nodules. aDetermined by linking patient’s latest zip-code to the Rural-Urban commuting area (RUCA) codes. bDetermined by linking patient’s latest zip-code to the census bureau’s American community survey and categorizing percent population below poverty into 3 groups: < 10%, 10%−19%, or ≥ 20%. cMeasured within one year prior to the date of initial lung cancer screening. dChronic obstructive pulmonary disease eCharlson comorbidity index; 0 = no comorbidity, 1 = some comorbidities, ≥ 2 = a substantial burden of comorbidities. fOther insurance included managed care, worker’s compensation, and other types. gOther site included basilar, lingula, apex, and hilum. hOther laterality included medial, and either left or right, iOther texture included cystic, bubbly, fluids, and mixed.
Full size table

We observed significant differences in certain patient characteristics across the Lung-RADS categories. A higher percentage of category 1 patients were in the youngest age group (55–59 years), whereas a higher percentage of category 4 patients were in the oldest age group (70–80 years; overall p for age < 0.001). Additionally, a higher percentage of patients in categories 3 and 4 A had COPD compared to those in categories 1 and 2 A (overall p for COPD = 0.031).

Regarding the primary outcome, the overall rate of adherence to Lung-RADS recommended follow-up LDCT was 27.6%. This rate differed significantly by Lung-RADS category (p < 0.001), with the lowest rate observed in category 1 patients (24.2%), and the highest in category 4 A patients (64.0%).

Results from multivariable regression models

We summarized results from the multivariable logistic models in Table 2. In the model for patients in Lung-RADS category 1, non-Hispanic blacks were significantly less likely to be adherent to follow-up LDCT compared to non-Hispanic whites (OR = 0.59, 95% CI = 0.41–0.85). Having a higher number of outpatient visits in the year before the initial LDCT was associated with greater adherence to follow-up LDCT (OR = 1.01, 95% CI = 1.00-1.03). Additionally, patients whose initial LDCT was covered by Medicaid or other insurance types had lower adherence to follow-up LDCT compared with those who had their initial LDCT covered by Medicare (OR = 0.65, 95% CI = 0.43–0.99).

Table 2 Odds ratios from logistic models for predicting adherence to follow-up LDCT.aDetermined by linking patient’s latest zip-code to the Rural-Urban commuting area (RUCA) codes. bDetermined by linking patient’s latest zip-code to the census bureau’s American community survey and categorizing percent population below poverty into 3 groups: < 10%, 10%−19%, or ≥ 20%. c Measured within one year prior to the date of initial lung cancer screening. dCharlson comorbidity index; 0 = no comorbidity, 1 = some comorbidities, ≥ 2 = a substantial burden of comorbidities. eOther insurance included commercial insurance, managed care, worker’s compensation, and other types. fOther site included basilar, lingula, apex, and hilum. gOther laterality included medial, and either left or right, hOther texture included cystic, bubbly, fluids, and mixed. OR = odds ratio; CI = confidence interval; COPD = chronic obstructive pulmonary disease.
Full size table

In the model for patients in Lung-RADS categories 2–4 A, patients in category 4 A were significantly more likely to adhere to follow-up LDCT compared to those in category 2 (OR = 3.18, 95% CI = 1.86–5.40). Having a higher number of outpatient visits in the year before the initial LDCT was associated with greater adherence to follow-up LDCT (OR = 1.01, 95% CI = 1.00-1.03). Regarding nodule characteristics, a higher number of nodules was associated with greater adherence to follow-up LDCT (OR = 1.12, 95% CI = 1.09–1.14). We also tested interactions between nodule characteristics and Lung-RADS categories 2–4 A and found no significant effect modification, indicating that these associations were consistent across categories.

Discussion

In this study, we extracted EHR data from a large integrated healthcare system and examined the demographic, clinical, and nodule characteristics associated with patients’ adherence to follow-up LDCT. The pulmonary nodule characteristics included number of nodules, nodule size, texture, laterality, and site, which were extracted from radiology reports using previously validated NLP tools. The rate of adherence to follow-up LDCT was 27.6% overall and 24.2%, 27.4%, 26.7%, and 64.0% for patients in Lung-RADS categories 1–4 A, respectively. We observed racial/ethnic disparity in adherence to follow-up LDCT among category 1 patients, with non-Hispanic blacks less likely to be adherent than non-Hispanic whites. Among patients in categories 2 to 4 A, category 4 A patients were significantly more likely to be adherent and having a higher number of nodules was associated with greater adherence.

Our findings highlight that adherence rates increased across Lung-RADS categories, with category 4 A patients significantly more likely to adhere to follow-up LDCT compared to those in category 2. This aligns with the expectation that patients with more suspicious findings perceive a higher risk and are more likely to follow recommendations. However, adherence remains suboptimal in lower-risk groups, possibly due to false reassurance after a negative initial result or inconsistent physician communication. Standardized communication protocols within structured screening programs are essential to ensure patients receive clear, consistent messaging, particularly for those with indeterminate findings, and to reinforce the importance of continued follow-up.

Previous studies have reported that patients’ adherence to follow-up LDCT ranges from 26 to 43% 10–16. The observed overall adherence rate in the current study of 27.6% is comparable to these published rates, all of which are significantly lower than rates reported in clinical trials and screening programs for other cancers, such as breast and colorectal cancer24,25. This suggests that effective interventions are needed to improve adherence to follow-up LDCT and thus the effectiveness of lung cancer screening. It has been suggested that interventions such as frequent follow-up reminders, navigator support, and educational materials that emphasize the benefits of lung cancer screening through the screening program can be considered to enhance adherence to follow-up LDCT15,16,26. In the current study, we also found that demographic factors such as race-ethnicity, insurance of primary payer, and regular prior healthcare utilization were associated with adherence to follow-up LDCT, which is consistent with previous findings17,26. These findings indicate that patient subgroups at higher risk of being non-adherent must be identified to efficiently deploy intervention and resources for improving the effectiveness of lung cancer screening. Additionally, increasing Medicaid coverage of LDCT for lung cancer screening may be an effective way to improve access and adherence to lung cancer screening.

Few studies have examined the impact of pulmonary nodule characteristics on patients’ adherence to lung cancer screening guidelines. We found only one such study in which the authors reported the distribution of the nodules’ characteristics based on manually reviewed and extracted nodule characteristics from 260 patients12. They found a median nodule number of one, with a median size of 3 mm, predominantly solid nodules located in the upper and right lobes, which is comparable to the nodule distributions in our study population. However, nodule characteristics were not considered in prior prediction models of adherence, possibly due to the small sample size. Information on nodule characteristics is usually documented in radiology reports as text. Research studies using this information often rely on manual review and extraction of nodule characteristics by radiologists for data analysis, which is time-consuming and limits the study sample size12,27,28. We used NLP technology to efficiently extract nodule characteristics from unstructured data and were able to include a considerably sized study population. Our findings suggest that the number of nodules is important factors to consider when designing interventions for improving lung cancer screening adherence.

Despite the strengths of using both structured and unstructured EHR data from a large integrated healthcare system, our study has a few limitations. First, our study population came from a healthcare system in Florida, findings from our study may not be generalizable to patients from other geographic locations. Second, we used a ± 3-month window around the recommended follow-up time interval to determine adherence of follow-up LDCT, which may not capture all follow-up LDCTs performed. This approach could have favored an underestimation of follow-up LDCT adherence. Third, while the NLP tools we developed for extracting nodule characteristics from unstructured data have excellent performance and many advantages, misclassification errors cannot be eliminated. Fourth, due to data limitations, we did not have access to complete information on pack-year history or time since quit smoking, so we identified the study population based on age and smoking status alone, which may have affected adherence rates by including patients with lower perceived risk or different follow-up behaviors compared to strictly guideline-eligible individuals. Finally, adherence may have been underestimated since patients could have undergone LDCTs outside the UF Health system.

Conclusions

Adherence to follow-up LDCT for lung cancer screening is suboptimal and is influenced by certain patient demographic and pulmonary nodule characteristics. Our results support the value of integrating variables extracted from unstructured data using advanced NLP technology for more comprehensive data analysis. Our findings underscore the need for targeted interventions and suggest potential strategies for designing interventions to improve adherence to lung cancer screening.

Methods

Data source and study population

We obtained 2012–2021 patient-level EHR data from the University of Florida (UF) Health Integrated Data Repository (IDR), a clinical data warehouse aggregating patient information from UF’s various clinical and administrative systems, including the Epic EHR system. The IDR contains more than one billion observational data elements from more than two million patients, encompassing structured data such as patient demographics, diagnoses, medical procedures, vital signs, laboratory tests, and medications, as well as unstructured clinical narratives such as discharge summaries, order notes, and pathology reports. This study was approved by the UF Institutional Review Board (IRB). All methods were performed in accordance with relevant guidelines and regulations.

The UF Health lung cancer screening program was implemented in 2014, shortly after the USPSTF recommendations for LDCT screening were established. The program adheres to national guidelines, which are updated in accordance with USPSTF revisions. Additionally, the Lung-RADS classification system, introduced by the American College of Radiology in 2014, was adopted early by the UF Health lung cancer screening program and has been used consistently to guide follow-up recommendations. Patients were typically referred for lung cancer screening by their primary care providers or pulmonary physicians, who assess eligibility based on guideline criteria. LDCT results were communicated to patients through the electronic medical record system, where complete radiology reports were accessible. However, there was no standardized institutional protocol for communicating results. As such, communication practices varied by providers—ranging from brief summaries of the Lung-RADS category and recommended follow-up to detailed discussions of specific nodule findings. This variability may have influence patients’ understanding of their risk and their adherence to follow-up recommendations.

We identified patients who underwent at least one LDCT procedure between October 1, 2014 and October 31, 2021 in UF Health IDR data using Current Procedural Terminology (CPT) codes based on their effective date range (S8032, effective from October 1, 2014-September 30, 2016; G0297, effective from February 5, 2015-December 31, 2020; and 71271, effective from January 1, 2021 onwards). For each patient, the date of the first LDCT was defined as the index date. We excluded patients: (1) who did not qualify for LDCT screening (i.e., were not current or former smokers, or whose age at the initial LDCT did not meet the USPSTF eligibility criteria—age 55–80 per the 2013 guideline if before March 2021, and age 50–80 per the 2021 guideline if on or after March 2021); (2) who had no encounter records within one year before the index date, to ensure sufficient prior data for measuring baseline characteristics; (3) whose follow-up period (from the index date to their last EHR visit) was shorter than the Lung-RADS recommended follow-up time minus 3 months; (4) whose follow-up period (from the index date to the study end date, October 31, 2021) was shorter than the Lung-RADS recommended follow-up time plus 3 months; (5) who could not be adherent due to death, a lung cancer diagnosis, or being order than 80 years old during the follow-up period; (6) who had received a non-screening chest CT scan within the maximum follow-up window, as these scans could preclude adherence to Lung-RADS-defined follow-up LDCT protocols and lead to misclassification of adherence status.

Due to data limitations, pack-year history and time since quitting smoking were unavailable, therefore, eligibility for LDCT screening was determined based on age and smoking status alone.

Study outcome

The primary outcome was whether a patient who had received an initial LDCT was adherent to Lung-RADS recommended follow-up schedule for LDCT. Specifically, the Lung-RADS recommended follow-up interval is 12 months for categories 1 (i.e., negative) and 2 (i.e., benign appearance or behavior), 6 months for category 3 (i.e., probably benign), and 3 months for category 4 A (i.e., suspicious). For Lung-RADS categories 4B and 4X (i.e., highly suspicious), immediate chest CT or PET/CT with or without biopsy is recommended, but no standard follow-up is prescribed29. We included patients whose initial LDCT was in Lung-RADS categories 1, 2, 3, and 4 A which involve standard follow-up rather than immediate interventions. Lung-RADS categories for the initial LDCT were extracted from lung cancer screening order narratives using our previously developed rule-based approach30. Lung-RADS categories are often documented in radiology reports with specific patterns, including numbers and letters (e.g., “Lung-RADS category: 4A”). Our rule-based approach, using regular expressions to capture these patterns, achieved an F1-score of 0.998. Being adherent to follow-up LDCT was defined as undergoing the second LDCT within ± 3 months of the recommended follow-up time interval after the initial LDCT.

Predictors of interest

The predictors of interest included socio-demographic, clinical and pulmonary nodule characteristics. The socio-demographic characteristics included age at index date, sex, race-ethnicity, census tract-level rurality and poverty, smoking status, insurance of primary payer for the initial LDCT, baseline healthcare utilization, and marital status, whereas the clinical characteristics included family cancer history, baseline chronic pulmonary disease (COPD) status, and Charlson comorbidity index (CCI)31. Census tract-level rurality was determined by linking patient’s latest zip-code in the EHRs to the Rural-Urban Commuting Area (RUCA) codes32 and categorizing patients as urban (RUCA code 1) or non-urban (RUCA code 2–10) residents. Census tract-level poverty, defined as the percentage of the population below poverty line, was determined by linking patients’ latest zip-codes to the Census Bureau’s American Community Survey and categorizing them into 3 groups: < 10%, 10%−19%, ≥ 20%. Smoking status (i.e., current or former smoker) and marital status (i.e., married/partnered, single, or other) were determined using the most recent EHR status before the index date. Insurance of primary payer for the initial LDCT was categorized as Medicare, commercial, Medicaid or other (e.g., charity, worker’s compensation, managed care, federal/state/local government insurance, self-pay). Baseline healthcare utilization was measured using the numbers of outpatient and inpatient visits within one year prior to the index date. Family history of all cancer (ICD-9: V16; ICD-10: Z80) was extracted from structured EHR data prior to the index date. Additionally, baseline COPD (ICD-9: 490–496; ICD-10: J40-J44) and CCI were extracted from EHR data within 12 months prior to the index date. We calculated the CCI following the modified algorithm by Klabunde et al.31. CCI was categorizing into 3 groups: no comorbidity (CCI = 0), some comorbidities (CCI = 1), a substantial burden of comorbidities (CCI ≥ 2).

Pulmonary nodule characteristics included Lung-RADS categories (extracted using rule-based algorithms mentioned previously) and nodule characteristics, both extracted using NLP from unstructured EHR data. Five categories of nodule characteristics were extracted from clinical notes and included in this study as predictor of adherence to follow-up LDCT: the number of the nodules, the largest nodule size (0, < 6 mm, 6–8 mm, > 8 mm), nodule texture (calcified, ground glass, noncalcified, soft, solid, other), laterality (left, right, bilateral, other), site (lower, middle, upper, other). The pulmonary nodules and associated nodule characteristics were extracted from radiology reports using NLP system with state-of-the-art transformer models, which we developed and validated previously using UF Health EHRs30. The NLP system integrated the robustly optimized BERT approach (RoBERTa)-mimic model for concept extraction, A Lite BERT (ALBERT)-base model for the relation identification, and the RoBERTa-mimic model for negation detection. Our end-to-end NLP system for extracting pulmonary nodule and nodule characteristics achieved an excellent F1-score of 0.8869 (precision = 0.8345 and recall = 0.9464).

Statistical analysis

We calculated summary statistics to describe the study characteristics in the overall population and by Lung-RADS category. Continuous variables were presented as means with standard deviations for those following a normal distribution or as medians with interquartile ranges (25th and 75th percentiles) for those that were skewed. Categorical variables were summarized using frequencies and percentages. Normality of continuous data was assessed using the Kolmogorov-Smirnov test. Differences in study characteristics across Lung-RADS categories were evaluated using analysis of variance (ANOVA) or the Kruskal-Wallis test for continuous variables, and the Chi-squared or Fisher’s exact test for categorical variables. For variables with missing values, we created an “unknown” category and included it in both univariate comparisons and in the regression models to retain the full analytic sample. Other variables had no missing values. We built univariable and multivariable logistics regression models to examine the factors associated adherence to screening. Separate models were built for patients in Lung-RADS category 1 and those in categories 2–4 A because over 90% of the patients in category 1 had no nodules. Pulmonary nodule characteristics were used as predictors in the model for patients in Lung-RADS categories 2–4 A only. To assess whether the associations between nodule characteristics and adherence differed by Lung-RADS category (2–4 A), we tested interaction terms between each nodule characteristic and Lung-RADS category. All effects were estimated as odds ratios (ORs) with 95% confidence intervals (CIs). Two-sided p-values were calculated for all statistics, considering a significance level of 0.05. Data processing and management were conducted using python 3.9.4. Statistical analyses were conducted using SAS 9.4 (SAS Institute Inc., Cary, NC, USA).
