Introduction

In recent years, with the acceleration of urbanization and industrialization in China, the demand for energy has continued to grow rapidly. Shallow resources are gradually depleting, and deep mining has become the new normal for energy development in China1,2,3. With the continuous increase of deep coal mining, the characteristics of coal micro-pores, high ground stress, high gas content, low permeability are increasingly affected by the complex geological conditions in the deep part, which leads to an increase in the difficulty of coalbed methane extraction4,5. Therefore, in the process of coalbed methane extraction, improving the fracture development of permeable coal seams and achieving low ecological damage through effective methods is the most worthy scientific issue currently for enhancing the development and utilization rate of coalbed methane resources. The HPAB fracturing technology, as a new type of waterless physical expansion blasting fracturing measure, has outstanding advantages such as environmental protection, energy saving, safety and efficiency, and simple operation. It has been widely applied in the development of unconventional natural gas such as coalbed methane and shale gas6,7,8.

The evolution of micro-pore structure (size, distribution direction, connectivity, etc.) in coal rock mass under HPAB affects its macroscopic crack development, propagation, and mechanical properties. Therefore, domestic and foreign scholars have conducted extensive research on the crack propagation and pore structure evolution of coal and rock masses under HPAB using physical experiments, numerical simulations, and on-site testing methods, and have achieved fruitful research results. Some scholars have studied the crack propagation in coal and rock masses under high pressure gas blasting. Wang et al.9 studied the initiation mechanism, propagation process, and morphology distribution of shale cracks through CO2 fracturing experiments. Gao et al.10 conducted high pressure gas blasting tests to test the peak pressure load inside the blasthole and analyzed the influence of different gas pressure conditions on crack propagation. Bai et al.11 established a model of damage based stress wave propagation-static mechanical equilibrium-gas flow coupling through theoretical analysis to study the crack evolution law in high energy gas fracturing. Zhang et al.12 established a dynamic model of carbon dioxide blasting rock based on indoor experimental results, which was used to analyze the influence of carbon dioxide blasting on crack propagation and damage effects around the blasthole. The above research found that the development and propagation of cracks in coal rock masses are related to high pressure gas pressure. When the high pressure gas blasting pressure is low, the rock only produces a single crack, and the number of cracks increases with the increase of high pressure gas pressure. Pan et al.13 used CO2 pre-cracking blasting to induce cracking in specimens containing voids. The VIC-3D and ultrasonic methods were used to analyze the internal damage and crack propagation laws of coal. It is found that the main crack generated by CO2 blasting would propagate along the direction of the blasthole, forming a connected main crack between the blasthole and the blasthole. Yang et al.14 used LS-DYNA software to establish a numerical calculation model of coal under the coupling of HPAB and geostress. It is found that under HPAB, the stress waves inside the coal decay exponentially with increasing distance, and cracks propagate along the direction of maximum principal stress. Chu et al.15 conducted HPAB simulations of coal using nozzles located 100 mm, 200 mm, and 250 mm away from the orifice to investigate the effect of nozzles on coal fracture. Based on experimental results and fracture mechanics theory, two types of damage fracture models were established for the upper and lower nozzles in the borehole. Zhang et al.16,17 established a liquid CO2 phase change pressure model and analyzed the rock breaking mechanism through liquid CO2 phase change jet experiments. A criterion for determining the phase transition induced cracking of liquid CO2 in low-permeability coal seams has been proposed. Some scholars have studied the influence of impact loads on the pore structure of coal. Yang et al.18, Qin et al.19,20, and Chu et al.21 used low-temperature liquid nitrogen (LTLN), mercury intrusion porosimetry (MIP), nuclear magnetic resonance (NMR) and other methods to study the changes in pore structure and mechanical properties of coal caused by liquid nitrogen cold impact. It is found that liquid nitrogen cold impact can promote the development of fracture networks and increase the connectivity between micro-pores and macro-pores. Sun et al.22 studied the changes in coal temperature and pore structure under high-frequency ultrasound by using nuclear magnetic resonance (NMR) and 3D-XRM tomography. It is found that ultrasound can improve the internal temperature of coal and the connectivity between pores and fractures, but its effect on micro-pores and transition pores is not significant. Lin et al.23 used scanning electron microscopy (SEM), energy dispersive spectroscopy(EDS), and mercury intrusion porosimetry (MIP) to study the pore structure changes of smokeless coal treated with different concentrations of NaCl solution under high-voltage electric pulses. Zhang et al.24 characterized the micro-pore structure changes of coal and raw coal before and after dynamic impact with a pendulum using an ultrasonic tester. Yan et al.25 and Liao et al.26 used scanning electron microscopy (SEM), mercury intrusion porosimetry, and CT scanning methods to study the pore structure characteristics of coal at different positions from the blasthole. Wang et al.27 and Li et al.28 simulated stress wave impact on coal samples using SHPB. The pore structure of coal samples before and after SHPB impact was characterized using mercury intrusion porosimetry (MIP) and low-temperature liquid nitrogen (LTLN). Li et al.29 and Li et al.30,31 characterized the pore structure of different shale facies using experimental methods such as X-ray diffraction (XRD), scanning electron microscope (SEM), mercury intrusion porosimetry (MIP), and low-temperature liquid nitrogen (LTLN). Xia et al.32 and Bai et al.33 combined mechanical experiments, scanning electron microscopy (SEM), and mercury intrusion porosimetry (MIP) to study the effect of stress waves generated by liquid CO2 phase change fracturing (LCPCF) on the pore/fracture structure of coal. The above research found that stress waves and high press gas blasting can cause irreversible damage to the micro-pore structure of coal, and can induce the evolution from isolated closed pores to open pores, improving the connectivity of the coal. At present, researchers have quantitatively and qualitatively characterized the evolution of pore structure and distribution characteristics of pores and fissures in coal rock masses before and after dynamic load impact using low-temperature liquid nitrogen (LTLN), mercury intrusion porosimetry (MIP), nuclear magnetic resonance(NMR), and scanning electron microscopy (SEM). However, the research on the characterization of the 3D pore structure in coal under HPAB is not yet complete. Especially, In terms of the formation of the 3D pore network structure and the mechanism of coalbed methane seepage and diffusion in coal under HPAB.Therefore, it is urgent to conduct in-depth research on the evolution of 3D pore structure and coalbed methane diffusion process in coal under HPAB.

In this paper, the crack propagation law of coal under HPAB is studied by using a self-developed HPAB device from a macro perspective.the microscopic scale visualization models of coal before and after HPAB were established using CT scanning and Avizo software. The 3D visualization of coalbed methane flow in the spatial topological structure at the microscale is achieved using AVIZO software. The formation mechanism and distribution characteristics of seepage channels in the REVs before and after HPAB are analyzed. The migration and diffusion process and distribution law of gas in the microscopic porous medium structure were explored from a micro perspective.

Methodology

Experimental study on failure morphology of coal under HPAB

Specimens preparation

The experimental object is smokeless coal from the 11,060 working face of Zhaogu Coal Mine in Jiaozuo Coal Group. The coal seam in the 11,060 working face of Zhaogu Mine belongs to the Shanxi Formation of the Lower Permian, mainly composed of block coal with a small amount of granular coal interbedded. The internal fractures are developed, and the strength of the block coal is high. The macroscopic coal rock composition is mainly composed of bright coal, followed by dark coal, and contains a small amount of filamentous carbon lenses. Considering the strong heterogeneity of coal, smokeless coal with dimensions not less than 200 mm is selected as the object. The schematic diagram of coal is shown in Fig. 1.The average strength coefficient and apparent density of the tested coal block are 1.32 and 1.52 g/cm3, respectively. The summary of industrial analysis and testing of selected coal is shown in Table 1.

Fig. 1
Fig. 1
Full size image

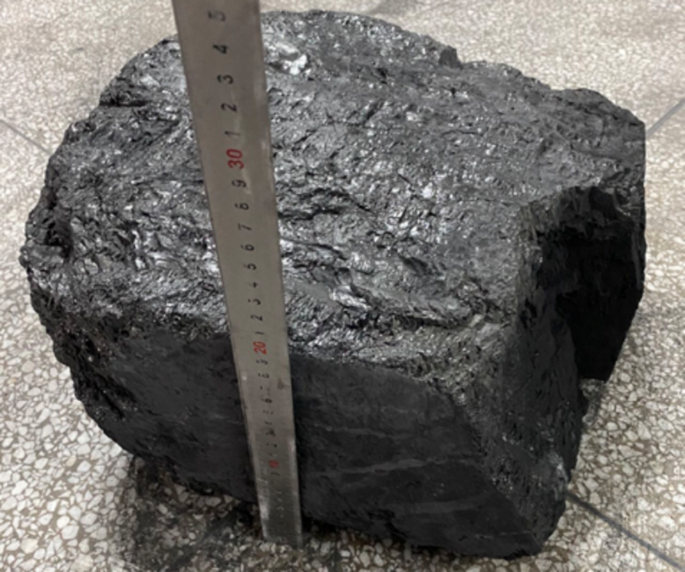

The schematic diagram of coal.

Table 1 Summary of industrial analysis and test results of coal samples.
Full size table

Due to the poor flatness of the coal block shape, it is not conducive to constrained loading during the experiment. In order to better study the fracture characteristics of the coal and the permeability and migration characteristics of coalbed methane under confining pressure and HPAB. The simulated materials were selected to fully wrap the coal to make model specimens. The physical and mechanical basic parameters of specimens made of simulated materials have a high degree of fit with the coal. The mix proportions and test results of simulated coal are shown in Table 2. It should be noted that the model test specimens is made using a mold with a size of 500 × 500 × 500 mm. The production process of the model specimen is shown in Fig. 2.

Table 2 The mix proportions and test results of simulated coal (kg/m3).
Full size table
Fig. 2
Fig. 2
Full size image

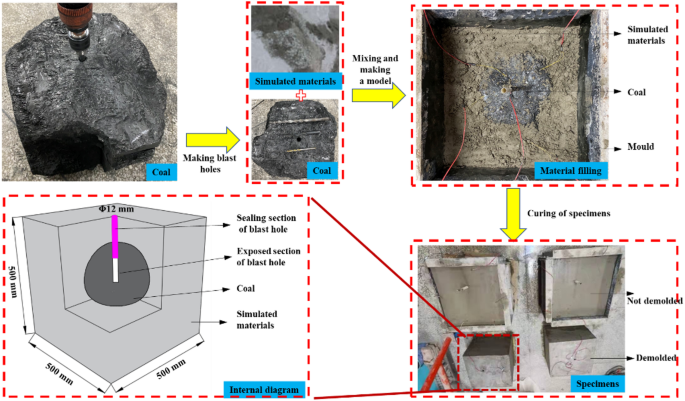

The production process of the model specimen.

High pressure air blasting (HPAB) test

The self-developed HPAB test device is used to conduct HPAB tests. The HPAB device mainly consists of three parts34: (1) gas pressurization and control release system, (2) bidirectional pressurization system, (3) data acquisition system. The high-pressure air blasting (HPAB) device is shown in Fig. 3. In the HPAB test, in-site stress σ1 = σ2 = 4 MPa, the air pressure was set over 15 MPa, are applied to the specimens. Due to the randomness and uncertainty of HPAB tests, a total of 4 model specimens were made to ensure the smooth completion of the tests. During the experiment, a vertically downward blasthole with a depth of 300 mm and a diameter of 12 mm is reserved in the middle of the specimen. The fracturing pipe as fixed at a height 50 mm away from the bottom of the blasthole by planting adhesive. The surface around the specimen is coated with a layer of the coupling agent with a thickness of 4–6 mm to avoid the error caused by boundary effects. During the loading process, it should be ensured that the pressure plate contacts the boundary surface of the test block.

Fig. 3
Fig. 3
Full size image

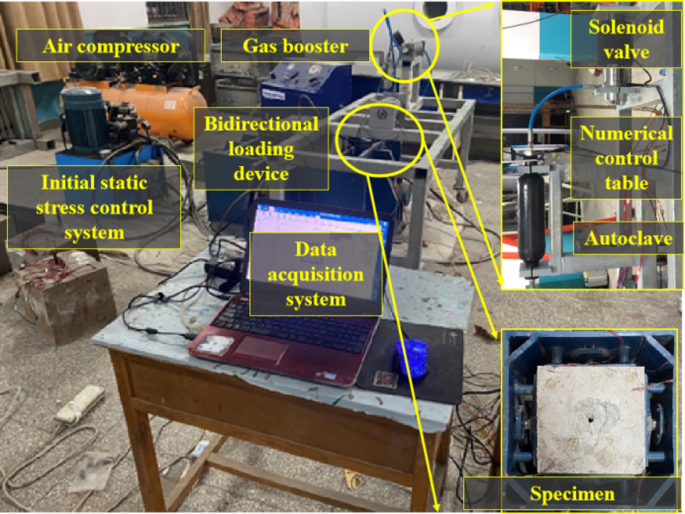

The high-pressure air blasting (HPAB) device.

Microscopic seepage characteristics of coal under HPAB

Sampling of the specimens and industrial CT

The acquisition of specimens is the key technology to studying the characterization of microscopic pore structure before and after HPAB. Therefore, the samples size of 10 × 10 × 30 mm at a distance of 50 mm from the blasthole were obtained by a cutting machine with strong anti-interference ability. The samples was subjected to CT scanning using an industrial CT produced by Phoenix company. The specific parameters of the test conditions are as follows: the current is 110 µA, the voltage is 150 kV, the minimum spatial resolution is 5 μm, the pixel is 2024 × 2024, and the number of slices is 1000. The industrial CT scanning flow chart is shown in Fig. 4.

Fig. 4
Fig. 4
Full size image

Industrial CT scanning flow chart.

3D pore network model and topological skeleton structure model

In the process of CT scanning, electronic devices and X-ray sources have interference effects on the sample scanning results, such as stains and noise, so it is impossible to conduct vector operation on the scanned image directly. Therefore, the image processing software should be used to remove the interference information of the scanned image. As is well known, three filtering algorithms, Gaussian filter, Mean filter, and Median filter, are applied to image processing. Comparing the performance of the three algorithms, it was found that the median filtering denoising method had better results. The median filtering method is used for denoising CT slices. Given that the skeletal structure and pore information on CT slices are divided by pixel points.The information in CT slices is accurately and effectively extracted by adjusting the size of grayscale feature values, providing a foundation for accurately establishing 3D models.

The noise processing of CT slices and the establishment of 3D visualization models can be achieved using AVIZO software. Considering the storage and model computation time of the computer, after repeated debugging, a cube with dimensions of 1.85 × 1.85 × 1.85 mm was selected as the REV to establish a 3D visualization model. In order to reveal the connectivity characteristics of the geometric spatial structure of pores before and after HPAB. Based on a 3D pore model, a reasonable distance transformation is performed on the 3D topological spatial form of the pore fissure using the vessel axial skeleton algorithm. Simplify the pore fracture structure in the RVE into a 3D topological skeleton structure model. The CT slice preprocessing and 3D visualization process are shown in Fig. 5.

Fig. 5
Fig. 5
Full size image

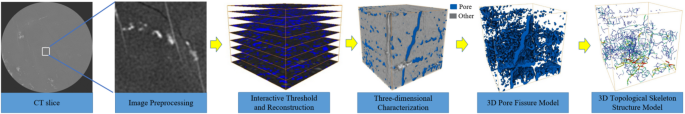

CT image preprocessing and 3D visualization process (the image was created using AVIZO 2019.1 and PowerPoint 2016).

Seepage simulation control equations and boundary conditions

  1. (1)

    Model processing.

    Fig. 6
    Fig. 6
    Full size image

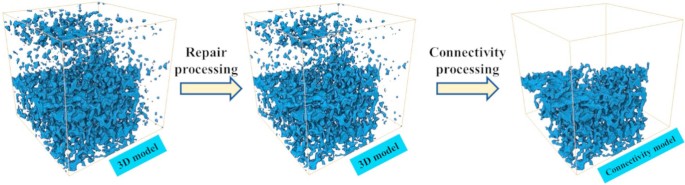

    Extraction and processing of connectivity model.

    Before conducting microscopic flow simulations on the REV. Firstly, the pores and fissures in REV were repaired using the embeded repair of AVIZO software. Then, the connectivity model of pore and fissures is extracted using connectivity algorithm. Finally, the details of the connectivity model are repaired and processed using the embeded repair of AVIZO software. The extraction and processing process of the connectivity model of pores and fissures is shown in Fig. 6.

  1. (2)

    Control equation.

    The Xlab module in Avizo software is used to implement visual seepage simulation in the pore and fissure structure. Assuming that coalbed methane is transported as an incompressible gas under standard (normal temperature and pressure) conditions during the simulation experiment. The Navier-Stokes (N-S) equations are used as the governing equations for visual seepage simulation of coalbed methane .The N-S equation form acting on a small volume unit can be expressed as:

    $$\rho \frac{{dv}}{{dt}}= - \nabla p+\mu {\nabla ^2}v+\frac{1}{3}\mu \nabla (\nabla \cdot v)+\rho f$$
    (1)

According to the continuity equation, the mass of coalbed methane flowing in and out of a small volume unit is equal. The mass conservation equation inside the volume unit can be obtained as follows:

$$\frac{{\partial \rho }}{{\partial t}}+\nabla \cdot (\rho v)=0$$
(2)

Given that coalbed methane is incompressible and its density remains constant during flow and transport, Eq. (2) can be transformed into:

$$\frac{{\partial \rho }}{{\partial t}}=\nabla \cdot (\rho v)=\nabla \cdot v=0$$
(3)

Based on the above assumptions, the incompressible equation within a finite volume element can be simplified as:

$$\left\{ \begin{gathered} \nabla \cdot v=0 \hfill \\ \mu {\nabla ^2}v - \nabla p=0 \hfill \\ \end{gathered} \right.$$
(4)

In the formula:\(\nabla\)is the gradient operator; ν is the flow rate of coalbed methane, m/s; \(\mu\) is the dynamic viscosity of coalbed methane, Pa˖s; \({\nabla ^2}\) is the laplacian operator; p is pressure of coalbed methane, MPa; \(\rho\)is thedensity of coalbed methane, kg/m3.

  1. (3)

    Boundary conditions and simulation parameter settings.

The boundary conditions are set as follows:① The interface between fluid and solid is a slip free surface. ② The closed system isolated from the outside world. ③ The fluid pressure is quasi-static and the fluid can freely diffuse on the input surface. ④ The fluid is incompressible and in a steady-state flow state.

Simulation parameter setting: ① The coalbed methane under normal temperature conditions is a simulated fluid medium. ② The two opposing sides are the inlet and outlet for gas flow. The specific relevant parameters are shown in Table 3.Considering that high-pressure air blasting has a significant impact on the microstructure of coal. Visual simulation is conducted from three different directions: X, Y, and Z. Taking the simulation in the X direction as an example, the boundary conditions are set. The specific boundary condition setting diagram using AVIZO and PowerPoint is shown in Fig. 7.

Table 3 Specific relevant parameters of seepage visualization simulation.
Full size table
Fig. 7
Fig. 7
Full size image

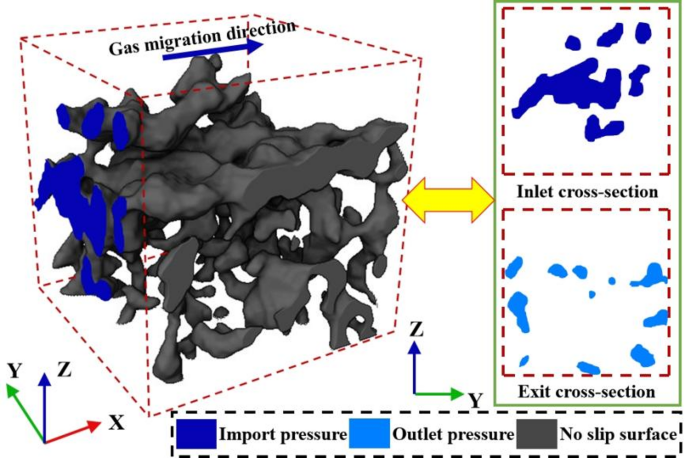

Schematic diagram for boundary setting of seepage visualization geometric model (the image was created using Avizo 2019.1 and PowerPoint 2016).

Results and discussion

Analysis of the failure morphology in coal under HPAB

Analysis of the distribution characteristics in coal under HPAB

The failure Morphology of coal under HPAB is shown in Fig. 8.

Fig. 8
Fig. 8
Full size image

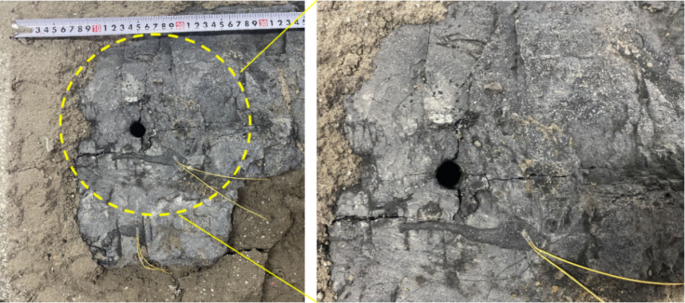

Failure morphology of coal under HPAB.

As can be seen in Fig. 8, under the current test conditions, there is no fracture zone around the blasthole. There are four main cracks on the coal surface that approximately run along the direction of principal stress under HPAB and confining pressure.The direction of crack development and propagation in coal under HPAB is influenced by natural defects such as joints and bedding. The crack propagation around the blasthole is mainly caused by stress waves. The stress waves decay rapidly with the increase of distance from blasthole, and the crack propagation in the middle and far area of the explosion source is mainly caused by stress waves and high-pressure air infiltration and disturbance. Under HPAB and confining pressur, randomly distributed micro-cracks develop and propagate along the direction of maximum confining pressure to form main cracks, while cracks that propagate in other directions are suppressed.

Distribution characteristics of coal pore and fissure channels under HPAB

The 3D pore model and the 3D topological skeleton structure model of the REV in coal before and after HPAB using AVIZO software are shown in Figs. 9 and 10, respectively.

Fig. 9
Fig. 9
Full size image

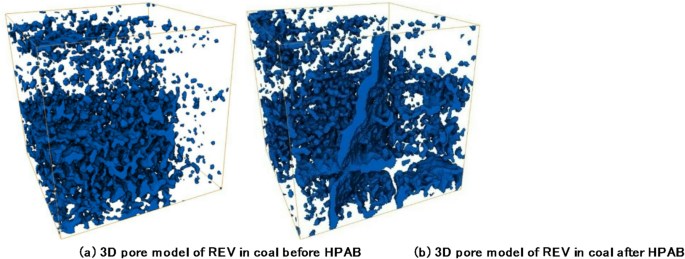

3D pore model of REV in coal before and after HPAB (The image was created using AVIZO 2019.1 ).

Fig. 10
Fig. 10
Full size image

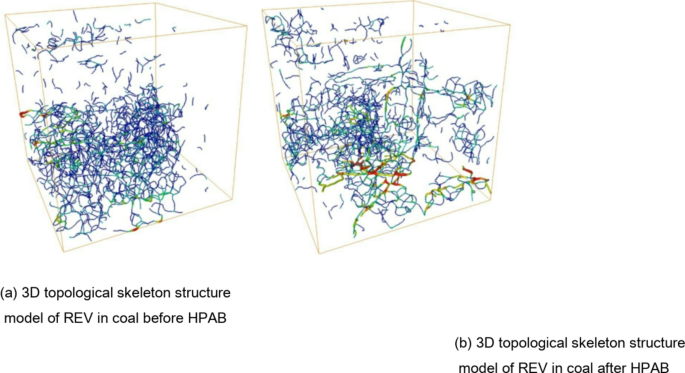

3D topological skeleton structure model of the REV in coal before and after HPAB (the image was created using AVIZO 2019.1 ).

The conclusions drawn from Figs. 9 and 10 are as follows: The changes in pore size and connectivity of coal under HPAB can can be determined by the colors of channels and nodes between channels in the 3D topological skeleton structure model. the colors of channels and nodes between channels in the 3D topological skeleton structure model of the REV. Among them, the transition of channels and nodes in RVE from light blue to red indicates the evolution of pore and fissure size and the connected channels between pores and fissures from few to many. In the 3D topological skeleton model of the REV in coal before HPAB, the number of red areas is relatively small, while the number of light blue areas is relatively large, indicating poor connectivity of coal before HPAB. Compared with before HPAB, there are more red colored areas in the 3D topological skeleton model of REV in coal after HPAB. The pores and fissures in coal develop from randomly distributed isolated closed pores to concentrated connected fractures under HPAB. During HPAB process, the size of pore and fissure and number of connected points in the 3D topological skeleton structure model of the REV have increased, resulting in an increase in the number of red colored areas.

Analysis of the mechanism of pore and fissure development in coal under HPAB

Considering that coal contains randomly distributed and differently shaped initial damages (such as micro-pores, micro-cracks, bedding). Based on the development of pores and fissures at the micro-scale and fracture characteristics at the macro-scale. The evolution and expansion model of pore and fissure development in coal under HPAB is analyzed. The development of pore and fissure structures in coal under HPAB mainly includes the expansion and development of existing pores and fissures, the expansion and penetration of existing pores and fissures, and the initiation and development of new fissures. The schematic diagram of the development of pores and fissures in coal under HPAB is shown in Fig. 11.

Fig. 11
Fig. 11
Full size image

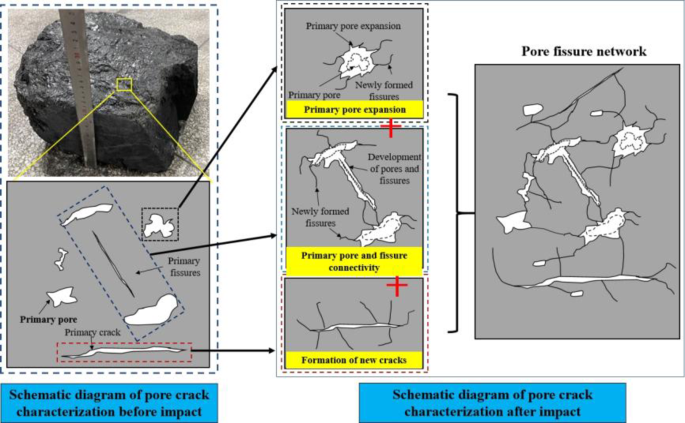

The schematic diagram of the development of pores and fissures in coal under HPAB.

As can be seen from Fig. 11, before HPAB, the coal contains primary pores and fissures of various shapes that are not connected to each other.The development and expansion of pores and fissures in coal form a complex 3D network structure under HPAB. The stress waves generated by HPAB can induce the movement of mineral particles around the primary pores in coal, leading to a decrease in the bonding between particles and promoting the expansion and outward development of primary pores and fissures. At the same time, it will be accompanied by the emergence and development of new fissures. The volume of primary pore fissures and the number of newly formed fissures in coal are increased under HPAB, which promotes the connection and connection between newly formed fissures and primary pores and fissures.

The stress wave generated by HPAB can cause tensile stress to appear around the pores and fissures with different shapes and random distributions in coal, which leads to the development and expansion of the pores and fissures along the position with the minimum stress concentration during the development process. The orientation of the minimum point of stress concentration in coal of pores and fissures is greatly influenced by their morphology and distribution. Therefore, the interdependence between coal pores and fissures during their development and expansion is enhanced under HPAB, which increases the complexity of the 3D network structure between primary pores and fissures and newly formed fissures.

Simulation and analysis of 3D visualization seepage characteristics of coal under HPAB

The permeability is an important parameter used to characterize the permeability of coal, while seepage pressure and velocity are also important factors in measuring the effectiveness of gas migration and flow35,36. During the migration of coalbed methane in different directions, different seepage characteristics are affected by the anisotropy of the coal. Therefore, the Avizo software embedded algorithm is used to extract connectivity models and 3D topology skeleton model of coal before and after HPAB, as shown in the Fig. 12.

Fig. 12
Fig. 12
Full size image

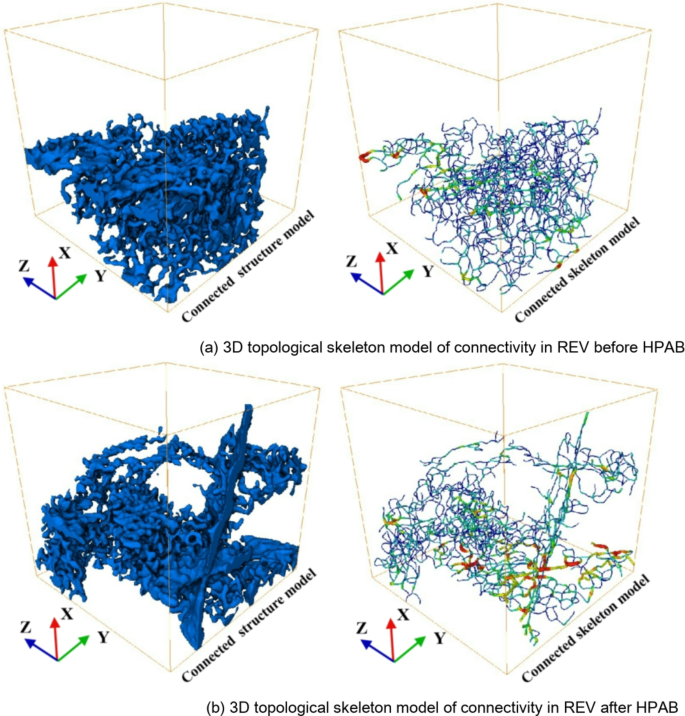

3D topological skeleton model of connectivity in REV before and after HPAB.

The absolute permeability, migration pressure, and migration velocity of coalbed methane in different directions of the REV connectivity model are characterized. The seepage patterns in different directions in the connected model of the REV before and after HPAB were explored. The seepage and migration results of coalbed methane in the connectivity model of REV before and after HPAB is shown in Table 4.

Table 4 The permeability and migration results of coalbed methane in the connectivity model of REV before and after HPAB.
Full size table

Distribution of gas migration pressure field in REV before and after HPAB

The distribution of gas migration pressure fields in different directions in REV before and after HPAB using AVIZO software are shown in Fig. 13. The relationship between gas migration direction and tortuosity in REV before and after HPAB is shown in Fig. 14. The color change between connected pores and fissures in RVE is used to characterize the pressure changes of gas migration.

Fig. 13
Fig. 13
Full size image

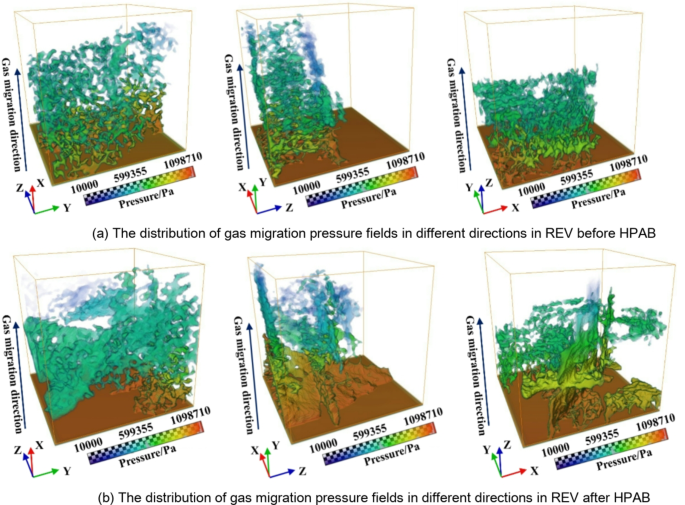

The distribution of gas migration pressure fields in different directions in REV before and after HPAB (The image was created using AVIZO 2019.1 ).

Fig. 14
Fig. 14
Full size image

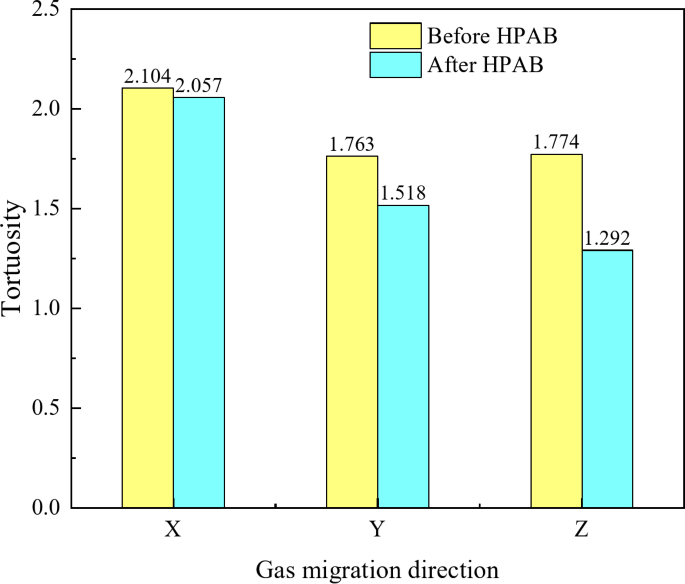

The relationship between gas migration direction and tortuosity in REV before and after HPAB.

The conclusions drawn from Figs. 13 and 14; Table 4 are as follows: Under the condition of the same pressure difference in gas migration between the inlet and outlet of REV, the gas migration pressure shows a decreasing trend during the migration process along the pores and fissures connected channel, that is, the red color at the inlet gradually evolves towards the blue color at the outlet. The parameters such as the range of connected pores and fissures, the radius and length of connected pores and fissures, and the tortuosity of connected channels in the REV of coal before HPAB are mainly determined by the anisotropy of coal, which leads to significant differences in the pressure distribution range during gas migration. In the X direction, the pressure distribution range of gas migration in REV is relatively dispersed, with a tortuosity of 2.104. The gas pressure in RVE drops sharply, with a relatively high proportion in the range of 0.5–0.9 MPa. Compared with the X direction, the curvature of the Y and Z directions in REV is lower, with a tortuosity of 1.763 and 1.774, respectively. The gas migration pressure in RVE is relatively high within the range of 0.7 ~ 0.8 MPa.

The development and expansion of pores and fissures in coal are caused by stress waves generated by HPAB. The randomly distributed pores and fissures in the coal develop along weak points under the action of stress waves. The number and size of connecting channels between coal pores and fissures of REV in coal are increased. The tortuosity of connecting channels between pores and fissures of RVE in coal is reduced. The tortuosity of RVE in the X, Y and Z directions after HPAB is 2.057, 1.518 and 1.292, respectively. Compared with before HPAB, the tortuosity in the RVE Z and Y directions is significantly reduced after HPAB, the tortuosity have reduced by 27.17% and 13.90%, respectively. The pressure of gas migration shows a steady-state decreasing trend, with gas migration pressure mostly concentrated in the range of 1.0 ~ 1.05 MPa.

Distribution of gas migration velocity field in REV before and after HPAB

The distribution of velocity fields in the X、Y、Z directions of gas migration in REV before and after HPAB using AVIZO software are shown in Fig. 15. The relationship between gas migration direction and maximum flow rate in REV before and after HPAB is shown in Fig. 16. The migration characteristics of gas between connected pores and fissures in REV can be characterized by parameters such as the color, size, and density of gas migration streamlines.The gas flow rate is characterized by streamline color. The tortuosity of pores and fissures is characterized by streamline size. The size of the connected channels between pores and fissures is characterized by streamline density.

Fig. 15
Fig. 15
Full size image

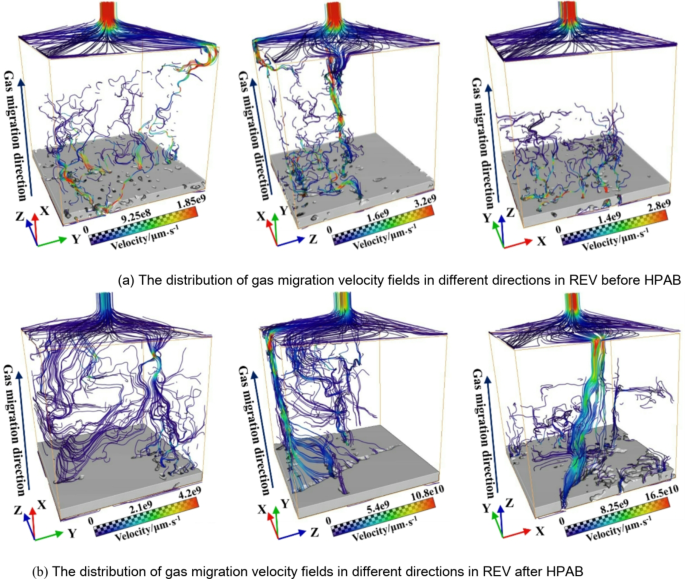

The distribution of gas migration velocity fields in different directions in REV before and after HPAB.

Fig. 16
Fig. 16
Full size image

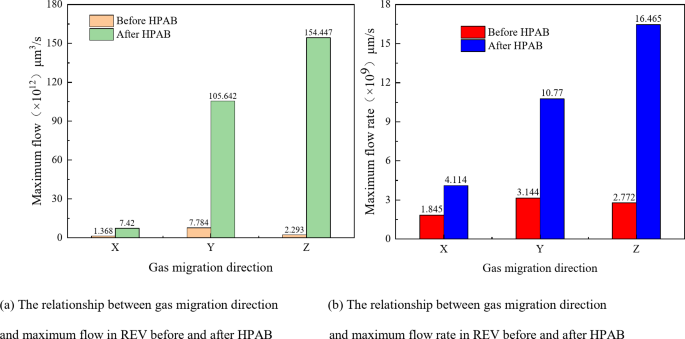

The relationship between gas migration direction and maximum flow, maximum flow rate in REV before and after HPAB.

The conclusions drawn from Figs. 15 and 16; Table 4 are as follows: The streamlines in the X, Y, and Z directions of REV are relatively scattered and there are many short and thin streamlines before HPAB. The streamline colors of the connecting channels between pores and fissures are mostly light blue and dark blue. The streamline colors at the minimum diameter of the connected channels and the intersection nodes of multiple channels are yellow and red. This indicates that Before HPAB, the connecting channels between the original pores and fissures in the coal were small in diameter and had a greater degree of tortuosity. As a result, gas tends to preferentially diffuse to the pores and fissures in coal with larger communication radius and smaller tortuosity. When gas migrates and diffuses to the smaller radius of connected channels and the intersection nodes of multiple channels, the gas migration rate increases. The maximum velocity of gas migration often occurs at the minimum radius of the connected channel. In REV, the maximum flow rate and velocity of gas migration in the X, Y, and Z directions are 7.784 × 1012 µm3/s and 3.144 × 109 μm/s, respectively.

After HPAB, the number of sparse, short, and thin streamlines distributed in the X, Y, and Z directions in the REV decreased significantly. On the contrary, the dense, long, and thick streamlines distributed in the X, Y, and Z directions in the REV increased significantly. The maximum flow rate and maximum velocity of gas migration were greatly improved, with maximum flow rate and maximum velocity of 154.447 × 1012 µm3/s and 16.465 × 109 μm/s, respectively. Compared with before HPAB, the maximum flow rate and maximum velocity have increased by 112.90 times and 5.24 times, respectively.

Conclusion

In this paper, Based on HPAB tests, the macroscopic fracture characteristics of coal under HAB were analyzed. A 3D visualization model of coal was established and visualized seepage simulation was carried out at the microscale before and after HPAB using industrial CT and Avizo software. The influence of pore fracture micro-pore structure on gas migration and permeability before and after HPAB is analyzed. the following conclusions are drawn:

  1. (1)

    There are four main cracks on the coal surface that approximately run along the direction of principal stress under HPAB and confining pressure.The direction of crack development and propagation in coal under HPAB is influenced by natural defects such as joints and bedding. The complex 3D network structure formed by the development and expansion of original micro-pores, fissures, and newly formed fractures has increased the porosity of coal under HPAB.

  1. (2)

    The gas migration and diffusion pressure, velocity, and maximum flow rate of gas in the three-dimensional topological space of pores and fissures in the RVE of coal exhibit significant differences in X, Y, and Z three different directions. The size (radius and length) of pores and fissure connectivity in coal and the tortuosity of connected channels have a significant impact on the migration and expansion of gas.

  2. (3)

    Before HPAB, The REV has a high degree of curvature in the connectivity channel. The gas migration pressure shows a decreasing trend during the migration process along the pore fissure connected channel.The pressure distribution range of gas migration in REV is relatively dispersed. Compared with before HPAB, After HPAB, the degree of curvature in REV is significantly reduced, with a decrease of up to 26.72%. The pressure of gas migration shows a steady-state decreasing trend, with gas migration pressure mostly concentrated in the range of 1.0 ~ 1.05 MPa. The maximum flow rate and maximum velocity have increased by 112.90 times and 5.24 times, respectively.
