Introduction

Where uplifted towards the seafloor, ultramafic rock from the Earth’s mantle reacts with seawater during hydrothermal circulation. This ‘serpentinization’ process produces molecular H2 which, upon release into the overlying ocean, establishes redox disequilibria. Ultramafic-influenced submarine hydrothermal systems are of particular interest because there, high levels of serpentinization-derived H2 can enable the abiotic synthesis of key organic species in addition to elevated concentrations of dissolved CH41,2,3. The same H2-rich hydrothermal systems can also provide particularly high levels of metabolic energy to sustain chemosynthetic ecosystems4,5.

The uplift of ultramafic rock to shallow crustal levels—or to the seafloor itself—is widespread at ultraslow-spreading mid-ocean ridges, which constitute some 25% of the global ridge length6. These ridges are marked by extensional faulting with discrete areas of either elevated or sparse magmatism7, conditions that promote deep seawater penetration and circulation within the lithosphere8,9. Accordingly, hydrothermal plume signals at ultraslow-spreading ridges are up to three times more frequent than predicted by models based solely on axial magmatic heat flux10,11. This discrepancy from faster-spreading ridge models12 likely reflects the broader range of geologic settings that support more diverse venting styles along ultraslow-spreading ridges13,14,15,16,17.

Along the ultraslow-spreading Gakkel Ridge in the high Arctic, at least nine distinct hydrothermal plume sources have been discovered, establishing proof that this ridge hosts abundant hydrothermal activity18,19. Gakkel Ridge exploration is, however, particularly difficult due to its remoteness and perennial sea ice cover, so that only two sites, ‘Aurora’ and ‘Polaris’, have been tracked to their seafloor sources to date. Both are characterized by fluids with elevated H2 and CH4 concentrations, typically linked to serpentinization of ultramafic rock16,17,20,21,22. Yet, only mafic rocks have been observed at the seafloor at both sites16,17. The ultramafic lithologies required to produce the chemical signatures detected must therefore lie in the subseafloor along the flow paths of the hydrothermal convection cells and, hence, beneath relatively thin veneers of basalt relative to the typical ~ 6 km thick crust found at faster-spreading ridges. Variably thick volcanic crust has been recognized as a key feature of ultraslow-spreading ridges8,9 and on Gakkel Ridge, seismic experiments indicated that thicknesses reach only ~ 3–4 km in areas distant from major volcanic centers23,24.

Even less is known about hydrothermal activity in Gakkel’s southward continuation, the Lena Trough, which laterally offsets the Greenland shelf from the Yermak Plateau (Fig. 1). Lena Trough is characterized by oblique spreading with northwest–southeast-oriented extension at ~ 13 mm/yr25,26. Seafloor magnetic data, seismicity, and rock sampling suggest it undergoes primarily tectonic extension with sparse magmatism26,27. This is supported by a series of steeply dipping en echelon peridotite blocks forming the so-named ‘Lucky Ridge’26 (Fig. 1a). In 1999, evidence for geologically recent hydrothermal activity was established towards the base of Lucky Ridge’s western slope, at ~ 3,300 m depth at ~ 81°22ʹN, in the form of massive sulfide deposits recovered, serendipitously, during petrologic dredging28,29 (Fig. 1c). These findings revealed the ‘Lucky B’ hydrothermal field28. A return to the location in 2004 yielded additional massive sulfide crusts and chimney materials, and a single water column profile, acquired using a conductivity–temperature–depth (CTD) unit, detected temperature anomalies at ~ 3,250 m water depth, confirming ongoing venting at Lucky B30. Lucky B is the first site found along the Arctic ridge system where ultramafic rock outcrops at the seafloor, and one of less than ten such sites known globally31,32.

Fig. 1
figure 1

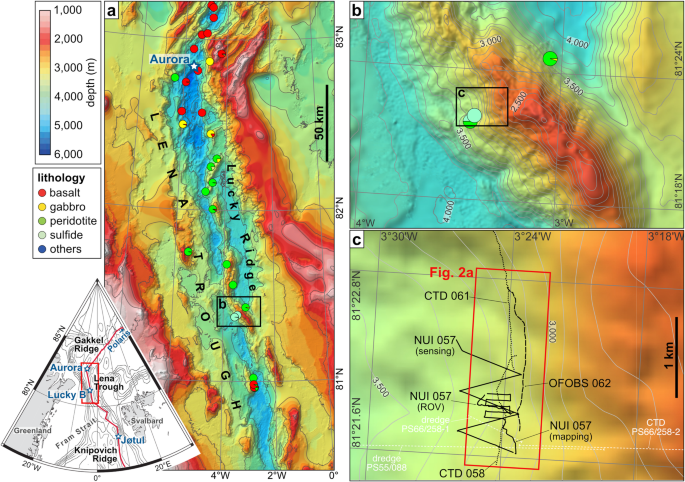

Bathymetric maps of the study area in the Lena Trough. (a) Overview maps. Inset shows the greater Fram Strait area with locations of active seafloor spreading centers. The nearest-known hydrothermal systems to Lucky B, Aurora and Jøtul, are also indicated; Polaris, the only other known system in the high Arctic, is located further to the northeast on Gakkel Ridge, at 86°58ʹN, 55°45ʹE. The red rectangle marks the position of the larger map of the Lena Trough, revealing the extent of the ‘Lucky Ridge’ in Lena Trough’s central rift axis. Pie charts represent rock lithologies derived primarily from dredge statistics from R/V Polarstern expeditions PS55 and PS6629,30. Maps made with QGIS Geographic Information System version 3.44.0 (https://qgis.org), using the 200 m resolution IBCAO v5.0 bathymetry92 and a polar stereographic projection. (b) Detailed map of the section of Lucky Ridge studied, as marked by the black rectangle in (a). The Lucky B hydrothermal field is located on the western slope of the Lucky Ridge. (c) Close-up of the rectangle in (b) showing the tracks of our CTD, OFOBS, and NUI deployments at Lucky B. A synthesis of the hydrothermal observations from these deployments is shown in Fig. 2. Dredge and CTD tracks from expeditions PS55 (PS55/088) and PS66 (PS66/258–1 and PS66/258–2) that led to the initial discovery of the Lucky B site are also indicated. Bathymetry in (b) and (c) were acquired during expedition PS13733 using the ship’s multibeam system.

Full size image

Here, we present results from R/V Polarstern cruise PS13733 during which we investigated the hydrothermal plume system overlying the Lucky B site and obtained new observations at the seafloor. Our data reveal ongoing ultramafic-influenced venting that discharges H2- and CH4-enriched fluids into the Arctic Ocean, expanding our understanding of the diverse hydrothermal activity along Earth’s slowest-spreading ridge system in the high Arctic.

Results and discussion

Distinct types of hydrothermal plumes at Lucky B

We conducted a series of water column surveys and seafloor observations at the Lucky B site, which provided multiple independent lines of evidence for ongoing hydrothermal activity. These results are summarized in Fig. 2; details on the operational strategy are included in the Supplementary Information.

Fig. 2
figure 2

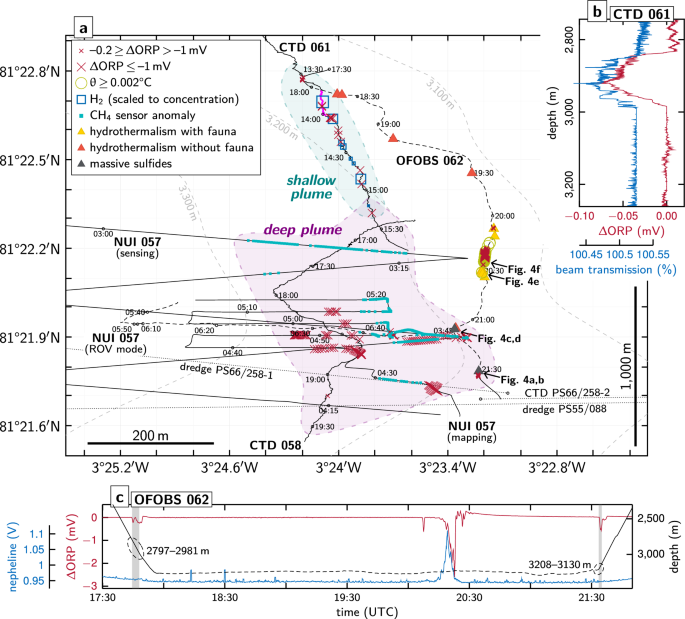

Synthesis figure summarizing water column and seafloor imaging results. (a) Deepest hydrothermal signals were recorded just above the seafloor, where NUI operated in ROV mode detected anomalies in ORP and CH4 near 81°21.9ʹN (Supplementary Fig. S1) and the OFOBS system revealed visual and sidescan sonar evidence of hydrothermally active seafloor, together with co-registered ORP anomalies, between 3,100–3,200 m depth (Figs. 2c and 4, Supplementary Figs. S4 and S5). In the overlying water column, NUI’s mapping and sensing surveys and our CTD casts intercepted two distinct non-buoyant plumes: a deep plume at > 3,000 m depth with weak ΔORP and a shallow plume at ~ 2,800–3,000 m with strong ΔORP and elevated optical backscatter values as well as high H2 and CH4 concentrations (Figs. 2b, 3 and 5, Supplementary Figs. S2 and S3). Hydrothermal signals from these CTD and NUI operations extended farther south as compared to our seafloor imaging surveys, where they converged with the locations at which massive sulfide material and water column hydrothermal anomalies had previously been observed (dotted lines representing track lines from prior expeditions29,30), highlighting both the wide lateral extent and the decade-long activity of the Lucky B hydrothermal field. Shown tracks are cropped to ≥ 2,000 m depth. Dashed track lines indicate positions of NUI and OFOBS directly above the seafloor. Horizontal scale bar represents 200 m at 81°22.2ʹN; note that the north–south distance between 81°21.6ʹN and 81°22.8ʹN is ~ 2,200 m. (b) Depth profile from a single upcast of CTD 061 (at ~ 13:51–13:56 UTC near 81°22.7ʹN, indicated in (a) as a thicker pink line), displaying coinciding negative ORP (30 s averages) and beam transmission anomalies diagnostic of a fresh, particle-laden plume. (c) Time-series MAPR record from station OFOBS 062 showing pronounced ΔORP (30 s averages) and positive temperature anomalies at ~ 20:20 UTC, coincident with images of abundant, highly localized fauna (Fig. 4f, e). Gray bars indicate OFOBS intersections with the shallow and deep plumes at the start and end of the deployment, respectively. Dashed line marks OFOBS towed few meter above the seafloor.

Full size image

Guided by hydrothermal signals from the single CTD cast in 200430, we identified two distinct non-buoyant plumes in the water column above the western slope of Lucky Ridge: (i) a shallow plume between ~ 2,800–3,000 m depth and (ii) a deeper plume at ~ 3,000–3,200 m (Figs. 2a and 3). The deeper, more southerly plume extended between ~ 81°21.7ʹN to 81°22.3ʹN and was characterized by anomalies in oxidation–reduction potential (ORP) and CH4, with minimal turbidity (Figs. 2a and 3, Supplementary Figs. S1 and S2), as recorded by the hybrid remotely operated vehicle (ROV) NUI and during CTD cast 058. NUI encountered the strongest signals in the eastern part of its survey area, near the ~ 3,250 ± 50 m depth contour, with 30 s-averaged ΔORP down to –0.043 mV (Fig. 2a, Supplementary Fig. S1). During the subsequent CTD 058, the most pronounced ΔORP values occurred at and below ~ 3,150 m, reaching –0.048 mV (Figs. 2c and 3, Supplementary Fig. S2). These anomalies were observed as the CTD passed across the dredge tracks from 1999 and 2004 and through the same 3,200–3,300 m depth interval where plume signatures were recorded in 200429,30. No evidence of particle enrichment was detected in the deep plume.

The shallower plume was discovered further north, between ~ 81°22.3ʹN and 81°22.8ʹN (Fig. 2a). Pronounced redox anomalies, with 30 s-averaged ΔORP reaching –0.089 mV, and elevated optical backscatter were recorded during the CTD 061 survey and the initial downcast of CTD 058 (Figs. 2b, c and 3, Supplementary Fig. S3). From north to south, the shallower plume gradually shoaled, with anomalies persisting during the final upcast of CTD 061 at depths similar to those observed in CTD 058 (Fig. 3). South of ~ 81°22.6ʹN, a deeper set of anomalies appeared, deepening from ~ 3,000 m to ~ 3,100 m over the remainder of CTD 061 (Fig. 3). The strongest backscatter signals, however, were observed ~ 500 m farther south, near 81°22.4ʹN, where targeted water column sampling also revealed high concentrations of dissolved H2 and CH4 (see below).

Fig. 3
figure 3

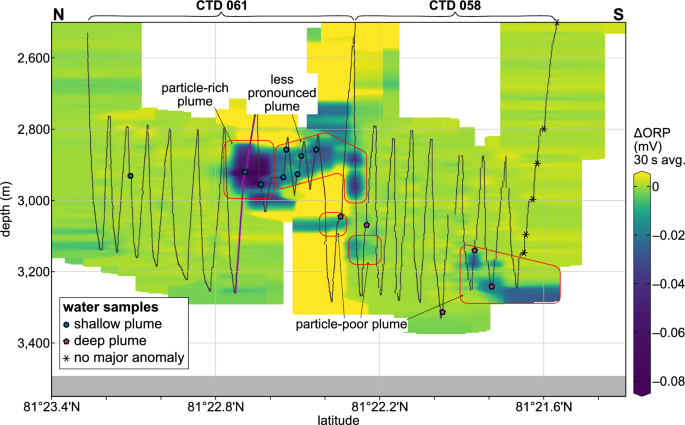

Water-column distribution of the Lucky B plumes. Shown are ΔORP signals (30 s averages) recorded with the CTD unit, interpolated and projected on a north–south profile across the study area. Anomalies indicative of particle-rich venting were detected in the shallow plume at ~ 2,800–3,000 m water depth and a deep particle-poor plume was recorded at >3,000 m depth, with strongest signals towards the profile’s southern end; see text for discussion. We also intersected these shallow and deep plumes when lowering the OFOBS device to the seafloor and heaving it back up, respectively (cf. Fig. 2c). Also shown are positions of water samples taken with the CTD unit. Black dotted lines mark projected depth of CTD; pink thicker line at ~ 81°22.7ʹN indicates vertical profile presented in Fig. 2b. Section created using Ocean Data View93.

Full size image

The recurrence of a non-buoyant plume at the same depth and location as detected in 200430 indicates sustained hydrothermal activity at Lucky B over at least two decades. Located atop a peridotite ridge, Lucky B’s geologic setting aligns with tectonically controlled systems such as TAG and Rainbow on the Mid-Atlantic Ridge, both of which have remained active over millennial timescales34,35. The distribution of the two plumes detected—adjacent to, but deeper than, the summit of the Lucky Ridge—implies they are influenced by topographic steering36.

The observed ORP anomalies and particle enrichment within the shallow plume are consistent with high-temperature ‘black smoker’-type venting. In contrast, in situ sensor data for the deeper plume revealed elevated CH4 and other chemically reduced species but without any accompanying particle enrichments of the kind typically associated with black smoker systems, suggesting venting temperatures too low to mobilize substantial amounts of dissolved metals, i.e., below ~ 300 °C37. These contrasting signatures indicate the presence of at least two distinct hydrothermal sources across the ~ 2 km extent of our surveys: a high-temperature vent site in the north and a particle-poor source farther south. Supporting this interpretation, the shallow and deep plumes lie on different isopycnal surfaces (Supplementary Fig. 2e), reflecting hydrothermal fluids with distinct physical properties38.

Further evidence for multiple fluid sources at Lucky B comes from subsequent discoveries aboard the Norwegian ship R/V Kronprins Haakon39. Arriving on station just before we completed our studies, and informed by our discoveries, the Norwegians conducted ROV dives that located a series of actively venting black smoker chimneys (https://gonortharctic.no/). However, those chimneys, named ‘Ultima Thule’, were located at a shallower seafloor depth than the hydrothermal plumes reported here and therefore cannot be the source of either the deep or the shallow plume described in this study. Instead, the Ultima Thule vents likely feed a separate, even shallower plume—supporting the presence of at least three distinct major hydrothermal sources at the Lucky B hydrothermal field.

Widespread active and extinct seafloor hydrothermal activity

At the seafloor, we conducted a west–east geological transect deploying NUI in ROV mode (Fig. 2a), which revealed a predominantly sediment-covered terrain with occasional peridotite exposures. These outcrops showed localized discoloration and minor hydrothermal precipitates that became increasingly abundant upslope. No visible fluid discharge was observed. However, just after departing the seafloor east of 3°23.8ʹW at 3,190 m depth, NUI detected pronounced ΔORP values exceeding –2 mV, accompanied by elevated CH4 concentrations (Supplementary Fig. S1).

We also carried out a north–south seafloor imaging survey using the OFOBS deep-tow system along the 3,150 ± 50 m depth contour, where the strongest plume signals had been identified (Fig. 2a). As OFOBS was lowered to the seafloor, in situ sensors mounted on its frame recorded ORP and optical backscatter anomalies that mirrored those first detected at nearly the same location and depth during CTD 061. Upon retrieval, the same sensors detected deeper plume signals consistent with those identified during CTD 058 (Fig. 2c, Supplementary Fig. S4). Seafloor imagery revealed a sedimented landscape punctuated by occasional peridotite outcrops, as well as multiple indicators of hydrothermal activity along the ~ 1.9 km track. These visual indicators frequently coincided with ORP and/or temperature anomalies recorded by the OFOBS sensor package (Fig. 2a, c), signaling that there was active seafloor fluid flow in close proximity to our ~ 3 × 5 m down-looking field of view. At ~ 3,200 m depth near 81°21.9ʹN, where NUI had recorded the strongest ORP and CH4 anomalies, the OFOBS sidescan sonar revealed a series of chimney-like structures at a lateral range of ~ 5–10 m to the east, just beyond the view of its down-looking cameras (Fig. 4a, Supplementary Fig. S5 and Table S1). Within the co-located seafloor images, we could clearly observe polymetallic massive sulfide mounds with rust-orange weathering (Fig. 4b). Later during the deployment, towards the area where sulfides had been dredged during earlier expeditions29,30, we observed further and extensive massive sulfide deposits including clearly recognizable chimney morphologies (Fig. 4c, d). Slightly upslope, more towards the 3,100 m contour line (at ~ 18:15–20:30 UTC; Fig. 2a), we documented multiple distinct patches of discolored orange sediment consistent with hydrothermal staining. Near 81°22.2ʹN, the deep-tow system traversed across an area of remarkably dense biomass, not imaged anywhere else. There, an unusually dense aggregation of benthic organisms was observed including invertebrates, amphipods, and elongated organisms reminiscent of siboglinid tubeworms (Fig. 4e, f, Supplementary Fig. S6). At the same time that these photographs were taken, OFOBS’ in situ sensors recorded the strongest signals indicative of hydrothermal flow from the entire study of the Lucky B area, including pronounced ΔORP peaks (exceeding –2 mV) and increases in bottom water temperature (θ > 0.004 °C; Fig. 2c, Supplementary Fig. S4). We did not, however, observe any traces of high-temperature venting or hydrothermal chimney structures in the close vicinity of this site. Instead, our observations could be explained by the presence of diffuse hydrothermal flow sustaining a thriving chemosynthetic ecosystem there.

Fig. 4
figure 4

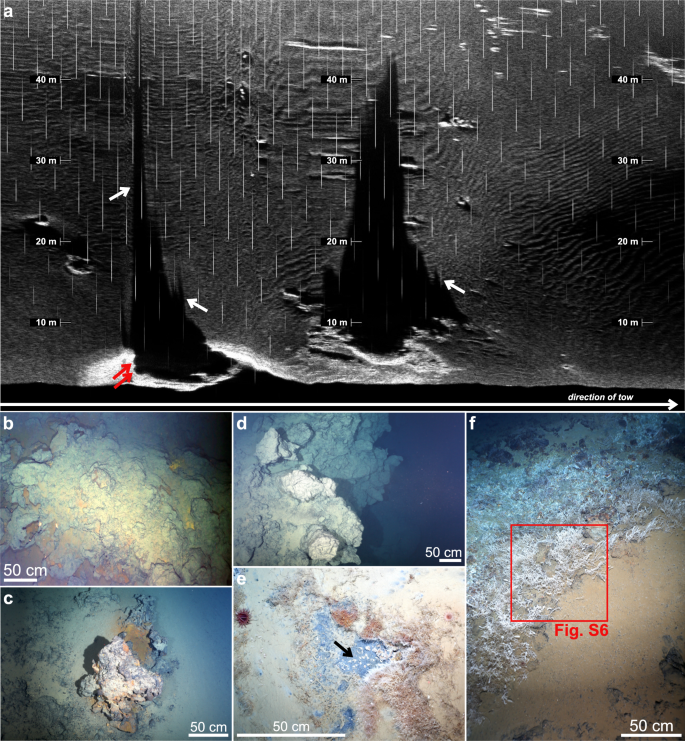

Evidence of hydrothermally active seafloor documented during the OFOBS survey. (a) Sidescan sonar image acquired along the OFOBS trackline. Circular features (red arrows) and elongated, spiky shadows (white arrows) suggests the presence of hydrothermal chimneys located just beyond the visual range of the OFOBS cameras. Also note the relatively smooth, sedimented seafloor. (b) Seafloor photograph taken at the site where the sidescan sonar depicted chimney structures, as shown in (a). (c, d) Traces of (focused) venting, including massive sulfide deposits exhibiting rust-orange weathering and remnants of extinct hydrothermal chimneys. (e, f) Dense hydrothermalism-associated fauna observed in a region exhibiting pronounced anomalies in ORP, optical backscatter, and temperature near the seafloor (cf. Fig. 2a, c). Panel (e) highlights amphipods (arrow), tubeworms, and red anemones within a pocket of presumed diffuse hydrothermal discharge. The white fibrous organisms in (e) and (f) are likely tubeworms covered in chemosynthetic bacteria, resembling siboglinid tube worms and microbial filaments found at the nearby Jøtul site40. A close-up is shown in Supplementary Fig. S6; note, however, that we did not collect physical specimens of the fauna to validate the seafloor images. Also note the moderately sedimented seafloor with localized exposures of bedrock, likely consisting of variably serpentinized ultramafic rocks. Refer to Fig. 2a for image locations.

Full size image

In sum, our findings—paired with the recovery of massive sulfides from the area in 1999 and 200428,29—indicate that hydrothermal activity extends over a considerable range along the western flank of Lucky Ridge. Seafloor images and anomalies detected by water column sensors indicate the presence of multiple, discrete, active and inactive sources of seafloor fluid discharge, encompassing a diverse array of venting styles. These styles include diffuse lower-temperature fluid flow together with sites of active and extinct high-temperature black smoker venting. A similarly broad range of vent types has recently been documented from the Jøtul hydrothermal field—the nearest known vent site to the south—which is located on the similarly oblique-spreading Knipovich Ridge (Fig. 1). At Jøtul, fault-controlled venting supports emissions that range from clear fluids at just 8 °C to black smoker vents as hot as 317 °C40. In contrast to Lucky B, however, Jøtul only produces a single hydrothermal plume, likely because nearby low-temperature fluid emissions are entrained and mixed into the buoyant plume from the high-temperature vent. The presence of two distinct plumes at Lucky B, by comparison, suggests two physically separate vent sources. The vent fauna observed at Lucky B (Fig. 4e, f) bear a close resemblance to the chemosynthetic communities at Jøtul and also at Loki’s Castle, a vent site at the Mohns–Knipovich junction, where siboglinid tubeworms and microbial mats have been identified40,41. Notably, no such tubeworms were observed at the closest-known vent site to the north, Aurora21.

Evidence for ultramafic-influenced venting and subseafloor serpentinization

We used chemical analysis of plume water samples to constrain the nature of fluids responsible for the observed hydrothermal plumes. When plotted as a function of depth, results from our two CTD surveys reveal pronounced compositional differences between the shallow and deep plumes (Fig. 5, Supplementary Table S2; see Fig. 3 for sample locations). While both plumes carried significant above-background δ3He anomalies, indicative of submarine hydrothermal inputs, other chemical anomalies were considerably more enriched in the shallower plume. These samples exhibit strong enrichments in dissolved H2 and CH4, reaching concentrations of up to 426 nM and 250 nM, respectively, coinciding with the most intense ΔORP values (Fig. 5a, b). Helium isotope compositions at these depths also show pronounced excursions, with δ3He as high as 13.6%, and dissolved Mn (dMn) concentrations reach up to 17.5 nM—markedly less than the corresponding H2 and CH4 concentrations (Fig. 5c, d).

Fig. 5
figure 5

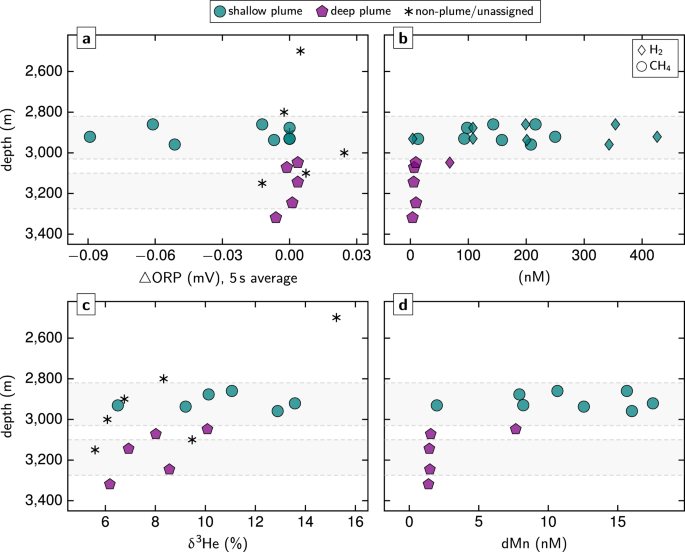

Lucky B plume sample characteristics plotted against water depth. Anomalies in ORP (a) correlate with high H2 and CH4 concentrations (b), with δ3He excursions (c), and with enrichments in dMn (d). Gray backgrounds mark depth intervals in which our sensors detected hydrothermal anomalies in the shallow and deep plumes (Figs. 2 and 3, Supplementary Figs. S2–S4). Note considerable δ3He anomalies and slightly elevated CH4 concentrations (~ 4–10 nM) at >3,000 m depth (see also insets in Fig. 7a, b). Refer to Fig. 3 for sampling locations.

Full size image

Although the strong chemical gradients in the shallow plume overshadow the signals from the deeper plume, both were clearly identifiable through in situ sensing (Fig. 3). Relative to background concentrations of the water column, the deep plume displays enrichments in δ3He of up to 9% (Fig. 5c) and enrichments in CH4 and dMn of up to ≤ 10 nM and ≤ 1.6 nM, respectively, even though those enrichments are not readily apparent when plotted at the scales necessary to represent the shallower plume concentrations for the same tracers (Fig. 5b, d; see also below). In contrast, dissolved H2 was not detectable in the deep plume.

As a complement to our water column analyses, we also analyzed massive sulfide chimney material recovered from the Lucky B site in 1999 (dredge PS55/088; Figs. 1c and 2a) The material is composed primarily of Fe sulfides and Cu–Fe sulfides, with chalcopyrite (CuFeS2), isocubanite (CuFeS3), pyrite (FeS2), and pyrrhotite (Fe(1–x)S) as the dominant phases (Fig. 6, Supplementary Table S3). The occurrence of pyrrhotite suggests precipitation under strongly reducing (low fO2) and S-depleted (low fS2) conditions—characteristics consistent with serpentinization-derived hydrothermal fluids42,43.

Fig. 6
figure 6

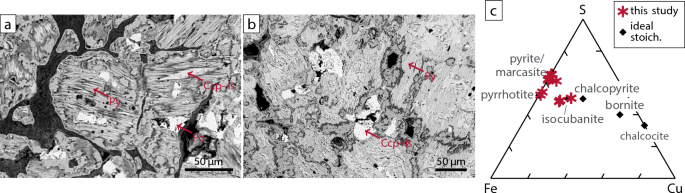

Seafloor massive sulfide mineralogy. (a, b) SEM images of polished thin sections. Ccp—chalcopyrite, Is—isocubanite, Po—pyrrhotite, Py—pyrite. (c) Sulfide compositions as molar proportions in Cu–Fe–S space as derived by energy dispersive X-ray spectroscopy. Pyrite, pyrrhotite, and phases compositionally close to isocubanite dominate the mineral assemblage. Samples recovered in dredge PS55/08829 (dashed line in Fig. 2a). ‘Ideal stoich.’ refers to ideal stoichiometric compositions.

Full size image

Discharge of H2- and CH4-rich fluids, as clearly indicated from the shallow plume chemical anomalies, is a well-documented feature of both high- and low-temperature ultramafic-hosted hydrothermal systems influenced by serpentinization3,22,44,45. Consistent with this, the observed mineral assemblage of chalcopyrite–isocubanite, pyrite, and pyrrhotite closely resembles those found in black smoker chimneys at other ultramafic-associated sites46,47. Although pyrrhotite formation is commonly associated with serpentinizing hydrothermal systems, its presence alone is not necessarily diagnostic of ultramafic-hosted venting. At Lucky B, however, the exceptionally high concentrations of dissolved H2 and CH4 in the overlying plume strongly support such an association.

H2- and CH4-enriched black smoker-type venting

Relationships between CH4 concentrations, δ3He compositions, and concentrations of dMn and H2 provide valuable insights into subseafloor and water column processes at Lucky B (Fig. 7). Methane exhibits two distinct linear trends with δ3He, one corresponding to the shallow plume and the other to the deeper plume (Fig. 7a). The trend observed in the shallow plume displays elevated CH4 concentrations (≤ 250 nM) that align with the highest deviations in He isotope values in our dataset. This pattern likely reflects focused discharge of hot fluids from black smoker chimneys, which typically reach neutral buoyancy within an hour after discharge from the seafloor38. Because δ3He is chemically inert and unaffected by consumption48,49, the linear relationship demonstrates that CH4 also behaves conservatively in the near-field plume samples and changes in concentration are attributable to simple dilution with ambient seawater. In prior work it has been noted that over sufficiently long distances down-plume, dissolved CH4 can behave non-conservatively with respect to δ3He anomalies50. However, over shorter length- and timescales down-plume from a source, more akin to this study’s sample suite, it is not unusual to see dissolved CH4 behave conservatively with respect to δ3He (ref.51).

Fig. 7
figure 7

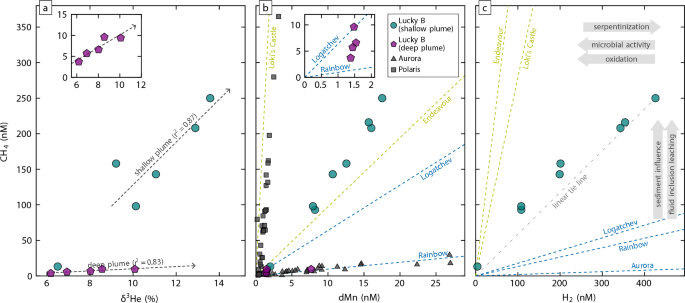

Relationships between dissolved CH4 and other hydrothermal species in the Lucky B plume samples. (a) Methane concentrations follow two distinct linear trends with δ3He: higher CH4 in the shallower plume and lower in the deep plume. Note that ranges in δ3He of the two plumes overlap. Inset with expanded y-axis focuses on deep plume data. Dashed lines depict linear best fits. (b) CH4/dMn values in the deep plume (inset shows samples from CTD 058) reveal low-level co-enrichments of dMn and CH4, similar to ratios observed at Logatchev and Rainbow. CH4/dMn in the shallow plume at Lucky B exceed those observed at the Logatchev and Rainbow and are also distinct from the ultramafic-influenced Arctic Aurora and Polaris sites. Instead, they resemble those from the sediment-influenced Endeavour Vent Field, suggesting a possible sediment involvement at Lucky B. For context, data from Loki’s Castle, also strongly sediment-influenced, are included as well. (c) In the shallow plume, CH4 and H2 concentrations correlate. The sample with the highest H2 concentration (426 nM) also exhibits the highest H2/CH4, indicating it is the most chemically ‘fresh’. Other samples show slightly lower H2/CH4, suggesting H2 loss, as indicated by a leftward shift along the dashed tie line. Compared to other high-temperature ultramafic-hosted systems like Logatchev and Rainbow, Lucky B’s shallow plume has lower H2/CH4. In systems in which sediment participates in subseafloor fluid–rock reactions, e.g., Loki’s Castle and Endeavour, CH4 concentrations are elevated and H2/CH4 is lower, aligning with patterns at Lucky B. Our samples from the deep plume did not contain detectable H2 concentrations. Sampling locations are shown in Fig. 3. Data from Logatchev, Rainbow, Loki’s Castle, and Endeavour taken from MARHYS Database v4.055, with dashed lines depicting tie lines from the origin to the average values for CH4/dMn and H2/CH4 (samples with Mg ≤ 5 mM); Aurora data from Seewald et al.22 and German et al.16, Polaris data from Albers et al.17.

Full size image

Concentrations of δ3He and CH4 in the deep plume are also correlated, but the slope of this correlation is considerably less steep, primarily because CH4 enrichments are smaller (Fig. 7a). These lower CH4 concentrations are unlikely to result from mixing between seawater and the same vent fluid that feeds Lucky B’s shallow plume, as the δ3He values in the same samples are not similarly reduced. Instead, the quasi-linear trend observed between CH4 and δ3He, together with the considerably lower CH4 levels, suggests dilution of fluids from a different vent source feeding the deep plume.

The presence of H2- and CH4-rich hydrothermal plumes atop a peridotite ridge is consistent with a high-temperature ultramafic-hosted vent environment, similar to systems along the Mid-Atlantic Ridge52. However, the shallow plume at Lucky B is unusually enriched in CH4 compared to those sites. Previous studies have used ratios of CH4 to dMn to distinguish among mafic-, ultramafic-, and sediment-influenced hydrothermal sources14,16. At Lucky B, CH4/dMn in the deep plume varies from 1.2 to 6.5, consistent with ratios observed at ultramafic-influenced high-temperature vents such as Ashadze, Rainbow, and Logatchev at which average CH4/dMn ranges from 0.96 to 6.445,53,54 (Fig. 7b; averages determined using data from MARHYS v4.055). CH4/dMn in the shallow plume, however, ranges from 11.3 to 14.3—well exceeding those values at Ashadze, Rainbow, and Logatchev. Higher ratios from ultramafic-influenced sites are known from Von Damm on the Mid-Cayman Rise (CH4/dMn = 171–3313,56) and the Polaris site on Gakkel Ridge (CH4/dMn ≤ 11617) but those systems vent at lower temperatures, generating metal-poor plumes that cause their CH4/dMn to be high.

A sediment-influenced ultramafic-hosted system?

Among global data, the CH4/dMn at Lucky B plume most closely resembles that of the Endeavour Vent Field on the Juan de Fuca Ridge (Fig. 7b). At that basalt-hosted system, high concentrations of NH3, in addition to CH4, have been attributed to assimilation of sedimentary material into the underlying lithosphere, resulting in thermogenic CH4 production57,58,59. More recently, studies at two basalt-hosted vent sites in the Norwegian–Greenland Sea, Loki’s Castle and Jøtul, suggested the influence of similar sedimentary components there40,60. Both sites exhibit even higher CH4/dMn than Lucky B (Fig. 7b). At Loki’s Castle, these elevated ratios result from CH4 concentrations of 9.2 mM, unusually high for a basalt-hosted black smoker site, and low Mn concentrations of < 0.08 mM60. Black smoker fluids venting at Jøtul are similarly enriched in CH4 with up to 9.5 mM40. Thus, the CH4/dMn signature at Lucky B aligns with that of sediment-influenced systems.

A sedimentary component at Lucky B is plausible, given its proximity to the sediment-rich Greenland Shelf and Yermak Plateau (Fig. 1a). Additional support comes from PS66 dredge samples collected in 2004, which recovered chimney fragments composed of intergrown carbonate and sulfide30. Such carbonate formation is typically associated with the higher pH of vent fluids at sediment-influenced sites, in contrast to the low pH values, as low as 3, observed at purely ultramafic sites45,61,62,63. Though plausible, the Lena Trough—and the Lucky Ridge in particular—lacks significant volcanic eruptives, as indicated by abundant mantle rock exposure and weak magnetic anomalies26,27. In contrast to basalt-hosted systems, where sediments can be buried and incorporated by volcanic activity, the predominantly tectonic style of seafloor spreading at Lucky B presents a challenge for sediment incorporation into the subseafloor.

Whereas CH4 in vent fluids is generally believed to originate primarily from the reduction of dissolved CO2 in circulating fluids64,65, an additional CH4 source at Lucky B could be fluid inclusions within mafic minerals in the subseafloor. Serpentinization reactions in such inclusions can generate H2 which facilitates abiotic CH4 synthesis over geologic timescales66. At the mafic–ultramafic-hosted Von Damm site, Mid-Cayman Rise, CH4 in vent fluids is radiocarbon-dead, indicating formation within fluid inclusions long before its leaching by circulating fluids3,56. While C within CH4 from the fluid inclusions at Von Damm appears mantle-derived, seawater-derived CO2 may also contribute at other sites67. In the Lena Trough, ample tectonic activity should allow seawater penetration into the basement and formation of fluid inclusions, which may have trapped CO2 and generated CH4 that is now being leached, enhancing its concentrations in the vent fluids.

Sediment-influenced basalt-hosted systems also show distinctly low ratios of H2 to CH4 (Fig. 7c), despite high H2 concentrations in endmember fluids (e.g., 5.5 mM at Loki’s Castle60). At Lucky B, H2 concentrations in the shallow plume correlate well with CH4 (Fig. 7c), yielding H2/CH4 of 1.1–1.7. These exceed values observed in sediment-influenced sites but are considerably lower than those from the ultramafic-hosted Rainbow and Logatchev45,54,58. The lower H2/CH4, again, support a sediment-influenced origin for Lucky B fluids. The relatively high H2 levels at Lucky B are likely driven by serpentinization of the underlying ultramafic rocks45,68; in fact, our measured H2 concentrations are within range of those in non-buoyant plumes of other ultramafic-influenced vent sites69,70. However, H2 is not expected to behave conservatively during plume dispersion50 (see also below) so that our measured H2/CH4 of ≥ 1:1 represents conservative lower bounds. Source fluid compositions are likely richer in H2 relative to CH4, closer to the values for Aurora, Rainbow, and Logatchev (Fig. 7c). The absence of detectable H2 in the deep plume samples implies that these fluids were either never enriched in H2 or that most H2 had already been consumed.

In summary, endmember fluids at Lucky B likely contain elevated H2 and CH4, resulting in H2/CH4 and CH4/dMn intermediate between those of ultramafic and sediment-influenced sites. Lucky B may thus represent an ultramafic analogue to sediment-influenced mafic-hosted systems. Definitive confirmation of a sediment contribution will require sampling of the seafloor vent sources and analysis of NH3, CH4, CO2, H2, and stable and radiogenic C isotopes.

Microbial carbon fixation and community composition

In order to evaluate the impact of reduced compounds in the Lucky B’s shallow plume on deep-sea microbial activity, we incubated seawater samples with 14C-bicarbonate and 3H-labeled leucine (Supplementary Table S4). We assessed the assimilation by measuring the uptake of these tracers into particulate organic matter ≥0.2 µm in size. In non-plume reference samples, dark carbon fixation—measured as the uptake of dissolved inorganic carbon into microbial biomass—was < 300 pmol L–1 d–1. Contrastingly, plume samples exhibit 1.77–3.11 nmol L–1 d–1 (n = 2 biological replicates; Fig. 8a). This approximately tenfold increase in carbon fixation indicates that the reduced compounds in the plume water strongly stimulate chemoautotrophic microbial activity. In comparison, uptake of 3H-leucine, a proxy for heterotrophic activity71, showed a more modest increase from 0.7 pmol L–1 d–1 in non-plume background to 1–2.8 pmol L–1 d–1 in the plume (Fig. 8b). Autotrophy is hence the dominant process leading to CO2 fixation in Lucky B’s near-field plume72.

Fig. 8
figure 8

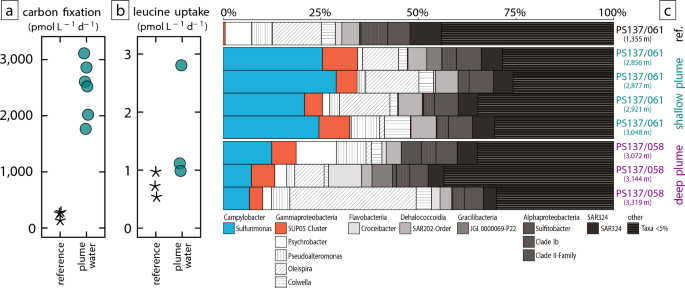

Microorganisms growing in Lucky B’s shallow plume. (a) Dark carbon fixation in reference background seawater and plume samples (2,876–2,921 m depth, CTD 061) measured in water incubations with 14C-bicarbonate tracer. (b) Rates of leucine incorporation into biomass in reference seawater and plume water samples (2,876 m depth, CTD 061) measured in a 3H-leucine assay. (c) Microbial diversity in reference and plume samples based on amplified 16S rRNA gene sequences. Reference samples taken at CTD station PS137/18 in 3,200 m water depth at 82°36.5796ʹN, 5°53.184ʹW.

Full size image

We also amplified and sequenced bacterial 16S rRNA genes from both the deep and shallow plumes. A reference sample from background seawater contained mostly heterotrophic water column bacteria, including Flavobacteria, Dehalococcoidia, Oleispira, and SAR324 (Fig. 8). Conversely, the plume samples showed a pronounced shift in community composition, with Sulfurimonas dominating the assemblage (Fig. 8c). In the deep plume, Sulfurimonas reached a relative abundance of 12%, whereas in the shallow H2-rich plume, abundances were as high as 30%. Sulfurimonas are likely the H2-oxidizing bacterium Candidatus Sulfurimonas pluma73,74. The relative abundance of SUP05 bacteria was also elevated in Lucky B’s deep and shallow plumes (3–6% and 5–9%, respectively) compared to background seawater (~ 1%). These bacteria are known as autotrophic sulfide oxidizers in oxygen minimum zones75 but also thrive in hydrothermal plume environments73,74. Prior studies suggested that Ca. S. pluma and SUP05 grow on H2 and H2S as electron donors, respectively73,75. Assuming that the microbial cell yields scale with the free energy yields from the oxidation of these electron donors, the dominance of Ca. S. pluma over SUP05 in Lucky B’s plumes suggests that the concentration of bioavailable H2S is lower than that of H2. This interpretation is supported by the metal enrichments in the plumes (Fig. 5d), which likely cause the precipitation and removal of H2S from solution. In the deep plume, high abundances of Ca. S. pluma may have effectively consumed H2, reducing concentrations below our detection limits—consistent with laboratory experiments and in situ measurements74. On the other hand, the δ3He anomalies and the elevated CH4 concentrations persist (Fig. 7a), indicating that these tracers exhibit greater conservativeness in the plumes. Methanotrophs are consistently rare across all samples, with no detectable increase in either plumes. This suggests that CH4 is not a major near-field energy source at Lucky B, consistent with its approximately conservative behavior in our samples (Fig. 7).

Hydrothermal venting at Lucky B hence facilitates chemoautotrophic carbon fixation in the Arctic Ocean. Notably, very similar microbial community compositions have been observed in the plumes of the only two other well-studied vent sites in the high Arctic, Aurora and Polaris, which are also dominated by Ca. S. pluma and SUP0573,74. Both Aurora and Polaris emit fluids that are also enriched in H2, and putatively H2S, but both are located on basaltic seafloor and H2 production is inferred to result from serpentinization deeper in the subseafloor16,17,22. Thus, Ca. S. pluma and SUP05—microbes that utilize H2 and H2S—appear to be a consistent feature in hydrothermal plumes of serpentinization-influenced hydrothermal plumes along slow-spreading ridges73,74, and their relative abundances offer insights into the plume’s chemical compositions.

Conclusions and implications

Hydrothermal circulation at Lucky B mobilizes carbon within the subseafloor, facilitating the formation of CH4 and its release into the overlying water column. At the seafloor, the discharge of highly reducing hydrothermal fluids promotes the precipitation of carbonate minerals and supports abundant hydrothermalism-associated fauna, with both processes contributing to carbon fixation at the seafloor. Additionally, active microbial chemosynthesis within Lucky B’s hydrothermal plume captures further carbon in the water column. The interaction of an ultramafic seafloor—providing substantial reducing power through serpentinization—with a carbon source, whether sedimentary or magmatic in origin, drives complex and multifaceted influences on the oceanic carbon cycle at Lucky B.

Each of the three vent systems studied in detail along the high Arctic spreading centers has yielded unexpected findings. Aurora and Polaris on Gakkel Ridge were initially considered mafic-influenced black smoker systems until Aurora was shown to be strongly influenced by serpentinization16,21 and Polaris was revealed to be an intermediate-temperature, hybrid mafic–ultramafic system17. With the discovery of Lucky B, we identified yet another distinct type of venting in the Arctic Ocean. Although situated on ultramafic seafloor, Lucky B exhibits exceptionally high CH4/dMn rather characteristic of sedimentary-influenced systems than typical ultramafic-hosted black smoker systems. This highlights the remarkable geological diversity of H2-producing hydrothermal systems along the ultraslow-spreading high Arctic ridges, where at least seven additional hydrothermal vent sites remain unexplored18. Similar diversity may exist on the comparably ultraslow-spreading Southwest Indian Ridge, where hydrothermal plume signals were first detected even before those on Gakkel Ridge76. Yet, nearly three decades later, only two high-temperature vent fields there have been definitively located77,78. Given the logistical challenges of assessing the ice-covered Gakkel Ridge and the remoteness of the Southwest Indian Ridge from major oceanographic research bases, the serpentinization-influenced Lucky B vent field offers a rare, more accessible natural laboratory for future interdisciplinary research.
