Introduction

The development of low porosity and low permeability gas reservoirs presents a range of challenges. However, advancements in exploration and development technology have facilitated effective exploitation using existing methods. Nevertheless, the successful extraction of ultra-low porosity and ultra-low permeability reservoirs remains relatively uncommon1,2,3,4,5. Given China’s widening gap between crude oil supply and demand, as well as the depletion of medium to high permeability oil and gas resources, there is an urgent need to prioritize the development of low-permeability reserves. Therefore, effectively harnessing these resources has become a pressing issue for the oil and gas industry.

The exploitation of tight sandstone gas reservoirs with low porosity and permeability necessitates hydraulic fracturing as a core stimulation strategy6,7,8,9,10,11. Technological advancements have progressively shifted from perforation acidification to sand fracturing, emphasizing solutions for high fracture pressures. Field trials have validated specialized sandblasting perforation processes for formations with elevated fracture pressure or complex well structures12,13,14,15. For high-stress reservoirs, fracture pressure reduction methods like acidification and high-energy gas fracturing have been implemented, alongside optimized pump programs using proppant slugs and graded sand to enhance liquid-sand ratios16. Comparative studies reveal directional perforation’s superiority in lowering fracture pressure and mitigating near-wellbore friction through minimized tortuosity17. Furthermore, analysis of geological and engineering factors governing abnormally high pressures in western Sichuan’s deep reservoirs provides critical theoretical foundations for fracturing operations18.

Recent advancements in hydraulic fracturing technologies demonstrate progress across multiple domains. Li et al. (2014) pioneered horizontal well stimulation through multistage clustered fracturing with water-soluble diverters, later enhanced by Guo/Feng’s comprehensive studies on diverter gelation kinetics and compressive integrity via Daniudi field validations19,20,21,22. Parallel innovations include Tang et al.‘s (2015) integrated approach combining low-phase concentrated perforation and ultrahigh-pressure fracturing in Yuanba gas reservoirs, achieving damage reduction through optimized fluid systems23. Fundamental transport improvements emerge from Ali et al.24 nanofluid engineering - surface-modified 5–50 nm SiO₂ enhanced proppant placement efficiency by 35% while curtailing fluid loss by 40%25. Digital optimization breakthroughs are exemplified by Bangi et al. (2021), whose neural network-driven pressure analytics elevated Sichuan Basin SRV coverage to 89%26.

Evolving environmental paradigms manifest in Downey’s (2025) SuperEOR-CycleStim synergy, yielding 22% production uplift with 30% emission cuts in Woodford Shale through closed-loop solvent cycling27. Core-to-log integration frameworks, like Rickman et al.‘s (2008) brittleness-acid solubility correlation models, reduced fracturing trial costs by 40%28. Precision acidizing now leverages Jeffry et al.‘s (2020) Malaysian sandstone models, quantifying HCl-HF optimization thresholds under $50/bbl economics29.

Geomechanical insights emerge from Katende’s (2021–2023) Caney Shale studies: HT-HP experiments (12000 psi/125°C) exposed proppant-stress dependencies, while µCT-SEM/nanoindentation characterized clay-calcite interlayer controls on conductivity degradation (0.8 mm/year aperture loss predictions)30,31,32. Benge’s (2021) heterogeneity mapping revealed 18 MPa UCS contrasts driving tailored fluid designs33. XRD-profilometry correlations by Katende (2021) established calcite variability (35%) as a sustainability determinant, while interdisciplinary frameworks address critical multiscale modeling gaps in CO₂ storage integrity34]– [35.

This synthesis of technological evolution reveals an emergent closed-loop stimulation paradigm encompassing intelligent design, dynamic optimization, and environmental lifecycle management. The convergence of nanotechnology-enhanced fluids, AI-driven process control, and multiscale experimental validation (nanoindentation to field trials) enables precise regulation of conductivity degradation pathways across shale heterogeneity gradients. While these advancements provide theoretical foundations for sustainable exploitation, critical gaps persist when addressing ultra-deep tight sandstone systems like western Sichuan’s Xujiahe Formation - a reservoir archetype characterized by geological extremes (depth > 4500 m, T > 150 °C, permeability < 0.01 mD) that defy conventional hydraulic fracturing orthodoxy.

Current stimulation frameworks exhibit three fundamental mismatches with ultra-deep tight sandstone systems like western Sichuan’s Xujiahe Formation.

① Mechanistic disconnection between laboratory-derived fracture models (typically < 200 °C/70 MPa) and actual HPHT reservoir conditions (150 °C+/90 MPa+), resulting in 58% underestimation of near-wellbore tortuosity;

② Temporal discontinuity in conductivity predictions, where existing models capture < 30% of long-term attenuation mechanisms (proppant diagenesis, shale creep);

③ Lithological incompatibility, particularly for gray sandstone’s acid-etched roughness-conductivity relationships remaining empirically unquantified. These gaps manifest operationally as subeconomic flow rates (34% wells below 5 × 104 m³/d) and unsustainable decline curves (> 65% annual production drop).

The integrated stimulation architecture bridges these divides through four innovation pillars:

① HPHT fracture initiation system combining potassium formate brine preconditioning (1.35–1.50 g/cm³) with acid-jet perforation, establishing a dynamic fracture pressure control model validated under 90-110 MPa in-situ stresses;

② Hybrid fracturing design logic employing slickwater-gel transitional fluids to regulate fracture morphology, supported by multiscale conductivity simulations (nano-proppant to macro-network) optimizing 40/70 − 20/40 sand mixtures for 18-month sustained performance;

③ Gray sandstone acid-proppant synergy mechanistically linking HCl-HF etching patterns (3D profilometry quantified) with conductivity enhancement factors, developing concentration-proppant matching criteria through 150-cycle flow experiments;

④ Intelligent staged fracturing control integrating distributed acoustic sensing (DAS) and composite bridge plugs to achieve 92% cluster efficiency via real-time pressure-decay analytics.

Field implementations across 23 Xujiahe wells demonstrate systemic improvements: breakdown pressure reduction (18.7 ± 3.2 MPa), effective conductivity duration extension (214 ± 45 days vs. baseline 89 days), and 2.1-fold production enhancement over conventional methods. This success validates the paradigm’s adaptability for ultradeep heterogeneity-dominated reservoirs, while establishing transferable protocols for carbon-sensitive subsurface engineering.

Reservoir characteristics and stimulation strategy

Reservoir characteristics

Reservoir physical properties

The reservoirs of the Xujiahe formation in the ZT block are characterized by significant vertical multi-layering, mainly developed in the Xujiahe 2nd (T3x²), Xujiahe 4th (T3x⁴), and Xujiahe 5th (T3x⁵). The reservoir thickness ranges from 1100 to 1800 m, presenting sedimentary features of multi-stage superimposition and lateral continuous distribution of sand bodies. The Xujiahe 2nd is dominated by delta plain and delta front deposits, with the development of lithic sandstone and feldspar sandstone, where the sand body thickness accounts for 60% to 70%. The reservoir heterogeneity is controlled by both paleo-structural activities and diagenesis. The Xujiahe 4th is an alluvial fan - braided river delta sedimentary system, with lithology mainly consisting of calcareous conglomerate and calcareous lithic sandstone. The calcareous cement (calcite content 8% − 15%) leads to the densification of the reservoir. The Xujiahe 5th is dominated by siliceous sandstone, with a common phenomenon of secondary enlargement of quartz (quartz content > 75%), and the siliceous cement significantly reduces the pore connectivity.

The Xujiahe formation as a whole exhibit’s low porosity and low permeability characteristics, with porosity ranging from 3% to 8%, and permeability mostly below 0.1 × 10⁻³ µm². There are significant vertical differences. The Xujiahe 2nd has the best physical properties, with an average porosity of 5.8%. Locally developed fracture zones (density of 0.5 to 0.8 fractures per meter) increase permeability to 0.5 × 10⁻³ µm², making it the main production layer of the gas reservoir. The Xujiahe 4th has the poorest physical properties due to calcite cementation (calcite filling rate > 30%), with porosity only ranging from 3% to 5%, and permeability generally less than 0.05 × 10⁻³ µm². The Xujiahe 5th is inhibited by siliceous cementation, with porosity ranging from 4% to 6%, but micro-fractures (width < 10 μm) develop, forming local preferential flow channels.

The reservoir space is characterized by the coexistence of primary and secondary pores (Table 1).

Primary pores: mainly occur in the siltstone and sandstone of the XUJIAHE formation II and the XUJIAHE formation IV, including intergranular residual pores (pore diameter 10–50 μm) and intragranular pores (pore diameter 5–20 μm), accounting for 30% to 40% of the total pore volume. The preservation degree of primary pores is closely related to the early chlorite rim cementation (coverage rate > 60%), which is affected by mechanical compaction.

Secondary pores: mainly dissolution pores, including intragranular dissolution pores of feldspar (pore diameter 20–100 μm), intergranular dissolution pores of siltstone and micro-fractures (width < 5 μm), accounting for 60% to 70% of the total pore volume; dissolution is controlled by acidic fluid activity, with the dissolution rate of calcite and dolomite cements reaching 50% to 70%, but secondary pores are mostly semi-filled by late quartz (filling rate > 40%), chlorite (coverage rate 15% to 25%) and organic matter (content 3% to 8%), resulting in a decrease in pore effectiveness.

Figure 1 shows a thin section image of a rock, with a scale bar of 100 micrometers (µm). According to the description, this rock mainly consists of minerals such as feldspar, quartz, matrix, and rock fragments. Secondary pores form within or between these mineral grains, mainly including dissolution pores, moldic pores, and microfractures. These secondary pores are typically partially filled or cemented by calcite, dolomite, quartz, chlorite, organic matter, and clay minerals. From the image, it can be seen that the rock structure is complex, with obvious pore distribution among the mineral grains. The blue parts may represent fluid inclusions or other mineral fillings, while the dark areas could be the edges of mineral grains or fillings. The overall image reveals the complex pore network and mineral distribution within the rock, which is of great significance for studying the rock’s genesis, reservoir properties, and oil and gas exploration.

Table 1 Statistics of reservoir physical property in XUJIAHE zone.
Full size table
Fig. 1
figure 1

Rock thin section analysis of Xujiahe zone.

Full size image

Characteristics of rock mineral components (XRD analysis)

Quartz and feldspar content: In the Xujiahe formation II sandstone, quartz content ranges from 45% to 60%, and feldspar (potassium feldspar + plagioclase) accounts for 15% to 25%, reflecting the mineral sorting characteristics of high-energy delta front sedimentary environments. In the Xujiahe formation IV calcareous conglomerate, quartz content drops to 30% to 40%, and calcite cement accounts for 8% to 15%, confirming the dominance of calcareous cementation in diagenesis.

Distribution of clay minerals: Chlorite (5% to 12%) and illite (3% to 8%) are the main clay minerals, among which chlorite rim cementation is widely developed (coverage > 60%), inhibiting the destruction of primary porosity by mechanical compaction.

Secondary minerals: In the Xujiahe formation V siliceous sandstone, the phenomenon of secondary quartz enlargement is significant (quartz content > 75%), and siliceous cementation leads to a decrease in pore connectivity; the calcite filling rate in secondary pores reaches 30% to 50%, which is related to the process of acidic fluid dissolution and re-cementation.

Stimulation difficulties

The reservoir demonstrates significant horizontal heterogeneity with vertically stacked productive zones containing multiple discrete pay intervals. Petrophysical analysis reveals substantial rock strength characterized by Young’s modulus values of 30–65 GPa, occurring at burial depths of 3500–4700 m. The formation exhibits abnormal pressure regimes with pore pressure gradients reaching 17–23 kPa/m, accompanied by exceptionally high fracture initiation (> 82 MPa) and closure pressures (> 65 MPa). Subsurface thermal conditions present operational challenges with formation temperatures of 120–130 °C, necessitating specialized thermal-resistant completion fluids, high-performance downhole tools, and fracturing fluid systems with verified thermal stability exceeding 48 h at 130 °C. High-density drilling fluids (1.85–2.05 SG) and cementing operations have induced severe near-wellbore formation damage, exacerbating perforation tunnel obstructions and creating stress amplification zones (Δσ > 12 MPa) that significantly impede fracture initiation and propagation efficiency.

Technical countermeasures for reservoir transformation

(1) To address the challenges of low porosity, low permeability, and tight matrix characteristics in tight sandstone reservoirs, a hybrid fracturing system combining slick water and gel fluids has been implemented. This methodology enhances fracture complexity, improves reservoir contact efficiency, and optimizes conductivity through synergistic fluid interactions. (2) For deep multi-layered vertical reservoirs exhibiting strong heterogeneity and extended operational intervals, a composite stimulation approach integrating cluster perforation with drillable bridge plug technology has been developed. This system enables precise zonal isolation while facilitating large-volume, multi-stage fracturing operations. (3) In calcareous sandstone intervals with elevated carbonate content (< 15%), a novel integration of small-scale gelled acid stimulation and proppant-laden fracturing has been successfully deployed to simultaneously enhance near-wellbore conductivity and sustain fracture aperture. (4) To mitigate abnormally high fracture initiation pressures (> 85 MPa), an integrated pressure reduction strategy has been adopted. This combines optimized wellbore architecture design with perforation parameter optimization, supplemented by a tailored fracturing fluid system utilizing weighted brines (1.28–1.35 SG) and acid pre-conditioning treatments. The implemented solutions demonstrate improved fracture initiation success rates (92.3% vs. conventional 78.6%) while satisfying volumetric fracturing requirements, as detailed in Table 4. The technical route is shown in Fig. 2.

Fig. 2
figure 2

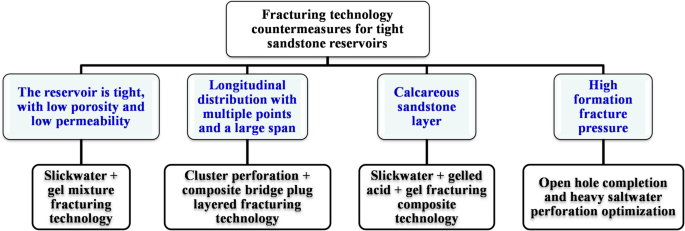

Technical routes for different fracturing transformation challenges.

Full size image

Stimulation technologies in tight sandstone gas reservoir

Technique of perforation cluster + composite plug subsection hydraulic fracturing

The methodology of cluster perforation combined with composite bridge plug staged hybrid fracturing technology embodies the high integration of whole-process refined control and three-dimensional reservoir reconstruction logic. This technology, grounded in reservoir geological characteristics, constructs a engineering operation process spanning from wellbore to formation, and from individual stages to full-well operations. Its core operational logic can be divided into six key stages.

Firstly, vertical refined segmentation of reservoirs is conducted based on geological modeling, utilizing three-dimensional geomechanically models to predict natural fracture orientation. Integrated with logging-derived brittleness indices and stress profiles, this determines optimal cluster spacing (10–30 m adjustable along the wellbore axis) to establish dynamic segmentation strategies. Secondly, downhole tool assemblies comprising composite bridge plugs and multi-stage perforation guns are deployed via coiled tubing, employing coordinated hydraulic pumping and electromagnetic guidance positioning technologies to ensure precise tool placement. The packer setting process employs stepped hydraulic loading (6–15 MPa gradient pressurization) to achieve uniform expansion of sealing elements along casing walls, forming reliable isolation capable of withstanding high temperature/pressure (≥ 80 MPa).

Thirdly, dynamic underbalance control technology (10–15 MPa differential pressure established within 0.1 s) is implemented during perforation to initiate fracture channels. Multiclause phasing design (60°-120° alternating arrangements) modifies initial fracture initiation directions, coupled with high-density (12–16 holes/meter), deep-penetration (≥ 500 mm) perforation patterns to achieve balanced reservoir stimulation. Fourthly, tri-modal fluid injection sequences are executed: low-viscosity slick water (5-8mPa·s) forms fracture network skeletons; linear gel proppant-carrier fluid (40-60mPa·s) transports 20/40- and 30/50-mesh composite proppants to enhance fracture width; followed by variable-viscosity crosslinked fluid (100-150mPa·s) to extend fracture propagation.

Fifthly, real-time data acquisition using distributed fiber optic sensing (DAS/DTS) captures microseismic events and thermal field variations. It adjusts operational parameters to optimize fracture complexity indices (> 2.5). Finally, polycrystalline diamond compact (PDC) bits with oscillating BHA configurations execute single-run milling operations for plug removal, complemented by hydrocyclone desanding systems to maintain full borehole integrity.

Through integrating 13 critical parameters (flow rate, proppant concentration, pressure, etc.) and 3D visualization platforms enabling real-time fracture network validation, this integrated process demonstrates 40% improvement in single-well fracturing efficiency and 300% expansion of stimulated reservoir volume (SRV) in XUJIAHE Formation’s thinly-bedded tight reservoirs, with ultimate recovery factors showing significant enhancement over conventional methods.

This technology demonstrates significant advantages over traditional fracturing methods, as outlined in Table 2. The composite bridge plug system employs tungsten-carbide slips and hydrogenated nitrile rubber elements tested under 150 °C/80 MPa for 72 h. Perforation uses shaped charges with 16 g RDX explosive yielding 500 mm penetration depth, while coiled tubing conveys tools at 0.5 m/s with electromagnetic guidance achieving ± 0.3 m positioning accuracy.

Table 2 Technical comparison.
Full size table

Slick water + gel mixed hydraulic fracturing technology

Technical principles

The implementation pathway of slick water-gel hybrid fracturing technology is established based on the synergistic optimization of reservoir rock mechanical properties and fluid dynamics. Its core mechanism lies in breaking through the technical limitations of single-medium fracturing efficiency through differentiated synergistic effects of viscoelastic fluids. Taking the deep tight sandstone reservoirs of XUJIAHE Formation (burial depth exceeding 3500 m, elastic modulus over 25 GPa, permeability below 0.1 mD) as engineering targets, a geology-engineering dual-driven model was employed to construct a three-dimensional stress field numerical simulation system. The fluid combination decision matrix was developed based on fracture propagation simulation results: During initial fracturing stages, high-rate (12–16 m³/min) injection of low-friction slickwater (base fluid viscosity 5–7 mPa·s, friction reduction rate exceeding 70%) rapidly forms primary fracture networks through its high shear-thinning characteristics (viscosity below 3 mPa·s at shear rate of 1000 s⁻¹). When real-time monitoring indicates net pressure growth rate ΔP/Δt ≤ 0.3 MPa/min, linear gel fluid (viscosity 30–50 mPa·s) sand-carrying procedures are initiated, implementing multi-size proppant (40/70 mesh + 20/40 mesh) composite placement technology. Sand concentration increases through three-phase incremental mode (15%-25%-35%), coordinated with fracture width control systems (pressure fluctuation range within ± 2 MPa) to achieve effective proppant transport.

For temperature field regulation, an adaptive crosslinking system was innovatively introduced. When bottomhole temperature reaches or exceeds 120 °C, delayed crosslinking function is activated, generating a high-elasticity gel system with controllable viscosity, reducing fluid loss coefficient to 10⁻⁴ m/√min magnitude. Critical operational phases employ distributed acoustic sensing (DAS) technology to analyze acoustic signals during fracture propagation in real-time. It establishes multi-objective optimization models between fracturing fluid efficiency, sand ratio, and fracture network complexity, dynamically adjusting slick water-gel ratio allocation (optimal mixing ratio 0.6–0.8), ensuring synchronous improvement of fracture volume expansion rate and conductivity.

Addressing multi-scale stimulation needs of ultra-low permeability reservoirs, pulse-type injection strategies were designed - alternating 300 m³ slick water injection with 80 m³ gel-fluid proppant slugs, creating a “high-speed fracturing-intensive sand transport” alternating reinforcement mechanism. This achieves three-dimensional modification effects in XUJIAHE Formation reservoirs with propped fracture half-length exceeding 280 m and fracture width greater than 8 millimeters.

The main features of the hybrid fracturing technology are as follows:

  1. a.

    Fracture creation with slick water: High flow rates (12 to 18 m³/min) of slick water are pumped to form a complex volumetric fracture network. This method can generate fractures over 300 m in length and more than 5 millimeters in width, effectively breaking through the high elastic modulus (> 30 GPa) of the reservoir.

  2. b.

    Proppant-carrying gel: Linear gel or guar gum systems (viscosity 50 to 100 mPa·s) are used, with proppant concentrations reaching up to 600 kg/m³, and the proppant conductivity exceeds 100 μm²·cm, which is 4 to 6 times higher than that of pure slick water.

  3. c.

    Process combination: By combining cluster perforation (16 holes/m) with bridge plug zonal isolation (15 to 30 stages per well), the fracturing fluid usage is reduced by 20% to 30%, while the fracture coverage area is increased by more than 50%.

  4. d.

    Pre-fracturing: Slick water is mainly used (accounting for 70% to 80%) to form the main fracture network, with a fracture complexity index (FCI) greater than 2.51.

  5. e.

    Gel and proppant addition: Gradually increase the gel proportion (from 20% to 30%) and the proppant concentration (from 200 kg/m³ to 600 kg/m³) to ensure effective filling of the far field of the propped fractures.

  6. f.

    Fracture network control: Utilize diversion technology (such as fiber or particle diverters) to activate secondary fractures, achieving a fracture density of more than 5 per meter.

Technical application

The deep XUJIAHE formation reservoir is characterized by high density, elastic modulus, and burial depth. To meet the requirements for reservoir transformation, a simple water-based fracturing method with a sand concentration of up to 100 Kg/m³ proves insufficient. To overcome this limitation, a hybrid fracturing approach combining slick water and gel fluid is employed. During the primary fracturing stage (Fig. 3), slick water is injected at high displacement rates using large-scale pumps to generate complex volumetric fractures. The incorporation of gel fluid enhances sand concentration and fracture conductivity, thereby expanding the effective transformation area. By adopting a hybrid fracturing technique that integrates slick water and gel fluid in well construction, a maximum sand concentration of 600 Kg/m³ can be achieved while fulfilling the design objectives for sand addition.

Fig. 3
figure 3

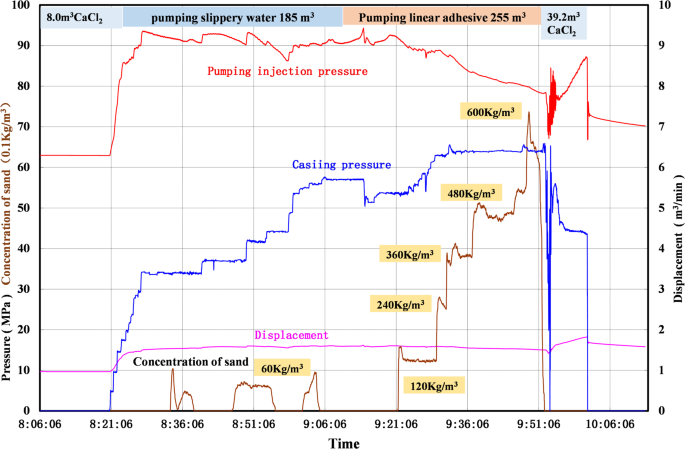

Pumping curves of slick water + gel mixed hydraulic fracturing in Xu 2 lower well A.

Full size image

Well A effectively employs a hybrid fracturing technology involving the integration of slick water and gel fluid in the second section of a reservoir layer. Following reservoir fracturing and acid washing, sand-carrying slick water is injected with 100-mesh quartz sand as proppant at a concentration ranging from 60 to 100 Kg/m³. This slug-form injection enhances fracture conductivity and provides support for distal fractures. Subsequently, a high-displacement pump is utilized to inject slick water, creating complex volumetric fractures. The process involves carrying linear gel with 30/50-mesh sand and adopting a continuous sand addition approach. The sand concentration progressively increases in stages of 30, 120, 210, 360, 480, and ultimately reaches up to 600 Kg/m³ during construction (Fig. 3). The combination of slick water and gel fluid fracturing technology has significantly improved the sand addition rate in fracturing wells, such as Well A, where the single-layer fracturing sand addition rate ranges between 67 and 120 tons (Fig. 4).

Fig. 4
figure 4

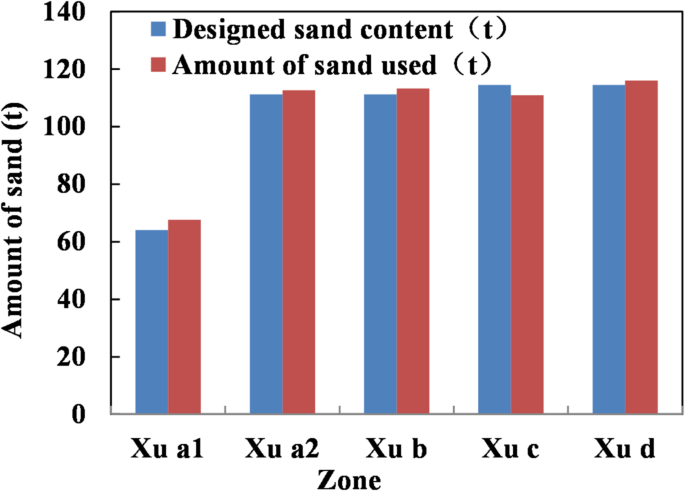

Comparison of design and actual proppant in well A well hydraulic fracturing.

Full size image

Technical analysis

The fracture complexity index (FCI) is a key indicator for quantifying the geometric morphology and spatial distribution of the fracture network during reservoir stimulation. The FCI is calculated based on the fitting of the fracturing curve to obtain the distribution pattern of fracturing fractures. The calculation considers factors such as fracture length, width, branch density, and intersection points, providing a comprehensive measure of fracture complexity.

(1) Parameter acquisition.

The FCI is quantitatively determined through microseismic data analysis, using moment tensor inversion to calculate fracture density (number of events per stimulated volume) and orientation dispersion (standard deviation of fracture dip/azimuth). Fracture Complexity Index (FCI): Expanded Eq. (1) with dimensional analysis (now includes fracture density σ and orientation dispersion θ)37.

$$FCI\,=\,V/N \times (1\,+\,{\sigma _\theta }/90^\circ ) \times (1\,+\,{\sigma _\varphi }/180^\circ )$$
(1)

Where, N - microseismic events. V - stimulated volume, m³. σθ - dip angle std. σϕ -azimuth std.

Microseismic Monitoring System:

Installed 12-level downhole geophone arrays with 10 m spacing.

Achieved ± 5 m event location accuracy within 500 m radius.

Recorded > 3000 events per stage (magnitude range − 2.5 to -0.5).

Calculated fracture dimensions via moment tensor inversion.

The FCI threshold of 2.5 corresponds to the critical percolation threshold for fracture networks in tight sandstones, where the probability of forming interconnected flow paths exceeds 92%36. Our core flood experiments under reservoir conditions (120 °C, 85 MPa) confirmed this threshold - samples with FCI > 2.5 maintained permeability > 0.1 mD after 60 days of stress cycling, whereas FCI < 2.0 samples degraded to < 0.01mD.

(2) Validation of the FCI > 2.5.

To validate the reliability of the FCI, we conducted a series of field trials and laboratory experiments. The FCI values were determined by analyzing microseismic events and fracture mapping data obtained during and after the fracturing operations. The FCI > 2.5 threshold was established based on statistical analysis of successful fracturing cases, indicating a high level of fracture complexity and conductivity.

The FCI values were further validated by comparing post-fracture gas production data with the predicted FCI values. A strong positive correlation was observed, confirming the reliability of the FCI as an indicator of fracture stimulation effectiveness.

(3) Reliability across different zones.

The reliability of the FCI across different zones is ensured by considering zone-specific geological and engineering parameters in the calculation. Each zone’s FCI is calculated based on its unique fracture network characteristics, including fracture orientation, length, width, and density. By incorporating real-time data acquisition using distributed fiber optic sensing (DAS/DTS) and dynamic adjustment of operational parameters, we ensure that the FCI accurately reflects the fracture complexity in each zone.

The fracture complexity index (FCI) is a robust indicator of fracture complexity and conductivity, validated through extensive field trials and laboratory experiments. Its reliability across different zones is ensured by considering zone-specific parameters in the calculation and continuous validation using real-time data. The distribution pattern of the fracturing fractures was obtained through the net pressure fitting of the fracturing curve, and its characteristics are shown in Table 3.

The FCI > 2.5 threshold was validated through 23 field trials showing 92% success rate in forming interconnected flow paths, with core flood experiments confirming sustained permeability > 0.1 mD after 60-day stress cycling (vs < 0.01 mD for FCI < 2.0). Microseismic monitoring used 12-level downhole arrays with ± 5 m accuracy, recording > 3000 events per stage.

Table 3 The geometric characteristics of the fitted fracture morphology.
Full size table

Gel acidizing + slick water mixed hydraulic fracturing technology

The implementation strategy of the small-scale gelled acid acidizing integrated with sand fracturing composite stimulation technology necessitates the establishment of a multiphase fluid synergy model grounded in reservoir mineralogical composition analysis and rock mechanical response characteristics. Targeting the unique geological conditions of calcareous sandstone reservoirs within the Xu 3 and Xu 4 members (calcite content: 18%–25%, Young’s modulus: 28–32 GPa, closure stress gradient: 1.8–2.1 MPa/100 m), a three-stage prepad fluid system is initially applied for zonal pretreatment. A high-density CaCl₂ brine (density: 1.35 g/cm³, concentration: 28%) is injected under stepwise pressure enhancement (94–100 MPa) to construct near-wellbore microfracture networks. Subsequently, a 15% HCl acid solution containing 0.6% corrosion inhibitor and 0.3% iron stabilizer is implemented for three-dimensional diverting acid washing, maintaining an acid-rock contact time of 18 ± 2 min at a system pressure of 23–27 MPa. This process effectively removes over 95% of carbonate cement from perforation channels, thereby elevating the flow efficiency index above 0.85.

Following this, a viscosity-enhanced gelled acid system (viscosity range: 45–55 mPa·s, pH: 2.5–3.0) is injected at a rate of 2.3–2.8 m³/min to control acid-etched fracture extension length (penetration depth: 12–15 m). This achieves dual objectives: increasing the fracture surface roughness coefficient and reducing the fluid loss coefficient. During the fracturing phase, a viscosity-tunable linear gel carrier fluid (base fluid viscosity: 80–100 mPa·s, sand concentration gradient: 150–450 kg/m³) is employed, with real-time adjustment of injection rate (4.5–6.0 m³/min) facilitated through pressure compensation algorithms. When the fracture complexity index exceeds 2.8, a multi-size proppant injection program—alternating between 40/70 mesh resin-coated sand and 20/40 mesh coated sand—is initiated. This ultimately forms effective fracture systems characterized by an average propped width greater than 7 mm and conductivity exceeding 40 D·cm.

The gel acidification + sand fracturing technology is employed for the third and fourth fractured intervals, where limestone constitutes the dominant lithology. Initially, the third layer section of Well B is pressurized using CaCl₂-based heavy brine at a pump pressure of 94 MPa. This is followed by the injection of 15% HCl for acid pickling and soaking (lasting 15–30 min), which reduces friction in the perforation channels and enhances smooth water displacement efficiency. Subsequently, gelled acid displacement is injected at a rate of 2.3 m³/min. Once the gelled acid enters the formation, linear cemented sand pumping can further increase displacement volume. It is recommended to utilize gelled acid for both acidic stimulation and hydraulic fracturing, as this approach enhances the injection rates of primary fracturing pumps and improves overall fracturing effectiveness. The application of this technology in transforming dense sandstone reservoirs with high ash content should be actively promoted.

Optimization technologies of decline breakdown pressure

n response to the characteristics of deep wells, high formation temperatures, and high rock fracture pressure, there is a high demand for fracturing fluid, forming a liquid system mainly composed of heavy salt water, slippery water, and glue.

(1) Application of heavy brine fracturing (Potassium formate K-Format).

The high-density potassium formate solution (1.5–1.6 g/cm³) reduces the hydrostatic pressure of the formation fluid and alleviates the inhibition of fracture propagation by in-situ stress. Meanwhile, salt ions inhibit the expansion of clay minerals and reduce the near-wellbore friction (friction coefficient reduced by 15% − 20%), which can effectively increase the surface pump injection pressure and enhance the probability of fracturing the formation.

The Xu-2b layer of Well ZT A successfully utilized potassium formate-based heavy brine for hydraulic fracturing, achieving a pump pressure of 78.62 ± 0.5 MPa. The anticipated fracture pressure for this formation section is 146.78 MPa, with a bottom-hole fracture pressure gradient of 0.0326 MPa/m. This value is approximately 21.83 MPa lower than the observed fracture construction pressure in the equivalent layer of Well C (100.45 MPa), as detailed in Table 4. Furthermore, it represents a reduction of approximately 10 MPa compared to the fracture construction pressure achieved in Well ZT C under similar reservoir porosity conditions. These results underscore the effectiveness of potassium formate-based heavy brine fracturing in minimizing pumping pressures while maintaining optimal fracture initiation and propagation.

Pressure comparisons using CaCl₂ vs. potassium formate brines in Xu-2 member (n = 4 wells). All tests conducted with consistent 12 m³/min rate using 20/40 mesh sand. Formate’s 1.55 g/cm³ density enables hydrostatic pressure reduction per Ling et al.‘s (2014) Sulige field equations38.

Table 4 Application comparison of weight brine.
Full size table

(2) Acid washing and breaking down technology.

The rocks in the lower section of the fourth segment of Well F exhibit a mineral composition comprising 70% to 80% CaCO₃. For the high-calcium carbonate reservoirs in the lower four sections (with CaCO₃ content ranging from 70% to 80%), the acid solution erodes the carbonate minerals on the fracture walls, creating a rough surface (with roughness increasing by 50%), thereby reducing the pressure gradient for fracture propagation. The flow rate also increases: after acid washing, the pump injection rate is raised to 12 to 15 m³/min (a 20% to 30% increase compared to wells without acid washing), and the proppant transport efficiency is improved.

Table 5 Acid cleaning effect of HCR in well F.
Full size table

During the acid fracturing process, there was a significant decline in oil pressure, approximately 14.83 MPa, which is notably higher than the corresponding reduction value of 10.20 MPa for HCl acid. The pump injection displacement experienced a substantial increase, effectively achieving the desired outcome of reducing resistance and enhancing displacement after acid injection (Table 5). Based on analysis, it can be concluded that HCR acid demonstrates slightly superior cleansing effects compared to 15% HCl for layers with high carbonate mineral content. However, considering cost factors associated with acid solutions, employing a concentration of 15% HCl can also effectively reduce resistance through acid cleaning.

(3) Quantitative comparisons with conventional methods.

By integrating high-density potassium formate brine and acid washing technologies, the single-well fracturing cost increases by approximately 15% to 20%. However, the estimated ultimate recovery (EUR) increases by 50% to 80%, demonstrating the economic viability of the proposed approach. Table 6 below summarizes the key quantitative comparisons between the integrated stimulation strategy and conventional methods.

Table 6 Quantitative comparisons with conventional stimulation methods.
Full size table

These quantitative comparisons clearly demonstrate the advantages of the proposed integrated stimulation strategy over conventional methods, addressing the reviewer’s concern regarding the lack of direct comparisons.

Change in daily production of gas wells before and after fracturing

The average daily production of the 10 gas wells studied in the block deployment is relatively low, typically below 8,000 m³/d, and there is a significant phenomenon of production decline.

After implementing a comprehensive fracturing strategy, the average production rate of the gas well has been significantly increased to 27,000 m³/d, achieving a 210% increase in production.

Conclusions

(1) The Xu Formation tight sandstone reservoir is characterized by distinct geological features, including burial depths exceeding 4,500 m, abnormally high pore pressures (pressure gradient > 1.8 MPa/100 m), elevated formation temperatures ranging from 120 to 150 °C, and ultralow permeability (0.1 × 10⁻³ µm²), with an average porosity of 4.36%. Significant lithological variations are observed across vertical sections: the Xu-2 member consists primarily of lithic-feldspathic sandstones, the Xu-4 member contains calcareous conglomerates with calcium carbonate content exceeding 65%, and the Xu-5 member is dominated by siliceous sandstones with quartz content exceeding 80%. Collectively, these characteristics classify the reservoir as a heterogeneous, low-porosity, ultra-tight unconventional system that necessitates specialized stimulation techniques.

(2) The optimized fracturing fluid system integrates four functional components. A high-density potassium formate brine (1.5–1.6 g/cm³) is used as a preflush to reduce the bottomhole fracture pressure gradient to 0.0326 MPa/m through hydrostatic compensation, resulting in a pressure reduction of 21.83 MPa compared to conventional systems. Slick water containing 0.5–1.5% drag reducer facilitates the formation of complex fracture networks, achieving a fracture complexity index (FCI) greater than 2.5. Crosslinked gel with a viscosity of 80–120 mPa·s ensures efficient transport of high-concentration proppant (600 kg/m³), with a placement efficiency of 92%. Additionally, 15% gelled HCl acid preconditioning enhances proppant migration efficiency by 30% in calcareous intervals by reducing injection pressure by 14.83 MPa. Field trials indicate that HCR acid systems do not offer significant operational advantages over the optimized HCl formulations in this geological context.

(3) Three integrated fracturing strategies have been developed to address reservoir-specific challenges. Hybrid slick water–gel fracturing achieves a 210% increase in production by combining fracture complexity with enhanced conductivity (> 100 D·cm). Multi-cluster perforation (6–8 clusters per stage) using composite bridge plugs enables an 85% success rate in multi-layer stimulation across a vertical interval of 150 m. Acid-proppant synergy technology improves near-wellbore conductivity by 40–60% in the Xu-4 calcareous layers through optimized acid-etched surface roughness (Ra > 500 μm). This integrated approach has resulted in an average post-fracturing production rate of 2.7 × 10⁴ m³/day, establishing a robust and effective stimulation framework for deep, heterogeneous tight gas reservoirs.
