Abstract
In this paper, the fourth-order Cahn–Hilliard equation is studied, which plays an important role in the development of the spinodal decomposition, phase separation, and phase ordering dynamics. The \(\tan (\phi /2)\)-expansion method (TEM), Jacobi elliptic function expansion scheme (JEFES), rational multi wave functions (RMWFs), and decomposition variational iteration method (DVIM) are considered to investigate the exact traveling wave solutions to nonlinear evolution equations (NLEEs) in the domain of applied physics and engineering. This equation can be utilized to explain the contact between the modes in describing the process of phase separation of a binary alloy under the critical temperature, phase separation, phase-ordering dynamics, and spinodal decomposition, fluid mechanics, and fluid flow. The dynamics of the assessed solutions in terms of understanding the real phenomena for such nonlinear model is demonstrated by plotting their 3D, 2D, contour, and density profiles using proper parametric values. Consequently, we obtain distinct types of solutions, containing dark, bright, kink, singular, combo kink singular, and combo dark singular soliton solutions. These results are essential to the explanation of several mesmerizing and intricate physical phenomena. Also, the decomposition variational iteration method of the proposed model is analyzed and conditions are developed accordingly. The soliton solutions demonstrate the competency of the proposed technique in identifying traveling wave solutions, offering a useful tool for tackling a variety of NLEEs. We believe that our results would pave a way for future research generating optical memories based on the nonlinear solitons.
Introduction
In the past decades, investigating nonlinear models and solving them has been a challenge for scientists and experts in various fields, including: plasma physics1, optics3, electromagnetic-circuital-termal-mechanical multi physics4, granular termo dynamic migration model5 and multi-scale spatial-temporal interaction fusion network6. The study of wave propagation for nonlinear evolution equations (NLEEs) has drawn interest from the scientific community in recent years. NLEEs are frequently found in a variety of domains due to the extensive presence of nonlinearity in both natural and artificial frameworks, such as medical imaging, population dynamics, and material science. Advanced computational approaches, numerical simulations, and mathematical methodologies have all been developed in an effort to understand and solve NLEEs. Nonlinear partial differential equation is a type of equation with important research significance, which is applied in many subjects. At present, in the academic field, an important academic wave is to solve the exact solution of nonlinear partial differential equations2. Nonlinearity plays a major role to describe the behavior of optical solitons and wave packets in nonlinear media. With the continuous exploration of researchers, a series of methods have been explored, such as the \(\exp ({-}\Omega (\eta ))\)-expansion method3, the homotopy analysis method7, the homotopy perturbation method8, the Exp-function method9, the Hirota bilinear method10, the first integral method11, the inverse scattering method12, Lie group method13, the Jacobi elliptic function expansion method14, the variational iteration method15, Laplace-residual power series method16 and Legendre approximation method17.
Numerous academic domains, such as signal and image processing, biology, chemistry, economics, physics, electricity, and aerodynamics, and many more, have been greatly impacted by nonlinear models18,19,20,21,22. Additionally, this understanding greatly enhances the real-world consequences and practical applicability of ordinary differential equations (ODEs) and partial differential equations (PDEs)23,24,25,26,27. Hirota bilinear scheme is powerful technique to obtain the analytical solutions. Therefore, to find the lump and their interactions solutions of such nonlinear models, physicists and mathematicians have worked very hard. Many researchers have been worked on this method for some nonlinear equations, including the generalized Bogoyavlensky-Konopelchenko equation28, the generalized Hietarinta equation29, the dispersive wave systems30, the variable-coefficient generalized nonlinear wave equation31, symmetric nonlinear dispersive wave model32, the (3+1) dimensional KPB like equation33, the spectral functional method34, application of cubic B-splines method35 and fractional order Sturm-Liouville problems36.
The true structure of nonlinear behaviors can be revealed by solitons to nonlinear phenomena. A traveling wave is one that maintains its shape while moving in a specific direction. In addition to this, a traveling wave is associated with maintaining a steady velocity during its propagation37. In 1834, the early observations by John Scott Russell on the solitary wave were received with skepticism. However, his research was eventually confirmed by the theoretical studies of the Dutch physicists Diederik Korteweg and Gustav de Vries. In 1895, Korteweg and de Vries developed a mathematical model to describe the transmission of a solitary wave. Since the effective theoretical modeling of solitary waves, there has been an increased concern in nonlinear waves. The idea of solitons was discovered in the field of integrable models. In 1965, Kruskal and Zabusky proved the steady solitary wave solution of the KdV equation through a numerical experiment and termed it “soliton” because of its particle-like character. Later on, Gardner discovered the Inverse Scattering Transform to solve nonlinear evolution equations analytically. Among the mentioned analytical techniques that generate soliton solutions for NPDEs the \(\tan (\phi /2)\)-expansion approach stands as the fundamental easy and effective algebraic procedure. The transformation of NPDEs to NODEs through wave transportation enables the strategic application of the \(\tan (\phi /2)\)-expansion that results in a set of nonlinear algebraic equations when a solution form series assumption exists. The use of Maple computational software generates multiple soliton solutions containing rational exponential trigonometric and hyperbolic functions when implementing solutions to the resulting problem. A solitary self-reinforcing wave packet referred to as a soliton travels through a medium without shape or velocity modification. Academic researchers value soliton solutions for NPDEs because their higher detail level exceeds standard solution approaches. The extended existence and reliability of soliton solutions provide numerous technical applications in scientific domains. Nonlinear systems benefit from solitons through efficient information transfer processes which also lead to extensive concordance retention38,39,40.
Cahn and Hilliard41 established the Cahn–Hilliard equation in 1958 to depict the process of phase separation of a binary alloy under the critical temperature. This model is significant in a variety of noteworthy scientific processes, including phase separation, phase-ordering dynamics and spinodal decomposition42,43. One of the important and essential nonlinear wave phenomena in mathematics and physics is the Cahn–Hilliard (CH) equation has many applications. Exact solutions for the Cahn–Hilliard equation in terms of Weierstrass-elliptic and Jacobi-elliptic functions were obtained44. The Cahn–Hilliard model assumes a fundamental role in elucidating phase separation phenomena within physical systems, notably in the context of alloys45,46. Exact solutions of convective diffusive Cahn–Hilliard equation using extended direct algebraic method were created47. Authors of48 used the natural decomposition approach with non-singular kernel derivatives to find the solution to nonlinear fractional Gardner and Cahn–Hilliard equations. The approximate solutions of nonlinear temporal fractional models of Gardner and Cahn–Hilliard equations were investigated in49. Novel approximations to the fourth-order fractional Cahn–Hillard equations using the Tantawy Technique and variational iteration transform method and the homotopy perturbation transform method were made50. Asymptotics of large deviations of finite difference method for stochastic Cahn Hilliard equation were made in51. A periodic boundary value problem for the generalized Cahn–Hilliard equation was considered in52. The viscous Cahn–Hilliard equation with a degenerate, phase-dependent mobility was considered to investigate weak solution and establish the existence of a solution53.
The general form of the Cahn–Hilliard equation is given as follows49
in which \(\lambda\) is a free constant. Also, the nonlinear terms denote the chemical potential of the model, while \(\frac{\partial ^4 Y(x,t)}{\partial x^4}\) denotes the dispersive wave effect of the fourth order system. That equation is often used to simulate phase segregation of a binary alloy system, but many other applications, such as, image processing, planet formation and cancer growth are encountered in the literature. The Cahn–Hilliard equation is a basic partial differential equation in the context of so-called phase field models, which are also called diffuse interface models. It is used to describe the mixture of two conserved components, e.g. two different kinds of atoms in a binary alloy or two different fluids.
This paper employs the novel strategies based on the \(\tan (\phi /2)\)-expansion method, Jacobi elliptic function expansion scheme, rational multi wave functions and decomposition variational iteration method for the fourth order Cahn–Hilliard equation. This technique allows scholars to compute accurate optical solutions for differential equations of both integer and fractional order. Firstly, the fourth order CH equation is utilized to generate various novel soliton solutions. In addition, we explain how the selection of parameters affects the profile of wave dynamics. This analysis highlights the effectiveness and reliability of the method in constructing soliton using the \(\tan (\phi /2)\)-expansion method and Jacobi elliptic function expansion scheme to the fourth-order Cahn–Hilliard equation. The soliton solutions offer novel or enlarged types of wave dynamics and stability when compared to previous solutions in the literature. Future technological and scientific research may be able to take new paths thanks to the possible uses of these solutions in water waves, plasmas, and other fields. In this study, we aimed to use the RMWFs and one and two waves to the CH equation to investigate its capability of modeling wave propagation in multidimensional media. As demonstrated by applying the RMWFs, generating exact, implicit solutions for this nonlinear partial differential equation turned out to be highly effective, providing clear evidence for the utility of this method in solving NPDEs.
The sixth-order highly nonlinear generalized Korteweg–de Vries–Kadomtsev–Petviashvili dynamical model was studied with the unified method and the auxiliary method and the stability analysis54. The infinitesimal generators of symmetries were found by Lie symmetry invariance analysis using the modified Sardar sub equation method55. The Radhakrishnan–Kundu–Lakshmanan equation was investigated using the extended direct algebraic method and the modified Sardar sub-equation method56. The (2+1)-dimensional complex modified Korteweg–de Vries system was utilized by the auxiliary equation method and the Hirota bilinear method with novel solitons57. A comprehensive nonclassical symmetry analysis of the Tzitzéica-type nonlinear evolution model arising in quantum field theory and nonlinear optics was provided using chaotic behavior and sensitive analysis58. An integrable spin reduced Hirota–Maxwel–Bloch equation incorporating Atangana’s conformable derivative was investigated modeling magnetization reversal and femtosecond pulse propagation59. A (2+1)-dimensional nonlinear electrical transmission line model with the Atangana Baleanu derivative was employed the generalized exponential rational function method including exponential, hyperbolic, periodic, dark, kink, singular, and combo forms60.
The dynamics of solitons in electrical microtubule model, which describes the propagation of waves in nonlinear dynamical system were analyzed using the solitary wave ansatz to extract these solitons61. The optical soliton solutions for the (1+2)-dimensional chiral nonlinear Schrödinger’s equation were extracted using the first integral method and the sine-Gordon expansion method62. The extreme efficient decision making units in stochastic data envelopment analysis was studied to investigate deterministic equivalent of stochastic mode63. The generalized Davey–Stewartson equation that was used to investigate the dynamics of wave propagation in water of finite depth under the effects of gravity force and surface tension using \(exp(-\Phi (\xi ))\)-expansion method, the first integral method and the Sine-Gordon expansion method64. The extraction of optical solitons with Radhakrishnan–Kundu–Lakshmanan model in the presence of Kerr law media was investigated with the aid of the modified simple equation and \(exp(-\varphi (q))\) method65. Generalized trial equation and enhance modified extended tanh function methods were used to the cubic–quintic nonlinear Helmholtz equation66. The Chupin Liu’s theorem for obtaining the grey and black optical solitons was evaluated to study the optical metamaterials model67.
Our motivation for using this model with the proposed methods including \(\tan (\phi /2)\)-expansion method, Jacobi elliptic function expansion scheme, rational multi wave functions is to obtain analytical solutions with a greater variety of solution categories. We also used the semi-analytical decomposition variational iteration method and could find closed form solution for this mentioned model.
This paper is organized into nine sections. “Introduction” section introduces the fourth order CH equation and also its significance in describing the phase ordering dynamics. The “The \(\tan (\phi /2)\)-expansion method” section discusses \(\tan (\phi /2)\)-expansion method and application of this method. In the “Main fundamentals concepts of Jacobi elliptic function expansion scheme” section, using Jacobi elliptic function expansion scheme the traveling wave solutions are extracted. “Application of RMWFs for 4th order CH equation” section offers rational multi wave functions and its application. “Decomposition variational iteration method” section presents decomposition variational iteration method. The graphical results and discussion are found in “Graphical results” section. The “Conclusion” section provides the conclusion.
The \(\tan (\phi /2)\)-expansion method
The approach of the \(\tan (\phi /2)\)-expansion method (TEM) is related to a first-order equation. We explain the auxiliary equation below before describing the main steps of the considered technique68. The equation is given below: Accepting that the arrangement of condition (1.1) can be communicated by the taking after ansatz:
where \(\mu _i (0\le i \le \phi ), \lambda _i (1\le i \le \phi )\) are the parameters to be decided and \(\mu _\phi \ne 0, \lambda _\phi \ne 0\) and \(Z=Z(\theta )\) fulfills within the ODE as takes after:
The specific arrangements of condition (2.2) will be examined as:
Product 1: With \(F=q_1^2+q_2^2-q_3^2<0\) and \(q_2-q_3\ne 0\), then \(\Phi (\xi )=2\arctan \left[ \frac{q_1}{q_2-q_3}-\frac{\sqrt{-F}}{q_2-q_3}\tan \left( \frac{\sqrt{-F}}{2}\theta \right) \right] .\)
Product 2: With \(F>0\) and \(q_2-q_3\ne 0\), then \(\Phi (\xi )=2\arctan \left[ \frac{q_1}{q_2-q_3}+\frac{\sqrt{F}}{q_2-q_3}\tanh \left( \frac{\sqrt{F}}{2}\theta \right) \right] .\)
Product 3: With \(F>0, F_1=q_1^2+q_2^2\), \(q_2\ne 0\) and \(q_3=0,\) then \(\Phi (\xi )=2\arctan \left[ \frac{q_1}{q_2}+\frac{\sqrt{F_1}}{q_2}\tanh \left( \frac{\sqrt{F_1}}{2}\theta \right) \right] .\)
Product 4: With \(F<0, F_2=q_3^2-q_1^2\), \(q_3\ne 0\) and \(q_2=0,\) then \(\Phi (\xi )=2\arctan \left[ -\frac{q_1}{q_3}+\frac{\sqrt{F_2}}{q_3}\tan \left( \frac{\sqrt{F_2}}{2}\theta \right) \right] .\)
Product 5: With \(F>0, F_3=q_2^2-q_3^2\), \(q_2-q_3\ne 0\) and \(q_1=0,\) then \(\Phi (\xi )=2\arctan \left[ \sqrt{\frac{q_2+q_3}{q_2-q_3}}\tanh \left( \frac{\sqrt{F_3}}{2}\theta \right) \right] .\)
Product 6: With \(q_1=0\) and \(q_3=0\), then \(\Phi (\xi )=\arctan \left[ \frac{e^{2q_2\theta }-1}{e^{2q_2\theta }+1}, \ \frac{2e^{q_2\theta }}{e^{2q_2\theta }+1}\right] .\)
Product 7: With \(q_2=0\) and \(q_3=0\), then \(\Phi (\xi )=\arctan \left[ \frac{2e^{q_1\theta }}{e^{2q_1\theta }+1}, \ \frac{e^{2q_1\theta }-1}{e^{2q_1\theta }+1}\right] .\)
Product 8: With \(F=0\), then \(\Phi (\xi )=-2\arctan \left[ \frac{(q_2+q_3)(q_1\theta +2)}{q_1^2\theta }\right] .\hspace{7.5cm}\)
Product 9: With \(q_1=0,q_2=-q_3\), then \(\Phi (\xi )=-2\arctan \left[ \frac{1}{q_3\,\theta }\right] .\)
Product 10: With \(q_1=0,q_2=q_3\), then \(\Phi (\xi )=2\arctan \left[ C_1+q_3\,\theta \right] .\hspace{7.5cm}\)
Product 11: With \(q_3=0,q_2=i\,q_1\), then \(\Phi (\xi )=-2i\, arctanh\left[ \frac{q_1\theta +2}{q_1\theta }\right] .\hspace{7.5cm}\)
For see the rest cases refer to Ref.69,70,71. Also, \(\mu _i, \lambda _i(i=1,2,\ldots ,\phi ), q_1, q_2\) and \(q_3\) are also the values to be explored later.
Application of TEM for 4th order CH equation
By using the transformation wave \(\theta =m\,x+n\,t\), Eq. (1.1) changes to
After integrating once Eq. (2.3) respect to \(\theta\), we get
Employing the principle of homogeneous balance to the terms \((Y)^2\frac{d Y}{d\xi }\) and \(\frac{d^3 Y}{d\xi ^3}\) in Eq. (2.4) yields \(\phi = 1\). So, Eq. (2.1) can be re-written as follows:
Insert the Eq. (2.5) and its derivatives into equation (2.4) get to the related nonlinear arithmetical condition. The sets of solutions are as follow:
Merge I:
Through product 2, \(F=\frac{2}{m^2}\) the exact solution will be as:
Merge II:
Through product 2, \(F=\frac{2}{m^2}\) the exact solution will be as:
Merge III:
Through product 5, \(F_3=q_2^2-q_3^2\) the soliton-singular solution will be as:
Through product 6, the kink solution will be as:
Merge IV:
Through product 5, \(F_3=q_2^2-q_3^2\) the soliton-singular solution will be as:
Through product 6, the kink solution will be as:
Merge V:
Through product 5, \(F_3=288q_3^2\) the soliton-singular solution will be as:
Merge VI:
Through product 5, \(F_3=288q_3^2\) the soliton-singular solution will be as:
Merge VII:
Through product 5, \(F_3=48q_3^2\) the periodic-singular solution will be as:
Merge VIII:
Through product 5, \(F_3=48q_3^2\) the periodic-singular solution will be as:
Merge IX:
Through product 5, \(F_3=3q_3^2\) the periodic-singular solution will be as:
Merge X:
Through product 5, \(F_3=3q_3^2\) the periodic-singular solution will be as:
Merge XI:
Through product 1, \(F=\frac{3 m^{2} q_{2}^{2}-3 m^{2} q_{3}^{2}+2}{m^{2}}<0\) the soliton solution will be as:
Through product 2, \(F=\frac{3 m^{2} q_{2}^{2}-3 m^{2} q_{3}^{2}+2}{m^{2}}>0\) the soliton solution will be as:
Through product 6, the kink soliton solution will be as:
Main fundamentals concepts of Jacobi elliptic function expansion scheme
The following is the expression for the NLPDE:
where N is a polynomial that contains u(x, t) and its partial derivative. Consider the following transformation
In this way, Eq. (3.33) turns into a NODE, which is described as
To get to the exact solutions, we have:
where \(\mu _i\) and \(\lambda _i\) are free constants (\(\mu _i\ne 0\) or \(\lambda _i\ne 0\)). The function \(F(\theta )\) is expressed as follows:
where \(r_0,r_2\), and \(r_4\) are constants, then the solution of Eq. (3.37) is given below Tables 1 and 2, with the conditions of \(r_0,r_2\), and \(r_4\). Table 1 contains the Jacobi elliptic functions, while Table 2 includes functions of trigonometric and hyperbolic functions.
Application of JEFES for 4th order CH equation
According to Eq. (2.4) and obtained balance number, using (3.36) solution can be re-written as follows:
With their derivatives
Insert the Eq. (3.38) and its derivatives (3.39) into Eq. (2.4) get to the related nonlinear arithmetical condition. The sets of solutions are as follow:
Merge I.
Case 1 Take the case \(r_4 = \chi ^2, r_2 = -1-\chi ^2, r_0 = 1\) and \(F(\theta )= sn(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the soliton solution as
When \(\chi =1\), then (3.42) gives the periodic solution as
Case 2 Take the case \(r_4 = -\chi ^2, r_2 =2\chi ^2-1, r_0 = 1-\chi ^2\) and \(F(\theta )= cn(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the soliton solution as
When \(\chi =1\), then (3.42) gives the soliton solution as
Case 3 Take the case \(r_4 = 1, r_2 =-\chi ^2-1, r_0 = \chi ^2\) and \(F(\theta )= ns(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the singular soliton solution as
When \(\chi =1\), then (3.42) gives the singular periodic solution as
Case 4 Take the case \(r_4 = 1-\chi ^2, r_2 =2\chi ^2-1, r_0 = -\chi ^2\) and \(F(\theta )= nc(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the bright soliton solution as
When \(\chi =1\), then (3.42) gives the soliton solution as
Case 5 Take the case \(r_4 =\frac{1}{4}, r_2 =\frac{1-2\chi ^2}{2}, r_0 = \frac{1}{4}\) and \(F(\theta )= ns(\theta ,\chi )\mp cs(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =1\), then (3.42) gives the soliton solution as
Case 6 Take the case \(r_4 = \frac{1-\chi ^2}{4}, r_2 =\frac{1+\chi ^2}{2}, r_0 = \frac{1-\chi ^2}{4}\) and \(F(\theta )= nc(\theta ,\chi )\mp sc(\theta ,\chi )\) or \(\frac{cn(\theta ,\chi )}{1\mp sn(\theta ,\chi )}\). Then we can write the solution according (3.41) as
When \(\chi =1\), then (3.42) gives the soliton solution as
Case 7 Take the case \(r_4 = \frac{\chi ^2}{4}, r_2 =\frac{\chi ^2-2}{2}, r_0 = \frac{1}{4}\) and \(F(\theta )= \frac{sn(\theta ,\chi )}{1\mp dn(\theta ,\chi )}\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the soliton solution as
When \(\chi =1\), then (3.42) gives the bright-dark soliton solution as
Case 11 Take the case \(r_4 = \frac{1}{4}, r_2 =\frac{\chi ^2-2}{2}, r_0 =\frac{\chi ^4}{4}\) and \(F(\theta )= ns(\theta ,\chi )\mp ds(\theta ,\chi )\). Then, we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the bright soliton solution as
When \(\chi =1\), then (3.42) gives the combined singular solution as
Case 12 Take the case \(r_4 = \frac{(1+\chi ^2)^2}{4}, r_2 =\frac{1+\chi ^2}{2}, r_0 =\frac{1}{4}\) and \(F(\theta )= \frac{sn(\theta ,\chi )}{dn(\theta ,\chi )\mp cn(\theta ,\chi )}\). Then, we can write the solution according (3.41) as
When \(\chi =1\), then (3.42) gives the dark-bright soliton solution as
Merge II.
Case 1 Take the case \(r_4 = \chi ^2, r_2 = -1-\chi ^2, r_0 = 1\) and \(F(\theta )= sn(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.68) gives the periodic solution as
When \(\chi =1\), then (3.42) gives the dark soliton solution as
Case 2 Take the case \(r_4 = -\chi ^2, r_2 =2\chi ^2-1, r_0 = 1-\chi ^2\) and \(F(\theta )= cn(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.42) gives the periodic solution as
When \(\chi =1\), then (3.42) gives the singular-periodic solution as
Case 3 Take the case \(r_4 = 1, r_2 =-\chi ^2-1, r_0 = \chi ^2\) and \(F(\theta )= ns(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.74) gives the singular periodic solution as
When \(\chi =1\), then (3.74) gives the soliton solution as
Case 4 Take the case \(r_4 = 1-\chi ^2, r_2 =2\chi ^2-1, r_0 = -\chi ^2\) and \(F(\theta )= nc(\theta ,\chi )\). Then we can write the solution according (3.67) as
When \(\chi =0\), then (3.77) gives the periodic solution as
When \(\chi =1\), then (3.77) gives the periodic solution as
Case 5 Take the case \(r_4 =\frac{1}{4}, r_2 =\frac{1-2\chi ^2}{2}, r_0 = \frac{1}{4}\) and \(F(\theta )= ns(\theta ,\chi )\mp cs(\theta ,\chi )\). Then we can write the solution according (3.41) as
When \(\chi =1\), then (3.80) gives the complex singular soliton solution as
Case 6 Take the case \(r_4 = \frac{1-\chi ^2}{4}, r_2 =\frac{1+\chi ^2}{2}, r_0 = \frac{1-\chi ^2}{4}\) and \(F(\theta )= nc(\theta ,\chi )\mp sc(\theta ,\chi )\) or \(\frac{cn(\theta ,\chi )}{1\mp sn(\theta ,\chi )}\). Then we can write the solution according (3.41) as
When \(\chi =1\), then (3.82) gives the complex combined soliton solution as
Case 7 Take the case \(r_4 = \frac{\chi ^2}{4}, r_2 =\frac{\chi ^2-2}{2}, r_0 = \frac{1}{4}\) and \(F(\theta )= \frac{sn(\theta ,\chi )}{1\mp dn(\theta ,\chi )}\). Then we can write the solution according (3.41) as
When \(\chi =0\), then (3.84) gives the soliton solution as
When \(\chi =1\), then (3.84) gives the complex bright-dark soliton solution as
Case 10 Take the case \(r_4 = -1, r_2 =2-\chi ^2, r_0 = \chi ^2-1\) and \(F(\theta )=dn(\theta ,\chi )\). Then, we can write the solution according (3.41) as
When \(\chi =1\), then (3.87) gives the complex periodic solution as
Case 11 Take the case \(r_4 = \frac{1}{4}, r_2 =\frac{\chi ^2-2}{2}, r_0 =\frac{\chi ^4}{4}\) and \(F(\theta )= ns(\theta ,\chi )\mp ds(\theta ,\chi )\). Then, we can write the solution according (3.67) as
When \(\chi =0\), then (3.89) gives the complex singular soliton solution as
When \(\chi =1\), then (3.89) gives the complex singular solution as
Case 12 Take the case \(r_4 = \frac{(1+\chi ^2)^2}{4}, r_2 =\frac{1+\chi ^2}{2}, r_0 =\frac{1}{4}\) and \(F(\theta )= \frac{sn(\theta ,\chi )}{dn(\theta ,\chi )\mp cn(\theta ,\chi )}\). Then, we can write the solution according (3.67) as
When \(\chi =1\), then (3.92) gives the complex dark-bright soliton solution as
Application of RMWFs for 4th order CH equation
We consider two subsections:
One wave solution for Eq. (3.38)
Consider the one wave solution as
Using (4.94) and inserting (4.94) into (3.38), we can get the nonlinear algebra equations
After solving the above system, we can receive the following results:
Two wave solution for Eq. (3.38)
Consider the one wave solution as
Using (4.98) and inserting (4.98) into (3.38), we can get the nonlinear algebra equations. After solving the obtained system, we can receive the following results:

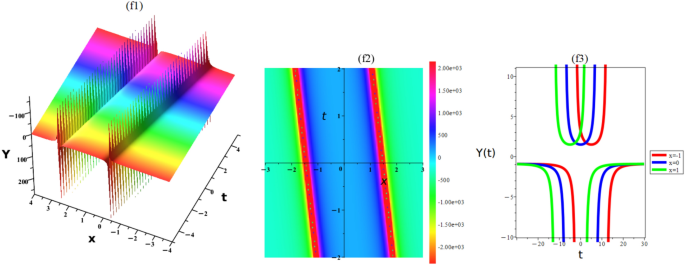

Dynamic Graphical visualization of the obtained result of Eq. (3.43) of JEFES method, gives breather wave solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_1(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-4\le x\le 4\) and \(-4\le t\le 4\) for 3D plot, \(-3\le x\le 3\) and \(-2\le t\le 2\) for density plot, and \(-30\le t\le 30\) for 2D plot.

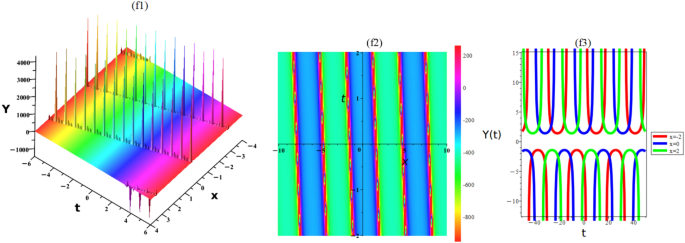

Dynamic Graphical visualization of the obtained result of Eq. (3.44) of JEFES method, gives periodic wave solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_2(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-4\le x\le 4\) and \(-6\le t\le 6\) for 3D plot, \(-10\le x\le 10\) and \(-2\le t\le 2\) for density plot, and \(-40\le t\le 40\) for 2D plot.

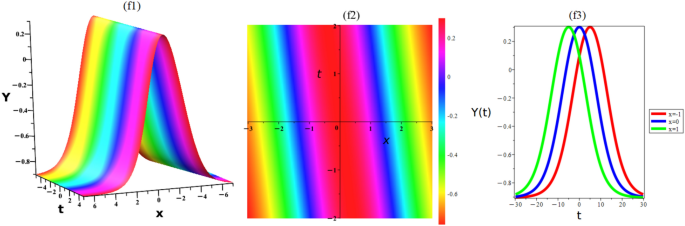

Dynamic Graphical visualization of the obtained result of Eq. (3.46) of JEFES method, gives soliton solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_3(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-6\le x\le 6\) and \(-4\le t\le 4\) for 3D plot, \(-3\le x\le 3\) and \(-2\le t\le 2\) for density plot, and \(-30\le t\le 30\) for 2D plot.
Dynamic Graphical visualization of the obtained result of Eq. (3.47) of JEFES method, gives bright soliton solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_4(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-4\le x\le 4\) and \(-6\le t\le 6\) for 3D plot, \(-10\le x\le 10\) and \(-2\le t\le 2\) for density plot, and \(-40\le t\le 40\) for 2D plot.

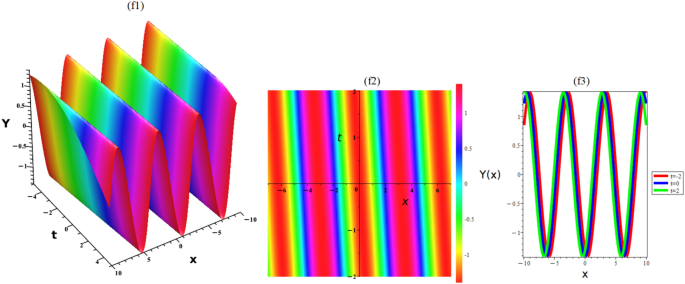

Dynamic Graphical visualization of the obtained result of Eq. (3.55) of JEFES method, gives periodic wave solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_9(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-10\le x\le 10\) and \(-4\le t\le 4\) for 3D plot, \(-6\le x\le 6\) and \(-2\le t\le 2\) for density plot, and \(-10\le x\le 10\) for 2D plot.

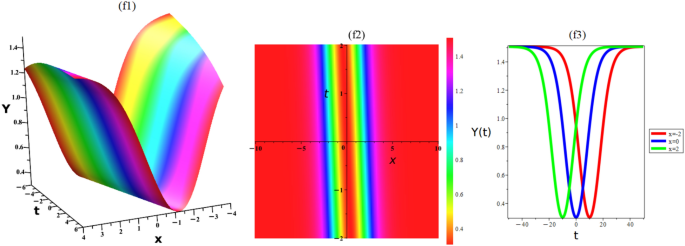

Dynamic Graphical visualization of the obtained result of Eq. (3.62) of JEFES method, gives soliton solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{14}(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-4\le x\le 4\) and \(-6\le t\le 6\) for 3D plot, \(-10\le x\le 10\) and \(-2\le t\le 2\) for density plot, and \(-40\le t\le 40\) for 2D plot.

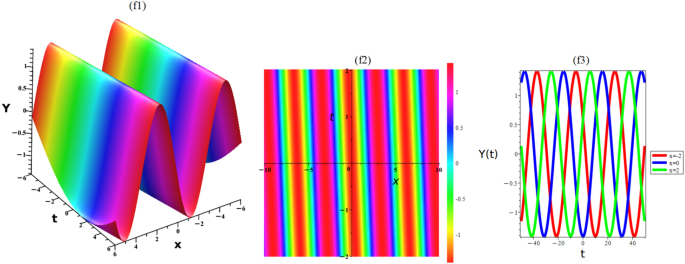

Dynamic Graphical visualization of the obtained result of Eq. (3.63) of JEFES method, gives periodic wave solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{15}(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-6\le x\le 6\) and \(-6\le t\le 6\) for 3D plot, \(-10\le x\le 10\) and \(-2\le t\le 2\) for density plot, and \(-40\le t\le 40\) for 2D plot.

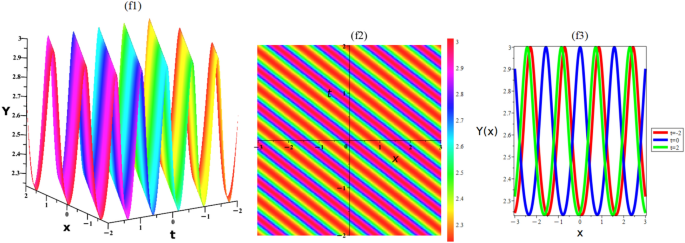

Dynamic Graphical visualization of the obtained result of Eq. (3.69) of JEFES method, gives periodic wave solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{1}(x,t)\): \(\lambda =2, \theta =m\,(x+\lambda \,t)\), with \(-2\le x\le 2\) and \(-2\le t\le 2\) for 3D plot, \(-3\le x\le 3\) and \(-2\le t\le 2\) for density plot, and \(-3\le x\le 3\) for 2D plot.

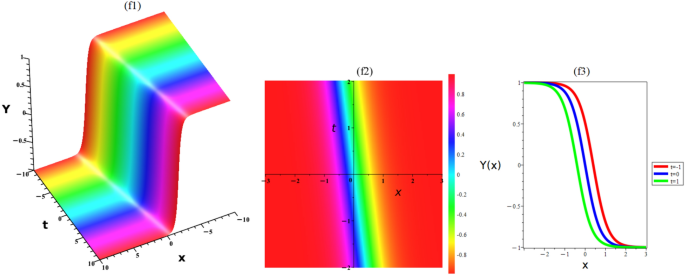

Dynamic Graphical visualization of the obtained result of Eq. (3.70) of JEFES method, gives soliton solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{2}(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-10\le x\le 10\) and \(-10\le t\le 10\) for 3D plot, \(-3\le x\le 3\) and \(-2\le t\le 2\) for density plot, and \(-3\le x\le 3\) for 2D plot.

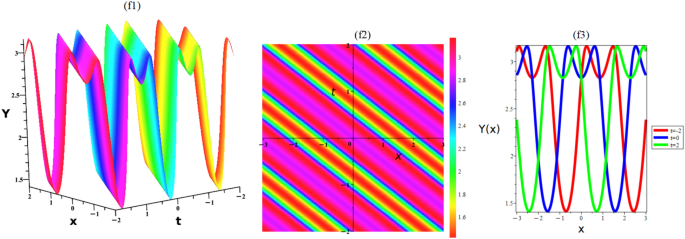

Dynamic Graphical visualization of the obtained result of Eq. (3.72) of JEFES method, gives M-shaped soliton solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{3}(x,t)\): \(\lambda =2, \theta =m\,(x+\lambda \,t)\), with \(-2\le x\le 2\) and \(-2\le t\le 2\) for 3D plot, \(-3\le x\le 3\) and \(-2\le t\le 2\) for density plot, and \(-3\le x\le 3\) for 2D plot.
Dynamic Graphical visualization of the obtained result of Eq. (3.73) of JEFES method, gives W-shaped soliton solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{4}(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-4\le x\le 4\) and \(-10\le t\le 10\) for 3D plot, \(-4\le x\le 4\) and \(-2\le t\le 2\) for density plot, and \(-4\le x\le 4\) for 2D plot.

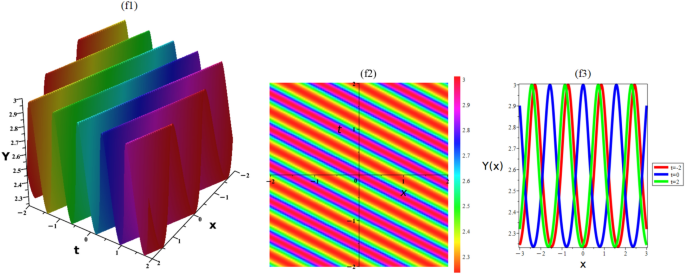

Dynamic Graphical visualization of the obtained result of Eq. (3.75) of JEFES method, gives periodic wave solution such as (f1) 3D surface, (f2) density plot, (f3) 2D surface for \(Y_{5}(x,t)\): \(\lambda =0.2, \theta =m\,(x+\lambda \,t)\), with \(-2\le x\le 2\) and \(-2\le t\le 2\) for 3D plot, \(-2\le x\le 2\) and \(-2\le t\le 2\) for density plot, and \(-3\le x\le 3\) for 2D plot.
Decomposition variational iteration method
In this section, we will explain the decomposition variational iteration method which will be utilized to the mentioned nonlinear model. By taking the provided conditions in \(Y(x,0)=\tanh \left( \frac{x}{\sqrt{2}}\right)\), the Eq. (3.38) is transformed to the following form,
For investigating the procedure, we consider the following iteration formula as:
where \(\mathfrak {L}=\partial _t\), \(\mathfrak {R}(Y(x,t))\) is a linear operator and \(\mathfrak {N}(Y(x,t))\) is a nonlinear term. Also, \(\phi (\omega )\) is the general Lagrange multiplier72. To compute the variation with respect to \(Y_n\), we obtain the following issues:
thus we obtain \(\phi (\omega )=-1\). So, the equality is changed to
Then, we have
Subsequently, we define the series form solutions as follows
where the exact solution is given as \(Y(x,t)=\tanh \left( \frac{x+t}{\sqrt{2}}\right)\).
Convergence analysis of DVIM
We discuss the convergence by the following theorems:
Theorem 5.1
Suppose that \(\mathfrak {L}\) and \(\mathfrak {N}\) are Lipschitz functions as in the last theorems; then, the relation of (5.109) is convergent.
Proof
Assume \(H=(C[J],\parallel .\parallel )\) be the Banach space defined before, and let \(Y_k=\sum _{i=0}^{k}Y_i(x,t)\). To offer that \(Y_k\) is a Cauchy sequence in H. Let
Let \(k_1 = k_2 + 1\), then we have
in which \(g=g_1+g_2+g_3\), we get
if \(0<g<1\), then \(1-g^{{k_1}-{k_2}}<1\), hence we have
One can see that \(Y_{k_1}\) is a Cauchy sequence in H. So, the series \(Y_{k_1}\) is convergent.
Comparing the exact and approximate solution in a two-dimensional graph (5.113) (f1) the first-order, (f2) the second-order, (f3) the third-order, (f4) the fourth-order, (f5) the fifth-order and (f6) the sixth-order of 4OCHEq by dVIM.
Graphical results
In this particular section, a detailed analysis of the generated solutions with those from earlier research demonstrates the unique originality and innovation of the current study. Using the Maple software, a number of graphical representations are produced for the problems, ranging from Figs. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 and 13, at different selected values. This section aims to generate graphical illustrations of obtained solutions of fourth-order Cahn Hilliard Equation, which are obtained by the \(\tan (\phi /2)\)-expansion technique, Jacobi elliptic function expansion Scheme and one and two waves solutions. The results showcase a variety of visual depictions, including 3D, 2D and density plots. Here, we elaborate and investigate the dynamics of the some of the obtained solutions. These results generally shows dark, periodic, kink, bright, M-shaped and W-shaped soliton solutions. Figure 1 visualize the graphs associated with the breather wave solution for the given Eq. (3.43) using \(\lambda =0.2\). Figure 2 illustrates the characteristics of periodic wave solutions for Eq. (3.44) using the given parameters \(\lambda =0.2\). Figure 3 illustrates the characteristics of soliton form solutions for Eq. (3.45) by applying the given parameters \(\lambda =0.2\). Figure 4 illustrates the characteristics of bright soliton solutions for Eq. (3.46) using the given parameters \(\lambda =0.2\). Figure 5 displays the characteristics of the periodic wave solution graph for the solution of Eq. (3.55) for \(\lambda =0.2\). Figure 6 depicts the graph of the soliton solution for the solution of Eq. (3.62) for \(\lambda =0.2\). Figure 7 visualizes the graph associated with the periodic wave solution for the solution of Eq. (3.63) for \(\lambda =0.2\). Figure 8 provides the graph associated with the periodic wave solution for the solution of Eq. (3.69) for \(\lambda = 2\). Figure 9 provides the graph associated with the soliton solution for the solution of Eq. (3.70) for \(\lambda =0.2\).

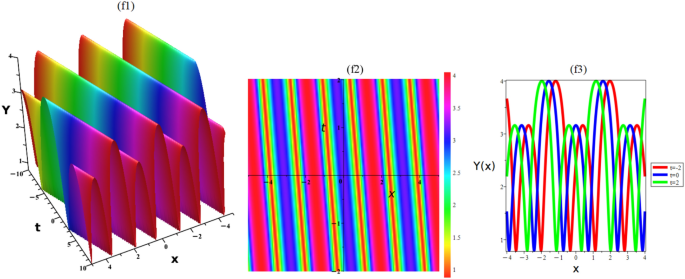

Figure 10 provides the graph associated with the one wave solution for the solution of Eq. (3.72) for \(\lambda = 2\). Figure 11 visualizes the graph associated with the periodic wave solution for the solution of Eq. (3.73) for \(\lambda _2 = 0.2\). Figure 12 provides the graph associated with the periodic form wave solution for the solution of Eq. (3.75) for \(\lambda = 2\).
Dark solitons are defined as solutions to the nonlinear Schrödinger equation that exhibit a dip in intensity within a uniform background, characterized by an abrupt phase change at the dip center. Bright and dark solitons are usually considered from the perspective of modulation instability of the carrier wave train: bright solitons are observed when the carrier wave is unstable with respect to long-wave modulations, while dark solitons are observed when the carrier wave is modulationally stable. Solitons can be classified in numerous ways, such as considering their topology or their profiles. The solitons that will be focused on are called the Kink soliton. The kink soliton is topological, meaning that the boundary conditions at infinity for the wave are topologically different to the vacuum. These kink solitons are also characterized by their permanent profiles, which mean that they do not change with time. We also report a soliton-induced change in the topology of the density profiles of the two-species condensates at phase separation in Figs. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 and 12.

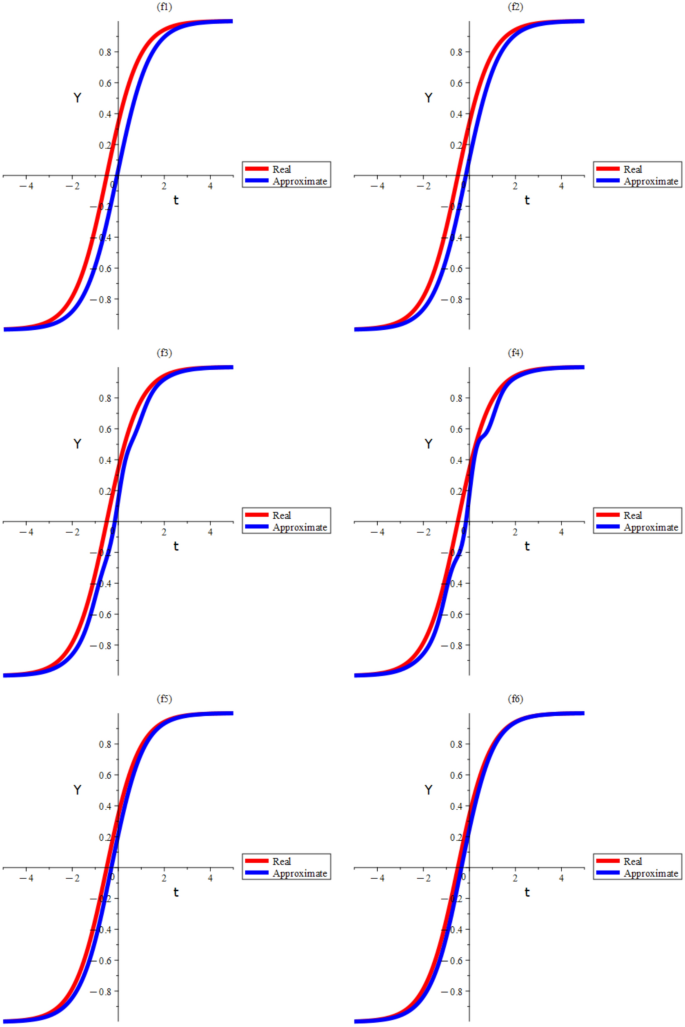

The first, second, third, fourth, fifth and sixth order approximations are compared with the exact solution for the described case with known condition in Fig. 13 and show that the decomposition VIM is a working method in obtaining the fourth order Cahn–Hilliard equation as a model of fluid flow.
We furnish the comparison of the above reported results with previously published works on fourth-order Cahn–Hilliard equation. Hassana et al. utilized optimal Homotopy asymptotic method to derive approximate solutions of the fractional Cahn–Hilliard equation73. Al-Smadi et al. studied the approximate solutions of nonlinear temporal fractional model of Cahn–Hilliard equation49. El-Tantawy et al. utilized homotopy perturbation transform method to derive semi-analytical solutions of the fourth-order time-fractional Cahn–Hilliard models50. Only few works are published in the literature on the analysis of fourth-order Cahn–Hilliard model. Some researchers derive trigonometric, hyperbolic and rational trigonometric solutions with aid ansatz methods. We obtained abundant solutions by help of proposed schemes. We implemented the \(\tan (\phi /2)\)-expansion approach, Jacobi elliptic function expansion scheme, rational multi wave functions method and decomposition variational iteration method to derive hyperbolic, periodic, dark soliton, bright soliton, kink soliton, and singular soliton solutions of the fourth-order Cahn–Hilliard model. In this work, we derive more soliton solutions with efficient approach. The solutions are expressed by trigonometric, hyperbolic and Jacobi-elliptic functions. These solutions are new for the fourth-order Cahn–Hilliard equation, which not been reported elsewhere, confirming the originality of the reported solutions. The main advantages of three analytical methods are the good transparency between calculated results and input data, less effort in modeling and programming, and very short computation time. Depending on the degree of simplification, the results are sometimes not very accurate.
Conclusion
In this article, the TEM, JEFES, RMWFs and DVIM were acknowledged as the strong techniques for finding solutions of NLEEs. TEM was presented for the nonlinear CH equation. By utilizing JEFES, RMWFs and DVIM techniques, we found several solutions of distinct types. Maple is a widely validated program used in many scientific and mathematical domains. We used the latest version of Maple to influence changes or improvements made to its algorithms. The acquired results demonstrate that the mentioned schemes were a strong mathematical technique from which novel, exact, precise solutions are frequently obtained. From a theoretical and practical standpoint, these approaches were quite valid, modest, practical, and efficient. In the vast field of applied nonlinear science, it is crucial to note that these approaches may be more commonly appropriate for the broad category of physical problems. The behavior of such nonlinear models can be better determined, and decisions made to further resolve corresponding difficulties in the future. The results of this research present new insights into soliton behavior, and scholars can use the method and models suggested in this article. The result will significantly enhance nonlinear science and serve as a valuable resource for further research. Numerical simulation has been carried out to highlight the ability of the DVIM method. We obtained a good approximation for the nonlinear model with minimal numerical calculations. In the future, this article will also help the researchers to use these techniques on higher-dimensional nonlinear models and to the system of coupled equations. In addition, by selecting appropriate parameters, we plot three-dimensional graphs, density plots (Figs. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13). The visual depictions act as a significant means of verification, supporting the main findings and offering a thorough and detailed analysis of the solutions. The obtained solutions can be used in different physical systems such interfacial fluid flow, polymer science and in industrial applications. These images vividly illustrate the physical characteristics of rogue wave solutions. Two and one waves for two cases of the mentioned equations were analyzed and investigated with plenty of solutions. In future, the applied approaches can be utilized to more advanced problems in integrable systems. Compared to many other methods, these solutions demonstrate and highlight the proposed method’s simplicity, reliability, and effectiveness.
Data availability
The datasets generated during and/or analyzed during the current study are available from the corresponding author on reasonable request.
References
Deka, M. K. et al. Shock waves in ion-beam-depleted spin-polarized quantum plasma with ionic pressure anisotropy. Plasma 8, 3 (2025).
Meng, S. et al. Observer design method for nonlinear generalized systems with nonlinear algebraic constraints with applications. Automatica 162, 111512 (2024).
Lakestani, M. & Manafian, J. Analytical treatments of the space-time fractional coupled nonlinear Schrödinger equations. Opt. Quant. Electron. 50(396), 1–33 (2018).
Zhang, H. H. et al. Electromagnetic-circuital-thermal-mechanical multiphysics numerical simulation method for microwave circuits. IEEE J. Multiscale Multiphys. Comput. Tech. 9, 129–141 (2024).
Bai, B., Wu, H., Nie, Q., Liu, J. & Jia, X. Granular thermodynamic migration model suitable for high-alkalinity red mud filtrates and test verification. Int. J. Numer. Anal. Methods Geomech. 49(5), 1530–1543 (2025).
Ma, C. et al. A multi-scale spatial temporal interaction fusion network for digital twin-based thermal error compensation in precision machine tools. Expert Sys. Appl. 286, 127812 (2025).
Dehghan, M., Manafian, J. & Saadatmandi, A. Solving nonlinear fractional partial differential equations using the homotopy analysis method. Numer. Methods Partial Differ. Eq. J. 26, 448–479 (2010).
Dehghan, M. & Manafian, J. The solution of the variable coefficients fourth-order parabolic partial differential equations by homotopy perturbation method. Z. Naturforschung A 64a, 420–430 (2009).
Dehghan, M., Manafian, J. & Saadatmandi, A. Application of the Exp-function method for solving a partial differential equation arising in biology and population genetics. Int. J. Numer. Methods Heat Fluid Flow 21, 736–753 (2011).
Zhang, M., Xie, X., Manafian, J., Ilhan, O. A. & Singh, G. Characteristics of the new multiple rogue wave solutions to the fractional generalized CBS-BK equation. J. Adv. Res. 38, 131–142 (2022).
Liu, H. Z. A modification to the first integral method and its applications. Appl. Math. Comput. 419, 126855 (2022).
Vakhnenko, V. O. & Parkes, E. J. The calculation of multi-soliton solutions of the Vakhnenko equation by the inverse scattering method. Chaos Solitons Fract. 13(9), 1819–1826 (2002).
Moustafa, M., Amin, A. M. & Laouini, G. New exact solutions for the nonlinear Schrodinger’s equation with anti-cubic nonlinearity term via lie group method. Optik 248, 168205 (2021).
Liu, S., Fu, Z., Liu, S. & Zhao, Q. Jacobi elliptic function expansion method and periodic wave solutions of nonlinear wave equations. Phys. Let. A 289(1–2), 69–74 (2001).
Dehghan, M. & Manafian, J. Study of the wave-breakings qualitative behavior of the Fornberg–Whitham equation via quasi-numeric approaches. Int. J. Numer. Methods Heat Fluid Flow 22(5), 537–553 (2012).
Oqielat, M. N. et al. Laplace-residual power series method for solving time-fractional reaction–diffusion model. Frac. Fract. 7, 309 (2023).
Aghazadeh, A., Mahmoudi, Y. & Saei, F. D. Legendre approximation method for computing eigenvalues of fourth order fractional Sturm-Liouville problem. Math. Comput. Simul. 206, 286–301 (2023).
Ni, Z. L. et al. Numerical analysis of ultrasonic spot welding of Cu/Cu joints. J. Mater. Eng. Perform. 34, 20624–20635 (2025).
Xu, K. et al. Novel flexible, strong, thermal-stable, and high-barrier switchgrass-based lignin-containing cellulose nanofibrils/chitosan biocomposites for food packaging. Ind. Crops Prod. 179, 114661 (2022).
Zhang, Y. et al. Effects of facile chemical pretreatments on physical-chemical properties of large clustered and small monopodial bamboo microfibers isolated by steam explosion. Ind. Crops Prod. 207, 117747 (2024).
Zhao, Y. et al. Application of the non-linear three-component model for simulating accelerated creep behavior of polymer-alloy geocell sheets. Geotext. Geomembr. 53(1), 70–80 (2025).
Bluman, G. W. & Kumei, S. Potential symmetries. Symmetries Diff. Eq. 352–383 (1989).
Zhang, Y. et al. Effects of facile chemical pretreatments on physical–chemical properties of large clustered and small monopodial bamboo microfibers isolated by steam explosion. Ind. Crops Prod. 207, 117747 (2024).
Bing, B., Haiyan, W., Nan, W. & Bixia, Z. Granular thermodynamic ideology on the heavy metal migration in unsaturated soils driven by seepage-temperature. J. Hydrol. 661, 133738 (2025).
Chen, Y. et al. Multiscale cellulose-based optical management films with tunable transparency and haze fabricated by different bamboo components and mechanical defibrillation approaches. Carbohydr. Polym. 348, 122811 (2025).
Ma, C. et al. A multi-scale spatial-temporal interaction fusion network for digital twin-based thermal error compensation in precision machine tools. Expert Syst. Appl. 286, 127812 (2025).
Wu, Y. & Shen, T. A finite convergence criterion for the discounted optimal control of stochastic logical networks. IEEE Trans. Autom. Control. 63, 262–268 (2018).
Manafian, J., Mohammadi-Ivatlo, B. & Abapour, M. Breather wave, periodic, and cross-kink solutions to the generalized Bogoyavlensky–Konopelchenko equation. Math. Methods Appl. Sci. 43(4), 1753–1774 (2020).
Shen, X. et al. Abundant wave solutions for generalized Hietarinta equation with Hirota’s bilinear operator. Mod. Phys. Lett. B 36(10), 2250032 (2022).
Rao, X. et al. The nonlinear vibration and dispersive wave systems with extended homoclinic breather wave solutions. Open Phys. 20, 795–821 (2022).
Pan, Y. et al. N-lump solutions to a (3+1)-dimensional variable-coefficient generalized nonlinear wave equation in a liquid with gas bubbles. Qual. Theory Dyn. Syst. 21, 127 (2022).
Zou, Q. et al. Exact breather waves solutions in a spatial symmetric nonlinear dispersive wave model in (2+1)-dimensions. Sci. Rep. 14, 31718 (2024).
Gu, Y. et al. Soliton and lump and travelling wave solutions of the (3+1) dimensional KPB like equation with analysis of chaotic behaviors. Sci. Rep. 14, 20966 (2024).
Gasimov, Y. S. On a shape design problem for one spectral functional. J. Inverse Ill-Posed Prob. 21(5), 629–637 (2013).
Aghazadeh, A. & Lakestani, M. Application of cubic B-splines for second order fractional Sturm Liouville problems. Math. Comput. Simul. 238, 479–496 (2025).
Aghazadeh, A. & Mahmoudi, Y. On approximating eigenvalues and eigenfunctions of fractional order Sturm–Liouville problems. Comput. Methods Differ. Equ. 11(4), 811–821 (2023).
Ahmad, J., Akram, S. & Ali, A. Analysis of new soliton type solutions to generalized extended (2+1) dimensional Kadomtsev–Petviashvili equation via two techniques. Ain Shams Eng. J. 15(1), 102302 (2024).
Rao, X. et al. Paul–Painlevé analysis, soliton and periodic wave in the fractional thermophoretic motion equation via graphene sheets. Qual. Theory Dyn. Syst. 23, 136 (2024).
Fugarov, D., Dengaev, A., Drozdov, I., Shishulin, V. & Ostrovskaya, A. Application of \(\tan (\phi /2)\)-expansion method for solving the fractional Biswas–Milovic equation for Kerr law nonlinearity. Comput. Methods Differ. Equ. https://doi.org/10.22034/cmde.2024.61349.2636 (2025).
Khan, U., Irshad, A., Ahmed, N. & Mohyud-Din, S. T. Improved tan \(\tan (\phi (\xi )/2)\)-expansion method for (2+1)-dimensional KP-BBM wave equation. Opt. Quant. Elec. 50, 135 (2018).
Cahn, J. W. & Hilliard, J. E. Free energy of a nonuniform system. I. Interfacial free energy. J. Chem. Phys. 28, 258–267 (1958).
Gurtin, M. E. Generalized Ginzburg–Landau and Cahn–Hilliard equations based on a microforce balance. Phys. D Nonlinear Phenom. 92, 178–192 (1996).
Choo, S. M., Chung, S. K. & Lee, Y. J. A conservative difference scheme for the viscous Cahn–Hilliard equation with a nonconstant gradient energy coefficient. Appl. Numer. Math. 51, 207–219 (2004).
Hussain, A. et al. Exact solutions for the Cahn-Hilliard equation in terms of Weierstrass-elliptic and Jacobi-elliptic functions. Sci. Rep. 14, 13100 (2024).
Fabrizio, M., Franchi, F., Lazzari, B. & Nibbi, R. A non-isothermal compressible Cahn–Hilliard fluid model for air pollution phenomena. Phys. D Nonlinear Phenom. 378, 46–53 (2018).
Zhao, X. & Liu, C. Optimal control for the convective Cahn–Hilliard equation in 2D case. Appl. Math. Optim. 70, 61–82 (2014).
Rehman, H. U., Ullah, N., Asjad, M. I. & Akgül, A. Exact solutions of convective-diffusive Cahn-Hilliard equation using extended direct algebraic method. Numer. Methods Partial Diff. Equ. 39(6), 4517–4532 (2023).
Alaoui, M. K., Nonlaopon, K., Zidan, A. M., Khan, A. & Shah, R. Analytical investigation of fractional-order Cahn–Hilliard and Gardner equations using two novel techniques. Mathematics 10, 1643 (2022).
Al-Smadi, M., Al-Omari, S., Karaca, Y. & Momani, S. Effective analytical computational technique for conformable time-fractional nonlinear Gardner equation and Cahn–Hilliard equations of fourth and sixth order emerging in dispersive media. J. Funct. Spaces 2022, 4422186 (2022).
El-Tantawy, S. A., Al-Johani, A. S., Almuqrin, A. H., Khan, A. & El-Sherif, L. S. Novel approximations to the fourth-order fractional Cahn-Hillard equations: Application to the Tantawy technique and other two techniques with Yang transform. J. Low Freq. Noise Vib. Active Control 44(3), 1–27 (2025).
Jin, D. & Sheng, D. Asymptotics of large deviations of finite difference method for stochastic Cahn–Hilliard equation. Acta Math. Sci. 45, 1078–1106 (2025).
Kulikov, A. N. & Kulikov, D. A. Bifurcations of invariant manifolds for a periodic boundary value problem for a generalized version of the Cahn–Hilliard equation. Lobachevskii J. Math. 45, 5593–5602 (2024).
Luong, T. & Kulikov, D. A. Nonnegative weak solution to the degenerate viscous Cahn–Hilliard equation. Results Appl. Math. 25, 100527 (2025).
Akram, S., Ahmad, J., Alkarni, S. & Shah, N. A. Exploration of solitary wave solutions of highly nonlinear KDV-KP equation arise in water wave and stability analysis. Results Phys. 54, 107054 (2023).
Mahmood, T., Alhawael, G., Akram, S. & Ur Rahman, M. Exploring the Lie symmetries, conservation laws, bifurcation analysis and dynamical waveform patterns of diverse exact solution to the Klein-Gordan equation. Results Phys. 54, 107054 (2023).
Algahtani, A. M., Akram, S. & Alosaimi, M. Study of bifurcations, chaotic structures with sensitivity analysis and novel soliton solutions of non-linear dynamical model. J. Taibah Univ. Sci. 18, 2399870 (2024).
El-Shorbagy, M. A., Akram, S., Ur Rahman, M. & Nabwey, H. A. Analysis of bifurcation, chaotic structures, lump and \(M-W\)-shape soliton solutions to (2+1) complex modified Korteweg–de-Vries system. AIMS Math. 9, 16116–16145 (2024).
Ur Rahman, M., Akram, S. & Asif, M. Chaotic behavior, sensitive analysis and dynamics of invariant formulation of nonclassical symmetries to the nonlinear Tzitzéica equation arising in mathematical physics. Bound. Value Prob. 2025, 123 (2025).
Akram, S. & Ur Rahman, M. Exploring nonlinear dynamics and soliton structures in the spin reduced Hirota–Maxwell–Bloch system via Atangana’s conformable operator. Chin. J. Phys. 97, 1514–1538 (2025).
Akram, S., Ur Rahman, M. & Al-Essa, L. A. A comprehensive dynamical analysis of (2+1)-dimensional nonlinear electrical transmission line model with Atangana-Baleanu derivative. Phys. Lett. A 555, 130762 (2025).
Raza, N., Murtaza, I. G., Sial, S. & Youns, M. On solitons: the biomolecular nonlinear transmission line models with constant and time variable coefficients. Waves Random Complex Media 28, 553–569 (2018).
Raza, N. & Arshed, S. Chiral bright and dark soliton solutions of Schrödinger’s equation in (1+2)-dimensions. Ain Shams Eng. J. 11, 1237–1241 (2020).
Shamsi, R., Manafian, J. & Esmaeili, S. Ranking extreme efficient decision making units in stochastic DEA. Adv. Math. Models Apl. 7 (1), 38–43 (2022).
Arshed, S., Raza, N. & Alansari, M. Soliton solutions of the generalized Davey–Stewartson equation with full nonlinearities via three integrating schemes. Ain Shams Eng. J. 12, 3091–3098 (2021).
Raza, N. & Javid, A. Dynamics of optical solitons with Radhakrishnan–Kundu–Lakshmanan model via two reliable integration schemes. Optik 178, 557–566 (2019).
Nan, T. et al. Generalized trial equation scheme and enhance modified extended Tanh function method with nonparaxial pulse propagation to the cubic–quintic nonlinear Helmholtz equation. Qual. Theo. Dyn. Sys. 24, 183 (2025).
Zhu, H. et al. Conservation law, Chupin Liu’s theorem and propagation of pulses in optical metamaterials modeled by NLSE with power law nonlinearity. Sci. Rep. 15, 21649 (2025).
Manafian, J. & Lakestani, M. Optical solitons with Biswas–Milovic equation for Kerr law nonlinearity. Eur. Phys. J. Plus 130(61), 61 (2015).
Gu, Y., Manafian, J., Malmir, S., Eslami, B. & Ilhan, O. A. Lump, lump-trigonometric, breather waves, periodic wave and multi-waves solutions for a Konopelchenko–Dubrovsky equation arising in fluid dynamics. Int. J. Mod. Phys. B 37(15), 2350141 (2023).
Wang, W., Hasanirokh, K., Manafian, J., Abotaleb, M. & Yang, Y. Analytical approach for polar magnetooptics in multilayer spin-polarized light emitting diodes based on InAs quantum dots. Opt. Quant. Elec. 54, 137 (2022).
Ali, N. H., Mohammed, S. A. & Manafian, J. New explicit soliton and other solutions of the Van der Waals model through the ESHGEEM and the IEEM. J. Mod. Tech. Eng. 8(1), 5–18 (2023).
Inokuti, M., Sekine, H. & Mura, T. General use of the Lagrange multiplier in non-linear mathematical physic. In Variational Method in the Mechanics of Solids (ed. Nemat-Nasser, S.) 156–162 (Pergamon Press, Oxford, 1978).
Hassanaa, A., Arafab, A. A. M., Ridac, S. Z., Dagherd, M. A. & El Sherbiny, H. M. An effective technique for solving generalized Cahn–Hilliard (C-H) problems. Trans. Theory Math. Phys. 1(1), 1–8 (2024).
Acknowledgements
The authors would like to acknowledge the Deanship of Graduate Studies and Scientific Research, Taif University for funding this work.
Author information
Authors and Affiliations
Contributions
The authors contributed equally and significantly in writing this paper. All authors read and approved the final manuscript. Conceptualization, J.L., J.M.; Methodology, J.L., J.M., A.A. and O.A.I.; Software, J.M., B.E., A.A.F., K.H.M.; Investigation, A.A.F., A.A. M.F.A., and O.A.I.; Resources, O.A.I., A.A., and M.F.A; Writing-original draft, J.L., J.M., A.A., O.A.I., B.E., A.A.F., K.H.M., M.F.A.; Supervision, J.M. All authors have read and agreed to the published version of the manuscript.
Corresponding author
Ethics declarations
Competing interests
The authors declare no competing interests.
Additional information
Publisher’s note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.
About this article
Cite this article
Luo, J., Manafian, J., Aghazadeh, A. et al. Study of phase separation process in multi-component mixtures using analytical methods and decomposition variational iteration method for the fourth-order Cahn–Hilliard equation. Sci Rep 15, 38789 (2025). https://doi.org/10.1038/s41598-025-22702-y
Received:
Accepted:
Published:
Version of record:
DOI: https://doi.org/10.1038/s41598-025-22702-y
