Introduction

Micromachining has emerged as a dynamic frontier in the manufacturing sector, known for its capability to intricately craft components on a remarkably small scale. Recognized as a pivotal manufacturing technique, micromachining is experiencing heightened demand across a spectrum of industries. Its proficiency in producing precision-driven miniature structures has positioned it at the forefront of technological progress. The increasing emphasis on miniaturization in electronics, medical devices, and aerospace has driven a growing need for micromachining, enabling the development of components with dimensions measured in micrometres. As industries continually expand the possibilities at the microscale, the versatility and cost-effectiveness of micromachining have become integral for shaping innovative solutions, thereby cementing its role as a crucial player in the evolution of contemporary manufacturing. In the current research landscape, the demand for functional materials in applications such as micro-robots, biomedical implants, nuclear reactor shields, and automotive components continues to flourish1,2,3. The current research focusses on the Nickel-Titanium (NiTi) alloy having wide applications in biomedical devices such as stents, catheters, guide wires, orthopaedic and dental implants and drug delivery systems whereas actuators, sensors, micro valves and micro pumps made of NiTi are getting popular and demanded. Micro machining is necessary for producing micro components; however, the limitation in the size of the components is very challenging. In this context, micro drilling of the prominent shape memory material NiTi using Tungsten carbide micro drill tool has huge industrial significance.

To emphasize more, Nickel-titanium (NiTi) alloy stands out as a highly sought-after material for use in biomedical industries, aerospace components, and aviation engines. This preference is attributed to its superior mechanical properties and electrochemical stability4. Literatures extensively cover the development of nickel and titanium-based alloys, detailing variations, and modifications in alloying elements5,6,7,8,9,10,11. Various NixTiy materials with different combinations of alloying elements, including carbon, copper, cobalt, and others, are open for discussion. These materials have been engineered to possess commendable tribological properties, fatigue strength, and super-elastic properties. Recent research has embraced additive manufacturing techniques for the development of NiTi alloy, incorporating modifications in alloying elements6. Metal cutting technology stands out as a predominant technique for removing unwanted material. Specifically, biomedical and micro-mechanical systems necessitate highly precise micro-machining processes to drill difficult-to-cut materials.

Szwajka et al.12 presented the effect of mechanical micro-drilling of Inconel 625 alloy and reported that the drill bit suffered premature breakage due to its fragile nature, resulting in lower tool life. The findings of the research also indicate that micro-mechanical re-drilling effectively rectifies the geometric discrepancies that arise from the initial laser pre-drilling. The sequential mechanical micro-drilling led to an extension in the lifespan of the drill.

Shashank et al.13 drilled micro holes into the Aluminium 7075-T6 workpiece material employing the pilot hole drilling at a diverse range of spindle speeds and feeds. The radial force and torque divulge a pattern of increase and decrease with drill bit rotational speed, and the same reflects the ‘size effect.’ The oversize error follows an ascending drift with rotational speed and is closely associated with the variations in radial force and radial torque.

Eren et al.14 examined the high-speed machining characteristics and phase change characteristics of NiTi shape memory alloy. The findings on tool wear indicate that the Polycrystalline Diamond (PCD) tool exhibits significant potential over carbide, particularly when considering the constraints associated with rapid tool wear in high cutting speed ranges. In comparison to the unprocessed sample, negligible variations in functional properties were observed at the elevated cutting speed of 250 m/min. Likewise, the addition of elements to the base material changes the properties. Kumar et al. showed that the surface modification using silicon powder using wire electric discharge machining was prominent than with aluminium powder. In this study, the 0.05% carbon added to NiTi is considered and therefore a research study on the proposed material is needed15.

During machining, the formation of burrs is contingent upon the mechanism of tool kinematics and the material’s behaviour during the metal cutting process16. According to Ramesh and Akinori17, in the micro-machining of nitinol, the tool and work interface play a pivotal role in determining the process performance, considering material phase conversion. Tool wear rate is a crucial factor in micro-drilling, particularly when drilling tough-to-cut materials. The thrust cutting force generated during micro-drilling significantly contributes to the blunting of the drill tool18. Additionally, the nomenclature of the micro-cutting tool also contributes to increasing productivity and extending tool life19. In some instances, the surface of the cutting tool is improved using processes such as Physical Vapour Deposition (or) Chemical Vapour Deposition to enhance tool life when machining tough-to-cut materials20.

Abhishek and Soumya21 designed an analytical model to evaluate the adequacy or insufficiency of the Minimum Quantity Lubrication (MQL) flow rate for diverse cutting conditions in a micro-drilling process. The model was constructed by taking into account tool geometry, the investigational value of chip thickness, and the material properties of the workpiece. Variations in feed and spindle speed were found to influence the lubrication area. Specifically, in the ploughing region, the necessary lubrication area increased with the feed rate. The quality of the machined surface can be assessed by surface roughness, where the machining parameters such as feed rate and cutting speed highly cause change in the surface roughness22. The feed rate along with spark gap voltage, pulse-on time, pulse off-time and wire feed rate in wire spark erosion process significantly affect the surface quality23.

Hegde et al. developed artificial neural network to predict the NiTi hole quality and thrust force based on mainly tool rotational speed and feed rate, however the rotational speed was high with levels 10,000, 20,000 and 30,000 rpm and feed rate with three levels of 0.075, 0.125, and 0.25 μm/rev24. On the other hand, Chaudhary et al. investigated rotational speed (25,000, 37, 500, 50,000 rpm), feed rate (0.15, 0.2, 0.25 mm per min) and tool diameter ranging from 100 to 200 μm where the findings proved diameter of the tool was the significant parameter compared to rotational speed and feed rate for the optimum hole quality of NiTi metal alloy25. Matta et al. reported the formation of micro cracks on NiTi alloy at higher rotational speed where the investigated rotational speed were from 10,000 till 30,000 rpm26. The above research proves the implication of high-speed process, however lower rotational speed are also preferred for certain applications. For example, Sethi et al. utilized only 500 rpm in addition to pulsing frequency, where pulsing frequency was considered as a parameter affecting the precision of NiTi micro channels27. More number of reported findings were based on high rotational speed compared to low rotational speed, and this supports the necessity for investigating the effect of low rotational speed on the accuracy and precision of micro drilling of NiTi. In addition, the literature emphasises more on the Electric Discharge Machining (EDM), Laser Beam Machining (LBM), and Electrochemical Machining (ECM)based process for producing holes and the capability of the conventional drilling process for micro machining has to be further explored. Therefore, the influence of three levels of low rotational speed using the conventional drilling process is explored in the presented research.

Further based on the aforementioned discussions, the micro-drilling using drill emerges as one of the most effective techniques to achieve a competent surface veracity while machining functional/tough-to-cut materials28,29,30. Electric Discharge Machining (EDM), Laser Beam Machining (LBM), Electrochemical Machining (ECM), and more, on materials such as composites, conventional metals, titanium-based alloys, and nickel-based alloys have been explored more recently; however, the potential of micro drilling process for application suitability is to be explored. The glimpse of available work (indicative) in the micro drilling is depicted in Table 1. From Table 1, the literatures have extensively available for the binary NiTi system under the various combinations of Ni and Ti. The ternary compounds are mostly copper, cobalt, hafnium, zirconium, niobium, etc. In addition to the research gaps mentioned above, there is a wide gap in the research articles containing carbon as an alloying element in NiTi binary system. Also, mostly the literatures have suggested that there is an increase in carbon percentage during EDM, the hole dimensions are not that controllable and uniform in LBM, and in both methods, the Heat Affected Zone (HAZ) is comparatively larger. From the existing research paradigm, it strongly supports the assertion that there is a demand for the study of drilling of low carbon NiTi alloy. The focal point of the research lies in the modified nickel-titanium alloy with a carbon element, which is subjected to machining studies. The principal intention of this research study is to perform micro-drilling on low-carbon NiTi alloy with 0.05% carbon utilizing tungsten carbide drills. Additionally, the objective is to comprehend the impact of feed rate and tool rotational speed on hole quality, machining time, and tool wear. The results are further elucidated with electron microscopic images and spectroscopic analyses for recommendations.

Table 1 Glimpse of literatures available (indicatively) with respect to materials, and machining methods.
Full size table

The novelty of this manuscript lies on the introducing the nickel -titanium alloy with an added element of carbon element (0.05%) and the levels of low rotational speed and feed rate. Very common smart materials possess nickel and titanium, however in this case the hardness of the material has been improved with addition of carbon element. The machining capability of the modified low carbon NiTi alloy is essential to witness the suitability of the material for several engineering applications.

Experimental procedure

Sample preparation

Nickel-titanium alloy, incorporating carbon as an alloying element, serves as the material employed in this study. The material composition is determined through optical emission spectroscopy, and the weight-based composition is presented in Table 2. The microstructure was unveiled using an optical microscope in conjunction with an appropriate metallurgical etchant, namely Beraha’s Reagent, comprising 4 g NH4SCN, 10 ml HCl, and 20 ml H2O. The Carbon in the base material is recognized in the shape of spherical granules dispersed uniformly within the austenitic structure of the base material and the same depicted in Fig. 1.

Table 2 Elemental weight% of the candidate material, low carbon NiTi alloy.
Full size table
Fig. 1
figure 1

Optical microscopic image of the low carbon NiTi alloy under different magnification showing spheroidal carbon granules.

Full size image

Micro drilling

The metallurgically polished surface of the low carbon NiTi alloy is preserved as the cutting face for the investigation of micro-drilling using a tungsten carbide drill tool (diameter of 495 μm) in a cylindrical rod (diameter of 10 mm) to a thickness of 5 mm. Various cutting parameters are employed in the experimental design aimed at achieving micro-drilling with a diameter of 500 μm. The recommended machine tool for these experiments is the multipurpose micromachining centre (Make: MIKRO TOOLS, Singapore), equipped with an image analyser. The experiments involve maintaining a constant depth of cut (500 μm) while varying input process parameters within the ranges specified in Table 3. Nine different combinations of three levels of spindle speed and tool feedrate are designed for the machining experiments. Figure 2 displays a photo image of the machining centre and the micro drill bit.

Table 3 Range of input factors and their units.
Full size table
Fig. 2
figure 2

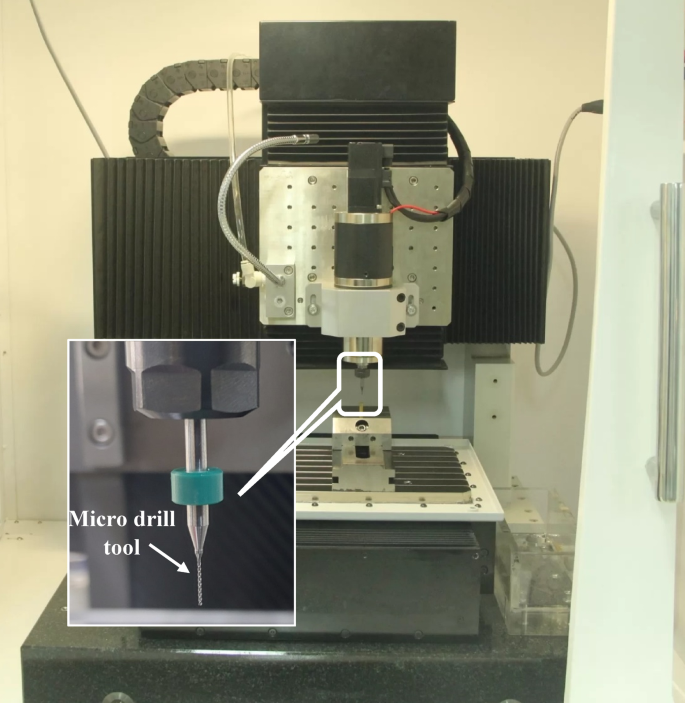

Photographic image of the machining centre used for experimentation.

Full size image

Throughout the machining process, the time taken for each experiment is measured and calculated. Following experimentation, the drill holes are examined using an optical microscope to assess the cylindricity of the machined layer for subsequent discussion. The scanning electron microscope is then employed to inspect the drill hole’s open structure, shearing zone, and burr formation. Subsequent to this, an energy dispersive spectroscopic analysis is conducted on the micro-cutting tool. To examine the correlation between input process parameters and responses in micro-drill hole machining, Minitab® Statistical Software (v21.4) trial version (https://www.minitab.com/en-us/products/minitab-solution-center/free-trial/) is utilized.

Results and discussion

Micro drill hole diameter

A micro-drilling procedure with a diameter of 500 μm is executed on a low-carbon NiTi alloy using a tungsten carbide (WC) drill bit with a tool diameter of 495 μm. Following the machining process, a vertical microscope is employed to observe the micro-drills and measure the drill hole diameter. The average values of drill hole diameters are plotted against spindle speed for various feed rates, as illustrated in Fig. 3.

Observations indicated that attaining a drill hole diameter close to the specified dimension (501 μm) was achieved during elevated drill rotational speed, 2500 RPM, with a minimal traverse feed of 0.2 mm/min. Conversely, maintaining the same drill rotational speed but increasing the traverse feed resulted in a proportional increase in drill hole diameter. Particularly, with a maximum traverse feed of 0.6 mm/min, the drill hole diameter peaked at an extreme dimension of 546 μm.

The observed increase in drill diameter is attributed to the elevated feed rate, aligning with findings in existing literature1,13,34,35,36,37,38. Elevated traverse feed rates impose significant force on the drill flute, leading to buckling and vibration during machining. As a consequence, deviations occur in the cutting axis, introducing nonlinearity in the drill hole and leading to diameter enlargement. These deviations can also trigger the creation of maximum shear zones and metallic burrs atop the drill hole, a phenomenon corroborated by prior studies13,38,39,40,41.

At a tool rotational speed of 2000 RPM, the variation in size of drill hole was observed to be similar to that at 2500 RPM, with increases noted at higher traverse feed. Machining at slower speeds demonstrated disparities in drill hole size ranging from 516 μm to 527 μm. Figure 4 illustrates the influence of tool rotational speed and feed rate on micro drill hole accuracy, highlighting the significant role of traverse feed on drill hole diameter variability.

Specifically, at maximum feed rates, the interaction between the tool and the workpiece intensifies, leading to tool deviation from the axis and subsequent enlargement of the drill hole diameter. Feed rates ranging from 0.2 mm/min to 0.3 mm/min consistently yield exact drill hole size with minimum variation with the size of drill bit, particularly in high-speed machining scenarios. Decreases in tool rotational speed (< 2250 RPM) reveal noticeable eccentricities in drill hole diameter. Thus, slower rotational speeds can minimize error in micro drilling; however, maintaining a low traverse feed of 0.2 mm/min during high rotational speeds can achieve precise micro drilling without compromising quality. Additionally, examination of the micro drill hole using a field emission scanning electron microscope offers insights into accuracy and shear zone characteristics.

Fig. 3
figure 3

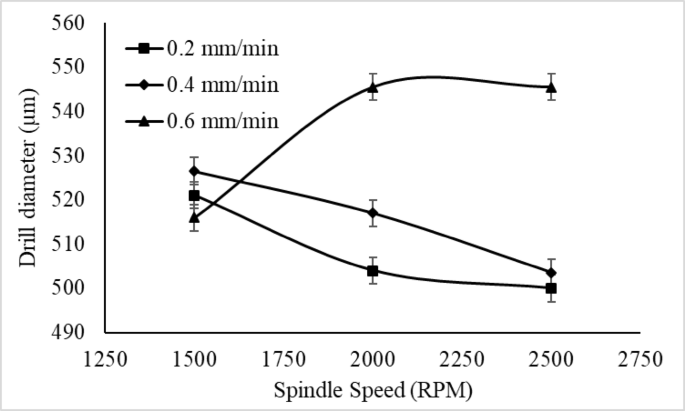

Micro drill diameter (average value) measured with respect to different spindle speed.

Full size image
Fig. 4
figure 4

Contour plot to indicate the accuracy in drill hole dimension with respect to tool rotational speed and feedrate.

Full size image

Electron microscopic metaphors are employed to assess the precision of micro-drill holes across three distinct ranges of input process parameters. In Fig. 5a, an accurate drill hole with a hole diameter of 501 μm is depicted, achieved under machining conditions of 2500 RPM and a traverse feed of 0.2 mm/min. As discussed in the diametrical study, the drill hole closely approaches the expected dimension of 500 μm, displaying minimal deviation during high- rotational speed of drill tool. At the near top edge of the drill hole, a thin metallic burr film is evident, reaching a maximum dimension of 15 μm to 20 μm. This phenomenon may be attributed to the adhesion or abrasion of thin metal chips generated during micro-machining. The findings are in agreement with Khan et al., where adhesion is the considered as a major wear mechanism during the deep hole drilling process42. Concurrently, at the blind end of the hole, an onion-like structure exit burr is observed, a result of the tool rotational speed of the drill tool. The formation of exit burrs are common during the micro drilling process, however, the formation of the burrs can be controlled by proper parameter selection43.

Fig. 5
figure 5figure 5

a Perfect drill hole with a diameter of 501 μm, having burr and shear zone at the bottom of the blind hole. b Perfect drill hole with an average diameter of 516 μm, having metal shear zone at the start and end point of the blind hole. c Perfect drill hole with a maximum diameter of 546 μm, having metal shear zone the start and end point of the blind hole.

Full size image

For a drill hole having a nominal diameter of 516 μm, as presented in Fig. 5b illustrates the impact of a tool rotational speed of 2000 RPM and an increased traverse feed (0.4 mm/min), leading to shear and metal burr formation on the top surface. With rising feed rates, distortion becomes apparent on the drill hole’s top surface. Utilizing Gwyddion software (v2.67–2024) (https://gwyddion.net/), dimensional changes are measured, revealing shear zone dimensions of 113 μm and 106 μm in the x- and y-coordinates, respectively.

Under the conditions of a tool rotational speed of 2500 RPM and a tool traverse feed of 0.6 mm/min, the drill hole diameter reaches a maximum of 546 μm. In this scenario, the x-coordinate exhibits a deviation of 178 μm, while the y-coordinate shows a deviation of 249 μm.

Expanding on the discussion regarding drill hole diameter, a noteworthy observation is the pronounced impact of an increased drill tool feed rate on the top surface, leading to significant material deformation and shear. Illustrated in Fig. 5c is the manifestation of metal shear on the top surface of the micro drill, specifically under the machining conditions of 2500 RPM rotational speed and a traverse feed of 0.6 mm/min. At this high tool rotational speed combined with the maximum traverse feed, the material exhibits a maximum shear zone, signifying extensive material deformation characterized by serrated metal chips along the edge of the drill hole.

Detailed electron images at higher magnification reveal the material deformation, evident in the form of shear, influencing the drill hole to present a wider surface at the top. The thrust force induced by the high feed rate contributes to material deformation, resulting in reduced shear but with the formation of sharp metal chips. Kim et al. found that the feed rate the major significant factor affecting the thrust force44. The significance is that while machining at high cutting speed the mechanical force induced the material to under maximum shear. The reflection of the shear at a particular region (especially at a micro level) strain hardening appears and brittle fracture appears. The outcome of the material fracture is clearly witnessed in the SEM image. This effect is mitigated by utilizing a minimum feed rate under the same high-speed machining conditions.

Machining time calculation

The calculation of machining time for micro drilling is carried out by measuring and applying Eq. 1. In Fig. 6a, the outcomes of the machining time calculation concerning input process parameters are presented. Notably, for a slow tool rotational speed, the maximum time to drill a 500 μm diameter at a depth of 500 μm with a documented time of 1.78 min. Conversely, a decreasing trend is noted, with an increase in both tool rotational speed and traverse feed rate during the cutting process. Specifically, a tool rotational speed of 2500 RPM combined with a feed rate of 0.6 mm/min results in a minimal micro-drilling time of 0.43 min. The reduction in micro-drilling time is a crucial factor for maximizing production rates.

In order to predict the machining time within the proposed design of experiments, a Gaussian elimination method is utilized to formulate a mathematical equation for evaluating and determining the machining time based on unknown parameters. The regression equation derived from the experimental design is presented in Eq. 2.

$$\:\text{M}achining\:Time\:\left(Tm\right)=\:\frac{length\:of\:drill\:hole}{tool\:rotational\:speed\:\:\times\:\:\:Traverse\:Feed} \,(\text{min})$$
(1)
$$\:Machining\:Time\:\left(Tm\right)=136.121\:{S}^{-0.803}\:{f}^{-0.928}\,(\text{min})$$
(2)

where, S - tool rotational speed F – Traverse Feed.

Figure 6b presents the anticipated machining time, as determined by the regression equation derived through Gaussian elimination. Calculations were performed for specific input factors, such as tool rotational speed and traverse feedrate, based on the regression equation for comparison. The graph (Fig. 6c) illustrates that the variance between the initial values and the machining time derived from regression is minimal and negotiable. Each point on the graph closely aligns, and the regression line, representing machining time, closely follows the path of the initially measured line.

For a more detailed analysis, the relationship between machining time, spindle speed, and feedrate is depicted in a contour plot, showcased in Fig. 7. The optimal conditions for minimizing machining time are achieved at maximum tool rotational speed and traverse feedrate. However, the range of input parameters is substantial, spanning from 1900 RPM to 2500 RPM for tool rotational speed and from 0.45 mm/min to 0.6 mm/min for feedrate. To enhance comprehension, the optimal process conditions are expected to fall within the specified range of process parameters.

Fig. 6
figure 6

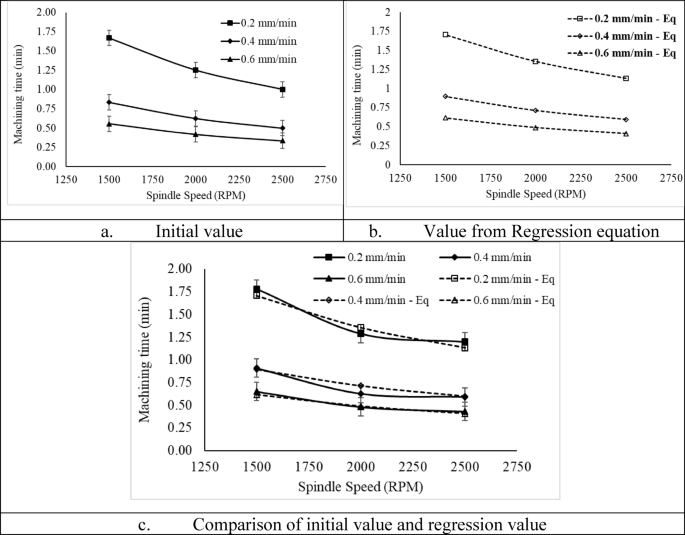

Comparison of machining time with initial and regression value.

Full size image
Fig. 7
figure 7

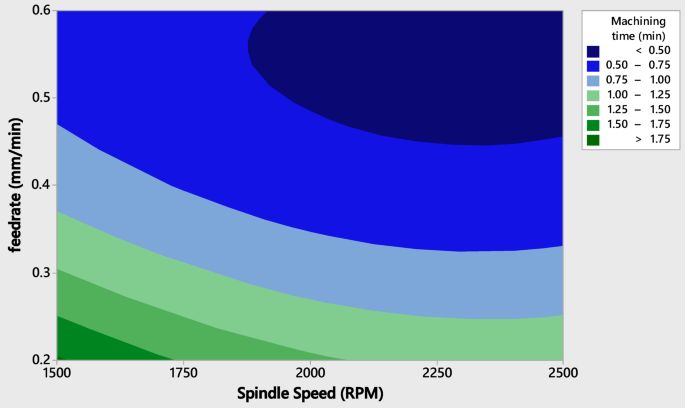

Contour plot to indicate the machining time performed on micro drilling on low carbon NiTi alloy with respect to tool rotational speed and traverse feedrate.

Full size image

Tool wear analysis

Figure 8 displays a scanning electron microscopic image depicting the tungsten carbide (WC) micro drill tool bit following the machining of low-carbon NiTi alloy at 2500 RPM with a feed rate of 0.2 mm/min. Initially, the diameter of the WC micro drill tool is 495 μm. After machining for 1.2 min, wear on the tool is evident, resulting in a reduced diameter of 492.2 μm. Notably, significant deformation is observed on the cutting nose of the drill tool, which is attributed to friction encountered during machining the low-carbon NiTi alloy.

Fig. 8
figure 8

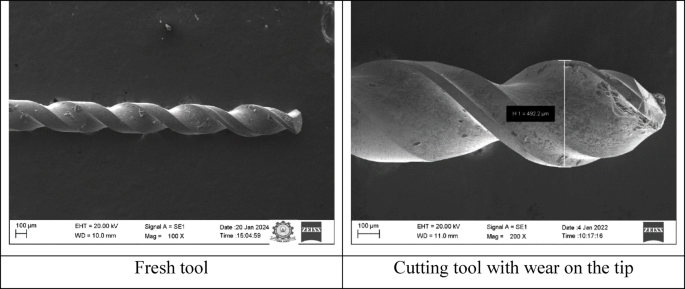

Scanning electron microscopic image showcasing the diameter (492.2 μm) of the micro drill tool after the machining operation.

Full size image

The micro hardness of the utilized low-carbon NiTi alloy is measured at 341 Hv, while the micro hardness of the WC micro drill bit is recorded as 639 Hv. This discrepancy in hardness values suggests that the chosen cutting tool effectively facilitated the subtraction of material from the low-carbon NiTi alloy with a trifling wear rate.

Examining the cutting edge of the micro drill bit at a higher magnification of 1500X reveals tool wear in the form of abrasion at the chisel (tool nose) and adhesive on the flute of the micro drill tool bit (refer to Fig. 9). Specifically, the measured tool wear at the cutting tool nose is 22 μm, representing abrasion. The rate of abrasion is minimal, given that the hardness of the WC micro drill bit is twice that of the work material. Furthermore, the cutting-edge profile exhibits sharpness and minute dimensions. Consequently, due to the tool nomenclature and the material characteristics of the cutting tool, the occurrence of tool failure is minimal and deemed acceptable for continuous machining.

In addition to abrasive tool wear, material from the workpiece, deformed during micro-drilling, adheres to the drill flute due to the frictional force generated during high spindle speed, as depicted in Fig. 9. Complementing the evaluation of tool wear, an energy dispersive spectroscopic analysis is conducted on the worn tool. The spectroscopic results indicate that abrasive wear predominantly comprises the tool bit material, with tungsten and carbide identified as major alloying elements (see Fig. 10a). Furthermore, alloying elements from the work material are observed at the tool edge, albeit with a minor contribution.

Subsequently, an investigation into the flute with adhesive wear on the drill tool bit reveals major alloying elements such as C, O, Ni, and Ti at the tool edge (refer to Fig. 10b). Therefore, the tungsten carbide (WC) base cutting tool stands out as one of the commercially available cutting tools in the market, suitable for machining low-carbon NiTi alloy under optimal machining parameters.

Fig. 9
figure 9

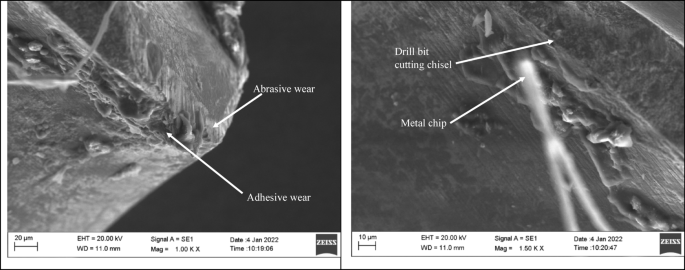

Scanning electron microscopic image of worn-out tool used to show the tool wear and adhesion of metal chips at the cutting edge.

Full size image
Fig. 10
figure 10

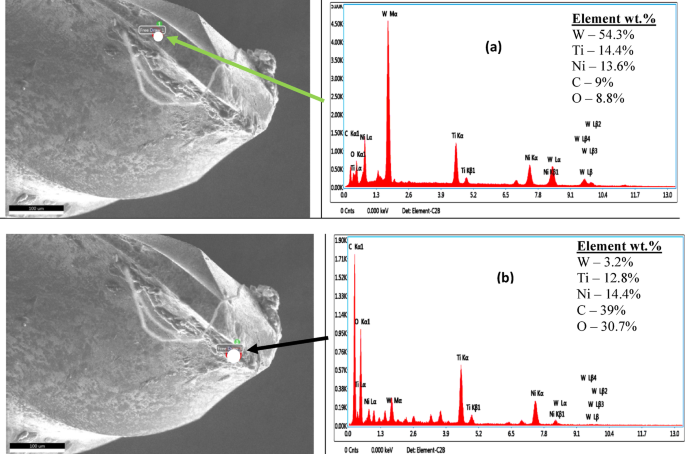

a EDS result on cutting tool chisel indicating abrasion in the tool surface along with scanning electron microscopic image. b EDS result on cutting tool chisel indicating the presence of workpiece material on the tool edge along with scanning electron microscopic image.

Full size image

Conclusions

This work introduces optimized procedure to produce micro-sized holes through high-speed machining of low-carbon NiTi alloy using a WC drill tool, and the following points are concluded.

  1. 1.

    High drill tool rotational speed of 2500 RPM proves to be a valid parameter for achieving a drill hole average diameter of 501 μm, closely matching the design diameter of 500 μm. This successful outcome was obtained with a minimal traverse feed of 0.2 mm/min. However, when the traverse feed was elevated to 0.6 mm/min while maintaining the same drill rotational speed, the drill hole diameter increased to 546 μm.

  2. 2.

    The notable variations in the drill hole diameter can be attributed to dynamic fluctuations occurring in the drill tool, manifesting as tool buckling and outing. The thrust force and fluctuations in the WC drill bit contribute significantly to wear on the cutting edge. Consequently, the drill opening diameter experiences maximum shear and material deformation, leading to phenomena such as chip formation and the development of burrs at the top of the drill hole.

  3. 3.

    During the cutting process, the material undergoes shear and adheres along the path of the drill flute. The elasticity of the low-carbon NiTi alloy increases as a result of microchipping in shear form. In this phase, the deformed material slides along the drill flutes and attaches in the shape of a continuous ribbon over the cutting edges.

  4. 4.

    High-speed machining is justified, as it allows the tool to achieve the defined tool path efficiently. The minimum machining time is documented as 0.43 min for a combination of 2500 RPM and 0.6 mm/min, and 1.78 min for 1500 RPM with 0.2 mm/min, respectively. When comparing the performance of micro drilling in terms of drill hole diameter and machining time, it is advisable to opt for high-speed machining when working on low carbon NiTi alloy using a WC drill tool.

In summary, it is advisable to utilize the WC micro drill tool with a high tool rotational speed and low traverse feed rate, as it exhibits improved machinability and accuracy.

Scope for future work

This work presented a practical approach to micro drill low carbon NiTi alloy under different speeds and feeds for understanding the betterment of the process by measuring the quality of hole, wear on tool surface and material removal rate.

This work can be further improved by comparing the various percentage of the carbon as ternary compound in the NiTi binary system. This might explore the upshot of the carbon content in the quality of the micro drilling process.

The NiTiC alloy manufactured by means of the 3D printing can be explored for the stability and quality of the material for various percentages if the carbon.

The quaternary effect of the NiTi is booming but still the research is restricted to hafnium, zirconium, niobium, etc., still there are possibilities to explore the combination of carbon as the quaternary element.

The hybrid sequential micro drilling is emerging, but not on the NiTiC combinations, it can be explored.
