Introduction

Liquid crystals (LCs) are distinctive mesophases exhibiting properties between liquids and solids, enabling wide application in displays, sensors, and adaptive devices1,2,3,4,5. Similar to isotropic media, the addition of dyes and nanoparticles (NPs) with different structure and size to anisotropic media such as liquid crystals can improve their optical, electrical and thermal properties. In addition, mechanical methods as applying electric and magnetic fields also play a significant role in increasing the efficiency and performance of liquid crystals6,7,8,9,10,11. In particular, metal-oxide NPs such as TiO2, ZnO, and Al2O3 have been demonstrated to modify dielectric anisotropy, conductivity, ad switching behaviors in LCs. This group of nanoparticles is synthesized by various methods and is widely used in various industries such as oil, gas, and medicine12,13. Recent reviews have systematically highlighted the synthesis strategies, nanoparticle-LC interactions, and functional enhancements achieved in nanocomposite LCs, emphasizing the influence of nanoparticle type, size, and surface chemistry. Within this context, Mn2O3 nanoparticles offer a compelling choice due to their multivalent redox states, oxygen-vacancy-rich surfaces, and tunable nanostructures-attributes that can strongly influence permittivity and impedance properties. Studies have shown that tuning the size of Mn2O3 NPs their interfacial interaction and dispersion stability when embedded in anisotropic media, crucial for liquid crystal performance14,15,16,17,18,19,20,21,22. The surface condition of nanoparticles is also essential. The combination of plasma and nanotechnology with plasma science led to produce, modify, and fictionalize nanostructures with high precision. Application of this combination include the synthesis of nanoparticle and production nanostructured coating with improved mechanical and electronic properties. This technology has wide application in fields such as catalysis, sensors, targeted drug delivery, and modern medicine, and it allow for reduction the activation energy of chemical reactions and increasing of efficiency of nonchemical processes23,24,25,26,27,28,29. Conventional chemical functionalization often leaves surface residues that disrupt LC alignment. In contrast, plasma treatment provides a clean, residues-free method to modify NP surfaces by introducing controlled functionality (oxygen vacancies, surface charges) while preserving crystallinity. Plasma-treated metal-oxide NPs have shown improved electro-optic behavior in LC hosts compared to chemically synthesized counterparts.

Despite these advances, no studies to date have examined the effects of Ar-plasma treatment on Mn2O3 within nematic-LCs. Addressing this gap, our work focuses on how Ar-plasma processing of Mn2O3 influences dielectric anisotropy (Δε) and electrical impedance in ML-0648 nematic LC. We expose Mn2O3 NPs to controlled plasma conditions, then disperse them at 0.5 wt% into the LC, and measure εǁ, ε⊥, Δε, and impedance (real and imaginary parts) across temperature and frequency. This study aims to demonstrate how plasma engineering of NP surface properties can be harnessed to optimize electro-optic performance in LC-based devices.

Experimental

Materials

The study employed ML-0648 nematic liquid crystal and Mn₂O3 nanoparticles, both supplied by Merck. The liquid crystal’s nematic to isotropic phase transition temperature, as specified by the manufacturer, is near 81 °C.

Cell Preparation

In this work, both homotropic and planar liquid crystal cells were fabricated. The construction process involved carefully positioning the samples between two indium tin oxide (ITO) coated optical glass substrates. Surface alignment was established by applying a polyvinyl alcohol (PVA), which was subsequently subjected to unidirectional rubbing to induce the desired molecular orientation (planar alignment). To promote homotropic alignment in the cell lecithin was employed. A Mylar spacer was introduced to ensure a uniform cell gap between the electrode interfaces. Finally, the cell assembly was sealed using an appropriate adhesive to secure the substrates and maintain structural integrity.

Characterizations

The physicochemical properties of the nanoparticles were systematically characterized using a high-resolution field emission scanning electron microscope (SEM-JSM-7600 F), enabling detailed morphological analysis. Crystallin structure were investigated via X-ray diffraction (XRD) employing a Siemens XRD-D5000 diffractometer, utilizing monochromatic Cu Kα with a wavelength of λ = 1.5418 °A. Transmission electron microscopy (TEM) was carried out using a Philips EM 208 S instrument operated at 100 kV. In addition, Fourier transform infrared (FTIR) spectroscopy (Tensor 27, Bruker, Germany) was employed at room temperature to investigate the structural characteristics of samples. Electrochemical impedance spectroscopy (EIS) measurements of planar cells were performed using an Ivium Stat. h potentiostat/galvanostat system at the range of 0.1 Hz-0.1 MHz. Permittivity of the nematic liquid crystal systems doped with Mn₂O₃ nanoparticles was carried out using a precision LCR meter (VICTOR 4091 C) at the 10 kHz frequency and AC amplitude of 0.3 V, integrated with a temperature-regulated sample chamber with accuracy of ± 0.1 °C to ensure thermal stability during measurements. 10 kHz was selected below the relaxation regimes because at this frequency the impact of electrode polarization is reduced while the measured permittivity still provides a reliable representation. The LC-nanoparticle hybrid systems were confined Whitin capacitor-type cells, specifically engineered to support both planar and homotropic molecular alignments for comparative permittivity evaluation. Capacitance measurements were conducted as a function of temperature, both in the absence (reference cell) and presence of the doped liquid crystal medium. εǁ and ε⊥ denote the permittivities measured parallel and perpendicular to the nematic director n, which is the unit vector describing the average orientation of the molecular long axes30. These components were extracted using the following analytical expressions:

$$\:{{\upepsilon\:}}_{\parallel\:}=\frac{{\text{C}}_{\perp\:}}{{\text{C}}_{\circ\:}}$$
(1)
$$\:{{\upepsilon\:}}_{\perp\:}=\frac{{\text{C}}_{\parallel\:}}{{\text{C}}_{\circ\:}}$$
(2)

Here, C∥ and C⊥ correspond to the measured capacitances when the director of the liquid crystal molecules is aligned parallel and perpendicular to the electrode surfaces, respectively, C0 denotes the capacitance of the empty reference cell. The reference capacitance (C0) was determined by measuring the empty cell after open/short calibration. Stray capacitances were minimized using short (< 5 cm) shielded coaxial cables and the instrument guard terminal. The dielectric anisotropy (Δε), a key parameter indicative of the material’s electro-optic responsiveness, was computed using:

$$\Delta \varepsilon = {\varepsilon _\parallel } - {\varepsilon _ \bot }$$
(3)

Plasma setup

According to Fig. 1, Mn2O3 powders were placed in a radio frequency (RF) plasma reactor for studying the plasma effects. The plasma generator (50 W, 13.56 MHz radio frequency) coupled with a turn copper coil with a 2 mm external diameter installed around a reaction chamber as an electrode. This chamber was in the form of a cylindrical glass tube with a length and external diameter of 300 mm and 60 mm, respectively. Plasma was produced and exerted at 0.001 Torr by using vacuum rotary pump. Argon (Ar) was used as the working gas in the RF plasma reactor.

Fig. 1
figure 1

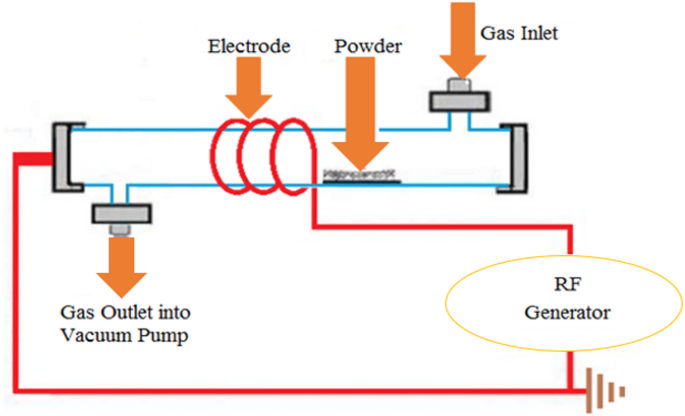

Schematic diagram of the plasma generation and treatment setup.

Full size image

Results and discussions

Properties of nanoparticles under influence of ar plasma

In this section, the effects of plasma on Mn2O3 nanoparticles are investigated using various analyses.

FTIR analysis

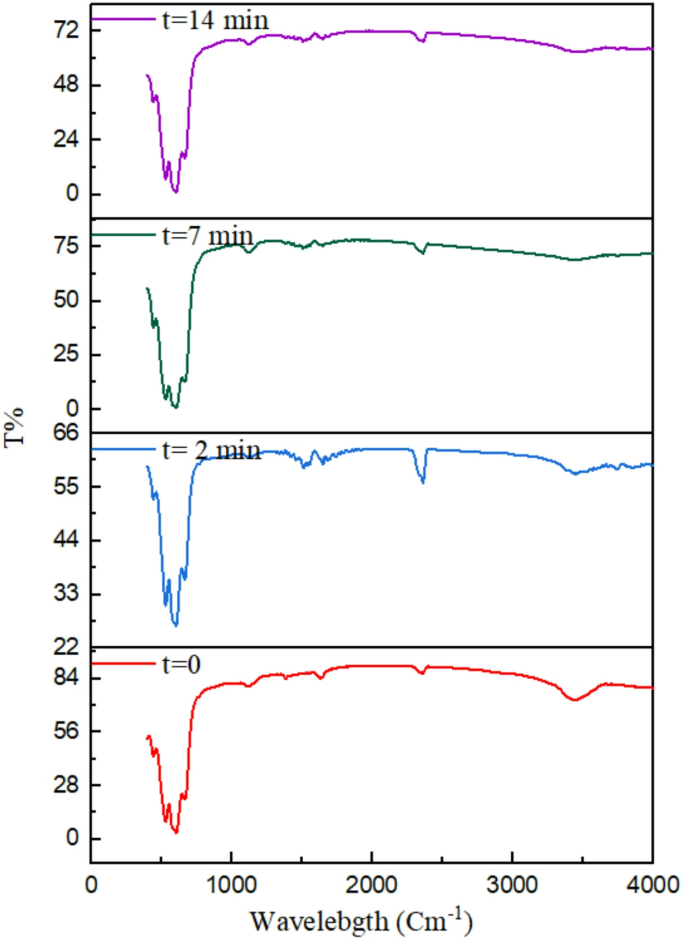

The FTIR spectrum (Fig. 2) of the synthesized Mn2O3 nanoparticles exhibited characteristic absorption bands at 444.32, 531.09, 606.21, and 668.41 cm− 1, which can be attributed to the fundamental stretching and bending vibrations of Mn-O bonds in the crystal lattice. These bands are considered fingerprint peaks of Mn2O3 and confirm the formation of the manganese oxide phase. Similar assignments of Mn-O stretching vibrations in the range of 500–650 cm− 1 have been reported in previous studies31,32,33. A weak band observed at 1120.69 cm− 1 may be associated with C-O or C-O-C stretching vibrations originating from organic precursors or surface-bound hydroxyl groups. The absorption band at 1358.83 cm− 1corresponds to symmetric stretching of carbonate species (CO3 − 2), most likely due to atmospheric CO2 absorption on the nanoparticle surface. The band at 3431.22 cm− 1 is attributed to O-H stretching vibrations of surface hydroxyl groups or adsorbed water molecules, while the peak at 1623.39 cm− 1 is assigned to H-O-H bending vibrations of molecular water. These bands suggest the presence of physiosorbed moisture and surface hydroxyl functionalities, which are common in metal oxide nanoparticles. Additionally, a weak band at 2369.30 cm− 1 can be assigned to the symmetric stretching mode of gaseous CO2, usually originating from atmospheric contamination during FTIR measurement. FTIR spectra of Mn2O3 nanoparticles subjected to Ar plasma for 2, 7, and 14 min revealed no appearance of new absorption bands or disappearance of the intrinsic Mn-O lattice vibrations (444–668 cm− 1), confirming the structural stability of the oxide framework. The only notable modification was a progressive reduction in the intensity of the O-H stretching band at 3431 cm− 1 and the C-O/C-O-C related band at 1121 cm− 1 after 14 min of treatment. The attenuation is attributed to plasma-assisted desorption and sputtering of surface-absorbed water, hydroxyl groups, and residual organic species, indicating the Ar plasma primarily induces surface cleaning rather than bulk structural alteration.

Fig. 2
figure 2

FTIR of liquid crystal samples under influence of Ar plasma at different times.

Full size image

XRD

XRD analysis (Fig. 3) revealed that the positions of the diffraction peaks remain unchanged after plasma treatment, confirming that the crystal structure of Mn2O3 nanoparticles is preserved. However, the peak intensity and width are sensitive to plasma exposure time: the intensities increase for 2 and 14 min but decrease at 7 min, which reflects modifications in crystallinity and surface defect density.

Fig. 3
figure 3

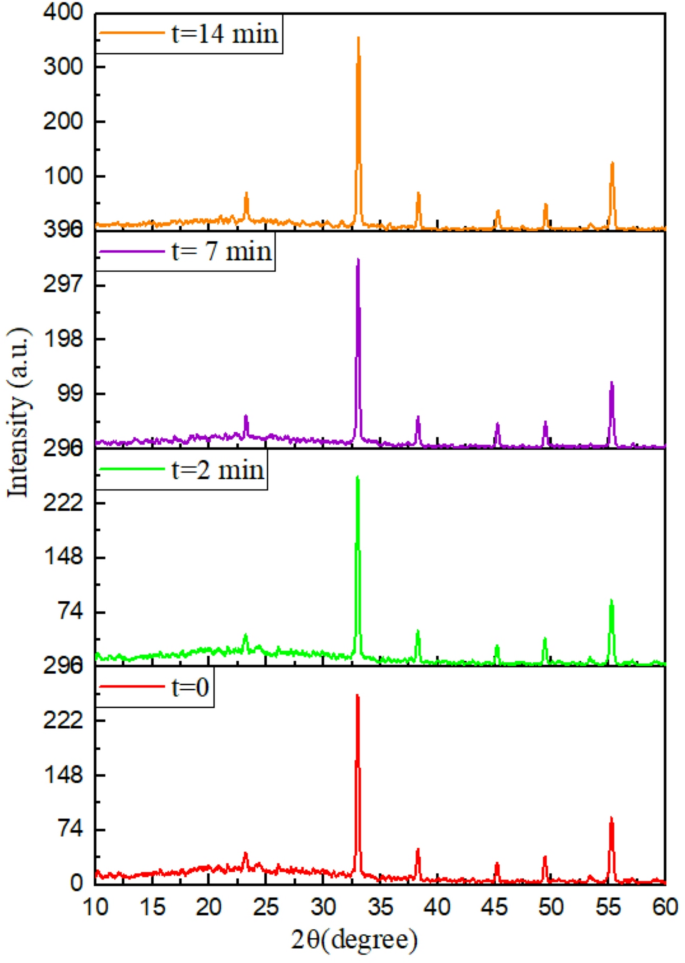

X-ray diffraction (XRD) patterns illustrating structural modifications in liquid crystal samples after exposure to argon plasma for different time intervals.

Full size image

Using the Scherr equation33,34, the size of the crystals under plasma showed that initially the size of the nanoparticles was about 31.95 nm. By applying plasma for 2,7 and 14, respectively, the size of the nanoparticles reached 31.28, 32 and 31.24 nm. Thus, the size of the nanoparticles under the influence of plasma not show a regular trend, it initially decreases and increases with the application of plasma for 7 min and decreases again with the application of plasma for 14 min.

Scanning electron microscopy (SEM) analysis

SEM images (Fig. 4) reveal that the morphology of Mn2O3 nanoparticles is strongly influenced by Ar plasma treatment. In the untreated sample (t = 0), the particles predominantly appear as large, irregular agglomerates with rough surfaces. After 2 min of plasma exposure, the agglomerates begin to fragment, resulting in smaller and more compact structures with improved homogeneity. Extending the treatment to 7 min leads to secondary growth and partial re-agglomeration of the particles, forming larger, more spherical structures. However, with prolonged treatment up to 14 min, the morphology undergoes a significant transformation toward finer and more uniformly distributed nanoparticles, accompanied by a substantial reduction in agglomeration. These observations indicate the plasma exposure time plays a critical role in tailoring the particle morphology, with an optimal time it is possible to achieve a uniform and stable nanostructure.

Fig. 4
figure 4

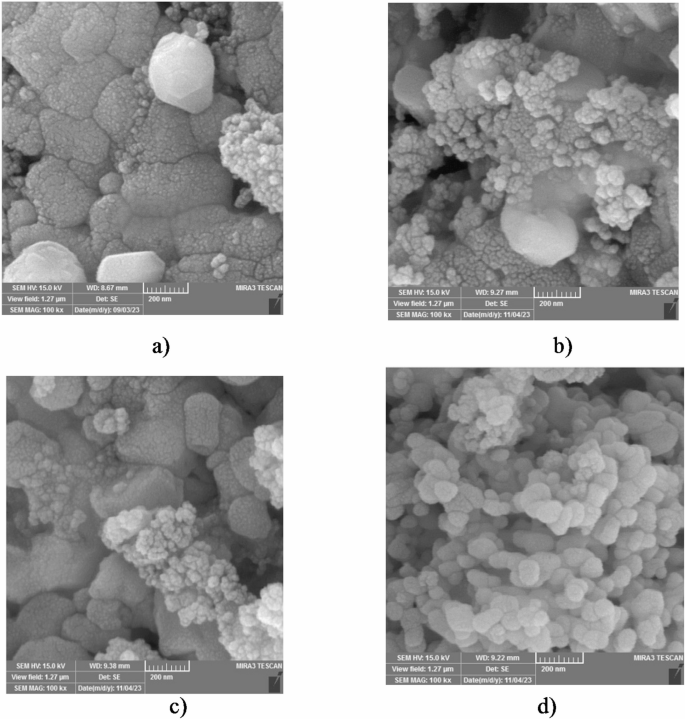

Scanning electron microscopy (SEM) micrographs of liquid crystal samples treated with argon plasma at (a) t = 0 min, (b) t = 2 min, (c) t = 7 min, and (d) t = 14 min, showing morphological evolution over time.

Full size image

Transmission electron microscopy (TEM) analysis

TEM analysis (Fig. 5) revealed that the untreated Mn2O3 nanoparticles were highly agglomerated with an average particle size of about 88 nm. After 2 min of Ar plasma exposure, the agglomerates were effectively broken apart, leading to well-dispersed and more uniform nanoparticles with a reduced average size of 65 nm. Extending the treatment time to 7 min resulted in particle growth up to 75 nm, which can be attributed localized heating the promote surface diffusion and particle sintering. At 14 min, the average size slightly decreased to 70 nm, likely due to the competing effects of sputtering and re-agglomeration. Overall, the results indicate that short plasma treatment improves dispersion and reduces particle size, while prolonged exposure favors coalescence and growth. The discrepancy between the particle sizes obtained from XRD (using Scherrer equation) and TEM analysis is mainly attributed to the fact that these two techniques probe different structural features. XRD provides the average crystallite size, which corresponds to coherently diffracting domains within the nanoparticles. In contrast, TEM directly visualizes the overall particle size, which may include multiple crystallites, amorphous surface layers, or agglomerated structures. Furthermore, peak boarding in XRD can also arise from lattice strain and crystal defects, leading to an underestimation of crystallite size. Therefore, the larger values, observed in TEM compared to XRD are expected and reflect the distinction between crystallite size and actual particle or agglomerate dimensions.

Fig. 5
figure 5

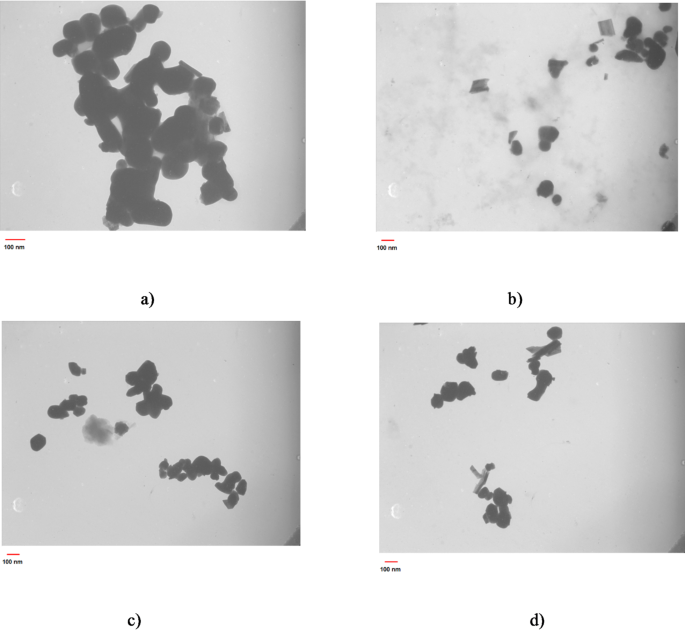

TEM images of (a) Mn2O3 nanoparticles without plasma treatment, (b) Mn2O3 under influence of plasma for t = 2 min, (c) Mn2O3 under influence of plasma for t = 7 min, (d) Mn2O3 under influence of plasma for t = 14 min.

Full size image

Temperature-dependent permittivity and dielectric anisotropy under the influence of ar plasma

According to Fig. 6, the parallel (εǁ) and perpendicular (ε⊥) components of the permittivity of Mn2O3 doped liquid crystal samples exhibit distinct temperature-dependent behavior. Across the entire temperature range, εǁ remains consistently higher than ε⊥ highlighting the dominant polarizability along the molecular long axis and its key contribution to dielectric anisotropy. With increasing temperature, εǁ initially rises due to enhanced molecular mobility and longitudinal polarizability, then decreases near the nematic-to-isotropic transition and finally stabilizes in the isotropic phase. Conversely, ε⊥ exhibits the opposite trend. The temperature dependence of the perpendicular permittivity (ε⊥) can be attributed to dipolar correlations. As temperature increases, reduced orientational order weakens cooperative dipolar interactions, causing an initial decrease in ε⊥. Near the nematic -isotropic transition, molecular reorientations become less constrained, leading to a slight increase before reaching a constant value in the isotropic phase. The 2-minute plasma-treated sample exhibits the highest εǁ at low temperatures and the largest difference from ε⊥, while longer plasma treatments modify nanoparticle dispersion and surface structure, reducing the parallel component and slightly enhancing the perpendicular component. In general, this behavior at 2 min is attributed to the increased molecular mobility at elevated temperatures, which allows the longer plasma-induced surface modifications and improved nanoparticle dispersion to maximize the polarizability along the molecular long axis. Therefore, the difference in εǁ enhancement between low and high temperatures arises from the combined effects of surface modification and temperature-dependent molecular mobility.

Fig. 6
figure 6

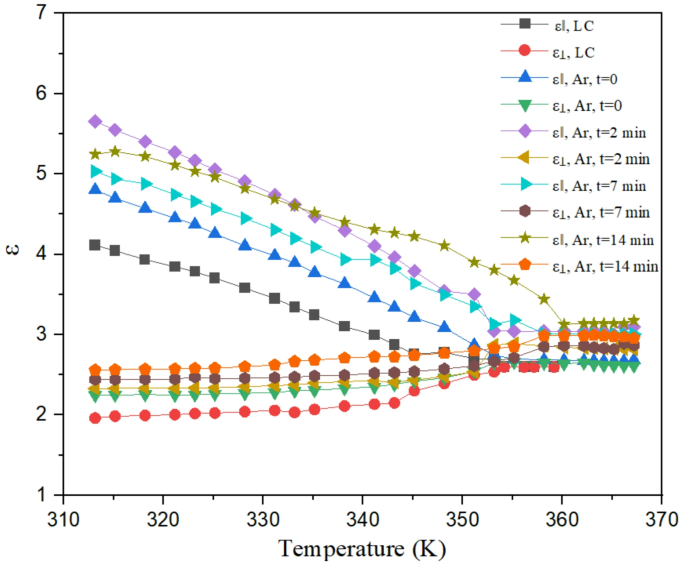

Temperature dependence of the parallel (ε∥) and perpendicular (ε⊥) components of the permittivity of liquid crystal samples subjected to argon plasma treatment at varying exposure durations.

Full size image

The experimental results (Fig. 7) indicate that dielectric anisotropy (Δε) reaches its maximum for the 2-minutes plasma sample, followed by the 14-minute, 7-minute, untreated nanoparticles, and pristine liquid crystal. This trend aligns with the enhanced local polarizability and reduced energy barrier for molecular reorientation observed in the short plasma exposure, whereas longer treatments partially mitigate these effects due to surface restructuring and minor aggregation. XRD analysis (Fig. 4) revealed that the positions of the diffraction peaks remain unchanged after plasma treatment, confirming that the crystal structure of Mn2O3 nanoparticles is preserved. However, the peak intensity and width are sensitive to plasma exposure time: the intensities increase for 2 and 14 min but decrease at 7 min, which reflects modifications in crystallinity and surface defect density. SEM (Fig. 5) images further show that the average particle size initially decreases upon 2-minutes plasma treatment, increases slightly at 7 min, and then decreases again after 14 min. The non-monotonic trend suggests that short plasma exposure removes surface impurities and activates nanoparticle surfaces, leading to improved dispersion and reduced size, while longer exposure (7 min) promotes partial aggregation, increasing the apparent size. At 14 min, further plasma-induced etching and surface restricting dominate, resulting in reduced size and enhanced surface activation. These structural and morphological evolution are consistent with the permittivity results, as short plasma exposure enhances order and polarizability, whereas prolonged treatment introduces competing of aggregation and surface modification, which modulate both dielectric anisotropy and activation energy.

Fig. 7
figure 7

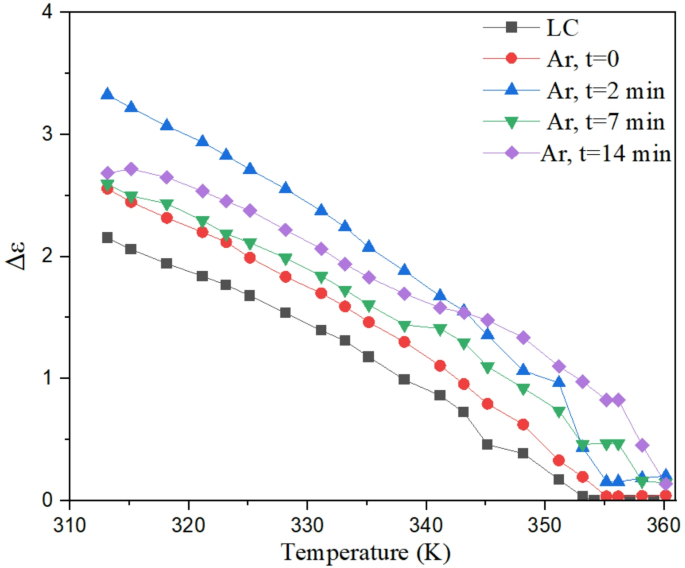

Variation of dielectric anisotropy (Δε) as a function of temperature for liquid crystal samples under argon plasma irradiation at multiple exposure times.

Full size image

The frequency-dependent permittivity of Mn2O3-doped liquid crystal samples (Fig. 8) exhibits distinct behaviors in low-and high-frequency regions, strongly influenced by Ar plasma treatment time. At low frequencies, ε decreases with increasing frequency, with the highest values observed for the 14 min plasma-treated sample, followed by 2 min, 7 min, untreated, and pure LC. At higher frequencies, ε approaches a constant value, with the maximum observed for the 2 min plasma-treated sample. The loss spectra also decrease with frequency and asymptotically approach zero. This behavior is consistent with our structural analyses (XRD, SEM, TEM): short plasma treatment (2 min) improves nanoparticle dispersion and enhances interfacial polarization at high frequencies, whereas prolonged exposure (14 min) favors interfacial; polarization at low frequencies due to partial aggregation and surface restricting. These results confirm that plasma-induced surface modifications govern the dielectric response across the entire frequency spectrum.

Fig. 8
figure 8

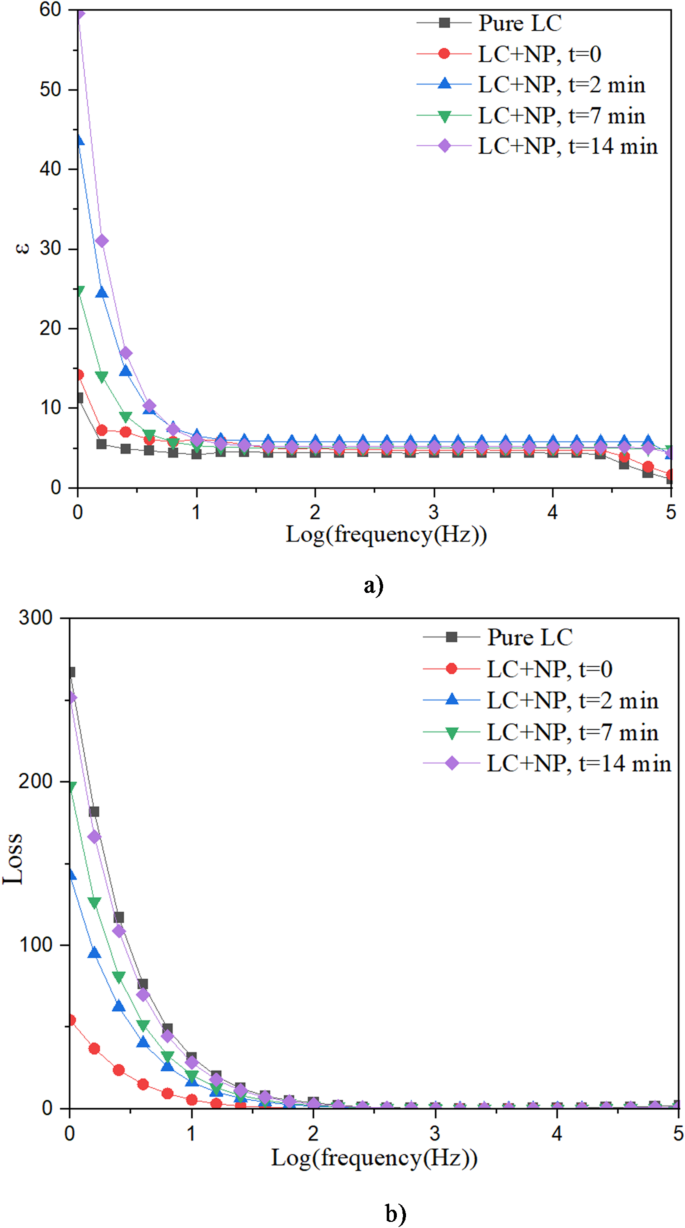

The curves of (a) permittivity and (b) loss as a function of frequency for planar liquid crystal cell.

Full size image

Moreover, Activation energies (Ea) were exacted from nonlinear fitting of Δε(T) to the Vogel-Fulcher-Tammann model35. The activation energy values found to be 143.58 kJ/mol for the pure LC, 129.93 kJ/mol for the liquid crystal doped with Mn2O3 nanoparticles, 83.831 kJ/mol for the nanoparticle sample treated with argon plasma for 2 min, 108.95 kJ/mol for the plasma treatment of 7 min, and 88.90 kJ/mol for the plasma treatment of 14 min. The 2-minute plasma sample exhibits the lowest Ea, indicating facilitated molecular reorientation and enhanced local order along the molecular axis. Longer plasma treatments (7 and 14 min) increase Ea to the 2-minute sample, reflecting modifications in nanoparticle samples show the highest activation barriers. Overall, short-duration plasma treatment optimizes nanoparticle dispersion and surface activation, maximizing molecular dynamics and dielectric anisotropy, whereas prolonged plasma exposure partially diminishes these effects.

The obtained results demonstrate that the variations in permittivity components, anisotropy, and activation energy are directly governed by the order parameter and molecular interactions in the presence of Mn2O3 nanoparticles and their plasma-induced surface modification. With increasing temperature, the order parameter decreases, leading to a reduction in long-range molecular alignment. Consequently, the parallel component, which reflects polarizability along the molecular long axis, exhibits higher values at lower temperatures but decrease as the nematic-isotropic transition is approached. The incorporation of nanoparticles, particularly with short plasma treatment (2 min), enhances intermolecular interactions and improves nanoparticle dispersion within the matrix, thereby maximizing parallel polarizability and dielectric anisotropy. Under these conditions, the activation energy decreases, indicating facilitated molecular orientation and reduction of the energetic barriers for dipolar motion. However, with prolonged plasma exposure (7 and 14 min), surface restructuring and partial aggregation of nanoparticles reduce the degree of uniform interactions, diminishing positive effect observed at short treatment, which in turn increases or stabilizes the activation energy at intermediate values. In addition, the inclusion of nanoparticles and plasma treatment shifts the nematic-isotropic transition temperature to higher values. This effect arises from stronger coupling between the host molecules and plasma-activated nanoparticles, which increases the order parameter and stabilizes the nematic phase, thereby requiring thermal energy to disrupt the molecular order and induce the isotropic state.

In most earlier studies (Table 1) in oxide nanoparticle-LC composites, the dielectric anisotropy was primarily controlled by varying the nanoparticle concentration. For example, ZnO, TiO2, and Fe2O3 nanoparticles enhanced Δε as their loading increased, whereas CuO and MgO showed concentration-dependent reductions or non-monotonic behavior. These trends confirm that the extent of dielectric anisotropy in conventual nanocomposites is strongly dependent on dopant concertation and dispersion quality. In contrast, the present work demonstrates a distinct approach: by applying argon plasma treatment to Mn2O3 nanoparticles, Δε can be effectively tuned within a defined time window, even at fixed nanoparticle concentration. The results reveal that plasma activation modifies the nanoparticle surface chemistry, thereby strengthening nanoparticle-LC interactions and enabling control over dielectric anisotropy beyond simple concentration effects. This highlights the novelty present study, where Δε tuning is achieved through plasma processing rather than concentration variation, offering a new strategy for engineering permittivity in LC-nanoparticle systems.

Impedance spectroscopy study under the influence of ar plasma

As shown in Fig. 9, both the real and imaginary parts of the impedance were measured at different frequencies of the applied Ac electric field using the spectroscopic impedance technique. According to Fig. 9, the changes in the real and imaginary parts of the impedance the impedance depend on the applied frequency and duration of Ar plasma application on the doped nanoparticle in the nematic liquid crystal under study. A comparison between the results obtained from impedance spectroscopy for the sample without plasma effects versus the sample caused by Ar plasma shows that plasma effects lead to spectral shifts. Despite the spectral shift, a similar trend of changes with frequency changes was observed in all liquid crystal samples. The real part values of impedance of liquid crystal samples containing Mn2O3 nanoparticles gradually decrease with increasing frequency and finally asymptotically approach the horizontal axis. Although a relatively regular behavior was observed in the changes in the real part values, no such behavior was observed in the imaginary part. With increasing frequency, the values of the imaginary part of the impedance of the samples initially show an increasing trend, then a decreasing trend, and finally reach a constant value with increasing frequency. In this case, as the duration of argon plasma application increases, the values of the real and imaginary parts of the impedance gradually decrease. These changes at low frequencies can be caused by the interaction between liquid crystal molecules at the interface with the electric field, and at high frequencies by the interaction of the dipole moment in the bulk state with the electric field36. Furthermore, by plotting the values of imaginary part of the impedance in terms of the values of the real part, we can obtain the Cole-Cole curves (Fig. 10). In order to simulate the behavior of liquid crystal samples containing nanoparticles, an equivalent electrical circuit is constructed as shown in Fig. 10, which consist of six components as follows:

Fig. 9
figure 9

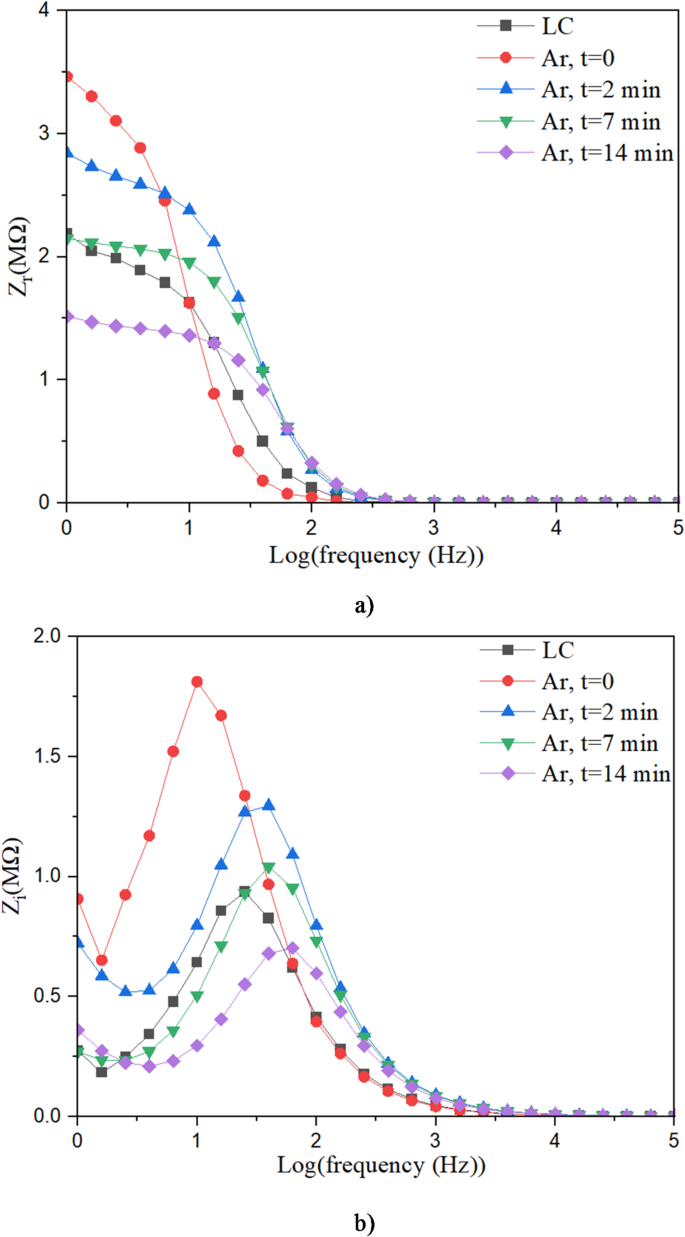

Frequency-dependent changes in the real and imaginary components of the impedance of liquid crystal samples exposed to argon plasma at different time intervals.

Full size image
Fig. 10
figure 10

Cole-Cole impedance plots of liquid crystal samples after argon plasma treatment for various durations.

Full size image

RCR: Indicates the specific resistance of external elements and electrode connections.

RLC: Indicates the resistance of the bulk liquid crystal.

CLC: Indicates the capacitance of the bulk liquid crystal.

CDL: Double layer polarity caused by the accumulation of charges near the electrodes.

W: Representation of the Warburg element to describe the drift of charged species in a doped liquid crystal system.

In general, the Cole-Cole plots of the LC-Mn2O3 samples exhibit a semicircle frequency and an inclined line at low frequencies. The high-frequency semicircle arises from the parallel combination of the bulk liquid crystal resistance and capacitance, representing fast charge transfer processes within the active material. The plot stats from the origin at the left-hand side because, at very high frequencies, the capacitive impedance of the bulk approaches zero, and the system behaves predominantly as the series resistance of the electrodes and connectors; minor deviations from ideality can be attributed to parasitic effects. The low-frequency inclined line corresponds to the Warburg element in parallel with double-layer capacitance, reflecting diffusion-limited ionic transport at the electrode-electrolyte interface. This behavior is fully consistent with the proposed equivalent circuit comprising the series resistance of the electrodes and connectors, the parallel bulk resistance and capacitance, and, in series, the parallel combination of double-layer capacitance and Warburg impedance, and aligns with previously reported results37,38.

According to the simulation with the equivalent circuit, the diameter and the edge of the semicircle of the Cole-Cole curves represent RLC and RCR, respectively. The straight line in the diagrams is also related to the changes of the parallel set W and CDL. As can be clearly seen in Fig. 10, the symbols represent the experimental data and the solid curves represent the results obtained from the fitting based on the equivalent circuit. The values obtained for the best fit (with an error of less than 5%) are shown in Table 1. The resistance values due to electrodes and connectors are almost constant as expected. According to the data in Table 2, just as the diameter of the Cole-Cole curves decrease with increasing plasma application time in the samples under plasma, the RLC values also decrease with increasing Ar plasma application time. The results obtained show that by applying plasma to nanoparticles, the conductivity of the liquid crystal matrix increases. In addition, the capacitance of the liquid crystal matrix containing Mn2O3 nanoparticles increases with the application of Ar plasma compared to the case without plasma effects. The highest value is related to the time of 14 min, which is proportional to the change in the values of the vertical component of permittivity with the application of plasma. The changes can be due to the interactions between liquid crystal molecules and nanoparticles, which change with the application of plasma effects. The values obtained for the double layer capacitance also increase with the application of plasma, which can be related to the different effects of plasma on the size nanoparticles and surface morphology at different application times. These results show that the magnitude of capacity at the interface at low frequencies is larger than the capacity of liquid crystal in the bulk. The irregular changes in the W values can be due to molecular interactions with different intensities in the presence and absence of plasma effects. The series resistance RCR, representing resistance of electrode contacts and connections, is small (~ 80–90 Ω) relative to RLC (1–3 MΩ) and therefore negligible in the analysis. The overall quality of the fitting (error < 5%) confirms that the equivalent circuit reliably separates bulk, interfacial, and diffusion contributions, demonstrating that the observed changes in impedance upon plasma treatment are primarily due to modifications in RLC, CLC, CDL, and W rather than the electrode/contact resistance.

Table 1 Comparative studies on permittivity of nematic LCs doped with metal oxide nanoparticles14,15,16,17,18,19,20,21,22.
Full size table
Table 2 Extracted equivalent circuit parameters obtained by fitting the impedance spectroscopy data of Mn₂O₃ nanoparticle-doped liquid crystal samples subjected to argon plasma treatment.
Full size table

As evidenced by equivalent circuit analysis (Table 2), increasing the plasma treatment time leads to a decrease in the resistance of the liquid crystal layer (RLC) and a simultaneous increase in the double-layer capacitance (CDL). This behavior indicated that plasma treatment removes surface impurities and ionic centers from Mn2O3 nanoparticles, thereby improving their dispersion and interfacial interactions within the liquid crystal host. Consequently, the ionic contribution to the permittivity diminishes, while the capacitive polarization becomes more dominant. The trend, observed in Fig. 10, is consistent with the previous findings. From an application point of view, such a reduction in ionic effects can be considered a beneficial aspect of plasma treatment, as it enhances electrical stability and improves permittivity values in nanoparticle-doped liquid crystals.

Conclusions

In this study, permittivity, and structural characteristics of Mn2O3 doped nematic liquid crystals under varying Ar plasma treatments were systematically investigated. The parallel (εǁ) component of permittivity consistently exceeds the perpendicular (ε⊥) component across all temperatures, resulting in enhanced dielectric anisotropy, which is maximized for short plasma exposure (2 min) due to optimal nanoparticle dispersion and surface activation. Frequency-dependent measurements of permittivity reveal that low-frequency interfacial polarization dominates, whereas dipolar orientational polarization governs the intermediate frequency range, both modulated by plasma-induced surface and structural changes. Nonlinear fitting of the dielectric anisotropy with Volgel-Fulcher-Tammann model shows that short plasma treatment significantly reduces the activation energy (Ea), facilitating molecular reorientation, whereas longer plasma durations partially restore the energetic barrier due to surface restructuring and nanoparticle aggregation. XRD results confirm that the crystal structure remains unchanged while vary with plasma duration, and SEM images show non-monotonic changes in particle size, reflecting plasma-indued etching and aggregation effects. Impedance spectroscopy and equivalent circuit analysis further demonstrate that plasma treatment decreases bulk resistance and enhances both bulk and interfacial capacitances, indicating improved charge transport, molecular alignment, and electrical stability. Overall, controlled Ar plasma treatment provides a versatile strategy to tune nanoparticle dispersion, surface activation, molecular dynamics, and permittivity values, highlighting its potential for optimizing electro-optical performance in nanoparticle-doped nematic liquid crystals.
