Boosting adsorption capacity of methylene blue dye by multiple functional ZnO-g-C₃N₄/ carboxymethyl chitosan/alginate –grafted polyacrylic acid composite

Abstract

The present study has focused on the development of multiple functional (carboxymethyl chitosan/alginate)-grafted polyacrylic acid composite (CMCH/ALG)-g-PAA with graphitic carbon nitride (ZnO-g-C₃N₄) as a high-potential filler in order to satisfy the increasing demands of recycling and separation problem of ZnO-g-C₃N₄, which is powdery sorbent and hard to recycle after adsorption and represents a secondary pollution with high-performance in addition to strong π-π stacking interactions between g-C₃N₄ nanosheets can lead to serious agglomeration and restacking, which reduces g-C₃N₄ adsorption activity. ZnO-g-C₃N₄ nanosheets has been generated by traditional thermal condensation method and investigated by TEM, SEM, XRD, and FTIR. The investigation of ZnO-g-C₃N₄@ (CMCH/ALG)-g-PAA was done using FTIR, XRD, SEM, and TG. The highest swelling ratios of (CMCH/ALG)-g-PAA were 1697.10% at pH 8.0 and 140.5% in saline solution. Vigot and first order models fit the swelling capacity data. For (CMCH/ALG)-g-PAA with 3% ZnO-g-C₃N₄, the maximum adsorption capacity was 24.30 mg/g at adsorbate concentration (0.1 g/L), MB dye concentration (25 mg/L), and pH 8.0. The practical data of adsorption was well being fitted by the Langmuir, Redlich-Peterson, and Sips models indicating complicated adsorption process. Since the ΔG◦ values are more than − 20 kJ/mol, the adsorption is physisorption. ZnO-g-C₃N₄@ (CMCH/ALG)-g-PAA succeeded in effective dye removal from wastewater.

Introduction

The safety of the world’s water supply has become a more significant issue in recent decades. As it is well known, adsorption is one of the most often used methods for getting rid of pollutants due to its low cost, simplicity of use, and other benefits^1,2,3,4. Innovative materials with electrical, electronic, and porous properties as well as physicochemical stability have garnered a lot of interest for use in water treatment, such as graphene, carbon nanotubes, carbon quantum dots, and g-C₃N₄ nanosheets^5,6. A non-metal and non-toxic polymer semiconductor, graphitized carbon nitride (g-C₃N₄) is created by easy thermal condensation using precursors rich in nitrogen^7,8. G-C₃N₄ has several advantages over.

Graphitic carbon nitride, one of the carbon nitride allotropes has a graphene-like layered structure constructed from heptazine units and the bridge amino groups. Because of their potential uses in the adsorption of dyes and pollutants, 2D g-C₃N₄ nanosheets have attracted a lot of scientific attention^9,10. Graphitic carbon nitride has a great potential to adsorb cationic dyes due to presence of abundant hydrophilic functional groups.

Graphite-like carbon nitride (g-C₃N₄) is a metal-free semiconductor that can be produced by simply heating urea, melamine, or cyanamide, in contrast to metal compound photocatalyst. Furthermore, the inexpensive g-C₃N₄ semiconductor is stable in solutions with pH 0–14 under light irradiation and has a band gap of 2.70 eV, which allows it to absorb visible light. The metal-free g-C₃N₄ has a lot of potential in the realm of photocatalysis because of these exceptional capabilities. However, one of the main factors limiting g-C₃N₄’s photocatalytic performance is the high rate of e−–h + pair recombination. In comparison to bulk g-C₃N₄ photocatalysts, doping with inorganic materials such as TiO₂¹¹, Zn₂GeO₄¹², and others with an appropriate band potential demonstrated a higher adsorption capacity and a lower recombination rate of photogenerated charge carriers. This is a practical way to reduce the recombination rate and increase the photocatalytic and adsorption activities¹³.

Strong π-π stacking interactions between graphitic carbon nitride nanosheets, however, can cause significant restacking and agglomeration, which lowers the adsorption activity of g-C₃N₄¹⁴. Nevertheless, a number of barriers and restrictions continue to prevent g-C₃N₄ from being utilized in real-world applications. These include its low specific surface area, lack of active sites, and adsorption capacity, as well as the significant aggregation that occurs during the photocatalytic and adsorption processes of traditional bulk g-C₃N₄ generated by direct polycondensation of nitrogen-rich precursors. ZnO-g-C₃N₄, a powdery sorbent that is difficult to recycle after adsorption and constitutes a secondary pollutant, is another issue with recycling and separation.

To overcome these limitations, numerous attempts have been made to enhance g-C₃N₄’s photocatalytic capability. These include creating heterostructure, doping with heteroatoms¹⁵, building heterostructure¹⁶, synthesizing copolymers, and thermal etching¹⁷, among other methods. However, the easy and environmentally friendly preparation of a highly active g-C₃N₄ material is still preferred. Therefore, efforts have been undertaken to create g-C₃N₄ composites with strong hydrophilicity and dispersion for sustainable adsorption performance via situ polymerization, for instance. The adsorption and dispersion capability of g-C₃N₄ may be improved by chemical modification of its surface functional groups, which serve as chemical binding sites¹⁸. Similarly, due to structure similarity between graphene and graphitic carbon nitride and to avoid π-π stacking, a new reduced graphene oxide was added to the gum tragacanth-cl-N, Ndimethylacrylamide (GT-cl-poly(DMA)/RGO) hydrogel composite. The reported maximum adsorption of Hg2 + and Cr6 + by (GT-cl-poly(DMA)/RGO) hydrogel composite was 666.6 mg g^{− 1} and 473.9 mg ^g−1, respectively and was fitted with Langmuir and pseudo-second-order isotherms¹⁹. Also, Sahraei et al. (2016) reported adsorption of Cr⁶⁺ metal by chitosan/reduced-graphene oxide/montmorillonite composite hydrogel with maximum adsorption of 87.03 mg g^{− 120}. Polyaniline (PANI) chains were embedded at the margins of graphene oxide nanosheets via in situ chemical oxidation polymerization. The maximal adsorption of brilliant green was 142.8 mg/g at pH 7 and well fitted with pseudo-second-order kinetic models and the Langmuir isotherm¹⁸. Sodium carboxymethylcellulose (CMC-Na)/polyvinyl alcohol (PVA) hydrogel reinforced with cellulose nanocrystal (CNC) and graphitic-like carbon nitride (g-C₃N₄) was fabricated. Methylene blue’s adsorption capability (MB, qe > 198.6 mg/g). The Langmuir isotherm model and the pseudo-second-order kinetic model both fit the adsorption characteristics of MB on the hydrogel as it was manufactured. It was demonstrated that the high adsorption capacity of the hydrogels was caused by the interplay of hydrogen bonds and π-π stacking²¹. Polyacrylic acid-grafted hydroxyethyl cellulose and polyvinyl alcohol that are physically cross-linked, (PAA-g-(HEC-PVA)- Fe³⁺ / ZnO-g-C₃N₄, was created to increase the adsorption capacity of methylene blue dye (MB). The optimal adsorption which fit the pseudo-second-order kinetic Langmuir adsorption model was 216.82 mg/g up to 50 min²².

Ethylenediaminetetraacetic acid (EDTA) functionalized graphene oxide-chitosan nanocomposite (GO-EDTA-CS) was synthesized by Monu Verma et al. in 2022. The adsorption of MB was studied using the Langmuir isotherm model, with a maximum adsorption capacity of 141 ± 6.60 and mg g^{− 1} 15 at solution pH of 5.10 and 8.30, respectively, starting concentrations of 100 mg L^{− 1} for MB dye, at 240 min of contact time and an adsorbent dose of 50 mg (in 40 mL solution)²³. Graphene oxide (GO) and ethylenediaminetetraacetic acid (EDTA) have been used to functionalize chitosan (CS) in order to remove organic pollutants from wastewater, such as sildenafil (SDF) and ciprofloxacin (CIP). At contact time 120–180 min, pH 5–8, and 25 mg of adsorbent in 20 mL solution, the produced adsorbent demonstrated heterogeneous adsorption capacities of 75.40 and 40.90 mg g^{− 1} for CIP and SDF, respectively²⁴. In order to remove organic contaminants simultaneously, a trifunctional β-cyclodextrin-EDTA-chitosan polymer adsorbent was also created utilizing a straightforward chemical process that involved crosslinking via EDTA. For MB dye, the adsorbent’s highest adsorption capacities were 107.20 ± 5.70. A novel graphene oxide-doped β-cyclodextrin chitosan polymer²⁵ and an ethylenediaminetetraacetic acid-functionalized graphene oxide-chitosan nanocomposite shown high adsorption capabilities of up to 158.40 mgg^{− 1} and 121 mgg^{− 1} for MB, respectively ethylenediaminetetraacetic acid functionalized graphene oxide-chitosan nanocomposite²³.

Many attempts have been undertaken to combine with producing copolymers to develop g-C₃N₄-based materials with strong adsorption²⁶. Adsorption is regarded as an appropriate method since it can eliminate water contaminants like organic dyes and heavy metals entirely, even from diluted solutions, generates non-toxic byproducts, is affordable, permits the recycling of biosorbents, and helps recovery²⁷. Many studies deal with utilizing adsorbents modified with graphitic carbon nitride, for example, polyacrylonitrile (PAN) support impregnated with amine-functionalized graphitic carbon nitride/magnetite (g-C₃N₄-NH₂/Fe₃O₄) composite nanofibers (PAN/gC₃N₄-NH₂/Fe₃O₄) was used to create a very stable mixed-matrix adsorbent system using simple electrospinning processes. According to the experimental results of the batch investigation, 0.02 g of adsorbent dose could adsorbed 97.0 and 99.0% of arsenite (As(III)) and arsenate (As(V)), respectively, within 60 min of contact time at pH 7 and 4, with an initial concentration of 10 mg/L²⁸. For the efficient static and dynamic adsorption of Pb²⁺ from aqueous media, Reem Ghubayra (2025) created a new graphitic carbon nitride/chitosan composite modified with thiosemicarbazide (TGCS). TGCS showed that at an adsorbent dosage of 1.5 g/L, pH 5, 45 min of shaking, and 23 °C, the Langmuir adsorption capacity for Pb²⁺ was 329.61 mg/g²⁹. The porous graphitic carbon nitride surface (g-C₃N₄) was modified with 2-amino fluorene polymer (AFP) to build a new hybrid adsorbent (g-C₃N₄/AFP). Its adsorptive activity was surveyed for the removal of heavy metals, methylene blue, and malachite green dyes from aqueous solution. According to the results, the maximal adsorption capacities of g-C₃N₄ and g-C₃N₄/AFP were 184.51 and 452.19 mg g^{− 1} for Cu (II), 85.73 and 221.85 for methylene blue, and 226.88 and 327.83 for malachite green³⁰.

Similarly, the composite membrane modified with graphitic carbon nitride is promising performance option and potential for scale-up at the industrial level³¹. The graphitic carbon nitride (g-C₃N₄) nanocomposite polyethylene terephthalate (PET) micro plastic membranes were fabricated using the phase inversion technique by immersing g-C₃N₄ nanoparticles into the PET casting solution. This membrane could remove 57.6% and 51.2% of organic matter when using pristine PET membrane for drinking water and wastewater effluent, respectively. Whereas, with PET/g-C₃N₄ membrane, removed up to 72.8% and 72.3% for drinking water and wastewater effluent, respectively. In addition, the composite membrane demonstrated good stability and reusability for up to 8 filtration cycles³². Hydrogels, a significant family of polymeric materials distinguished by their soft appearance, shape permanence, and swelling characteristics, are formed by polysaccharides^33,34,35,36. Because hydrogels make it easier for molecules to diffuse into the gel network, polysaccharides can be used in a variety of ways. The immobilization of g-C₃N₄ on hydrogels, polysaccharides, and hydrogel-based composites for water pollutants adsorption is the subject of relatively few investigations^37,38,39.

The graphitic carbon nitride composite hydrogels (g-C₃N₄/SA) modified by alginate were effectively prepared through a simple cross-linking polymerization technique, sodium alginate is effectively used to functionalize the graphitic carbon nitride and create SA modified g-C₃N₄ (also known as g-C₃N₄/SA). Using epichlorohydrin as a crosslinker and ammonium persulfate (APS) as an initiator, polyacrylamide was produced by polymerizing acrylamide, which exhibited good flocculation. Pb(II), Ni(II), and Cu(II) had maximal adsorption capacities of 383.4, 306.3, and 168.2 mg g^{− 1}, respectively⁴⁰. Huiqiang Wang et al. (2020) have created as a smart sodium carboxymethylcellulose (CMC-Na)/polyvinyl alcohol (PVA) hydrogel reinforced with cellulose nanocrystals (CNC) and graphitic-like carbon nitride (g-C₃N₄) with proper mechanical, thermal, and swelling response. Outstanding tensile strength (up to 648 KPa), excellent elongation (1169%), and satisfactory toughness (340 KJ/m3) were all exhibited by the 1.0% g-C₃N₄/CNCs-H hydrogel.The g-C₃N₄/CNCs-H hydrogel as synthesized has a high equilibrium swelling capacity (90.47–117.3 g/g), which significantly increased the methylene blue adsorption capacity (MB, Q_e > 198.6 mg/g)²¹. Zhongyue Chen et al. (2022) used a simple sol-gel technique to develop environmentally friendly sugarcane cellulose (SBC)/sodium carboxymethylcellulose (CMC-Na) adsorbent augmented with carbon nitride (g-C₃N₄) with pseudo-second-order kinetic model and Langmuir adsorption capacity of 362.3 mg g^{− 1}. The hydrogel composite showed excellent stability and reusability with virtually little adsorption capacity loss and high selectivity to MB/MO or MB/RhB mixed dyes⁴¹. In another investigation, a novel palladium nanocatalyst supported on graphitic carbon nitride (g-C₃N₄) and sodium carboxymethyl cellulose (Na-CMC) composite hydrogel beads was fabricated. This composite was applied to diminish several nitroaromatics such as 4-nitrophenol (4-NP), 2-nitrophenol (2-NA), 4-nitroaniline (4-NA), 4-nitro-o-phenylenediamine (4-NPDA), and organic dyes as well as methylene blue (MB), methyl orange (MO), Rhodamine B (RhB), in addition to potassium hexacyanoferrate(III) (K₃[Fe(CN)₆]). Even after four consecutive runs, Pd@Na-CMC/g-C3N4 demonstrated excellent stability and was able to lower 4-NP and MO without suffering a noticeable decline in performance⁴².

The key prospect of this study is to fabricate composite adsorbent based on (carboxymethyl chitosan/alginate)-grafted polyacrylic acid (CMCH/ALG)-g-PAA modified with (ZnO-g-C₃N₄) of multiple functionalities for high efficient methylene blue dye remediation. Initially, ZnO-g-C₃N₄ nanosheets was prepared by conventional thermal condensation technique and investigated by TEM, SEM, XRD and FTIR. ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA was prepared and investigated by FTIR, XRD, and SEM. Thermal analysis of (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA was investigated. The swelling behavior of CMCH/ALG)-g-PAA were investigated and their kinetics were investigated at pH 5.8, 7.0, 8.0 and saline solution. The adsorption optimization including MB, adsorbent, adsorbate concentrations, and pH were explored. The isotherms, adsorption mechanism was proposed, and thermodynamics studies were explored.

Materials and methods

Materials

Acrylic acid (AA) of Molecular weight (72.06 g/mole) was purchased from Sigma Aldrich, carboxymethyl chitosan of 90% deacetylation degree and 0.9 of substitution degree was delivered from Macklin Company (Shanghai, China), alginate sodium salt (ALG), Potassium persulfate (PPS), methylenebisacryalmide (MBA) were delivered from Merck. Analytical grade (AR) zinc acetate dihydrate, melamine, urea, sodium hydroxide, and hydrochloric acid were purchased from Loba chemicals. Methylene blue (MB) dye was purchased from TCI chemicals and employed as a model water pollutant in the current study.

Synthesis of graphitic carbon nitride (g-C₃N₄) nanosheets

G-C₃N₄ was prepared using the traditional method of thermal condensation. Briefly, 5 g of melamine was initially pounded well into fine powder with pestle and mortar for 30 min and dried in a furnace at 105 °C. The dry powder was then placed in a silica crucible, covered with aluminum foil, and calcined for six hours at 600 °C in a furnace. g-C₃N₄ was produced as a pale yellow powder⁴³. The g-C₃N₄ product powder was dispersed in deionized water and ultrasonically pulverized for two hours to create ultrathin porous nanosheets. For additional investigation, the solid nanoparticles were subsequently collected using a centrifuge and dried for 24 h at 60 °C for further analysis⁴⁴.

Synthesis of zinc oxide -graphitic carbon nitride (ZnO- g-C₃N₄) hybrid nanosheets

ZnO-graphitic carbon nitride (ZnO-g-C₃N₄) has been synthesized using the traditional thermal condensation method. As precursors, zinc acetate dihydrate and melamine were thoroughly combined in a 4:1 weight ratio. A specific quantity of the thoroughly combined zinc acetate and melamine was put in a furnace and heated for six hours at 600 °C at a rate of 2 °C per minute. The product was then cleaned with a lot of deionized water and allowed to dry for 24 h at 60 °C⁴³. Ultrasonic pulverization was used for two hours to exfoliate the product powder in deionized water. After that, the solid nanoparticles were gathered using a centrifuge and dried for 24 h at 60 °C for additional examination.

Synthesis of (carboxymethyl chitosan/alginate)-grafted polyacrylic acid (CMCH/ALG)-g-PAA

First, 10 ml of deionized water in a 100 ml beaker was used to completely dissolve the MBA cross-linker (0.05 g) by stirring. Next, 0.32 g of a 1:1 weight ratio CMCH/ALG combination was added. After being neutralized with a sodium hydroxide solution (5M), 5.25 mL of AA was added to the beaker and constantly swirled. Potassium persulfate (0.05 g/10 mL), the redox initiation system, was then added to the beaker, agitated for two minutes, and then placed in a water bath set at a constant temperature (70 °C) for four hours. The reaction product was oven-dried after being thoroughly cleaned with deionized water (3 × 500 ml, 24 h)⁴⁵. The nanocomposite was dried in an oven at 60 °C after the homopolymer was removed from (CMCH/ALG)-g-PAA by solvent extraction with acetone (Scheme 1).

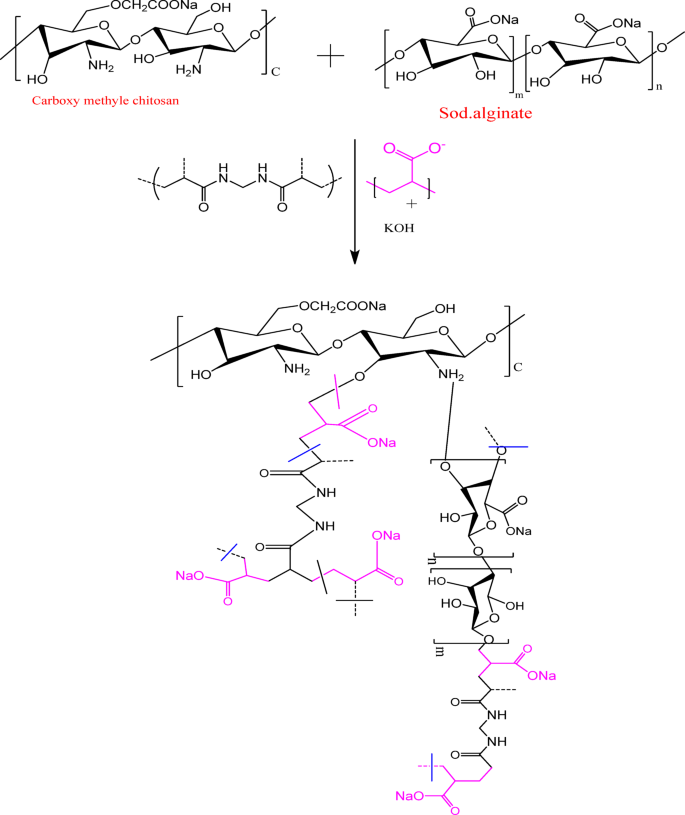

Scheme 1

Proposed grafting mechanism of (CMCH/ALG) polymer blend with acrylic acid chemical structure.

Synthesis of ZnO-g-C₃N₄@(carboxymethyl chitosan/alginate)-grafted polyacrylic acid

First, 10 ml of deionized water in a 100 ml beaker was used to completely dissolve the MBA cross-linker (0.05 g) by stirring. Next, 0.32 g of a 1:1 weight ratio CMCH/ALG combination was added. After neutralizing the sodium hydroxide solution (5 mol/l, 2.04 ml), AA (5.25 mL) was added to the beaker and constantly swirled. ZnO-g-C₃N₄ was added as 1%, 2%, and 3% based on total weight of polymer formulation. The mixture was then placed in a water bath with a constant temperature of 70 °C for four hours after the redox initiation system, PPS (0.05 g/mL), was added to the beaker and swirled for two minutes. After being thoroughly cleaned with deionized water (3 × 500 ml, 24 h), the reaction product was oven-dried⁴⁵ (Scheme 2).

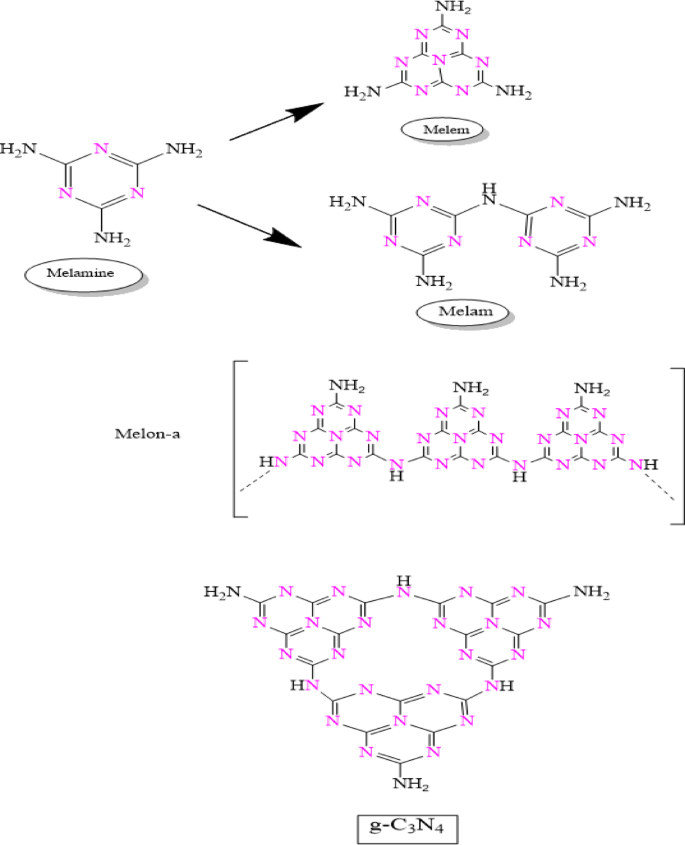

Scheme 2

Illustrate melamine and its thermal condensation intermediate products and g-C₃N₄ chemical structures.

Characterization

Attenuated total reflectance infrared spectroscopy [ATR-IR] analysis

Fourier Transformation Infrared (FTIR) spectra were obtained at room temperature using the Attenuated Total Reflection (ATR) unit attached with FTIR-Vertex 70 Bruker, Germany, in the range of 4000 –400 cm^− 1, to distinguish the chemical compositions of g-C₃N₄, ZnO-g-C₃N₄ nanosheets, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymers.

X-ray diffraction analysis (XRD)

Using a Bruker diffractometer, g-C₃N₄, ZnO-g-C₃N₄ nanosheets, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymers diffractions were examined (Bruker D 8 advance target). It was done using a 40 kV, 40 mA CuK radiation source with a second monochromator (λ = 1.5405 Ǻ). The scanning rate for line broadening profile analysis and phase identification was 0.2 min^− 1.

Equation (1) was used to measure the crystallinity indices (CI %) of the samples.

$$CI~\% ~ = \frac{{A_{C} }}{{A_{C} + A_{a} }} \times 100$$

(1)

where, A_c and A_a are crystalline area and amorphous, respectively⁴⁶.

Transmission electron microscopy (TEM) analysis

JEM-10OCXII TEM (Japan) operating at 120 KV was used to analyze g-C₃N₄ and ZnO-g-C₃N₄ nanosheets using transmission electron microscopy (TEM). To create a very thin film, the freshly prepared specimen solutions were dropped on the copper grid that had been coated with carbon. The sample was ready to be examined after 15 min.

Surface morphology studies (SEM&EDS)

The surface morphologies of g-C₃N₄, ZnO-g-C₃N₄ nanosheets, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymers were explored using SEM Model Quanta 250 FEG (Field Emission Gun) attached with EDX Unit (Energy Dispersive X-ray Analyses), with accelerating voltage 30 K.V., magnification14x up to 1000000 and resolution for Gun.1n).

Swelling ratio percentage (Sr %)

The swelling ratios of (CMCH/ALG)-g-PAA copolymers were described in details as a function of time change with the use of buffer solution of different pH 5.8, pH 7.0, and pH 8.0 and saline solution (5% NaOH). To calculate the swelling ratio %, (Eq. 2) was employed.

$$\:Sr\:\text{\%}=\frac{\left({\text{W}}_{\text{t}}-{\text{W}}_{\text{o}}\right)}{{\text{W}}_{\text{o}}}\:\times\:100$$

(2)

where W_t is the sample’s weight at time (t), and W_o is the sample’s initial weight.

Swelling kinetics

The swelling dynamics using a pseudo- first and second order formula was utilized. The rate at the time (t) was inserted into Eqs. 3 and 4, respectively.

$$\:\text{Sr}\text{\:t},\:f=\:{\text{Sr}}_{\text{e}},f\:\left(1-{e}^{-{\text{k}}_{\text{1,\:f\:\:}}t\:}\right)$$

(3)

$$\:\text{Sr}\text{\:t,\:s}=\frac{{{\text{\:Sr}}_{\text{\:e}}}^{2}{\text{k}}_{\text{2}},s\:t}{{{\text{Sr}}_{\text{e,\:S\:}}\text{k}}_{\text{2}},s\:t+1}$$

(4)

where $\:\text{Srt},\:f$ and $\:\text{Srt}\text{,\:s}$ are the sample`s swelling ratio at time t, $\:{\text{Sr}}_{\text{e}},f$ and $\:{\text{Sr}}_{\text{e,\:S\:}}$ are the sample`s swelling ratio at equilibrium and $\:{\text{k}}_{\text{1,\:}\text{f\:}}$ and $\:{\text{k}}_{\text{2}},s$ are the rate constant of first and second order reactions.

Next, using Eq. (5), the swelling values derived from the data are fitted into a Voigt model.

$$\:{\text{Sr}\text{\:t}}_{\text{,\:\:V}}=\:{\text{Sr}}_{\text{e}},\:V\:\left(1-{e}^{-t/r,V}\right)$$

(5)

Where St,_,V is the swelling capacity at time t. The swelling capacity at infinite time, or the greatest water-holding capacity, is known as equilibrium swelling (St_{e, V}), and r,V is the rate parameter, which is the time required to reach 0.63 of the equilibrium swelling^47,48.

Chi-square ($\:{\upchi\:}2$) was used to measure the precision of the test findings (Eq. 6)

$$\:\text{C}\text{h}\text{i}-\text{S}\text{q}\text{u}\text{a}\text{r}\text{e}\:\text{s}\text{t}\text{a}\text{t}\text{i}\text{s}\text{t}\text{i}\text{c}\text{s}\:\left({\upchi\:}2\right)=\:\sum\:\frac{{(Sr}_{e}{,\:}_{\text{e}\text{x}\text{p}}-{Sr}_{e,\:}{,}_{cal{)}^{2}\:\:\:}}{\:{Sr}_{e,\:}{,}_{cal}}$$

(6)

.

Thermal properties

Universal V4.5 A TA Instruments SDT Q600 V20.9 Build 20) was utilized to carry out thermogravimetric analysis of polymer composite at a uniform heating rate of 10 °C /min in the temperature range from room temperature up to 1000 °C. A comparative estimation of the activation energies (E_a) using Coat and Redfern’s (1964). Equation (7) was employed when n ≠ 1:

$$\:\text{log}\left(\frac{1-{\left(1-\alpha\:\right)}^{1-n}}{{T}^{2}\left(1-n\right)}\right)=\text{log}\frac{AR}{bEa}\left(1-\frac{2RT}{Ea}\right)-\frac{Ea}{2.3RT}$$

(7)

Where α is the thermally-decomposed mass (deg/min) at the time (t) and T is the absolute temperature and n from 0.0 to 3.0 with 0.5 increments.

Practice of dye adsorption

Batch adsorptive tests were performed in a conical 100 mL flask to evaluate several factors, such as the initial dye dosages (5 ppm, 10 ppm, 15 ppm, 20 ppm, and 25 ppm), pH (5.8, 7.0, and 8.0), and the amount of adsorbent (100, 200, and 300 mg). Sodium phosphate buffers were used in the experiments. The dye concentration was measured by measuring the absorbance value at λ_max = 665 nm using UV/Vis spectrophotometer (JASCO V-730, Japan). The sample’s equilibrium adsorption capacity (Q_e, mg/g) and adsorption capacity (Qt, mg/g) at time t were calculated separately in Eqs. (8) and (9).

$$\:\text{Q\:}\text{t}=\frac{({\text{C}}_{\text{0}}-{\text{C}}_{\text{t}})\:}{m}V$$

(8)

$$\:{\text{Q}}_{\text{e}}=\frac{({\text{C}}_{\text{0}}-{\text{C}}_{\text{e}}\text{)}}{m}\:V$$

(9)

where C₀, Ce and C_t (mg/L) are initial concentration, concentration at equilibrium, and concentration with time ( t ) of MB (ppm). The mass concentration of the MB solution at equilibrium was C_e (mg/L). V is the volume of the MB solution (L), and m is dry weight of (CMCH/ALG)-g-PAA grafts and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA grafts (g).

Kinetics study

The process of adsorption was assessed using its kinetics and equilibrium, two crucial physico-chemical features. The adsorption kinetics data were analyzed using three rate equations: Lagergren pseudo-first-order (Eq. 10), Ho’s pseudo-second-order (Eq. 11), and Elovich reaction kinetics (Eq. 12)

$$\:{\text{Qt}}_{\text{\:,\:f}}=\:{\text{Q}}_{\text{e,\:f}}\:\left(1-{e}^{-{\text{k}}_{\text{1,\:f\:}}t\:}\right)$$

(10)

$$\:{\text{Qt}}_{\text{\:,\:s}}=\frac{{{\text{Q}}_{\text{e,\:s}}}^{2}{\text{k}}_{\text{2}},s\:t}{{{\text{Q}}_{\text{e,\:s}}\text{k}}_{\text{2\:,s}}t+1}$$

(11)

$$\:{\text{Qt}\text{,}}_{\text{\:\:v}}=\:\frac{1}{\beta\:}\:\:\:ln\:\left(1+\alpha\:\beta\:\:t\right)$$

(12)

Where k_{1, f} (min^{− 1}) is Lagergren pseudo-first-order rate constant of the adsorption process and $\:{\text{Qt}}_{\text{,\:f}}$ is the adsorption capacity (mg/g) at time (t), $\:{\text{Q}}_{\text{e,}\text{\:f}}\:$ is adsorption capacity (mg/g) at equilibrium. $\:{\text{k}}_{\text{2}},s$ (g.mg^{− 1}.min^{[− [1}) is Ho`s pseudo-second -order rate constant $\:\alpha\:$ is the initial adsorption rate for Elovich model (mg/ (g.min)) and $\:\beta\:$ is desorption constant (g/mg).

Adsorption thermodynamics

In order to identify whether the adsorption mechanism is single-layer physi- or chemisorption, the adsorption thermodynamic parameters, including (ΔG⁰), enthalpy (ΔH⁰) and entropy (ΔS⁰), must be analyzed. They can be calculated by the following Eqs. 13, 14 and 15 as reported, respectively.

$$\:ln\:{\text{K}}_{\text{D}}=\frac{{-\varDelta\:H}^{O}}{RT}+\frac{{\varDelta\:S}^{O}}{R}$$

(13)

$$\:{\text{K}}_{\text{D}}=\frac{{\text{Q}}_{\text{e}}\:}{{\text{C}}_{\text{e}}\:}$$

(14)

$$\:{\varDelta\:G}^{O}=-RT\:\text{ln}{\text{K}}_{\text{D}}$$

(15)

where T is the adsorption temperature (K), K_D is the equilibrium constant, and R is the gas constant (8.314 J/mol K)^49,50.

Results and discussion

Attenuated total reflectance infrared spectroscopy (ATR-IR)

The FTIR spectra of g-C₃N₄ and ZnO-g-C₃N₄ binary hybrid nanosheets were used to further investigate their chemical structures. As seen in (Fig. 1), the bending and stretching modes of N-containing heterocyclic compounds are characterized by a peak at 805 cm^− 1 and an absorption band in the region between 1000 and 1633 cm^− 1, respectively, in g-C₃N₄⁵¹. The large peak at 3154 cm^− 1 region was linked to the hydrogenation of sp²-N^52,53 and the stretching modes of uncondensed amino groups, such as –NH₂ and = NH⁵⁴.

Ring-sextant out-of-plane bending vibration of the triazine or heptazine units is responsible for the signals at about 805 cm^{− 155,56}. The two peaks at 1539 cm^{− 1} and 1633 cm^{− 1} can be ascribed to C = N stretching vibration, while the peaks at 1232 cm^{− 1} and 1454 cm^{− 1} are associated with C–N stretching vibration. There are several absorption maxima for imide and nitride stretching vibrations in the fingerprint area between 1232 and 1633 cm^{− 122,57}. The presence of aromatic C-N bonds in g-C₃N₄ is indicated by the peaks at 1232 cm⁻¹ and 1315 cm⁻¹.

This Zn–O bond may be the source of the strong FTIR band seen at 420 cm^{− 1} for ZnO-g-C₃N₄ binary hybrid nanosheets. When compared to g-C₃N₄, the ZnO-g-C₃N₄ binary hybrid nanosheets had a shift in the FT-IR peak position, confirming that g-C₃N₄ had an extremely strong interaction with ZnO. Furthermore, the ZnO-g-C₃N₄ binary hybrid nanosheets exhibit a shift towards 1457 cm^{− 1}, 1557 cm^{− 1}, and 1646 cm^{− 1} in comparison to g-C₃N₄, indicating a weak interaction between C-N and C = N with ZnO. These peaks correspond to C–N and C = N stretching vibrations, respectively. The interaction between g-C₃N₄ and ZnO is indicated by the peaks in the 1234 cm^{− 1} − 1633 cm^{− 1} areas being less intense^58,59,60,61. The peak at 805 cm^{− 1} can be attributed to ring-sextant out-of-plane bending vibration of the triazine or heptazine units shifts to 598 cm^{− 1}. Thus, the existence of the peaks corresponding to the g-C₃N₄ and ZnO in ZnO-g-C₃N₄ binary hybrid nanosheets revealed the co-appearance of g-C₃N₄ and ZnO in g-C₃N₄/ZnO hybrid nanosheets.

CMCH/ALG-g-PAA’s FTIR spectra usually show distinctive peaks that show its structure and changes. Among these peaks is a broad band at 3380 cm^− 1 that represents the OH and NH groups’ stretching vibrations. C-H stretching vibrations are represented by peaks at about 2923 cm^− 1. Moreover, the carboxylate groups (-COO) showed two distinctive peaks namely; the symmetrical C = O stretch is a sharp and intense peak at 1699 cm^− 1 and the asymmetrical C = O stretch appears at 1454 cm^− 1. The peak at 1557 cm^− 1 is due to stretching bending of free –NH₂. The peak at 1390 cm^− 1 is assigned to (-OH) deformation. The peak at 1339 cm^− 1 is due to grafting. The peak at 1231 cm^− 1 is due to C-O-C⁶².

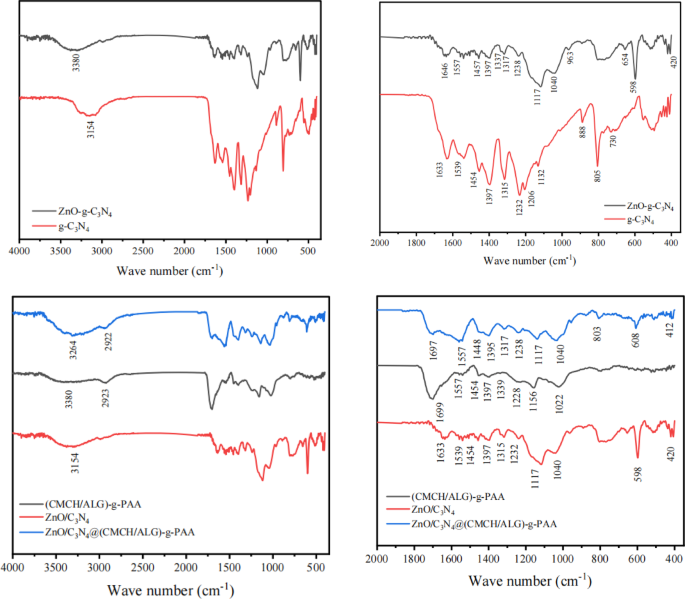

Fig. 1

FTIR spectra of g-C₃N₄, ZnO-g-C₃N₄ nanosheets, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄ @(CMCH/ALG)-g-PAA copolymers.

The FTIR of ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer showed similar peaks of (CMCH/ALG)-g-PAA copolymer but with some shits from 3380 cm^− 1 to 3264 cm^− 1, 1699 cm^− 1 to 1697 cm^− 1, 1454 cm^− 1 to 1448 cm^− 1, 1390 cm^− 1 to 1317 cm^− 1, and 1231 cm^− 1 to 1238 cm^− 1 due to incorporation of ZnO-g-C₃N₄ nanosheets.

The absorption bands in the region from 1000 to 1697 cm^− 1 and a peak at 803 cm^− 1 are the characteristic absorptions for the stretching and bending modes of N-containing heterocyclic, respectively are present in ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer. The peak owing to ring-sextant out-of-plane bending vibration of the triazine or heptazine units shifts from 598 cm^− 1 to 608 cm^− 1. A new sharp peak reported at 420 cm^− 1 for ZnO-g-C₃N₄ binary hybrid nanosheets could be indexed to the Zn–O bond was shifted to 412 cm^− 1. These shifts indicated the successful incorporation of ZnO-g-C₃N₄ binary hybrid nanosheets into ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer.

X-ray diffraction patterns

The g-C₃N₄ and ZnO-g-C₃N₄ nanosheets’ X-ray diffraction (XRD) patterns are displayed in (Fig. 2). Here, g-C₃N₄ and ZnO-g-C₃N₄ nanosheets showed two characteristic diffraction peaks. The distinctive interlayer stacking along the c-axis in graphitic carbon nitride is the source of the strong peak at 27.62°, which can be indexed as the diffraction peak of the (002) lattice plane^63,64. Also, The (100) lattice plane of g-C₃N₄ is represented by the weak diffraction peak at 12.94°, which is associated with the heptazine units or the in-plane structural packing motif⁶⁵. The all diffraction peak positions of g-C₃N₄ nanosheets are identical when compared to ZnO-g-C3N4. The ZnO-g-C₃N₄ nanosheets exhibit the typical diffraction peaks at 2 Theta of 31.66^o, 34.30°, 36.12°, 47.37°, 56.41°, 62.6° and 67.710°, and 68.85° for ZnO matching to the (100), (002), (101), (102), (110), (103), (112), and (201) crystal planes of ZnO nanoparticles. As shown in (Fig. 2), the (CMCH/ALG)-g-PAA copolymer contains a single peak at 2Theta 22.02^o with a semicrystalline nature. Nevertheless, when ZnO-g-C₃N₄ nanosheets are integrated into the (CMCH/ALG)-g-PAA copolymer, two additional peaks occur at 2Theta equal 31.60^o and 47.37^o, which correspond to the (100) and (102) diffraction planes of ZnO. Furthermore, (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymers have estimated crystallinity index percentages (CI%) of 30.78% and 48.15% respectively. The crystallinity index percentage of the (CMCH/ALG)-g-PAA copolymer is increased by 56.39% upon the integration of ZnO-g-C₃N₄ nanosheets. Based on these results, ZnO-g-C₃N₄ was well in situ integrated into the (CMCH/ALG)-g-PAA copolymer.

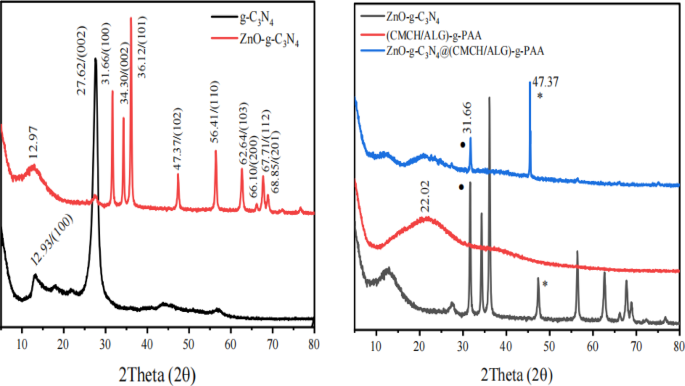

Fig. 2

XRD patterns of g-C₃N₄, ZnO-g-C₃N₄ nanosheets, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄ @(CMCH/ALG)-g-PAA copolymers.

Transmission electron microscope

The morphology and structure of g-C₃N₄ and ZnO-g-C₃N₄ were examined using TEM. TEM pictures of the resultant g-C₃N₄ and ZnO-g-C₃N₄ are displayed in (Fig. 3). G-C₃N₄ nanosheets are porous and have a small, flat, irregular shape in two dimensions^66,67. TEM images showed thin layer sheets’ stacking orientation. Additionally, TEM images displayed the porous structures’ loose, thin, and soft sheet-like appearance. The porous appearance is due to bubbles from CO₂, NH₃, and H₂O gases that were created during the pyrolysis and condensation events causing this porous architecture. These porous structures are anticipated to be advantageous for increasing the number of active spots on the surface. Adsorption capacity will be improved as a result. Bare ZnO nanoparticles exhibit rod-like structures that are slightly adsorbed on g-C₃N₄, as can be seen in the ZnO-g-C₃N₄ picture. The amorphous nature of g-C₃N₄ and the polycrystalline nature of ZnO-g-C₃N₄ are confirmed by the electron diffraction rings array shown in the inset of (Fig. 3)^68,69.

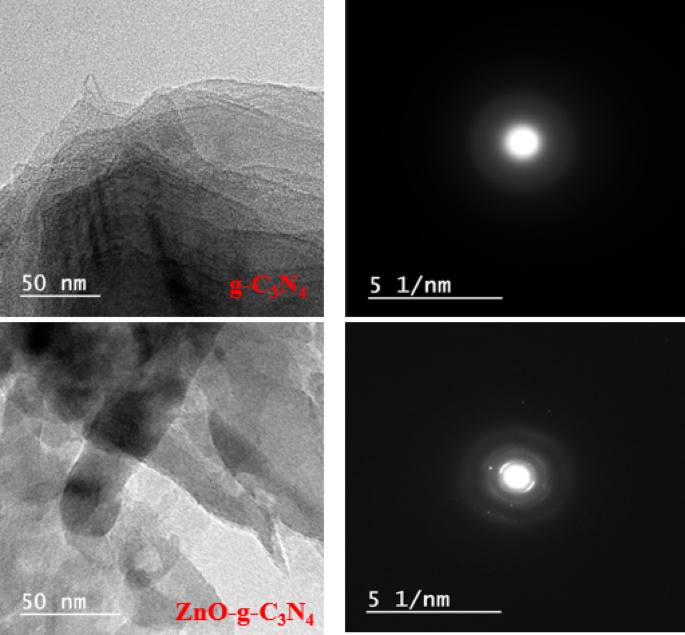

Fig. 3

TEM images of g-C₃N₄ and ZnO-g-C₃N₄ nanosheets and electron diffraction array patterns.

Surface morphology

SEM was used for additional examination of morphological investigations. The SEM pictures of g-C₃N₄, ZnO-g-C₃N₄, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA are displayed in (Fig. 4). The lamellar of the g-C3N4-nanosheets is loose and silky lamellar⁷⁰. On the surface of graphitic carbon nitride, ZnO-g-C₃N₄ exhibits a typical stacked multilayered sheet-like morphology that corresponds to the in-plane structural packing pattern of either triazine rings or heptazine rings building blocks. The ZnO-g-C₃N₄ sample shows clearly defined ZnO nanoparticles. This outcome confirms that the ZnO-g-C₃N₄ sample’s sharp X-ray diffraction pattern was caused by its high crystalline quality. When ZnO nanoparticles are present, a stalked, interconnected network forms. The (CMCH/ALG)-g-PAA appears as tiny deposits of uneven patches on the CMCH/ALG. However, ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA showed the embedded lamellar ZnO-g-C₃N₄ nanosheets as presented in (Fig. 4).

Correspondingly, the EDS spectra patterns of g-C₃N₄, ZnO-g-C₃N₄, (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA are depicted in (Fig. 4) and atomic ratios. of SEM-EDS elemental mapping are included in (Table 1). G-C₃N₄ nanosheets showed three elements including C, O, and N. On the other hand, ZnO-g-C₃N₄ showed that it was composed of the elements O, C, N, and Zn. It was revealed that the elements O, N, C, and Zn were clearly defined and contrasted sharply. The ZnO elements are effectively and uniformly distributed throughout. The outcomes validated the ZnO-g-C₃N₄ nanocomposite’s successful construction⁷¹. (CMCH/ALG)-g-PAA exposed three elements C, N, and O and The ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer’s EDS spectra revealed a contrast between the elements C, N, O, and Zn. ZnO-g-C₃N₄ was confirmed to be well-embedded into the (CMCH/ALG)-g-PAA copolymer by the EDS data.

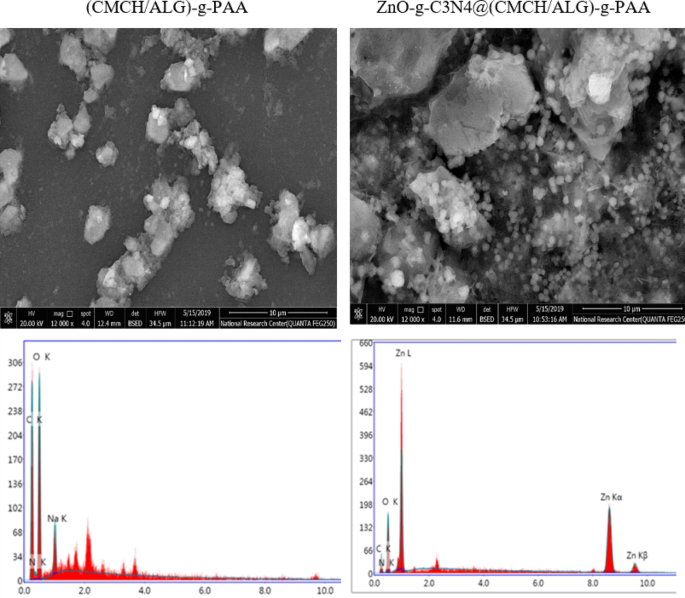

Fig. 4

SEM and EDS images of g-C₃N₄, ZnO-g-C₃N₄, and (CMCH/ALG)-g-PAA, and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA.

Table 1 SEM-EDS elemental mapping and its atomic ratios.

Thermal analysis

Thermo gravimetric curves of (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA are displayed in (Fig. 5). There was a noticeable weight loss that started as soon as the heating started. The three the decomposition phases of (CMCH/ALG)-g-PAA are 41.09-171.81 ˚C, 180.55–30,063 ˚C, and 329.33-524.11 ˚C with weight loss % (10.57, 50.05, and 83.25%), respectively as shown in (Table 2). The initial decomposition is due to desorption of moisture as hydrogen-bound water to (CMCH/ALG)-g-PAA. The second and third decomposition phases are due to depolymerization of graft chains to (CMCH/ALG) substrate which occurred at starting temperatures 180.55 ˚C and 329.33 ˚C with evolving of water vapors, carbon dioxide, and organic volatiles gases such as methane⁷².

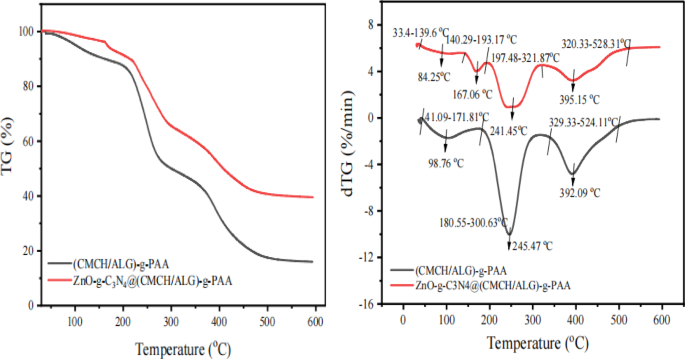

Fig. 5

TG% and dTG% of (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA.

On other hand, ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer exhibits four degradation phases 34.95 ˚C -194.04 ˚C, 194.04 ˚C -239.26 ˚C, 239.26 ˚C -311.21 ˚C, 320.33 ˚C -528.31 ˚C with weight loss percentages of 8.05%, 17.03%, 35.73%, and 59.82%: The initial degradation temperature of (CMCH/ALG)-g-PAA copolymer (171.81 ˚C) has shifted into 194.04 ˚C up on incorporation of ZnO-g-C₃N₄ indicating thermal stability of ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA. Furthermore, the occurrence of four thermal stages with low weight loss percentages than those of (CMCH/ALG)-g-PAA, this means that ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA is more thermal stable than (CMCH/ALG)-g-PAA. Also, Table 2 shows thermal kinetic parameters of both (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymers using Coats-Redfern equation to obtain total activation energy, n was taken from 0.0 to 3.0 with 0.5 increments. For each value of n, (R²) was evaluated. The activation energies were estimated with the best value of R². The total activation energy of ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer (Ʃ -0.1158 J mol^− 1) is two-fold higher than (CMCH/ALG)-g-PAA copolymer (Ʃ -0.05939 J mol^− 1).

Table 2 Thermal analysis and kinetics parameters of TG curves of (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymers.

Swelling ratios studies

Effect of pH and saline on swelling and its kinetics

The hydrogel was swelling essential for dye removal. This swelling makes it easier for dissolved dyes to bind to the accessible polymer chains by granting access to adsorption sites within the polymer network, which are only made available once the hydrogel opens up in the water. The adsorption of dye molecules from aqueous solutions through a variety of interactions, including hydrogen bonding, van der Waals forces, and electrostatic attraction, is made possible by the expansion of the 3D network, which reveals the hydrophilic functional groups and pore structure of the hydrogel.

Figure 6 displays the pH-sensitive swelling behavior of (CMCH/ALG)-g-PAA copolymer at different range of pH. The swelling equilibrium appeared on an average of 9 h. The swelling behavior of synthesized (CMCH/ALG)-g-PAA copolymer was found to be pH dependent, which was governed by the functional moieties present in the polymeric chain such as free amino, carboxyl groups, and hydroxyl groups. As shown in (Fig. 6), high swelling was observed at two pH levels 5.8 and at 8.0 which is explained by the following mechanisms: in low pH 5.8, the percentage swelling was governed by the -NH₂ moieties present in the (CMCH/ALG)-g-PAA copolymer. In excess of H⁺ ions, this functional group got protonated resulting in mutual repulsion between two polymeric chains, thus allowing more spaces for water. In alkaline condition, the percentage of water uptake was solely controlled by the carboxylic acid groups present in hydrogel chain. In excess of OH–ions, COOH existed as carboxylate ions (COO⁻). These negative charge ions induced repulsion among adjacent carboxylate ions of polymeric chains and anions counter part of alkaline buffer solution. Hence, huge intermolecular spaces were available for water^73,74. The maximum swelling ratios were 1697.10 ± 5.0%, 1496.24 ± 5.5%, and 775.99 ± 6.2% match to pH 8.0, pH 5.8, and pH 7.0.

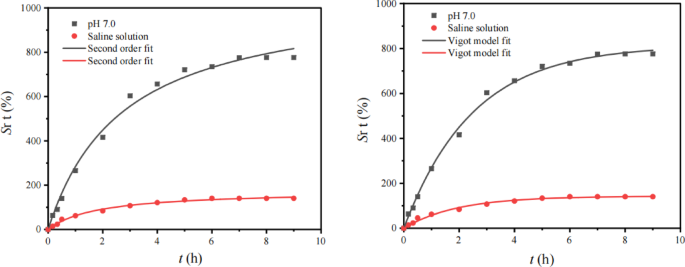

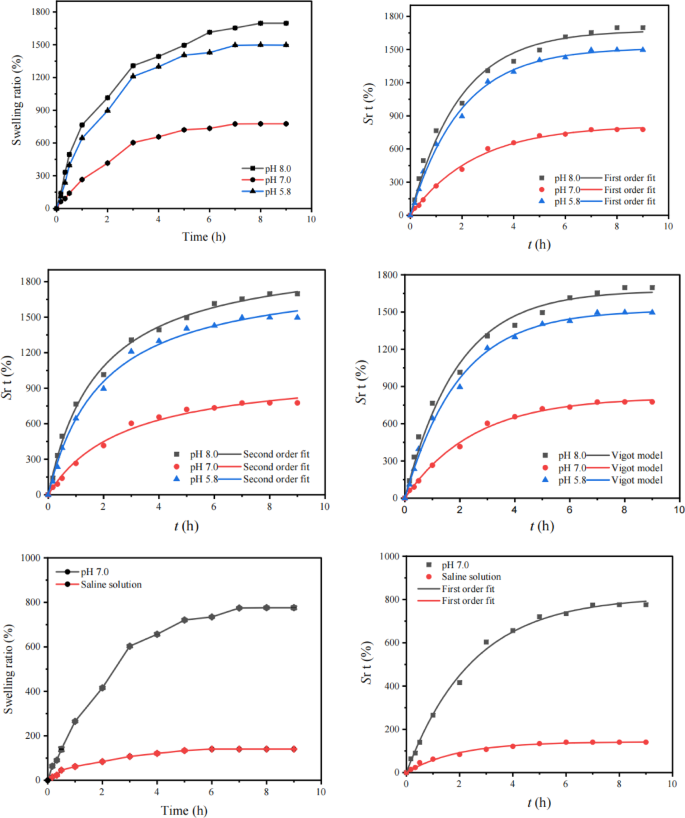

Fig. 6

Swelling ratios % and its kinetic of (CMCH/ALG)-g-PAA copolymer at different pH media using first order, second order, and Vigot models.

The swelling kinetics of (CMCH/ALG)-g-PAA copolymer in buffer solution at various pH as well as in saline solution are represented by Pseudo-first, second-order reactions, and Vigot model (Fig. 6). The swelling ratios readings quite well fit with the aforementioned models. The results of kinetic parameters at various pH are found in (Table 3). The swelling of (CMCH)-g-PAA follows the pseudo-first-order reaction with higher correlation coefficients (R²f ≥ 0.99) and smaller nonlinear error functions, the Chi-square (χ²) rather than second order despite higher correlation coefficient. Additionally, Table 3 displays that the pseudo-first-order reactions predicted equilibrium swelling ratios (Sre, f, fit %) are reasonably close to the actual ratios. One of the most crucial technical aspects of (CMCH/ALG)-g-PAA composite is their swelling rate. Free-absorbency capacity measurements are typically performed at successive time intervals to acquire the profile of swelling capacity versus time of (CMCH/ALG)-g-PAA composite sample, which may be used to calculate the swelling rate. The swelling ratios values derived from the data are fitted into a Voigt model and showed good fitting with model.

The swelling capacity at equilibrium represents the greatest water-holding capacity (S_{e, V}) is reasonably close to actual data as shown in (Table 3). Another Vigot`s crucial parameter is rate parameter (r,V) is the time required to reach 0.63 of the equilibrium swelling. It is noticed that pH has effect on (r,V). The decreasing order of (r,V) is 2.48 ± 0.120 h, 1.96 ± 0.08 h, and 1.90 ± 0.14 h which match to pH 7.0, pH 5.8, and pH 8.0 as shown in (Table 3). When compared to the values obtained in buffer solution at pH 7.0, the superabsorbent’s swelling capacity in saline solution was noticeably reduced from 775.9 ± 6.24% to 140.5 ± 1.24% as shown in (Fig. 6). The non-effective anion–anion electrostatic repulsion caused by the screening effect of the extra cations is the cause of the swelling observed in the ionic (CMCH/ALG)-g-PAA copolymer.

Table 3 Swelling ratios kinetics parameters of (CMCH/ALG)-g-PAA copolymer at diverse pH using first order, second order, and vigot models.

Additionally, because of the difference in the concentration of mobile ions between the copolymer and aqueous phases, there is a reduced osmotic pressure difference between the (CMCH/ALG)-g-PAA copolymer network and the external solution. The swelling ratios % data are well fitted with first order and are not fitted with second order. Because of the simulated Sr_{e, S}, fit % (1889.7 ± 47.5) is further far from experimental one, Sre, exp % =140.50 ± 1.24 as shown in T(able 4). On the other hand, the swelling ratios % data are well fitted with Vigot model and higher R^2, _{V =}0.9902 and the swelling capacity at equilibrium (Sr_e, _V), is fairly similar to the actual values and the rate parameter (r, V) is 1.93 ± 0.15 h as shown in (Table 4).

Table 4 Swelling ratios kinetics parameters of (CMCH/ALG)-g-PAA copolymer in saline solution.

Evaluation of adsorption capacity of ZnO-g-CN₄(3%)@(CMCH/ALG)-g-PAA

Effect of ZnO-g-CN₄ contents

The effect of embedded ZnO-g-C₃N₄ contents in (CMCH/ALG)-g-PAA on the adsorption of MB dye was studied over a weight gradient (1%, 2%, and 3% based on weight of CMCH/ALG)-g-PAA) adsorbent and the results are presented in (Fig. 7). An increase in the amount of dosage from 1% to 3% increases the adsorption capacity from 19.34 ± 0.39 mg/g to 24.30 ± 0.61 mg/g. ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA’s adsorption mechanism of MB was primarily based on three interactions: π-π stacking orientations, electrostatic interactions, and intermolecular hydrogen bonds. It is common for the aryl structures to create π-π stacking interactions in edge-to-face and/or face-to-face locations. When 3% ZnO-g-C₃N₄ is embedded in CMCH/ALG)-g-PAA polymer, π-π stacking with MB is formed, which makes it possible for MB to be adsorbed onto the polymer surface. Furthermore, the surface of ZnO-g-C3N4@(CMCH/ALG)-g-PAA nanocomposite has a significant number of carboxyl, amino, and hydroxyl groups at 3% ZnO-g-C₃N₄. This includes an O atom, which acts as an excellent hydrogen acceptor and contributes to form hydrogen bonds with N and S ions in MB molecules²¹.

Effect of ZnO-g-CN₄(3%)@(CMCH/ALG)-g-PAA adsorbent dose

The dosage of the ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent is a crucial factor that needs to be assessed and adjusted. The adsorption capacity for MB dye increased when the ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent dosage increased from 0.1 to 0.3 g/L, according to the results (Fig. 7). This could be because the active sites on the surface of each adsorbent became unsaturated. However, as the adsorbent dosage was increased, the rate of removal of MB dye increased as well. This is as expected since, with a higher amount of the adsorbent, the overall surface area is increased and therefore there are more active sites accessible for the adsorption⁷⁵.

Hamid Safarzadeh et al., 2023 had created methacrylic acid (MAA) and acrylamide (AAm) onto the sodium alginate (SA) to remove malachite green (MG) from aqueous solution. The maximum adsorption capacity was 95.91 mg/g at a pH of 7, adsorbent polymer concentration of 1.5 g/L, a contact time of 90 min, and MG concentration of 10 mg/L⁷⁶. Monu VermaIn 2022, et al. synthesized a graphene oxide-chitosan nanocomposite functionalized with ethylenediaminetetraacetic acid (EDTA). The adsorption of MB was based on the Langmuir isotherm model, with a maximum adsorption capacity of 141 ± 6.60 and mg g^{− 1} 15 at solution pH of 5.10 and 8.30. The initial concentrations of MB dye were 100 mg L^{− 1} at 240 min of contact time and an adsorbent dose of 50 mg (in 40 mL solution)¹⁵.

Effect of solution pH

One significant factor influencing the entire adsorption process is the pH of the solution. It has the ability to change the adsorbent’s surface charge. As a result, there will be a range of interactions between the organic dye and the adsorbent composite, from attraction to repulsion. Thus, the adsorption capacity will decline or increase with increasing the pH, depending on whether the organic dye is cationic or anionic and its interaction with ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent⁷⁷. The MB dye’s structure is distinguished by the existence of cationic functional groups. ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent’s surface charge becomes positively charged at acidic pH (pH = 5.8), which reduces the attraction between the cationic dye and the ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent and, as a result, lowers the adsorption capacity. However, at alkaline pH (pH 8.0), the ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent becomes negatively charged, therefore the cationic MB dye could be electrostatically attracted leading into high adsorption capacity. The increasing order is 21.11 ± 0.31 mg/g, 23.64 ± 0.43 mg/g, and 24.30 ± 0.61 mg/g that match to pH 5.8, pH 7.0, and pH 8.0, respectively (Fig. 7). Ch. Jamkhokai Mate and Sumit Mishra (2020) have reported a maximum adsorption 5.6 mg/g of Remazol Brilliant Blue R (RBBR) dye at 80 mg/L dye concentration and pH 6 for a cross-linked Jhingan gum hydrogel was synthesized using borax as a cross-linker through microwave assisted technique⁷³.

Effect of initial MB concentrations

Figure 7 illustrates the adsorption capacity as a function of the initial MB concentration, which ranges from 5 to 25 mg/L. An increase in the initial MB concentration was observed to boost the adsorption capacity. The adsorption capacity was 24.30 ± 0.61 mg/g at the starting concentration of 25 mg/L as displayed in (Fig. 7). Accordingly, there is a greater concentration gradient and a stronger driving force for adsorption of the MB dye at higher starting concentrations and fixed amount of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbent (0.3 g/L) and adjusted pH of 8.0. This provides the MB dye greater opportunities to get into contact with the ZnO-g-C₃N₄ (3%)@(CMCH/ALG)-g-PAA adsorbent leading into a higher adsorption capacity will result from the attachment of more MB dye to the active sites on the adsorbent surface. According to this, ZnO-g-C₃N₄ (3%)@(CMCH/ALG)-g-PAA copolymer is a great adsorbent that can sustain a steady removal rate by boosting its adsorption capacity as the starting concentration increases. The gum Acacia capped polyaniline-based nanocomposite hydrogel was fabricated by T. Jayaramudu et al. (2021) had a maximum adsorption capacity of MB 35.41 mg/g at pH 10 with a dye concentration of 10 mg L^{− 1}., 300 min⁷⁸.

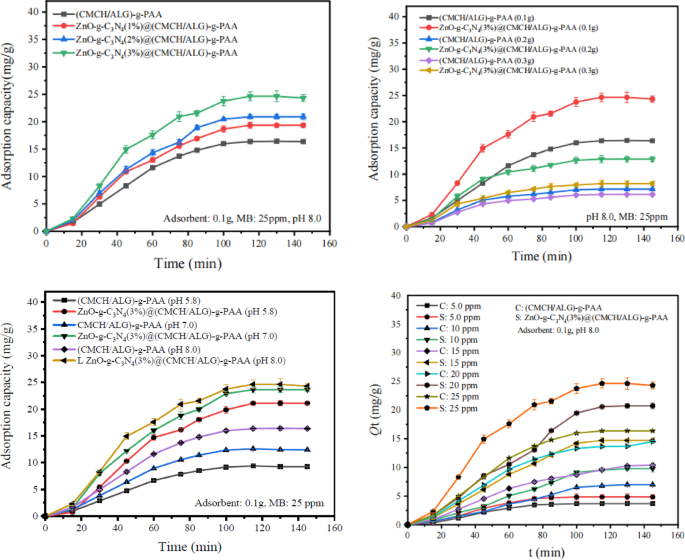

Fig. 7

Evaluation of adsorption capacity of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA.

Adsorption kinetics and modeling

Investigation of adsorption Kinetics is significant because it allows determining the mechanism of adsorption as well as the rate of adsorption, which is one of the requirements for an adsorbent’s efficiency. The change in the amount of MB dye adsorbed (Qt) by ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA in comparison with (CMCH/ALG)-g-PAA adsorbents as a function of time is displayed in (Fig. 8). In the early stages of adsorption, MB dye exhibits a high rate of adsorption. The majority of adsorption occurs in less than 50 min, indicating a rapid rate of dye adsorption by ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and (CMCH/ALG)-g-PAA adsorbents, respectively. In order to analyze the adsorption kinetics of MB dye by ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and (CMCH/ALG)-g-PAA adsorbents, the pseudo-first order, pseudo-second order, and Elovich equation are tested. The result of fitting is listed in (Table 5). Despite all the experimental data had higher correlation coefficient values (R² > 0.9), but the data have better compliance with the first order kinetic model compared to the pseudo second-order model. The Q_{e, f}, fit % values 21.3 ± 2.49 and 29.9 ± 2.74 from the first-order model for (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbents is more in line with the experimental Q_e, exp % values 16.3 ± 0.43 and 24.3 ± 0.611 for (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbents, respectively.

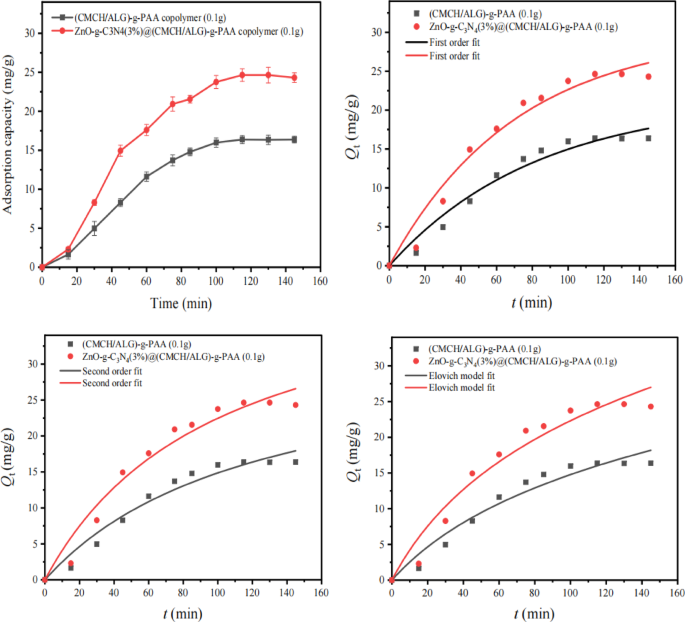

Fig. 8

Adsorption rate curves of MB dye: experimental conditions: pH 8.0, dye conc. 25 mg/L, (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA adsorbents doses (0.3 g/L).

In general, chemisorption is applied using the Elovich equation. The equation has been shown to apply to a broad variety of slow adsorption rates and has been applied well to some chemisorption processes. The same equation is frequently applicable to systems with heterogeneous adsorbing surfaces. The experimental data is consistent with Elovich model fitting with high R² and the initial adsorption rate constant ($\:\alpha\:)$ of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA (0.482 ± 0.107 mg g^− 1 min^− 1) is higher than that of (CMCH/ALG)-g-PAA adsorbent (0.282 ± 0.05 mg g^− 1 min^− 1) and the desorption constant ($\:\beta\:$) of (CMCH/ALG)-g-PAA adsorbent (0.079 ± 0.02 g min^− 1) is higher than that of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA (0.062 ± 0.016 g min^− 1) indicating that ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA is highly efficient adsorbent for removal of MB dye.

Table 5 Adsorption kinetics modeling parameters at pH 8.0, MB concentration 25 mg/L, and adsorbent dose 0.1 g using first order, second order, and Elovich models.

Adsorption isotherm

In order to further confirm the adsorption mechanism, the most commonly used model equations, Langmuir (Eq. 16), Freundlich (Eq. 17), Temkin (Eq. 18), Redlich Peterson (Eq. 19)⁷⁹, Sips (Eq. 22)⁸⁰, and Fritz–Schlunder (F–S) isotherm (Eq. 23)⁸¹, respectively were applied to explain the adsorption process. A comparison of nonlinear fitted curves of MB dye adsorbed by ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and (CMCH/ALG)-g-PAA adsorbents from experimental data is shown in (Fig. 9). The coefficients of determination (R²) and isotherm parameters from nonlinear regressive method were listed in (Table 6).

According to the Langmuir model, monolayer sorption takes place on a solid surface with homogeneous, identical sites. Additionally, it implies that after the active sites are saturated with dye molecules, no more adsorption occurs.

$$\:{\text{Q}}_{\text{e}}=\frac{{\text{(Q}}_{\text{max}}\:{\text{K}}_{\text{L}}{\text{C}}_{\text{e}}\text{)}}{1+{\text{C}}_{\text{e}}\:\:{\text{K}}_{\text{L}}}$$

(16)

Where Q_e is the quantity of the adsorbed adsorbate per unit mass of the adsorbent (mg/L), C_e is the adsorbate equilibrium concentration (mg/L). K_L = a constant which is related to the affinity existing between the adsorbate and the adsorbent. Q_max (mg g^− 1) is the saturation ability of the monolayer which is expressed theoretically.

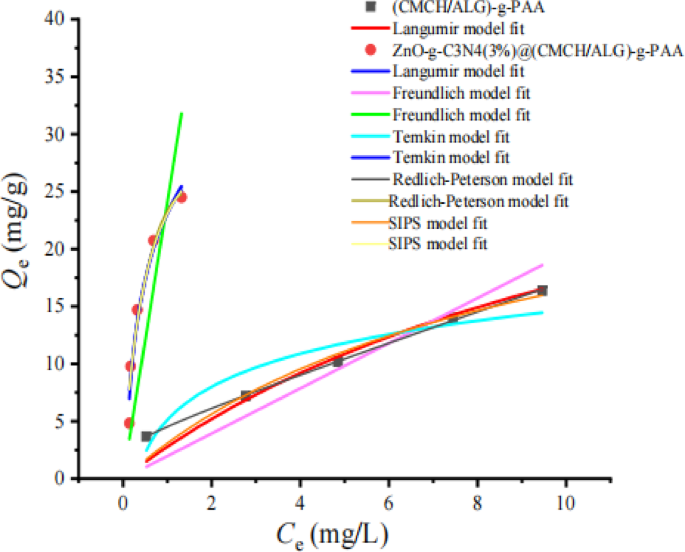

Fig. 9

Adsorption isotherm modeling of MB dye by of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA in comparison with (CMCH/ALG)-g-PAA adsorbents.

The practical adsorption data are well fitted by ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and (CMCH/ALG)-g-PAA adsorbents. This is evidenced by higher correlation coefficient R² and the fitted Q_max (mg g^− 1) values are close to practical data as shown in (Table 6). The constant K_L is calculated using the Langmuir model. K_L can be used to effectively evaluate whether the adsorption isotherm process is favorable (0 < K_L < 1) or unfavorable (K_L > 1). As seen in (Table 6) K_L is less than 1 for both ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and (CMCH/ALG)-g-PAA adsorbents implies that adsorption process is favorable (Scheme 3).

The Freundlich isotherm is an empirical model that assumes a heterogeneous adsorption, or a no uniform heat distribution on the adsorbent surface. The Freundlich equation is based on the assumption that the adsorption sites on the adsorbent surface are not evenly distributed, and adsorption is not constrained by single-layer adsorption, but the simultaneous occurrence of single-layer and multi-layer adsorption.

$$\:{\text{Q}}_{\text{e}}={\text{L}}_{\text{f}}\:{{\text{C}}_{\text{e}}}^{1/n}$$

(17)

L_f [ mg/g (L/mg)ⁿ ] and n in the equation are the known as the Freundlich constants, where n gives the favorability of the adsorption technique and L_f is the adsorption capacity constant. If the value of n is equal to unity, the adsorption is linear; if the value is below to unity, this means the adsorption process is chemical; adsorption is a beneficial physical process if the value is greater than unity. As noticed in Fig. 9, the adsorption of MB dye with either ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and (CMCH/ALG)-g-PAA adsorbents is not consistent with Freundlich isotherm. The adsorption data not fitted with Freundlich equation.

The Temkin model proposes into account the effects of the interaction of the adsorbate and the adsorbing species. By ignoring the extremely low and large concentration values, the model assumes that the heat of adsorption (a function of temperature) of all of the molecules in the layer would decrease linearly rather than logarithmically with coverage due to adsorbate–adsorbent interactions.

$$\:{\text{Q}}_{\text{e}}=\frac{RT}{{\text{b}}_{\text{T}}}\left(ln{\text{C}}_{\text{e}}+ln\text{}{\text{A}}_{\text{T}}\right)$$

(18)

A_T is Temkin isotherm equilibrium binding constant (L g^− 1), b_T (J mol^− 1) is Temkin isotherm constant associated with adsorbate-adsorbent interactions, R is the universal gas constant (8.314 J/mol K^− 1). The adsorption data of MB dye with ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA and adsorbents are highly fitted with Temkin model this is evidenced by higher R² as shown in (Table 6).

The Redlich–Peterson equation (Redlich and Peterson, 1959) is widely used as a compromise between Langmuir and Freundlich systems. This model has three parameters and incorporates the advantageous significance of both models. Redlich–Peterson model can be represented as follows:

$$Q_{e} = \frac{{k_{{RP~}} C_{e} }}{{1 + ~~\alpha _{{~R}} ~~C_{e} ^{{\beta _{{~R}} }} }}$$

(19)

K _RP (Lg^{- 1}) and α_R (L mg^{- 1}) are the Redlich–Peterson constants. β_R is exponent lies between 0 and 1. C_e is equilibrium liquid-phase concentration of the adsorbent (mg L^{− 1}), and Q_e is equilibrium adsorbate loading on the adsorbent (mg g⁻¹). At high liquid-phase concentrations of the adsorbate reduces to the Freundlich equation (Eq. 18):

$$\:{\text{Q}}_{\text{e}}=\frac{{{k}_{\text{RP}}\:{\text{C}}_{\text{e\:}}}^{1-\beta\:}}{{\alpha\:}_{\text{R}}}$$

(20)

Where, k_RP /α_R is Freundlich constant (L_f) and (1-β_R) = 1/n of the Freundlich isotherm model. When β = 1, reduces to Langmuir equation with K_L = α_R (Langmuir adsorption constant (L mg⁻¹) which is related to the energy of adsorption and k_RP = Q_max is Langmuir maximum monolayer adsorption capacity of the adsorbent (mg g⁻¹). When β = 0, reduces to Henry’s equation (Eq. 19) with k _HE representing Henry’s constant^82,83.

$$\:{\text{Q}}_{\text{e}}=\:{\text{k}}_{\text{HE}}\:{\text{C}}_{\text{e}}$$

(21)

The Redlich-Peterson adsorption model was found to fit the experimental data for MB dye sufficiently in accordance with the higher correlation coefficients R² = 0.9528 and 0.9599 for (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA, respectively. β equals 0.131 and 0.995 for (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA, respectively implying that adsorption process reduces to Langmuir equation as found in (Table 6).

Heterogeneous surfaces should be considerably better described by the Sips isotherm model which combines the Langmuir and Freundlich isotherm type models. The Sips isotherm approaches the Freundlich isotherm at low adsorbate concentrations, whereas at high concentrations it approaches the Langmuir isotherm.

$$\:{\text{Q}}_{\text{e}}=\frac{{{\text{Q}}_{\text{m}}\:\:\left({\text{k}}_{\text{s}}{\text{C}}_{\text{e\:}}\right)}^{1/n}}{{\:\:\left({\text{k}}_{\text{s}}{\text{C}}_{\text{e\:}}\right)}^{1/n}+1}$$

(22)

Q _m (mg/g) is the maximum adsorption capacity, and 1/n is the heterogeneity factor. K_S (L/mg) is the Sips equilibrium constants⁸⁴. The Sips model is found to be applicable for fitting practical data of adsorption MB dye by (CMCH/ALG)-g-PAA (R² = 0.9561) and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA (R² = 0.9552).

Table 6 Adsorption models of MB dye by (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA.

The Fritz–Schlunder (F-S) model combines the Freundlich and Langmuir isotherms to form an empirical three-parameter isotherm (Eq. 21).

$$\:{\text{Q}}_{\text{e}}=\frac{{\text{k}}_{\text{FS\:}}\:{\text{Q}}_{\text{m}}\:\:{\text{C}}_{\text{e}}}{1+\:\:{\text{Q}}_{\text{m}}\:\:{\:{\text{C}}_{\text{e}}}^{\text{n}}}$$

(23)

When saturation is reached, Q_m is the amount of dye adsorbed (mg/g), n is the Freundlich constant, and K_FS is the Fritz–Schlunder model constant (L/mg).

Despite the higher correlation coefficient, the Fritz–Schlunder (F-S) model is not fitted with experimental adsorption data of MB dye by both (CMCH/ALG)-g-PAA and ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA. The fitted maximum adsorption capacity Q_m (mg g^− 1) values are not consistent with experimental data as seen in (Table 6).

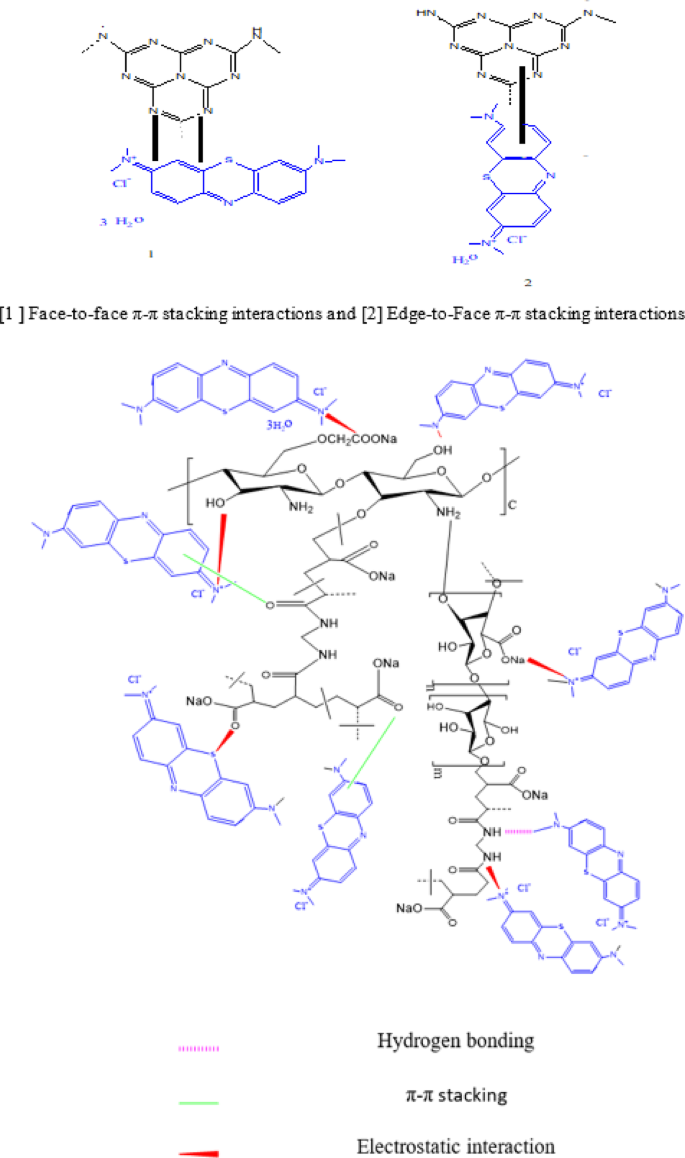

Scheme 3

Proposed adsorption mechanism of MB dye by ZnO-g-C₃N₄@(CMCH/ALG)-g-PAA copolymer.

Adsorption thermodynamics

The adsorption thermodynamic parameters of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA nanocomposite are summarized in (Table 7 and Fig. 10). ΔH° is positive for ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA nanocomposite which indicates the adsorption process is endothermic, whereas the positive ΔS° values indicate randomness during MB adsorption⁸⁵. Furthermore, the values of ΔH◦ are positive and less than 42 kJ/mol, which also suggests that the adsorption process in this study is physisorption⁸⁶. The positive value of ΔS⁰ reflects the affinity between MB and of ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA nanocomposite⁸⁷. The larger ΔS° values implies larger degrees of freedom at the solid–liquid interface during adsorption which causes structural changes to the adsorbent and can influence the rate of adsorption⁸⁵. The ΔG decreases with increasing temperature suggests that higher temperature is good for the adsorption process and all the heat absorbed by the system is used to increase enthalpy⁵⁰.

The ΔG◦ values in all adsorption experiments are larger than − 20 kJ/mol, which indicates that the adsorption is physisorption⁸⁸. According to Hamid Safarzadeh et al. (2023), sodium alginate-grafted-poly(methacrylic acid-co-acrylamide)/montmorillonite (SA-g-poly(MMA-co-AAm)/MMT) nanocomposite hydrogel was successfully fabricated (Table 8. The outcomes showed that it was prepared successfully. At 25 °C, a pH of 7, a dosage of 1.5 g/L, a contact period of 90 min, an MG concentration of 10 mg/L, and a pH of 7, the adsorbent’s maximum adsorption capacity of 95.91 mg/g was achieved. A negative Gibbs free energy (ΔG°) value in thermodynamics tests revealed that the adsorption process was spontaneous. Furthermore, the adsorption enthalpies (ΔH°) of SA-g-poly(MMA-co-AAm) and SA-g-poly(MMA-co-AAm)/MMT nanocomposite hydrogels were − 61.512 and − 77.281 kJ/mol, respectively, demonstrating the exothermic nature of the MG adsorption when employing these adsorbents⁷⁶.

Table 7 Adsorption thermodynamic parameters.

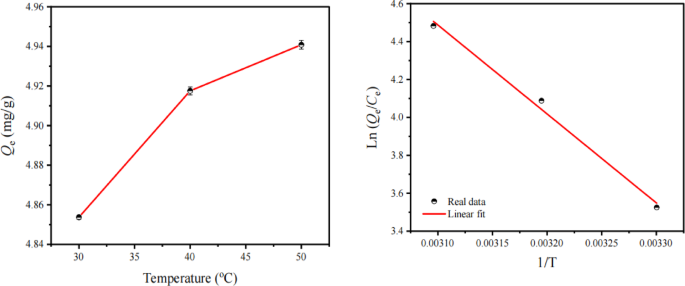

Fig. 10

Adsorption dynamic of MB dye by ZnO-g-C₃N₄(3%)@(CMCH/ALG)-g-PAA.

Table 8 Comparison with other adsorbent: maximum adsorption capacity and adsorption kinetics.

Conclusion

The developed multiple functional (carboxymethyl chitosan/alginate)-grafted polyacrylic acid composite (CMCH/ALG)-g-PAA with graphitic carbon nitride (ZnO-g-C₃N₄) as a high-potential filler has succeeded in meeting the growing demand for high-performance advanced polymer composites for highly effective dye removal from wastewater. At pH 8.0, pH 5.8, pH 7, and saline solution, the maximum swelling ratios were 1697.10% 1496.24%, 775.99%, and 140.5%, respectively. The swelling capacity data was well-fitted by the Vigot and first order models. The greatest adsorption capacity for (CMCH/ALG)-g-PAA with 3% ZnO-g-C₃N₄ was 24.30 mg/g at adsorbate concentration (0.1 g/L), MB dye concentration (25 mg/L), and pH 8.0. The Langmuir, Temkin, Redlich-Peterson, and Sips models are able to suit the practical data of adsorption indicated that adsorption mechanism is a complicated process. Adsorption is physisorption since all adsorption investigations had ΔG◦ values greater than − 20 kJ/mol. Adsorption is physisorption since all adsorption investigations had ΔG◦ values greater than − 20 kJ/mol. This study offers an intriguing, useful, and environmentally friendly method for efficiently eliminating cationic dyes from wastewater.
