Introduction

In today’s rapidly evolving world with highly competitive market, businesses are feeling pressure to keep their inventory in check1. As industries increasingly rely on e-Commerce, supply chains are becoming more complex and the need for accurate and up-to-date inventory data is becoming more and more crucial2,3,4.

Traditional inventory management methods, such as manual inventory management and periodic cycle counting, are no longer sufficient to keep up with the speed and volume of modern operations5. Conventional approaches often lead to delays, human errors, and inefficiencies, which can result in stock shortages, overstocking, and poor customer satisfaction5.

To align with the growing pace, Industry 4.0 technologies6continue to evolve more rapidly. Businesses are seeking innovative solutions that can streamline inventory control, reduce costs, and improve decision-making. As a result, automation and real-time tracking have become key priorities7, pushing organizations to explore smarter, more agile systems to manage their inventory in a way that supports fast-moving global supply chains.

One latest invention is drone, or UAVs which have been revolutionizing logistics by changing the way inventory is managed, and warehouses operate8. For example, drones can quickly scan large areas of inventory, saving a lot of time compared to traditional stock-taking methods. They are equipped with sensors and smart technologies that can collect data without human errors and perform automation by repeating tasks like inventory scanning and counting. Another big advantage is that drones can access difficult-to-reach or unsafe areas, such as high shelves or dangerous spots, which makes the workplace safer for everyone9. Figure 1 illustrates the comparison between traditional inventory methods and modern, drone-assisted inventory management, highlighting the key benefits of UAV assisted inventory management.

These drones are equipped with high-resolution cameras and sensors10 that allow them to navigate large warehouse spaces, scanning products and pallets quickly and efficiently. UAVs are capable of autonomously flying and capturing images from various angles, even in hard-to-reach areas, significantly speeding up the process of inventory management. To fully utilize their capabilities, drones rely on advanced computer vision and deep learning technologies, which are essential for transforming raw image data into actionable insights.

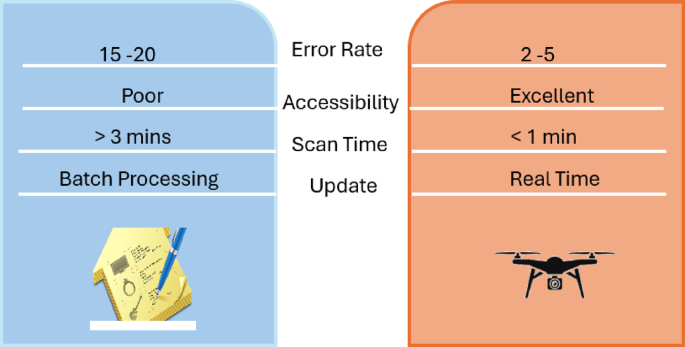

Fig. 1
figure 1

Comparing traditional methods versus drone-powered inventory management.

Full size image

Deep learning, particularly through techniques like Convolutional Neural Networks, has become central to the development of object detection systems used in drones11,12. The latest deep learning models, such as YOLO13 and its subsequent versions like YOLOv814, have significantly improved object localization and detection. These models are particularly effective because they can process images in real time, supporting UAV operations in logistics and warehouse environments15. YOLO’s efficiency lies in its ability to simultaneously predict bounding boxes and class probabilities, making it especially suitable for fast-paced environments such as warehouses16. This real-time detection capability allows drones to update inventory data dynamically, ensuring continuous and autonomous warehouse management operations.

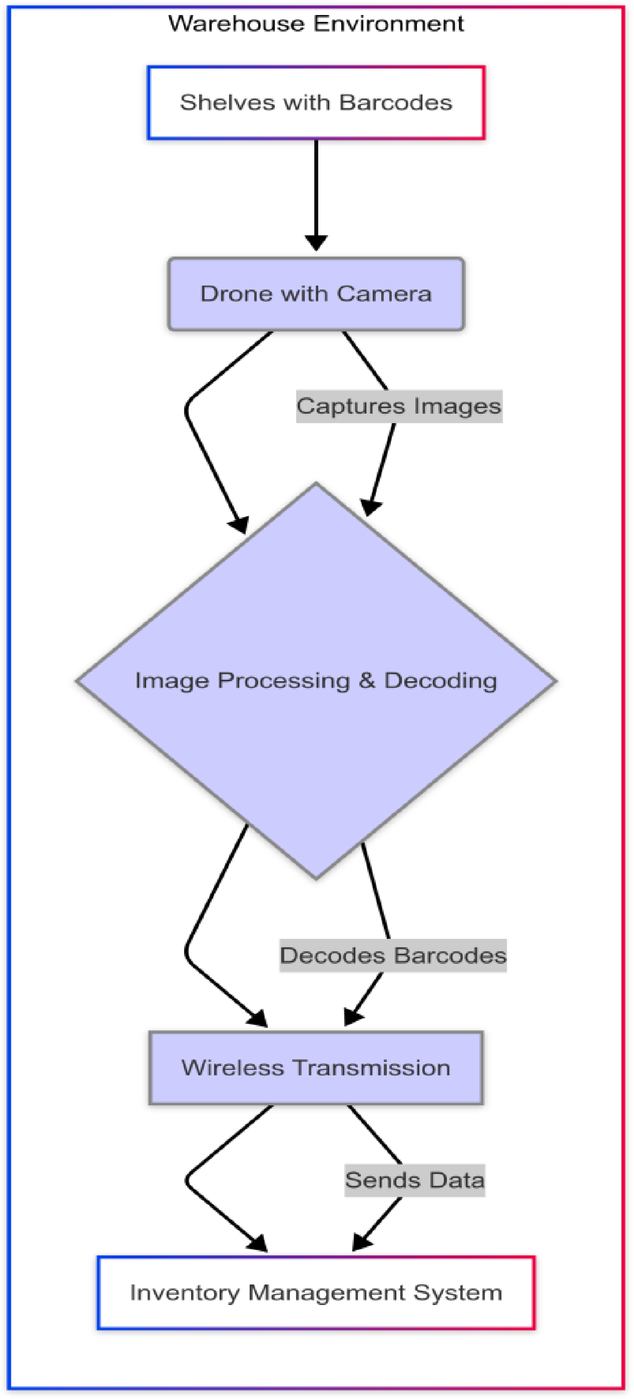

Figure 2 represents an automated barcode scanning system in a warehouse environment. A drone equipped with a camera captures images of barcoded shelves and processes them to decode barcode information. The decoded data is then wirelessly transmitted to an inventory management system for tracking and updates. This automation enhances warehouse efficiency by reducing manual scanning efforts.

The Fig. 3 shows the sequence diagram for the above process. Many researchers have made significant contributions to the use of UAVs in warehouse management and inventory control, particularly in the area of barcode localization and decoding. While substantial progress has been made, gaps still exist in addressing the challenges posed by dynamic warehouse environments. In dynamic warehouse environments, factors such as poor lighting, occlusion, and barcode distortions can severely impact the accuracy and efficiency of existing automated systems.

While in the past enhancing the drone’s capabilities, such as equipping it with better cameras, improved sensors, and advanced lighting systems to help mitigate issues related to poor lighting and occlusion has been researched, however, refining the model’s ability to recognize and compensate for environmental factors needs to be researched more. This study addresses that gap by proposing a modular, simulation-based framework inspired by UAV-assisted barcode inventory, supporting real-time product identification and automated stock updates. Although, our implementation uses existing tools like YOLOv8 and OpenCV, the contribution lies in how these tools are customized, combined, and validated for real-world warehouse inventory needs. The system was tested on simulated aerial data and is structured to support future UAV integration with minimal adjustments. Our contributions are as follows:

  1. 1.

    We trained the YOLOv8 model to achieve accurate, real-time detection of 1D and 2D barcodes in complex, dynamic warehouse environments.

  2. 2.

    We evaluated the performance of the YOLOv8 model in real-time barcode detection, assessing its accuracy in locating 1D and 2D barcodes within complex, dynamic warehouse environments.

  3. 3.

    We integrated the YOLOv8 model with OpenCV’s barcode decoding module to enable decoding of 1D and 2D barcodes, facilitating seamless inventory management in dynamic warehouse environments.

  4. 4.

    We connected the decoded output to simulate stock updates into a testbed SQL environment, allowing for real-time reflection of inventory changes based on the decoded barcode data.

Fig. 2
figure 2

Simple workflow diagram.

Full size image

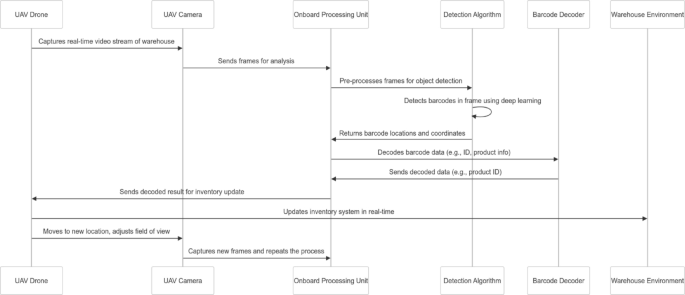

Fig. 3
figure 3

Sequence diagram.

Full size image

The remainder of the paper is structured as follows. Section "Literature review" provides a comprehensive Literature Review, discussing prior research on UAVs, object detection, and barcode localization in warehouse settings. Section "Methodology: system overview" outlines the research methodology, detailing the approach taken to develop the UAV-guided system and the deep learning techniques used. This section also explains about the dataset, and training process. Section "Results" presents the results, evaluating system performance in real-time barcode detection. Section "Discussion and key insights" discusses the results and compares them with existing methods. Finally, Sect. "Conclusion" concludes the paper by outlining the research limitations and offering insights for future work.

Literature review

The use of UAVs in inventory management has gained significant attention in recent years, as they offer a promising solution for automating and optimizing warehouse operations. Several studies have explored the integration of UAVs in inventory management, focusing on their ability to automate and streamline warehouse operations. UAVs offer numerous benefits in this domain, including enhanced speed, improved accuracy, and reduced human error. Research has demonstrated the effectiveness of drones in tasks such as inventory counting, barcode scanning, and real-time data updates. For instance, UAVs equipped with computer vision and object detection algorithms have shown to increase the efficiency of stock-taking by automating the identification and localization of items, even in hard-to-reach areas. To better understand the various approaches used in UAV-based inventory management, we categorize existing literature into key techniques for barcode localization and decoding. Figure 4 presents a structured taxonomy of barcode detection techniques which serves to contextualize our work within the broader landscape of barcode detection research. By organizing existing approaches into clear categories, it helps readers quickly understand the progression of techniques, identify relevant trends, and recognize the novelty of our proposed method.

Barcode localization

Traditional methods

Traditional methods for barcode localization primarily rely on digital image processing techniques. They generally focus on detecting and identifying the position (location) and orientation of a barcode in an image. One such traditional technique is edge detection. Barcodes often have high contrast between the dark bars and the light background, so these techniques identify sharp changes in pixel intensity, which often correspond to the edges of the barcode bars. Bodnár et al. in17 uses canny edge detector and probabilistic Hough transformation to detect straight lines in barcode images. They preprocessed the images with the blur filter and set a minimum line length in the Hough transformation to improve line grouping and determine barcode structure.

In another research18, Li et al. utilized local adaptive thresholding as part of their method to handle issues caused by uneven illumination in QR code images. applied a customized Gaussian thresholding algorithm. Unlike conventional Gaussian algorithms, this one dynamically generated the block size for image processing, ensuring the images were processed area-wise at each instance, which allowed for more efficient segmentation. Akinbade et al. in19 used an adaptive thresholding algorithm to properly segment the text characters from barcode images with complex backgrounds. They applied a customized Gaussian thresholding algorithm that differs from conventional Gaussian algorithms by dynamically generating the block size for image processing. This ensured that the images were processed area-wise at each instance, allowing for more efficient segmentation. Tribak et al. proposed a robust QR code pattern localization approach using image quality assessment in their work20, contour-based segmentation with an achromatic filter to highlight regions of interest, and Hu invariant moments to reduce false positives and improve recognition accuracy, making it suitable for embedded systems.

Some other traditional techniques that have been widely used in barcode localization include the use of morphological operations21 (for example dilation and erosion), projection profiles22 (including summing the pixel intensities along rows or columns of the image. The resulting histogram-like projection reveals the presence of the barcode as spikes), template matching (using a pre-defined barcode template and sliding it over the image to match areas that have similar patterns)23, histogram of oriented gradients24 (focuses on the gradients and orientations of edges) and colour based methods25 (by identifying the dominant color) present in barcodes printed in colours.

Deep learning based methods

Deep learning-based methods for barcode localization involve using neural networks to detect and locate barcodes within images or videos. These methods typically offer improvements over traditional image processing techniques because they have potential to handle complex scenarios such as distorted, low-resolution, or occluded barcodes. CNNs are the foundational deep learning architecture for image-related tasks. They are often used for feature extraction and spatial pattern recognition in images. Tsai et al. implemented deep CNNs in their work26 to classify and identify the source printers of QR codes, utilizing pretrained models like AlexNet, DenseNet201, and ResNet. Chou et al. demonstrated in their work27 robustness to rotation and deformation while doing the same task using the CNN in barcode images with complex backgrounds.

Fig. 4
figure 4

Taxonomy of barcode localization and decoding techniques in UAV-based inventory management.

Full size image

Region based CNN are also studied and implemented in various works for with region proposals, potential bounding boxes where a barcode may be located. Rahman et al. utilized a method for detecting and decoding multiple barcodes simultaneously using the Faster RCNN model in their proposed work28. Similarly, Faster RCNN was enhanced for small object detection in29 while30 proposed an efficient deep learning-based method for 1D barcode localization in shipping labels, demonstrating the versatility of CNN architectures beyond region-based approaches.

YOLO is a more recent and popular real-time object detection system. Unlike traditional object detection models that first generate region proposals, YOLO divides the image into a grid and directly predicts bounding boxes and class probabilities in a single forward pass. Li et al. proposed an improved YOLO-MCG barcode localization algorithm31 that utilizes the MobileNetv3- small network and Convolutional Attention Mechanism Module (CBAM). Some other recent researchers exploring various YOLO-based approaches for barcode detection include32,33,34 and 35.

SSD is another real-time object detection method similar to YOLO but with different architecture. SSD generates multiple bounding boxes at each spatial location and classifies each box. It can be used for multi-scale barcode detection in complex scenes. Dalal et al. used SSD for fast and accurate detection of both 1D and 2D barcodes36.

UAV specific localization techniques

As discussed above, while traditional and deep learning-based methods have significantly improved barcode localization, UAVs present unique challenges due to their dynamic movement, varying perspectives, and environmental uncertainties. The techniques which are specific to localizing barcodes from UAV mounted cameras enable UAVs to navigate and position them first relative to the objects or the environments. Since UAVs operate in 3D space and often rely on autonomous navigation, accurate localization is crucial for tasks like surveying, mapping, inspection, and even package delivery.

SLAM is a technique where the UAV simultaneously builds a map of an unknown environment while keeping track of its own position. Woong Kwon et al. proposed a method for robust autonomous navigation of UAVs in warehouse environments37 by employing a low-cost sensing system with an extended Kalman filter-based multi-sensor fusion framework, incorporating techniques such as Mahalanobis norm for outlier rejection, pseudo-covariance for visual SLAM integration, and floor lane recognition for absolute localization. Qian et al. used SLAM with YOLOv5s-Lightweight38 for dynamic object detection and filtering to enhance localization accuracy in indoor environments. Yang et al. proposed a CNN-based QR code reading method tailored for UAV package inspection tasks39.

Optical flow is another technique used by researchers to help UAVs maintain stability by detecting how the environment moves relative to the drone40. This detects motion patterns to identify potential obstacles and avoid collisions. While sensor fusion combines data from multiple sensors (e.g., cameras, inertial measurement units (IMU), LiDAR, and GPS) to improve localization accuracy and robustness. In barcode localization, sensor fusion helps UAVs by integrating camera-based localization and stereo vision with image-based detection to better estimate distances41.

Barcode decoding

Barcode decoding is the process of extracting information from a barcode image and converting it into readable data, such as a product ID or inventory number. This involves identifying the barcode, interpreting its pattern, and translating it into digital information. In UAV-based inventory management, barcode decoding enables real-time tracking and data retrieval without human intervention.

Traditional decoding

Traditional barcode decoding methods rely on image processing algorithms to detect and extract barcode information. These techniques work well in controlled environments but may struggle with poor lighting, distortions, or occlusions. Table 1 present a comprehensive summary for literature related to traditional barcode decoding methods.

Table 1 Traditional barcode decoding methods.
Full size table

Deep learning based decoding

Deep learning techniques enhance barcode decoding by making it more robust to noise, distortions, and real-world variations. Instead of relying on handcrafted rules, deep learning models learn to extract and decode barcodes from complex images.

CNNs have been used for both localization decoding of barcodes. Localization involves detecting the boundaries, orientation, and position, which can be challenging in cluttered or noisy images54. Once the barcode is localized, CNNs can extract features from the barcode image, such as the lines or patterns that represent the encoded information.

Kamnardsiri et al. applied five existing D-CNN architectures to assess their effectiveness in barcode detection and recognition. They also compared algorithms like YOLO v5 and Faster R-CNN, which are popular in object detection tasks, for their ability to handle barcode images55. In the work by56, CNNs are used for pixel-wise segmentation to identify barcode regions for decoding. The encoder-decoder architecture proposed by the authors allows for precise segmentation56, enabling the decoding of one-dimensional barcodes even in real-time AR scenarios.

Real time decoding

Real-time decoding methods focus on processing barcode images efficiently while maintaining speed and accuracy, crucial for UAV-based applications where delays can impact operations. Table 2 summarizes the key real-time decoding techniques used for barcode recognition and their corresponding studies.

From the reviewed literature, it is evident that significant progress has been made in barcode localization and decoding using both traditional and deep learning-based techniques. However, a major research gap remains in the integration of the latest deep learning algorithms for simultaneous barcode localization and decoding in UAV-based inventory management. Most existing studies focus on these tasks separately rather than as a unified system. Furthermore, a comprehensive simulation-based framework that considers UAV-relevant challenges such as occlusion, cluttered environments, low-light conditions, and dynamic viewpoints has not yet been fully explored. Additionally, real-time inventory updates remain a critical requirement that has not been extensively explored in conjunction with deep learning-based barcode scanning. Addressing these gaps can lead to a more robust and efficient UAV-based inventory management system.

Table 2 Real-time barcode decoding methods.
Full size table

Methodology: system overview

The proposed system uses UAV-mounted cameras and advanced computer vision techniques to automate inventory management in a warehouse environment. The system follows a structured pipeline consisting of the following key steps:

  1. 1.

    Barcode Localization: YOLOv8 is employed for real-time detection of 1D and 2D barcodes within warehouse images.

  2. 2.

    Barcode Decoding: OpenCV’s barcode decoding module extracts information from the detected barcodes.

  3. 3.

    Database Integration: The decoded data (e.g., product ID and quantity) is stored and updated in a MySQL database for real-time inventory tracking.

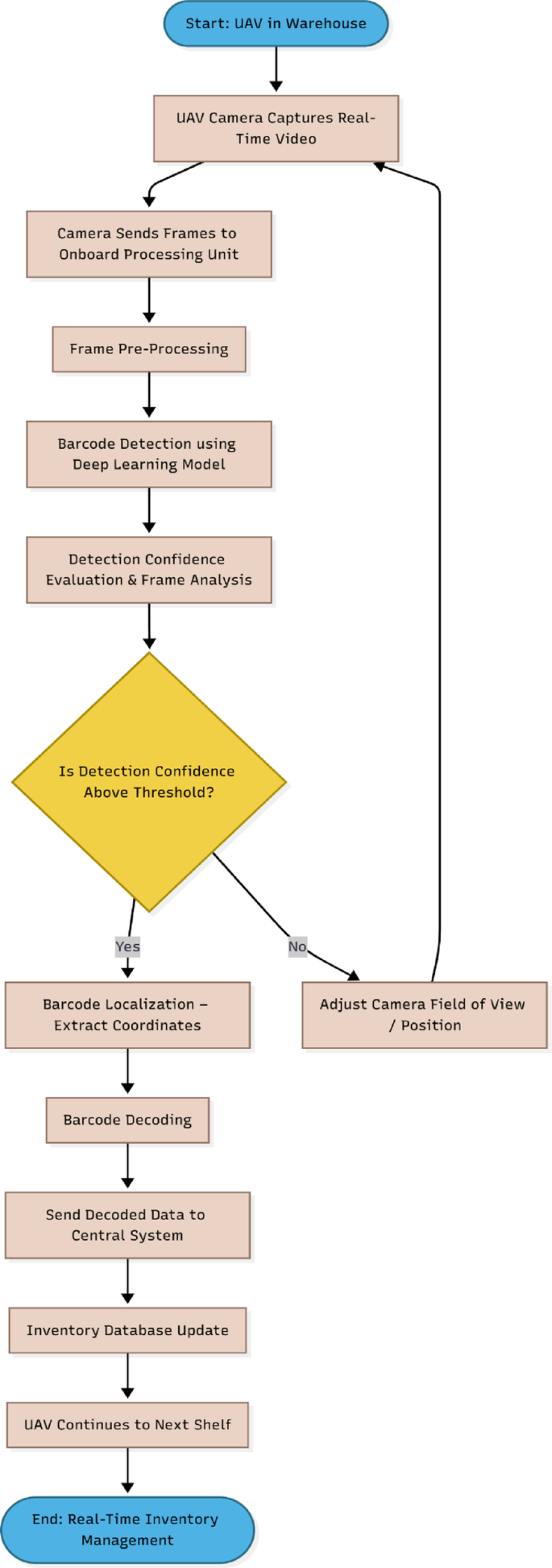

Figure 5 illustrates the complete workflow of the proposed UAV-guided barcode localization and decoding system, offering a high-level overview of key modules, from data acquisition to detection and decoding. This diagram helps in understanding the sequential process and modular architecture of our approach.

Fig. 5
figure 5

Our proposed workflow.

Full size image

Barcode localization

Data collection, preprocessing and augmentation

A dataset containing annotated images of barcodes and QR codes is used to train and evaluate the YOLOv8 model. The dataset is structured as follows:

  • Training Set: 91% (28,696 images).

  • Validation Set: 8% (2,382 images).

  • Test Set: 1% (432 images).

Each image is annotated with bounding boxes corresponding to two object classes:

  • Barcode (1D barcodes).

  • QR Code (2D barcodes).

To improve model generalization and robustness, several preprocessing techniques were applied:

  • Auto-Orient: Ensures correct image orientation before processing.

  • Resize: Images were resized to 416 × 416 pixels using a stretch-based approach.

  • Class Modification: Remapped four classes, ensuring consistency in annotations.

To handle lighting variations, occlusions, and perspective distortions in warehouse environments, the following built in Yolov8 augmentations were applied:

  • Flipping: Horizontal and vertical flips to enhance detection from different angles.

  • Rotation: 90° clockwise, 90° counterclockwise and 180° upside-down rotation.

  • Random Cropping: Minimum zoom: 0%, Maximum zoom: 22%.

  • Shearing: ±15° horizontally and vertically.

  • Blurring: Gaussian blur applied up to 3.25px.

  • Noise Addition: Random noise affecting up to 5% of pixels.

  • Cutout: Introduced 3 occlusion boxes, each covering 10% of the barcode, to simulate real-world obstructions.

This preprocessing ensures that the YOLOv8 model is robust to challenging warehouse conditions, including low light, shadows, and occlusions. Figure 6 presents sample images from the dataset with annotated bounding boxes.

Fig. 6
figure 6

Sample images from dataset.

Full size image

Realistic simulation of UAV conditions

While we already augmented the dataset using standard Yolov8 built-in augmentation (e.g., flips, rotations, shearing, cropping), discussed briefly in the previous section, but due to hardware and resource constraints, we were unable to conduct live UAV based data collection or experiments in real-world warehouse environments. To bridge this limitation and to simulate the dynamic and often challenging conditions encountered by UAVs during flight (such as motion blur, perspective shifts, lighting changes, and occlusion), we employed a diverse set of data augmentation techniques using the Albumentations Python library. Using our base dataset of static warehouse images containing 1D and 2D barcodes, we generated 300 augmented images that mimic various real-world distortions typically seen in UAV guided scenarios. These augmentations were selected based on their relevance to UAV specific challenges and applied in combination to preserve label integrity while simulating realistic capture conditions. This two layer augmentation approach ensures both conventional image diversity and realistic simulation of UAV flight conditions, ultimately enhancing the model’s robustness and generalizability. Figure 7a and b shows samples of applied augmentations while Table 3 summarizes the types of augmentations and their relevance to UAV conditions.

Table 3 UAV-oriented augmentations using python albumentations Library.
Full size table

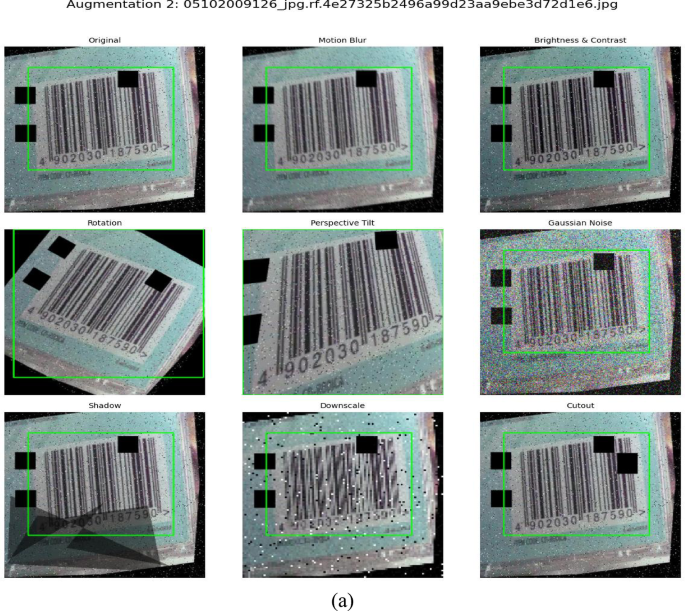

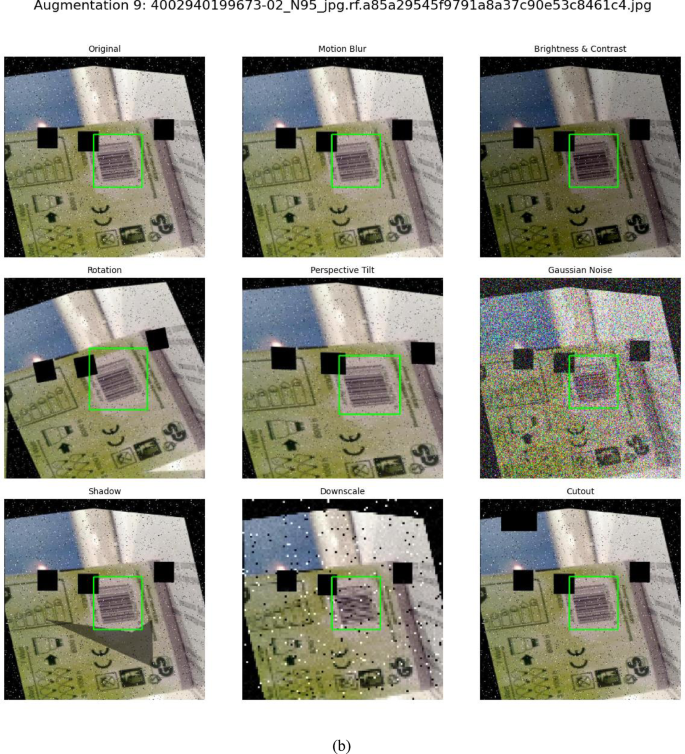

Fig. 7
figure 7figure 7

Augmented dataset illustrating UAV-related visual distortions.

Full size image

Object detection using YOLOv8

YOLOv8 was chosen for barcode detection due to its real-time processing capabilities and high accuracy. YOLOv8 introduces several architectural improvements as shown in Fig. 8 aimed at balancing accuracy with computational efficiency. It utilizes a more efficient backbone network that can extract more discriminative features from images, leading to better detection performance, especially for small objects or objects in challenging environments. Also, the mode has enhanced its ability to detect objects of varying sizes through refined multi-scale feature fusion. This is particularly beneficial in our scenario, where barcodes and QR codes may appear at different distances and resolutions due to the varying altitude and angle of the UAV-mounted camera. The improved detection head ensures that even small or distant barcodes are accurately localized.

In warehouse environments, barcodes may be partially obstructed by packaging, shelving, or other objects. YOLOv8’s integration of attention mechanisms helps the model prioritize the most relevant barcode features, improving detection accuracy in cluttered scenes. This is crucial for ensuring that the system can detect barcodes even when they are partially hidden or overlapped by other items. It’s modified loss function ensures a balance between localization accuracy and classification confidence, leading to better barcode detection without sacrificing speed. In our case, this helps in minimizing false positives (e.g., misclassifying textures or patterns as barcodes) while ensuring high precision, which is critical for real-time inventory tracking.

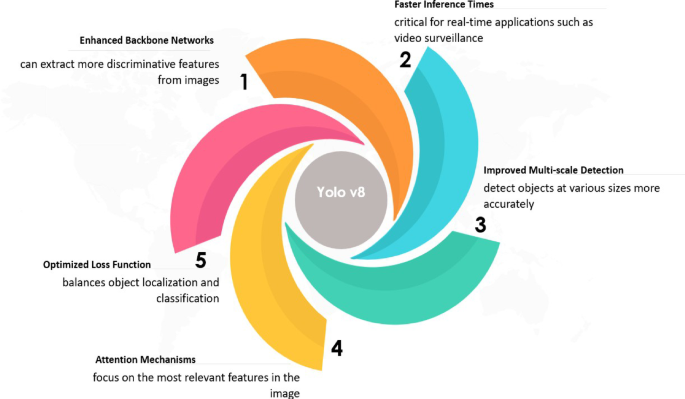

Fig. 8
figure 8

Key features of YOLOv8 motivating its selection for this study.

Full size image

Barcode decoding

The OpenCV library provides a barcode and QR code decoding module which enables real-time barcode recognition in images or video frames. This module is part of OpenCV’s cv2 library and offers a simple, efficient way to extract barcode information from detected regions. Algorithm 1 outlines the main steps involved in the decoding process.

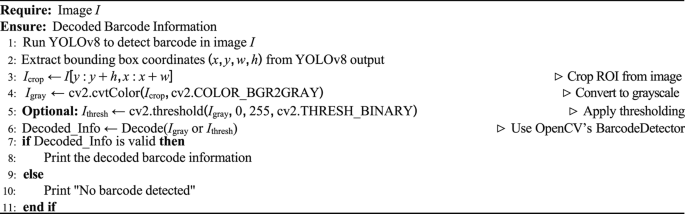

Algorithm 1
figure a

Barcode localization and decoding using YOLOv8 and OpenCV.

Full size image

Database integration

Once a barcode is detected and decoded, the extracted information needs to be stored and updated in a MySQL database to keep track of inventory in real-time. This process ensures that product details, stock levels, and movements within the warehouse are accurately recorded and accessible. The system checks if the scanned product exists in the database. If it does, the quantity is updated; otherwise, a new entry is created. The updated information is reflected in a warehouse management system (WMS) or a dashboard for monitoring stock levels and movements. Table 4 shows the proposed MySQL database structure which is designed to store key inventory-related information.

Table 4 Database structure.
Full size table

Results

This section presents the evaluation of the proposed UAV-guided barcode localization and decoding system in a warehouse environment. The results are divided into three key components: YOLOv8 barcode localization, OpenCV-based barcode decoding, and database integration for real-time inventory updates. The effectiveness of the system is assessed using standard performance metrics, including mean Average Precision (mAP) for object detection, decoding accuracy, and database update efficiency.

Experimental setup

For training the YOLOv8-based barcode detection model, a GPU-enabled machine was used to ensure faster convergence. The specifications of the hardware and environment are summarized in Table 5, while the key hyperparameters used during YOLOv8 training are provided in Table 6.

Table 5 Hardware and configuration.
Full size table
Table 6 YOLOv8 training hyperparameters.
Full size table

YOLOv8 barcode localization performance

The performance of YOLOv8 in detecting and localizing barcodes in warehouse images was evaluated using the validation dataset. The primary evaluation metric used was mAP@0.5 and mAP@0.5:0.95, which measure the localization accuracy of detected barcodes. It is important to note that the results reported in this section, including Table 7; Figs. 9, 10, 11 and 12, are all based on the validation set results. The separate test set was reserved for future generalization assessment and is not included in the current performance tables.

The results in Table 7 show that YOLOv8 achieves high localization accuracy, with an mAP@0.5 of 92.4%, demonstrating strong robustness in detecting barcodes under challenging conditions such as occlusion, low lighting, and shadows, even without applying additional external augmentations like blur or noise. The low preprocessing time of 0.3ms per image and inference time of 3.3ms highlights the model’s suitability for real-time applications. The important thing to note in Table 7 is that although the validation set comprises 2,382 images as discussed in Sect. 3.1.1, the evaluation metrics reported (e.g., precision, recall, and mAP) are computed at the object level because object detection models like YOLOv8 assess performance per detected object (bounding box). Hence, precision, recall, and mAP as shown in Table 7 are based on correctly or incorrectly predicted objects and not at the image level. The validation set indeed contains 2,382 images with 2,135 barcodes and 219 QR codes, totaling 2,354 annotated objects.

Figure 9 shows training and validation metrics for our barcode detection model. train/box_loss represents the bounding box regression loss. The decreasing trend suggests that the model is improving its ability to predict object locations accurately during training. train/cls_loss is the classification loss (error in predicting object classes). This loss decreases over time, meaning the model is learning to classify objects better. train/d f l_loss loss is the distribution focal loss, which improves bounding box accuracy. In the graph we see the downward trend which shows improved box localization. Similar to training, val/box_loss shows how well the model predicts box coordinates on the validation set. The decreasing trend suggests generalization is improving. Similarly, the steady decline in val/cls_loss indicates better class predictions on unseen data. Also, in the figure, the increasing trend suggests that the model is improving in detecting objects across different IoU levels.

Table 7 YOLOv8 barcode detection results without Albumentation.
Full size table

We also measured the Yolov8 reported timing values during the validation phase. Each represents the average time computed across the validation batch images on batch size 16 of as mentioned already in Table 6 and image resolution of 640 × 640 pixels. The recorded timings are reported in Table 8.

Table 8 Average processing time per image.
Full size table
Fig. 9
figure 9

Barcode detection results without albumentation augmentation applied.

Full size image

To improve the model’s ability to handle challenging UAV conditions as discussed in Sect. "Realistic simulation of UAV conditions", we added 300 augmented images only to the training set. These augmentations simulated real-world issues like motion blur, low lighting, tilted angles, and occlusion. After retraining the model with these additional samples, the validation results showed strong performance. The reason behind the previously lower values without augmentation was that the model had not seen such difficult cases during training. Still, it performed quite well, and with augmentation, its robustness in real-world-like conditions improved further. Table 9; Fig. 10 present the updated results after retraining the model with augmented images. Although the inclusion of 300 augmented images(UAV-style) resulted in only a minor change in mAP (92.4% to 92.2%), this indicates that the base model was already robust to such variations. The primary purpose of these augmentations was to confirm model stability under UAV like viewing conditions rather than to produce measurable performance gains.

Table 9 YOLOv8 barcode localization performance with augmentation.
Full size table

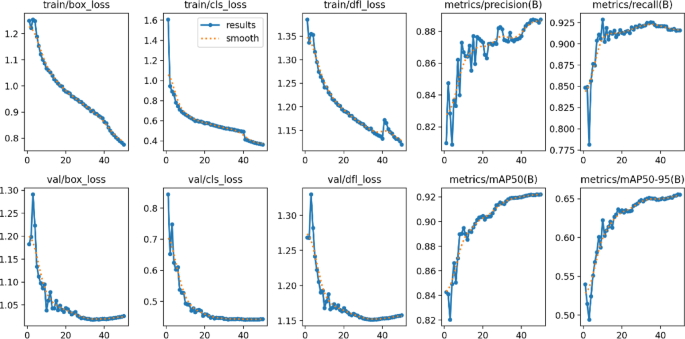

Fig. 10
figure 10

Barcode detection results with albumentation augmentation applied.

Full size image

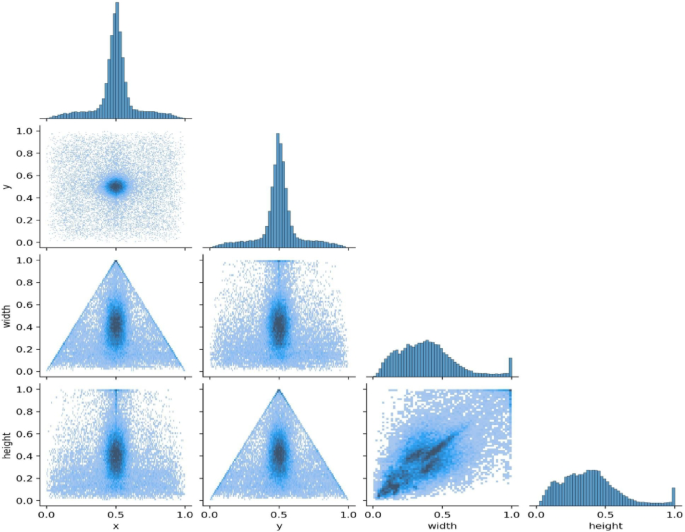

The correlogram in Fig. 11 visualizes the relationships between bounding box attributes (x, y, width, height) in a YOLOv8- based barcode and QR code detection model. Each scatter plot represents pairwise comparisons between these attributes, while the diagonal histograms show their individual distributions. The x and y coordinates, which likely represent the center points of detected objects, appear to follow a uniform distribution, suggesting that barcodes and QR codes are evenly distributed across the image. The width and height exhibit a strong positive correlation, indicating that as one-dimension increases, the other tends to increase as well, reflecting the rectangular nature of these objects. This analysis helps to evaluate the spatial characteristics and size distribution of detected barcodes and QR codes, which is useful for understanding the behavior of the model and improving detection accuracy. While not central to the core contribution, this analysis provides complementary insight into object geometry, aiding model interpretation and anchor tuning.

Fig. 11
figure 11

Pairwise distribution of bounding box attributes.

Full size image

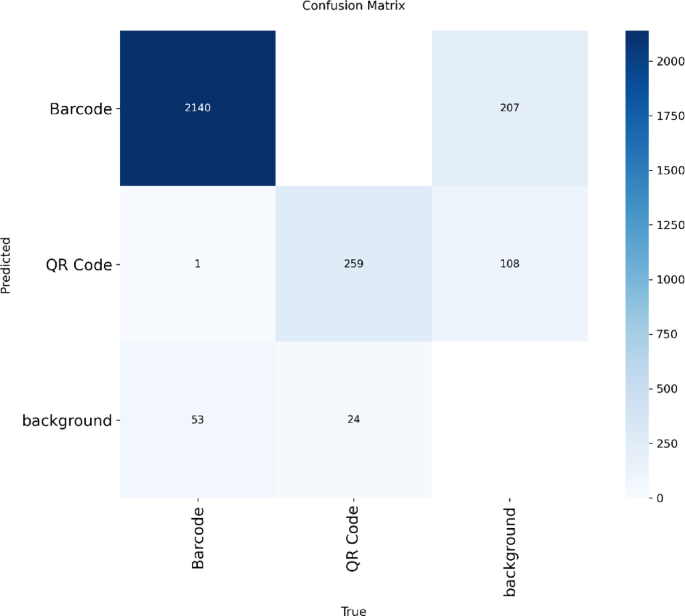

The confusion matrix in Fig. 12 represents the performance of a YOLOv8 model for barcode and QR code detection. The diagonal values show correct predictions, with 2,140 barcodes and 259 QR codes accurately detected. Here also it is important to note that the matrix reflects the number of predicted objects (detections) rather than image count. The total number of predictions (2,796) includes correctly detected objects, false positives, and missed detections, which are typical for object detection tasks. However, 207 barcodes were misclassified as QR codes, and 108 QR codes were also predicted as background, indicating some false negatives. The background class also contained 53 barcodes and 24 QR codes incorrectly detected as objects. There is minimal confusion between barcodes and QR codes, with only 1 misclassification in each direction. The apparent difference between the total number of ground-truth objects in the validation set (2,135 barcodes and 219 QR codes, totaling 2,354) and the total number of predictions (2,796) arises because YOLOv8 outputs multiple detections per image before non-maximum suppression filtering. After filtering, the number of matched detections (2,399 true positives) aligns closely with the annotated objects, confirming that the dataset composition and reported results are consistent. Yolo and other detectors do not evaluate in strict one prediction per object manner like classification. Normally, they output multiple predictions per image and evaluation filters them based on confidence and IoU thresholds. This means that for every predicted box the confidence threshold counts as prediction. Some of these are matched to ground truth while others are false positives i.e. they are either the duplicate boxes or spurious detections.

Fig. 12
figure 12

Confusion matrix for YOLOv8 barcode and QR code detection.

Full size image

Overall, the model performs well, but there is room for improvement in reducing false negatives. This F1-Confidence curve shown in Fig. 12 shows the relationship between the model’s confidence threshold and the F1-score for barcode and QR code detection. The F1-score represents the balance between precision and recall, with higher values indicating better performance. The blue line represents the overall performance across all classes, peaking at 0.90 F1-score at a confidence of 0.616. The barcode class consistently achieves a higher F1-score compared to the QR code class, indicating better detection accuracy. As confidence increases beyond a certain point, the F1-score drops due to missed detections (reduced recall). This curve helps identify the optimal confidence threshold to balance precision and recall. Figure 13 shows the results of the prediction on sample batches.

Fig. 13
figure 13

YOLOv8 F1 score curve depicting optimal precision-recall balance.

Full size image

To further evaluate the stability and reliability of the training process, we further conducted five experiments by explicitly setting different random seed values. When no seed was defined (i.e., the default random initialization), the model achieved a mAP@50 of 0.924. We then re-trained the YOLOv8 model using fixed seed values: 11, 22, 33, 44, and 55. These runs help assess the variability in performance due to random initialization of model weights and data shuffling. The results, presented in Table 10, indicate that the model’s performance remains consistent, with mAP@50 values ranging from 0.918 to 0.926 as shown in Table 6. This shows that the proposed pipeline is stable and performs reliably even across different training runs. Table 11 analyzes the results in statistical analysis. The mean mAP@50 across the runs was 92.16%, with a standard deviation of ± 0.26% and a 95% confidence interval of [91.83%, 92.49%], this indicates minimal variance and strong consistency.

Table 10 YOLOv8 performance on different random seed values.
Full size table
Table 11 Statistical summary of YOLOv8 performance across different seed Values.
Full size table

Barcode decoding performance

After localization, the detected barcodes were passed to OpenCV’s barcode decoding module to extract the embedded product information. The decoding accuracy was evaluated based on the percentage of correctly decoded barcodes in different warehouse conditions. The results are shown in Table 12 The results show that mean barcode decoding accuracy remains high in well-lit conditions (98.5%) but degrades in low-light (85.2%) and partially occluded scenarios (78.3%). Decoding accuracy values represent averages over six independent runs using random seeds {None, 11, 22, 33, 44, 55}. This suggests that additional preprocessing techniques, such as image enhancement and denoising, may further improve performance in challenging conditions. Figure 14 shows the decoded results sample. Figures 15 and 16 shows successful decoding of a blurred barcode image showing good decoding in challenging conditions.

Table 12 Barcode decoding accuracy in different conditions.
Full size table
Fig. 14
figure 14

Sample results validation set batch 01.

Full size image

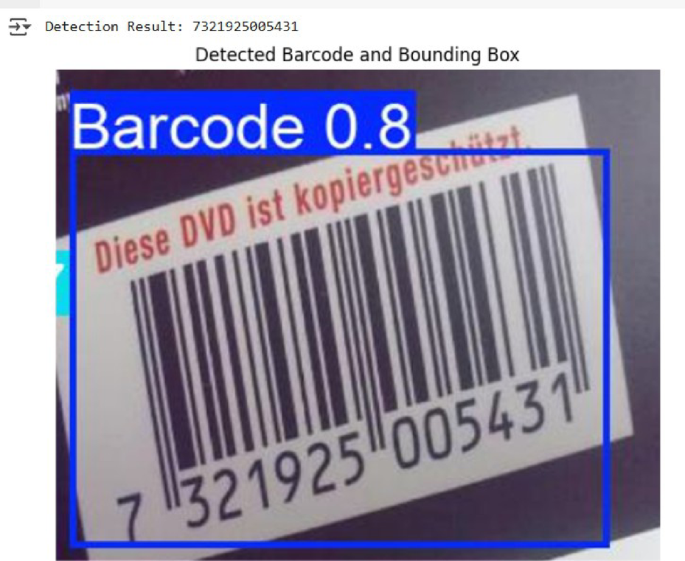

Fig. 15
figure 15

Decoding the detected barcode using OpenCV.

Full size image
Fig. 16
figure 16

Decoding the detected barcode in dark and blur environment using OpenCV.

Full size image

Database integration and real-time inventory update

The extracted barcode data (product ID, quantity) was integrated into a MySQL database to enable real-time inventory management. The system was developed using PHP and MySQL, hosted on a local server using XAMPP. The web application was responsible for handling database transactions, including adding new products, updating stock levels, and querying.

inventory details.

System implementation

The backend system was developed using PHP for server-side scripting, and MySQL for database storage. XAMPP was used as a local development environment, which includes Apache for running the PHP scripts and phpMyAdmin for database management. The implementation steps are summarized as follows:

  • Database setup A MySQL database named.

inventory_db was created, containing a table inventory with columns: id (Primary Key), product_id, product_name, quantity, and last_updated.

  • Web API development A PHP script.

(update_inventory.php) was created to handle HTTP POST requests for updating inventory.

  • Real-time processing The script receives barcode data via a POST request, validates the input, updates the MySQL database, and returns a JSON response with a successful message and execution time.

Database interaction workflow

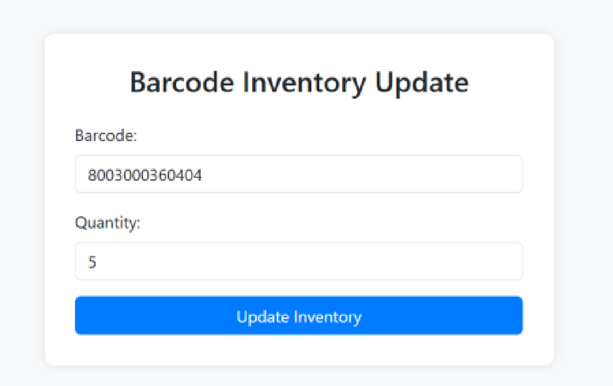

Figures 17 and 18 illustrates the test work environment for database integration workflow of the inventory update process. The barcode scanner extracts product details, which are sent to the PHP backend via an HTTP request. The PHP script then processes the request, updates the database, and returns a response.

Performance evaluation

The database performance was analyzed by measuring the execution time and success rate of different operations. Table 13 presents the results obtained from the test environment.

The system successfully updated the inventory in real-time, achieving an average processing time of 1009.09 ms for quantity updates and a 99.7% success rate. The generated JSON response (e.g., Status: SUCCESS, Message: Inventory Updated, Execution Time: 1009.09 ms) confirms that updates were executed efficiently. These results demon- strate that the proposed barcode-based inventory management system is capable of handling real-time data synchronization reliably.

Fig. 17
figure 17

Workflow of real-time inventory update via PHP and MySQL: Update Screen.

Full size image

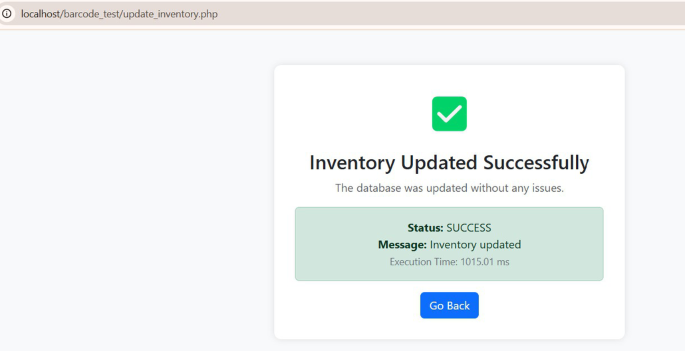

Fig. 18
figure 18

Workflow of real-time inventory update via PHP and MySQL.

Full size image
Table 13 Database update performance in test environment.
Full size table

Discussion and key insights

Previous studies on barcode detection and recognition have primarily relied on traditional computer vision techniques or early deep learning models. Conventional methods such as Hough Transform and edge detection have shown limitations in handling occlusions and complex backgrounds61,62. Earlier deep learning-based approaches, such as Faster R-CNN and YOLOv3, improved detection accuracy but struggled with real-time performance in warehouse environments63,64.

Our study builds upon these works by integrating YOLOv8, which incorporates attention mechanisms and a modified loss function to improve localization accuracy and robustness in cluttered settings. Compared to YOLOv5 and YOLOv7, YOLOv8 achieves a higher mAP@0.5 (92.4% vs. 88.95%64 and better recall, especially for barcodes partially obstructed by objects. The low preprocessing time which is 0.3ms and inference time of 3.3ms per image demonstrates a significant improvement over previous models, making it well-suited for real-time warehouse applications.

Similarly, past research on barcode decoding has faced challenges in handling blurred and distorted codes. OpenCV’s barcode decoding module has been effective in ideal conditions but struggled in low-light or occluded scenarios. Our results show decoding accuracy remained consistently high (98.5 ± 0.3%, 95% CI [98.0, 99.0]) in well-lit environments but showed a moderate decline under low-light and occluded conditions. These findings suggest that integrating image enhancement techniques (such as super-resolution or contrast adjustments) could further improve performance in challenging environments.

Although a direct comparison with prior UAV-based barcode detection systems is not entirely straightforward due to differences in datasets, hardware configurations, and evaluation protocols, Table 14 presents an approximate benchmark to provide contextual perspective on our model’s performance. Prior methods such as those in65,66,67 incorporate UAV navigation, barcode-based localization, and flight-path optimization in controlled warehouse environments. In contrast, our approach focuses exclusively on robust detection performance using YOLOv8 on a diverse and challenging dataset.

Despite lacking navigation components, our model still achieves strong detection performance, outperforming or matching the results reported in65,66.This validates the effectiveness of our detection framework and positions it as a viable candidate for future integration into UAV-assisted warehouse stocktaking systems. It is worthy to note that despite not having a UAV localization or scanning component, our YOLOv8 model shows robust generalization on static image detection tasks. This reinforces the detection capability of our model and lays the groundwork for integration into UAV-based stocktaking systems in the future. It is worthy to note that despite not having a UAV localization or scanning component, our YOLOv8 model shows robust generalization on static image detection tasks. This reinforces the detection capability of our model and lays the groundwork for integration into UAV-based stocktaking systems in the future. Notably, while the mentioned studies report higher recall, our approach demonstrates a significantly higher precision, which is critical for minimizing false positives in densely packed warehouse environments.

Finally, the model achieved an average processing time of 0.3 ms for preprocessing, 3.3 ms for inference, and 8.0 ms for postprocessing per image, confirming its suitability for real-time deployment in resource-constrained warehouse environments.

Table 14 Approximate benchmark comparison with prior barcode detection approaches.
Full size table

*Metrics marked as ‘not specified’ were not reported in the original studies.

Several benchmark studies did not report all performance metrics as shown in Table 14, which limit the scope of direct quantitative comparison across methods. But still we try to harmonize the available measures in a transparent manner. The results indicate that the proposed model achieves strong detection accuracy and mAP values within the reported metrics range. This surely demonstrates the robustness across diverse barcode types and imaging conditions, while maintaining simultaneous processing efficiency.

Based on our findings, several key insights can be drawn:

  1. 1.

    Improved barcode localization with YOLOv8

  • Our results demonstrate that YOLOv8’s attention mechanisms enhance barcode detection in cluttered warehouse settings, outperforming previous YOLO versions and Faster R-CNN models.

  • The F1-Confidence curve analysis suggests that an optimal confidence threshold of 0.616 balances precision and recall, achieving an F1-score of 0.90 for all classes.

  • The confusion matrix indicates minimal misclassification between barcodes and QR codes, but some false negatives remain due to occlusions.

  1. 2.

    Barcode decoding performance in real-world conditions

  • While OpenCV’s barcode decoding module achieves high accuracy in normal conditions, performance drops significantly under occlusions and low lighting.

  • Future work could explore deep learning-based barcode decoding methods, such as using CNNs or transformer- based architectures for improved robustness.

  1. 3.

    Real-time inventory management and database efficiency

  • Our MySQL-based database system enables efficient inventory tracking, with update times of 8.3ms for quantity changes and a 99.7% success rate.

  • The system ensures real-time synchronization, reducing errors in stock management compared to manual barcode scanning methods.

Conclusion

This study presents a comprehensive evaluation of YOLOv8 for barcode localization, coupled with OpenCV-based decoding, within a simulated warehouse environment. Across five independent training runs, our model consistently achieved high accuracy, with a best-case mAP@0.5 of 92.4%, demonstrating robust barcode detection under challenging conditions such as occlusion, shadows, and dark and blur scenarios. Statistical analysis validated the reliability of our results, and Albumentation based augmentation was applied during training to simulate real-world variability. Our simulated pipeline was designed to reflect resource-constrained conditions typical in industrial warehouse environments. The motivation behind simulation was to isolate and validate detection performance without the added complexity of physical UAV navigation or infrastructure. The inference efficiency of the model was also notable, achieving a processing speed of 0.3ms preprocessing, 3.3ms inference, and 8.0ms postprocessing per image, ensuring real-time applicability. The system further demonstrated successful integration with barcode decoding and inventory updates, highlighting its practical utility in automated stocktaking workflows. This validates our pipeline’s viability for future real-world deployment.

While this study focuses on validating the proposed UAV-guided barcode detection pipeline using annotated static images and augmentation-based simulations, we acknowledge that real-world deployment introduces additional complexities. The system is designed to scale for larger inventories and support multiple UAVs in parallel. Although severely damaged or reflective barcodes were not explicitly tested, our augmentations simulated various challenging conditions like blur, occlusion, and lighting variation. In future we plan to extend our research to make drones that can work fully inside warehouse without explicitly relying on GPS. We aim to build a system which can reply on computer vision to avoid obstacles and integrate with existing warehouse inventory management systems. Also, instead of simulated testing we will build and test real working prototypes which will allow us to ensure system’s feasibility, practicality and affordability in industrial settings.
