Nonlinear analysis of hollow reinforced high strength concrete beams with web openings and different types of stirrups under torsion

Abstract

In this research, a nonlinear finite element analysis was conducted to investigate the effect of large web openings on the torsional behavior of high-strength hollow reinforced concrete (RC) beams under different transverse reinforcement scenarios. The study presents an extensive numerical program comprising eighty-four specimens modeled with various parameters to develop a wide range of web opening dimensions and transverse reinforcement scenarios. The considered parameters included the web opening size (length and height), transverse reinforcement type (steel, glass fiber reinforced polymer—GFRP—, or no stirrups), transverse reinforcement ratio, longitudinal reinforcement ratio, and concrete strength. All specimens had a constant cross section of 300 × 400 mm, and a total length of 2400 mm. The numerical results revealed that introducing web openings in hollow concrete significantly reduces their torsional capacity by about 48.35%, 46.20%, and 37.58% for beams with concrete strengths of 60 MPa, 80 MPa, and 100 MPa, respectively. Additionally, reducing stirrup spacing and increasing both stirrup diameter and longitudinal reinforcement ratio had a considerable effect in improving torsional capacity. Furthermore, a significant improvement—nearly double—of torsional capacity of hollow beams was observed when using GFRP stirrups as a transverse reinforcement system. Moreover, two numerical equations were adopted to determine the torsional capacity of both the hollow beams considered in the present study and solid beams from other experimental work. The compatibility between the outputs of the proposed equations and the experimental results of others showed reasonable agreement.

Introduction

Torsion has emerged as a significant issue, acting as a major factor in the brittle failure of structural elements and potentially leading to serious building catastrophes. It can be generated in several cases, such as twisting moments produced by vertical loads on spandrel beams, curved girders and both straight and curved box girders in bridges, as well as RC canopies. Because of their structural efficiency, enhanced stability, serviceability, relatively low construction cost, and appealing aesthetics, hollow beams have gained wide recognition, especially in highway and bridge systems. They are also used to accommodate electrical and mechanical facilities such as water, sewage, air conditioning, electrical power, telephone, and computer networks.

Despite these advantages, hollow RC beams often require transverse openings for maintenance access or to accommodate intersecting duct. Such openings disrupt the normal flow of stresses, producing significant stress concentrations around the opening edges, which in turn lead to premature concrete cracking and substantial reduction in torsional stiffness and capacity. This behavior underscores the necessity for strengthening strategies or alternative reinforcement systems to mitigate the adverse effects associated with web openings.

Finite element (FE) analysis tools such as ANSYS and ABAQUS offer effective means to examine the torsional behavior of RC beams. A nonlinear FE analysis of RC beams with openings subjected to torsion was conducted by Meleka etal¹., who reported that increasing the opening length to 50% of the beam depth led to a decrease in ultimate torque by about 15.5%. Similarly, reducing the opening depth by 0.05 of the beam cross section increased the ultimate torque by about 7%. Al-Sherrawi and Shanshal² analyzed RC T-girders with and without openings, and Jabber etal³. modeled hollow beams with varying opening sizes under torsional, flexural, and cyclic loads using high-strength concrete (HSC) and ultra-high performance concrete (UHPC). Additional analytical and experimental studies examined beams with large openings strengthened using carbon fiber reinforced polymer (CFRP), glass fiber reinforced polymer (GFRP), or steel plate retrofitting systems^4,5,6,7,8,9. Khalil etal¹⁰. evaluated prestressing techniques for torsional enhancement, while Alamili and Abdulameer¹¹ tested hollow I-sections containing square and circular openings constructed from reactive powder concrete (RPC). Further contributions highlighted the influence of repeated loading, high-strength concretes, and innovative reinforcement detailing on torsional behavior^{12,13,14,15,16}. Collectively, these studies confirm that web openings substantially reduce torsional strength and stiffness, but they also demonstrate the potential of advanced materials and strengthening methods—such as CFRP, GFRP, RPC, and prestressing—to mitigate these adverse effects.

Unlike previous studies focused mainly on solid beams or specific strengthening methods, the present study uniquely explores the combined influence of web openings, hollow reinforced concrete beams, and their performance under torsion. Moreover, the use of GFRP stirrups in this context remains largely unexplored. Accordingly, the present work addresses this gap by examining the torsional response of these beams and providing original insights not covered in earlier research.

Research objective

The main objective of this study is to numerically investigate the effect of large rectangular web openings—highlighted by Mansur¹⁷—on the torsional behavior of high-strength hollow RC beams. The analysis covers various opening lengths and depths, providing the first extensive evaluation of such hollow beams under pure torsion. The study also examines, for the first time, the torsional failure of these hollow beams reinforced internally with GFRP stirrups, rather than with external or near-surface GFRP mounted rods, wraps or fibers mixed into the concrete, as used in previous studies. Based on the numerical results, crack patterns and torsional capacities will be determined, and a predictive equation proposed to reliably estimate experimental behavior.

Numerical study

ANSYS model verification

To identify the optimal mesh density, three mesh sizes—90 mm, 50 mm, and 30 mm—were evaluated for beam BH_o−60Mpa tested by Ahmed¹⁸ and beam CBO tested by Eltaly etal¹³.. The torsional capacities computed for each mesh configuration were compared with the corresponding experimental results. Based on this comparison, a mesh size of 50 mm was determined to provide the most accurate and reliable predictions, as summarized in Table 1.

The validity of the FE results obtained in the current study was confirmed by re-analyzing 25 previously tested specimens that had been experimentally and numerically investigated in the literature^7,13, and14] using ANSYS software. Upon re-modeling these specimens, a strong agreement was observed, as shown in Fig. 1. Moreover, one of the reference specimens adopted in the current study (BHM_o−60 MPa) showed a high level of agreement with its corresponding specimen (BH_o−60Mpa) reported in Ahmed’s PhD thesis¹⁸, exhibiting nearly identical properties and dimensions, with an agreement level of 102%.

Table 1 Mesh convergence check.

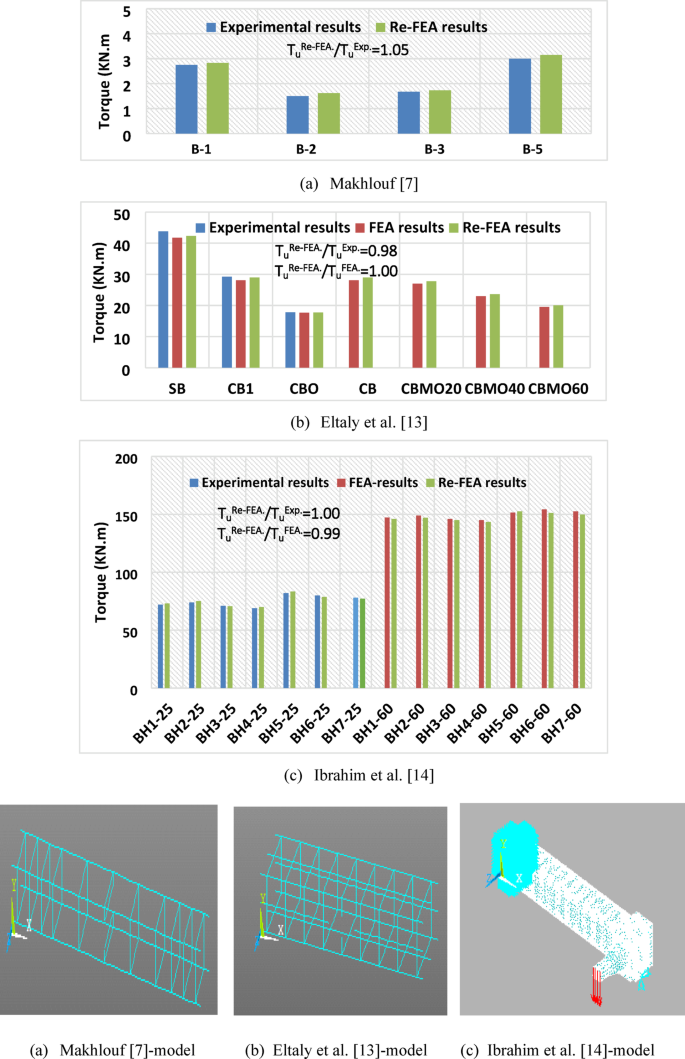

Fig. 1

Finite element validation for previous studies using ANSYS software.

Parametric study

The numerically simulated beams had the same geometrical and material properties: a 300 × 400 mm rectangular cross-section, a web thickness of 100 mm for the hollow beams, a total length of 2400 mm, and a tested span of 1600 mm, as shown in Fig. 2. The beams were divided into nine groups, one control specimen reinforced with mild steel stirrups and without web openings, served as the reference for groups 1, 2, and 3.

Groups 1 through 3 had the same stirrup spacing S of 160 mm, stirrup diameter D of 6 mm, and longitudinal rebar diameter R of 10 mm, but varied in opening size. The ratios of opening depth to the beam depth and opening length to beam length are denoted as $\:d/D$ and$\:l/L$, respectively. Groups 2-S₂ and 2-S₃ refer to the same specimens in Group 2 but with reduced stirrup spacing, (S₂ = 100 mm and S₃ = 80 mm). Group 2-D₂ refers to the same specimens in Group 2 but with an increased stirrup diameter, (D₂ = 8 mm). Group 2-R₂ maintains the same specimens but increases the longitudinal rebar diameter, (R₂ = 12 mm). Group 2-N is identical to Group 2 except that stirrups were removed. Group 2-GFRP replaces the steel stirrups of Group 2 with GFRP stirrups. Analyses of these groups were performed with three concrete grades: 60, 80, and 100 MPa. The detailed properties of the modeled specimens are summarized in Table 2, with a note indicating how the required areas were calculated to determine the transversal and longitudinal reinforcement ratios (ρ_st and ρ_sl), which were defined following Lopes et al.¹⁹.

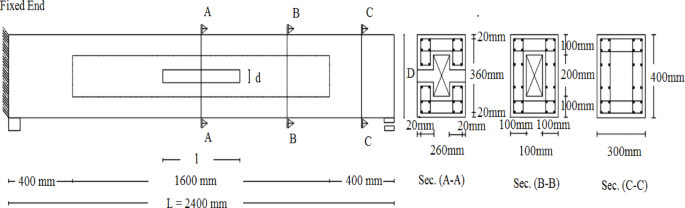

Fig. 2

Geometry of numerical investigated specimens.

Table 2 Specifics of the simulated beams and numerical results.

Non-linear FE analysis

Assumptions and implications

The FE analysis assumed concrete to be homogeneous and isotropic, with perfect bonding between concrete and the reinforcement. Time-dependent effects such as creep and shrinkage were neglected. The Willam–Warnke²⁰ failure model was adopted to capture nonlinear concrete behavior in compression and cracking in tension. Reinforcement was modeled with idealized elastic–plastic properties, while GFRP stirrups were considered linearly elastic.

These assumptions were introduced to simplify the analysis and focus on the main effects of large web opening and internal GFRP stirrups, thereby improving numerical stability. However, they may lead to an overestimation of torsional capacity compared with real structural behavior. Future studies could consider more realistic material behavior.

Modeling

Concrete—with and without reinforcement—was modeled using the SOLID65 element with 8 nodes, each having three degrees of freedom. Steel reinforcement was modeled using the LINK180 three-dimensional uniaxial tension–compression element in ANSYS V-15²¹.

Materials

Concrete

The SOLID65 element was defined by linear isotropic and multi-linear isotropic material properties in ANSYS V-15²¹. ACI 318 − 19²² was used to determine the elasticity modulus E_c for the concrete. Poisson’s ratio υ_c was assumed to be 0.2. Desayi and Krishnan²³ equations, which define the multi-linear isotropic stress–strain relation of concrete, were used to obtain the compressive uniaxial stress–strain values of concrete model:

$$\:f\:=\:{E}_{c}\epsilon\:/(1+{(\epsilon\:/{\epsilon\:}_{0})}^{2})\:\text{M}\text{P}\text{a}$$

(1)

$$\:{{\upepsilon\:}}_{0}=2{f}_{\text{c}}^{{\prime\:}}/{E}_{\text{c}}$$

(2)

f is the stress (in MPa) at any strain ɛ, ɛ_o is the strain corresponding to the peak stress$\:{f}_{\text{c}}^{{\prime\:}}$, and $\:{f}_{\text{c}}^{{\prime\:}}$ is assumed equal to 0.8f_cu.

$$\:Ec\:=\:3320\sqrt{fc}^{\prime}+6900\:\left(\text{M}\text{P}\text{a}\right),\left(\text{A}\text{C}\text{I}\:318-19,\left[22\right]\right)\:\text{f}\text{o}\text{r}\:\text{H}\text{S}\text{C}$$

(3)

The uniaxial tensile cracking stress, f_r, is

$$\:fr\:=\:0.62\sqrt{fc}^{\prime}\:\left(\text{M}\text{P}\text{a}\right),\:\left(\text{A}\text{C}\text{I}\:318-19,\:\left[22\right]\right)\:$$

(4)

The use of the Willam and Warnke²⁰ material model in ANSYS requires various constants to be defined, as shown in Table 3.

Table 3 Concrete constants for Willam and Wranke material model.

Longitudinal and transverse rebar

LINK-180 element requires linear and bilinear- isotropic properties, ANSYS V-15²¹. The elasticity modulus $\:{E}_{s}$ was taken 2×$\:{10}^{5}\:$MPa, the tangent modulus $\:{E}_{t}$ = 0.1$\:{E}_{s}$, Cervenka etal²⁴., and Poisson’s ratio υ_s was assumed to equal 0.30. Two yield strengths$\:\:\left(\:{f}_{y}\right)$ were considered, $\:{f}_{y}$= 240 MPa for mild steel stirrups and 400 MPa for longitudinal rebar.

GFRP stirrups

LINK180 element was used to model the GFRP stirrups, but with only linear properties, following Ahmad etal²⁵.. The elasticity modulus was taken 40000 MPa, and Poisson’s ratio was assumed to be 0.20.

Meshing and boundary conditions

The concrete volumes were meshed using the SOLID-65 element, while the longitudinal reinforcement and stirrups (including both mild steel and GFRP stirrups) were meshed using LINK180 elements. The modeling and meshing process is shown in Fig. 3.

The boundary conditions of the numerically simulated specimens were defined in accordance with Ibrahim etal¹⁴.. A full restraint was applied at one end of each beam by restraining all translational and rotational degrees of freedom. At the opposite loaded end, the beam was restrained only in the vertical plane, allowing free rotation and axial deformation.

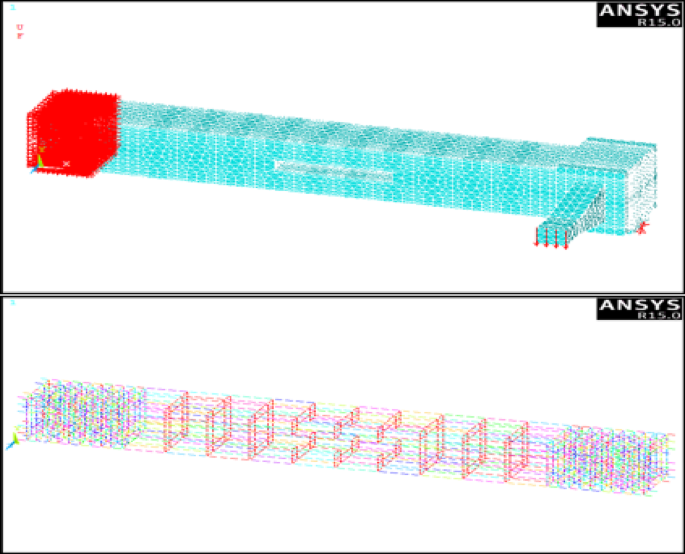

Fig. 3

Modeling, boundary conditions and meshing by ANSYS V15.0.

Non-linear FE results

Crack pattern and stress flow

As shown in Fig. 4, cracking initiated at the opening corners due to local stress concentration and then propagated diagonally, forming a spiral pattern. Increasing the opening length intensified crack localization to the corners and further weakened the torsional shear path.

Following initial cracking, the reduced slope of torque–twist curves reflects a loss of stiffness caused by larger openings$\:(l/L$ > 0.525), explaining the vulnerability of beam sections around openings under torsional loading, as shown in Fig. 5.

GFRP stirrups were more effective in delaying crack formation and improving post-cracking behavior because their high tensile strength provides better confinement and resistance to diagonal shear stresses.

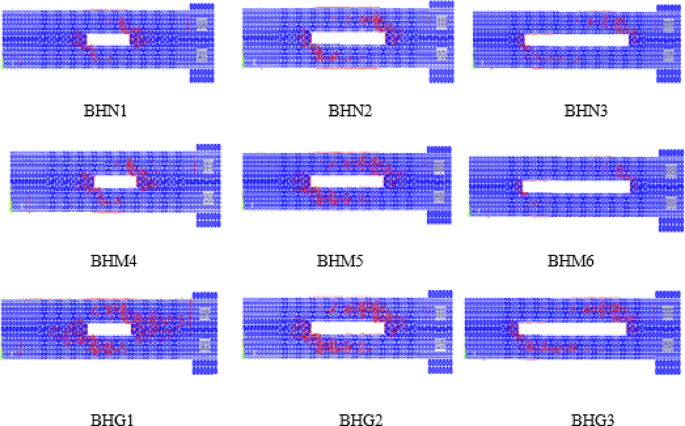

Fig. 4

Samples of Initial crack pattern for the simulated beams.

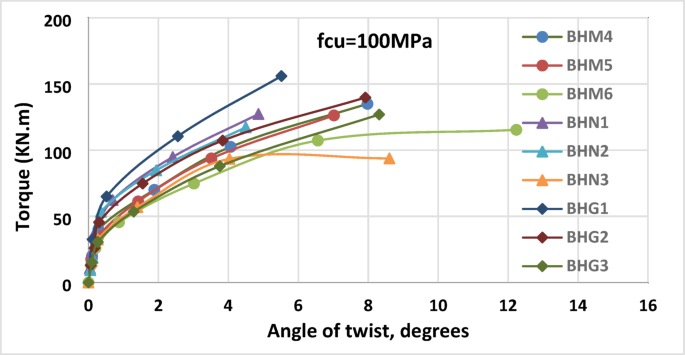

Fig. 5

Torque-twist angle correlation of beams of concrete strength of 100 MPa with different systems of stirrups.

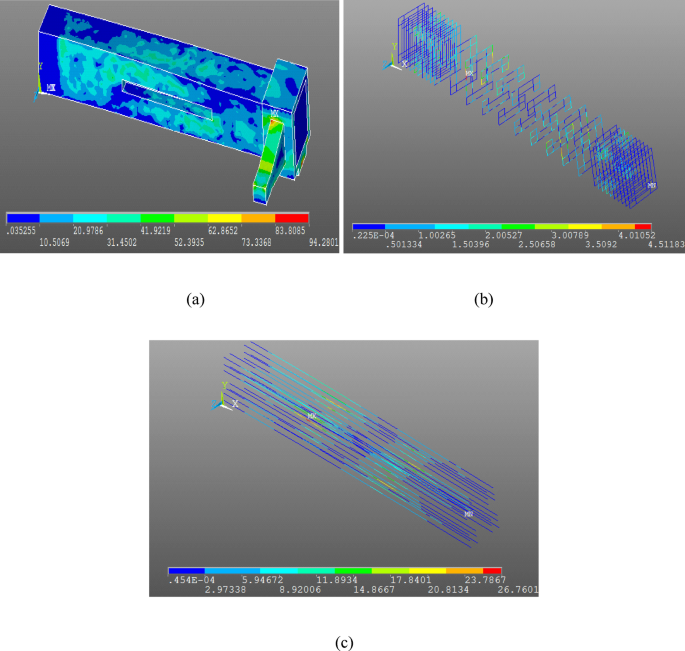

As shown in Fig. 6, high stress concentrations occurred along the opening edges and beam corners, defining the main torsional shear flow path. Peak stresses in the stirrups near their junctions with the longitudinal bars emphasized their role in restraining diagonal cracking, while rising stresses in the longitudinal reinforcement confirmed their role in redistributing torsional forces. This stress distribution explains the initiation and propagation of diagonal cracks and the resulting reduction in torsional capacity.

Fig. 6

Typical FEA torsional stresses results. (a) Concrete outer surface and around opening. (b) In stirrups. (c) In longitudinal reinforcing steel bars.

Effect of opening size on torsional strength

Increasing opening depth (constant opening length)

Increasing the opening depth ratio ($\:d/D)$ from 0 to 0.25 reduced the torsional capacity by approximately 30.4–56.6%, depending on concrete strength and opening length, as shown in Fig. 7. This reduction was more pronounced for longer openings ($\:l/L$ > 0.525), highlighting the significant weakening caused by extended openings which disrupt the torsional stress path more severely. High-strength concrete (100 MPa) partially offset this reduction, improving torsional capacity by about 10%.

Increasing opening length (constant opening depth)

Increasing the opening length ratio ($\:l/L$) from 0 to 0.75 decreased torsional capacity by about 36.5–56.6%, depending on concrete strength and opening depth, as shown in Fig. 8. The greatest reduction occurred for deeper openings ($\:d/D$ > 0.2), which enlarge the region of concrete affected by shear and weaken the beam. High-strength concrete (100 MPa) partially compensated for this weakening effect, increasing torsional capacity by about 7%.

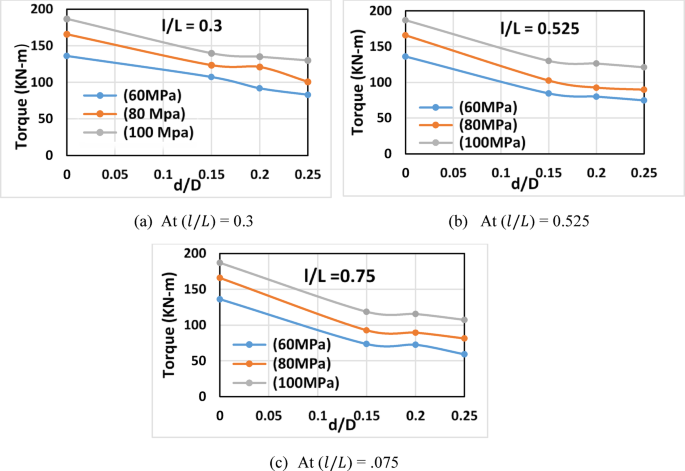

Fig. 7

Torque vs. ratio of the opening depth to beam depth (d/D) for beams of different concrete strengths.

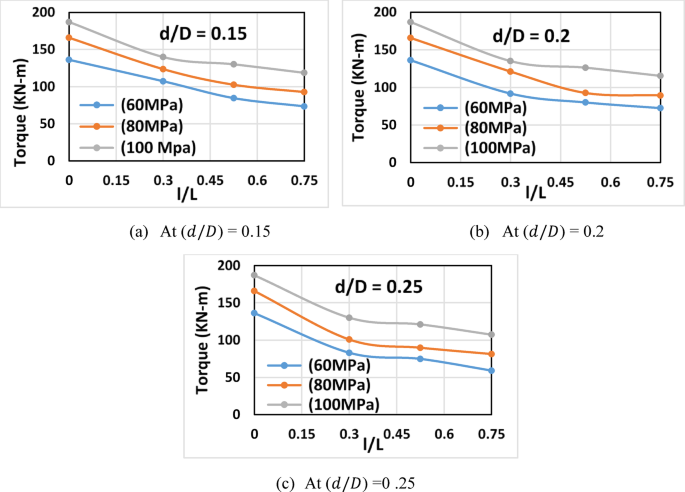

Fig. 8

Torque vs. ratio of the opening length to beam length (l/L) for beams of different concrete strengths.

Effect of transverse steel ratio ($\:{\rho\:}_{st}$)

Reducing stirrup spacing

Reducing stirrup spacing from 160 mm to 80 mm (increasing the stirrup ratio from 0.559% to 1.102%), improved torsional capacity by approximately 8.97–32.77%, being more effective for short openings and low-strength concrete, as shown in Fig. 9a. its effectiveness decreases for high-strength concrete, which can carry more torsional stresses, making the stirrups’ contribution less significant, and for long openings ($\:l/L$ >0.525) due to early local failures near the openings.

Increasing stirrup diameter

Increasing stirrup diameter from 6 mm to 8 mm (increasing the stirrup ratio from 0.317% to 0.563%) raised torsional capacity by approximately 1–16.9%, mostly for smaller openings and lower-strength concrete, as shown in Fig. 9b. For large openings, the effectiveness was limited due to the reduced concrete area around the stirrups, which restricted their anchorage. Moreover, in higher strength concrete, the concrete itself contributed more significantly to torsional resistance, reducing the relative impact of stirrup reinforcement.

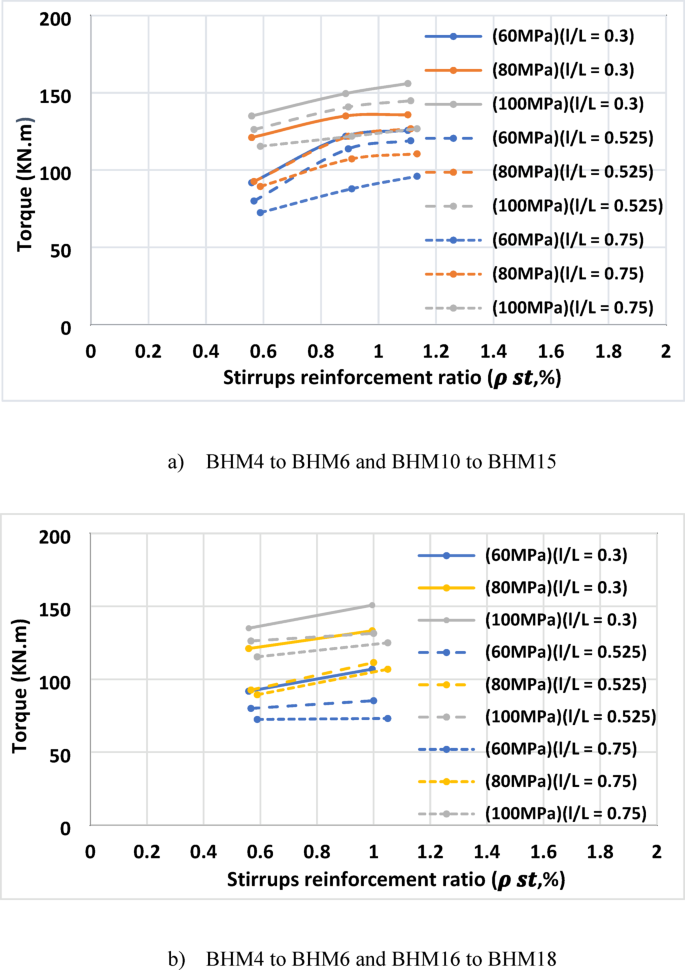

Fig. 9

Torque vs. mild transversal stirrups steel ratio for beams of changed concrete strengths.

Effect of longitudinal rebar ratio ($\:{\rho\:}_{sl}$)

As shown in Fig. 10, increasing the longitudinal reinforcement ratio from 1.96% to 2.83% enhanced torsional capacity by approximately 1–13.22%. This improvement was more pronounced in beams with low-strength concrete and long openings, where additional longitudinal bars played a larger role in restoring torsional strength. In high-strength concrete, the relative impact of extra longitudinal bars was smaller, as the concrete itself provides substantial torsional resistance.

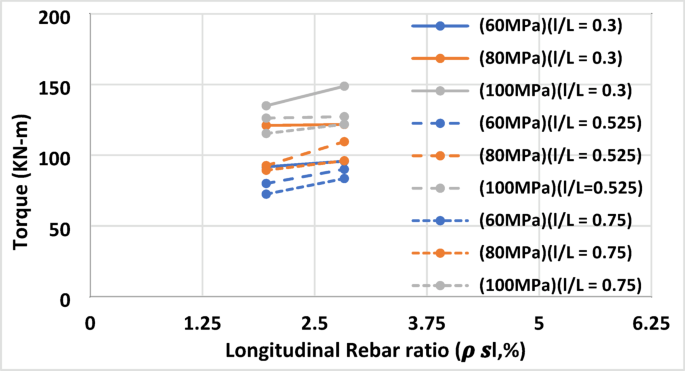

Fig. 10

Torque vs. longitudinal rebar ratios of beams (BHM4 to BHM6 and BHM19 to BHM21) of different concrete strengths.

Effect of transverse steel type

Figure 11 illustrates the effect of transverse reinforcement on torsional capacity at a constant depth ratio $\:(d/D\:=\:$0.2). Using mild-steel stirrups increased the capacity by approximately 3.3–9.9%, while replacing them with GFRP stirrups further improved capacity by 9.1–21.2%, depending on concrete strength and opening length. GFRP stirrups are more effective than mild steel due to their higher tensile strength, particularly in beams with lower-strength concrete. However, the improvement decreases for long openings ($\:l/L$ > 0.525) because of early local failures limiting stirrup contribution. From a practical perspective, the use of GFRP stirrups involves higher cost, limited availability, specialized handling, and lack of explicit code provision. Tables 4 and 5 summarize previous cost–benefit analysis and durability studies for GFRP applications^{26,27,28,29,30,31,32}.

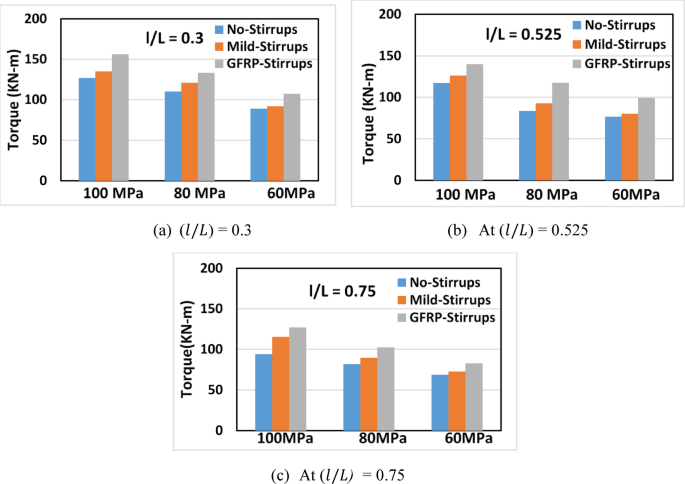

Fig. 11

Effect of transverse steel type on torque for beams (BHM4 to BHM6, BHN1 to BHN3, and BHG1 to BHG3) of different concrete strengths.

Table 4 Summary of cost–benefit findings for GFRP.

Table 5 Summary of durability studies for GFRP.

Proposed numerical equations

Derived equation for Hollow RC beams

The proposed equation was developed by incorporating all studied variables into Excel’s Scientific Data Analysis tool to obtain the best-fit linear relationship. The coefficients were then slightly adjusted to better match the torsional moment values ($\:{\varvec{T}}_{\varvec{u}}$ in N·mm), resulting in the final form of the equation:

$$\:{T}_{u}={10}^{6}\left[30\left(X\right)+{10}^{-10}\left(Y\right)-305\left(Z\right)\right]$$

(5)

$$\:X\:=\left(1+1.4\:{\rho\:}_{st}\:\right)$$

(6)

$$\:{Y\:=t}^{3}\left({236\rho\:}_{sl}.{f}_{y}+12700{f}_{c}-{E}_{st}\right)$$

(7)

$$\:Z\:=\:\left(\frac{d}{D}x\frac{l}{L}\right)$$

(8)

In the equation, t represents the equivalent thickness of the shear flow zone, $\:{\varvec{E}}_{\varvec{s}\varvec{t}}$ is the young’s modulus of the used stirrups; all lengths in mm and all stresses are in MPa. The equation was applied to the simulated specimens and the results, along with standard deviaton (σ) and coefficient of variation (v), are presented in Table 6. A comparison between the equation out-put and the numerical outcomes is shown in Fig. 12, demonstrating good agreement between the model and the simulations.

Table 6 Association between the numerical outcomes and the equation out-put for the simulated beams.

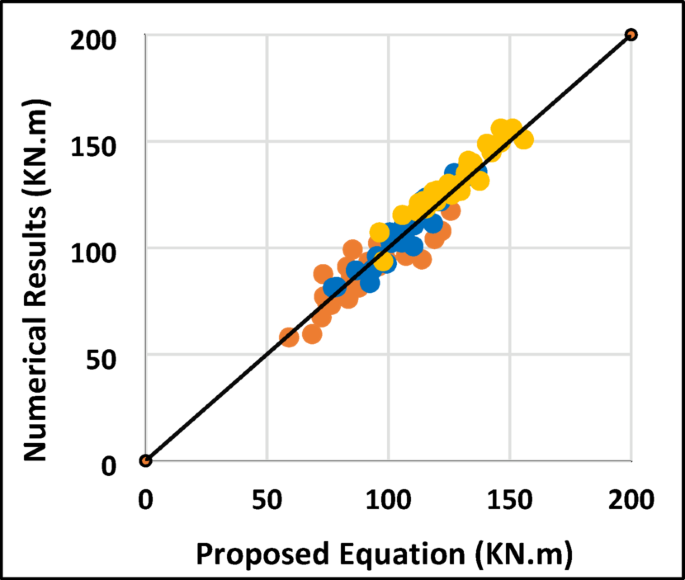

Fig. 12

Comparison of the proposed equation results with the numerical results.

Equation verification

The proposed equation was verified utilizing the experimental work of Khalil etal¹⁰. and showed a good agreement, as presented in Table 7.

Table 7 Verification of the proposed numerical equation on others’ experimental work.

Validity and limitations of the equation

The verification confirmed the equation’s accuracy in the case of small openings and normal-strength concrete. Accordingly, the equation is applicable only to hollow reinforced concrete beams with conventional longitudinal reinforcement, using either normal-or high-strength concrete, and containing a single rectangular opening—whether small or large—at the mid-span on both sides. It is valid when using conventional steel stirrups or GFRP stirrups, provided the following mathematical condition is satisfied: $\:\:305\left(Z\right)$< $\:30\:\left(X\right)+{10}^{-10}\left(Y\right).$.

Derived equations for solid RC beams

The coefficients of the variables in the first proposed equation for hollow RC beams with opening were modified to develop two additional equations suitable for solid RC. These were adjusted to fit the experimental results of Askar³³:

$$\:{T}_{u}={10}^{6}\left[10\left(X^{\prime}\right)+{2x10}^{-9}(Y^{\prime})-198\left(Z\right)\right],\text{f}\text{o}\text{r}\:Z\hspace{0.17em}<\hspace{0.17em}0.09\:$$

(9)

$$\:X^{\prime}\:=\:\left(1+0.75\:{\rho\:}_{st}\:\right)$$

(10)

$$\:Y^{\prime}\:={t}^{3}\left({75\rho\:}_{sl}.{f}_{y}+6000{f}_{c}-{E}_{st}\right)$$

(11)

$$\:Z\:=\left(\frac{d}{D}x\frac{l}{L}\right)$$

(12)

$$\:{T}_{u}={10}^{6}\left[6\left(X^{\prime \prime} \right)+{2.5x10}^{-9}\left(Y^{\prime \prime} \right)-11\left(Z\right)\right],\text{f}\text{o}\text{r}\:Z\hspace{0.17em}\ge\:\hspace{0.17em}0.09\:$$

(13)

$$\:X^{\prime \prime} =\left(1+0.167\:{\rho\:}_{st}\:\right)$$

(14)

$$\:Y^{\prime \prime} ={t}^{3}\left({12\rho\:}_{sl}.{f}_{y}+7720{f}_{c}-{E}_{st}\right)$$

(15)

$$\:Z\:=\:\left(\frac{d}{D}x\frac{l}{L}\right)$$

(16)

All lengths in (mm) and, all stresses in (MPa), and $\:{\varvec{T}}_{\varvec{u}}$ in (N·mm).

Equations verification

A comparison between the outputs of the proposed equations and the experimental results conducted by Askar³³, Abdel-Kareem and Abd El Salam⁴, Meleka etal⁵., and Abdo and Mabrouk (34) showed reasonable agreement, as summarized in Table 8.

Validity and limitations of the equations

This equations are valid only for solid RC beams with conventional stirrups, normal-strength concrete, and conventional longitudinal reinforcement, containing a single rectangular opening located at the mid-span on both sides. The following mathematical conditions must be satisfied: $\:\:198\left(Z\right)$<$\:10\:\left(X^{\prime}\right)+{2x10}^{-9}\left(Y^{\prime}\right)$, $\:11\left(Z\right)<6\left(X^{\prime \prime} \right)+{2.5x10}^{-9}\left(Y^{\prime \prime}\right).$

Table 8 Comparison between proposed equations and experimental results for solid beams with web opening.

Conclusions

This study aimed to quantify the torsional reduction caused by large rectangular web opening in high-strength hollow concrete beams, evaluate the effectiveness of transverse and longitudinal reinforcement in restoring torsional strength, and develop a predictive equation for torsional capacity. Based on the numerical results, the following conclusions are drawn:

• 1. Effect of opening:

  • Large openings decrease torsional capacity by 48.35%, 46.20%, and 37.58% for concrete strengths of 60, 80, and 100 MPa, respectively.

  • Opening depth has a greater influence on reducing capacity than its length.

  • When (l/L > 0.525) and (d/D > 0.2), additional increases origin a significant drop in torsional resistance.

  • Insight and Implication: High-strength concrete better redistributes torsional stresses, reducing the impact of openings. To maintain performance, opening depth and ratios should be limited, and additional reinforcement should be provided when these thresholds are exceeded.

• 2. Transverse reinforcement:

  • Increasing stirrup ratio improves torsional capacity, but the benefit decreases with higher concrete strength or longer openings.

  • Reducing stirrup spacing below 100 mm is ineffectual, and closer spacing is more valuable than increasing stirrup diameter.

  • GFRP stirrups doubled the torsional capacity compared to mild steel or no stirrups, attaining the highest cracking-to-ultimate torque ratio.

  • Insight and Implication: Optimize spacing rather than diameter; use GFRP near large openings for superior strength and corrosion resistance.

• 3. Longitudinal reinforcement:

  • Increasing longitudinal reinforcement from 1.96% to 2.83% produces higher increases in low-strength beams and those with large openings by of 9.5%, 7.68%, and 5.14% for 60, 80, and 100 MPa, respectively.

  • Insight and Implication: Most effective in low-strength beams or beams with large openings; critical for compensating torsion loss.

• 4. Proposed formula:

  • The developed equations align closely with existing experimental data, Insight and Implication: These formulas can be confidently used for preliminary design to estimate torsional capacity without requiring complex numerical modeling.

Future work

Further research should explore different opening shapes, multiple openings, combined loading conditions, and alternative reinforcement materials. Besides, for larger openings, use extra reinforcement or alternative structural solutions to offset torsional capacity loss.
