Acmella oleracea (L.) R.K. Jansen (A. oleracea), commonly known for its medicinal properties, belongs to the Asteraceae family and is prevalent in Brazil and other tropical and subtropical regions1. Traditionally, it is utilized to alleviate toothache2 and is widely used for wound healing, rheumatism, antimalarial and anti-inflammatory agents3. These therapeutic effects are largely attributed to bioactive components, particularly alkylamides, flavonoids, and phenolic compounds4,5. Notably, spilanthol is a primary N-alkylamide in this plant, while another identified compound is (2E,4E,8Z,10E)-N-isobutyl-2,4,8,10-dodecatetraenamide (IBDTA) (Fig. 1)6. Despite its pharmacological importance, research focuses on optimizing the extraction conditions for IBDTA from A. oleracea remains limited.

When extracting targeted compounds, several factors must be considered. One of the most crucial factors is solvent selection, as it directly affects both selectivity and extractability. Previous studies have identified common solvents such as water, ethanol (EtOH), methanol (MeOH), acetone, chloroform and hexane, as well as mixtures of water with EtOH or MeOH, for extracting alkylamides from A. oleracea7,8,9,10,11. However, solvents such as hexane and MeOH are toxic and unsuitable for medicinal and cosmeceutical products12. Therefore, using safer and more efficient solvents, such as EtOH or an EtOH: water mixture, is preferable for extracting IBDTA, as these solvents are less harmful to humans and the environment. Despite this, previous research has primarily focused on identifying active compounds and assessing their biological activity. To the authors’ knowledge, no systematic studies have investigated the optimal extraction solvents and conditions to achieve the most efficient selective extraction of IBDTA from A. oleracea.

When considering the suitability of an extraction solvent for a compound of interest, solubility parameters are often crucial. Hansen solubility parameters (HSPs), which are based on three types of intermolecular forces (dispersion, polar, and hydrogen bonding), are valuable for predicting the compatibility of materials and have been widely applied across various industries13,14,15,16. By utilizing this theory, it is possible to reduce time-consuming and resource-intensive screening experiments that generate large amounts of waste solvents.

In addition to solvent selection, the extraction process considerably affects compound recovery. Conventional extraction methods, such as maceration and Soxhlet extraction, are commonly employed to extract naturally derived plant compounds. However, these methods are often time-consuming, have low extraction efficiencies, and consume large quantities of solvent, which can be costly and may degrade sensitive bioactive compounds17.

Ultrasound-assisted extraction (UAE) offers a sustainable and greener alternative by using ultrasound vibrations to improve the mass transfer of bioactive constituents from plant materials into solvents18. High-intensity ultrasound waves create cavitation bubbles that physically disrupt the surface of the plant material, facilitating the release of bioactive compounds into the solvent through diffusion and dissolution19. UAE has several advantages, including high recovery rates of bioactive compounds, reduced extraction times, and low solvent usage20,21. It has been successfully employed to extract a wide range of naturally derived plant substances, such as polyphenols22, polysaccharides21,23, flavonoids24, phenolic compounds17, lycopene25, vitamins26, and carotenoid27 demonstrating its broad applicability.

Micelle-mediated extraction (MME) is a green extraction method used for the selective extraction or separation of organic compounds. MME utilizes micelles formed by surfactants above their critical micelle concentration to dissolve and encapsulate hydrophobic compounds within the core of the micelles (surfactant-rich phase) while leaving hydrophilic molecules in the aqueous phase28. One of the advantages of MME is that the volume of the surfactant-rich phase is considerably small, resulting in a high enrichment factor, thereby improving analytical sensitivity without requiring additional steps to remove impurities or concentrate the sample29.

This study is the first to optimize the extraction of IBDTA from A. oleracea by comparing two different green extraction methods: UAE and MME. This work advances the field by integrating solvent selection theory, extraction process optimization and comparative evaluation of green extraction strategies specifically for the target compound. In the UAE method, suitable solvents for extracting IBDTA from A. oleracea were systematically identified using HSPs before conducting experimental evaluations. The selected solvent was then applied in UAE. To maximize extraction efficiency, response surface methodology (RSM) was applied to optimize the extraction variables, including amplitude, extraction time, and solid-to-solvent ratio. For MME, IBDTA was extracted and separated within the micelles formed using the nonionic surfactant Tween 80 (TW80). Herein, the most suitable extraction conditions, such as surfactant concentration, extraction time, NaCl concentration, and temperature, were determined to enhance the efficiency of IBDTA extraction. To further distinguish this study from prior work, the obtained extracts were evaluated not only in terms of extraction yield but also in terms of bioactivity, focusing on cytotoxicity and anti-inflammatory effects, thereby linking the relationship between extraction efficiency with functional performance.

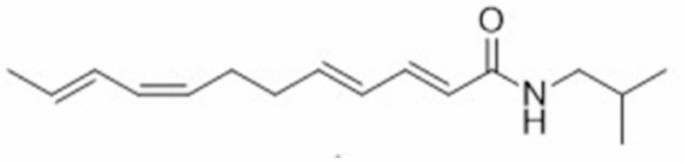

Fig. 1
figure 1

Chemical structure of IBDTA.

Full size image

Materials and methods

Materials and reagents

The extraction solvents MeOH, EtOH, hexane, and acetone (99% purity) were purchased from Carlo Erba Reagents (Barcelona, Spain). All organic extraction solvents were of analytical reagent grade, while those used for chromatography were of HPLC grade. The RAW 264.7 mouse macrophage cell line was sourced from the American Type Culture Collection (ATCC, USA). Dulbecco’s Modified Eagle’s Medium (DMEM), L-glutamine, penicillin G sodium salt and streptomycin sulfate were purchased from GIBCO Invitrogen (NY, USA). Fetal bovine serum (FBS) was obtained from Biochrom AG (Berlin, Germany). IBDTA used as standard (IBDTA-STD) was extracted and purified at our laboratory.

Plant material

The aerial parts of A. oleracea were collected from Wang Saphung district, Loei province, Thailand, and one of the authors (C.C.) identified them. The herbarium specimen (CC-AO-0712) is currently stored at the Department of Pharmacognosy and Pharmaceutical Botany, Faculty of Pharmaceutical Sciences, Chulalongkorn University, Thailand. The plant materials were oven-dried at 40 °C for 3 days, then cut into small pieces and ground with a hammer mill to obtain a consistent powder. The resulting powder was stored in a sealed container at 25 °C and protected from light and humidity.

Solvent selection using HSPs theory

The HSP is made up of three energy density components: dispersion force (δd), polar force (δp), and hydrogen bonding (δh) parameters, which were calculated according to Eq. (1),

$$\:{\delta\:}_{t}^{2}={\delta\:}_{d}^{2}+{\delta\:}_{p}^{2}+{\delta\:}_{h}^{2}$$
(1)

where δt is the total HSP parameter.

The HSP value calculations for IBDTA were performed using the Stefanis & Panayiotou group contribution method and Eqs. (2–4)30:

$$\:{\delta\:}_{d}=\:\left(\sum\:_{i}{N}_{i}{C}_{i}+W\sum\:_{j}{M}_{j}{D}_{j}+17.3231\right){MPa}^{1/2}$$
(2)
$$\:{\delta\:}_{p}=\:\left(\sum\:_{i}{N}_{i}{C}_{i}+W\sum\:_{j}{M}_{j}{D}_{j}+7.3548\right){MPa}^{1/2}$$
(3)
$$\:{\delta\:}_{h}=\:\left(\sum\:_{i}{N}_{i}{C}_{i}+W\sum\:_{j}{M}_{j}{D}_{j}+7.9793\right){MPa}^{1/2}$$
(4)

where Ci is the first-order group of type I, occurring Ni times within the target structure, while Dj corresponds to the second-order group of type j, which appears Mj times. The parameter W value is 0 for compounds that do not contain a second-order group and 1 for those that contain it.

To determine the solubility capacity of the solvent for the target compound, the Ra value was calculated as follows:

$$\:{R}_{a}=\sqrt{4{\left({\delta\:}_{dA}-{\delta\:}_{dB}\right)}^{2}+{\left({\delta\:}_{pA}-{\delta\:}_{pB}\right)}^{2}{+\left({\delta\:}_{hA}-{\delta\:}_{hB}\right)}^{2}}$$
(5)

where solvent-solute pairs with lower Ra values are expected to demonstrate higher solubility compared to those with higher Ra values.

UAE

Optimizing UAE using RSM

To optimize the extraction conditions for IBDTA from A. oleracea, UAE was performed using a probe-type ultrasonicator (Ultrasonic processor Q700, Qsonica, CT, USA). This device features a 0.5-inch diameter probe with a capacity of 1000 W and operates at a frequency of 20 kHz. The extraction conditions were optimized using RSM through Design Expert software (version 11.1.0.1, Stat-Ease, Minneapolis, MN, USA), using 0.5 g of dried samples. A Box–Behnken design (BBD) was employed to optimize and evaluate significant parameters during the UAE process.

Herein, three variables were examined: amplitude (ranging from 20 to 60%) as variable A, extraction time (ranging from 10 to 30 min) as variable B, and solid-to-solvent ratio (ranging from 1:5 to 1:20 (w/v)) as variable C. These variables underwent preliminary screening using a one-factor-at-a-time approach to assess their impact on extraction efficiency.

The total number of experiments in the BBD was 17, including 5 replicates at the center point to assess experimental error (Table 1). To ensure accuracy and reliability, all extraction experiments were performed in triplicate and conducted in a randomized order to minimize bias from sequence effects. The resulting extract solution was collected and then evaporated using a rotary evaporator (Rotavapor® R-100, Büchi, Switzerland). The residue extract was stored at 4 °C until analysis via HPLC.

The efficiency of the extraction process was assessed by examining the responses, which are influenced by different input extraction variable factors (Y1, Y2, Y3,…Yc). The relationship between the responses and the input variables is represented by the following quadratic regression equation.

$$\:Y=\:{\beta\:}_{0}+\sum\:_{i=1}^{3}{\beta\:}_{i}{X}_{i}+\sum\:_{i=1}^{3}{\beta\:}_{ii}{X}_{i}^{2}+\sum\:_{i=1}^{2}\sum\:_{j=i+1}^{3}{\beta\:}_{ij}{X}_{i}{X}_{j}$$
(6)

where Y represents the predicted response, which includes extraction yield (%) and the concentration of IBDTA (µg/g crude extract), ß0 is a constant, ßi represents the linear coefficients, ßj denotes the quadratic coefficients, and ßij refers to the interaction regression coefficients.

To evaluate the significance of the linear, quadratic, as well as interaction regression coefficients, analysis of variance (ANOVA) was performed, with statistical significance set at p < 0.05. This analysis also helped determine the validity of the quadratic models. To interpret the relationship between the dependent and independent variables, three-dimensional surface plots were created using the derived polynomial models.

MME

For the MME process, 1.0 g of dried samples was mixed with 15 mL of a specified concentration of TW80 solution (0.5–20% w/v). This mixture was subjected to ultrasonic extraction in an ultrasonic bath (Elmasonic, S60 H, Germany) at 25 °C for 20 min. The supernatant was then collected and filtered using Whatman No. 1 filter paper. A specified amount of NaCl (1–20% w/v) was then added to the solution and vortexed until completely dissolved. The cloudy solution was then incubated over a range of temperatures (40–90 °C) for a specified time (10–50 min) to allow phase separation into the aqueous phase and the surfactant-rich phase, which contained IBDTA. The surfactant-rich phase was then collected using a syringe fitted with a long needle and diluted in MeOH to reduce its viscosity. The extract was subsequently concentrated with a Rotavapor R-100 (Büchi, Switzerland), and the remaining residue was stored at 4 °C until it was analyzed by HPLC.

Scanning electron microscopy analysis (SEM)

To investigate the extent of structural degradation resulting from extraction, the powder residue of dried A. oleracea after extraction with UAE or MME under optimal conditions was vacuum-dried at 40 °C to remove residual solvent. The dried samples were then spread onto the surface of carbon tape and sputter-coated with gold under vacuum. The morphological features of the samples were analyzed with an environmental scanning electron microscope (ESEM, S-3400, Horiba, Japan), at an acerating voltage of 20 kV. Observation was performed at 100–20,000× magnification and images were captured at 100× magnification to evaluate structural differences before and after extraction.

Quantitative analysis of IBDTA

Quantification of IBDTA was conducted using reverse-phase HPLC (Agilent 1260 infinity, Agilent Technologies, CA, USA). The system comprised a quaternary pump and was equipped with a 2998 photodiode array detector. Sample extracts, dissolved in MeOH at a concentration of 10 mg/mL, were pass through a 0.45-µm membrane filter before injection into a ZORBAX Eclipse XDB-C18 column (4.6 mm × 250 mm, 5 μm, Agilent Technologies). The mobile phase comprised a gradient run of MeOH (solvent A), and water (solvent B) as follows: 50% A (0–5 min), 80% A (6–20 min), 100% A (21–25 min), and 50% A (26–30 min). The flow rate was maintained at 1.0 mL/min, with an injection volume of 10 µL and detection at 260 nm. Chromatographic peaks were determined by comparing their retention times and UV spectra with those of standard references. The chemical structure of the obtained IBDTA-STD was confirmed by 1H-NMR (Fig. S1 and Table S1), 13C-NMR (Fig. S2 and Table S2).

Cytotoxicity assay

RAW 264.7 cell line was resuspended in DMEM medium containing 10% FBS, 1% L-glutamine, and 1% penicillin/streptomycin. The cells were seeded in a 96-well plate (10,000 cells/well) and incubated at 37 °C for 24 h. After incubation, the cells were treated with various concentrations of samples for an additional 24 h. Cell viability was evaluated using the PrestoBlue™ cell viability reagent (Invitrogen, USA) following manufacture guidelines. The untreated samples served as negative control, representing 100% cell viability, while the samples treated with 5% dimethyl sulfoxide (DMSO) served as the positive control. The half-maximal inhibitory concentration (IC50), which indicates the sample concentration that inhibits cell growth by 50%, was determined by fitting a curve using nonlinear regression with the Quest Graph™ IC50 Calculator.

Anti-inflammatory activity

RAW 264.7 cells (100,000 cells/well) were plated and cultured in a 96-well plate and incubated at 37 °C for 24 h. For anti-inflammatory assay, concentration that maintained > 80% cell viability as determined in the cytotoxicity assay were selected to ensure that the observed activity was not influenced by cytotoxic effects. The selected concentrations were added and incubated for an additional 2 h. Following this, the cells were treated with lipopolysaccharide (LPS) at a concentration of 1 µg/mL for 16 h. Cell supernatants were collected and transferred to a new 96-well plate, where nitric oxide (NO) production was quantified by measuring nitrite concentrations using a modified Griess reagent according to the manufacturer’s instructions. The amount of nitrite was determined using a sodium nitrite calibration curve. The percentage inhibition of NO production was calculated according to Eq. (7). Diclofenac was used as a positive control.

$$Inhibition \left( \% \right) = (A - B) \times 100/(A - C)$$
(7)

where A, B, and C are nitrite concentrations (µM) when A: LPS (+), sample (−); B: LPS (+), sample (+); C: LPS (−), sample (−).

Statistical analysis

All experiments were performed in triplicate, with results expressed as means ± standard deviation. Data analysis was performed using one-way ANOVA and post-hoc Tukey’s test (p < 0.05) with IBM SPSS statistical software.

Results and discussion

Screening of suitable solvents for IBDTA

To identify the most effective solvents for extracting IBDTA from A. oleracea, the HSP values for commonly used pure solvents and IBDTA were calculated using the group contribution method proposed by Stefanis and Panayiotou30 (Table S3) and are shown in Table 2. The results indicated that the dispersion component δd is the primary factor for solubilizing IBDTA, attributed to its long hydrocarbon chain and isobutyl group (Fig. 1). Additionally, the presence of amide functional groups provides opportunities for polar interactions. As shown in Table 2, the calculated Ra values from Eq. (5) suggest that IBDTA is best solubilized in solvents such as acetone and chloroform, which have low Ra values of 6.66 and 6.74 MPa½, respectively. It shows moderate solubility in EtOH and diethyl ether, with Ra values of 8.74 and 9.15 MPa1/2, respectively. By contrast, MeOH and water, which have significantly higher Ra values owing to their considerable differences in δh and δd values, are poor solvents for this compound.

Table 1 Box–Behnken design (BBD) with conditions and experimentally.
Full size table
Table 2 Solvent screening for the extraction of IBDTA using Hansen solubility parameter (HSP).
Full size table

Solvent evaluation

To identify the most effective green solvent for extracting IBDTA, extraction experiments were conducted using dried powdered samples of A. oleracea with various solvents, following the HSP prediction. Extraction was performed at 25 °C with a solid-to-solvent ratio of 1:15 (w/v) over 48 h. The highest yield was obtained with EtOH (0.3%), followed by acetone and MeOH, while water produced the lowest yield (0.2%; Fig. 2A). The extractability of the target compound IBDTA was evaluated (Fig. 2B), with EtOH providing the highest extractability, achieving a concentration of 22.75 µg/g crude extract.

Although HSP predictions initially suggested that acetone would be the most suitable solvent owing to its lower Ra value of 6.66 MPa1/2 compared with EtOH (8.74 MPa1/2), MeOH (13.27 MPa1/2), and water (32.53 MPa1/2), the experimental results revealed that acetone extracted a slightly lower concentration of IBDTA compound (21.56 µg/g crude extract) than EtOH. This discrepancy between theoretical solubility predictions and experimental extractability of the compound can be attributed to specific intermolecular interactions. While acetone and EtOH have comparable dispersion forces (δd), EtOH exhibits hydrogen bonding (δh) and polar interactions (δp) that are more closely aligned with those of IBDTA, enhancing its ability to dissolve and extract the compound more effectively. Additionally, the amphiphilic nature of EtOH enables it to interact efficiently with both the hydrophobic and hydrophilic components of the plant matrix, facilitating the better solubilization of bioactive compounds31,32.

Overall, the experimental extraction results reasonably align with the solubility order predicted by the HSP theory. Consequently, EtOH yielded the highest extracts and achieved the greatest extractability of IBDTA and was selected as the most suitable solvent for further investigation.

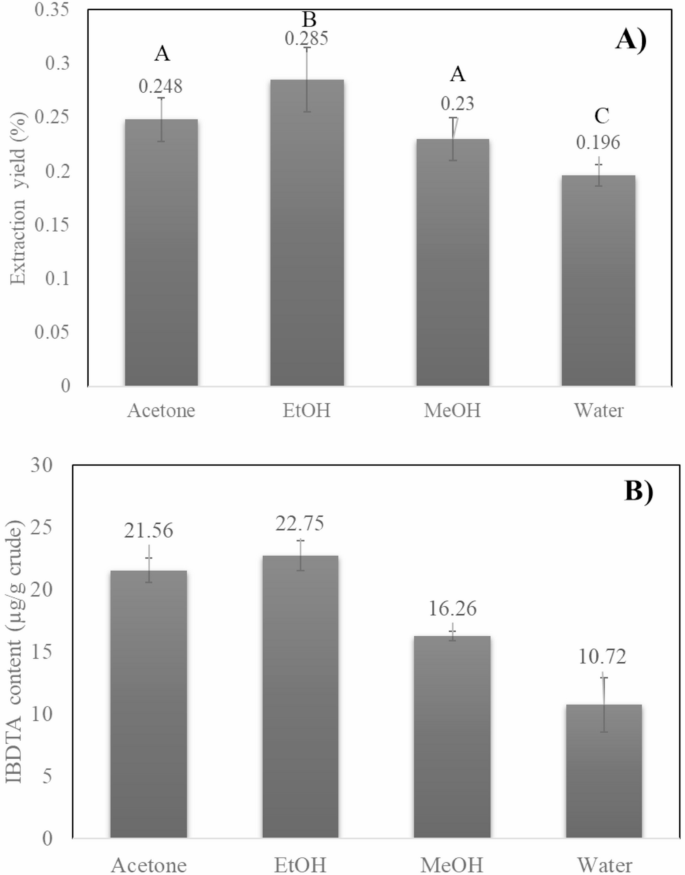

Fig. 2
figure 2

Extraction yield (A) and IBDTA content (B) with candidate solvents at 25 °C for 48 h. Data represent means ± SD (n = 3). Different letters and symbols indicate significant differences between samples within the same category (p < 0.05).

Full size image

Optimization of UAE via BBD-RSM

To optimize the extraction efficiency of yield and the content of IBDTA, an RSM methodology was employed using a BBD. RSM was employed to determine the influence and interactions of extraction variables. This method effectively reduced the experimental runs while enhancing the accuracy of the optimization conditions and is widely used in extraction studies23,33,34. This design allowed for the systematic evaluation of three independent variables: amplitude (A), extraction time (B), and solid-to-solvent ratio (C). 17 experimental runs were performed with randomized combinations of these factors, with each variable set within its defined limits. The model’s effectiveness was determined based on statistical significance (p < 0.05). The data were processed to create a quadratic polynomial model, leading to the derivation of mathematical regression models (Eqs. 8 and 9).

$$\begin{array}{ccccc}{\rm{Yield }}\left( \% \right){\rm{ }} & = {\rm{ 1}}0.{\rm{81 }} + {\rm{ }}0.{\rm{8}}\left( {\rm{A}} \right){\rm{ }} + {\rm{ 2}}.{\rm{85}}\left( {\rm{B}} \right){\rm{ }} + {\rm{ 4}}.{\rm{82}}\left( {\rm{C}} \right){\rm{ }}\\& \quad + {\rm{ }}0.{\rm{53}}\left( {{\rm{AB}}} \right){\rm{ }} + {\rm{ 2}}.{\rm{69}}\left( {{\rm{AC}}} \right){\rm{ }} + {\rm{ 1}}.{\rm{46}}\left( {{\rm{BC}}} \right){\rm{ }}\\& \quad + {\rm{ 4}}.{\rm{33}}\left( {{{\rm{A}}^{\rm{2}}}} \right) + {\rm{ 2}}.{\rm{23}}\left( {{{\rm{B}}^{\rm{2}}}} \right){\rm{ }} + {\rm{ 2}}.{\rm{12}}\left( {{{\rm{C}}^{\rm{2}}}} \right)\end{array}$$
(8)
$$\begin{array}{ccccc}IBDTAcontent{\rm{ }} & = {\rm{ }}9.14 - 4.15\left( A \right) - 2.04\left( B \right) - 1.14\left( C \right)\\& \quad - 2.54\left( {AB} \right){\rm{ }} + {\rm{ }}0.86\left( {AC} \right){\rm{ }} + {\rm{ }}1.58\left( {BC} \right){\rm{ }}\\& \quad + {\rm{ }}5.94\left( {{A^2}} \right) - 3.95\left( {{B^2}} \right){\rm{ }} + {\rm{ }}4.59\left( {{C^2}} \right)\end{array}$$
(9)

Tables 3 and 4 present the result of the ANOVA analysis, which was conducted to evaluate the statistical significance of the quadratic model at a threshold of p < 0.05. The coefficient of determination (R2) values for extraction yield (0.9136) and IBDTA content (0.9637) indicate a strong correlation between predicted and observed outcomes, confirming the model’s adequacy as both R2 values exceed 0.7535,36.

The significance of the models is further supported by F values of 8.22 for extraction yield and 20.65 for IBDTA content, along with p values of 0.0046 and 0.0003, respectively. These results affirm that the models are statistically significant. Additionally, the lack-of-fit analysis demonstrated that both models were insignificant (p > 0.05), suggesting that the number of experiments performed was sufficient to evaluate the effects of the independent variables on the extraction yield and content of IBDTA.

Table 3 ANOVA for the response surface quadratic model of extraction yield using UAE.
Full size table
Table 4 ANOVA for the response surface quadratic model of IBDTA extraction using UAE.
Full size table

Effect of UAE on extraction yield and IBDTA content

The extraction yield and content of IBDTA, as determined from 17 runs of independent variables (summarized in Table 1), revealed the influence of variable extraction. Significance was calculated using RSM. The highest extraction yield (20.21%) was achieved with an ultrasound amplitude of 20%, an extraction time of 20 min, and a solid-to-solvent ratio of 1:20 (w/v). The highest content of IBDTA was observed at an amplitude 20%, 20 min, and a ratio of 1:5 (w/v).

The three-dimensional response surface plot illustrates the interaction effects of amplitude, time, and solid-to-solvent ratio on the extraction yield and content of IBDTA in A. oleracea extract. The extraction yield increases with higher ultrasound amplitude and longer extraction (Fig. 3A). This enhancement is related to the disruption of plant cell walls by ultrasound, which enhances solvent penetration and facilitates the solubilization of the target bioactive compound37,38,39. Conversely, excessively high amplitudes or prolonged extraction time may decrease the yield owing to the degradation of extraction efficiency. The interaction between amplitude and solid-to-solvent ratio, as shown in Fig. 3B, suggests that optimum yield is reached at a specific solid-to-solvent ratio, while lower or higher ratios may limit mass transfer or lead to saturation effects. Additionally, Fig. 3C shows that increasing the solid-to-solvent ratio and the extraction time enhances yield. While some of the response surface plots, particularly Fig. 3C,F, exhibit a relatively flattened curvature, this indicates that the system is approaching a plateau or saturation region where further increases in these variables do not significantly enhance the extraction yield. Overall, optimal extraction is achieved at moderate amplitude and time combined with a high solid-to-solvent ratio.

The response surface plot between amplitude and time (Fig. 3D) represents a nonlinear relationship where excessive values of amplitude and time resulted in a decrease in the content of IBDTA. This was due to thermal degradation or excessive sonication, which causes the decomposition of the compound40. The data suggests that an optimal amplitude is necessary for enhanced extraction, as both low and high values result in decreased compound yield, potentially due to inefficient cavitation effects or solvent saturation (Fig. 3E). A low yield of IBDTA was observed at excessive solid-to-solvent ratios or long extraction times, possibly due to reduced diffusion efficiency (Fig. 3F)41. These findings emphasize the need for careful optimization of UAE conditions to maximize extraction efficiency while minimizing compound degradation.

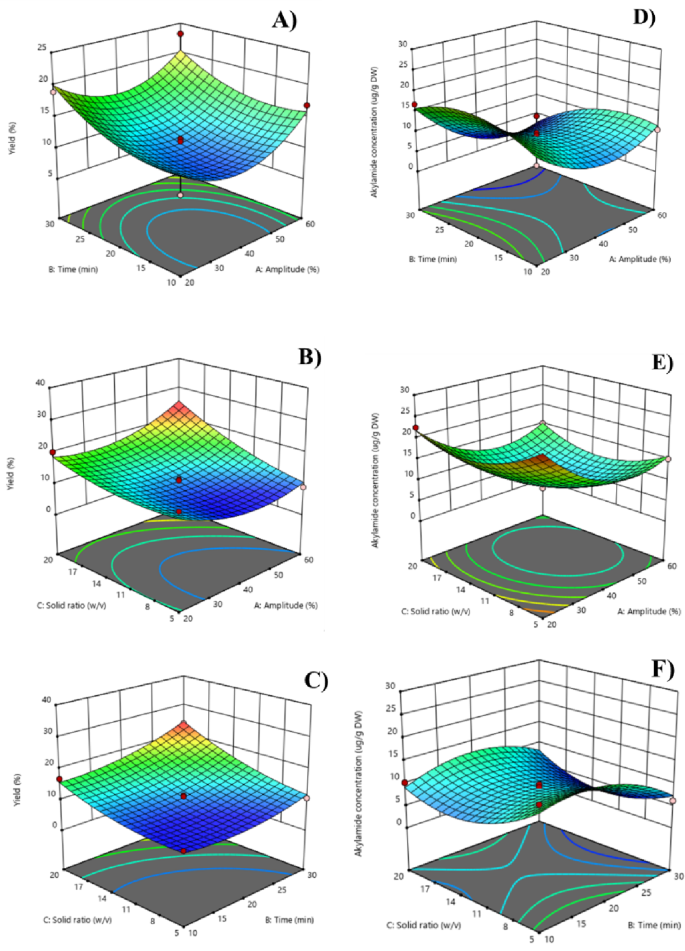

Fig. 3
figure 3

Three-dimensional response surface plots illustrate the influences of variables interactions on extraction yield (A–C) and IBDTA content (D–F).

Full size image

Optimization of MME

As IBDTA exhibited low water solubility owing to its nonpolar nature, which limits its bioavailability and extraction efficiency. To enhance solubility and extraction yield, MME using surfactants presents a promising approach. In preliminary screening study, 2 non-ionic surfactants which are TW20 and TW80 were compared for their efficiency in MME of IBDTA. TW80 demonstrated significant higher extractability, achieving a recovery of 90.61% compared to TW20 (83.63%). This improved extractability is attributed to longer hydrophobic chain of TW80 (C18:1) than TW20 (C12), which forms a more hydrophobic micelle core, enhancing solubilization of the non-polar target compound. Moreover, lower HLB value (15.0 for TW80 vs. 16.7 for TW20) also represents greater affinity for hydrophobic compounds. These findings are consistent with Vinarov et al. (2018), who reported improved solubilization with increasing hydrophobic chain length across surfactant types42. Based on these results, TW80 was chosen for use in the subsequent MME. Herein, extraction was performed under optimum UAE conditions, which had been previously evaluated (20% amplitude for 20 min with a solid-to-solvent ratio of 1:5 (w/v)). The effects of various parameters (TW80 concentration, NaCl concentration, incubation time, and temperature) on MME efficiency were investigated.

Effect of TW80 concentration

As shown in Fig. 4A, the yield of IBDTA in the top phase increased with increasing % TW80 from 14.29 µg/g crude extract at 0.5% (w/v) to 24.8 µg/g crude extract at 4% (w/v) TW80, both at 90 °C and 10% NaCl for 50 min. The critical micelle concentration (CMC) of TW80 is approximately 0.020 mM. The concentration of TW80 at 4% (w/v) (30.5 mM), are significantly above this value. The increased TW80 concentration resulted in a higher number of micelles formed, which are essential for solubilizing the target hydrophobic compound and thus may exert stronger to extract IBDTA. However, increasing the TW80 concentration to 10% (76.3 mM) did not increase extractability in the surfactant-rich (top) phase, perhaps because of limited mass transfer in high-viscosity conditions43,44. Therefore, TW80 4% (w/v) was selected for further experiments.

Effect of NaCl concentration

NaCl facilitates phase separation in the MME system45. Optimization was performed by adding NaCl at concentrations of 10–20% (w/v), as preliminary investigations had shown that no phase separation occurred at NaCl concentrations of ≤ 5% (w/v). The results showed the highest yield at 10% (w/v) NaCl with 4% (w/v) TW80 at 90 °C for 50 min, yielding 25.06 µg/g crude extract. To clarify the mechanism of this extraction behavior, micelle size distribution and zeta potential of the TW80 system were measured against NaCl concentration ranging from 0% to 20% (w/v). As shown in Fig. 5, increasing NaCl concentration increases the micelle size, from 9.41 ± 0.06 nm at 0% NaCl to 121.1 ± 1.77 nm at 20% NaCl. The zeta potential of the prepared micelle exhibited a shifted from − 5.42 ± 0.31 mV (0% NaCl) to reach 6.06 ± 0.71 mV at 20% NaCl. These data suggest the salting-out effect in which additional of NaCl increases the ionic strength of the solution resulting in compresses the electrical double layer and reduces the electrostatic repulsion between the micelles, thereby promoting their aggregation. The optimal 10% NaCl concentration demonstrates a critical balance as it provides sufficient ionic strength to induce the moderate micelle aggregation required for efficient phase separation and solubilization of the target compound. However, as the NaCl further increases to 15 and 20% (w/v), the yields decreased (Fig. 4B). This could be due to the excessive reduction in electrostatic repulsion which promotes micelle aggregation and precipitation thereby, compromising the solubility of the surfactant itself. This destabilization subsequently influenced the partition of the target compound, thereby decreasing the overall extraction efficiency. Thus, 10% (w/v) NaCl was deemed optimal for further experiments.

Effect of incubation time

The incubation time for effective separation was assessed by varying durations from 10 to 50 min using 4% (w/v) TW80 and 10% (w/v) NaCl at 90 °C. The results indicate that the concentration of IBDTA in the surfactant-rich (top) phase increased with longer incubation times, peaking at 40 min with a concentration of 25.06 µg/g crude extract (Fig. 4C). At 50 min, there was a slight decline in concentration in the top phase. Therefore, an incubation time of 40 min was deemed optimal for this micellar extraction method.

Effect of temperature

As illustrated in Fig. 4D, the yield of IBDTA in the top phase following MME using 4% (w/v) TW80 and 10% NaCl increased significantly with temperature. At 40 °C, the concentration was 15.29 µg/g crude extract, reaching a maximum of 25.06 µg/ g crude extract at 80 °C, after which the levels stabilized. Therefore, the optimal MME conditions for extracting IBDTA were determined to be 4% (w/v) TW80, 10% (w/v) NaCl, 40 min, and 80 °C.

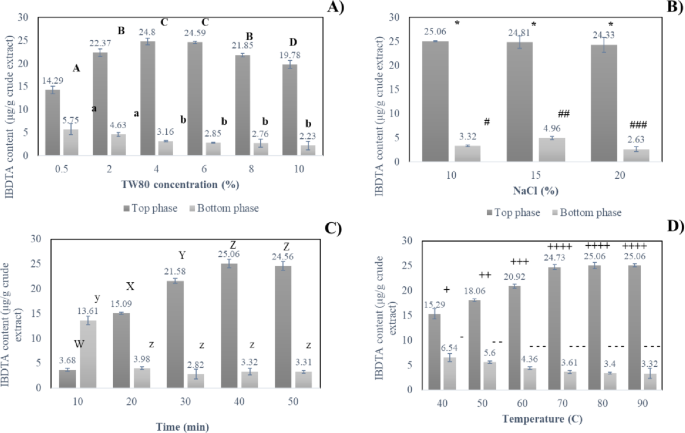

Fig. 4
figure 4

Effects of (A) TW80 concentration, (B) NaCl concentration, (C) incubation time, and (D) temperature on the extraction efficiency of IBDTA using the MME approach. Conditions: (A) 10% NaCl at 90 °C for 50 min; (B) 4% TW80 at 90 °C for 50 min; (C) 4% TW80 and 10% NaCl at 90 °C and (D) 4% TW80 and 10% NaCl for 40 min. Data represent means ± SD (n = 3). Different symbols indicate significant differences between samples within the same category (p < 0.05).

Full size image

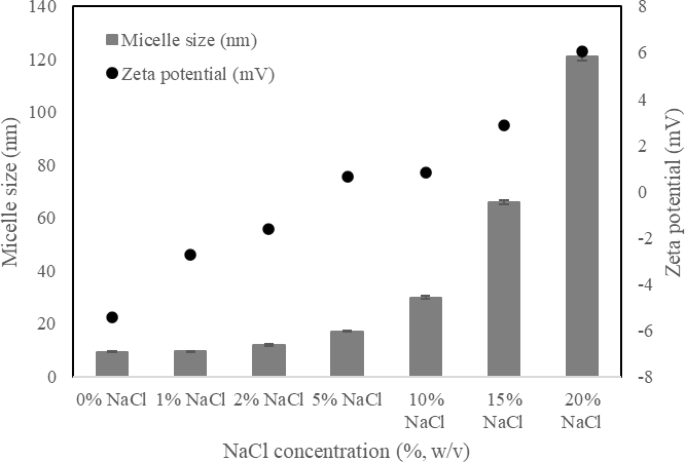

Fig. 5
figure 5

Effect of NaCl concentration on micelle size and zeta potential in a system containing 4% TW 80.

Full size image

Although the optimum extraction temperature for MME was determined to be 80 °C, there are valid concerns regarding the potential thermal degradation of the target compound. However, previous studies have shown that alkylamides, including those found in Echinacea species, exhibit high stability under accelerated thermal conditions up to 80 °C46,47. This suggests that the alkylamide compounds are relatively resistant to heat-induced decomposition.

Destruction of the plant sample in UAE and MME

To determine the effect of UAE and MME on the structural integrity of the plant sample, SEM was used to evaluate morphological changes in plant residues. The pre-extraction sample before extraction exhibited an intact layer with visible surface integrity (Fig. 6A). Following extraction with UAE, extensive disruption of the fibrous network was observed, and the surface appeared more porous (Fig. 6B). The increased porosity indicates that UAE disrupts plant tissues through acoustic cavitation, thereby enhancing mass transfer and extraction efficiency. In the MME-extracted sample (Fig. 6C), there was more pronounced degradation of the structural matrix, with a rough and fragmented surface, indicating significant breakdown of the plant fibers. The observed morphological changes confirm that both UAE and MME significantly impact the integrity of plant material, with UAE facilitating porosity. Similarly, MME leads to extensive matrix breakdown, thereby enhancing the diffusion and recovery of bioactive constituents.

Fig. 6
figure 6

ESEM images of plant residues before (A, ×100) and after extraction with UAE (B, ×100) and MME (C, ×100).

Full size image

Comparison of solvent extraction, UAE, and MME

The extraction efficiency of IBDTA was evaluated using various extraction techniques and solvent systems. Maceration with different solvents, including acetone, water, MeOH, and EtOH at 25 °C, yielded concentrations of 21.56, 10.72, 16.26, and 22.75 µg/g crude extract, respectively (Table 5), with EtOH demonstrating the highest extraction efficiency. This suggests that EtOH is more effective in solubilizing and extracting the target compound owing to its compatibility with the compound’s hydrophobic nature. The lower yield obtained with water can be attributed to its polarity mismatch. Further improvement was achieved through the UAE, resulting in a markedly higher yield of 25.94 µg/ g crude extract under optimized conditions (20% amplitude for 20 min). This improvement is attributed to ultrasonic cavitation, which disrupts cell walls and facilitates enhanced mass transfer. Additionally, MME using TW80 micelles in an aqueous system was explored as an alternative green extraction method. MME resulted in comparable extractability to UAE, yielding 25.06 µg/ g crude extract. The effectiveness of MME lies in micelle formation, which improves the solubilization of hydrophobic compounds in water, facilitating efficient extraction.

Table 5 Comparison of solvent extraction, UAE, and MME.
Full size table

Suitability of UAE and MME for industrial scale-up

Beyond the effectiveness of the extraction at the laboratory scale, the broader implications of UAE and MME for industrial application should be further evaluated. For extracting IBDTA, both UAE and MME methods significantly obtained higher yield of the compound extracts compared to conventional solvent extraction (maceration), with UAE achieving the highest yield (25.94 µg/g crude extract), followed closely by MME (25.06 µg/g crude extract). However, their differences between mechanisms and operational requirements have implications for scalability and sustainability. UAE exhibits strong potential for industrial development as its rapid processing time (20 min) and low energy inlet optimal condition (20% amplitude). UAE offers an advantage in terms of enhancing mass transfer via cavitation effect that generates microbubbles to disrupt plant cell walls and improve solvent penetration, reducing solvent usage, and maintain compound integrity. This technique has capability to implement in a continuous or semi-continuous flow setup in considerable feasible, making UAE suitable for large-scale extraction processes, where compound purity and biocompatibility are critical.

In contrast, MME offers a promising green alternative, using water as the solvent with nonionic surfactant (TW80) to efficiently extracting hydrophobic compounds IBDTA. MME aligns with sustainability goals, especially in food and cosmetic applications where residual organic solvents are undesirable. The use of TW80, surfactant in the Generally Recognized as Safe: GRAS), combined with high anti-inflammatory potency of the MME extracts, suggests a high potential for topical or functional food applications. However, MME process involves higher temperature (80 °C), longer extraction time (40 min), and surfactant recovery steps, which considerably complicate scaling and cost-efficiency.

In summary, UAE is considered better suited for industrial that prioritizing extraction efficiency with mild processing, while MME demonstrates a sustainable and extraction alternative with exert excellent bioactivity. The selection between these two approaches should be based on target applications, regulatory requirements and processing infrastructure.

In vitro cytotoxicity and anti-inflammatory activities

The in vitro cytotoxicity and anti-inflammatory effects of the various extracts were evaluated against RAW macrophages (Figs. S3 and S4). As shown in Table 6, the purified compound IBDTA exhibited moderate cytotoxicity with an IC50 of 673.0 ± 3.3 µg/mL while demonstrating significant anti-inflammatory activity with an IC50 of 61.3 ± 3.8 µg/mL. The EtOH extract exhibited lower cytotoxicity, with an IC50 of 202.1 ± 8.2 µg/mL, while slightly reduce anti-inflammatory activity at an IC50 of 97.0 ± 2.2 µg/mL. By contrast, the UAE extract resulted in considerably lower toxicity, with an IC50 of 2513.4 ± 1.6 µg/mL, but its anti-inflammatory potential with an IC50 of 100.9 ± 7.8 µg/mL was comparable with that of the EtOH extract. The MME extract exhibited moderate toxicity, with an IC50 of 1126.5 ± 1.8 µg/mL but showed higher anti-inflammatory potency (IC50 52.24 ± 5.7 µg/mL), indicating a greater ability to reduce inflammation at lower concentrations compared with diclofenac, the positive control. To explore these differences, we analyzed the compositional profiles of both UAE and MME extracts. The total phenolic content (TPC) of UAE extract (2.74 ± 0.20 mg GAE/g extract) was higher than that of MME (1.80 ± 0.16 mg GAE/g extract), and the total flavonoid content (TFC) of UAE was 0.52 ± 0.16 mg QE/ gextract, while that of MME extracts was not determined. HPLC chromatograms revealed that both extracts contained the same peak corresponding to our target compound. However, MME extract revealed additional minor peaks that were absent in UAE extract (Fig. S5). These findings suggest that although MME contained slightly lower amount of IBDTA and TPC, the additional minor constitutes may contribute synergistically to the enhanced anti-inflammatory effect. At the same time, the higher cytotoxicity observed for MME underscores the importance of compositional complexity, as synergistic enhancement of activity also increases potential toxicity. Overall, the UAE extract demonstrated improved biocompatibility, having the lowest cytotoxicity among the crude extracts, whereas the MME extract exhibited the highest anti-inflammatory potency.

Table 6 In vitro anti-inflammatory and cytotoxic activities of A. oleracea extracts in RAW macrophage cells.
Full size table

Conclusion

This study optimized the green extraction of IBDTA from A. oleracea using UAE and MME techniques. EtOH was selected based on HSP predictions, demonstrating superior extractability and sustainability. BBD-RSM optimization revealed that UAE conditions of 20% amplitude, 20 min, and a 1:5 (w/v) solid-to-solvent ratio achieved the highest extraction efficiency. MME, using TW80, proved effective as well, with optimal conditions at 4% (w/v) TW80, 10% (w/v) NaCl, 40 min incubation, at 80 °C. The extracts exhibited low cytotoxicity against RAW macrophage cells while retaining strong anti-inflammatory properties. This research highlights the importance of green extraction techniques in enhancing the recovery of bioactive compounds from plant sources. Future studies should assess the scalability of these methods for industrial use and their effects on compound stability and bioavailability.
