Introduction

Fractured sandstone is a prevalent rock mass in underground mining, which is characterized by a variety of fracture morphologies that contribute to complex mechanical properties and weakening of the rock mass. This condition can lead to instability and failure of rock strata, resulting in engineering disasters such as roof caving and pillar instability. Therefore, it is of great engineering significance to study the mechanical properties and damage evolution of fractured sandstone to ensure the safety of underground mining operations. In addition, the examination of the acoustic emission (AE) characteristics of fractured sandstone can provide a scientific basis and technical support for the monitoring and prediction of underground mining1,2,3,4.

For fractured rock samples, Yang et al.5 conducted uniaxial compression tests on red sandstone containing a single non-straight fracture with the aid of the AE monitoring system. They found that the peak strength of rock samples increased approximately linearly with increasing fracture dip angle, and the AE counts of fractured rock samples were more dispersed than those of intact rock samples. Wang et al.6 observed that prefabricated fractures were prone to shear microcracks during the failure process of rock samples as the dip angle increased. Wang et al.7 performed uniaxial compression tests on low-strength rock samples with various geometric fractures and revealed that the influence of prefabricated fractures with different geometric characteristics on rock samples varies significantly. The failure modes of rock samples were controlled by fracture dip angle, and the impacts of the fracture number and vertical fractures on rock failure were much greater than that of horizontal fractures. Niu et al.8 concluded that fractures reduce the load-bearing capacity of red sandstone, and that the AE parameter b value can serve as a prediction index for large-scale fractures. Guo et al.9 utilized AE parameters to explore the mechanism of granite microcracks, where three stages of initial calm, slow AE development, and fast AE development were clarified. Moradian et al.10 established a correlation between acoustic emission energy (AEE) and the size of crack events by integrating rock stress-strain diagrams with AE parameters. Chen et al.11 analyzed the relationship between the crack closure effect and the aspect ratio through conducting uniaxial compression tests on sandstone samples, and then established a nonlinear energy dissipation model based on the crack closure effect. Peng et al.12 defined the energy storage coefficient and energy dissipation coefficient, and then performed loading tests on sandstone samples with different dip angles. Their findings indicated that the larger the rock fracture dip angle, the stronger the energy storage capacity and the weaker the energy dissipation capacity. The macroscopic fragmentation deformation of rock can be interpreted as the accumulation of numerous small ‘avalanche’ events13, which can be captured by an AE monitoring system. Previous studies have employed avalanche dynamics theory to analyze the AE parameters related to rock fragmentation14,15,16.

Regarding the damage constitutive model of fractured rock mass, Xia et al.17 established a damage constitutive model for fractured sandstone by coupling the initial damage caused by microscopic defects and the macroscopic cracks in rock samples. Also, a compaction coefficient was introduced to modify the model. Miao et al.18 established a damage constitutive model for fractured rock based on Weibull distribution and Drucker-Prager criterion. They also deduced the hydrochemical physical damage from porosity. Wang et al.19 examined the damage evolution of rock samples with different pore sizes and utilized AE ring counts to optimize Weibull parameters for constructing a damage constitutive model. Lv et al.20 established a total damage model based on Lemaitre strain equivalence hypothesis under the coupling of macroscopic and mesoscopic damage. Li et al.21 conducted laboratory triaxial compression tests on sandstone to determine the distribution coefficient and void damage influence coefficient, and then constructed a statistical rock void damage model. While the aforementioned research provides valuable reference and theoretical support for constructing the damage constitutive models for fractured rock samples, studies regarding the establishment of a damage constitutive model based on AEE for fractured rock samples with different geometric shapes remain relatively rare.

Based on the insights from previous studies, the present study investigated the AE signal characteristics and energy evolution during the deformation and failure processes of fractured sandstone with the aid of laboratory uniaxial compression tests and AE monitoring system. This study also analyzed the variations in mechanical parameters, AE signal, and energy under different fracture dip angles and lengths. The AE parameters were statistically analyzed through avalanche dynamics, and the distributions of AEE, aftershock sequence, and waiting time across different fracture configurations were examined. The AE cumulative energy was employed to elucidate the damage state of fractured sandstone, and a correction coefficient β was proposed to construct a damage constitutive model suitable for fractured rock. The research findings are expected to hold significant engineering value for predicting strength of fractured rock mass in practical applications.

Experimental equipment and scheme

The sandstone samples used in this study were sourced from Chongqing, China. The sandstone blocks were processed into standard samples with a diameter of 50 mm and a height of 100 mm. The prefabricated fractures, which measure 1 mm in width, were introduced into rock samples, among which the fractures with a length of 15 mm were equipped with dip angles of 0°, 15°, 30°, 45°, 60°, 75°, and 90°, respectively, while those with lengths of 20 mm and 25 mm were only equipped with a dip angle of 60°.

For the uniaxial compression tests, each rock sample was subjected to testing using a Shimadzu AG-IS material testing machine at a strain rate of 0.01 mm/min, while the AE signals were captured using the PCI-2 AE monitoring system. Prior to testing, two AE sensors were strategically placed on opposite sides of the lower part of the sample, and secured with transparent rubber rings. To ensure accurate results, an appropriate amount of coupling agent (vaseline) was applied between the AE sensor and the sample surface, with a threshold set to 40 dB. The uniaxial compression test system, AE monitoring system, and strain acquisition system were subsequently activated to gather the requisite data for analysis, as depicted in Fig. 1.

Fig. 1
Fig. 1
Full size image

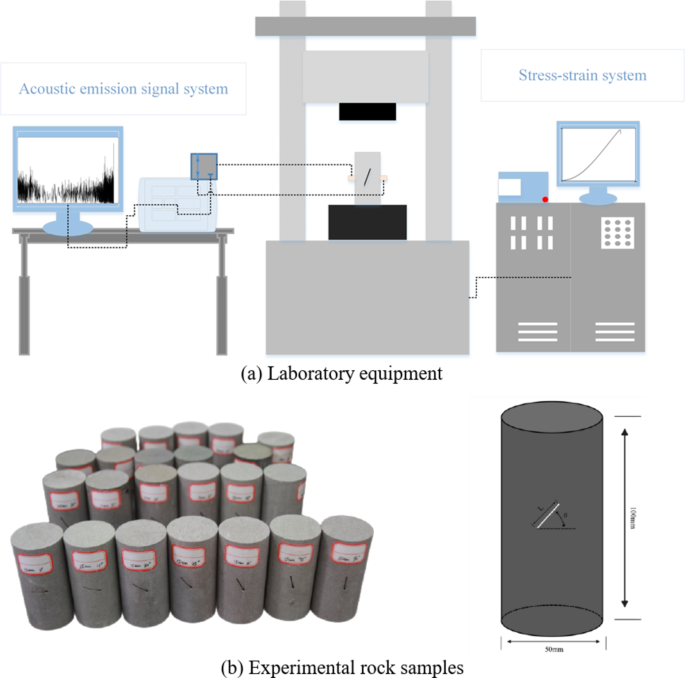

Experimental equipment and samples.

Test results

Stress–strain curve of rock sample

Figure 2 illustrates the stress-strain curves for sandstone samples with different fracture dip angles, while Fig. 3 presents the stress-strain curves for sandstone samples with different fracture lengths. Analyses of the data revealed that the stress-strain curves for rock samples with various geometric fractures display similar trends, which can be divided into distinct stages: the pore compaction stage, the nearly linear elastic deformation stage, as well as the plastic deformation and failure stage.

Fig. 2
Fig. 2
Full size image

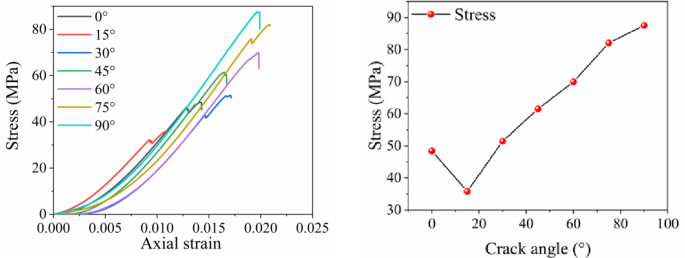

Stress–strain curves with different inclination angles.

As illustrated in Fig. 2, the peak strength of rock samples initially decreased and then increased with increasing fracture dip angle. The peak strength of rock sample with a fracture length of 15 mm and a fracture dip angle of 0° was 48.43 MPa. Compared with the peak strength of rock sample with a fracture dip angle of 0°, the peak strength was reduced by 12.65 MPa for rock sample with a fracture dip angle of 15°, while those were increased by 3.02 MPa, 13.08 MPa, 21.50 MPa, 33.62 MPa, and 39.10 MPa for rock samples with fracture dip angles of 15°, 30°, 45°, 60°, 75°, and 90°, respectively, with a decrease rate of 26.12% and increase rates of 6.23%, 27%, 44.39%, 69.42%, and 80.73%, respectively.

Fig. 3
Fig. 3
Full size image

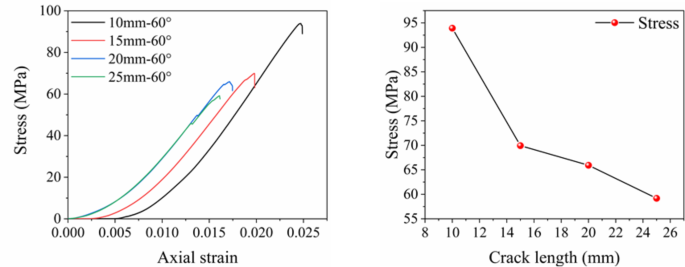

Stress–strain curves of different crack lengths.

Figure 3 demonstrated that the peak strength of rock samples decreases gradually.

With increasing fracture length. The peak strength of rock sample with a fracture length of 10 mm and a fracture dip angle of 60° was 93.92 MPa. Compared with the peak strength of rock sample with a fracture length of 10 mm, the peak strength of rock samples with fracture lengths of 15 mm, 20 mm, and 25 mm were reduced by 23.98 MPa, 27.99 MPa, and 34.74 MPa, respectively, with reduction rates of 25.53%, 29.80%, and 40.18%, respectively.

The peak strength of rock samples was significantly affected by the geometric parameters of prefabricated fractures. As the fracture dip angle increased, the peak strength of rock samples initially declined and then increased linearly. Analyses revealed that when the fracture direction was parallel to the loading direction, the applied load was maximized. Additionally, the peak strength of rock samples greatly decreased significantly as the fracture length increased. As the fracture length increased, the internal damage to the rock sample intensified, ultimately diminishing its load-bearing capacity.

AE characteristics of rock samples with different geometric fractures

In rock mechanics tests, AE can effectively monitor the real-time failure processes of rock samples. The characteristics of AE parameters aligned closely with the failure processes of rock samples. Changes in AE characteristics can be categorized into four stages: the pore compaction stage, the elastic deformation stage, the plastic deformation stage, and the failure stage.

Fig. 4
Fig. 4
Full size image

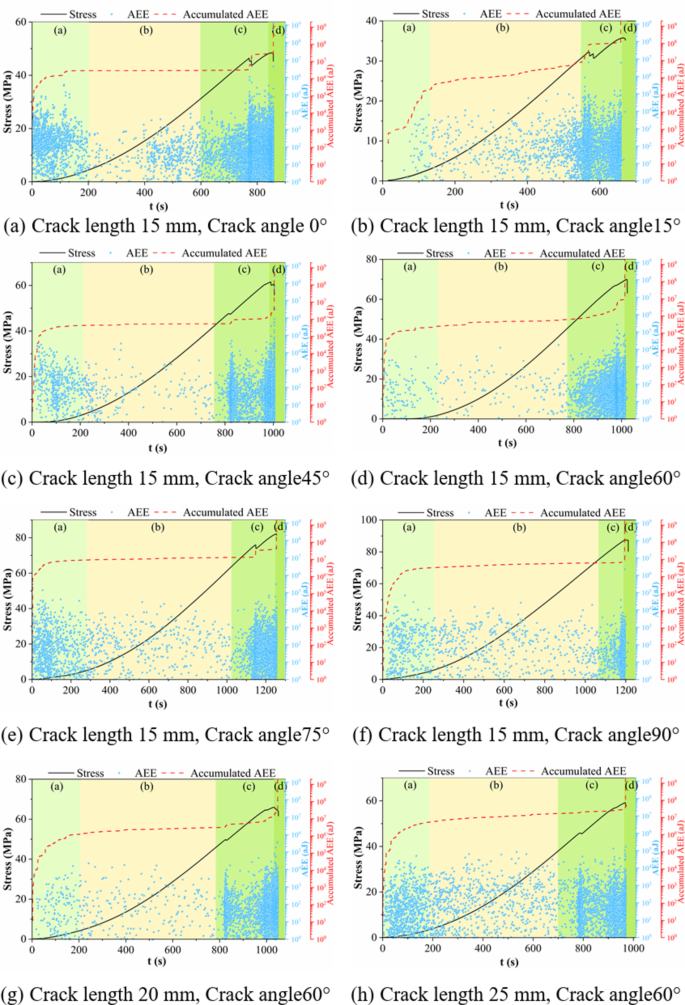

Acoustic emission curves of rock samples with different defects.

  1. (a)

    During the initial loading stage, the presence of microvoids and prefabricated geometric fractures within the rock sample led to pore compaction and fissure development. This stage was characterized by a rapid strain increase, with the experimental curve exhibiting a concave shape. The occurrence of micro-fractures was frequent, resulting in dense and frequent AE events.

  2. (b)

    As the load on the rock sample gradually increased, the defects and micropores were compressed, and the sample entered the elastic deformation stage. During this stage, the experimental curve exhibited an approximately linear shape. Micro-fracture events were relatively infrequent, and AE events were monitored less frequently. Although the distribution of AE events was sparse, their frequency gradually increased as the load continued to rise.

  3. (c)

    As the load continued to increase, the yield strength of the rock sample was gradually approached, and the sample entered the plastic deformation stage. During this stage, microcracks expanded and developed into macroscopic cracks, which propagated and deformed under the influence of the external load. The number of cracks gradually increased, resulting in a dense distribution of AE events.

  4. (d)

    During this stage, the rock sample reached its peak strength, resulting in the formation of a fracture surface. The internal structure of the rock sample was destroyed, leading to block sliding. At this stage, there was a significant increase in AE events, with a higher density of occurrences, resulting in a peak AEE value.

The number of AE events served as a valuable indicator for characterizing the internal fracture evolution process of rocks, as depicted in Fig. 4. The AEE value also effectively expressed the degree of rock failure, and this relationship remained unaffected by the prefabricated geometric fracture morphology. The AE parameters were instrumental in characterizing the damage levels of rock samples. To further investigate the AE characteristics of rock samples with prefabricated fractures, this study employed the avalanche dynamics for statistical analysis.

AE-based statistical law of avalanche dynamics of fractured sandstone failure

AEE probability density distribution

Figure 5 displays the probability density distribution of AE with respect to the AEE interval during uniaxial compression failure of rock samples with varying geometric fractures, which was obtained through the histogram method. The vertical axis represents the AEE probability density, while the horizontal axis represents the AEE interval. This method involves pre-dividing the AEE interval beforehand and then selecting a group distance to calculate the probability density. The probability density distribution of AEE for fractured samples with varying dip angles was presented using a double logarithmic coordinate system.

Fig. 5
Fig. 5
Full size image

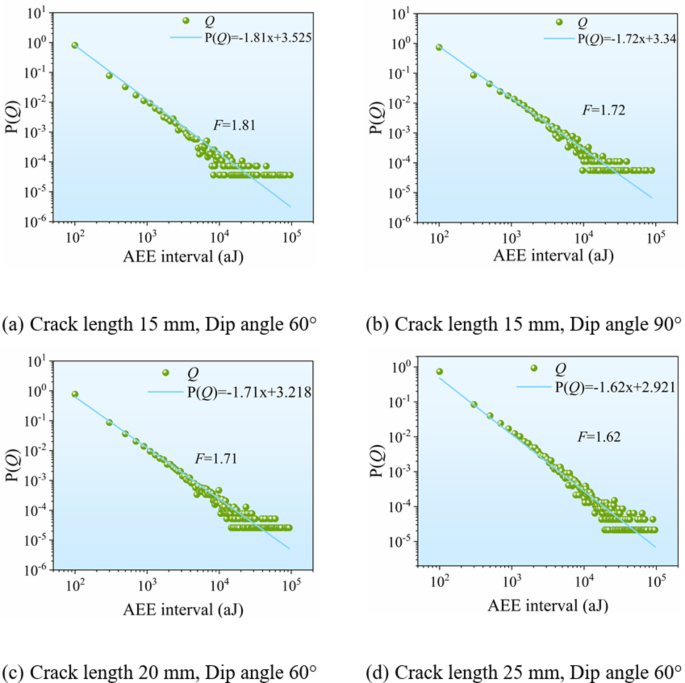

AEE probability distribution diagram of rock samples with different geometric defects.

Selecting the interval from 101– 105 allowed for fitting the probability density. A strong linear relationship between P(Q) and Q in the logarithmic coordinates was observed. The results indicated that the AEE distribution throughout the compression failure process of the sample follows a power-law distribution, which adhered to the Gutenberg-Richter law (\(\begin{gathered} P(Q)\sim {Q^{ - F}} \hfill \\ \hfill \\ \end{gathered}\)) to a certain extent:

$$P(Q)dQ\sim Q_{{1 - F}}^{{ - F}}/Q_{{\hbox{min} }}^{{1 - F}}dQ,\;Q>{Q_{\hbox{min} }}$$
(1)

.

where Qmin is the normalized parameter, Q is the AEE, F is the AEE power-law index, and P(Q) is the AEE probability density function.

As shown in Fig. 5, the AEE followed a power-law distribution and was not affected by prefabricated geometric fractures. With an increase in fracture dip angle, the power-law index exhibited a slight increase, which was generally around 1.7. As the fracture length increased, the power-law index demonstrated a slight downward trend. The decrease may be attributed to the fact that longer prefabricated fracture in rock sample resulted in a higher degree of internal damage, which facilitated the formation and expansion of new cracks, thereby generating in a large number of AE events. The overall power-law index fell between 1.62 and 1.81.

Aftershock sequence distribution

In the analysis of seismic monitoring data, the strongest energy was defined as the main shock, while the others after the main shock were named as aftershocks. The distribution of the aftershock sequence was described using the Omori-Uzuki law, which characterized the attenuation of aftershock frequency over time. AE data with AEE values ranging from 101 to 104 were artificially selected as the main shock, while the remaining data were designated as the aftershock sequence until the next main shock energy. Three energy intervals, i.e., 101–102,102–103,103–104, were delineated, and the aftershock frequency (Nas (s− 1)) in each interval was calculated against the time difference (t-tms).

Fig. 6
Fig. 6
Full size image

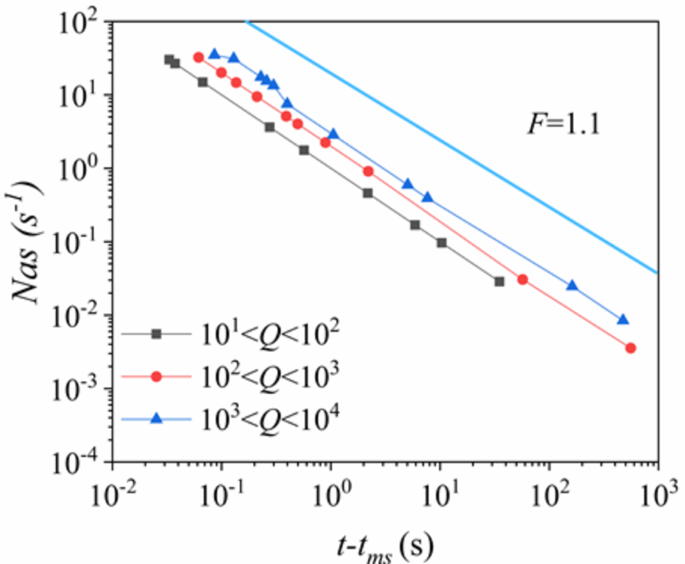

Distributions of Omori-Utsu’s law in different acoustic emission energy subsets of the rock sample with a fracture length of 15 mm and a dip angle of 60°.

Figure 6 illustrates the distribution of aftershock sequences across different energy intervals plotted on a double logarithmic coordinate axis. For rock sample with a fracture length of 15 mm and a fracture dip angle of 60°, the aftershock sequences in different energy intervals exhibited a robust linear relationship, with the power law index approximating 1.1.

Waiting time distribution

The time difference between AE events was defined as the waiting time, which is expressed as t = ti+1-ti, where ti+1 and ti are the monitoring times of adjacent AE signals.

Figure 7 displays the distribution of waiting time during the compression failure process of the rock sample with a fracture length of 15 mm and a fracture dip angle of 60°, where PQ is the probability density function of the waiting time distribution, δ is the waiting time difference, (n) is the average number of AE events per unit time.

Fig. 7
Fig. 7
Full size image

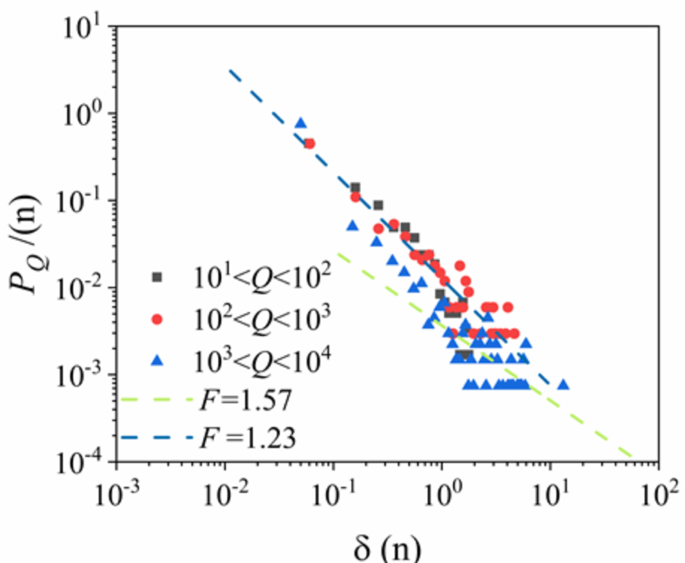

Distribution of waiting time for the rock sample with a fracture length of 15 mm and a fracture dip angle of 60°.

According to Fig. 7, the data demonstrated a strong linear relationship under the double logarithmic coordinate axis, which indicated that the waiting time distribution conforms to the power-law distribution and exhibits a multi-power law distribution feature. The power-law exponent of the waiting time distribution in the 0.1 s to 1 s interval was approximately 1.23, while that in the 1 s to 100 s interval was about 1.57.

Damage constitutive model for fractured sandstone

Statistical damage constitutive model

Lemaitre22 established the following damage constitutive model based on the strain equivalence hypothesis proposed in the context of material damage process.

$$\sigma =E\varepsilon \cdot \left( {1 - D} \right)$$
(2)

where \(\:{\upsigma\:}\) is the effective stress, D is the damage variable, E is the material deformation modulus, and \(\:{\upepsilon\:}\) is the strain.

Given the complexity of internal micro-element damage for rock samples subjected to the external load, numerous scholars have referenced the Weibull distribution to analyze the micro-element change behavior of the rock under load23,24. The probability density function for the rock micro-unit is expressed as follows.

$$f(\varepsilon )=\lambda \gamma {(\lambda \varepsilon )^{\gamma -1}}exp( - {(\lambda \varepsilon )^\gamma })$$
(3)

where \(\:{\upepsilon\:}\) is the deformation, \(\lambda\)is the shape parameter, \(\gamma\) is the scale parameter.

Kachanov25 defined the damage variable D using the micro-defect area formed by damage relative to the initial apparent area of the material as follows.

$$D=\frac{{{A_d}}}{A}$$
(4)

where Ad is the fracture area of the sample during compression, and A approximately considers the fracture area when there is no damage before loading.

$${A_d}=\int\limits_{0}^{\varepsilon } A f(x)dx=A\left\{ {1 - \exp ( - {{(\lambda \varepsilon )}^\gamma })} \right\}$$
(5)

Combining Eqs. (4) and (5) yields:

$$D=1 - \exp ( - {(\lambda \varepsilon )^\gamma })$$
(6)

Combining Eqs. (2) and (6) yields:

$$\sigma =E\varepsilon \cdot \exp ( - {\left( {\lambda \varepsilon } \right)^\gamma })$$
(7)

where the Weibull distribution parameters \(\lambda\)and \(\gamma\) can be determined by the peak stress-strain point:

$$\frac{{\partial \sigma }}{{\partial \varepsilon }}\left| {\left( {{\varepsilon _s},{\sigma _s}} \right)=0} \right.$$
(8)

where \({\sigma _s}\) is the peak stress, and \({\varepsilon _s}\) is the strain corresponding to the peak stress.

$$\gamma =\frac{1}{{\ln \left( {\frac{{E{\varepsilon _s}}}{{{\sigma _s}}}} \right)}},\lambda =\frac{1}{{{\varepsilon _s}}}{\left( {\frac{1}{\gamma }} \right)^{\frac{1}{\gamma }}}.$$
(9)

Damage constitutive model based on AEE

AE monitoring can capture the energy released by rock micro-fractures26. According to the cumulative AEE of rock samples, the degree of damage can be quantified. The damage variable Dq can be expressed as follows.

$${D_{\text{q}}}=\frac{{{Q_f}}}{{{Q_Z}}}$$
(10)

where Qf is the cumulative AEE at any time, QZ is the AEE accumulated in the AE peak energy value stage. Combing Eqs. (2) and (10) yields:

$$\sigma =E\varepsilon \cdot \left( {1 - \frac{{{Q_f}}}{{{Q_z}}}} \right)$$
(11)
Fig. 8
Fig. 8
Full size image

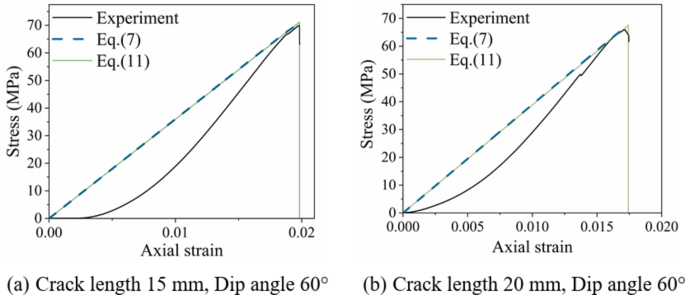

Damage constitutive model constructed by Eqs. (7) and (11).

As indicated in Fig. 8, the damage model based on AEE aligned well with traditional damage constitutive model.

Equation (11) featured a linear decline stage of stress, which was attributed to the fact that the cumulative energy value was very close to the maximum cumulative energy value. Both models exhibited substantial errors relative to the experimental results.

Damage constitutive model for coupling analysis of AEE and Weibull distribution

To control the error range between the results obtained from the model and the experimental values, many scholars have utilized AEE and AE ringing counts to optimize the Weibull function27,28. In this study, AEE was employed to optimize the Weibull distribution parameters, and a correction coefficient β was proposed to minimize the discrepancies between Eqs. (7), (11), and the experimental values.

Combining Eqs. (6) and (10) yields:

$${D_{\text{q}}}=1 - \exp ( - {(\lambda \varepsilon )^\gamma })$$
(12)

The damage amount obtained by AEE was fitted to the Weibull coefficient, which allowed for the derivation of the damage constitutive model.

$$\sigma =E\varepsilon \cdot \exp ( - {\left( {{\lambda _q}\varepsilon } \right)^{{\gamma _q}}})$$
(13)

At the onset of the experiment, a compaction process occurred within the sample. To accurately characterize this process, the correction coefficient\(\beta\)was proposed as follows.

$$\beta =\varepsilon \cdot {\lambda _{\text{q}}}$$
(14)

where λq is the Weibull shape parameter of AEE fitting, and ε is the strain. The specific values of λq obtained through the conducted test are presented in Table 1. The complete AE-based cumulative energy damage constitutive model can be obtained by combining Eqs. (13) and (14).

Fig. 9
Fig. 9
Full size image

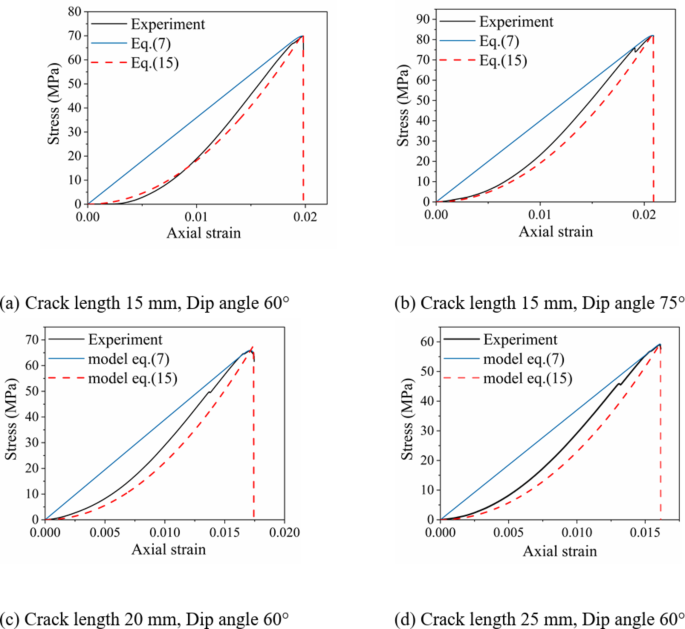

Damage constitutive model constructed by Eqs. (7) and (15).

Table 1 Weibull distribution parameters.
Full size table

Figure 9 presents the damage constitutive model constructed from Eqs. (7) and (15). Equation (15) demonstrated greater consistency with the test curve compared to Eqs. (7) and (11). Thus, it well characterized the concave curve shape caused by micro-cracks and pore compaction during the initial experimental stage. The damage constitutive model that incorporates AE cumulative energy could better reflect the stress-strain curve of sandstone with different geometric fractures during uniaxial compression.

Discussion and analysis

Based on the results and analyses presented, the AE parameter characteristics released during the rock failure process can be divided into three stages according to the AE density, as depicted in Fig. 10.

Fig. 10
Fig. 10
Full size image

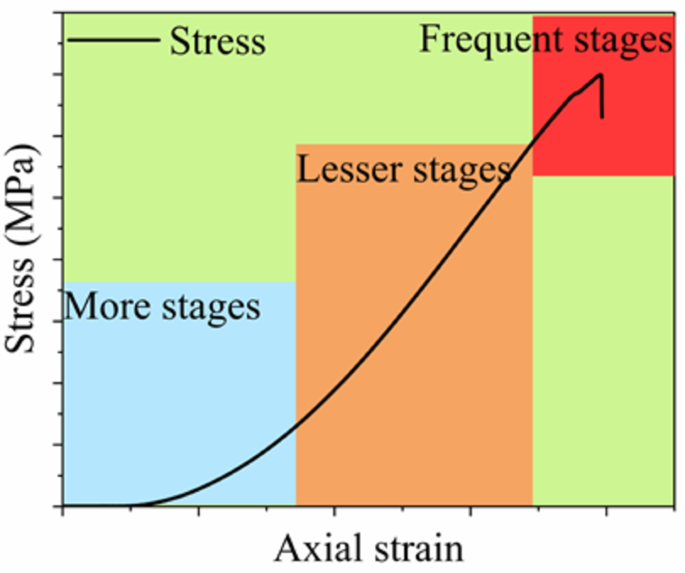

AE parameter characteristics.

In the first stage, the number of AE events was large, but the energy value was generally low. This phenomenon was due to the fact that the presence of pre-existing micro-voids and artificial prefabricated fractures within the rock sample resulted. In the second stage, the rock sample entered the elastic stage, during which AE events were less frequently monitored, the stress and strain increased linearly, and the concave curve from the previous stage transitioned a straight line. In the third stage, due to the accumulation of damage within the rock mass, the degree of damage was significantly elevated to reach the damage limit of rock sample. Internal micro-cracks gradually expanded, followed by block sliding, ultimately leading to the failure of the rock sample. In this stage, the number of AE events was extremely large, while both the energy value and stress reached their peaks simultaneously.

Regarding the statistical analysis results of avalanche dynamics, the AEE power-law index obtained in this study ranged from 1.62 to 1.81. Given that the probability density of AEE was artificially selected. For precise determination of the value range of the power law exponent F, maximum likelihood estimation was utilized to mitigate the associated uncertainty. The maximum likelihood estimation was employed to diminish this error, and its calculation formula is presented as follows.

$$F=1+n{\left[ {\sum\limits_{{i=1}}^{n} {\ln ({Q_i}/{Q_{\hbox{min} }})} } \right]^{ - 1}}$$
(16)

where F is a power-law index, Qmin is the lower limit of normalization, Qi is the monitored AEE, which satisfies Qi > Qmin.

The standard deviation expression is estimated as follows.

$$e=\left( {\frac{{F({Q_{\hbox{min} }}) - 1}}{{\sqrt n }}} \right)+o(\frac{1}{n}).$$
(17)
Fig. 11
Fig. 11
Full size image

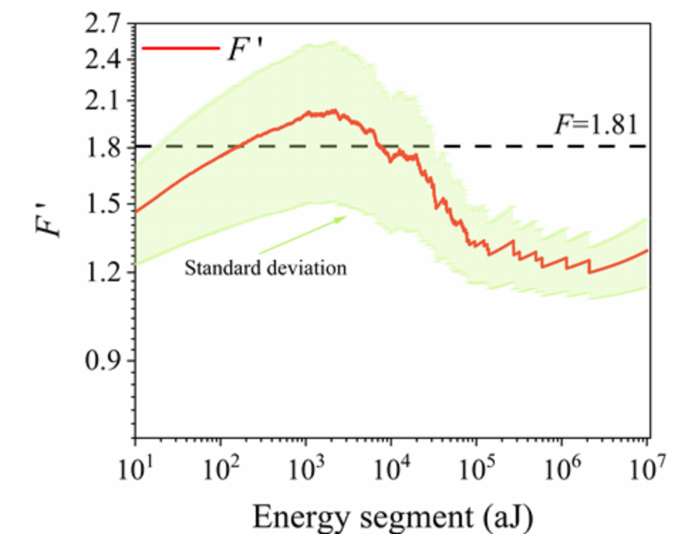

Maximum likelihood estimation of AEE power-law index.

The AEE data in Fig. 5(a) was statistically analyzed using the maximum likelihood method. The calculation results are depicted in Fig. 11, where the red solid line represents the power-law index F obtained by the maximum likelihood method, the green area represents the standard deviation, and the black dotted line represents the power-law index F obtained by the histogram method. As illustrated in Fig. 11, the power-law index selected via the histogram method was lower than the initial shoulder gap of the maximum likelihood method, thereby validating the reliability of the power law index obtained through the histogram method.

In this study, a damage constitutive equation that considers AEE was established, and the correction coefficient β was proposed to improve the model. This model demonstrated a good agreement with the experimental values. The correction parameter was calculated based on the Weibull shape parameter λq and strain ε, where 1/λq is the statistical average strain value.

Fig. 12
Fig. 12
Full size image

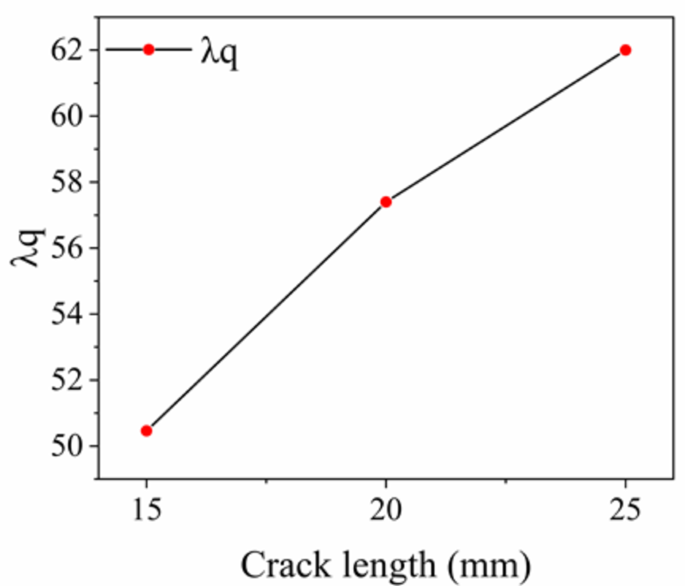

Correction coefficient β value.

Figure 12 illustrates the correction coefficients for rock samples with a fracture dip angle of 60° and fracture lengths of 15 mm, 20 mm, and 25 mm. The λq increased with increasing fracture length, which may be attributed to the fact that longer prefabricated fracture lead to greater damage to the rock mass, consequently reducing its load-bearing capacity.

To explore the microstructure of rock samples with different geometric fractures after uniaxial compression failure, the fracture surfaces of rock samples with a fracture dip angle of 60° and fracture lengths of 15 mm, 20 mm and 25 mm were tested using SEM, and then the SEM images were obtained. Existing research indicated that the macroscopic fracture behaviors of rocks are closely related to their microscopic defects. The common fracture modes in rocks include transgranular and intergranular fractures, which often exhibit distinctive patterns, such as step pattern, river pattern, and tongue pattern29,30.

In Fig. 13(a), (b), and (c), numerous microcracks and macrocracks were observed. Figure 13(a) depicted a typical fracture morphology. Figure 13(b) presented a relatively flat fracture surface characterized by a river pattern and a high fracture density. Figure 13(c) showed secondary cracks oriented perpendicular to the axial stress, along with some micro-cracks and macro-cracks. Figure 13(d), (e), and (f) lacked consistent fracture characteristics. Figure 13(d) displayed clear texture with a few massive rock masses resembling step patterns. Figure 13(e) illustrated an uneven fracture surface, with no obvious macroscopic defects, while the tongue pattern was distinctly observable. Figure 13(f) revealed large macroscopic cracks and a step pattern similar to the stepped morphology. The analyses indicated that the prefabrication of different geometric fractures can alter the microscopic characteristics of the fracture surface of rock samples following mechanical loading.

Fig. 13
Fig. 13
Full size image

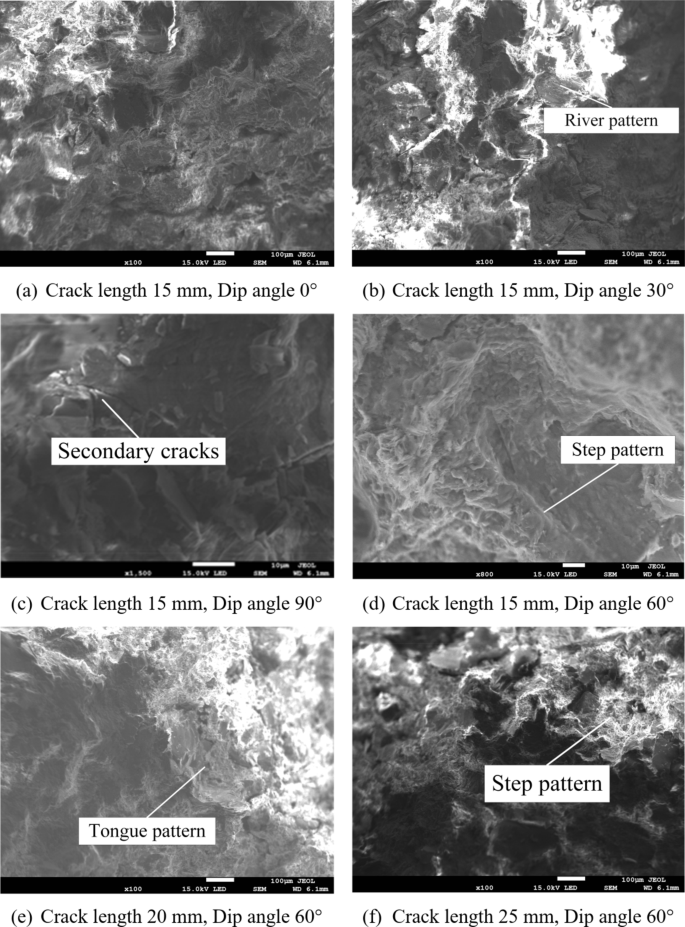

Scanning electron microscope image.

Conclusions

This study investigated the mechanical properties and AE evolution characteristics of fractured rock with different geometric fractures. Subsequently, a damage constitutive model was developed for fractured sandstone. The main conclusions are as follows.

  1. (1)

    The stress-strain curves of rock samples were influenced by the dip angle and length of the fracture. The peak strengths of rock samples with a fracture length of 15 mm and fracture dip angles of 0°, 15°, 30°, 45°, 60°, 75° and 90° were analyzed. Except for the peak strength of the 15° rock sample, which was 12.65 MPa lower than that of the 0° rock sample, the remaining samples exhibited approximate linear growth. The peak strength of rock samples with a fracture dip angle of 60°and fracture lengths of 10 mm, 15 mm, 20 mm, and 25 mm were discussed, where the peak strength decreased approximately linearly with increasing fracture length.

  2. (2)

    AE parameters effectively characterized the stress trend. Throughout the mechanical loading process, the rock samples transitioned sequentially through the pore compaction stage, elastic deformation stage, plastic deformation stage, and failure stage. The AE signal density and energy value accurately represented these four stages.

  3. (3)

    The AEE distribution of rock samples with different geometric fractures demonstrated a robust power-law distribution. The power-law index of AEE distribution was minimally impacted by the fracture dip angle. As the fracture length increased from 15 mm to 20 mm and 25 mm, the power-law index decreased from 1.81 to 1.71 and 1.62, respectively, with reduction rates of 5.6% and 10.5%. The waiting time distribution and the aftershock sequence conformed to the power-law distribution, while the waiting time distribution followed a multi-power-law distribution.

  4. (4)

    A damage variable was constructed based on the cumulative energy of AE. The damage constitutive correction coefficient β was determined by λq and the experimental strain value according to the Weibull distribution principle. Compared with the damage equation and statistical damage constitutive constructed by normalizing AEE, the proposed model aligned more closely with the experimental curve.
