Introduction

Degradation of metals like steel, which is a global industrial activity, is often viewed as a threat to systems striving for greater sustainability. Steel is used in a several industrial processes in acid solutions (HCl, H2SO4, HNO3 or H3PO4) for cleaning, descaling or pickling operations so as to remove undesirable scale and rust1,2,3,4,5. Carbon steel is one of the metals with weak behavior towards acidic environments, giving rise to corrosion attack and consequently a horrible cost in industrial field6,7. Corrosion inhibitors are classed based on their chemical structure, methods of action, and other properties8,9. One of the most important types is organic corrosion inhibitors, having gained the highest importance due to their simplicity of synthesis, low cost, and strong protective ability10. Corrosion organic inhibitors played an important role to reduce corrosion damages and consequently hinder the degradation of the metal11,12,13. Based on the available data, organic inhibitors function via adsorption and protect the metal through film formation14. The great majority of the corrosion organic inhibitors are heterocyclic compounds containing heteroatoms (O-atoms, N-atoms and S-atoms) as well as the aromatic rings rich in lone pair of electrons and π-electrons delocalised which are transferred to iron surface having vacant d-orbital, giving thus, high efficiency15,16,17,18,19,20. Furthermore, compounds with Sulphur atoms efficiently block sulphuric acid, whereas organic anticorrosion substances containing nitrogen are beneficial for metals in corrosive HCl acid. Similarly, molecules that include Sulphur and nitrogen function well to prevent corrosion in both media21. The adsorption ability of organic inhibitors is strongly related to their planar structure, the nature of functional groups, aromatic rings, steric as well as electronic factors22,23. Moreover, molecules types with wide geometric structure with the presence of heteroatoms and aromatic rings are proven to be good corrosion inhibitors24. It was demonstrated that these physicochemical characteristics, which are connected to the electron-donator action of the electron-rich groups, are the primary determinants of a good adsorption of these inhibitors on metal surfaces25. On the other hand, heterocyclic molecules have an interesting attention as bioactive molecules in pharmaceutical industry; We can quote for example fragments of molecules such as Thiazoles, Pyrimidines, Benzotriazole and Pyrazoles derivatives26,27,28.

The present study aims to investigate the protective impact of two synthesized bis-pyrazole derivatives Tetra-Pz-Ortho and Tetra-Pz-Para (Fig. 1), on C&S corrosion employing a gravimetric and electrochemical techniques in a 1 M hydrochloric acid solution. These compounds are easy to synthesise and are considered to be heterocyclic compounds of therapeutic interest28. Among the methods employed, the weight loss measurement was chosen to assess the thermodynamic activation parameters and the adsorption isotherm. EIS and PDP techniques were used to examine corrosion process and to determine electrochemical parameters of C&S both before and after the two inhibitors (Tetra-Pz-Ortho & Tetra-Pz-Para) were added in acid solution. Surface analysis using SEM was performed for C&S specimens with the aim to determine the chemical composition of the inhibitor film and follow of its adsorption mode. The correlation between the structures of molecules Tetra-Pz-Ortho & Tetra-Pz-Para and their inhibitory properties have been investigated by utilizing computational chemistry methods. In order to do this approach clearly, and to better interpret the mechanism of inhibition, the reactivity descriptors of the two molecules have been calculated using density functional theory (DFT) method. The mechanism of the C&S-inhibitor interaction has been investigated using MD simulations.

Fig. 1
figure 1

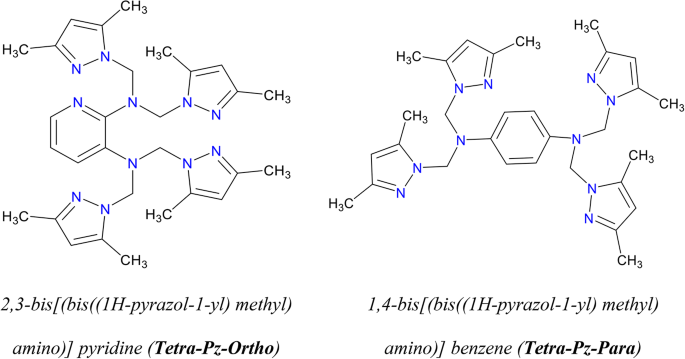

Molecular Structures of Tetra-Pz-Ortho and Tetra-Pz-Para.

Full size image

Experimental section

Organic synthesis and chemical data

The two tetra N-alkylated heterocyclic compounds: 2,3-bis[(bis((1H-pyrazol-1-yl) methyl) amino)] pyridine (Tetra-Pz-Ortho) and 1,4-bis[(bis((1H-pyrazol-1-yl) methyl) amino)] benzene (Tetra-Pz-Para) were prepared from the benzene-1,4-diamine and 2,3-diaminopyridine using the synthesis procedures described in the Scheme 1. The first step consists of the preparation of 1-(hydroxymethyl)-3,5-dimethylpyrazole from (Z)-4-hydroxypent-3-en-2-one. It is an important common step for the preparation of both molecules. The new synthesized compound 2,3-bis[(bis((1H-pyrazol-1-yl) methyl) amino)] pyridine (C29H39N11 with MW: 541.71, other nomenclature: N, N, N’, N’-tetra-((3,5-dimethyl-1 H-pyrazol-1-yl) methyl) pyridine-2,3-diamine) was prepared from the condensation of 1-(hydroxymethyl)-3,5-dimethylpyrazole with pyridine-2,3-diamine under optimum gentle conditions and was characterized using FTIR and NMR (1 H & 13 C) spectroscopy as follows29:

FTIR

(KBr, cm−1): 3000(= C-H); 2363 (C-H); 1555 (C=C); 1532 (C-C); 1396 (C-N); 1304 (C=N); 1132 (N-N); 782 (= C-H).

NMR 1 H

(CD2Cl2, 500 MHz) δ ppm : 7.13 (d, 1H, CH (1)); 6.57 (d, 1H, CH (3)); 6.06 (dd, 1H, CH (2)); 5.89 and 5.80 (s, 4H, CH (4’)); 5.51 and 5.42 (s, 8 H, CH2); 2.45 (s, 12 H, CH3 (a, b)).

NMR13 C

(CD2Cl2, 500 MHz) δ ppm: 140.09 (C (1)); 138.68 (C (4, 5’)); 148.42 and 138.99 (C (3’)); 109.53 (C (2)); 107.94 (C (3)); 105.89, 105.13 and 105.05 (C (4’)); 56.48 (C (CH2)); 13.14, 10.82 and 10.37 (C (CH3)).

Yield

73.91%, Mp = 116–118 °C.

The molecule1,4-bis[(bis((1H-pyrazol-1-yl) methyl) amino)] benzene (or N, N, N’, N’- tetra -[(3,5 -dimethyl-1-pyrazolyl) methyl]-para-phenylenediamine) has been resynthesized following the same procedures as those for the preparation of (Tetra-Pz-Ortho), as described in a previous work30,31.

Scheme 1
scheme 1

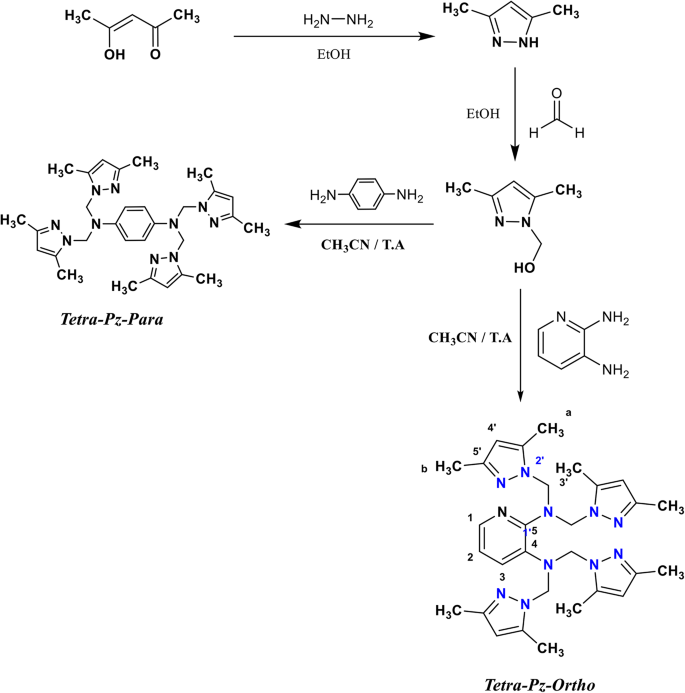

Synthesis of Tetra-Pz-Ortho and Tetra-Pz-Para.

Full size image

Electrolyte and materials

The blank electrolyte utilized in this study is a commercial hydrochloric acid solution 37%, which has been diluted to 1 M. In the purpose of preparing the various concentrations of the inhibitor, the appropriate quantities were weighed using an electronic balance, placed in a graduated flask, and then completed with the blank solution, followed by thorough mixing to achieve homogeneity. Consequently, solutions with concentrations ranging from 10−3 M to 10−6 M were prepared for weight loss and electrochemical analyses. The C&S metal plates tested in this study possess the following chemical composition: 0.370% (C), 0.230% (Si), 0.680% (Mn), 0.016% (S), 0.077% (Cr), 0.011% (Ti), 0.059% (Ni), 0.009% (Co), 0.160% (Cu), with the remainder being iron. The C&S samples are disc-shaped with an area of 1 cm2 for electrochemical testing, and square pieces measuring 2.5 cm × 2.5 cm × 0.05 cm for gravimetric measurements. These samples were prepared and cleaning according to ASTM G1-03 standard procedures32, the specimens were polished using a range of emery paper from grit 180 to 1200, followed by rinsing with bidistilled water and acetone, drying, then immersion in the 1 M hydrochloric acid solution, both with and without the addition of various doses of inhibitors for both experimental methods. The immersion time employed for the concentration effect test was 6 h at 303 K for the weight loss method, while for the temperature effect study 303 to 333 K, the immersion time was 1 h. Each experiment was carried out in triplicate, with three carbon steel sheets weighed, and the resulting averages were calculated.

Electrochemical measurements

Concerning electrochemical study, we used a three-electrode cell; WE (Working Electrode) with a surface of C&S that has been prepared before, RE (reference electrode) in which based on SCE (Saturated Calomel Electrode) and CE (counter electrode) that is in platinum. This cell, with double-wall thermostated and a capacity of 100mL, is connected to a potentiostat/galvanostat PGZ-100 controlled by a “Voltamaster4” software computer, which provides the Tafel curves and impedance diagrams. For the different concentrations of inhibitors, a stabilisation step of the working electrode, maintained at the solution for 30 min, is necessary in order to establish a steady-state open circuit potential (OCP). the polarization curves plots carried out in a range of potential from − 800 to -100 mV by respecting a scan rate of 0.5 mV/sec. EIS diagrams were made in an interval of frequency from 100 kHz to 10 mHz with AC signal of amplitude 10 mV at OCP potential.

Surface analysis technical

The surface of C&S specimen has been explored by the device SEM (Scanning Electron Microscopy) model TESCAN VEGA3-EDAX. Images from scanning electron microscopy (SEM) were taken with an accelerating voltage of 10 kV and a magnification of 1.00 kx. Sample preparation on the C&S substrate follows the same procedure as described in Sect. 2.3. The obtained SEM micrographs of the tested specimens’ surface of C&S were observed and analysed before and after immersion in 1 M HCl solution for 24 h without and with Tetra-Pz-Ortho and Tetra-Pz-Para, to assess the type and structure of the shielding layer that has been deposited.

X-ray photoelectron spectroscopy (XPS SPECS-Flex) was used to generate XPS spectra. The source was a monochromatic Al-Kα X-ray source (hv = 1486.71 eV) with an approximate 3 mm X-ray beam. The analyzer and its average surface analysis lens were operating with a pass energy of 40 eV. A charge correction was implemented during the analytical phase to counteract charge effects, with the binding energy (BE) of C 1s (285.0 eV) acting as the internal reference. A non-linear least-squares method utilizing a Shirley baseline and a Gaussian-Lorentzian combination was used to deconvolve the XPS spectra. This deconvolution was mostly carried out on all spectra using Casa-XPS software. These XPS studies were carried out with and without inhibitors on the steel surface. C&S samples were prepared in compliance with the gravimetric technique test protocol, dried, and inspected thereafter.

UV-visible analysis

Ultraviolet-visible absorption spectrophotometry (UV-Visible) has been also used to investigate the behaviour’s mechanism of Tetra-Pz-Ortho and Tetra-Pz-Para with C&S-substrate surfaces in 1 M HCl environment. the solutions were prepared in the presence of inhibitors Tetra-Pz-Ortho and Tetra-Pz-Para and analysed by UV-visible spectrometer, before and after immersion of C&S samples. The samples are completely immersed there in and left for 24 h in the tested inhibitory solution at the working temperature. 200–800 nm was the wavelength range that was investigated, and a Jenway 67 series UV–visible spectrophotometer was employed.

Quantum computing method DFT

Quantum computing

The electronic properties of of Tetra-Pz-Ortho and Tetra-Pz-Para were studied using the quantum chemical method to foretell a possible reactivity tendency of these compounds. In order to achieve this, a DFT calculation is used to determine the quantum chemical descriptors using B3LYP functional and 6-31G(d, p) basis set, treated by the Gaussian (09 W) 2013 program module33. The calculation of the quantum-chemical descriptors was made according to equations described in previous work23,34.

Monte Carlo and molecular simulations study details

The Monte Carlo (MC) and molecular dynamics (MD) simulations methods were adopted to examine the low configuration adsorption energy and the adsorption mode of the interactions of molecules Tetra-Pz-Ortho and Tetra-Pz-Para on the metal area. The Adsorption Locator module in the Materials Studio 7.0 package was used to perform the Monte Carlo simulation35. The simulation was carried out with iron crystal with imported and cleaved along (110) plane (Fe (110)) with a slab of 5 Å to prevent any arbitrary impacts at the boundaries. In an effort to provide the two inhibitors a broad surface area for interaction, the Fe (110) plane was extended to a (10 × 10) super cell, and a 20 Å vacuum was created along the z-axis. We added 200 molecules of water to the simulation box to replicate the real corrosion environment. MD simulation was performed to evaluated the different low energy configurations of the interaction between Tetra-Pz-Ortho and Tetra-Pz-Para inhibitor molecules and the Fe surface in 200 water molecules and one 5HCl (5H3O+, 5Cl−). The calculations were carried out in a simulation box 24.82Å×24.82Å×38.11Å with periodic boundary conditions. The Condensed phase Optimized Molecular Potentials for Atomistic Simulation Studies (COMPASS)36,37 force field was used with a time step of 1 fs and a simulation time of 500 ps. The simulation temperature was set at 303 K under NVT (constant volume and temperature) ensemble and controlled by an Andersen thermostat. In simulation system, the interaction and binding energies are determined using the equations below:

$${\text{E}}_{{\rm Interaction}} = {\text{E}}_{{\rm Total}} - ({\text{E}}_{{\rm Surface}} + {\text{E}}_{{\rm Inhibitor}})\; {\text{and}}\; {\text{E}}_{{\rm Binding}} = -{\text{E}}_{{\rm Interaction}}$$
(1)

where Etotal is the total energy of the metal surface and adsorbed inhibitor molecule, Esurface is the energy of the surface, and Einhibitor is the energy of the inhibitor.

Results and interpretation

EIS analysis

The EIS (Electrochemical Impedance Spectroscopy) is relevant electrochemical non-destructive techniques widely used in corrosion domain; it allows the corrosion inhibition potential to be assessed by exploring the interactions in the vicinity of the acid solution /metal interface. The mechanism of the electrochemical process and the phenomena of corrosion are closely related. The major focus of corrosion research is on the features of corrosion that take place at the interface between the electrolyte and the metal surface38. Therefore, the system studied C&S/solution of Tetra-Pz-Ortho and Tetra-Pz-Para was handled using the EIS technique, which permits the charting of the Nyquist and Bode diagrams, following stabilization by immersion in solutions for 30 min. Among the parameter reflecting the anti-corrosion efficacy for this technical, a simple method to measure efficiency is to identify the polarisation resistance, which is often estimated as the region encircled by the semicircle in Nyquist plots (ηZ(%)) according the following equation

$$\eta_{Z}\left(\%\right)=\left(\frac{{R}_{p,Inh}-{R}_{p,free}}{{R}_{p,Inh}}\right)\times 100$$
(2)

The polarization resistance in inhibited and uninhibited solutions is denoted by RP.inh and RP.free, respectively.

Fig. 2
figure 2

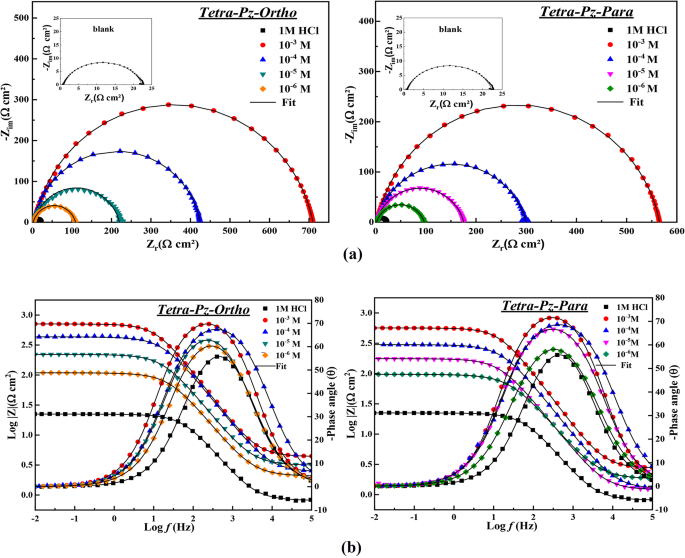

(a) Nyquist diagrams for C&S /1 M HCl/Tetra-Pz-Ortho and Tetra-Pz-Para systems. (b) Bode-phase diagrams for C&S/1 M HCl/Tetra-Pz-Ortho and Tetra-Pz-Para systems.

Full size image
Fig. 3
figure 3

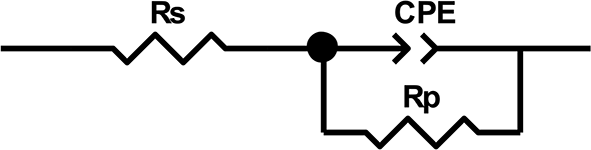

Equivalent circuit to simulate impedance spectra of system C&S / inhibitors.

Full size image

Figure 2 displays the Nyquist and Bode-phase graphs of C&S in the inhibited and uninhibited systems. The Nyquist plots show depressed capacitive semicircles, as can be shown, indicating that a charge transfer mechanism governs the Tetra-Pz-Para& Tetra-Pz-Ortho and C&S /1 M HCl systems. It can be seen that all the Nyquist plots (Fig. 2a) show similar capacitive semicircles, indicating that the inhibition and uninhibited systems use the same reaction mechanism. Additionally, a rise in inhibitor amounts is linked to an increase in capacitive semicircle size; this phenomenon may be explained by an increase in Tetra-Pz-Ortho and Tetra-Pz-Para adsorbed molecules’ surface coverage on the C&S surface39. A single peak is shown in bode-phase plots (Fig. 2b) for both cases tested, revealing one time constant. The maximum phase angle (in absolute value) and the frequency interval of gets bigger by adding of Tetra-Pz-Ortho and Tetra-Pz-Para, showing a good adsorption of these inhibitory molecules on C&S interface40. To utilize the electrochemical impedance spectroscopy (EIS) data, an electrical circuit model was applied to fit the EIS spectra. This model consisted of the electrolyte resistance (Rs), the polarization resistance (Rp, which is equal to the sum of Rct and Rf41), and the constant phase element (CPE), as shown in Fig. 3. The double-layer capacitance (Cdl) was replaced with the CPE impedance in order to improve the EIS results from the experiment. Equations 3 and 4 provide definitions for this substitution42:

$${Z}_{CPE}={A}^{-1}{\left(i\omega \right)}^{-1}$$
(3)
$${C}_{dl}={\left(A\times {R}_{p}^{1-n}\right)}^{1/n}$$
(4)

where n, A, i, and w symbolize the deviation index, the CPE constant, the imaginary number, and the angular frequency, respectively.

Table 1 EIS characteristics of C&S corrosion in 1 M HCl in the absence and the presence of Tetra-Pz-Ortho and Tetra-Pz-Para.
Full size table

The basic parameters presented in Table 1 were established using the EIS diagram fitting findings for Tetra-Pz-Ortho and Tetra-Pz-Para at different doses. The values of Rp attained maximum loop diameter of 705.7 and 562.8 Ω cm2 at 10−3 M for Tetra-Pz-Ortho and Tetra-Pz-Para, respectively. Table 1 also demonstrates an increase in efficiency with concentration of inhibitors and the ηZ(%) values reached 96.9% and 96.2% at 10−3 M concentration for Tetra-Pz-Ortho and Tetra-Pz-Para, respectively. These results show that Tetra-Pz-Ortho and Tetra-Pz-Para have extremely good inhibitory properties. The augmentation in values of Rp and the concurrent decline in Cdl as function of raising concentration of inhibitors, so that the Rs values rise after adding Tetra-Pz-Ortho and Tetra-Pz-Para molecules, reveal the substitution of H2O molecules and chlorine ions at the C&S surface by Tetra-Pz-Ortho and Tetra-Pz-Para molecules, implying the rise in the thickness of the electrical double layer, and diminishing the local dielectric constant, which indicated that Tetra-Pz-Ortho and Tetra-Pz-Para act as the good inhibitors at the interface C&S/solution43.

A comparative study of diagrams of phase angle and impedance module |Z| for C&S in presence of Tetra-Pz-Ortho and Tetra-Pz-Para at 10−3 M in 1 M HCl show a slight difference between the loop diameters of the two inhibitors, giving closely efficiencies (96.9% and 96.2%), respectively. All that justifies the excellent inhibitor effect whether for Tetra-Pz-Ortho or Tetra-Pz-Para, with a slight distinction for Tetra-Pz-Ortho, by covering a large area of metal, which lead to the efficient protection. This high rise of ηZ(%) is certainly due to the presence of four pyrazole rings in each molecule and their position in the aromatic ring (benzene and pyridine). Indeed, there are a lot of heteroatoms in these compounds, more than ten N-atoms + amino form, in addition to their molecular size larger, building a chelate form in Tetra-Pz-Ortho and leading to a covering of C&S-surface. This chelates effect may lead to the greater affinity of chelating ligands (pyrazole) for the iron ion, giving a significant inhibitor effect and this is the source of these molecules’ highly active centres, which increase adsorption on the C&S surface these molecules’ highly active centres, which increase adsorption on the C&S surface. Furthermore, Tetra-Pz-Ortho and Tetra-Pz have larger values of ηZ(%), which can be attributed to their broad molecular structures and the number of nitrogen lone pairs that create a denticity, particularly in Tetra-Pz-Ortho. A same comparative analysis of parameters impedance module |Z| and phase angle represented in Fig. 2b was carried out and illustrated this excellent inhibitory effect of Tetra-Pz-Ortho compared to Tetra-Pz-Para, at the optimal concentration.

The double layer capacity Cdl shows also a decrease as function of concentration of inhibitors, and fitted in parameter A that decreases from 132.1 10−6 Ω−1 sn cm−2 at 10−6 M to 32.7 10−6 Ω−1 sn cm−2 at 10−3 M and from 143.5 10−6 Ω−1 sn cm−2 at 10−6 M to 33.5 10−6 Ω−1 sn cm−2 at 10−3 M for Tetra-Pz-Ortho and Tetra-Pz-Para, respectively. Furthermore, the A values of the system without inhibitors are higher than those of the protected system, this uncovers that the investigated Tetra-Pz-Ortho and Tetra-Pz-Para interact with the C&S surface and thus, blocking the uncovered active sites of the metal. Also, the increase in n values upon the addition of both Tetra-Pz-Ortho and Tetra-Pz-Para results from a decrease in the heterogeneity of the C&S surface28. This indicates that the process of interfacial remains unchanged and that a protecting film of inhibitors can be adsorbed at C&S surface44. The relaxation time (τ) is also dependent on the values (Cdl), which can be found using the following formula45.

$$\tau = \left({C}_{dl}\times{R}_{p}\right)$$
(5)

Depending on the concentration of Tetra-Pz-Ortho and Tetra-Pz-Para, the relaxation time constant a becomes more significant, which supports a delayed adsorption process time46. It is also worth noting that the values of xi-square (χ2) (Table 1) are very low values in the tested range of concentration, which confirms the proposed circuit17. This brings with it the possibility of a blocking of the active sites responsible of the dissolution of C&S in the presence of both Tetra-Pz-Ortho and Tetra-Pz-Para, in addition to adsorption phenomenon.

These molecular structures might also activate the bond formation with the vacant d-orbitals of Fe atoms at the surface, this character will be most significant for Tetra-Pz-Ortho than that Tetra-Pz-Para. The molecular structure of the latter easily leads to adsorption by chemisorption or physisorption or both47. Furthermore, as stated in the literature48, this event is proof of the formation of the bond O-Fe, with distinctive donor-acceptor interactions between the Fe unoccupied d-orbitals and the electron pairs (sp2) of the N-atoms in the amino groups and pyrazole ring.

PDP measurements

PDP plots of C&S in 1 M HCl electrolyte alone and with Tetra-Pz-Ortho and Tetra-Pz-Para inhibitors are elucidated in Fig. 4. The deduced parameters from these curves for the different concentrations tested are regrouped in Table 2, namely current density, Tafel slopes, corrosion-potential (noted respectively: catodic-β (βc), anodic-β (βa), icorr and Ecorr). Inhibitory effectiveness based on icorr of each inhibitor was calculated by this Eq:

$${E}_{Tafel}\left(\%\right)=\left(\frac{{i}_{cor,free}-{i}_{cor,Inh}}{{i}_{cor,free}}\right)\times 100$$
(6)

where icor.free is the corrosion current in uninhibited solution and icor.inh is the corrosion current in inhibited solution, respectively.

Fig. 4
figure 4

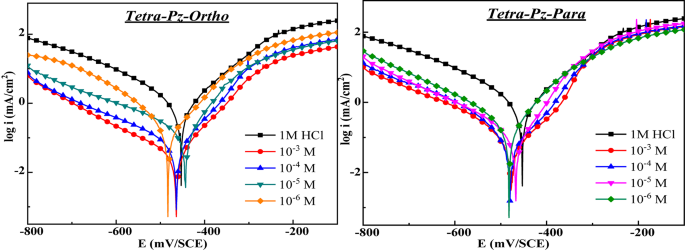

PDP curves of C&S uninhibited and inhibited with different concentrations of Tetra-Pz-Ortho and Tetra-Pz-Para in 1 M HCl at 303 K.

Full size image
Table 2 Data deducted from Tafel extrapolation of C&S in 1 M HCl uninhibited and inhibited with different concentrations of Tetra-Pz-Ortho and Tetra-Pz-Para in 1 M HCl at 303 K.
Full size table

The anodic and cathodic current densities decreased with the progressive addition of Tetra-Pz-Ortho and Tetra-Pz-Para, revealing that the presence of these inhibitors in an acid medium delayed hydrogen reduction and reduced the anodic dissolution of C&S. Additionally, the cathodic branches appear as parallel lines with increasing inhibitor dose, suggesting that the hydrogen evolution processes remain unchanged when Tetra-Pz-Ortho and Tetra-Pz-Para are added49. The reduction of hydrogen ions at the surface of C&S mostly occurs via a charge transfer process. The parameters obtained by extrapolating PDP graphs are provided in Table 2. It is clear that a decreasing in icorr with an augmentation of concentration of Tetra-Pz-Ortho and Tetra-Pz-Para molecules leading to an increasing in ηpp(%), which reaching values of 97.2% and 96%, respectively for Tetra-Pz-Ortho and Tetra-Pz-Para. This shows that at 1 M HCl, the two compounds effectively limit the corrosion of C&S. In the absence of Tetra-Pz-Ortho and Tetra-Pz-Para, the deviation of the corrosion potential is − 466.0 mV and − 477.3 mV, respectively. In the blank solution, Ecor (corrosion potential) is – 456.3 mV. The gap (ΔEcor) is less than 85 mV in both cases, consequently these inhibitors act as mixt-type inhibitors50. According to values βa and βc (Tafel slopes anodic and cathodic), it appears that this system evolute by slowing the rate of corrosion without changing the way that metal dissolves51. The values of the inhibitive performances recorded from EIS and PDP measurements are closely linked and the comes about for the most part appeared that Tetra-Pz-Ortho has higher performance than Tetra-Pz-Para.

Weight loss analysis

Concentration effect study

A weight loss (WL) method was carried out to ascertain the specimen’s corrosion rate both before and after it was submerged in blank and inhibited solutions. The main objective was to compare the corrosion rates observed before and after immersing the specimen in both blank and inhibited solutions. The experiments were conducted at a temperature of 303 K, during a 6-hours immersion period in both blank (1 M HCl) and inhibited solution, and utilizing various concentrations. Table 3 regrouped the corrosion rate Wcor and the calculated inhibition efficiency ηW (%) of Tetra-Pz-Ortho and Tetra-Pz-Para. Corrosion rates without and with inhibitors (noted Wcor and Wcor/inh) and the corresponding ηW (%) were calculated following the Eqs. 7 & 8:

$${W}_{\text{cor}}=\frac{\varDelta m}{S\times t}$$
(7)
$${\eta}_{W}\left(\%\right)=\frac{{W}_{cor}-{W}_{cor/inh}}{{W}_{cor}}\times100$$
(8)

where ∆m(in mg), S(in cm2) and t(in h) are the average weight loss, the entire substrate surface and the duration of the solution immersion, respectively.

Table 3 WL parameters for C&S uninhibited and inhibited with different concentrations of Tetra-Pz-Ortho and Tetra-Pz-Para in 1 M HCl at 303 K.
Full size table

The results in Table 3 show that the inhibitory efficacy of the two inhibitors increases with concentration, reaching values of 95.42% and 94.91% respectively for Tetra-Pz-Ortho and Tetra-Pz-Para at the optimum concentration. This high efficiency explains the ability for the both inhibitors to adhere to the C&S area, which depends, of course, on the chemical structure of each inhibitory molecule23. These inhibitory compounds can be categorized as effective inhibitors of C&S corrosion in a 1 M HCl solution, confirming the spread of an inhibitory layer on the surface by the replacement of aggressive components. Indeed, the structure of these molecules containing aromatic and pyrazole rings with N-atoms and amino groups giving a high electronic density, this facilitated the adsorption of Tetra-Pz-Ortho and Tetra-Pz-Para through these actives’ centres on the C&S surface. Consequently, this comportment leads to a significantly covering, and thus formation of adsorbed film made up of molecules Tetra-Pz-Ortho and Tetra-Pz-Para on the surface of the metal. The aromatic rings’ π electron content and the non-binding electrons on N-atoms, as well as the pyrazole forms, they contain in addition to their large size, easily lead to the adsorption of these newly synthesized compounds52.

Temperature effect study

The temperature is one of the parameters listed in several industrial sector, as a factor affecting on the metal corrosion in acid medium, by acting on the interaction metal/inhibitors. In general, a good inhibitor must be stable, particularly in acid pickling baths, at temperatures of 333 K or more. Moreover, the impact of the variation of this parameter informs on the inhibitory molecules action mechanism through the calculation and interpretation of activation thermodynamic parameters and allows us to access to the typology of adsorption process52. In order to prove this, this study was performed in a temperature interval between 303 and 333 K at different concentration tested, during a one-hour immersion period in both blank (1 M HCl) and inhibited solution. The results obtained are reported in Table 4 and show that an increase of T(K) was accompanied by a considerable rise in corrosion rate Wcor, giving thus a decrease of the effectiveness ηW (%). The evolution of these last parameters as function of concentration and temperature in the presence of Tetra-Pz-Ortho and Tetra-Pz-Para shows (Table 4) that both the molecules acted as effective inhibitors’ even at high temperatures for C&S corrosion in 1 M HCl and the effects are both concentration and temperature dependent. It is also obvious from Table 4 that a rise in temperature for each concentration there is slight lowering in the effectiveness ηW (%) and the corresponding values of surface coverage (θ).

Table 4 Temperature evolution for each concentration of both Tetra-Pz-Ortho and Tetra-Pz-Para in 1 M HCl.
Full size table

The thermodynamic quantities associated to that phenomenon such as activation energy and enthalpy (Ea & ∆Ha) as well as activation entropy (∆Sa) are following the Eqs. 9 & 10:

$$ln\left({W}_{cor}\right)=-\frac{{E}_{a}}{RT}+Ln\left(A\right)$$
(9)
$$ln\left(\frac{{W}_{cor}}{T}\right)=Ln\left(\frac{R}{Nh}\right)+\left(\frac{\varDelta{S}_{a}}{R}\right)-\left(\frac{\varDelta{H}_{a}}{RT}\right)$$
(10)

Where, A, R and h are constants (pre-exponential constant, gas constant and Plank’s constant, respectively) and N is the Avogrado’s number. The corrosion rate plot ln (Wcor) for both Tetra-Pz-Ortho and Tetra-Pz-Para as function of the inverse of T allow us to calculate Ea (Fig. 5), while the calculation of the thermodynamic quantities ΔHa and ΔSa is done on the basis of the equation of Arrhenius (Eq. 10) and the plot of corrosion rate Wcor per T (ln (Wcor/T)) as function of the inverse of T (Fig. 6).

Fig. 5
figure 5

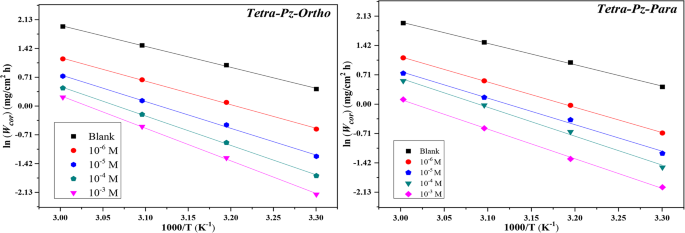

Arrhenius lines for C&S in 1 M HCl medium in the absence and the presence addition of different concentrations of Tetra-Pz-Ortho and Tetra-Pz-Para.

Full size image
Fig. 6
figure 6

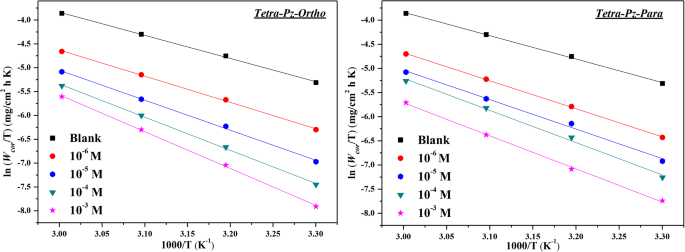

Variation of ln (Wcor/T) as a function of 1000/T the absence and with the presence of different doses of Tetra-Pz-Ortho and Tetra-Pz-Para.

Full size image

The thermodynamic quantities values Ea & ∆Ha and ∆Sa for both the molecules are regrouped in Table 5. The values of the activation energies vary from 48.28 to 66.82 kJ mol−1 for Tetra-Pz-Ortho and from 50.79 to 59.58 kJ mol−1 for Tetra-Pz-Para, by increasing the concentration (10−6 to 10−3 M), while Ea value of the blank solution is of 42.96 kJ mol−1. It is clear, therefore, that Ea values of both the molecules for all tested concentration increase relative to the blank solution. This augmentation of activation energy in the presence of inhibitors is due to a decrease of the dissolution of the C&S and the increase in the energy barrier of the corrosion reaction, i.e. both molecules tested can form an energy barrier to protect the C&S surface vis-a-vis corrosive attack53.The positive values of ΔHa for all the concentration tested show the endothermic nature of the dissolution of C&S. In the presence of Tetra-Pz-Ortho and Tetra-Pz-Para, the values of ΔSa move toward positive way, by passing from the blank to inhibitory solution and by increasing the concentration, implying the barriers crossing to adsorption for both inhibitors on the metal surface54. However, from the Table 5 one noted also that Ea value of inhibitor Tetra-Pz-Ortho is greater than that of inhibitor Tetra-Pz-Para, at the optimum concentration this indicates that Tetra-Pz-Ortho has an inhibitory effect more significant than Tetra-Pz-Para,

Table 5 Thermodynamic parameters of activation of C&S in molar HCl without and with addition of Tetra-Pz-Ortho and Tetra-Pz-Para.
Full size table

Adsorption isotherm model

Both the well-known phenomena of adsorption of the organic compounds as corrosion inhibitors at a metal surface are the chemisorption and the physisorption. The chemisorption or chemical adsorption can be linked to the coordination bond formed between d-orbitals of iron atoms and non-bonding electrons of heteroatoms and/or aromatic ring of inhibitory molecules. The physisorption or physical adsorption can be related to the interaction between a charge of tested molecular structure and a charge of iron atoms (electrostatic interactions). Hence, the interfacial adsorption mechanism of the tested molecules as inhibitors can be interpreted on the basis on the both these phenomena. Among the methods used to treat this subject are the adsorption isotherm studies of inhibitors, with the purpose to be highlighted the interfacial interactions process substrate/adsorbate55. Based on the recovery rate (θ = EWL (%)/100) (Table 4) of both Tetra-Pz-Ortho and Tetra-Pz-Para, we tried the various know isotherms (Langmuir, Freundlich, Temkin …) to find the one that appropriates best for our case. These tests have been done using the gravimetric method in the ranging of the proposed concentration (Table 4) at different temperature (from 303 K to 333 K) as described in Fig. 7. The Langmuir model equation (Eq. 11) provides the best fit to our data, confirming a Langmuir adsorption isotherm for both molecules tested.

$$\frac{C}{\theta}=\frac{1}{{K}_{ads}}+C$$
(11)

Where C and θ are respectively the concentration and the surface coverage of tested inhibitors.

Kads is the adsorption equilibrium−constant, its values will make it possible to determine the ΔG0ads thermodynamic quantities (Free energies of adsorption) for the different proposed temperature by using the following equation:

$${K}_{ads}=0.018\times{exp}\left(-\frac{\varDelta{G}_{ads}^{0}}{RT}\right)$$
(12)

The value 0.018 is the inverse of the concentration (55.5 M) of water, R is the molar gas constant, and T (K) is the temperature. Table 6 regroups the main parameters of both the inhibitors, Tetra-Pz-Ortho and Tetra-Pz-Para, deduced from the plot of the regression line of presented in Fig. 7, with a slope closed to 1 for each temperature tested, confirming thus the Langmuir model adoption process. The issued parameters of adsorption from the Langmuir isotherm (Table 6) are exhibiting a regression coefficient R2 of 1 for the two molecules. Table 6 shows also that the values of adsorption equilibrium constants Kads are higher and decrease by increasing the temperature for each inhibitor (Tetra-Pz-Ortho and Tetra-Pz-Para). Generally, the higher the Kads constant, the adsorption of the tested compounds is loud. This result show that the active sites present on the exposed surface have been filled with the molecular structures tested56. The ∆G0ads values, calculated from Kads in accordance with the Eq. (10), of both Tetra-Pz-Ortho and Tetra-Pz-Para for each temperature vary between − 46 and − 42 kJ mol−1 (Table 6), i.e. less than − 40 kJ mol−1, implying that this process is based on chemical adsorbing, even at high temperatures, which could lead to thin layer adsorbed of these organic molecules on the C&S surface. Indeed, according to the literature57,58, a value of ∆G0ads less than − 40 kJ mol−1 corresponds to the chemical adsorption, a value ∆G0ads bigger than − 20 kJ mol−1 corresponds to the physical adsorption and an intermediate value thereof can be attributed to a physico-chemical adsorption.

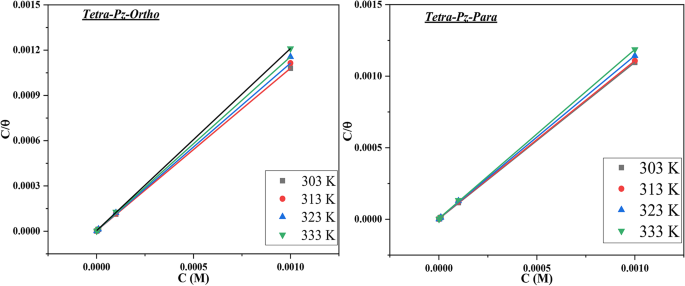

Fig. 7
figure 7

Langmuir adsorption isotherm for C&S in molar HCl without and with addition of Tetra-Pz-Ortho and Tetra-Pz-Para at different temperatures.

Full size image
Table 6 Thermodynamic parameters of adsorption for C&S in 1 M HCl medium without and with addition of Tetra-Pz-Para and at different temperatures.
Full size table

For the other thermodynamic quantities of adsorption (∆H0adsand ∆S0ads), they are calculated from the intercept and slop of Fig. 8, i.e. the plot of the free energy of adsorption ∆G0ads as function temperature, and regrouped in Table 6. The obtained values for the pairs parameters (∆H0ads;∆S0ads) are (-8.84 kJ mol−1; 114 kJ mol−1 K−1) and (-10.05 kJ mol−1; 105.50 kJ mol−1 K−1) for Tetra-Pz-Ortho and Tetra-Pz-Para, respectively. The negative values of adsorption enthalpy are in accordance of an exothermic behaviour of adsorption of inhibitors while the positive aspect of adsorption entropy may be related to a process that mainly controlled by the adsorption entropy and describe the significant interaction of the system adsorbate/adsorbent59. The adsorption of tested inhibitors is a quasi-substitution process adsorption/desorption of tested inhibitors by the water molecules at the interface electrode/solution. This is a resultant of the entropy of inhibitor and solvent, with a decrease in entropy of inhibitors and the increase in entropy of solvent60.

Fig. 8
figure 8

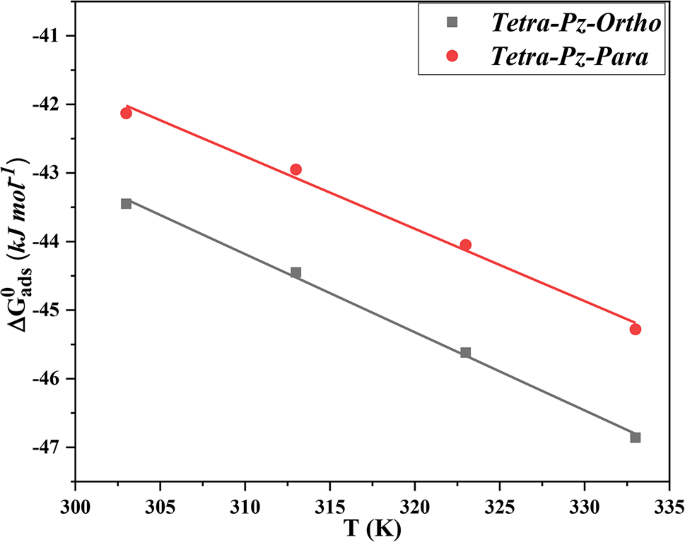

Variation of ∆G0ads vs. T for C&S in HCl containing Tetra-Pz-Ortho and Tetra-Pz-Para.

Full size image

Surface estimation

XPS analysis

The realization of XPS spectra of the protective film on the C&S surface in HCl medium and the analysis of their elemental composition analysis showed that there are the presence of Fe, C, N, and Cl. These XPS spectra were done with an optimum concentration of Tetra-Pz-Ortho and Tetra-Pz-Para. By doing a practical Shirley-baseline with a combination Gaussian–Lorentzian and basing on an algorithm of non-linear least squares, the deconvolution fitting procedure was accomplished. High-resolution peaks have been achieved for N 1s, C 1s, Fe 2p and Cl 2p core levels for both the inhibitors Tetra-Pz-Ortho and Tetra-Pz-Para and they are presented in Fig. 9, while the Data deduced from these spectra are grouped in Table 7. Figure 9 shows the C 1s spectra (a / b) of C&S surface in the presence of Tetra-Pz-Ortho(a) / Tetra-Pz-Para(b), which are deconvoluted peaks into three components respectively at 280.95/284.89, 282.33/296.24 and 284.10/288.47 eV. The first component was attributed to the bonds C–C/C=C/C–H, the secondary attribution related to the bond –C–N can be ascribed to amine group and the last was attributed to the bonds –C=N can be typical of pyrazole ring for both the inhibitors. All these bonds are present in the two molecules tested as inhibitors, justifying their deposit on the surface of C&S.

We note that both the molecules present the same bands (C–C/C=C/C–H, –C–N and –C=N) with position different, and this is equally valid for all other deconvoluted spectra presented in this section. This is evidently can be linked to the elemental composition and the molecular structures of the two inhibitors tested that are nearly the same.

The Tetra-Pz-Ortho(a)/ Tetra-Pz-Para(b) structures (Fig. 1) contain a number of nitrogen-atoms as heteroatoms in pyrazole ring and amine group through which may be adsorbed on the C&S surface, and these active centers could form the basis for a chemisorption process55. As to deconvoluting of N 1s spectra of the C&S treated with (a) and (b), they can be fitted into three components, suggesting in the three states a strong presence of Nitrogen N for both the molecules tested: The first one at 252/225 eV 395.37/ 399.31 corresponding to bonds –N–C/–N–N typical to amine group and pyrazole rings, another at 396.08/399.90 eV linked to binding –N=C/N–Fe and can be attributed to the four pyrazoles forming the two molecules and the last one at 397.20/ 400.91 may be due to formation of ammonium ions.

The deconvoluted peaks Cl 2p spectra (Fig. 9 Cl 2p, (a) / (b)) show that Cl atoms are there on C&S surface, giving two components at 194.41 / 198.10 eV and 196.02/ 200.07 eV for Tetra-Pz-Ortho(a)/ Tetra-Pz-Para(b), respectively, corresponding to (FeCl2, FeCl3) and Aromatic Chlorine. In fact, core level of Cl can be fitted on two doublets Cl 2p3/2 and Cl 2p1/2 (spin–orbit-spliting), respectively, with a peak Cl 2p3/2 of a binding energy of 194.41 / 198.10 eV which can be attributed to the bond Cl–Fe in FeCl3. They are might be a possibility to formation of an aromatic Chlorine in the presence of FeCl361,62.

As presented in Table 7; Fig. 9, the deconvolution of spectra Fe 2p for the treated C&S surface with Tetra-Pz-Ortho(a)/ Tetra-Pz-Para(b) in at the optimum concentration features four components for each molecule. The first three peaks correspond to a deconvolution of the high-resolution Fe 2p3/2 and the fourth to Fe2p1/2 spectra, as described earlier63. The peak at the position of 710.91/710.91 eV for Tetra-Pz-Ortho(a)/ Tetra-Pz-Para(b), respectively, may be related to Fe3+ ions form of oxide Fe2O3 and hydroxide FeOOH64,65. The second deconvoluted peak appear at 712.88/712.99 eV and can be attributed to FeCl3 and to the hydroxide FeOOH. This result shows that the oxides formation is always there despite appropriate treatment of C&S specimens before use to XPS analysis. An increase of ferric ions (Fe3+) amount compared to metal amount (Fe0), can probably contribute to improving of C&S surface resistance in HCl medium, by building cohesive layer, which can preserve and minimize the corrosion process that precedes. This can be regarded as diminution of C&S dissolution and increasing the C&S substrate corrosion resistance by adding the inhibitors66. Lastly, the last peak at 724.59/724.08 eV accredited to the deconvolution peak Fe 2p1/2 and could also be accredited to the Fe (III) state. All these results show the deposition of inhibitors film of molecules tested (Tetra-Pz-Ortho(a)/ Tetra-Pz-Para(b)) on the C&S surface.

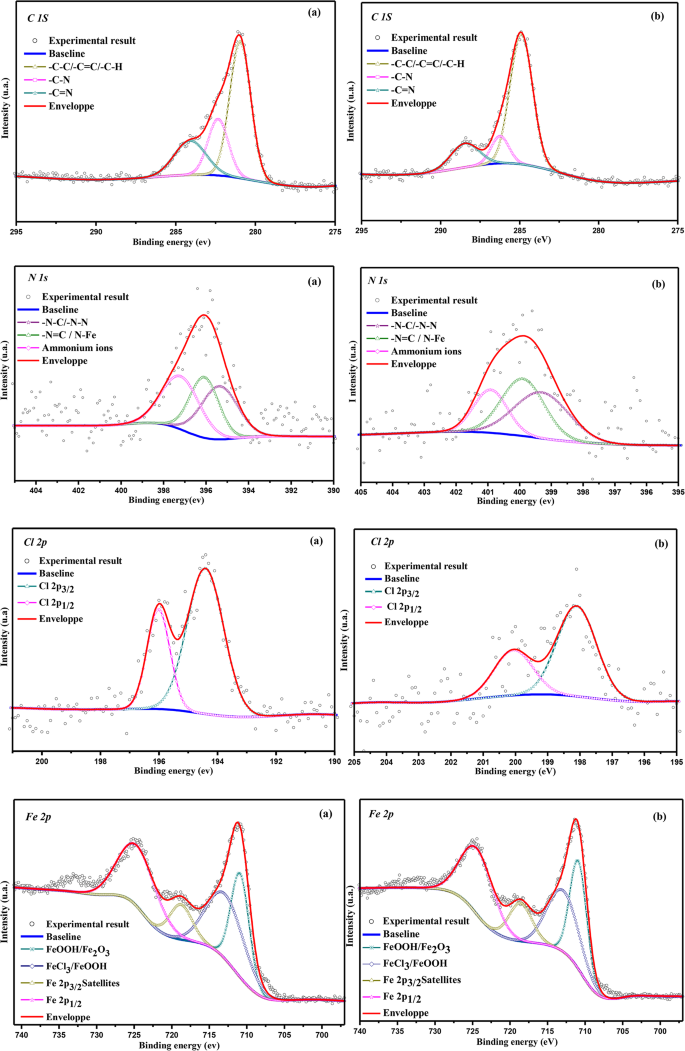

Fig. 9
figure 9

XPS spectra detailed for C&S surface after being immersed in 1 M HCl with an optimum concentration of (a): Tetra-Pz-Ortho, (b): Tetra-Pz-Para.

Full size image
Table 7 XPS analysis results for C&S surface after being immersed in 1 M HCl with an optimum concentration of (a): Tetra-Pz-Ortho, (b): Tetra-Pz-Para.
Full size table

SEM analysis

Figure 10(a-d) shows SEM (Scanning Electron Microscopy) images of the C&S specimen, which give four different facets of tested specimen: bare metal surface (a), in the blank solution (b) and in presence of both the molecules Tetra-Pz-Ortho and Tetra-Pz-Para (c&d). Figure 10(a) represents the surface of C&S before subjection to the corrosive electrolytes, which show a C&S surface relatively smoother. Figure 10(b) shows the aggressive attack of HCl acid on the surface C&S, which appears sorely destructed and shows lot of irregularities. The last Figs (Fig. 10c&d) show the images of surface morphology after the addition of Tetra-Pz-Ortho and Tetra-Pz-Para, which have changed significantly the surface that become more smoothly and the damages have been reduced. This show that the metal surface condition remained intact with a surface deposit process of an inhibitors film adsorbed, formed by the molecular components of Tetra-Pz-Ortho and Tetra-Pz-Para. As shown in the XPS analysis section, the presence of Tetra-Pz-Ortho and Tetra-Pz-Para addition in the acid solution promotes improving the metal morphological texture, which become smoother as looking those SEM images (Fig. 10c&d), confirming thus the development of an inhibitory adsorbed coating on the surface of C&S, which can play the role of the barrier among the C&S and acid solution.

Fig. 10
figure 10

SEM images of C&S immersed in 1 M HCl, immersed in 1 M HCl + Tetra-Pz-Ortho and Tetra-Pz-Para, respectively.

Full size image

UV-visible

A UV-Visible spectra analysis for the 1 M HCl solution in the presence of Tetra-Pz-Ortho and Tetra-Pz-Para after gravimetric test at the optimum concentration has been investigated so that we can see complexing power of these inhibitors with ferrous ions67. Figure 11 shows the UV–visible spectra of a and b in HCl before and after immersion of C&S plates. In both tested cases, it is noted that after immersion of C&S, the maximum wavelengths position (λmax) has changed slightly for Tetra-Pz-Ortho (first band (212, 213 nm); second band (274,276)), while, in the case of Tetra-Pz-Para, this displacement somewhat bigger (from 252 to 258 nm and from 218 to 223 nm). Generally, these bands in such positions are characteristic of the electronic transitions n → π*/π → π* of tested molecular structures, obviously with a charge transfer. These finding indicates that these two molecules have complexing character towards the ferrous -ions (Fe2+)68, more significant in the case of (b). In that respect, it may be suggested that it initially had solubility of steel in the solution and the addition of inhibitors leads probably to a complexation. Also, the presence of both Tetra-Pz-Ortho and Tetra-Pz-Para in the treated acid solution can help minimize the dissolved ferrous ions (Fe2+) by complexing process69.

Fig. 11
figure 11

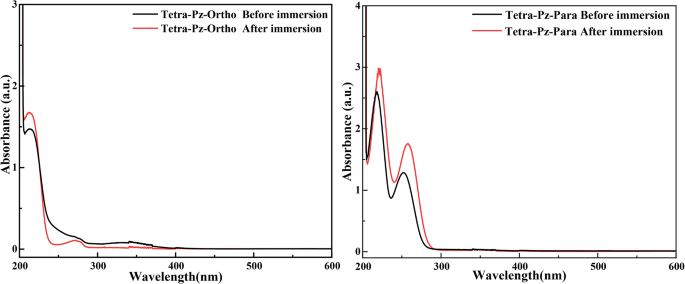

UV-vis spectra of (Tetra-Pz-Ortho and Tetra-Pz-Para) / HCl solution before and after soaking of C&S.

Full size image

Theoretical and computational approach

DFT analysis

Chemical reactivity investigation of organic molecules optimized in their geometry form the most stable is generally characterized by the calculation of global and local reactivity descriptors. The values of these descriptors allow to interpret the theoretical approach of these molecules and to better understanding of interfacial mechanisms of corrosion68,70. The two molecules tested Tetra-Pz-Ortho and Tetra-Pz-Para can protonate in the HCl medium62,71. Using Marvin Sketch software72, all the distributions of protonated forms as a function of pH (0 to 14) were presented, in order to identify the atom or atoms most likely to bind the H+ proton. Figure 12(a&b) illustrate the favourable location for protonation that was found to be accessible in Tetra-Pz-Ortho structure at different sites N6, N35, N36, N37, N65 with a percentage of 99.95% and Tetra-Pz-Para at the N45, N46, N47, N48 sites with a percentage of 99.90%. The structural chemical reactivity may be influenced by this protonation in both ways, by giving new electronic distribution for two tested molecules Tetra-Pz-Ortho and Tetra-Pz-Para.

The neutral and protonated forms of molecular structures tested, Tetra-Pz-Ortho and Tetra-Pz-Para, have been optimized using the density functional theory method (DFT) and both skeleton forms are illustrated in Figs. 13 and 14. The main quantum chemical parameters have been determined basing on Gaussian software (09 W)33 and were collected in Table 8. These parameters play a significant role in the determination of reactions between the interacting elements. Figures 13 and 14 illustrated the density distributions (HOMO and LUMO), which are well distributed on all neutral and protonated forms for two tested molecules.

Fig. 12
figure 12

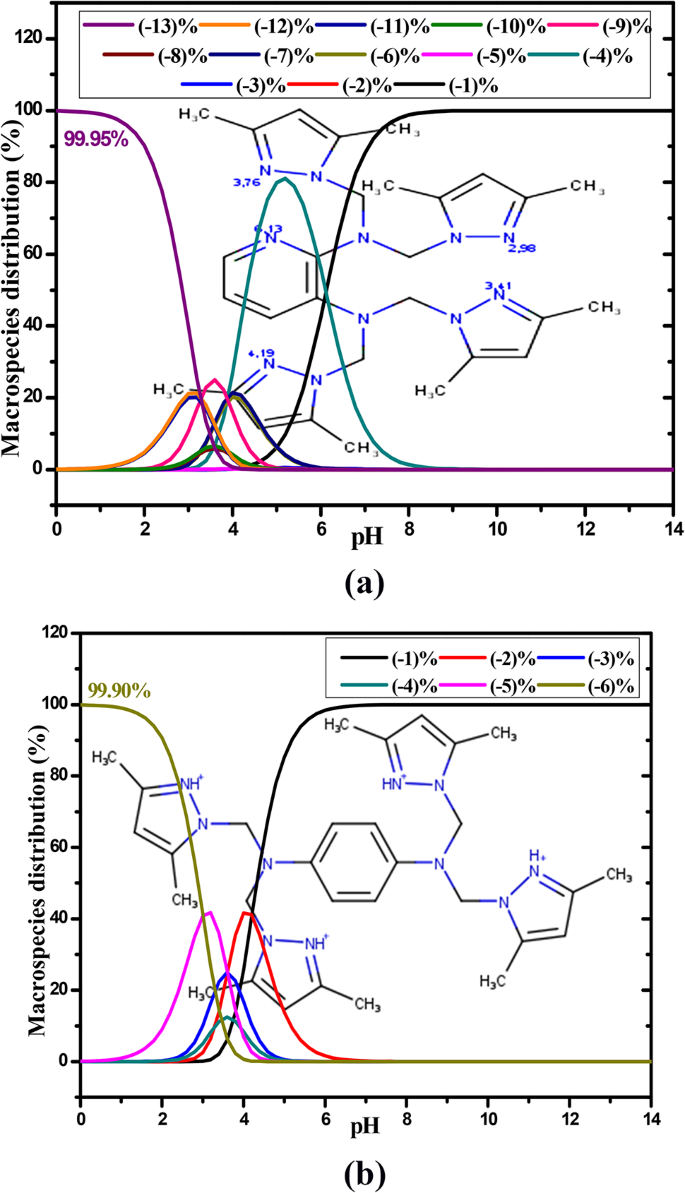

(a) Macrospecies distribution of protonated form of Tetra-Pz-Ortho (% protonation vs. pH distribution). (b) Macrospecies distribution of protonated form of Tetra-Pz-Para (% protonation vs. pH distribution).

Full size image
Fig. 13
figure 13

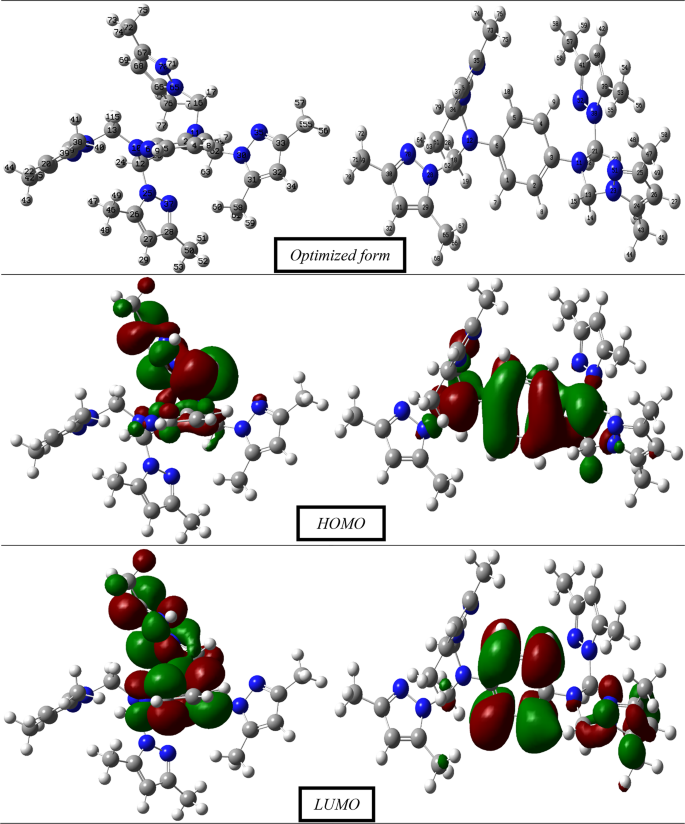

Optimized molecular structure and Frontier molecular orbitals (HOMO and LUMO) of Tetra-Pz-Ortho and Tetra-Pz-Para, as neutral molecules.

Full size image

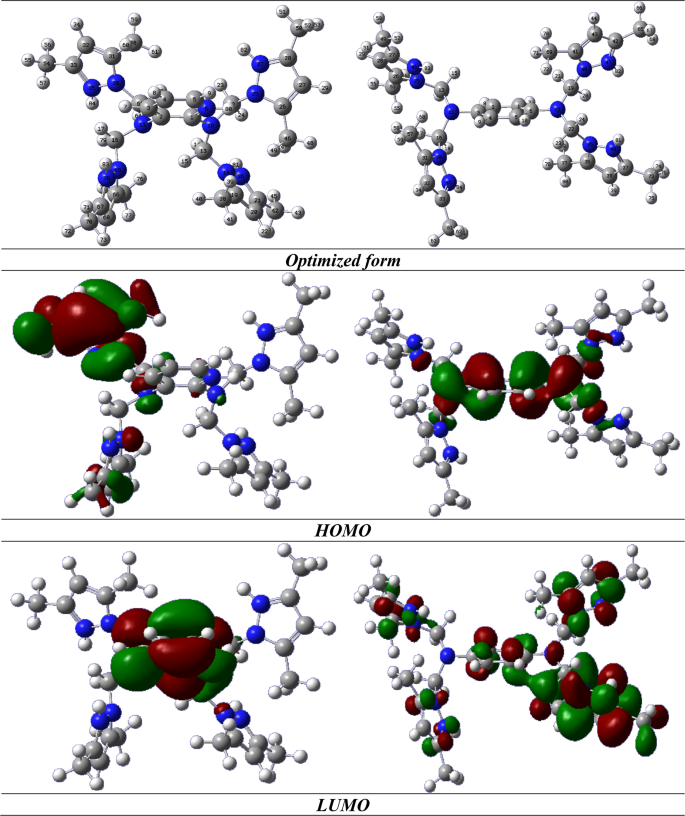

Fig. 14
figure 14

Optimized molecular structure and frontier molecular orbitals (HOMO and LUMO) of Tetra-Pz-Ortho and Tetra-Pz-Para, into protonated forms.

Full size image
Table 8 Calculated quantum chemical parameters of Tetra-Pz-Ortho and Tetra-Pz-Para neutral and protonated forms.
Full size table

For the neutral forms, both molecules have a similar distribution of electron density (Fig. 13). The density relative to HOMO is mainly located on the pyridine ring of compound Tetra-Pz-Ortho and the benzene ring of compound Tetra-Pz-Para, and includes attached nitrogen atoms and pyrazole rings. LUMO is distributed only on the pyridine ring and the benzene ring. Thus, both compounds tend to interact with the metal surface through electronic transfer. However, the data obtained from the chemical descriptors (Table 8) show that compound Tetra-Pz-Ortho exhibits higher reactivity than compound Tetra-Pz-Para. Indeed, the energy value of the ΔE(HOMO−LUMO) of Tetra-Pz-Ortho is the lowest. The energy values of HOMO and LUMO (-3.800 eV and − 0.623 eV respectively) are lower indicating an ease in both donating and accepting electrons at the unoccupied d orbital of the metal. The calculated value of the fraction of electrons transferred ΔN of Tetra-Pz-Ortho suggests the possibility of electron transfer between the inhibitor molecule and the metal, likewise, the electrophilic power (ω =\(\frac{\chi^{2}}{2\upeta}\)) indicates its tendency to acquire free electrons from the metal and its ability to bind strongly by electron transfer. Moreover, depending on the values of chemical hardness (η) (Table 8) and corresponding softness (1/η), Tetra-Pz-Ortho will be more reactive. Its rather high value of deducted softness, compared to that of Tetra-Pz-Para, shows its strong adsorption to the iron surface. This suggests that the inhibitory power of two molecules is not the same, the compound Tetra-Pz-Ortho tends to interact better and therefore a strong adsorption towards the surface.

In fact, most atomic sites are involved in electron donation and/or acceptance, with the donation effect taking place via centers HOMO, and the acceptance effect taking place via atoms LUMO of electrons from electron-donor centers, namely the orbitals occupied of C&S surface73.

Figure 14 illustrates the protonated forms (the Tetra-Pz-Ortho(5 H+) and Tetra-Pz-Para(4 H+) states), which gave new electron density distributions differing from Tetra-Pz-Ortho(5 H+) to Tetra-Pz-Para(4 H) for both LUMO and HOMO density. The HOMO density distribution occupies the pyrazole ligands for Tetra-Pz-Ortho(5 H+), while for Tetra-Pz-Para(4 H+) it occupies the benzene center and its vicinity. The LUMO density distribution occupies the pyrimidine center for Tetra-Pz-Ortho(5 H+) and the pyrazole ligands for Tetra-Pz-Para(4 H+). Furthermore, as shown in Table 8, the protonation of these optimized molecules leads to a decrease in the electron-donating effect due to lower EHOMO and ΔN110 values. On the other hand, lower ELUMO values for both compounds have boosted the electron-accepting impact.

Mulliken population analysis

To further estimate the inhibitory efficiency of the two synthesized molecules Tetra-Pz-Ortho and Tetra-Pz-Para, in neutral and pronated form, the distribution of net charges on all of their atoms was calculated using Mulliken’s population analysis (MPA), and processed using the B3LYP/6-31G(d, p) basis. This charge distribution is shown in color in Fig. 15 where the more bleu-colored atoms represent the more negatively charged atoms, while the other colored atoms represent some less negatively charged atoms and more positively charged atoms. According to this figure, we note that the atoms of the two molecules have close values, negative charges are located mainly on the nitrogen atoms, the carbon atoms turned out to be positive (with significant negative charge for the carbons methyl) while all protons have a positive charge. Indeed, the atoms carrying positive charges can be described as sites with a certain capacity to receive charges from the (d) orbital of the iron in order to generate a feedback band. In contrast, the lone pair of electrons (negative charges) carried by oxygen atoms is a source of charge capable of donating electrons to iron atoms. Figure 15 shows that the highest negative charges are linked to the Nitrogen numbered N(6 ,10, 11, 25, 30, 36, 65, 78) and to Carbon number C(46, 42, 50, 58, 72) for Tetra-Pz-Ortho C(43, 47, 53, 57, 65, 69, 73) and for the Tetra-Pz-para molecule the Nitrogen atoms numbered N(11, 12, 23, 28, 33, 38) and to Carbon number C(43, 47, 53, 57, 65, 69, 73). These results imply that these compounds have electron-donating active sites (lone pair of electrons) towards the vacant (d) iron orbital with the possible formation of a coordination bond. In addition, the presence of positive charges on other atoms suggests the existence of potential locations where these substances are able to receive electrons from the Fe-surface74. This electron transfer process contributes to the formation of a feedback bond between the inhibitor molecules and the metal surface75. Consequently, the atoms of both the Tetra-Pz-Ortho and Tetra-Pz-Para molecules in their neutral forms are a little rich in electrons, in particular their nitrogen atoms. It can be deduced that the two molecules present more favored sites for electrophilic attacks. Finally, it has to be noted that the interactions acceptor/donor of electrons between the metal-atoms of surface and active sites of the Tetra-Pz-Ortho and Tetra-Pz-Para molecules can be overall attributed to an adsorption process. The distribution of net charges on all of their atoms (MPA) for the protonated form of Tetra-Pz-Ortho and Tetra-Pz-Para are presented in Fig. 16. Except for the N-atoms of amine groups in the two molecules tested, the other atoms, which had a very negative charge in the neutral form of these molecules, became less negative in the protonated form, this seeming thus conform with DFT method results.

Fig. 15
figure 15

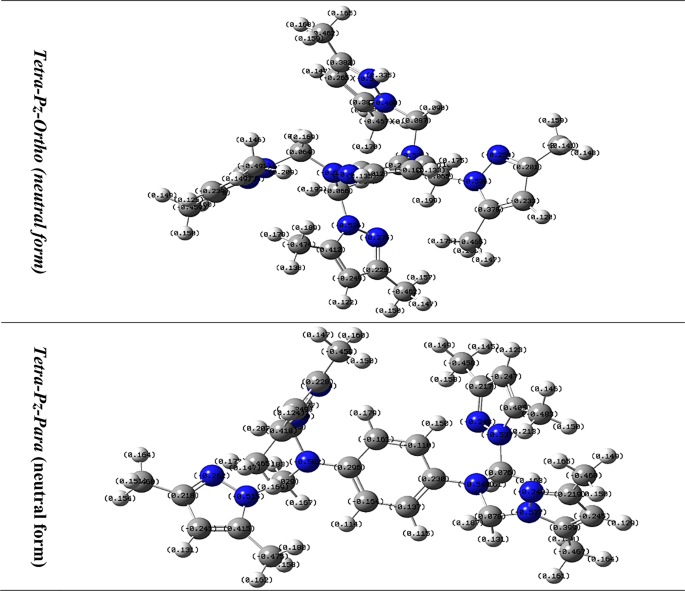

Mulliken atomic charge distribution of Tetra-Pz-Ortho and Tetra-Pz-Para of neutral forms in DFT optimized geometry.

Full size image
Fig. 16
figure 16

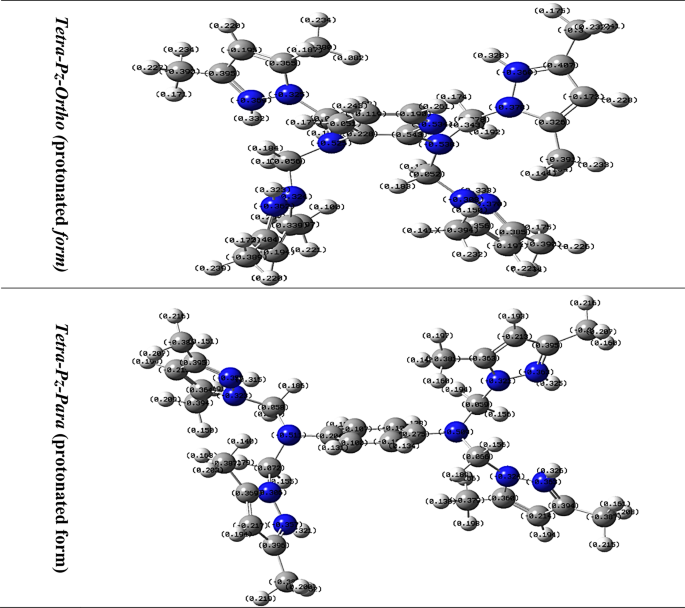

Mulliken atomic charge distribution of Tetra-Pz-Ortho and Tetra-Pz-Para of protonated forms in DFT optimized geometry.

Full size image

Monte Carlo and molecular dynamic simulations study

Monte Carlo (MC) and molecular dynamics (MD) simulations methods have been widely used to understand the interaction and adsorption behavior of an inhibitor on the metal surface. In the present work, to fully understand the behavior of the two Tetra-Pz-Ortho and Tetra-Pz-Para investigated molecules (in their neutral and protonated form) with respect to the Fe surface, MD and MC simulations were realized in the presence of all the concerned species, water molecules, H3O+ and Cl− in order the mimic the real corrosive environment. The most stable low energy adsorption configurations (side and top views) of the Tetra-Pz-Ortho and Tetra-Pz-Para inhibitor molecules on Fe (110) surface are presented in Fig. 17. As is seen from this figure, we notice that the two inhibitors are adsorbed nearly parallel to the Fe (110) surface (both in the gas or in the aqueous medium) with a maximum contact which promotes better interaction and subsequently better coverage of the surface. The values for the outputs and descriptors of the MC simulations are listed in Table 9. This table provides some important parameters as: total energy, adsorption energy, rigid adsorption energy and deformation energy. The high negative values obtained confirms the stable and stronger adsorption amongst the studied molecules Tetra-Pz-Ortho and Tetra-Pz-Para and the Fe surface. However, the corrosion inhibition efficiency of our proposed inhibitors varies from one form to another and the ranking order is given as: Tetra-Pz-Ortho > Tetra-Pz-Para, the ordering also corroborates the protonated forms. This result confirms what was found experimentally.

Table 9 Outputs and descriptors calculated from Monte Carlo simulations for Tetra-Pz-Ortho and Tetra-Pz-Para on Fe (110) (in gas and solution phases) (all in kcal/mol).
Full size table

It is apparent that in the case of the two molecules, the adsorption is generally provided through the nitrogen heteroatoms of the five-membered aromatic rings and π-electrons. The interaction power is improved by the presence of five-membered rings which contain nitrogen atoms. Nitrogen heteroatoms increase the electronic distributions density of the molecule and promote a chemisorption which stabilized also by the free electron pairs. This promotes a strong interaction which makes the molecule more stable on the Fe surface and gives better inhibition.

The inhibitor Tetra-Pz-Ortho is connected with its four five-membered aromatic rings and exhibiting a more and near-flat adsorption orientation on the Fe surface, in that way, it covers more surface. Similarly, from the data in Table 10, the binding energies of the studied molecules are very high and positive whether in its neutral or protonated state which suggest the high stability of the adsorbed inhibitors.

Fig. 17
figure 17

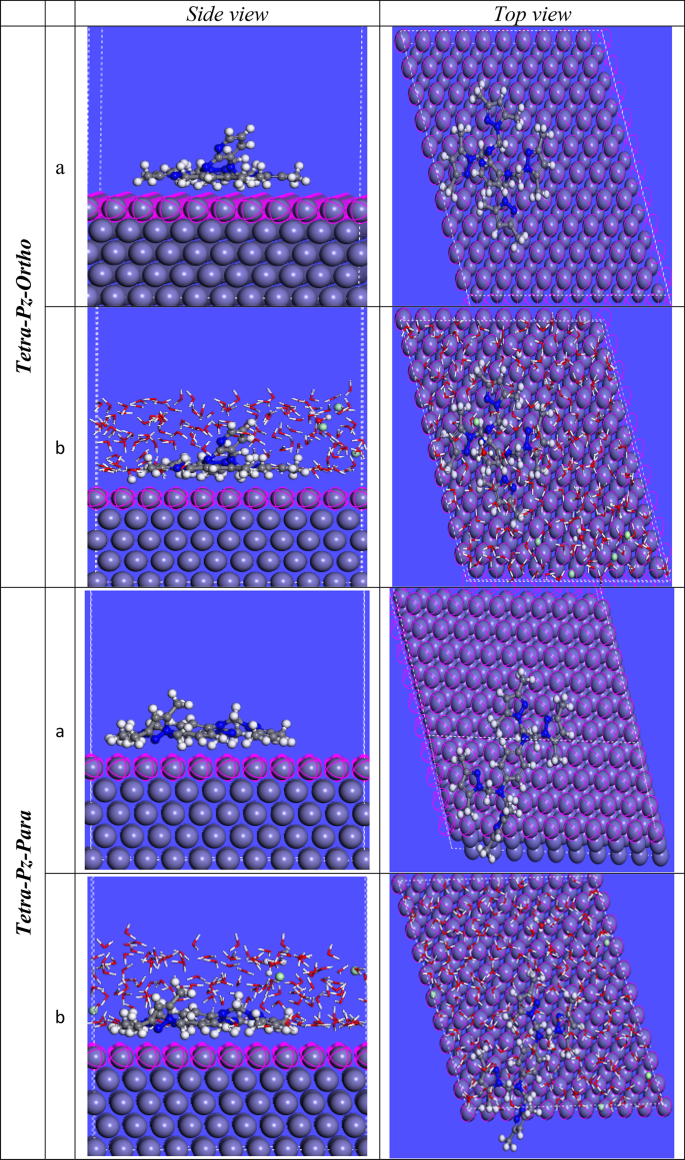

Side and top views of the most stable low energy configuration for the adsorption of Tetra-Pz-Ortho and Tetra-Pz-Para on Fe (110) surface in vacuum (a) and aqueous medium (b).

Full size image
Table 10 Interaction and binding energies (kcal/mol) obtained from MD simulations for adsorption of the Tetra-Pz-Ortho and Tetra-Pz-Para inhibitors (neutral and protonated forms) on Fe (110) surface.
Full size table

Radial distribution function

The Radial Distribution Function (RDF) g(r)76 is an effective structural quantity which describes how the density varies as a function of the distance to a particle of reference. The atomic RDF g(r) shows peaks corresponding to the inter-atomic distances existing in the material. It allows for a direct analysis of the inter-atomic distance and atomic displacements. For our systems, RDF g(r) is useful to estimate the bond length between the atoms of Tetra-Pz-Ortho and Tetra-Pz-Para inhibitors and iron. More, it allowed us to conclude the types of bonds formed. The RDF analyzed from the MD results of Tetra-Pz-Ortho and Tetra-Pz-Para is graphically presented in Fig. 18. This figure shows that all the bond length of Fe and atoms are less than 3.5 Å (for both Tetra-Pz-Ortho and Tetra-Pz-Para atoms), so a chemisorption interaction can occur between the atoms of these two molecules and that of the C&S surface.

Fig. 18
figure 18

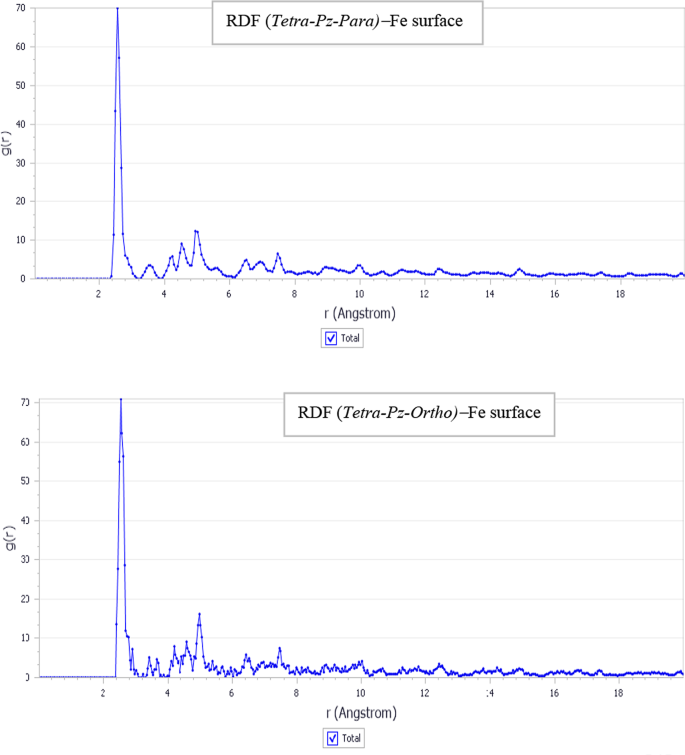

Radial distribution function of Tetra-Pz-Ortho and Tetra-Pz-Para on Fe (110) surface in 1 M HCl solution at 303 K.

Full size image

Conclusion

The research work conducted on the application of two newly pyrazole derivatives as corrosion inhibitors for carbon steel in aggressive (HCl) solution can be summarized by the following conclusions:

  • Based on the obtained results using the weight loss measurements and electrochemical techniques, the two synthetized molecules Tetra-Pz-Ortho and Tetra-Pz-Para acted as effective corrosion inhibitors for C&S in 1 M HCl solution, their inhibition efficiencies increased with increasing concentration inhibitor to reach a maximal inhibition efficacy value of 97.2% and 96.0% at optimum concentration 10-3mol/L. The adsorption model of the two tested molecules followed the Langmuir adsorption isotherm.

  • The temperature effect showed that Tetra-Pz-Ortho has a higher activation energy than Tetra-Pz-Para and HCl solution. confirming Tetra-Pz-Ortho’s ability to impede the corrosion process. The ∆G0ads values, calculated of both Tetra-Pz-Ortho and Tetra-Pz-Para, implying that the two inhibitors were adsorbed on carbon steel surfaces by chemical adsorption.

  • Analysis of the EIS diagrams revealed that the corrosion process is mainly controlled by charge transfer, the resistance values Rp increased and the capacity Cdl decreased with addition of Tetra-Pz-Ortho and Tetra-Pz-Para due to their adsorption onto the metal surface. Potentiodynamic polarization curves revealed that the presence of the two pyrazole derivatives reduced corrosion current density, hence, these tested compounds are mixed type inhibitors.

  • The Surface characterization by SEM analysis reflected the deposit of protective film of inhibitors on the carbon steel surface, hence reducing corrosion.

  • Elemental analysis results via X-ray Photoelectron Spectroscopy (XPS) revealed that the presence of pyrazolic ring and amine group in these two molecules, with bonds C=C, C−N and C=N, is the most plausible reason to create the chemical interaction between the inhibitors and the metallic surface, indicating that the two tested compounds were chemisorbed on the C&S surface.

  • The theoretical approach utilizing density functional theory (DFT) and Monte Carlo/molecular dynamic simulations (MC/MD) simulations for the tested molecules Tetra-Pz-Ortho and Tetra-Pz-Para showed good agreement with the experimental results.

  • According to MD simulation, the two investigated inhibitors are adsorbed almost parallel to the Fe (110) surface (both in the gas or in the aqueous medium) with a maximum contact.

  • The RDF analyzed from the MD results showed that all bond lengths of Fe and atoms (for both Tetra-Pz-Ortho and Tetra-Pz-Para atoms) are less than 3.5 Å, as a result, chemical interactions can occur between the atoms of these two molecules and the C&S surface.
