Introduction

In recent years, the overall survival rates of cancer patients have significantly improved due to the introduction of new therapies. However, the life expectancy for patients with certain tumors, particularly lung and pancreas, remains alarmingly low1. While the introduction of immune checkpoint inhibitors has extended the lifespan of lung cancer patients2, pancreatic cancers are largely refractory to immunotherapy3. Therefore, the development of innovative therapies to treat these and other tumors is imperative.

Hyperthermia utilizes non-ionizing radiations, usually using laser-mediated energy (photothermal therapy) or radiofrequency fields (magnetic hyperthermia), to elevate tissue temperature above 41˚C4. Temperatures within targeted tissues of up to 43 ˚C will primarily cause cell death by apoptosis5, whereas heat treatments of 44 ˚C and higher will trigger cell necrosis6. In addition, fragmentation of the cell membrane caused by hyperthermia favors the release of tumor antigens, and therefore, enhances T cell-mediated cytotoxicity7resulting in enhanced overall effectiveness of the antitumor response. Immune-mediated effects of hyperthermia include, among others, the induction of heat-shock proteins8,9, secretion of pro-inflammatory cytokines10, enhancement of NK cell activity11and dendritic cell function12. Because it has been shown that cells in the S or M phases of the cell cycle are more sensitive to hyperthermia13, this approach has garnered considerable interest as an innovative antitumor therapy since it would have a preferential effect over cells undergoing division.

The cytotoxic effect of hyperthermia can be enhanced by the concurrent use of nanoparticles. In the case of laser-mediated photothermal therapy, inorganic nanoparticles that accumulate in the tumor site can absorb laser-emitted light, increasing the destruction of target cells4,14,15. Remarkably, simultaneous administration of immune checkpoint inhibitors was particularly efficient in animal models15. On the other hand, iron oxide-based particles, such as zinc-doped iron oxide nanoparticles (ZnxFe3−xO4), demonstrated superior heating efficiency under alternating magnetic fields compared to pure magnetite16,17. This enhanced efficiency is attributed to the lower magnetic anisotropy of ZnxFe3−xO4magnetic nanoparticles (MNPs) compared to pure magnetite. It is worth noting that pure ZnFe₂O₄ nanoparticles are not suitable for hyperthermia due to their antiferromagnetic configuration, but the biocompatibility of zinc makes it an attractive option for in vivo applications. While zinc-doped nanoparticles retain favorable magnetic properties for heating, they also reduce toxicity, enhancing their potential for both in vitro and in vivo cancer therapies16. Additionally, it is known that the related Zn-containing phase, zinc oxide (ZnO) nanoparticles, are safely used in pharmaceutical applications, such as cosmetics as well as food packaging and personal care products, owing to their antimicrobial and antifungal properties18,19. This underscores the versatility of zinc-based nanoparticles, making them a promising candidate for combined hyperthermia and drug delivery systems in cancer treatments20, where both therapeutic efficacy and safety are paramount21.

The encapsulation of both MNPs and cytotoxic drugs within liposomes results in the so called Magnetoliposomes (ML), which offer a promising approach for targeted drug delivery. ML can concentrate nanoparticles at the treatment site, potentially enhancing the efficacy of hyperthermia therapy22,23. This dual functionality enables ML to act as effective carriers of chemotherapeutic agents24,25. On the other hand, iron oxide-based particles encapsulated in liposomes (ML) are particularly efficient in generating heat after a magnetic field is applied from an external source22. Interestingly, it has been reported that the cellular damage caused by hyperthermia correlates with the location of the uptaken magnetic nanoparticles26.

MLs can be functionally improved by encapsulating a cytotoxic drug24,25, a modification that allows them to serve as carriers of chemotherapeutic agents. Since hyperthermia increases the blood flow to the treated area, it is therefore expected that chemotherapeutic-loaded ML will preferentially target the tumor site, an effect that can be further amplified by application of a magnetic field27. Intracellular availability of the encapsulated antineoplastic drug may therefore achieve high cytotoxic effects with low doses of chemotherapy, thereby reducing the adverse systemic effects of chemotherapy.

We have herein developed a cis-diamminedichloroplatinum (II) (CDDP) (commonly known as Cisplatin)-encapsulated ML and found that this formulation is well tolerated in vivo and produces antineoplastic additive effects compared to hyperthermia alone in both in vitro and in vivo models of lung and pancreas tumors.

Results

Physicochemical characterization of synthetic MLs

We successfully synthesized magnetoliposomes that showed particle clusters with a Gaussian distribution of mean value (281 ± 60) nm, as revealed by low-resolution cryo-Transmission Electron Microscopy (TEM) (Fig. 1, panel A). In addition, some isolated, dispersed MNPs were also observed. High-Resolution TEM images showed a gap larger than 8 nm between MNPs, corresponding to the organic coating material (Fig. 1, panel B). Within the ML, MNPs were densely packed and surrounded by the lipid coating.

The MNPs were designed to maximize heat generation after their integration into the ML while maintaining their average size around 15 nm to ensure good integration into the ML. To achieve this, the MNPs were synthesized with a composition of Zn₀.₂Fe₂.₈O₄ to optimize the magnetic parameters for heating efficiency28. High-resolution TEM images confirmed the high crystallinity with an average diameter of (15 ± 2) nm (Fig. 1, panel C). The corresponding two-dimensional electron diffraction patterns matched the Fd3m space group, with contributions from the (111), (220), (311), (222), (422), (333), and (440) Miller indices (reference pattern: 00–001-1111). ICP-OES analysis revealed a Zn₀.₁Fe₂.₉O₄ composition, with the measured Zn concentration deviating slightly from the nominal value (Fig. 1, panel D).

Fig. 1
figure 1

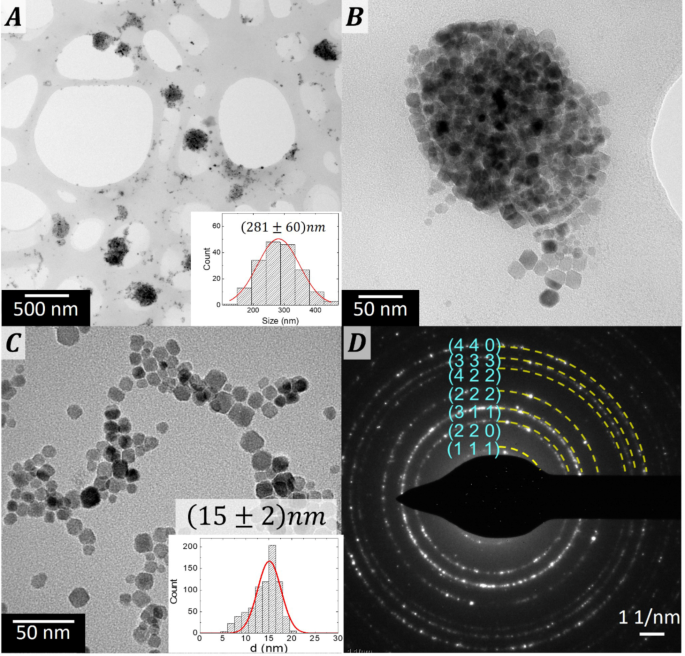

Cryo-transmission electron microscopy analysis of MNPs. Top row. Cryo-TEM images of ML. (A) low magnification image with histogram and Gaussian distribution of ML (inset panel). (B) ML cryo-TEM image, where MNPs appear as aligned in curved chains. Bottom row. (C) TEM image of Zn0,2Fe2,8O4 MNPs and their corresponding size histogram (inset panel) showing a Gaussian distribution. (D) Electron diffraction with crystallographic Miller indexes.

Full size image

With a surface charge of (15.4 ± 0.6) mV, the ML exhibited suspension stability for over 24 h and, in all cases, short vortex was enough for full resuspension. The typical concentrations of phospholipids, MNPs, and CDDP in the different samples are summarized in Table 1. Notably, for samples with similar MNPs and CDDP concentrations, the encapsulation efficiency of both MNPs and CDDP remained unaffected by the presence of the other agent, suggesting successful co-encapsulation within the ML. The smaller concentration of lipids observed in MLC samples could indicate that the presence of CDDP favors the formation of unilamellar lipidic membranes.

Table 1 Lipid, magnetic nanoparticles and CDDP concentrations of indicated vectors.
Full size table

ML cell uptake and in vitro hyperthermia of loaded cells

We assessed the internalization of MLs and the kinetics of this process through a time-course evaluation of the iron concentration present in cell pellets and culture supernatants. Significant cellular uptake occurred rapidly (10 and 20 min) for both cell lines, reaching a plateau of 60–70% of available iron after 4–6 h of incubation with nanovectors (Fig. 2A).

We also evaluated the capacity of MLs to induce and sustain hyperthermia in treated cells. These cells were loaded for 4 h with increasing amounts of nanoparticles and then exposed to a magnetic field. Live recording of cell pellets demonstrated that the target temperature of 41 °C was quickly reached and maintained with 200 µg of ML (green line), which had a slope of m = 0.082 (Fig. 2B). This value is only slightly lower than the slope observed with 500 µg of nanoparticles (m = 0.099; red line). Consequently, all subsequent experiments utilized 200 µg of nanoparticles.

Fig. 2
figure 2

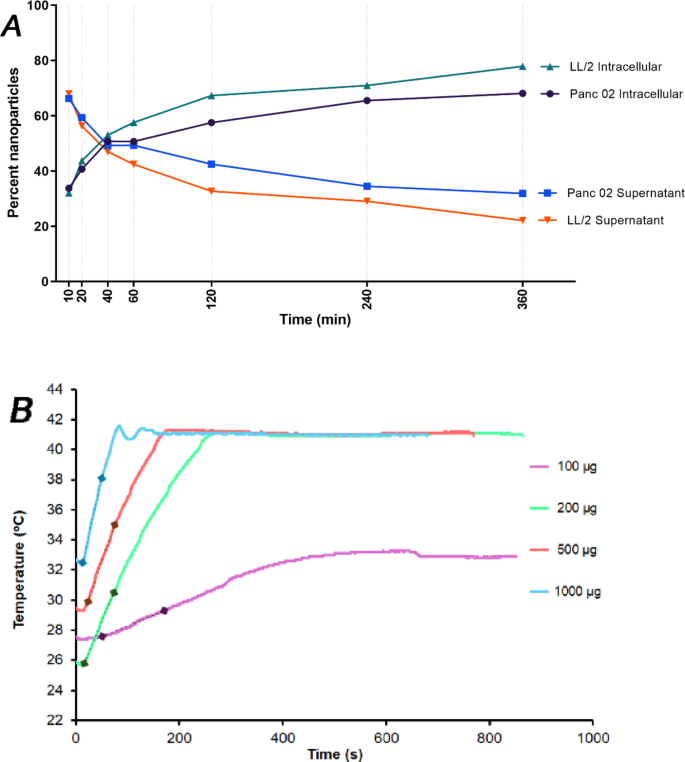

Time-course assessment of ML uptake by cell lines and in vitro hyperthermia. Panel A. LL2 and Panc02 cell lines were incubated with 200 µg of iron magnetoliposomes at indicated time points. Cells were collected and iron content present in cell pellets and culture supernatants was determined by spectrophotometry after extrapolation to a calibration curve. A representative experiment out of three is shown. Panel B. Cells were incubated for 4 h with 100 (purple line), 200 (green line), 500 (red line) or 1000 (blue line) µg of MLs and exposed to magnetic field. Temperatures were recorded at 1 s intervals. Line slopes within the indicated marks (diamond dots) were calculated with the equation\(\:\:m=\frac{{y}_{2}-{y}_{1}}{({x}_{2}-{x}_{1})}\times\:\:100.\) 100 µg: m= 0.014; 200 µg: 0.082; 500 µg: m = 0.099; 1000 µg: m = 0.152, and are an indication of the heating capacity of the nanosystems. A representative experiment out of three is shown.

Full size image

Subcellular localization of internalized nanocarriers

We examined the intracellular distribution of MLs by TEM after subjecting cells, or not, to magnetic hyperthermia. Temperature was intentionally limited in all experiments to 41oC to prevent excessive tissue damage and cell death by necrosis. It can readily be observed that nanocarriers are internalized and clustered within intracellular vesicles (arrows) after a membranes fusion process that is evident for LL2 (Fig. 3A) and Panc02 cells (Fig. 3B). Application of magnetic fields to cells resulted in hyperthermia and some perturbation of cell structures, without inducing a significant cytopathic effect, and thus most cells remained viable at the time of analysis. Both untreated cell lines showed nuclear and cytoplasmic integrity with preservation of the microvilli, and blank liposomes are also present in the cytosol and extracellularly.

Fig. 3
figure 3

Transmission electron microscopy of ML-treated cell lines. LL2 (Panel A) and Panc02 (Panel B) cell lines were incubated for 4 h with 200 µg of blank liposomes (2nd from left, top row); blank magnetoliposome without (3rd from left, top row) or after 10 min of magnetic hyperthermia (first from left, bottom row); or CDDP-encapsulated ML without (second from left, bottom row) or after magnetic hyperthermia (third from left, bottom row). Untreated cells are shown in the upper first panel from left. Representative images from two independent experiments were selected by blind observers. Cells were immediately collected and processed as indicated in Materials and Methods. UT: Untreated cells; L: blank liposome; ML: blank magnetoliposome (liposome + magnetic nanoparticles); MLC: CDDP-encapsulated ML (liposome + nanoparticles + CDDP); MF: Magnetic field.

Full size image

Cytotoxic effects of CDDP-encapsulated MLs

To determine whether the CDDP- ML induced cell death after internalization, we performed cell cycle analyses 48 h after cell exposure to hyperthermia induced by nanoparticles and magnetic field. We identified the percentage of cells located within the Sub-G1 peak, which is considered an indirect marker of cell dead by apoptosis29. LL2 (Fig. 4, top panel) and Panc02 (Fig. 4, bottom panel) cells treated with 50 µM CDDP, used as positive control, showed a significant Sub-G1 accumulation (second column from left, top row). However, this was not observed at the 1 µM dose (second column from left, bottom row), a sub-optimal concentration chosen to highlight additive effects of CDDP-MLs. Liposomes (first column from left, bottom row) and blank nanocarriers (third column from left, top row) showed no cellular toxicity. We found that the percentage of cells accumulating into the Sub-G1 fraction is higher after hyperthermia exposure (third and fourth columns, bottom row) compared to their counterparts not subjected to magnetic field (same columns, top row). Remarkably, the percentage of cells within the Sub-G1 fraction obtained with the CDDP-encapsulated ML is higher when exposed to a magnetic field (fourth column, bottom row) compared to the values obtained for cells not exposed to magnetic field (fourth column, top row).

Fig. 4
figure 4

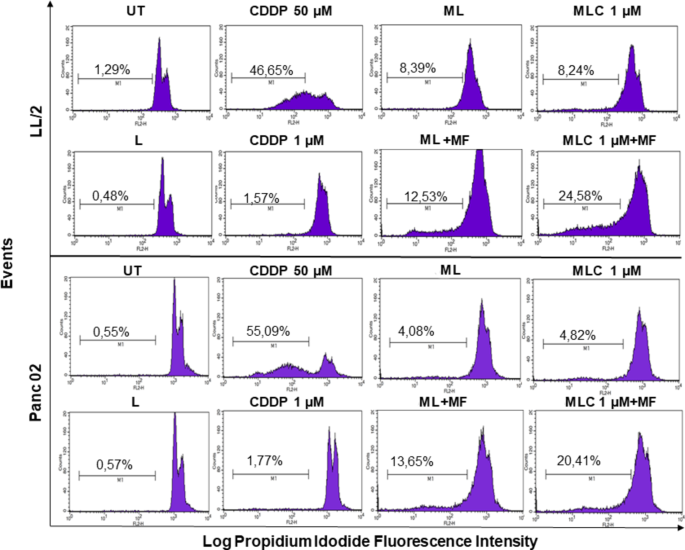

Cell cycle analysis of cell lines treated with MLs. LL2 (top panel) and Panc02 (bottom panel) cells were incubated for 4 h with indicated amounts of MLs and exposed, or not, to magnetic field. Cell cycles were determined after 48 h of culture and staining with Propidium Iodide. Markers indicate percentage of cells within the Sub-G1 fraction. UT: Untreated cells; L: blank liposome; LC: CDDP-encapsulated liposome; ML: blank synthetic magnetoliposome (liposome + magnetic nanoparticles); MLC: CDDP-encapsulated ML (liposome + nanoparticles + CDDP); MF: Magnetic field. A representative experiment out of three is shown.

Full size image

To confirm the cytotoxic effect of the ML, we double stained cells with Propidium Iodide and Annexin-V. Propidium Iodide intercalates into double-strand DNA of cells with permeable membranes, whereas Annexin-V is a compound that binds to phosphatidylserine on membrane of cells undergoing apoptosis30. Annexin-V single positive cells indicate cells in early stages of apoptosis, whereas double positivity identifies cells that are already in a late apopoptotic stage. Figure 5A shows a vigorous death of LL2 cells treated with CDDP 50 µM (far left column, central row), as opposed to the suboptimal dose of 1 µM (far left column, bottom row). However, liposomes (second column, bottom row) and MLs (second column, central row) conjugated with this low CDDP dose were able to trigger, as expected, a discrete cell death due to improved delivery of the drug. A time-dependent increase in cell death was observed after exposing cells to magnetic hyperthermia for 5, 10 and 15 min (third column). Remarkably, significantly higher percentages of Annexin-V stained cells were obtained when treated with the CDDP-conjugated MLs (far right column) compared to the values obtained in those incubated with their blank counterparts (third column). This additive effect, resulting from the intracellular availability of CDDP within the MLs, is clearly observed at all times of hyperthermia. Furthermore, similar pronounced additive cytotoxic effects of CDDP-loaded MLs were also observed in Panc02 cells (Fig. 5B), particularly after 10 and 15 min of hyperthermia (right column, central and bottom rows).

Fig. 5
figure 5

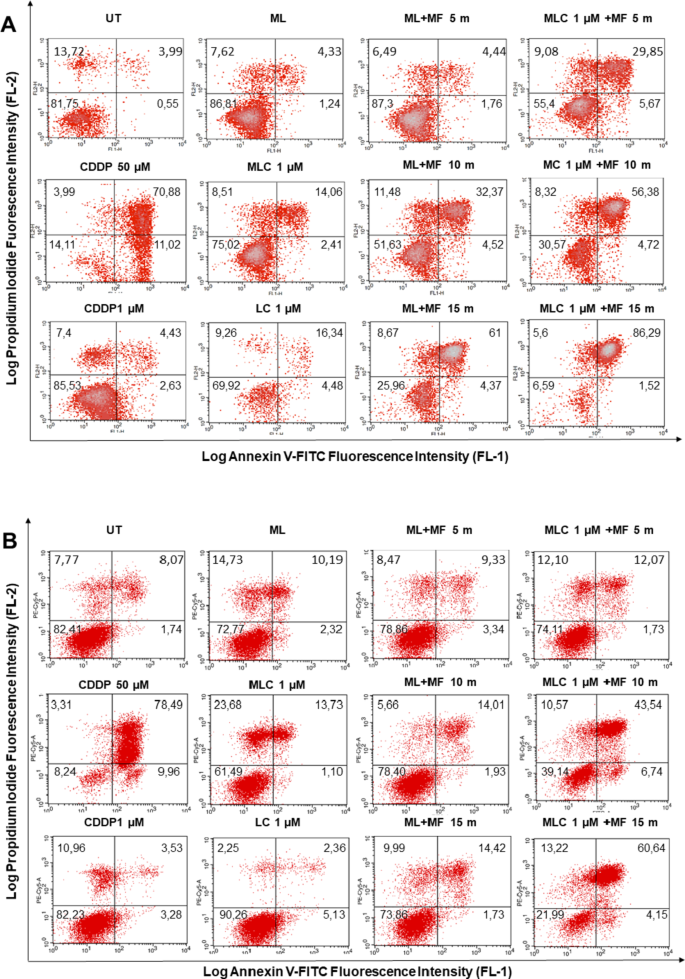

Annexin-V staining of cells exposed to MLs and magnetic hyperthermia. Panel A). LL2 cells were stained after 48 h of treatment with 50 µM or 1 µM of soluble CDDP (far left columns, central and bottom rows); blank MLs (second column, top row); CDDP-conjugated MLs (second column, central row) or CDDP loaded liposomes (second column, bottom row). Cells loaded with blank (third column) or CDDP-conjugated MLs (fourth column) were subject to 5, 10 and 15 min of magnetic hyperthermia. Panel B). Panc02 cells were treated and shown as in Panel A. MF: Magnetic field. A representative experiment out of three is shown. Percentages of cells within each quadrant are indicated.

Full size image

Safety and tolerability of MLs in vivo

To assess the in vivo tolerability of the formulated ML, we evaluated acute toxicity one week after i. p. injection of a single dose of MLs. Chronic adverse effects were studied by necropsying animals after receiving i.p. weekly doses over a period of 35 days. We found absence of significant histopathological lesions in the different organs analyzed after acute or chronic inoculation with MLs. However, the CDDP-conjugated MLs group presented moderate acute tubular necrosis and tubular nuclear atypia in all mice in the group. In the chronic toxicity experiment, 40% of the mice showed hepatic inflammatory infiltrate and macrovesicular steatosis (Fig. 6). These adverse effects are compatible with the inherent toxicity of CDDP31. Mice treated in parallel with soluble CDDP showed equivalent lesions of similar intensity, but, remarkably, were present in 100% of mice. This suggests that the CDDP encapsulated in the MLC nanocarrier has a better in vivo tolerability than the soluble drug.

Fig. 6
figure 6

Analysis of in vivo toxicity of MLs. Representative microphotographs of the histopathological lesions induced in the in vivo toxicity analysis in mice. We observed in the MLC group (liposome + nanoparticles + CDDP) scant acute tubular necrosis, and mild tubular dilation and nuclear dysplasia (arrow) in kidney; diffuse macrovacuolar steatosis (arrows), and moderate chronic inflammatory infiltrate (asterisk) in liver; no injury was detected in lung. In the ML-treated mice (liposome + magnetic nanoparticles) no tissue damage was detected, except a scant intraparenchymal inflammatory infiltrate in liver (asterisk) in some mice. Animals received weekly injections i.p. and 5 mice per group were analyzed at day 35. Hematoxylin-eosin, original magnification 10x. Bar scale: 100 micrometers.

Full size image

In vivo effects of hyperthermia mediated by MLs

To address the ability of MLs to induce in vivo hyperthermia, lung and pancreas cell lines were inoculated s.c. into one flank of the animals. One week after tumor induction, blank and CDDP-conjugated MLs were injected into the tumor mass, and animals were thereafter exposed to magnetic field. Real-time assessment of temperature indicated that tumors induced in all animals reached the intended target temperature of 41oC, although with varying line slopes (Fig. 7A). Hyperthermia was maintained for 10 min without adverse effects.

We subsequently explored the efficacy of CDDP-conjugated MLs in controlling the development of tumors. An ectopic lung tumor was induced by injecting LL2 cells in one flank, and 7 days thereafter the animals were treated with weekly injections of nanocarriers and monitored for weight loss and survival. Figure 7B shows a significant weight loss in CDDP-treated animals (gray line), leading to interruption of the follow-up at day 28 due to ethics considerations. In contrast, ML-treated mice avoided significant weight loss, particularly in animals receiving blank (yellow line) or CDDP conjugated (red line) ML in combination with hyperthermia.

The survival data of animals over the trial period was plotted in a Kaplan-Meier graph (Fig. 7C). A delay in mortality is clearly observed in the group of mice treated with CDDP-ML and magnetic field (red line) compared to their counterparts not receiving hyperthermia (blue line) as well as mice treated with blank ML plus hyperthermia (yellow line). However, by day 35 the survival rates of both groups were equivalent.

Fig. 7
figure 7

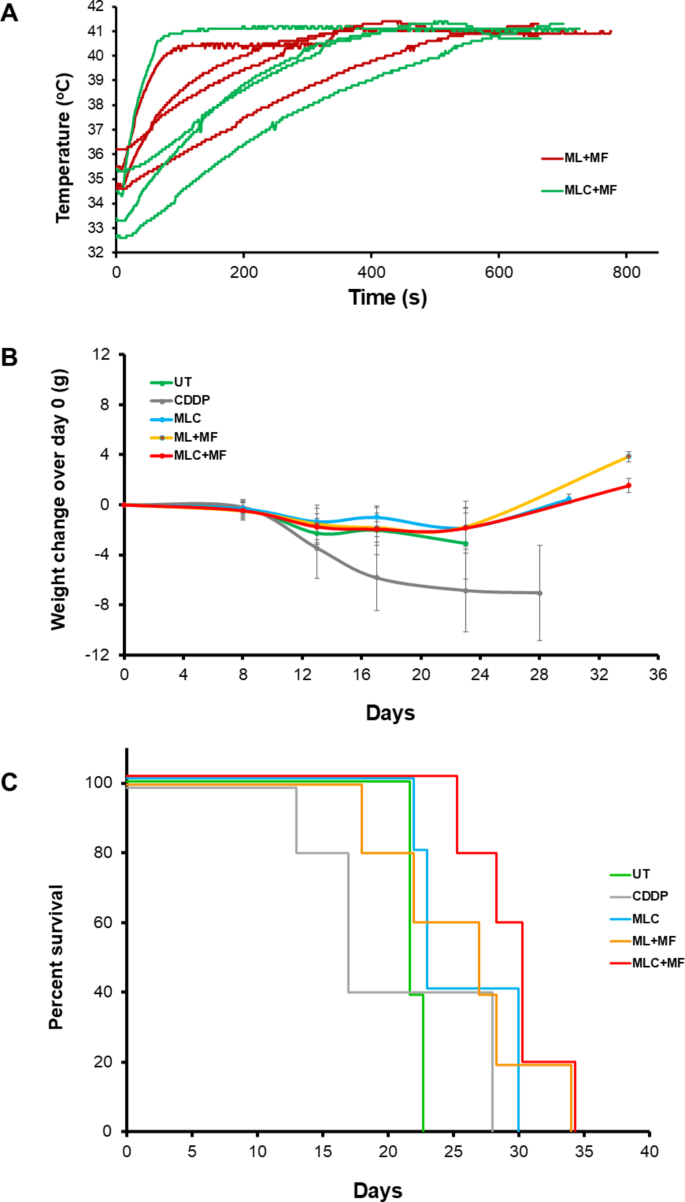

In vivo effects of MLs. Panel A, Intratumoral in vivo hyperthermia induced by ML and MF. 200 µg of blank (red lines) or CDDP-conjugated (green lines) MLs were injected into the syngeneic LL2 tumor mass one week after induction. Temperatures were recorded at 1 s intervals. Lines represent individual animals. Similar results were obtained with animals with pancreas tumors induced by injecting Panc02 cells. Panel B. A lung tumor model was induced by injecting animals with 106 syngeneic LL2 cells, and 7 days afterwards they began to receive weekly intratumor injections of indicated ML or soluble CDDP (6 mg/kg) with or without magnetic hyperthermia. Weight was determined at indicated timepoints and plotted as variations over their initial weight (g) prior tumor induction. Panel C. Survival of the animals depicted in Panel B. n = 5 mice per group. UT: untreated mice; ML: blank synthetic magnetoliposome (liposome + magnetic nanoparticles); CDDP: soluble CDDP; MLC: CDDP-encapsulated synthetic magnetoliposome (liposome + nanoparticles + CDDP); MF: Magnetic field. MLC: CDDP-encapsulated magnetoliposome (liposome + nanoparticles + CDDP); MF: Magnetic field.

Full size image

Discussion

Many efficient hyperthermia-based interventions have shown improved survival of patients, including intravesical irrigation with fluids at 41o−45oC32, as well as other therapeutic approaches33,34which include concomitant chemotherapy35. In spite of its benefits, the effects of photothermal-mediated hyperthermia are limited to superficial tumors, since this type of energy cannot penetrate deep tissues. In contrast, MLs could overcome this hurdle as they preferentially target highly vascularized tumors27. The accumulation of particles is favored by the atypical and unpredictable lymphatic drainage of the tumor area36. Moreover, the so called enhanced permeability and retention effect of macromolecules is a prominent strategy for targeting solid tumors37. Since magnetic fields can penetrate deeper into tissues, it is feasible to induce hyperthermia in these areas.

The present work shows that the ML are rapidly internalized and accumulate in intracellular vesicles, as revealed by electron microscopy. Even though liposomes are generally well tolerated, some toxicity has been previously reported38. However, our systematic in vitro and in vivo assessments revealed excellent tolerance of blank ML at concentrations suitable for accelerated hyperthermia treatments. Using a non-adiabatic coil, we achieved a temperature increase of 15 °C in less than 4 min with 200 µg of MNPs, with a magnetic field of 584 G, 128 kHz. These results are promising compared to literature data39,40,41since it took in the aforementioned studies around 10 min to reach our targeted temperature, suggesting that our nanovectors provide a fast and comfortable treatment. The LL2 cell line exhibited a sensitivity to the duration of magnetic hyperthermia treatment, achieving 50% cell death in less than 15 min at 41 °C. This result was not observed in the adenocarcinoma cell model. Compared to other reported studies42, our results with CDDP-loaded ML are highly promising. For example, in KB cells, a 44% reduction in cell viability was achieved using ML at 290 kHz and 43.5 °C for 1 h39. In B16F10 cells, a maximum cell death of 80% was observed after 1 h of exposure to 224 kHz and 20mT using ML and decrease until 40% with ML loaded with doxorubicin (0.5 µg/mL)43. In all experiments, the addition of CDDP-ML complexes further increased cell death, demonstrating the enhanced efficacy of drug delivery and hyperthermia in combination.

Our comprehensive examination of in vitro and in vivo adverse effects showed good tolerance of the present blank nanocarriers (not loaded with CDDP) at concentrations necessary for rapid hyperthermia. The lack of significant in vivo toxicity of the empty nanocarriers was a prerequisite for exploring the effect of their CDDP counterparts over tumors induced in animals after injection of syngeneic lung cells in the flank. Therefore, the combination of safety, rapid and sustained hyperthermia and the intracellular localization of the present ML are prominent features towards effective antitumor therapy.

The release of the chemotherapeutic agent is generally achieved after heat modifies the liposome permeability and allows escape of the encapsulated drug44without disturbing the structure of the nanocarrier45,46. To assess whether the cytotoxic effect of the CCDP-loaded ML had an additive effect compared to CDDP or hyperthermia alone, we incubated tumor cells with magnetoliposomes loaded with a non-lethal dose of CDDP. Remarkably, the time-dependent cell death induced by hyperthermia with blank nanocarriers is clearly increased when CDDP-loaded ML were used. This indicates that the combined and simultaneous action of magnetic hyperthermia and CDDP chemotherapy using CDDP-loaded ML increases the cytotoxic effects compared to each therapy alone. In addition, and because high tumor cell death was achieved with a very low dose of CDDP, this strategy could represent a valid alternative to overcome some of the serious adverse effects observed with the higher doses of CDDP required to achieve therapeutic benefit31. The encapsulation of the drug is also probably beneficial, because whereas only some mice treated with MLC showed mild toxicity, all mice treated in parallel with the soluble drug at equivalent dose showed similar lesions. Interestingly, the additive cytotoxic effects were observed in both lung and pancreas tumor cell lines, thus suggesting that the broad applicability of CDDP-ML across various tumor lineages.

Injection of syngeneic lung cells in the flank is a common model of in vivo tumors that recapitulates their biological behavior despite its ectopic location15 and, indeed, we obtained a mass of lung tumor cells that developed rapidly. Interestingly, the efficacy of the CDDP-loaded nanocarrier was demonstrated by improved survival rates of mice injected with the nanocarrier over those animals treated with intratumor soluble CDDP. Likewise, a better tolerability of CDDP-ML is also evident as indicated by reduced total weight loss. This also probably contributes to the extended overall survival of animals, since differences of tumor sizes at equivalent timepoints were not substantial (not shown).

Application of magnetic field to animals yielded two key results. First, an improvement in the survival of mice treated with empty nanocarriers, indicating the beneficial effect of hyperthermia alone. And second, and most important, a significant increase in the overall survival of mice treated with nanocarriers loaded with low dose CDDP. This provides strong evidence that, as it was the case in vitro, there is an efficient nanocarrier-mediated CDDP intratumor accumulation, which contributes to the observed additive effects with hyperthermia. Although the endpoints of ML and MLC treated mice are similar, this is probably due to the small number of mice composing each group, as the overall tendency favors survival of mice treated with the CDDP nanocarrier (MLC).

In summary, we provide evidence of the in vitro and, remarkably, in vivo effectiveness of our nanocarrier. Nevertheless, further studies are needed to determine whether modifying the physical characteristics of the magnetic field – such as combining higher intensity with higher frequency – may result in more efficient hyperthermia and improvement of the CDDP-loaded nanocarrier antitumor activity.
