Introduction

Multiple brain metastases (MBM), affecting 8–10% of metastatic cancer patients1, primarily originate from the intravasation of tumors in the lung (19.9%), melanoma (6.9%), or breast (5.1%), followed by extravasation in the brain area2. Whole-brain radiation therapy (WBRT), as a traditional method of MBM treatment3, although effective at intracerebral control of MBM, can result in toxicity due to its indiscriminate impact on healthy brain tissue. Damage to the normal brain region could result in serious impairments to neurocognitive function (NCF), impacting the quality of life (QoL)4,5,6. In response, stereotactic radiosurgery (SRS) has emerged as an advanced treatment of MBM in a high-dose single fraction with enhanced precision and superior local focus, reducing the impairment to NCF4. When it comes to MBM treatment, traditional multiple-isocenter or non-isocenter SRS planning approaches such as GammaKnife (GK) and CyberKnife (CK) have the disadvantage of time consuming, for the addition of each isocenter extends the treatment delivery by around 10 min and requires repeated patient positioning during treatment7,8. This makes single-isocenter non-coplanar SRS techniques a more favourable option.

Linear accelerators (LINACs) were developed with SRS techniques that allows immobilization and localization without the use of invasive frames to improve treatment experience. Non-coplanar SRS has outperformed its coplanar counterpart by using multiple beams directed at flexible planes, such that the beams can converge at various angles to avoid overlapping at non-tumor regions9. This feature has been shown to provide increased conformity and complexity in treatment geometry, enhancing the sparing of organs at risk (OAR) and reducing the dose to normal brain tissue10, which is particularly important for high fractional treatment such as SRS. Two promising techniques that exemplify this are dynamic conformal arc therapy (DCAT) and volumetric modulated arc therapy (VMAT), both delivered by multileaf collimator (MLC) based LINACs. VMAT features dynamic modulation of MLC movement and gantry rotation speed, allowing for greater degrees of freedom. It has been suggested that VMAT produces a steep dose gradient beyond the target region, which facilitates sufficient sparing of OAR11. Meanwhile, DCAT typically involves less MLC modulation but offers advantages such as a reduced calculation burden, fewer monitor units (MU), and shorter treatment times11,12. Commercially available treatment planning systems (TPS) based on VMAT and DCAT are Varian HyperArc (HA) and Brainlab Elements Multiple Brain Mets (Elements MBM), respectively. To achieve a given clinical goal using VMAT and DCAT embedded TPS, competitive plans can be generated for the same patient from different solutions with different dose distributions11. The variation in dose distribution can be quantified by the Conformity Index (CI) that attributes a score to measure the fitting between the prescription isodose volume and the target volume, the Gradient Index (GI) that shows the rapidness of dose decline beyond the target, and the Homogeneity Index (HI) that accounts for the uniformity of dose distribution in the target volume12,13,14.

A common brain toxicity endpoint reported in the literature is radiation-induced brain necrosis, or radionecrosis, a result of inflammation caused by neuron cell death after SRS at the original tumor site15 which can lead to long-term complications such as headache, nausea, ataxia, and seizure16,17,18. The incorporation of Normal Tissue Complication Probability (NTCP) model has been recommended in evaluating the risk of radionecrosis following SRS-treated MBM19. Over the past decades, different NTCP models were developed to evaluate the control ability of SRS for radionecrosis19,20,21,22. Since 1997, when Niemierko introduced the concept of equivalent uniform dose (EUD) which is defined as the amount of dose that leads to the same fraction of cell survival when uniform irradiation is assumed23, an EUD-based NTCP model was proposed compliant with the empirical normal tissue tolerance parameters developed by Emami24.

Intrinsically, VMAT or DCAT techniques present differences in plan quality. It is important to understand the potential differences in treatment outcomes between the techniques for clinical decision-making. However, the few existing clinical comparison studies involving VMAT and DCAT techniques have yielded different results in terms of dosimetric characteristic and normal tissue protection ability25,26,27,28,29,30. Moreover, there is a lack of clinical comparison studies using NTCP models to predict the risk of radionecrosis in SRS treatment of MBM. In this study, MBM cases treated at the Union Oncology Centre, Union Hospital, Hong Kong SAR, were retrospectively viewed. The dosimetric and radiobiological characteristics of VMAT-based HA and DCAT-based Elements MBM were compared in terms of target coverage, EUD-based NTCP, whole brain and normal brain dose, and dose distribution indices.

Methods and materials

Case recruitment

MBM cases that received SRS treatment between November 2022 and April 2024 at the Union Oncology Centre, Union Hospital, Hong Kong SAR, were included in this study. Computed tomography (CT) images of recruited patients were retrospectively viewed and were used for treatment plan generation. Due to the retrospective nature of the study, the Ethics Committee of the Union Hospital waived the need to obtain informed consent. The experimental protocol was approved by the Union Oncology Centre, Union Hospital. All research protocols were carried out under the institutional guidelines and regulations of the Union Oncology Centre, Union Hospital.

Inclusion Criteria.

  • MBM cases prescribed with single fraction SRS.

  • Having clinically approved prescription and treatment plans.

  • Having more than one treated target.

Treatment plan generation

For each patient with a given prescription, two simulation plans were generated using two advanced single-isocenter frameless SRS techniques: Varian HyperArc (Eclipse v16.1, Varian Medical Systems, Netherlands) employing VMAT technique and Brainlab Elements MBM (Brainlab Elements v4.0, Munich, Germany) employing DCAT technique. The targets and OAR were contoured by an oncologist experienced in intracranial metastases treatment. The photon beam energy of flattening filter free (FFF, 6-MV) was used, and the LINAC type was Varian Edge. The leaf pattern for the MLC was HD120 with a central leaf thickness of 1.25 mm stepping to 2.5 mm at isocenter, and a peripheral leaf thickness of 2.5 mm stepping to 5 mm at isocenter. For both TPS, the prescription dose was given at the 80% isodose line to achieve full coverage of the gross tumor volume (GTV) and 99.5% coverage of the planning target volume (PTV); the clinical goal was set to achieve a maximum dose not exceeding 130% prescription dose, while the dose to the OAR and healthy brain was minimized. All plans were mutually evaluated and verified by the oncologist team.

HA external beam planning was conducted in Eclipse utilizing analytic anisotropic algorithm (AAA) with a calculation voxel size of 1 mm. The SRS support structure model Encompass was to match the immobilization device. PTVs were set to high resolution structures in contouring. Partial arc treatment was utilized when the isocenter was located outside the patient protection zone, while full arc treatment was utilized if it was located inside. Normal tissue objective value was optimized to protect critical structures. All doses were corrected for heterogeneity on the 1.25 mm grid size. Figure 1 shows an example of a plan generated on HA.

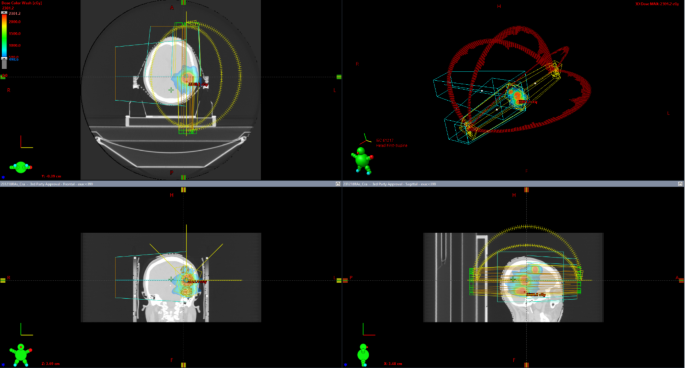

Fig. 1
figure 1

HA plan preview.

Full size image

Elements MBM was calculated with Pencil Beam followed by Monte Carlo algorithm with a calculation voxel size of 1 mm, following that of HA. A tissue model was generated for each case under Couch Top of Frameless Extension. For the gantry and table optimization protocol, a maximum of 2 passes and 4 extra arcs were allowed. A minimum of 4 table angles were assigned, with a maximum of 5 table angles allowed. Automatic Arc Setup Mirroring, Automatic Table Angle Optimization, and Automatic Gantry Angle Optimization were enabled for greater flexibility. Figure 2 shows an example of a plan generated on Brainlab Elements MBM.

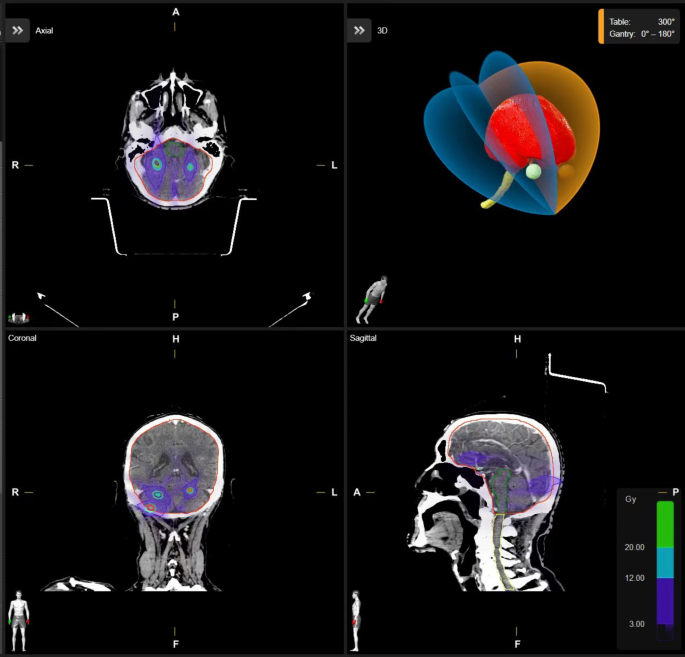

Fig. 2
figure 2

Elements MBM plan preview.

Full size image

Evaluation of indicators of target dose and whole brain dose constraints

To estimate the target dose coverage and quality of treatment of VMAT and DCAT, near-minimum dose, median dose, and near-maximum dose to each PTV (D98%, D50%, and D2%) were calculated and compared between the two systems. Based on the dose-volume constraints guided by UK consensus31, the whole brain volume that received 12 Gy or higher radiation (V12Gy) was recorded for each case to reflect the risk of radiation-induced toxicity to the whole brain. V10Gy, V8Gy, and V5Gy were also included to stay in line with previous studies25,26,27,28,29,30. For the normal brain (brain excluding GTV), the mean dose, the volume receiving more than 12 Gy and more than 80%, 50% and 10% of the prescription dose (V12Gy, V80%, V50%, V10%) were evaluated. Following the UK consensus31, mean dose to the cochlea and maximum doses to the OAR including the lenses, eyes, inner ear, pituitary gland, optic nerve, optic chiasm, brainstem, and spinal cord were evaluated.

Computing indicators of dose distribution

The following indicators accounting for the dose distribution of the treatment systems were analyzed per PTV across all patient plans: Paddick Conformity Index (CI)32, RTOG CI33, Gradient Index (GI)34, RTOG Homogeneity Index (HI)35, and ICRU83 HI35. The equations (Eqs. 1–5) calculating the dose distribution indicators can be found in the Appendix.

Computing the NTCP model outcome

The NTCP model proposed by Niemierko was employed with the organ at risk being the healthy brain and the endpoint being radionecrosis36:

$$NTCP = \frac{1}{{1 + \left( {\frac{{EUD_{{50}} }}{{EUD}}} \right)^{4} \gamma 50}}$$
(1)

where γ50 describes the slope of the NTCP curve parameter, \(\:{EUD}_{50}\) stands for the dose for a 50% complication probability, and the plan specific equivalent uniform dose \(\:EUD\) is given by:

$$EUD = \left( {\sum\limits_{i} {v_{i} D_{i}^{a} } } \right)^{{\frac{1}{a}}}$$
(2)

where \(\:{v}_{i}\) is the partial volume with corresponding biologically equivalent absorbed dose \(\:{D}_{i}\), and \(\:a\) is a tissue-specific fitting parameter. \(\:{D}_{i}\) was obtained from the differential dose-volume histogram (dDVH) using22:

$$D_{i} = d_{i} \times \frac{{\left( {\frac{\alpha }{\beta } + \frac{{d_{i} }}{{n_{f}^{{}} }}} \right)}}{{\left( {\frac{\alpha }{\beta } + D} \right)}}$$
(3)

where \(\:{d}_{i}\) is the fractional dose corresponding to the \(\:{i}_{th}\) partial volume \(\:{v}_{i}\) on the dDVH, \(\:\alpha\:/\beta\:\) is a fitting parameter of the linear quadratic model of cell survival, \(\:{n}_{f}\) is the number of fractions prescribed, with \(\:{n}_{f}=1\) for single–fraction SRS, and \(\:D\) is the dose prescribed per fraction.

Parametrizing the above logistic NTCP function, where \(\:{EUD}_{50}=57.7\:Gy\), \(\:\gamma\:50=2.5\), \(\:\alpha\:/\beta\:=2\), and \(\:a=9\) as recommended by Emami37, Burman38, and Niemierko et al.39 that are specific to intracranial normal tissue, the NTCP model equation reduced to:

$$NTCP = \frac{1}{{1 + \left( {\frac{{57.7}}{{EUD}}} \right)^{{10}} }}$$
(4)

Where:

$$EUD = \left( {\sum\limits_{i} {v_{i} D_{i}^{9} } } \right)^{{\frac{1}{9}}}$$
(5)

The NTCP model was developed on Excel sheets for data processing. The dDVH of the simulated plan was downloaded and input into the NTCP model. NTCP in percentage form was recorded.

Statistical analysis

Data analysis was conducted using SPSS (version 29.0.1, IBM Corp, Armonk, New York, US). Normality test was conducted for all sets of data utilizing Shapiro-Wilk (SW) test. Treatment plans simulated by VMAT and DCAT were compared pairwise. Normal distribution was satisfied if p-value > 0.05 in the SW test. Otherwise, normal distribution was considered violated. Normally distributed data sets were compared using the Paired Samples T Test and non-normally distributed data sets were compared using a paired Wilcoxon Signed Rank Test (WSRT) to identify differences, with two-tailed p-value < 0.05 considered statistically significant.

Results

A total number of 33 targets from 11 MBM cases treated with SRS between November 2022 and April 2024 were studied. The average individual volume of PTV was 1.76 cc, and the average volume of total PTV was 5.29 cc per patient. The ages ranged from 38 to 68 years old, and the mean age was 63 years old. Among these cases, 6 were females and 5 were males, with the prescription dose ranging from 18 to 24 Gy and the treatment percentage prescribed at 80% isodose line. Patient characteristics are summarized in Table 1.

Table 1 Patient summary.
Full size table

Both Elements MBM and HA software achieved excellent plan dosimetry and conformity. Table 2 summarizes the median of doses received by 98%, 50%, and 20% of the target volume. The median value of the near minimum dose (D98%) was found to be higher in VMAT plans at 21.10 Gy (range 18.74–25.95 Gy), equivalent to 105.25% (range 100.01–108.10%) of the prescribed dose. However, the near-maximum doses (D2%) and doses to 50% of the target volume (D50%) were found lower in VMAT than in DCAT at 123.09% (range 119.03–128.61%) versus 124.76% (range 122.19–127.41%), and 115.64% (range 111.80–119.40%) versus 116.61% (range 112.88–120.76%).

Table 2 Summary of doses received by 98%, 50%, and 20% of the target volume (D98%, D50%, and D2%).
Full size table

V5Gy, V12Gy, and the maximum dose received by the whole brain are shown in Table 3. V12Gy and V5Gy for the whole brain also showed no significant difference for the two systems. The average V12Gy and V5Gy were 13.97 cc (range 2.80–61.16 cc) and 54.09 cc (range 13.60–220.38 cc) versus 13.82 cc (range 1.56–68.57 cc) and 48.51 cc (range 6.14– 235.03 cc) for VMAT and DCAT plans, respectively.

Table 3 Summary of V12Gy (cc), V10Gy(cc), V8Gy(cc), and V5Gy (cc) of the whole brain.
Full size table

Table 4 summarizes the NTCP, and the doses received by the normal brain region excluding GTV. The average mean doses to the normal brain (brain volume excluding GTV) were similar at 1.31 ± 0.77 Gy for VMAT and 1.12 ± 0.81 Gy for DCAT. Volumes of the brain excluding GTV receiving 80%, 50%, and 10% of the prescription dose were higher for VMAT than for DCAT. A similar V12Gy was observed for the two TPS at 11.51 Gy (range 2.80–42.89 Gy) and 11.44 Gy (range 1.56–50.48 Gy), respectively. Out of 11 patients, 8 showed higher V80% and 10 showed higher V50% for VMAT plans (5.90 Gy, range 0.35–31.1 Gy) than for DCA plans (3.59 Gy, range 0.26–15.91 Gy). All 11 patients had a higher V10% for VMAT plans at 187.25 Gy (range 34.34–586.68 Gy) than for DCAT plans (range 14.23–503.86 Gy).

Table 4 Doses to the normal brain and NTCP scores.
Full size table

The difference in maximum doses to the OAR was not statistically significant (Table 5). 9 out of 14 OARs identified received a smaller maximum dose on average in the plans generated by the DCAT system, and 13 OARs had a greater number of superior plans in DCAT than in VMAT. The median of the maximum doses to the pituitary was 0.52 Gy (range 0.09–3.04 Gy) for VMAT plans versus 0.26 Gy (range 0.09–2.36 Gy) for DCAT plans. To the left and right inner ear, the median maximum doses were 0.54 Gy and 1.04 Gy for VMAT, compared to 0.59 Gy and 0.42 Gy for DCAT. For the left and right lenses, left and right eye, maximum doses were observed higher in DCAT plans, while that to the optic chiasm was also higher for VMAT plans at 1.33 Gy (range 0.37–3.79 Gy) versus DCAT plans at 0.83 Gy (range 0.30–3.56 Gy).

Table 5 Mean or maximum doses to the OAR.
Full size table

Dose distribution indices are summarized in Table 6. Differences in mean values show that DCAT plans achieved smaller RTOG CI, higher Paddick CI, and smaller GI on average at 1.24 ± 0.16, 0.75 ± 0.08, and 4.00 ± 1.04, versus VMAT plans at 1.53 ± 0.54, 0.68 ± 0.14, and 5.26 ± 2.39, p < 0.01, while VMAT plans achieved lower RTOG HI and ICRU83 HI at 1.23 ± 0.05 and 0.15 ± 0.02 versus DCAT plans at 1.25 ± 0.05 and 0.18 ± 0.02, p < 0.01.

Table 6 Dose distribution assessment indices.
Full size table

Discussion

The study investigated the dosimetric and radiobiological outcomes of VMAT and DCAT by a clinical comparison of 33 targets recruited from MBM patients. While high-quality treatment plans could be generated using both techniques, significant differences were observed in target coverage, NTCP, dose delivered to the whole brain and OAR, and dose distributions, which should be considered in clinial decision-making. Both techniques fulfilled adequate target coverage and satisfied the oncologist’s dose prescription by achieving > 99.5% of the PTV volume and full coverage (> 100%) of the GTV volume at the 80% isodose prescription. Both techniques prevented the occurrence of hot spots by keeping the near maximum point dose (D2%) in each PTV controlled below 130% as requested. The results show that VMAT provided a larger median near-minimum dose (D98%) of 21.10 Gy at 105.25% of the prescription dose, yet lower D50% and D2%. This suggests that VMAT plans favor a larger isodose cloud with better homogeneity to achieve more extensive target volume coverage but a less favorable dose-target conformity. The finding coincides with Liu et al.28 that VMAT plans favored moderate-to-high isodose metrics while DCAT plans favored low-dose metrics.

The dosimetric characteristics of VMAT and DCAT can be visualized from a sample plan in Fig. 3 which has a prescription of 20 Gy at 80% isodose line. Comparing the VMAT generated plan (Fig. 3A) against DCAT generated plan (Fig. 3B) shows a more visible dose bridge between individual targets. A wider dose bridge indicates a larger volume of dose spill, so that the normal tissue at the close vicinity of the targets is more likely to be irradiated; The point dose was measured to be 958.2 cGy (VMAT) versus 560.9 cGy (DCAT) at the same location (difference ± 0.1 mm) at the middle of the dose bridges, see Fig. 3. Comparing Fig. 3A(2) and B(2) which contain the cumulative dose volume histograms (cDVH), both VMAT and DCAT saw sharp dose fall-off at PTV and GTV margins with comparably good local control represented by low doses to the normal brain.

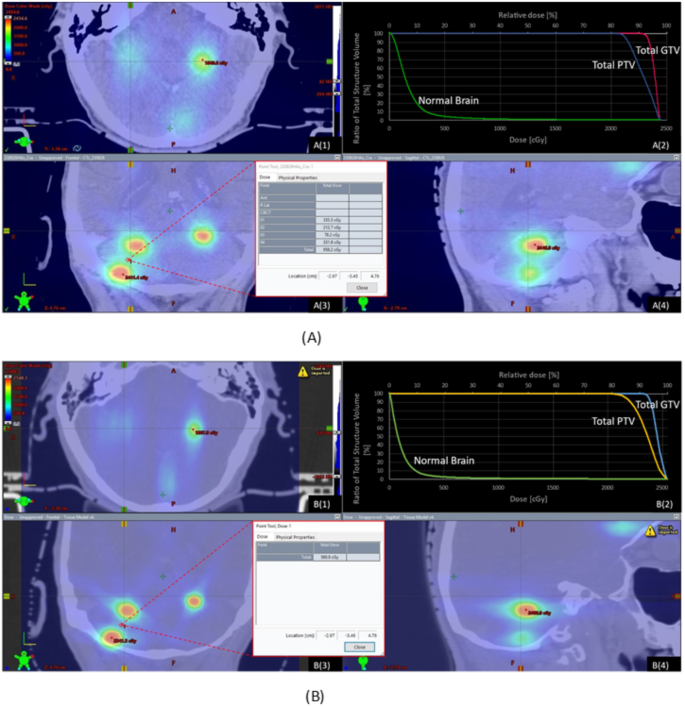

Fig. 3
figure 3

Dose distributions of a case with a prescription of 20 Gy at 80% isodose line. (A) Dose distribution of the VMAT plan. A(1): Transversal, Y=–1.38 cm; A(2): cDVH of total PTV, total GTV, and Normal Brain; A(3): Frontal, Z = 4.76 cm; A(4): Saggital, X=–2.79 cm. The point dose at the middle of the dose bridge (location X=-2.97 cm, Y = -3.45 cm, Z = 4.76 cm) was 958.2 cGy. (B) Dose distribution of the DCAT plan. B(1): Transversal, Y=–1.38 cm; B(2): cDVH of total PTV, total GTV, and Normal Brain; B(3): Frontal, Z = 4.76 cm; B(4): Saggital, X=–2.79 cm. The point dose at the middle of the dose bridge (location X=-2.97 cm, Y=-3.46 cm, Z = 4.76 cm) was 560.9 cGy.

Full size image

Radionecrosis is a crucial risk to consider when planning for individualized SRS treatment40. Although Raza25 and Hofmaier26 observed significantly lower V12Gy and better normal tissue sparing in DCAT plans compared to VMAT plans, in our study, the maximum dose and volume of the whole brain receiving 12 Gy (V12Gy) or higher were found to be similar. The UK consensus has identified V12Gy as an important independent predictor of both symptomatic and asymptomatic radionecrosis31. According to the similar V12Gy values observed, VMAT and DCAT showed a similar ability to reduce the risk of radionecrosis and to preserve NCF.

Another important indicator of radionecrosis risk was the NTCP outcomes, which were kept below 5% for both VMAT (0.13%, range 0.01–4.39%) and DCAT (0.11%, range 0.02–1.09%), both showing good local control under careful treatment modulation. In line with this finding, the whole brain V12Gy, V10Gy, V8Gy, and V5Gy showed no significant differences between VMAT plans and DCAT plans in this study, although DCAT plans presented with slightly higher median values for all these indices, which was not surprising given its larger volume of the prescription isodose cloud. Therefore, for patients with relatively larger individual targets whose central areas are likely to experience less uniform dose distribution, VMAT might be clinically effective in achieving adequate dose coverage at GTV margins and in better preventing the occurrence of hot spots as the target gets larger, although the OAR maximum dose may be potentially compromised. Nevertheless, dynamic trajectory radiotherapy (DTRT) has been developed as an VMAT extension by allowing non-coplanar beam delivery with dynamic table and collimator rotations41, DTRT has improved the dosimetric features and has shown promising results in reducing OAR dose and NTCP compared to VMAT42. Future studies are needed to further compare the clinical performance between DTRT and DCAT.

It should also be noted that for any single case, the absolute values of predicted NTCP outcomes may not be reliable, but it is the difference in NTCP that can provide useful information when alternate treatment plans are compared43. The uncertainty in the absolute value of NTCP is thus inevitable. One limitation of our NTCP computation is the use of published parameter values. Although these parameter values were highly appreciated, any variation in these values can lead to changes in the NTCP results calculated. For instance, the tissue-specific parameter \(\:a=9\) was obtained from the empirical dose-volume fitting by Emami et al.37; however, analogous data can also be obtained from an individual institutional practice44. Thus, for a given institution, using NTCP model parameters based on the calibration of a selected model against average clinical outcomes can potentially yield more accurate NTCP values reflecting situational situations. For a clinic that would like to include NTCP in radionecrosis evaluation, the implementation of NTCP algorithms is another option, such as Philips Pinnacle and Varian Eclipse embedded with the Lyman model and Poisson model for NTCP/TCP45.

Previous comparison studies have reported different results regarding the conformity of VMAT and DCAT techniques. Such discrepancies may be due to differences in plan optimization when processing lesions of different sizes and shapes. In this study, VMAT treated plans presented with more uniform dose distribution indicated by a significantly smaller RTOG HI and ICRU83 HI, preventing the hot spots occurring. On the other hand, DCAT achieved superior conformity with a smaller average RTOG CI at 1.24 ± 0.16 compared to VMAT (RTOG CI 1.53 ± 0.54), which was further supported by the higher mean Paddick CI (0.75 ± 0.08) observed in the DCAT plans than in VMAT plans (0.68 ± 0.14). For VMAT plans, we observed that Paddick CI decreased as the target volume decreased, as shown in Fig. 4, which is likely to be caused by over-dosage, especially for smaller targets where the high-dose spills appeared more prominent. A study comparing VMAT against CK showed that although VMAT presented with better treatment efficiency than CK in treating MBM, its conformity was lower owing to the greater PTV margin46. Similar conclusions were also drawn in a dosimetric comparison between GK and VMAT47. Our finding also suggested that DCAT plans achieved a smaller GI of 4.00 ± 1.04 compared to VMAT plans (5.26 ± 2.39). Since the smaller the GI the sharper the dose fall-off, an increase in GI value is associated with the risk of normal tissue dose. In this way, regions of tissue outside the targets of DCAT-generated plans are less likely to experience NCF decline, consistent with previous studies26,27.

According to Figs. 4, 5 and 6, DCAT plans maintained smaller variations in dose distribution indices despite the variation in target sizes, indicating that the dose distributions of DCAT plans were less likely to be affected by the decline in target volumes. Narayanasamy et al.29 noted that DCAT primarily uses a dynamic conformal arc approach for dose optimization, producing MLC segments typically of the same size as the treated tumors, resulting in superior planning conformity compared to VMAT. In clinical practice, target volumes as small as 1 cc are not uncommon. Considering the results of GI and CI, it is recommended that patients with small individual PTV volumes (< 1 cc) may benefit from DCAT treatment to reduce normal tissue dose.

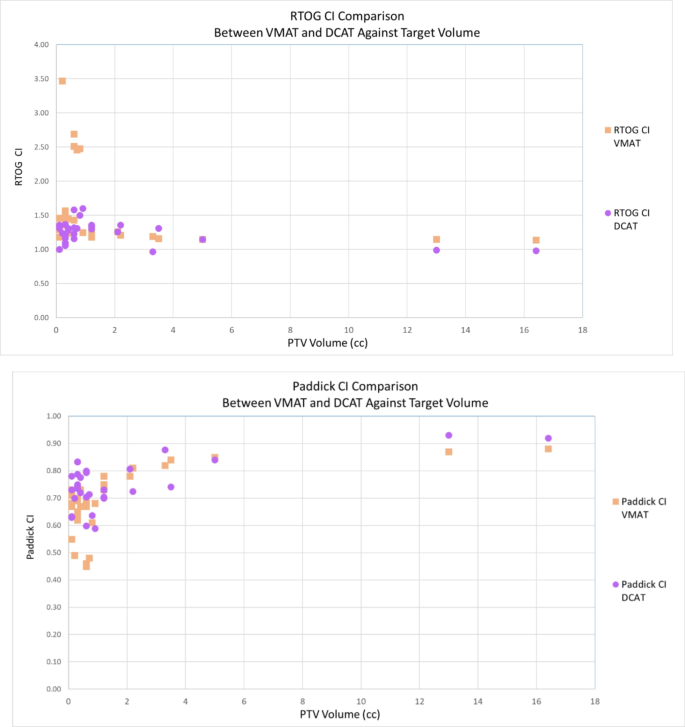

Fig. 4
figure 4

Conformity Indices (RTOG CI and Paddick CI) Against PTV (cc).

Full size image

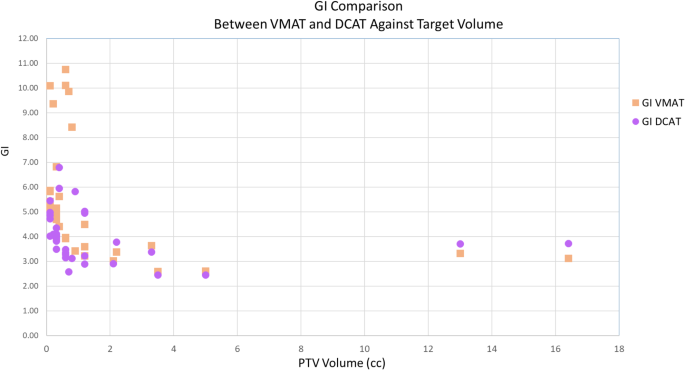

Fig. 5
figure 5

Gradient Index Against PTV (cc).

Full size image
Fig. 6
figure 6

Homogeneity Indices (RTOG HI and ICRU83 HI) Against PTV (cc).

Full size image

The limitations of this study include its single-institution design, which results in a relatively small sample size that may not accurately reflect the situation of a larger patient population treated at various clinical centers. Additionally, most of the PTV included in this study consisted of low volumes and high sphericity, thus the influence of PTV size and shape on the performance of DCAT and VMAT may not be addressed adequately. Future multi-institutional studies using larger sample sizes, different energy profiles, and diverse target sphericity are needed to verify the results.

Conclusion

This clinical comparison study compared the treatment plan quality of VMAT and DCAT techniques in terms of target coverage, NTCP, and dose distribution, providing insights into the dosimetric and radiobiological outcomes of the two techniques. To protect NCF and improve QoF after SRS in an individualized treatment plan, it is important to consider these differences. Both techniques achieved remarkably low NTCP under clinical settings. HA plans tended to have a higher target dose profile with more adequate target coverage but with a larger volume of high, medium, and low dose spills, and better dose homogeneity. Meanwhile, Elements MBM plans exhibited better beam conformity and steeper dose gradient, and the plan quality was less susceptible to target size variations. We recommend for patients with small PTV volumes less than 1 cc, DCAT might be a better clinical option while VMAT should be considered for large intracranial targets where hot spots could easily appear. In general, the results showed that both VMAT and DCAT were able to generate high-quality SRS plans under the careful treatment modulation by radiation oncologists and medical physicists.
