Introduction

Paracetamol (PAR), [acetaminophen or N-(4-hydroxyphenyl) acetamide] is one of the most widely used drugs in the world and is listed as an essential drug by the World Health Organization (WHO)1. The suggested PAR dosing for adults and children ≤ 12 years is 500 to 1000 mg every 4–6 h as necessary, with a maximum of 4000 mg in 24 h2. PAR was used as a fever medicine until the end of the nineteenth century. In 1955, due to the lake of side effects, it became available without a prescription, and its use was announced for children from one month to adults, as well as pregnant women. Medicinal forms of PAR are available in tablets, capsules and rectal suppositories3,4,5. Poisoning caused by excessive consumption of PAR and accidental ingestion by children showed that it causes severe acute and fatal liver necrosis. Consumption of 200 mg/kg in patients weighing less than 50 kg shows severe hepatotoxicity6. In case of a higher dose, liver transplant or death follows. As a result, there is a necessity for developing highly sensitive and selective analytical techniques for the determination of PAR in real samples. Common methods of PAR determination include spectroscopic, chromatographic, and electrochemical methods7,8. On the other hand, diclofenac (DIC) constitutes a pharmacological agent classified as a non-steroidal anti-inflammatory drug, employed in the managing of degenerative joint disease, sports-related injuries, postoperative pain relief, musculoskeletal injuries, and osteoarthritis9. Furthermore, it serves a multifaceted role as an analgesic, antipyretic, and anti-rheumatic agent10. Generally, DIC is offered in either 25 mg or 50 mg doses 1–4 times per day for total doses between 50 and 200 mg per 24 h11. The primary mechanism underlying its analgesic and anti-inflammatory properties is the inhibition of the enzyme cyclooxygenase, thereby obstructing the synthesis of prostaglandins. It is imperative to ascertain DIC concentrations at lower levels within pharmaceutical formulations and actual biological samples, attributable to its increased solubility and rapid absorption by synovial fluid11,12,13. The analytical methods for the determination of DIC that reported in the literature include spectrophotometric14, chromatographic15 and electrochemical methods16. On the other hand, the simultaneous determination of pharmaceutical compounds has gained significant attention in analytical chemistry, particularly in environmental monitoring and clinical diagnostics17,18. Among these compounds, PAR and DIC are widely used analgesics and anti-inflammatory medications, respectively19. So, their effective and simultaneous quantification is crucial due to their prevalence in medical prescriptions and potential environmental impacts19,20,21,22,23. The use of simple, inexpensive, specific and sensitive electrochemical methods for simultaneously determining of these drugs is still of interest to researchers24. Compared to other methods the electrochemical methods, in addition to the above benefits, have advantages such as fast response time, portability, and miniaturization25,26,27. Determination of drugs at the surfaces of unmodified electrodes has low sensitivity and selectivity, which can be increased them by modifying their surface28. Nanostructures such as metal nanoparticles, nanocarbons, and nanocomposites with excellent physical and chemical properties have been introduced as modifier in the fabrication of electrochemical sensors and biosensors29,30,31,32,33. Also, nowadays, in design of the electrochemical sensors and biosensors, two-dimensional materials such as layered double hydroxides, Mxenes, and metal–organic frameworks (MOFs) are increasingly being used34,35,36. MOFs are 2D materials with porous and crystalline structures composed of metal ions or clusters coordinated with organic ligands37,38. MOFs have been widely used in electrochemistry due to their advantages, such as high surface-to-volume area and open metal sites39,40,41. A group of MOFs, is called zeolite imidazolate frameworks (ZIFs), are a regular porous materials of metal nodes such as Zn2+and Co2+ along with imidazole ligands like as 2-methylimidazole (2-MeIm)37. ZIFs have high porosity, high stability, and adjustable pores. Due to the structure’s proper pore size and the electrocatalytic activity of metal ions, despite the lack of electrical conductivity of these materials, they are used in electrochemical sensors and biosensors42,43. It should be noted that, the challenge of the non-conductivity of the ZIFs is solved by integrating of them with nano carbon materials such as graphene oxide, reduced graphene oxide, carbon nanotubes, and carbon quantum dots as well as conductive nano polymers44,45. By combining these materials, the constructed nanocomposites will have sufficient conductivity to be used in preparing of modified electrodes as sensors and biosensors46,47. Graphene oxide nanosheets (GONs) exhibit significant chemical reactivity, hydrophilicity, and stability within aqueous and certain polar solvents due to presence of the abundant of oxygen-containing functional groups on their surface31,43,46,48. The distinctive electrochemical characteristics of GONs, along with its extensive specific surface area, facilitate the modified electrode derived from graphene oxide to substantially amplify the electronic redox signal of electrochemically active compounds, resulting in its prevalent application within the domain of sensors and biosensors49.

Silica nanoparticles (SiO2NPs) alone isn’t suitable material for electrode modification due to its inadequate electrical conductivity and insolubility in aqueous environments, thereby make it impossible to carry out electrochemical reactions50,51. On the other hand, SiO2NPs shows remarkable mechanical characteristics, encompassing substantial hardness, and longevity. Therefore, practically SiO2NPs undergoes modification through doping and composite methodologies to enhance its electrochemical efficacy52. SiO2NPs in its porous form, is exceptionally conducive to the synthesis of nanocomposite materials aimed to enhancing the functionalities of MOFs, attributable to its remarkable stability and structural versatility. SiO2NPs serves not only as a structural substrate for MOFs nanocomposite but also as an augment material’s stability through the hydrophobic interactions or covalent linkages53,54,55. The composite formation strategies involving MOFs/SiO2NPs hybrids typically encompass an in-situ approach, wherein MOFs crystals are cultivated on the preformed SiO2NPs, as well as the sol–gel procedure, which entails the application of a SiO2NPs coating on the synthesized MOF crystals56,57. Also, the incorporating of the SiO2NPs within GONs composites facilitates scalability and economic efficiency while preserving performance integrity, which is imperative for industrial applications. Its amalgamation into GONs composites significantly augments the mechanical stability and strength of the resultant materials. Furthermore, SiO2NPs nanoparticles contribute to the enhancing of interlayer spacing between GONs, thereby inhibiting restacking and ensuring the retention of a substantial surface area58,59,60. As reported in the literature, the ZIF-8, SiO2NPs, and graphene oxides nanocomposites demonstrate commendable biocompatibility, substantial surface area, effective dispersal characteristics, and rapid electron transfer capabilities, which have been utilized for both in electrochemical investigation and development of electrochemical sensors50,51,52,53,54,55,56,57,58,59,60,61. To date, there has no documented about the application of the ZIF-67/SiO2NPs/GONs nanocomposite as a modifier at the GCE for the individual and simultaneous determination of PAR and DIC by electrochemical methodology. In the present investigation, the electrochemical characteristics of PAR and DIC were studied utilizing the ZIF-67/SiO2NPs/GONs/GCE through cyclic voltammetry (CV), differential pulse voltammetry (DPV) and chronoamperometry (CA) techniques, while also assessing the influence of various experimental parameters on the electrooxidation of these compounds. Another objective of this research was the concurrent simultaneous quantification of PAR and DIC utilizing ZIF-67/SiO2NPs/GONs/GCE through the DPV technique in real samples.

Experimental

Chemicals and apparatus

A concise elucidation of the chemicals and reagents, apparatus, and methodologies for the physicochemical characterization and electrochemical analysis are outlined in the Supporting Information.

Preparation of the SiO2NPs/GONs

The synthesis processes of ZIFs-6762, GONs63 and SiO2NPs64 based on the literature are provided in the Supporting Information. For the preparation of the SiO2NPs/GONs, 0.6 g of the synthesised GONs (Fig. 1, step 1) was dispersed in 50 mL of double distilled water and thoroughly mixed. Then, 0.2 g of SiO2NPs produced from the rice husk char (RHC) via the chemical treatment and calcination (Fig. 1, step 2) was added to the mixture and stirred using a magnetic stirrer for about 60 min. After that, 5 mL of the sodium citrate solution (1%) which was boiled for about 55 min and 5 mL of sodium sulphite 0.1 M were added to the above mixture and stirred for 3 h at 100 °C. Then, the solution was cooled, filtered and washed with double distilled water and ethanol. Finally, the prepared product was dried in oven at 100 °C for about 1 h64. The schematic preparation steps of the SiO2NPs/GONs were shown in the Fig. 1, step 3.

Fig. 1
figure 1

Schematic synthesis steps of the ZIF-67 and GONs (step 1), SiO2NPs (step 2), SiO2NPs/GONs and ZIF-67/SiO2NPs/GONs (step 3).

Full size image

Preparation of the ZIF-67/SiO2NPs/GONs

The ZIF-67/SiO2NPs/GONs nanocomposite was prepareded by a simple precursor. Firstly, 0.06 g of ZIF-67 was dispersed in 25 mL of ethanol and ultrasonicated for about 30 min to form a homogeneous dispersion. Then, 0.02 g of SiO2NPs/GONs was sonicated in 10 mL of ethanol for 1 h to form a dispersion. The sonicated SiO2NPs/GONs was added into the ZIF-67 suspension and mixed by a magnetic stirring for 3 h. The mixture was dried in a vacuum oven at 70 °C for about 12 h to obtain ZIF-67/SiO2NPs/GONs nanocomposite. The schematic preparation process of the ZIF-67/SiO2NPs/GONs was shown in the Fig. 1 step 3.

Construction of ZIF-67/SiO2NPs/GONs/GCE

The working approach used to modify the GCE is outlined in our previous study65. However, the construction process of the ZIF-67/SiO2NPs/GONs/GCE was reported with detailed in the Supporting Information.

Results and discussion

Physicochemical characterization of the nanocomposite

The morphological and compositional characteristics of materials have significant influence on their physicochemical properties. Typical morphology of synthesized materials: GONs, SiO2NPs/GONs, ZIF-67, and ZIF-67/SiO2NPs/GONs are characterized by the scanning electron microscope (SEM) and presented in Fig. 2 (images of A-D). The SEM image of GONs distinctly reveals the layered architecture of GONs, featuring wrinkled sheets at the peripheries (image A). The image of SiO2NPs/GONs clearly illustrates a consistent application of the modified SiO2NPs, exhibiting a spherical morphology upon the surface of the GONs (image B). A magnified view of the morphology of ZIF-67 can be seen in Fig. 2 image C. From this image, it can be realized that the ZIF-67 presented perfect polyhedral shape (consistent with previous reports66,67). In contrast, the morphology of ZIF-67/SiO2NPs/GONs (image D) presents a slightly uniform, wrinkled, and textured appearance. These findings imply that, despite of the presence of numerous SiO2NPs/GONs on the surface of ZIF-67, the polyhedral morphology of the ZIF-67 preserved in perfect detail. The elemental distribution maps related to the synthesized nanocomposite, ZIF-67/SiO2NPs/GONs, are depicted in Fig. 3 (above maps), which unequivocally demonstrates the existence of the elements Co, C, N, Si, O, and Na (alongside the corresponding weight percentages of these elements) within the sample and signifies the successful synthesis of the ZIF-67/SiO2NPs/GONs nanocomposite devoid of any elemental impurities in its composition. Conversely, the energy-dispersive X-ray (EDX) spectrum of ZIF-67/SiO2NPs/GONs was recoded, revealing the surface distribution of the elements of Co, C, N, Si, O, and Na, collectively. These findings are presented in Fig. 3 (lower spectrum and its inset).

Fig. 2
figure 2

SEM images of synthesized materials: (A) GONs, (B) SiO2NPs/GONs, (C) ZIF-67 and (D) ZIF-67/SiO2NPs/GONs.

Full size image
Fig. 3
figure 3

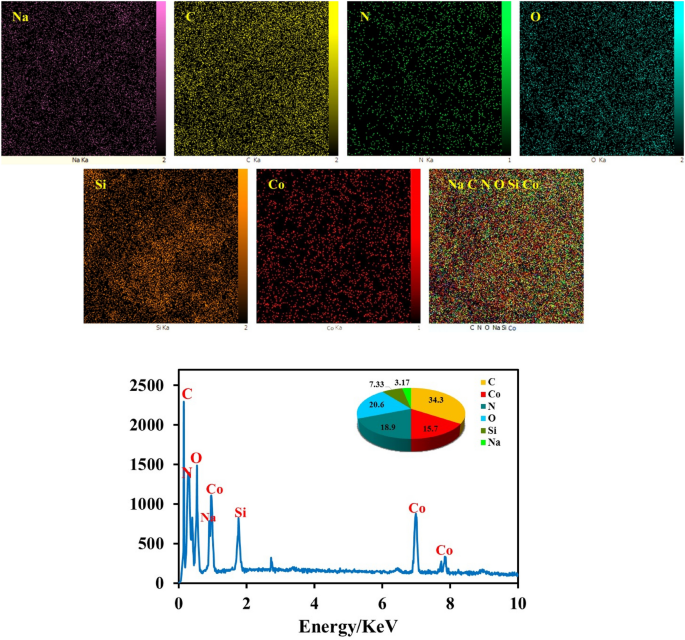

Elemental mapping patterns of the ZIF-67/SiO2NPs/GONs (above maps) and the EDX spectrum of as-prepared ZIF-67/SiO2NPs/GONs [below (inset is percentage of atoms)].

Full size image

X-ray diffraction (XRD) analysis was employed to examine the crystallographic configuration and phase integrity of the synthesized GONs, ZIF-67, SiO2NPs/GONs, and ZIF-67/SiO2NPs/GONs. In the case of the GONs sample, the observed peak at approximately 2θ = 26.48° (refer to pattern b in Fig. 4) was correlated to the (002) diffraction of the organized GONs layers and exhibiting d-spacing of 3.38 Å, which is significantly greater than that of natural graphite (3.34 Å), thereby indicating the incorporation of oxygen-containing functional groups within the GONs68. In Fig. 4, pattern c shows the XRD of the SiO2NPs/GONs, which reveals a substantial diminution in the diffraction intensity of the (002) plane, along with the appearance of small diffraction peaks at the 2θ = 22°, 45° and 53.4° in this hybrid material69. These findings imply that the effective integration of GONs and SiO2NPs was achieved through electrostatic self-assembly, culminating in the formation of GONs/SiO2NPs hybrids. In the case of ZIF-67, as illustrated in Fig. 4 (pattern d), the diffraction peaks of the synthesized ZIF-67 correspond with the simulated XRD pattern for ZIF-67 (pattern a)70,71. The XRD pattern of ZIF-67 exhibits distinct diffraction peaks, signifying the predominance of a crystalline structure; diffraction peaks corresponding to 2θ values of 7.41°, 10.44°, 12.78°, 14.71°, 16.45°, 18.11°, 22.31°, 24.61°, 25.65°, 26.61°, 29.61°, 30.76°, 31.41°, and 32.56° can be assigned to the (011), (002), (112), (022), (013), (222), (114), (233), (224), (134), (044), (334), (244), and (235) planes, respectively70,71. The emergence of above peaks demonstratives the successful synthesis of ZIF-67, which was characterized by elevated crystallinity and a cubic framework (calculated lattice parameters: a = b = c = 16.9077 Å) with the Ī43m space group. The obtained results in the XRD pattern of the synthesized ZIF-67 are in good agreement with reported papers70,71. For the nanocomposite material, ZIF-67/SiO2NPs/GONs, as illustrated in Fig. 4 (pattern e), all aforementioned characteristic peaks relating to ZIF-67 and SiO2NPs/GONs are distinctly observable, thereby demonstrates the effective synthesis of ZIF-67/SiO2NPs/GONs, characterized by a high-quality crystalline architecture.

Fig. 4
figure 4

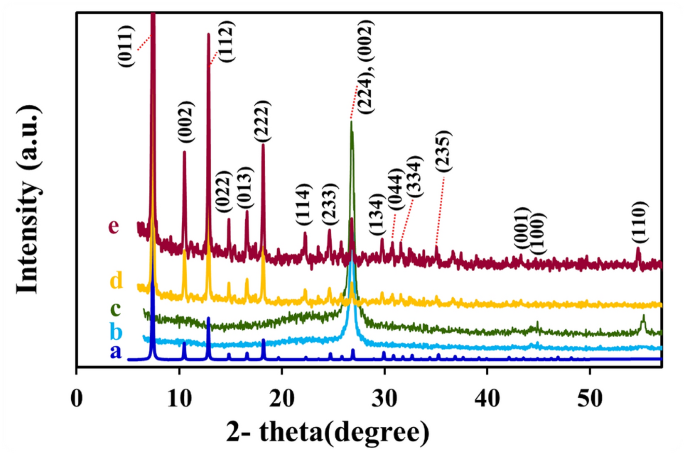

XRD patterns of (a) simulated pattern based on single-crystal data of ZIF-67, (b) GONs, (c) SiO2NPs/GONs, (d) ZIF-67 and (e) ZIF-67/SiO2NPs/GONs.

Full size image

For electrochemical characterization of the nanocomposite modified electrode along with the electrochemical properties of synthesized materials, a series of modified electrodes were fabricated namely; GONs/GCE, SiO2NPs/GONs/GCE, ZIF-67/GCE, and ZIF-67/SiO2NPs/GONs/GCE and tested by electrochemical methods. The cyclic voltammetric technique was implemented at the mentioned modified electrodes in the 0.1 M KCl solution containing 5 mM of [Fe(CN)6]3-/4- as a redox probe. The obtained cyclic voltammograms (CVs) were illustrated in Fig. 5 A for the GONs/GCE (curve b), SiO2NPs/GONs/GCE (curve c), ZIF-67/GCE (curve d), and ZIF-67/SiO2NPs/GONs/GCE (curve e) which exhibit a distinct pair of redox peaks for the [Fe(CN)6]3-/4-, analogous to those observed at the unmodified GCE (curve a). Under identical experimental conditions, the anodic and cathodic peak currents follow a recognizable sequence of GCE < GONs/GCE < SiO2NPs/GONs/GCE < ZIF-67/GCE <  < ZIF-67/SiO2NPs/GONs/GCE. Therefore, the ZIF-67/SiO2NPs/GONs/GCE exhibit the highest peak currents which may originated from the favorable conductivity and high active surface area of the nanocomposite, suggesting that the ZIF-67/SiO2NPs/GONs/GCE enhances the electron transfer rate of redux couple. Also, the electrochemical active surface area (ECSA) of the modified electrodes was determined through the cyclic voltammetric technique at various scan rates (not shown here), utilizing the Randles–Sevcik equation [Eq. (1)], as articulated in the following expression:

$${\text{I}}_{{\text{p}}} = 2.69 \times 10^{5} {\text{n}}^{3/2} {\text{AC}}_{0} {\text{D}}^{1/2} \upsilon^{1/2}$$
(1)
Fig. 5
figure 5

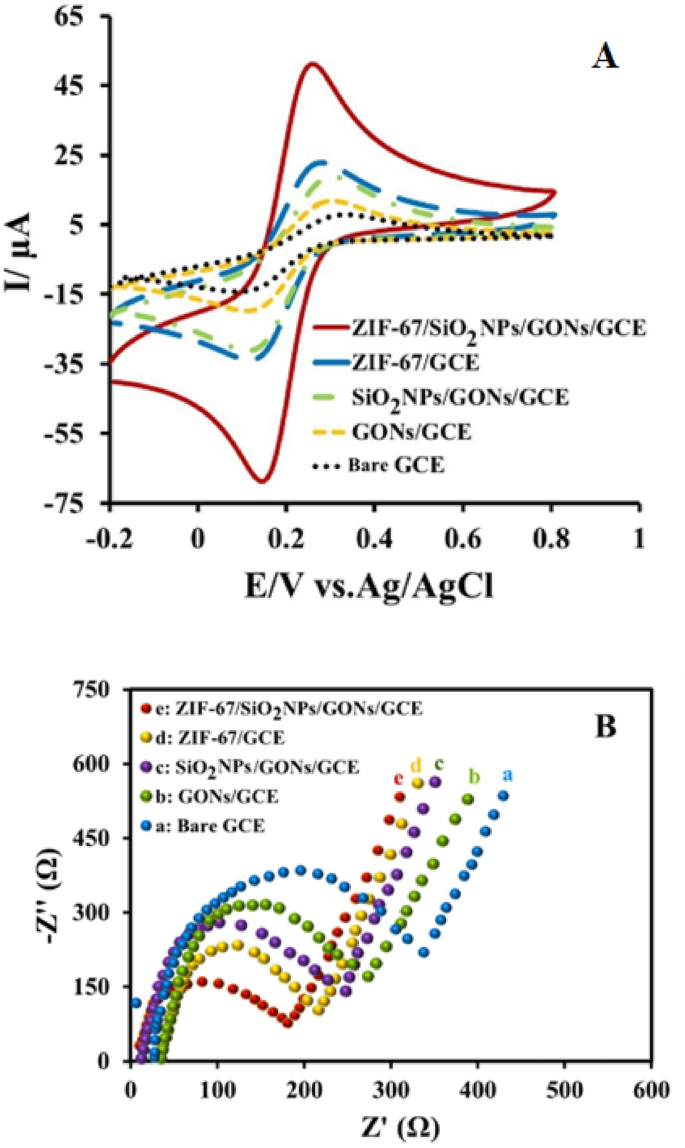

(A) CVs of the bare GCE, GONs/GCE, SiO2NPs/GONs/GCE, ZIF-67/GCE, ZIF-67/SiO2NPs/ GONs/GCE in 0.1 M KCl solution containing 5 mM [Fe(CN)6]3-/4- scan rate of 100 mV/s. (B) EIS spectra of the same electrodes in the same solution.

Full size image

The elucidation of each parameter (Ip, n, D, A, C0, and υ) is comprehensively detailed in the extant literature that has been previously documented72. Through the calculations, the measured ECSA were estimated as 0.043, 0.078, 0.108, 0.125, and 0.281 cm2 for GCE, GONs/GCE, SiO2NPs/GONs/GCE, ZIF-67/GCE, and ZIF-67/SiO2NPs/GONs/GCE respectively. The findings indicate that the ZIF-67/SiO2NPs/GONs/GCE configuration has the highest ECSA and consequently the greatest number of electrochemical active sites, thereby potentially augmenting the electrochemical signals.

In addition, the conductivity properties and charge transfer of the fabricated modified electrodes were examined in 0.1 M KCl solution containing 5 mM [Fe(CN)6]3-/4- using electrochemical impedance spectroscopy (EIS). As can be seen in Fig. 5B, the modified electrode coated with ZIF-67/SiO2NPs/GONs formed a semicircle with a smaller diameter than the bare and other modified GCE. Randles equivalent circuit electrode (Rct) values for the bare GCE being approximately 385 Ω. While, following the modification, the Rct decreased to the 293.5 Ω for the GONs/GCE, 265 Ω for SiO2NPs/GONs/GCE, 220 Ω for the ZIF-67/GCE and finally 175 Ω for the ZIF-67/SiO2NPs/GONs/GCE, thereby indicating the enhanced conductivity of the final nanocomposite modified electrode; ZIF-67/SiO2NPs/GONs/GCE. This enhancement in the conductivity properties can be ascribed to the increased charge transfer kinetics associated with ZIF-67/SiO2NPs/GONs/GCE. On the other hand, these values are interpreted as a simple electron exchange between the constructed modified electrodes with [Fe(CN)6]3-/4- and the strong conductivity of the main developed nanocomposite; ZIF-67/SiO2NPs/GONs37,41,43,65.

Electrocatalysis activity of the ZIF-67/SiO2NPs/GONs/GCE

The electrocatalysis characteristics and comparative evaluation of the electrocatalytic activity of the ZIF-67/SiO2NPs/GONs/GCE are investigated utilizing the cyclic voltammetric method. The CV response of the ZIF-67/SiO2NPs/GONs/GCE toward the electrooxidation of PAR (0.2 mM) within the potential range of -0.15 to 0.80 V relative to Ag/AgCl in a phosphate buffer solution (PBS) (0.1 M, pH = 7.0) at a scan rate of 100 mV/s is documented and illustrated along with the responses of unmodified GCE, GONs/GCE, SiO2NPs/GONs/GCE and ZIF-67/GCE in Fig. 6A. As depicted in Fig. 6A (curve a), the unmodified GCE demonstrates negligible electrochemical activity concerning the oxidation of PAR. Also, the GONs/GCE (curve b) and SiO2NPs/GONs/GCE (curve c) show the anodic currents slightly more than the unmodified GCE. In fact, the GONs/GCE and SiO2NPs/GONs/GCE don’t have any specific electrocatalysis activity toward the oxidation of PAR in the present conditions. In contrast, the CV curves for the ZIF-67/GCE and ZIF-67/SiO2NPs/GONs/GCE exhibit distinct oxidation peaks, with peak currents as 7.41 μA for the ZIF-67/GCE (curve d) and 18.31 μA for the ZIF-67/SiO2NPs/GONs/GCE (curve e). On the other hand, at the ZIF-67/SiO2NPs/GONs/GCE, the oxidation peak of PAR appeared at + 435 mV (in comparison to + 595 mV at the unmodified GCE). Furthermore, as evidenced in Fig. 6A (curve e), the ZIF-67/SiO2NPs/GONs/GCE manifests a clearly defined and significant peak for the oxidation of PAR, exhibiting the highest current output compared to all previously mentioned incrementally modified GCEs. The findings suggest that the oxidation process of PAR on the surface of the GCE is markedly enhanced due to the incorporation of ZIF-67/SiO2NPs/GONs nanocomposite, which not only preserves the conductivity of GONs but also augments its electrocatalytic efficacy through an increased active surface area. Additionally, as elucidated, this phenomenon characterized by the superior electrocatalytic performance of the ZIF-67/SiO2NPs/GONs/GCE toward PAR oxidation may be attributed to the elevated specific surface area of ZIF-67 and GONs, along with the synergistic interactions among the GONs, SiO2NPs, and ZIF-67, which facilitate exceptional electron transfer capabilities and enhanced electrocatalytic activity. In fact, the significant enhancement in the current response of PAR indicates that the ZIF-67/SiO2NPs/GONs/GCE accelerates the rate of electron transfer, thus functioning as a catalyst for the electrochemical reaction. Ultimately, as observed in Fig. 6A, the absence of a sharp reduction peak and unequivalent to anodic peak for PAR during the reverse scan suggests that the oxidation of PAR at the ZIF-67/SiO2NPs/GONs/GCE is a semi-irreversible process, as inferred from our experimental outcomes and scientific observations4,21,23,73,74.

Fig. 6
figure 6

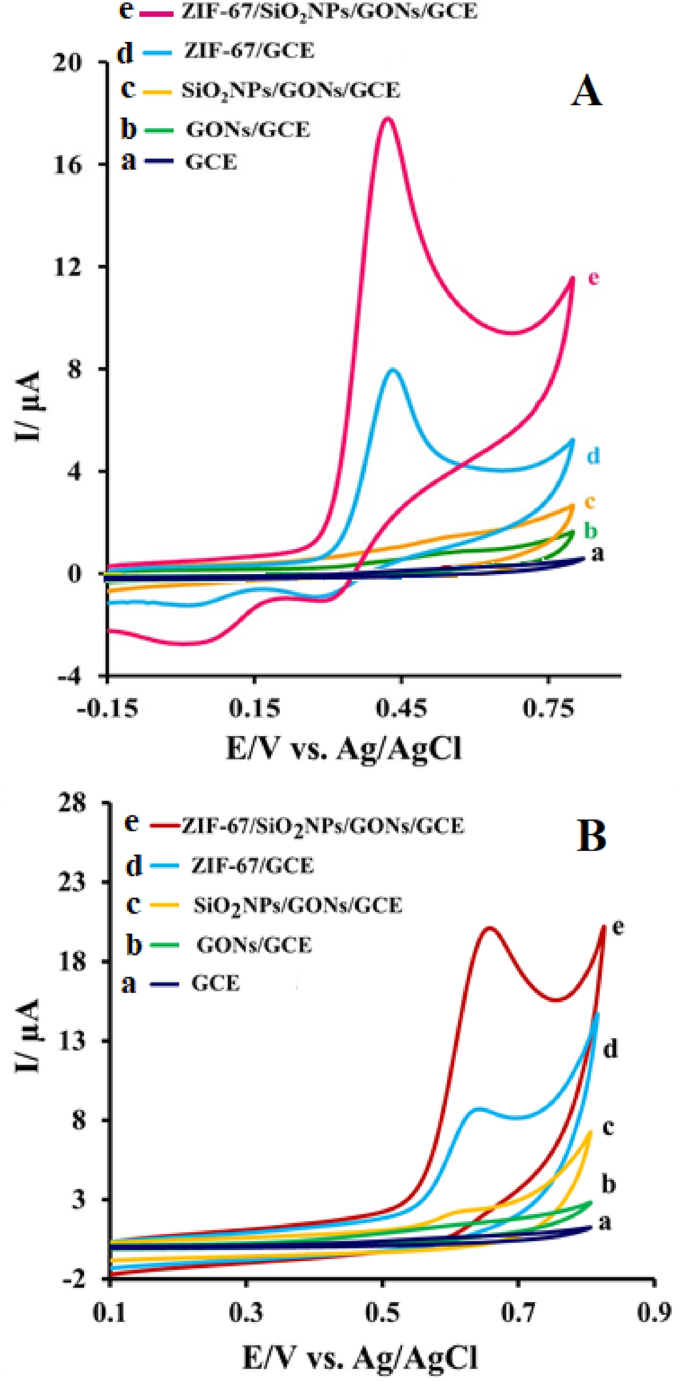

(A) CVs of the PAR and (B) CVs of the DIC at the GCE (a), GONs/GCE (b), SiO2NPsNPs/GONs/GCE (c), ZIF-67/GCE(d) and ZIF-67/SiO2NPsNPs/GONs/GCE (e), respectively. Cyclic voltammetric conditions: scan rate of 100 mV/s for 0.2 mM of PAR and 0.2 mM of DIC in 0.1 M PBS (pH = 7.0).

Full size image

The electrochemical response of the ZIF-67/SiO2NPs/GONs/GCE was similarly explored in the presence of DIC. For this purpose, the CV plot of the DIC (0.2 mM) was recorded at the bare GCE, GONs/GCE, SiO2NPs/GONs/GCE, ZIF-67/GCE and ZIF-67/SiO2NPs/GONs/GCE in the potential window of 0.10 to 0.80 V vs Ag/AgCl in PBS (pH = 7.0) with a scan rate of 100 mV/s (Fig. 6B). As shown in Fig. 6B, each CV curve has oxidation peak with peak current as 0.82 μA (unmodified GCE, curve a), 1.63 μA (GONs/GCE, curve b), 2.31 μA (SiO2NPs/GONs/GCE, curve c), 8.61 μA (ZIF-67/GCE, curve d), and 20.13 μA (ZIF-67/SiO2NPs/GONs/GCE, curve e). on the other hand, at the ZIF-67/SiO2NPs/GONs/GCE, the oxidation peak of DIC appeared at + 644 mV (in comparison to + 689 mV at the bare GCE)13,16,17,21,22,23. Notably, the ZIF-67/SiO2NPs/GONs/GCE shows a remarkable transition in the anodic peak potential, toward lower potential, from + 595 to + 435 mV for PAR and from + 689 to + 644 mV for DIC together with a 20–25 folds enhancement in anodic peak currents of PAR and DIC when compared to the bare GCE. These results, especially the sufficient potential difference between the oxidation of these two compounds, suggest an efficient interfacial charge transfer process occurring at the developed modified electrode. Consequently, the ZIF-67/SiO2NPs/GONs/GCE was used as a sensor for the individual and simultaneous determination of the PAR and DIC.

Effect of the type of supporting electrolyte and pH on the electrocatalytic activity

One of the essential factors that could affect the electrocatalytic activity of the modified electrodes is the type of supporting electrolyte, which can alters the electron interaction between the electrode and analytes. The electrochemical responses of PAR and DIC at the ZIF-67/SiO2NPs/GONs/GCE were studied in different buffer solutions such as PBS, Britton-Robinson buffer and acetate buffer solution. The results showed that the anodic peak currents of PAR and DIC in PBS are more than others supporting electrolyte and PBS has an effective role in the voltammetric responses (data not shown here). Therefor the PBS was selected as the supporting electrolyte for all experiments.

Considering the results of others’ work, pH of PBS will play a considerable effect on the oxidation responses of PAR and DIC at the ZIF-67/SiO2NPs/GONs/GCE75,76,77,78,79. Therefore, the effect of pH was investigated on the electrooxidation of PAR at the modified electrode utilizing cyclic voltammetric technique across several distinct pH levels. Figure 7 shows the obtained CVs (A), oxidation peak current, and peak potential (B) of PAR (0.2 mM) in 0.1 M PBS with different pH in the ranges of 2.0 to 9.0. As can be seen, the CV grams of the PAR changed with the pH of PBS. On the other hand, the peak current values increase at pH between 2.0 and 7.0 due to the participation of protons. Peak current values higher than pH = 7.0 show a decrease in current due to the weak oxidation reaction of PAR, which is kinetically less favorable. The optimal pH of the PBS was chosen based on the maximal peak current in pH = 7.0. As observed in Fig. 7B, the peak potential of PAR oxidation changes to a high negative value with increasing of pH. There was a linear relationship between peak potential of PAR oxidation and pH, and the regression equation is as follows:

$${\text{E}}_{{\text{p}}} \left( {\text{V}} \right) = 0.{7}0{71} - 0.0{\text{461 pH}}\quad \left( {{\text{R}}^{{2}} = 0.{9929}} \right)$$
(2)
Fig. 7
figure 7

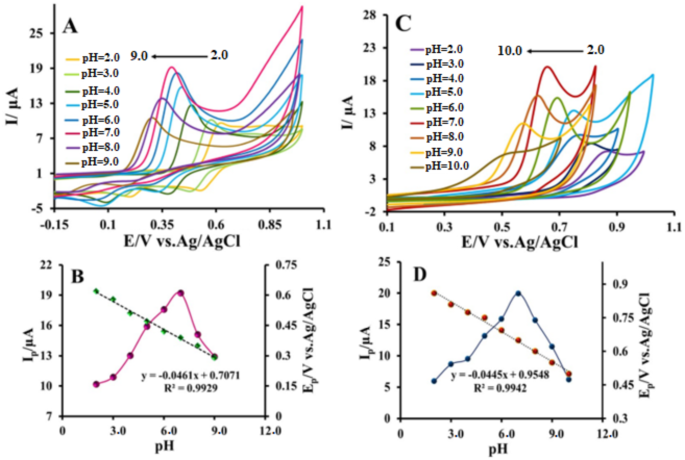

(A) CVs of the ZIF-67/SiO2NPs/GONs/GCE in 0.1 M PBS with different pH from 2 to 9 in the presence of 0.2 mM PAR at a scan rate of 100 mV/s, (B) the effect of pH value on the Ip and Ep of PAR oxidation, (C) CVs of the ZIF-67/SiO2NPs/GONs/GCE in 0.1 M PBS with different pH values from 2 to 10 in the presence of 0.2 mM DIC at a scan rate of 100 mV/s and (D) effect of pH value on the Ip and Ep of the DIC oxidation.

Full size image

The slope of Ep against the pH graph, 0.0461 (V/pH), exhibits a remarkable proximity to the theoretical value of 0.0591 V/pH (Nernst slope), thereby substantiating the participation of an equivalent quantity of protons and electrons in the electrochemical reaction associated with the redox process of PAR. Furthermore, Fig. 8 delineates a probable electrochemical reaction mechanism for PAR, wherein the PAR molecule facilitates the transfer of 2e− and 2H+ to yield the corresponding oxidized species75. These findings are congruent with previously documented researches76,77,78,79. Also, the effect of pH on the electrooxidation of DIC at the ZIF-67/SiO2NPs/GONs/GCE was investigated. Similar to the electrooxidation of PAR at this modified electrode, the resulting CVs (Fig. 7C) were proportionally changed with pH, ​​and DIC oxidation behavior depend on the pH of the PBS. The correlation between the peak current and peak potential in oxidation of DIC and the pH (in the range of 2.0 to 10.0) are explored by a linear relationship (Fig. 7D), represented by the regression equation: Ep(V) = 0.9548–0.0445 pH (R2 = 0.994)80,81. The slope of the peak potential versus pH value was obtained to be 0.0445 V/pH which is close to the Nernstian value of 0.0591 V/pH. The slope of 0.0445 V/pH indicates that the equal number of electrons and protons are participate in the redux process which is well in accordance with the earlier reports80,81. The mechanism of the electrooxidation of DIC is also shown in Fig. 881.

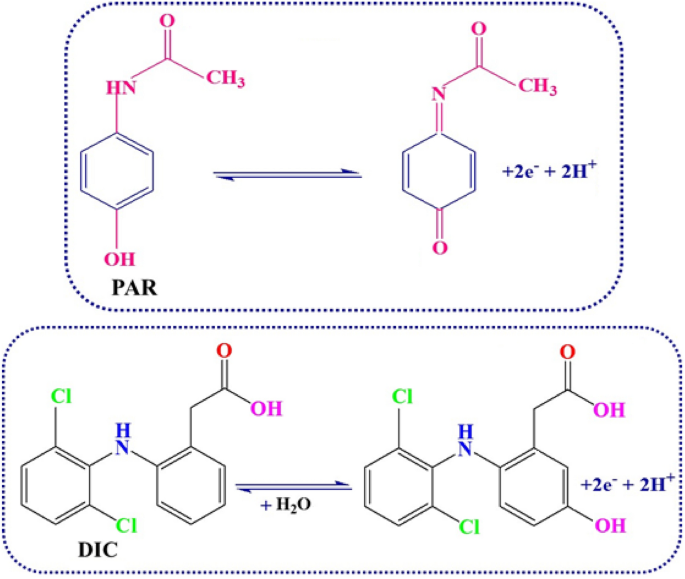

Fig. 8
figure 8

The electrochemical oxidation mechanism of PAR and DIC at the ZIF-67/SiO2NPs/ GONs/GCE in natural solution.

Full size image

Effect of potential scan rate on the electrochemical behaviors of the PAR and DIC

In order to obtain useful electrochemical information from the oxidation of PAR and DIC at the ZIF-67/SiO2NPs/GONs/GCE, it is imperative to understand the effect of the potential scan rate on their electrochemical behaviors. This investigation for PAR (0.2 mM) was performed utilizing the cyclic voltammetric technique, while systematically varying the potential scan rate from 5 to 120 mV/s in PBS (0.1 M, pH = 7.0). Figure 9 A shows the CVs of the ZIF-67/SiO2NPs/GONs/GCE in different potential scan rate. As can be seen, the CV currents increase as the scanning rate changes to high values. The depicted data in Fig. 9 B indicates that the anodic and cathodic peak currents exhibited a linear increase with respect to the square root of the scan rate (υ0.5). The resulting plot, anodic peak current (Ipa) as function of υ0.5 for PAR at the ZIF-67/SiO2NPs/GONs/GCE, is characterized by an exemplary linearity represented by the equation; Ipa (μA) = 4.3666 + 2.072 υ0.5, with a correlation coefficient (R2) of 0.9904. This observation implies that the electrooxidation mechanism of PAR at the ZIF-67/SiO2NPs/GONs/GCE is governed by a diffusion-controlled process. Furthermore, a direct correlation was established between the logarithm of the anodic and cathodic peak currents (Log Ipa and Log Ipc) and the logarithm of the scan rate (Log υ), with a slope of 0.6052 for the anodic part (Fig. 9C). This slope is in close proximity to the theoretically anticipated value of 0.5 for processes that are diffusion-controlled65. Also, as mentioned in the literature, one of the common ways to predict the electrode process mechanism using cyclic voltammetry data is the examine the dependence of the current function (normalized current relative to the square root of the potential scan rate (Ipa.υ0.5) to the square root potential scan rate (Fig. 9D). The increase of the current function proportional to the increase of the scan rate and reaching its to constant values indicates the existence of the electron transfer following chemical reaction (EC) mechanism82,83,84. The low cathodic current in the reverse scan is an indication of this mechanism. Additionally, a linear relationship was identified between the anodic peak potential (Epa) and the logarithm of the scan rate (Log υ) within the range of 5–120 mV/s (not shown here). Consequently, as the scan rate was incrementally increased, a corresponding shift in the potential toward more positive values was observed, thereby verifying the presence of kinetic limitations within the electrochemical reaction. To further elucidate details regarding the rate-determining step, the Tafel plot was constructed from the recorded CVs at low scan rate for the ZIF-67/SiO2NPs/GONs/GCE in the presence of 0.2 mM PAR (not depicted here). The Tafel slope was calculated as 73 mV/decade, indicating that the rate-limiting step encompasses a two-electron transfer process (utilizing the Tafel equation: slope = (1 − α)nF/2.303RT). Moreover, the electron transfer coefficient for PAR was determined as 0.54. Furthermore, in accordance with Laviron’s theory regarding to irreversible electrode processes, the catalytic rate constant (ks) was derived from the Epa-Log υ plot (not shown) and the corresponding equation (Eq. 3), where n, F, R, T, and other symbols are assigned their conventional meanings72.

Fig. 9
figure 9

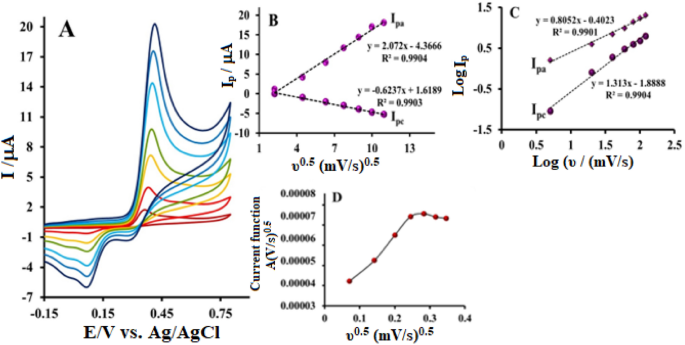

(A) CVs obtained at the ZIF-67/SiO2NPs/GONs/GCE in 0.1 M PBS (pH = 7.0) containing 0.2 mM PAR solution at different scan rates (5–120 mV/s), the plot of (B) anodic and cathodic currents (Ipa and Ipc) vs. υ0.5, (C) Log anodic and cathodic currents (Ipa and Ipc) vs. Log υ and (D) variation of the catalytic anodic current multiple with the square root of scan rate (current function)(I . υ0.5) vs. υ0.5 (square root of scan rate) (V) for 0.2 mM PAR in 0.1 M PBS solution.

Full size image
$${E}_{pa}={E}^{0}+\left(\frac{2.303RT}{\alpha nF}\right)log\left(\frac{{RTK}_{s}}{\alpha nF}\right)+\left(\frac{2.303RT}{\alpha nF}\right)\text{log}\upsilon$$
(3)

Employing the Laviron equation, the calculated value for ks was determined as 1.63 s−1.

In the context of oxidation of DIC, according to the Laviron equation, the observed linear positive displacement of Epa with increasing of log υ serves as an indicator of the irreversible reaction mechanism (within the range of 5–120 mV/s). The solp of Epa in relation to log υ indicates that the DIC oxidation is characterized as a two-electron transfer mechanism (Fig. 8).

Chronoamperometric study

To assess and estimate of the diffusion coefficients (D, cm2/s) of PAR and DIC, chronoamperometric analyses were firstly conducted concerning the oxidation of PAR at the interface of ZIF-67/SiO2NPs/GONs/GCE in 0.1 M PBS (pH = 7.0) by applying the potential of 0.421 V vs Ag/AgCl. The resultant chronoamperograms at various concentrations of PAR are presented in Fig. 10 A. Subsequently, the experimental graphs depicting the current (I) as a function of t−1/2 were established and shown in inset (I) of Fig. 10 A. It is evident that the plots of anodic current in relation to the inverse square root of time (I α t−1/2) across different PAR concentrations exhibit a linear relationship. This observation verifies that a diffusion mechanism governs the transient anodic current associated with the electrooxidation of PAR. The diffusion coefficient of PAR in chronoamperometric study was obtained via Cottrell equation85.

$$\text{I}={\text{nFAD}}^{1/2} {C}^{*}{\left(\pi t\right)}^{-1/2}$$
(4)

where D is the diffusion coefficient (cm2/s), A is electrode surface area (cm2) and C* is the concentration (mol/cm3) of the analyte. The graph of I versus t−1/2 is linear under diffusion control with a slope corresponding with diffusion coefficient. The slope of the resulting lines in Fig. 10 A was plotted against PAR concentration and from its slope the diffusion coefficient can be calculated. Inset (II) in Fig. 10 A shows the plot of slops vs concentration of PAR. The value of diffusion coefficient for PAR was calculated as 1.56 × 10–6 cm2/s. The diffusion coefficient of DIC was also determined utilizing the chronoamperometric technique. The chronoamperograms representing DIC oxidation at different concentrations in 0.1 M PBS pH = 7.0 at the surface of the ZIF-67/SiO2NPs/GONs/GCE are depicted in Fig. 10 B. In this section, the experimental graphs depicting the current (I) as a function of t−1/2 was drawn [inset (I)], followed by the construction of the slopes graph corresponding to the slope of the resulting lines against DIC concentrations [inset (II)]. Based on the slope of the final graph [inset (II)] and employing Eq. (4), the diffusion coefficient of DIC was estimated as 2.83 × 10–6 cm2/s.

Fig. 10
figure 10

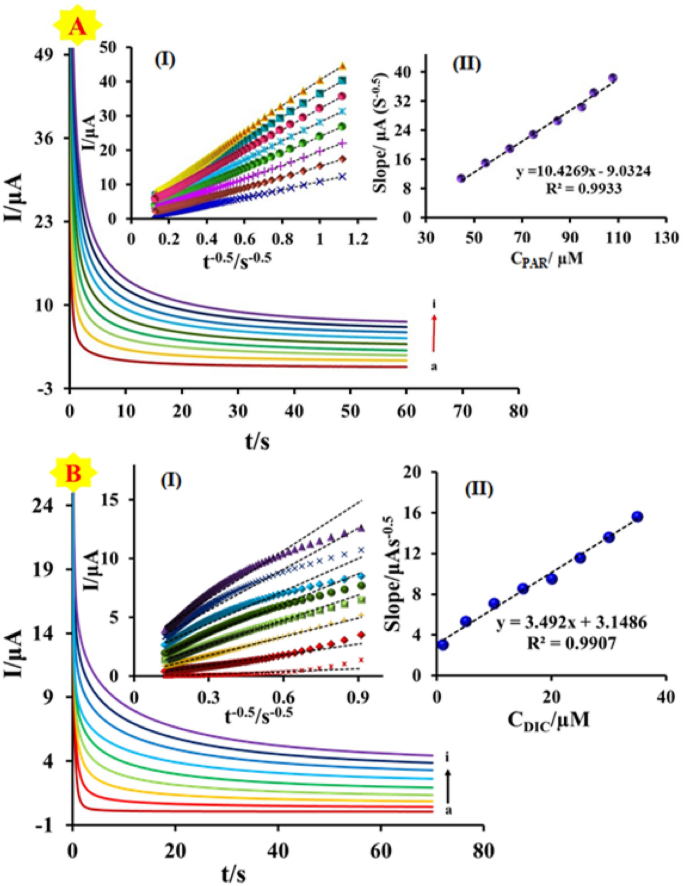

(A) Chronoamperograms obtained in 0.1 M PBS (pH = 7.0) in the absence (a) and presence of PAR (b-i: 45, 55, 65, 75, 85, 95, 100 and 108 µM) at ZIF-67/SiO2NPs/GONs/GCE. Insets: plot of I vs. t−1/2 obtained from chronoamperograms (I) and plot of the slope of the straight lines against PAR concentrations (II). (B) Chronoamperograms obtained in 0.1 M PBS (pH = 7.0) in the absence (a) and presence of DIC (b-i:1, 5, 10, 15, 20, 25, 30 and 35 µM) at ZIF-67/SiO2NPs/GONs/GCE. Insets: plot of I vs. t−1/2 obtained from chronoamperograms (I) and plot of the slope of the straight lines against DIC concentrations (II).

Full size image

Individual determination of PAR and DIC at the ZIF-67/SiO2NPs/GONs/GCE

The individual determination of PAR at the ZIF-67/SiO2NPs/GONs/GCE under optimal conditions was determined by differential pulse voltammetry (DPV) technique. Different concentrations of PAR in PBS (0.1 M, pH = 7.0) were analyzed at the ZIF-67/SiO2NPs/GONs/GCE (Fig. 11A). As can be seen, the anodic peak current of PAR increased linearly with increasing its concentration. The anodic peak current versus concentration of PAR was linear in the ranges of 0.5 to 190 μM (inset of Fig. 11A). The limit of detection (LOD) of this method was calculated as 0.29 ± 0.2 μM (S/N = 3). The sensitivity of the modified electrode toward the oxidation of PAR was determined from the calibration curve as 0.129 µA/µM. The high anodic peak current, low LOD and good sensitivity indicate that the ZIF-67/SiO2NPs/GONs/GCE can be used as sensor for detection of PAR. The performance of proposed sensor, ZIF-67/SiO2NPs/GONs/GCE, for determination of PAR is compared with other modified electrodes in the literature and listed in Table 1. The undeniable advantages of the present sensor in Table 1, together with other benefits such as simple fabrication method, low-cost equipment and less operating time compared to other sensors, indicate that ZIF-67/SiO2NPs/GONs/GCE will be a practical electrochemical sensor for PAR detection.

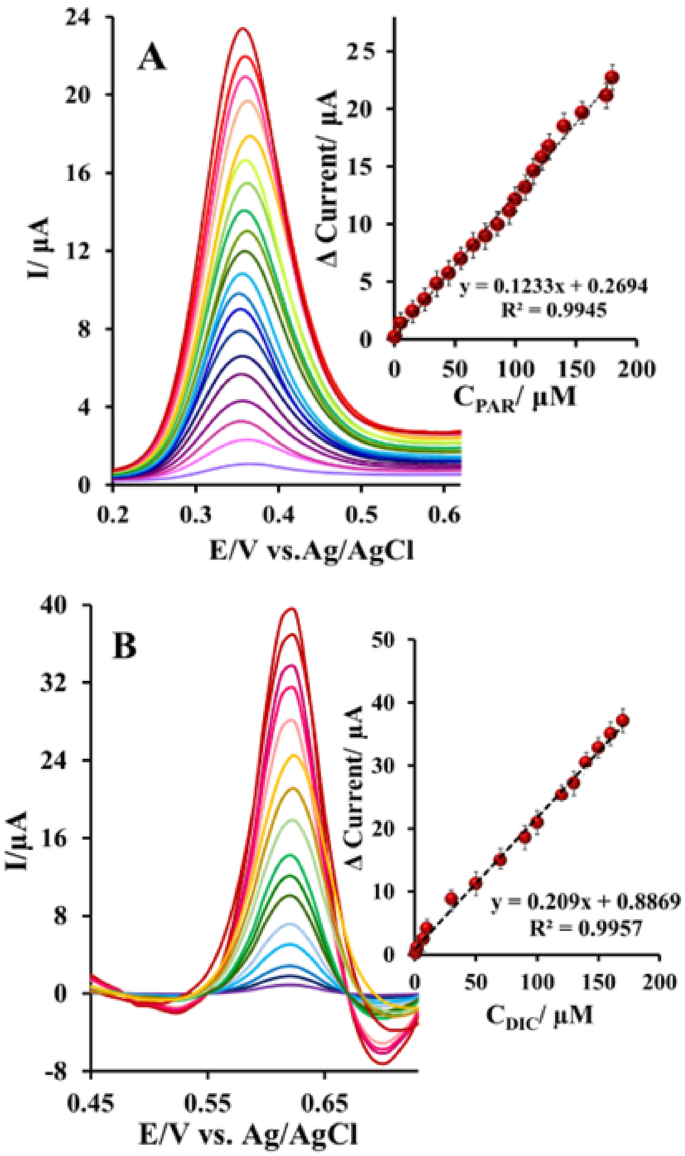

Fig. 11
figure 11

DPVs of the ZIF-67/SiO2NPs/GONs/GCE in various concentration PAR (0.5–190 µM) (A) and different concentrations DIC in the range 0.5–200 µM (B). Insets are the relationship of delta current responses to PAR and DIC concentrations.

Full size image
Table 1 Comparison of analytical characteristics of the ZIF-67/SiO2NPs/GONs/GCE for the determination of PAR with other modified electrodes.
Full size table

In the case of DIC, the anodic peak current exhibited a linear relationship with its concentration within the specified ranges of 0.5–200 μM, which were recorded by DPV (Fig. 11 B) and plotted on a graph (inset of Fig. 11 B). The respective linear regression equation was delineated as Ip (μA) = 0.209 CDIC (μM) + 1.5369 (R2 = 0.9957). The LOD was determined as132 nM for individual DIC determination. The sensitivity of the modified electrode toward the detection of DIC was determined as 0.1233 µA/µM. The performances of proposed modified electrode, ZIF-67/SiO2NPs/GONs/GCE, in electrodetermination of DIC is compared with other modified electrodes in the literature and listed in Table 2. As can be seen, the linear dynamic range and LOD of the proposed sensor for determining DIC are comparable/superior to some previously published papers.

Table 2 Comparison of analytical characteristics of ZIF-67/SiO2NPs/GONs/GCE for the determination of DIC with other modified electrodes.
Full size table

Simultaneous determination of PAR and DIC at the ZIF-67/SiO2NPs/GONs/GCE

In this section, the simultaneous determination of PAR and DIC was performed. To assess the independence of each compound’s signal from the other compound; PAR and DIC, three distinct experimental setups were conducted in the 0.1 M PBS (pH = 7.0). In the first two experimental procedures, the concentration of one compound was systematically altered while the concentration of the other compound remained constant, and in the final study the concentration of both compounds was changing incrementally. In fact, the anodic peak current of DIC should be increased with increasing the concentration of DIC while the concentration and anodic peak current of PAR are constant and vice versa. Figure 12 A illustrates the DPVs of the mixture where in the concentration of DIC is increased form 20–160 μM (inset: calibration curve for DIC in the range of 20–160 μM) while the concentration of PAR is held constant (75 µM). In the second experiment, the concentration of DIC was fixed at the 50 μM and concentration of PAR was increased from 20 to 150 μM (Fig. 12 B) (inset: calibration curve for PAR in the range of 20–150 μM). Finally, the efficacy of the ZIF-67/SiO2NPs/GONs/GCE for the simultaneous quantification of PAR and DIC was validated by varying the concentrations of both compounds. Figure 13 shows the DPVs revealed two distinctly defined anodic peaks at potentials of 375 mV and 640 mV for PAR and DIC with increasing in the anodic peak currents by increasing their concentrations. This further corroborated that the oxidation of PAR at the modified electrode occurs entirely independently and is devoid of any influence from DIC and vice versa. Inset (A) in Fig. 13 shows the calibration plot of ΔIp vs. PAR concentrations and inset (B) shows the calibration plot of ΔIp vs. DIC concentrations.

Fig. 12
figure 12

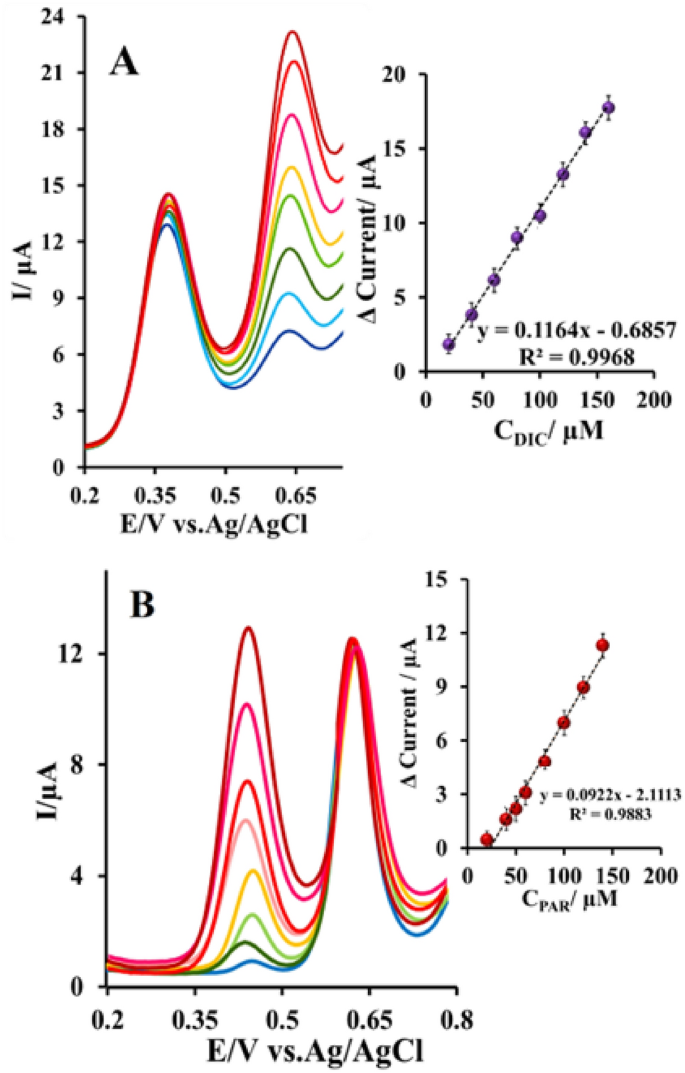

(A) DPV curves for different concentrations of DIC in the presence of a constant concentration of PAR (75 µM) in PBS (0.1 M, pH = 7.0). Inset: calibration curve for DIC in the range of 20–160 μM. (B) DPV curves for different concentrations of PAR in the presence of a constant concentration of DIC (50 µM) in PBS (0.1 M, pH = 7.0). Inset: calibration curve for PAR in the range of 20–150 μM.

Full size image
Fig. 13
figure 13

DPV curves of ZIF-67/SiO2NPs/GONs/GCE in PBS (0.1 M, pH = 7.0) containing different concentrations of PAR and DIC. [PAR] = 15–85 µM and [DIC] = 20–160 µM. Inset (A) calibration plot of ΔIp vs. PAR concentrations and inset (B) calibration plot of ΔIp vs. DIC concentrations.

Full size image

Interferences effects on the responses of the ZIF-67/SiO2NPs/GONs/GCE

In practical applications of a sensor, a major concern is the potential impact of interfering substances that may be present in real samples and alter the signal of sensor. The study was examined how various compounds commonly found alongside PAR and DIC in pharmaceuticals could affect the determination of PAR and DIC at the ZIF-67/SiO2NPs/GONs/GCE under optimal conditions. The tolerance limit was established as the concentration ratio of interference/PAR and DIC that resulted a less than ± 5% relative error. The obtained results demonstrated that an excess of K+ and Na+ (group I) up to 200-fold and Ca2+, Mn2+, Fe3+, Cu2+, Zn2+ and Mg2+ (group II) up to 150-fold did not affect the peak current of PAR and DIC oxidation at the ZIF-67/SiO2NPs/GONs/GCE. Furthermore, a 100-fold excess of biological interferences like ascorbic acid, citric acid, oxalic acid, ciprofloxacin, glucose, sucrose, lactose, starch and urea did not alter the peak current response of PAR or DIC (Fig. S1 in Supporting Information). This study showed that the signal changes in the oxidation peak current of PAR and DIC were less than ± 5%, confirming that the ZIF-67/SiO2NPs/GONs/GCE exhibits excellent selectivity in the presence of mentioned metal ions and biological molecules.

Stability, repeatability and reproducibility of modified electrode

Stability, repeatability and reproducibility of the present modified electrode was evaluated by DPV method. The stability of the ZIF-67/SiO2NPs/GONs/GCE was studied for a period of 30 days. The ZIF-67/SiO2NPs/GONs/GCE was stored in 0.1 M PBS solution (pH = 7.0) at room temperature when not in use. The initial current response for PAR and DIC decreased about 2.4–2.7% and 3.8–4.0% after 5 and 30 days, respectively, indicates good stability of the ZIF-67/SiO2NPs/GONs/GCE (Fig. S2 A in Supporting Information). The relative standard deviations (RSD) for 7 measurements in a time interval of 1 h of measuring in the concentrations of 30 μM PAR and 60 μM DIC were 3.25% and 3.14%, respectively (Fig. S2 B in Supporting Information). Therefore, the present sensor has good stability and high repeatability. For the testing of the reproducibility of modified electrode, seven ZIF-67/SiO2NPs/GONs/GCE were fabricated and used independently for PAR (30 μM) and DIC (60 μM) concentrations with RSD of 3.1–3.7%, indicates good reproducibility in the ZIF-67/SiO2NPs/GONs/GCE preparation process (Fig. S2 C in Supporting Information).

Real samples analysis

The concentration of PAR in the real tablet samples (Shafa Pharmaceutical Company, Tehran, Iran) was determined using ZIF-67/SiO2NPs/GONs/GCE. Firstly, 10 tablets of PAR were weighed and then powdered. The powdered sample was dissolved in 125 mL of double distilled water. Then it was centrifuged at 8000 rpm for 10 min and 5 mL of supernatant was diluted 50 times with PBS (see the preparation of real samples in Supporting Information) and the obtained solution was used as a sample to detect PAR. The standard addition method was used to compare the results of added PAR values. The obtained results are given in Table 3. The RSD% for five parallel determinations for each sample was less than 4%. In addition, the recovery for PAR detection using ZIF-67/SiO2NPs/GONs/GCE is obtained between 97.53 and 102.0%. The same process on the measurement of DIC in tablet samples (Dana and Iran Najo, Tehran, Iran) has been done and the obtained results are shown in the Table 4. Also, the proposed sensor was used for simultaneous determination of PAR and DIC in the tablets that contain both drugs (DICLOFENAC & PARACETAMOL) (Alphadrug Pharmaceutical Company, India) samples and the obtained results are shown in the Table 5. The reported results in Tables 3, 4 and 5 show that the present sensor; ZIF-67/SiO2NPs/GONs/GCE, exhibits good performance in the analysis of real pharmaceutical samples containing alone PAR and DIC and also both of them.

Table 3 Determination of PAR in real sample by ZIF-67/SiO2NPs/GONs/GCE /GCE (n \(=\) 3).
Full size table
Table 4 Determination of DIC in real sample by ZIF-67/SiO2NPs/GONs/GCE (n \(=\) 3).
Full size table
Table 5 Simultaneous determination of PAR and DIC in real sample by ZIF-67/SiO2NPs/GONs/GCE (n \(=\) 3).
Full size table

Conclusion

As a result, a simple electrochemical sensor was successfully designed and fabricated for rapid, accurate, and selective individual and simultaneous determination of PAR and DIC. The experimental results showed that the ZIF-67/SiO2NPs/GONs/GCE has excellent electrocatalytic activity toward the PAR and DIC oxidation with obvious increases in the peak currents in compared with bare GCE, GONs/GCE, SiO2NPs/GONs/GCE and ZIF-67/GCE. The resultant DPV gram exhibited two anodic peaks at 375 (oxidation of PAR) and 640 mV (oxidation of DIC) with a separation of approximately 265 mV. Under optimal conditions, it has been observed that the calibration curves for PAR and DIC exhibit linearity within the concentration ranges of 0.5–190 µM and 0.5–200 µM, with detection limits of 0.29 and 0.132 µM for PAR and DIC, respectively in individual determination. Also, the obtained results showed that the ZIF-67/SiO2NPs/GONs/GCE sensor is suitable for the simultaneous determination of PAR and DIC with good characteristics such as wide linear range, low detection limit, high stability, and remarkable reproducibility. Based on the above excellent performance, the proposed sensor could be used for efficient determination of PAR and DIC in individual tablets and also both drugs’ tablets (DICLOFENAC & PARACETAMOL) samples.
