Introduction

Cone-beam computed tomography (CBCT) and multidetector computed tomography (MDCT) are established imaging modalities in musculoskeletal diagnostics. CBCT utilizes a cone-shaped X-ray beam and flat-panel detector to generate 3D images from a single rotation1. MDCT, in contrast, employs a spiral scanning technique with a narrow fan beam, enabling high-resolution imaging and excellent tissue contrast2,3. Both imaging techniques have important clinical applications. CBCT can be particularly useful when MDCT is not conveniently available, e.g. for certain interventional vascular, surgical or orthopedic imaging procedures4,5.

In orthopedic imaging of the extremities, especially for postoperative follow-up, CBCT has gained importance due to its compact size and lower cost6,7. Consequently, it assumes a significance comparable to that of MDCT in specific applications8,9. However, CBCT has limitations in soft tissue visualization and is more susceptible to metal artifacts4. Efforts to improve low-contrast resolution using a larger field of view (FOV) often lead to increased scan times and higher radiation exposure10.

MDCT remains the reference standard in emergency diagnostics and complex trauma due to its rapid and accurate visualization of traumatic lesions11,12, robust image quality, and advanced reconstruction techniques that effectively reduce radiation dose13. Nevertheless, MDCT also has its limitations, including sensitivity to metallic materials and the generation of artifacts that can affect image quality14.

Currently, few studies compare MDCT and CBCT in terms of image quality and radiation exposure after osteosynthesis for traumatic injuries15,16,17. Given their clinical relevance, evaluating image quality, dose-efficient protocols, and device performance is essential. Previous studies often lacked direct comparisons within the same patient population. Our study addressed this by using a single study group and included a phantom study to assess radiation exposure and image quality for both modalities in routine clinical use.

Materials and methods

Cadaver phantom

To minimize patient radiation and allow comprehensive evaluation, a freshly preserved cadaveric forearm was used. A trauma surgeon implanted a distal radius plate (LCP-T, titanium/stainless steel) to simulate a postoperative scenario (Fig. 1), enabling standardized assessment of radiation exposure and image quality with both CBCT and MDCT.

Fig. 1
Fig. 1
Full size image

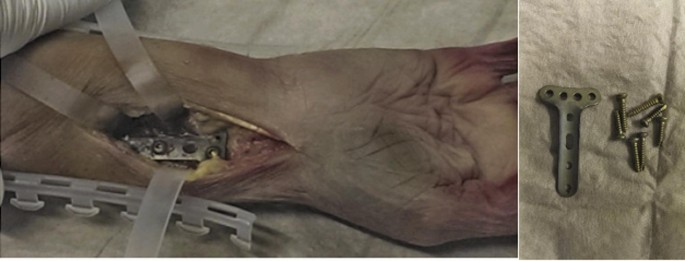

Photographic documentation of the freshly preserved cadaveric forearm after implantation of a distal radius plate. The left side of the image shows the surgical site view with the implanted plate at the distal radius. The right side displays the T-plate and the corresponding screw kit used for osteosynthesis. The image illustrates the anatomical alignment of the wrist in the palmar position and the positioning of the osteosynthesis material used to simulate postoperative imaging conditions for CBCT and MDCT.

CBCT–examinations

CBCT scans were performed using the Carestream OnSight 3D Extremity System (Carestream Health, Rochester, NY, USA). Twelve scans were acquired with various combinations of tube voltage (90, 80, and 70 kV) and tube current-time products (5.0–2.0 mAs), starting with the manufacturer’s standard protocol (90 kV, 5.0 mAs). The selected tube voltage settings (70, 80, and 90 kV) represent the clinically available and manufacturer-recommended operating range of the CBCT system used in this study. Higher kV settings were not available on this device and therefore could not be included in the comparison. Each scan had an acquisition time of 25 s and used a cylindrical FOV measuring 22.3 × 22.3 × 22.3 cm3, incorporating a combination of 0.5-mm aluminum and 0.1-mm copper filters. Axial CBCT image datasets were generated with a slice thickness of 0.3 mm, corresponding to the smallest clinically available reconstruction setting of the system. In addition, coronal and sagittal multiplanar reformats were generated with a uniform slice thickness of 1.0 mm. The analysis focused exclusively on bony structures; soft tissue assessment was excluded due to system limitations.

CBCT operator settings.

Parameters

Values

kV

90

80

70

mAs

5.0; 4.1; 2.9; 2.0

5.0; 4.1; 2.9; 2.0

5.0; 4.1; 2.9; 2.0

FOV

22,3 × 22,3 × 22,3 cm3

Slice thickness

Axial slice thickness: 0.3 mm, coronal and sagittal reformations: 1 mm each

Scan time

25 s per scan

MDCT–examinations

MDCT scans were acquired with a SOMATOM Force dual-source CT system (Siemens Healthineers, Forchheim, Germany). To ensure comparability with CBCT, identical tube voltage settings were applied and scan parameters were configured in each system so that the resulting CTDIVOL values were identical. MDCT imaging was performed with an axial slice thickness of 0.5 mm. Coronal and sagittal multiplanar views were generated at 1.0 mm, and all images were reconstructed using a bone-specific kernel (Q69) for standardized image evaluation. Post-processing was performed on syngo.via (VB10B, Siemens Healthineers).

MDCT operator settings.

Parameters

Values



kV

90

80

70

mA

68.0; 55.0; 40.0; 26.0

71.0; 59.0; 41.0; 28.0

70.0; 58.0; 41.0; 28.0

CT scan topogram measurement

25.6 cm



Slice thickness

Axial slice thickness: 0.5 mm, coronal and sagittal reformations: 1 mm each

Scan time

1.0 s



Dose calculation

Seven dosimeters were placed at defined anatomical positions, three on the skin and bone surface, and one approximately 30 cm outside the scan area to measure radiation exposure, as illustrated in Fig. 2. Effective and equivalent doses were calculated. Radiation dose measurements were performed using thermoluminescent dosimeters (TLD). The TLDs were calibrated prior to the experiments according to the manufacturer’s specifications and used to assess equivalent and effective doses at predefined anatomical locations. The MDCT FOV was extended to match that of CBCT. Dose metrics were standardized using identical kV and CTDIVOL values for both systems. CTDIVOL is a standard dose metric for MDCT but is not directly applicable to CBCT due fundamental differences in beam geometry, acquisition technique, and detector design17. In this study, CTDIVOL values were used as rough reference points for CBCT, achieved through adjustment of kV settings, to enable a balanced and pragmatic comparison of imaging protocols. An independent institute analyzed radiation exposure data from both MDCT and CBCT to ensure accurate and unbiased equivalent and effective dose determination.

Fig. 2
Fig. 2
Full size image

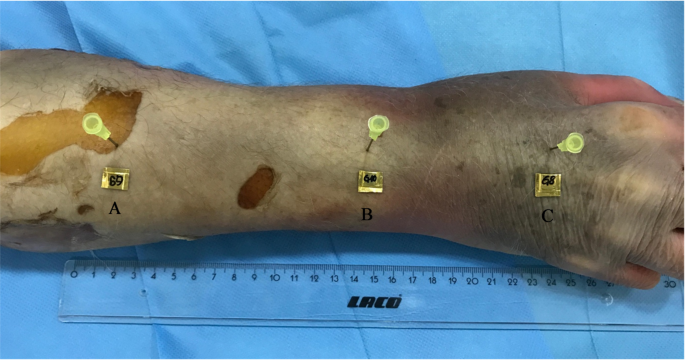

Photographic overview of the cadaveric forearm demonstrating the standardized placement of thermoluminescent dosimeters at predefined anatomical locations. Dosimeters were placed outside the scan field at a distance of approximately 30 cm from the scan volume (A), adjacent to the bone and implant (B), and on the skin surface (C) to enable assessment of equivalent and effective radiation doses during CBCT and MDCT imaging.

Subjective image quality

Five radiologists (1–15 years of experience) assessed image quality independently in a blinded setup. Using standardized monitors, they rated cortical bone, cancellous bone, artifacts, and overall quality on a 5-point Likert scale. In addition to the evaluation of individual image quality criteria (cortical bone, cancellous bone, metal-related artifacts), readers were asked to provide an independent rating of overall image quality. This global assessment reflected the reader’s overall diagnostic impression of the image and was not calculated as a composite or average of the individual criteria. Each image quality criterion was provided with ratings ranging from “moderate” to “excellent”. For each criterion, the average rating across all readers was subsequently calculated.

Objective image quality

Objective image analysis was performed on the distal ulna following placement of the radius plate. Signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) were calculated using Hounsfield unit (HU) measurements from trabecular bone and subcutaneous fat. Regions of interest (ROIs) were consistently positioned according to a standardized protocol based on I. Yel, C. Booz, M. H. Albrecht et al.18, as demonstrated in Fig. 3. Each measurement was taken twice and averaged, with care taken to avoid artifacts. SNR and CNR were calculated using the following formulas19,20:

$$\text{S}\text{N}\text{R}=\frac{HU\left(ulna\right)}{SD\left(fat\right)}$$
$$CNR=\frac{HU\left(ulna\right)-HU\left(fat\right)}{SD\left(fat\right)}$$
Fig. 3
Fig. 3
Full size image

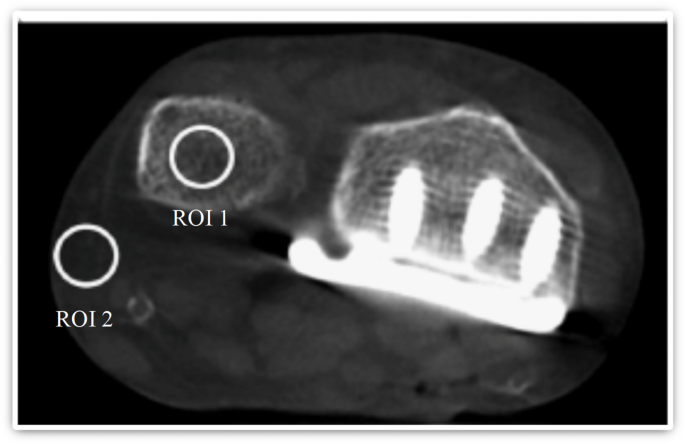

Representative axial image illustrating standardized regions of interest placed in trabecular bone (ROI 1) and subcutaneous fat (ROI 2) for objective image quality assessment. Regions of interest were defined to calculate signal-to-noise and contrast-to-noise ratios.

Statistical analysis

Data were analyzed using GraphPad Prism version 8.0 (GraphPad Software, La Jolla, CA, USA; https://www.graphpad.com/) and IBM SPSS Statistics version 29.1.0 (IBM Corp., Armonk, NY, USA; https://www.ibm.com/products/spss-statistics). Normality was assessed with Shapiro-Wilk and Kolmogorov-Smirnov tests. Depending on data distribution, t-tests or Mann-Whitney U-tests were applied.

Subjective image quality scores derived from Likert scales were treated as ordinal data and compared between modalities using the Mann–Whitney U test.

Objective image quality parameters, including signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR), were treated as continuous variables. Depending on data distribution, comparisons between modalities were performed using either unpaired t-tests or Mann–Whitney U tests.

A p-value of ≤ 0.05 was considered statistically significant.

Results

Radiation exposure

Dose-length product (DLP)

All examinations were performed using standardized CTDIVOL and kilovolt peak (kV) parameters to ensure consistent image quality assessment. However, differences in dose-length products (DLPs) between MDCT and CBCT were observed, as detailed in Table 1. Across all scan protocols, CBCT demonstrated a slightly higher dose overall. The mean DLP was significantly higher in CBCT (57.0 mGy*cm) compared to MDCT (46.2 mGy*cm), with a statistically significant difference (p < 0.001).

Table 1 Dosimetric parameters.
Full size table

Effective and equivalent dose

The results in Table 2 indicate that both the equivalent and effective doses were consistently higher for CBCT compared to MDCT. The mean effective dose was 0.0061 mSv for CBCT and 0.0048 mSv for MDCT (p < 0.0001). Although equivalent doses to the skin, bone surface, and out-of-field regions were slightly higher with CBCT, these differences were not statistically significant.

Table 2 Effective dose and equivalent doses of the different tissue types in MDCT.
Full size table

Subjective image quality

Subjective image quality assessments were performed by five independent radiologists using a 5-point Likert scale. CBCT performed better than MDCT on many factors, as shown in Table 3; Fig. 4.

Cortical bone visualization showed no significant difference between the modalities (mean scores: CBCT 3.9, MDCT 4.0; p = 0.28). In contrast, CBCT was rated significantly better for visualizing cancellous bone (CBCT 4.12, MDCT 3.83; p = 0.006), reducing metal-related artifacts (p = 0.0032), and achieving higher overall image quality (CBCT 4.14, MDCT 3.90; p = 0.01). The only exception was under standard protocol settings, where both modalities received equal artifact ratings.

Table 3 Descriptive comparison of subjective image quality.
Full size table
Fig. 4
Fig. 4
Full size image

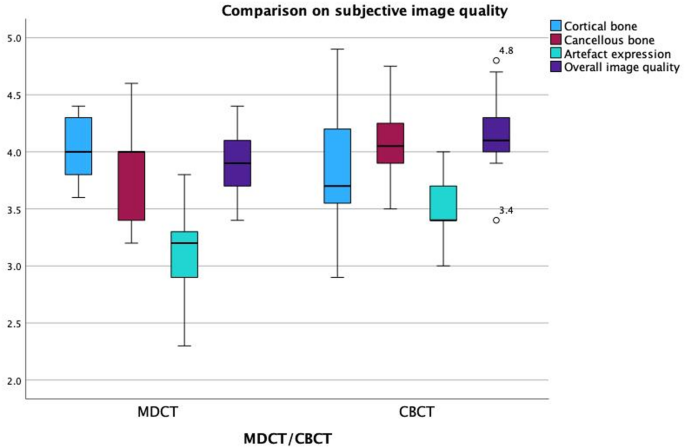

Boxplot comparison of subjective image quality ratings between CBCT and MDCT. Subjective ratings were performed by five blinded radiologists evaluating cortical bone, cancellous bone, artifacts, and overall image quality on a Likert scale.

Objective image quality

CBCT demonstrated significantly better performance in terms of image noise compared to MDCT (Fig. 5). The differences in signal-to-noise ratio (SNR, p = 0.0004) and contrast-to-noise ratio (CNR, p < 0.0001) were statistically significant. The SNR and CNR values for both imaging modalities are detailed in the subsequent Table 4.

Figure 6 illustrates a visual comparison between MDCT (A) and CBCT (B) images acquired at different kV and mA/mAs settings, highlighting the impact of scan parameters on image quality and diagnostic clarity.

Table 4 Descriptive comparison of objective image quality.
Full size table
Fig. 5
Fig. 5
Full size image

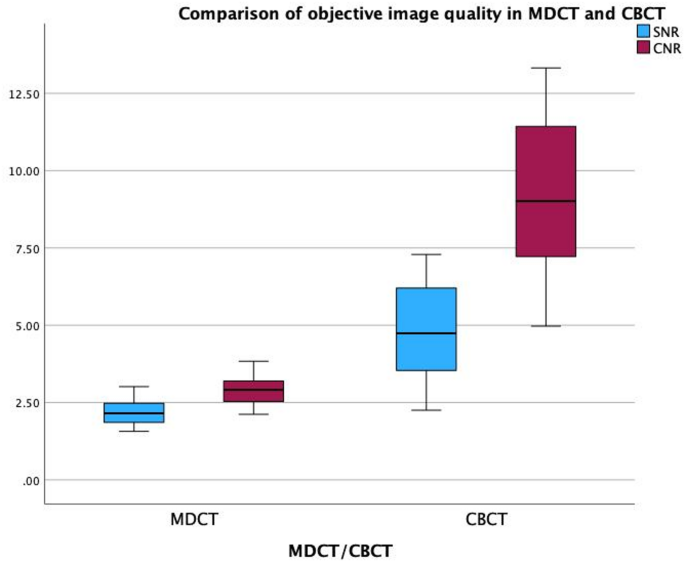

Boxplot comparison of objective image quality metrics between CBCT and MDCT. Signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) were calculated from defined ROIs in trabecular bone and subcutaneous fat.

Fig. 6
Fig. 6
Full size image

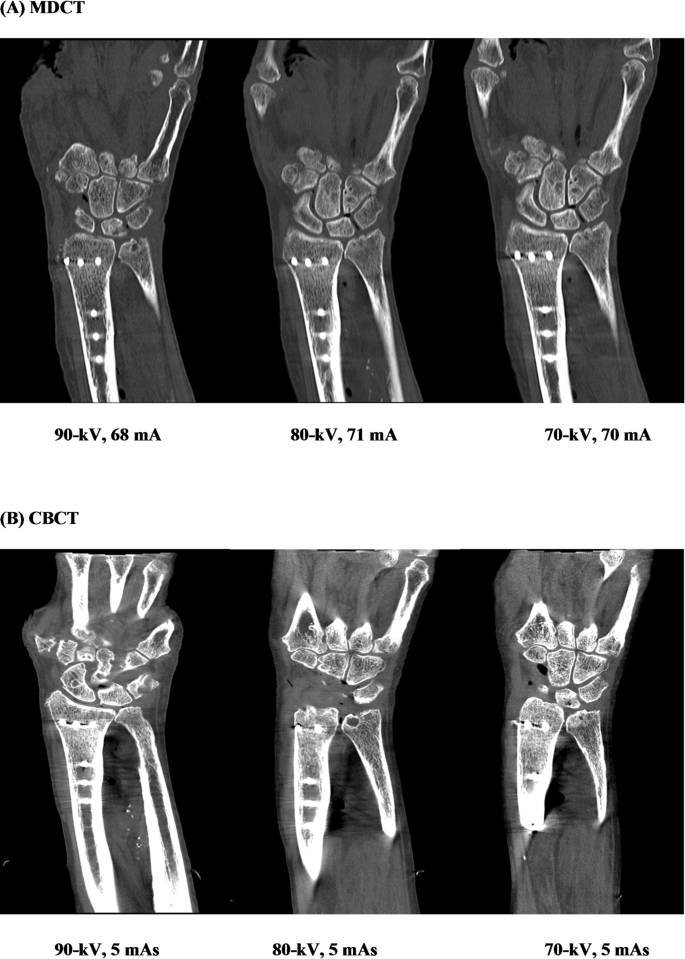

Representative MDCT (A) and CBCT (B) images acquired using different tube voltage and tube current settings. Images illustrate differences in image quality and metal-related artifact expression in the presence of a distal radius plate.

Discussion

High-resolution imaging is essential for fracture detection, treatment planning and follow-up of traumatic injuries. In clinical routine, selecting an appropriate imaging modality requires a careful balance between image quality and radiation exposure. While CBCT and MDCT are both well-established in orthopedic imaging, direct comparisons are rare and often based on non-identical cohorts21. This study addresses that gap by evaluating both modalities under standardized, matched conditions using the same anatomical specimen with osteosynthesis material.

The results indicate that DLP values were comparatively lower with MDCT. However, in our study, the MDCT FOV had to be adjusted and extended to match that of CBCT in order to enable a direct comparison, which may have affected the measured radiation exposure. In clinical practice, MDCT typically operates at higher kV settings22. Additionally, MDCT offers a wider range of advanced protocol options, such as tin filtration, dual-energy CT (DECT), and metal artifact reduction (MAR), allowing for greater flexibility in scan parameter optimization. A study published in European Radiology Experimental demonstrated that the combination of tin filtration and high tube voltage significantly reduces metal artifacts in musculoskeletal CT imaging, thereby enhancing image quality. This combination enables more precise adaptation of scanning parameters to specific clinical needs23; however, these advanced techniques could not be incorporated into the present comparison.

The differences in radiation exposure in terms of dose equivalent for the skin, bone surface and skin outside of scanning area were not statistically significant, while the effective dose showed a significant superiority of MDCT over CBCT. This result is consistent with individual studies in the literature supporting the assumption that MDCT scans have a lower total radiation exposure than CBCT examinations. For example, J. Neubauer, C. Neubauer, A. Gerstmaier et al. showed that MDCT in hand imaging has good overall image quality with lower radiation dose and better dose optimization compared to CBCT24. Some studies in the existing literature even suggest that MDCT offers a lower absorbed dose with better image quality25. Although the effective dose was statistically higher for CBCT compared to MDCT, the absolute dose values for both modalities were very low. The measured effective doses (approximately 5–6 µSv) are substantially lower than those associated with a standard chest radiograph (approximately 100 µSv) and several orders of magnitude below the average annual natural background radiation (approximately 3 mSv)26. Therefore, while statistically significant, the observed dose difference is unlikely to be clinically relevant and is not expected to be a decisive factor when selecting an imaging modality for extremity examinations.

The CBCT used in our study is optimized for imaging bone structures and does not support soft tissue reconstruction, which limits the assessment of soft tissue structures. This limitation has also been identified in previous research27, as evidenced by the findings of M. Marx, F. Risi, B. Escudé et al.28, which suggests that CBCT provides excellent image quality for bone visualization but is less effective for soft tissue assessment. In scenarios where soft tissue structures need to be included in the imaging process, a longer scan time is often required to achieve optimal image quality. However, this increase carries a higher risk of radiation exposure, which must be carefully considered in clinical and research settings29. A study published compared the image quality and radiation dose CBCT and MDCT in pediatric extremity trauma. The findings indicated that MDCT provides superior image quality for soft tissue evaluation and is less affected by artifacts compared to CBCT. The authors concluded that while CBCT offers advantages in specific scenarios, MDCT remains the preferred modality for comprehensive assessment in pediatric extremity trauma21.

Our study results confirm that both CBCT and MDCT can be recognized as high-quality imaging techniques with remarkable usability of the generated images. In particular, CBCT shows certain advantages, especially in the visualization of spongiosa and the reduction of artifacts in the presence of metal implants. A significant advantage of CBCT over MDCT was observed in terms of SNR and CNR in postoperative scenarios involving metal implants. Several studies have shown that compared to MDCT, CBCT offers high spatial resolution with fewer metallic artifacts29,30,31. The superior SNR and CNR of CBCT enable the generation of clear, high-contrast images, even in challenging scenarios with metal structures. These features are particularly important for post-operative imaging, where precise visualization of anatomical structures surrounding the implants is crucial for assessing implant positioning, detecting potential complications and long-term monitoring32. However, the superiority of CBCT over MDCT in assessing bony structures was only partially confirmed, as no significant difference was found in cortical bone evaluation.

This study has several limitations that should be acknowledged. Only a single human cadaveric forearm specimen was used, which may limit the generalizability of the results. The use of a freshly preserved specimen represents a methodological strength, as tissue attenuation properties more closely resemble in vivo conditions compared with embalmed cadavers33. However, cadaver-based imaging cannot fully reproduce physiological conditions encountered in clinical practice. In particular, the absence of tissue perfusion and physiological motion, as well as potential post-mortem tissue changes, may influence image quality and radiation dose characteristics27,34. The standardized use of a single anatomical specimen enabled a controlled comparison between CBCT and MDCT under identical imaging conditions. Nevertheless, this approach does not capture interindividual variability in anatomy, soft tissue composition, body habitus, or patient size, all of which are known to substantially affect radiation dose and image quality in clinical CT imaging35. In addition, clinically relevant motion artifacts were not evaluated in this study. Furthermore, the analysis focused exclusively on osseous structures, and soft tissue evaluation and related diagnostic performance were not investigated. Finally, the results are specific to the CBCT and MDCT systems used in this study and may not be directly transferable to other devices.

Based on our findings, both CBCT and MDCT offer distinct advantages depending on clinical context and patient-specific factors. CBCT showed superior visualization of cancellous bone and better artifact reduction near metallic implants, making it particularly suitable for postoperative follow-up of small joints, especially in outpatient or surgical settings with limited MDCT access. The open gantry design of CBCT also allows greater flexibility during interventional procedures. While MDCT struggles with metal-induced artifacts, CBCT may perform better in such cases—though at the cost of reduced tomographic 3D resolution36. In contrast, MDCT remains the preferred modality for soft tissue imaging, including muscles, tendons, and ligaments, and for use in obese patients due to its broader field-of-view and greater penetration depth. Its faster acquisition times and protocol flexibility also make it ideal for emergency or complex trauma cases. In summary, CBCT serves as a valuable alternative for bone-focused imaging, particularly in the presence of metal implants, while MDCT remains essential for comprehensive diagnostics involving soft tissue and wider anatomical coverage.
