Introduction

Multiple pulmonary lung cancers (MPLCs) are defined in patients harboring two or more primary lung cancers simultaneously or sequentially1. MPLCs are often diagnosed during early stages, arising from the normal cells within the lung undergoing clonal transformation at multiple foci throughout the lung, resulting in the manifestation of multiple pulmonary nodules2. The detection of MPLCs has been increasingly facilitated by the implementation of low-dose computed tomography (CT)-guided lung cancer screening3. While surgical intervention represents a common therapeutic approach4, it may not be suitable for patients with limited pulmonary function or those with an abundance of pulmonary nodules5,6. For these patients, it is critically important to investigate novel systemic therapies, targeted therapy, and immunotherapy. The advancements in next-generation sequencing (NGS) have significantly contributed to the progress in diagnosing and treating MPLCs1,7. Previous studies have primarily focused on single-omics profiling, and the integration of molecular changes across multi-omics in the same samples remains largely unexplored, particularly at the transcriptomic levels. Therefore, a comprehensive molecular characterization of MPLCs is crucial for precise diagnosis and optimization of treatment strategy.

Based on radiological characteristics, pulmonary nodules are classified as pure ground-glass opacity (pGGO; non-solid), mixed GGO (mGGO; partly solid), and solid nodules (SNs, devoid of GGO component)8. Studies have shown that patients with GGO-associated nodules exhibit better survival outcomes, with nearly 100% 5-year overall survival following resection, while those with SNs are indicative of poorer prognosis9. Approximately 20% of pGGO and 40% of mGGO nodules will deteriorate into SNs10. Zhang et al. revealed that radiologically distinct GGO-associated lung nodules displayed varying responses to neoadjuvant immunotherapy11. The management of GGO-associated lung nodules exhibits significant heterogeneity, with clinicians often relying on their individual experience due to inconsistencies with available guidelines5. From the pathological perspective, the development of early-stage lung adenocarcinoma is believed to progress from adenocarcinoma in situ (AIS) to minimally invasive adenocarcinoma (MIA), and ultimately to fully invasive adenocarcinoma (IA)12. Surgical resection has been reported to yield a nearly 100% 5-year survival rate for AIS and MIA, which significantly drops for IA13. Non-indolent tumors (MIA and IA) harbor higher invasion potential and an increased risk of progressing into lung cancer14. Although recent studies have revealed the evolutionary and molecular features of early-stage lung cancers15,16,17, the progression, molecular features, and immune characteristics of radiologically and pathologically distinct lung cancers, particularly in MPLCs, remain largely unexplored.

In our study, we carried out a prospective investigation to examine the heterogeneity among pulmonary nodules and explore the molecular and immune characteristics differences between EGFR and KRAS mutated tumors. Additionally, our objective was to uncover the evolutionary patterns of molecular and immune contexture in pulmonary nodules that exhibit distinct radiological and pathological features.

Results

Mutational landscapes of pulmonary nodules revealed a high prevalence of interfocal heterogeneity

A total of 47 samples for sequencing were obtained from ten patients diagnosed with MPLCs who underwent surgical resections between September 2018 and September 2019 (Fig. 1a) (for clinicopathological characteristics, see Table 1). Based on GGO component evaluated by preoperative CT scans, the pulmonary nodules were divided into pGGO (n = 6), mGGO (n = 16), and solid (n = 5). Next, histological staining was used to estimate the invasive degree, which reclassified the 27 primary lung cancer samples into AIS (n = 4), MIA (n = 7), and IA (n = 16) (Supplementary Table 1). All samples were subjected to whole exome sequencing (WES) and whole transcriptome sequencing.

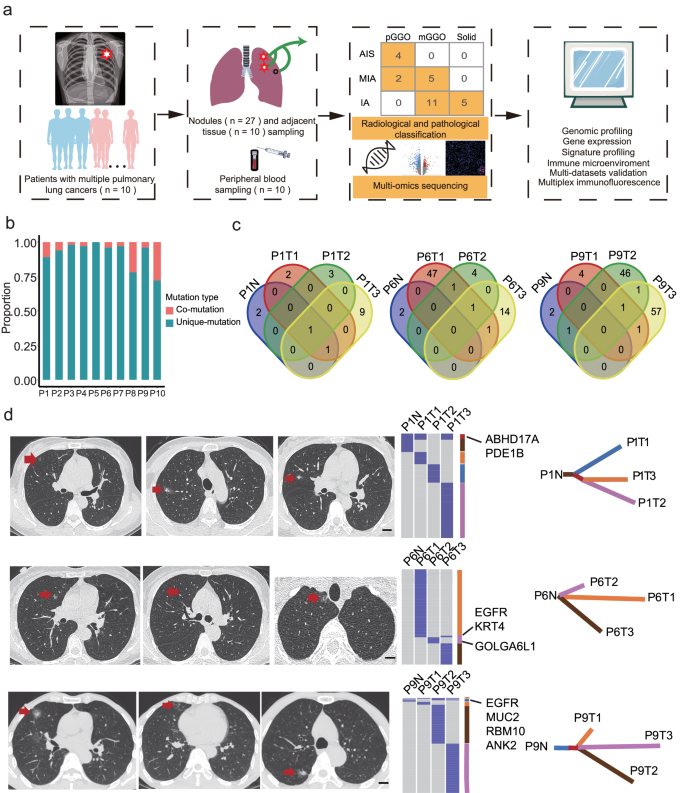

Fig. 1: Overview of the study and characteristics of pulmonary nodules.
Fig. 1: Overview of the study and characteristics of pulmonary nodules.
Full size image

a Flowchart of patients and samples included and overview of the methods. Tissue and matched blood samples were collected from patients clinically diagnosed with MPLCs for multi-omics analysis. The distribution of the nodules based on the radiological and pathological classification is shown. b Barplots represent the gene mutation types among different pulmonary nodules within each patient. c The number of overlapping non-synonymous mutation genes across samples in patients. d The representative CT cans, mutational analysis, and construction of phylogenetic trees. The CT scans showing multiple pulmonary cancers (arrows) for each patient. Heatmaps in the middle panel showed the presence (blue) or absence (gray) of non-synonymous somatic mutations. The overlapping mutation genes were indicated on the right side. Phylogenetic trees represented the clonal structure of samples. Scale bar, 1 cm. MPLCs multiple pulmonary lung cancers, CT computed tomography.

Table 1 Clinicopathological features of 10 patients with MPLCs
Full size table

By analyzing WES data, we first compared the mutational landscapes of pulmonary nodules from the same individual (Supplementary Fig. 1). An average of 41 somatic alterations were identified per nodule (Supplementary Table 2). For each patient, only 2–29% (mean 7.8%) mutational sites were shared between any nodule pair, revealing a high prevalence of interfocal heterogeneity in MPLCs (Fig. 1b). The number of overlapping non-synonymous mutations genes across samples were shown in Fig. 1c and Supplementary Fig. 2. Notably, three co-mutated genes (ABHD17A, KRT4, and EGFR) were observed within three nodules in four patients, namely P1, P6, P8, and P9 (Supplementary Fig. 3). To further explore the detailed relationship of individual nodule from the same patients, phylogenetic trees were constructed based on mutational profiles (Fig. 1d and Supplementary Fig. 4). Nodular lesions derived from the same lobe of P1’s lung displayed minimal overlap in mutated genes, except for the aforementioned shared mutations. Similar phenomena were observed among the nodular lesions of other patients as well. This implies independent origins and profound heterogeneity among the pulmonary nodules, consistent with recent studies demonstrating the independent clonal origins of MPLCs18,19.

EGFR and KRAS mutated tumors showed distinct immunogenomic features

By detailed analysis of mutation profiling of MPLCs, we found that EGFR and KRAS were the most frequently mutated genes (Fig. 2a and Supplementary Table 2). A Spearman’s correlation coefficient analysis showed that EGFR and KRAS mutations (EGFR_MT and KRAS_MT) were mutually exclusive (Fig. 2b). Earlier clinical studies have highlighted that tumors with EGFR_MT are more resistant to immunotherapy than those with KRAS_MT20,21,22, which promoted us to investigate the underlying mechanisms.

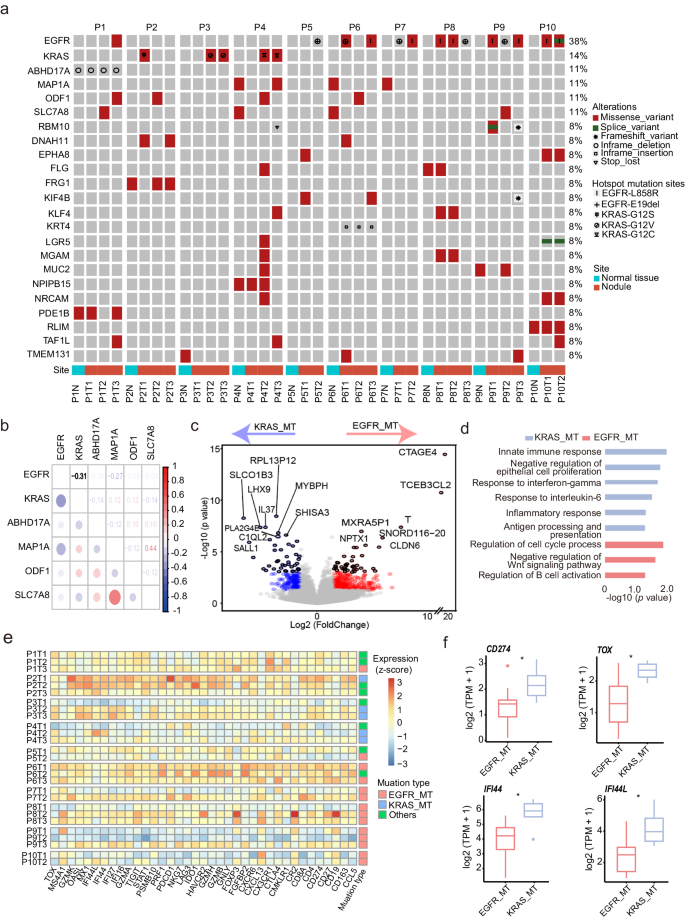

Fig. 2: Genomic and transcriptomic profiling of EGFR_MT and KRAS_MT tumors.
Fig. 2: Genomic and transcriptomic profiling of EGFR_MT and KRAS_MT tumors.
Full size image

a Mutational landscape of 37 samples in 10 patients with MPLCs. b Correlation between genes with mutated frequencies more than 10%, assessed by Spearman’s rank correlation coefficient (Rho). c Volcano plot represents the comparison of DEGs between KRAS_MT and EGFR_MT groups. d The enriched functional pathways in KRAS_MT and EGFR_MT groups. e The heatmap displays the expression of immune-related genes across 27 samples. Expression levels are normalized (z-scores) to show relative differences among samples. f Comparison of expression of immune-related genes between KRAS_MT and EGFR_MT groups. KRAS_MT, KRAS mutation; EGFR_MT, EGFR mutation; DEGs, differentially expressed genes. *p < 0.05.

Analysis of genomic features such as tumor mutational burden (TMB), tumor neoantigen burden (TNB), and chromosomal instability failed to unveil meaningful indicators associated with immunotherapy response (Supplementary Fig. 5), which highlighted the potential role of transcriptome programs in leading to different treatment responses in the two types of mutational tumors. We found that the KRAS_MT group displayed upregulation of genes mainly participating in immune-related responses, while the EGFR_MT group showed enrichment of the cell cycle process (Fig. 2c, d). Next, we performed a deep assessment of immune-related genes and signatures. The results showed that the levels of CD274 (encoding PD-L1), the exhausted T (Tex) cell marker TOX, and interferon-gamma (IFN-gamma) related genes IFFI44 and IFI44L, were significantly upregulated in KRAS_MT group compared to EGFR_MT group (all p < 0.05) (Fig. 2e, f and Supplementary Table 3). In addition, pulmonary nodules harboring KRAS_MT exhibited significantly higher IFN-gamma signatures compared to those with EGFR_MT (p < 0.05) (Fig. 3a and Supplementary Table 4), implying that tumors harboring EGFR_MT might exhibit reduced capacity to suppress tumor proliferation and antigen presentation efficiency when compared to tumors with KRAS_MT, as indicated by Hastings et al.23. To further validate our results, we collected and analyzed an RNA profiling dataset generated by the NanoString nCounter Platform, including 28 early lung carcinogenesis samples with KRAS and EGFR mutations24. In accordance with the above findings, the expression of CD274 and the genes involved in immune-related responses were significantly higher in KRAS_MT group (Fig. 3b), whereas the EGFR_MT group demonstrated enrichment in cell cycle processes (Fig. 3c). Moreover, by analyzing the single-cell RNA sequencing (scRNA-seq) data of KRAS_MT and EGFR_MT lung adenocarcinoma samples generated by our previous study25, we found that in KRAS_MT samples, TOX was expressed not only in T cells, but also in epithelial cells (Fig. 3d, e). Meanwhile, we further confirmed that the TOX gene was overexpressed in KRAS-MT samples (Fig. 3f). The TOX expression was reported to correlate with immune cells infiltration and T cells exhaustion in lung adenocarcinoma26. Next, we integrated the scRNA-seq data with the spatial RNA profiling data generated by our previous study25 to investigate the differences between the two mutational subtypes at the spatial level and characteristics of spatial distribution of immune cells (Fig. 3g). The results demonstrated an obvious infiltration and extensive distribution of immune cells, such as T cells and macrophages, within the tumor samples. Through quantitatively comparative analysis, we found that the IFN-gamma signature score and several immune cell marker genes including TOX, CD3E, and CD168 were enriched in KRAS_MT group (Fig. 3h, i). Finally, we performed multiplex immunofluorescence (mIF) staining using re-collected samples, including 3 KRAS_MT and 3 EGFR_MT. It was observed that samples with KRAS_MT had a higher infiltrative abundance of Treg and B cells than EGFR_MT (Supplementary Figs. 6-7 and Supplementary Table 5). These results suggested that the prominent immune characteristics of KRAS_MT group may be a potential mechanism contributing to the better response to immunotherapy.

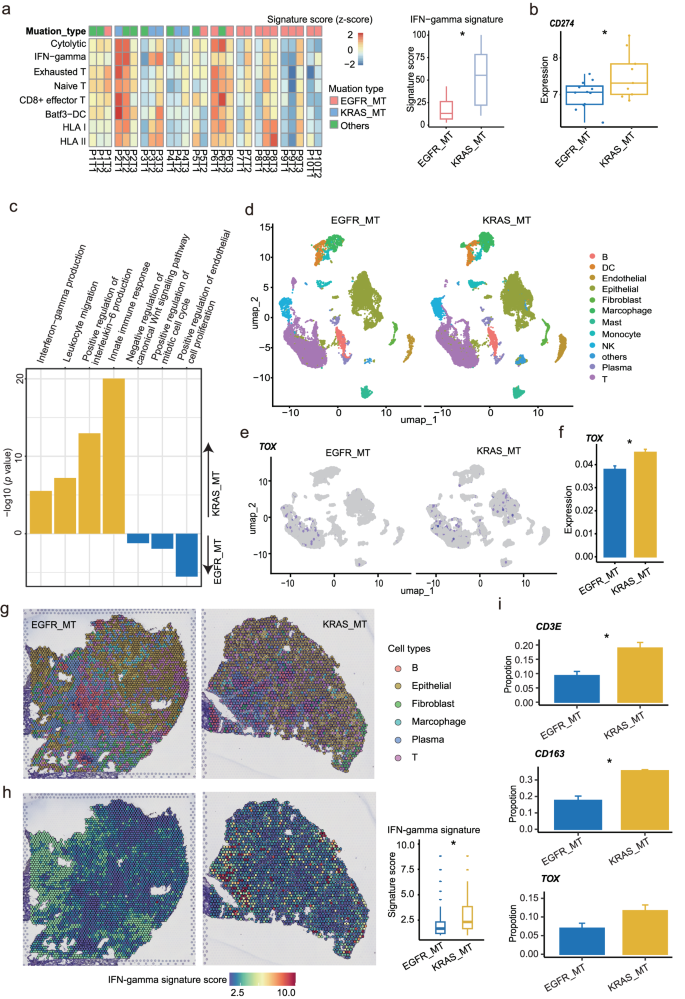

Fig. 3: Analysis of immune characteristics of KRAS_MT and EGFR_MT groups based on different data types.
Fig. 3: Analysis of immune characteristics of KRAS_MT and EGFR_MT groups based on different data types.
Full size image

a Estimation of immune-related signatures across 27 samples. Left panel showed the heatmap of scores related to immune-related signatures. Signature scores were normalized (z-scores) to show relative differences among samples. Right panel showed the comparison of IFN-gamma signature score between KRAS_MT and EGFR_MT groups. b Validation of the high expression of CD274 in KRAS_MT group using an RNA profiling dataset generated by the NanoString nCounter Platform. c The enriched functional pathways in KRAS_MT and EGFR_MT groups using nCounter dataset. d UMAP plots of 26,710 single cells colored according to the major cell types in scRNA-seq dataset (HRA003826). e UMAP plots showing the expression of TOX gene between EGFR_MT and KRAS_MT groups. f Comparison of TOX gene expression between EGFR_MT and KRAS_MT groups. g Spatial plots colored according to the 6 major immune cell types in two representative spatial transcriptome sections. h Comparison of IFN-gamma signature score between EGFR_MT and KRAS_MT groups at spatial level. i The validation of the representative cell markers’ expression proportions within the cells between the EGFR_MT and KRAS_MT groups on spatial data. scRNA-seq, single cell RNA-sequencing; UMAP Uniform manifold approximation and projection. Bar graph represents mean ± standard error of the mean (SEM). *p < 0.05.

Immunosuppressive microenvironment may facilitate the occurrence of pulmonary nodules

Next, at transcriptional level, changes in signaling pathways and immune microenvironment that contribute to nodule initiation were investigated. Compared with normal tissues, a total of 828 genes were dysregulated in pulmonary nodules (Fig. 4a and Supplementary Table 6), which were mainly enriched in metabolism-related pathways, ECM-receptor interaction, and PI3K-Akt signaling pathways (Fig. 4b). Notably, we found FDCSP gene, which has been found to be expressed in follicular dendritic cell27, was specifically expressed in the nodule tissues (p = 0.0102). Further analysis based on TCGA database showed that FDCSP was also highly expressed in lung adenocarcinoma, indicating its potential role in the occurrence and development of pulmonary nodules (Fig. 4c, d). Moreover, we observed a dramatically increased expression of immune-related genes in MPLCs compared with the normal group (p < 0.05) (Fig. 4e). To gain insights into the immune microenvironment changes of nodule occurrence, the relative abundance of immune cells was estimated. Compared with normal tissues, the abundance of CD8 + T cells decreased in MPLCs, while CD4 + T cells increased significantly (Fig. 4f), which was mainly caused by the increase of regulatory T cell (Tregs) (Fig. 4f, Supplementary Fig. 8, and Supplementary Table 7). Meanwhile, we found that the exhausted cells were significantly increased in MPLCs. These results were further confirmed by an independent deconvolution algorithm (Fig. 4g, Supplementary Fig. 9, and Supplementary Table 8). Taken together, these results suggested that the formation of immunosuppressive microenvironment may facilitate the nodule occurrence.

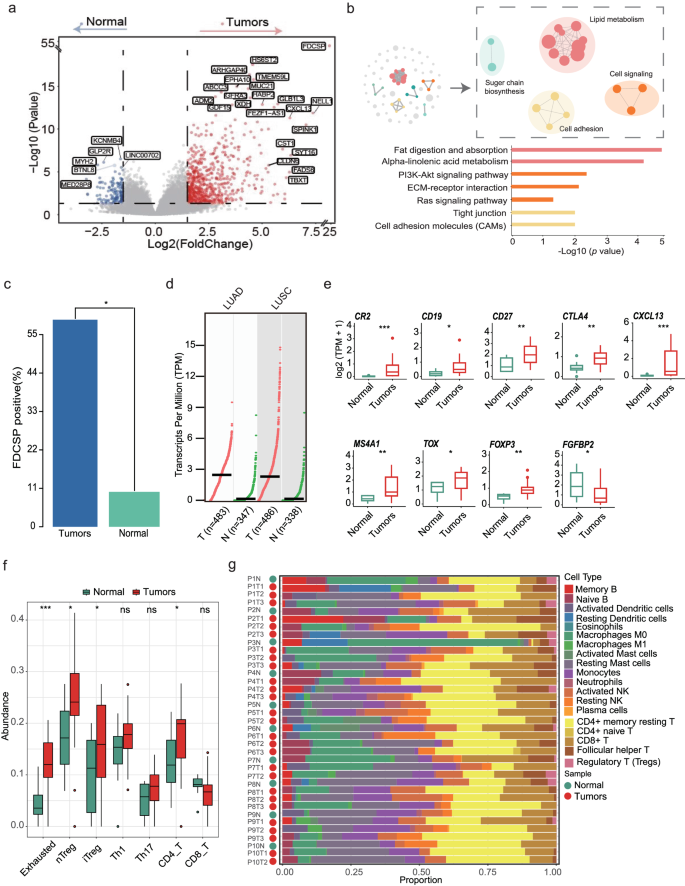

Fig. 4: Transcriptomic features of MPLCs compared with normal tissues.
Fig. 4: Transcriptomic features of MPLCs compared with normal tissues.
Full size image

a Volcano plot represents the comparison of DEGs between pulmonary nodules and normal adjacent tissues. b The enriched functional pathways based on the DEGs among pulmonary nodules and normal adjacent tissues. The similar pathway would be clustered in the network. c Barplot represented FDCSP positive rate (expression > 0) between tumors and normal tissues. d The TPM of FDCSP in tumor (LUAD and LUSC) and normal groups. Data sourced from TCGA. Black lines represent the median of TPM. e Comparison of immune-related genes expression between MPLCs and normal tissues. f Comparison of T cell abundance between tumors and normal tissues estimated by xCell. g The proportion of 21 types of immune cells was estimated by Cibersort in 10 patients. DEGs, differentially expressed genes; TPM, transcripts per million; nTreg, natural regulatory T cell; iTreg, induced regulatory T cell; Th1, first helper T cell; Th17, 17th helper T cell. *p < 0.05. **p < 0.01; ***p < 0.001.

Genomic and immune features associated with radiologically or pathologically distinct clinical entities of pulmonary nodules

Radiologically or pathologically distinct clinical entities of pulmonary nodules often exhibited different therapeutic effects and clinical outcomes28,29. In view of this, we performed a systematic study to delineate the molecular and immune features of different radiological and pathological textures of MPLCs. First, at the genomic level, we found that the accumulation of mutations gradually increases accompanied by increased chromatin-level instability as GGO component decline or invasive progression (Fig. 5a). In addition, 246 dysregulated genes were identified across the distinct stages of MPLCs. Pathway enrichment analysis showed these dysregulated genes were primarily involved in metabolic pathways, cytokine-cytokine receptor interactions, and cell signaling cascades (Fig. 5b). Besides, an upregulation of B cell marker genes (CR2, MS4A1, and CD19) and Treg-related genes (CTLA4 and FOXP3) were observed in the high-risk nodules, particularly in mGGO and solid nodules (all p < 0.01) or MIA and IA (all p < 0.05) (Fig. 5c). Furthermore, through immune cell abundance analysis we found that the content of immune-suppressed cells such as exhausted cells and Tregs markedly increased in the high-risk stages, while NK cells showed a decreasing trend (Fig. 5d and Supplementary Figs. 10-11). To further substantiate these findings, public scRNA-seq data30 of early lung carcinogenesis samples covering distinct pathological textures, such as AIS, MIA, and IA were analyzed. We found a significant increase in Treg cells and decrease in NK cells as nodules progressed (Fig. 5e and Supplementary Fig. 12). Additionally, the expression of FOXP3 was increased in high-risk stages based on immunohistochemistry data30, which further supported the immunosuppressive microenvironment in the high-risk stages (Fig. 5f). Finally, we performed mIF experiments using MPLC samples covering normal, AIS, MIA/IA subregions. The results further verified that the invasive subregion was characterized by a higher proportion of FOXP3 and CD20 positive cells along with a lower proportion of CD56 positive cells (Fig. 5g, Supplementary Figs. 13-14, and Supplementary Table 5). Overall, nodule progression showed a strong association with the immunosuppressive microenvironment, which may explain to a certain extent the differences in clinical outcomes of different radiological or pathological textures of MPLCs.

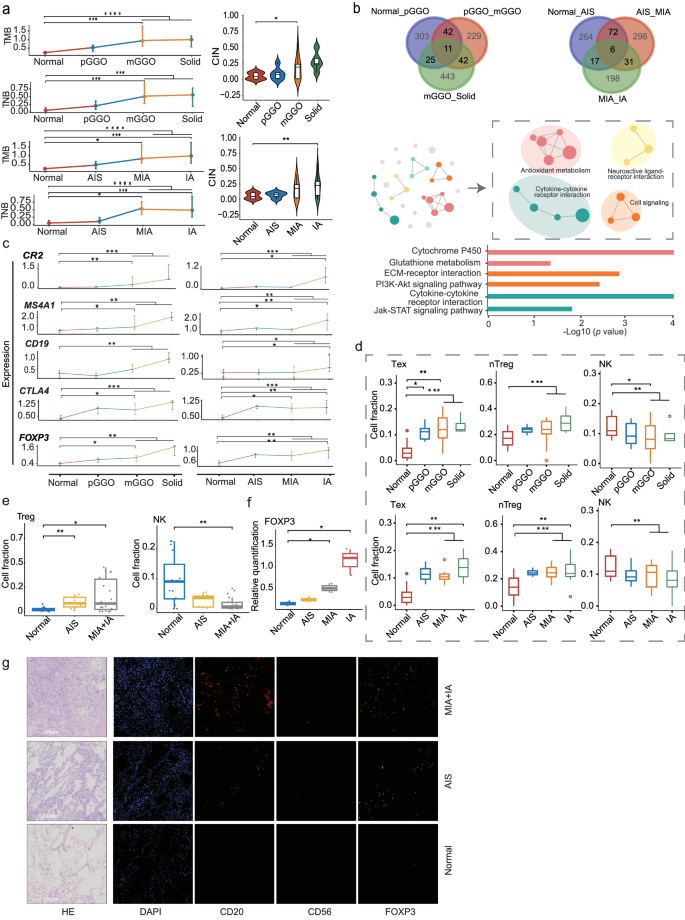

Fig. 5: Alterations in genomic and transcriptomic characteristics during the progression of MPLCs.
Fig. 5: Alterations in genomic and transcriptomic characteristics during the progression of MPLCs.
Full size image

a Line graphs represent the change of TMB and TNB across each stage of radiological and pathological classification. Violin plot represents the comparison of chromosomal instability among each stage of radiological and pathological classification. b Analysis of DEGs and corresponding enriched functional pathways. The upper Venn panel shows the overlapping DEGs among the distinct stages of MPLCs. The middle panel shows the enriched pathways network and the similar pathways clusters. The bottom panel represents the selected functional pathways. c Changes in B cell-related and Treg-related genes in distinct stages of nodules. d Comparison of distinct immune cell fraction among each stage based on radiological and pathological classification. e The proportion of Treg and NK cells among normal lung tissues and cancer tissues analyzed using public scRNA-seq dataset (HRA001130). f Quantification of the relative expression level of FOXP3 among tissues using IHC data. g Representative images from P17 with normal to invasive subregions for HE staining, CD20 B cells (magenta), CD56 NK cells (orange), FOXP3 Treg cells (cyan), and DAPI (blue), as determined by using multiplex immunofluorescence staining. Scale bar, 100μm. pGGO, pure ground-glass opacity; mGGO, mix ground-glass opacity; AIS, adenocarcinoma in situ; MIA, minimally invasive adnocarcinoma; IA, invasive adenocarcinoma; Treg, regulatory T cell; Tex, exhausted T cell; nTreg, natural T cell; IHC, immunohistochemistry. Error bar represents mean ± standard error of the mean (SEM). *p < 0.05. **p < 0.01; ***p < 0.001.

Discussion

The extensive utilization of CT-guided screening and availability of high-resolution diagnostic CT scans have led to a substantial increase in the identification of MPLCs31,32. The emergence of MPLCs poses a new challenge even in the era of precision medicine. Therefore, we conducted a thorough exploration of the genomic and transcriptomic profiles of MPLCs to facilitate precise diagnosis and therapy.

A mounting body of evidence substantiates the proposition that multiple pulmonary nodules within the lungs originate independently from each other10,18,19. Our study unveiled discernible variations in genomic profiles among the pulmonary nodules, further validating prior investigation14,19,33. The presence of such heterogeneity among the nodules indicates the ineffectiveness of a singular drug in targeting diverse nodules, as highlighted by Zhang et al.11. Consequently, additional exploration is imperative to identify shared genetic attributes across all tumors within an individual, which may advance the application of targeted therapy in MPLC patients. whole transcriptome data revealed the specific expression of FDCSP in pulmonary nodules, which encodes a tiny, secreted protein that was discovered in follicular dendritic cells34. FDSCP was significantly associated with immune-checkpoint inhibitors (ICIs) response and thought to contribute to tumor metastasis by promoting cancer cell migration and invasion35. Thus, FDCSP is a potential biomarker for diagnosis and treatment of patients with pulmonary nodules.

For the first time, we depicted the genomic landscape of MPLCs. Consistent with previous studies10,14,36,37, EGFR and KRAS mutations are common in pulmonary nodules. Our investigation revealed the exclusive presence of EGFR_MT and KRAS_MT within tumors. Tumors harboring EGFR_MT or KRAS_MT displayed a remarkable increase in both TMB and TNB compared to normal tissues. Notably, EGFR_MT cancers exhibited a higher level of chromosome instability in comparison to tumors with KRAS_MT. These insightful findings provide compelling evidence that tumors carrying EGFR_MT are more prone to progressing into aggressive manifestations. EGFR mutations are associated with inferior response to ICIs in patients with advanced NSCLCs38,39. Similarly, the efficacy of ICIs in MPLC patients may be affected by the status of driver gene mutations. Programmed-death ligand 1 (PD-L1) is regarded as a crucial biomarker for predicting the efficacy of ICIs in lung cancers40. Studies have revealed that heterogeneity in PD-L1 expression levels among independent lesions in MPLC patients41,42. However, little is known about the degree of PD-L1 expression between independent pulmonary nodules with EGFR or KRAS mutations in MPLC patients. Our findings indicate that the expression of CD274 in KRAS_MT tumors was significantly elevated compared to EGFR_MT tumors. Moreover, KRAS_MT tumors enriched IFN-gamma signature, which has been reported to play an important role in cancer immunotherapy23. Taken together, KRAS_MT tumors may be more likely to benefit from ICIs than EGFR_MT ones. This is in line with a similar study conducted by Dejima et al., which demonstrated that KRAS_MT were correlated with a more active immune response, while EGFR_MT were associated with a cold immune microenvironment in indeterminate pulmonary nodules24. The characteristics of the tumor microenvironment in MPLC patients with distinct driver gene mutation status remain unclear. KRAS_MT tumors exhibited a higher infiltration of CD8 + T cells and a higher ratio of Tregs to CD8+ cells compared to EGFR_MT tumors. Therefore, future studies should consider the status of driver gene mutations before applying ICIs for the treatment of MPLCs.

The characterization of MPLCs through WES in our study provided molecular evidence supporting the progressive genomic evolution during the transition from pGGO to mGGO, and solid nodules as well as the evolution from normal tissue to AIS, MIA, and IA. Except for TMB, which has been noted to be significantly elevated in LUADs presenting as SNs compared to those with GGO components, and progressively escalating from normal to AIS, further to MIA and IA43,44, TNB and chromosomal instability also displayed the similar trend, in accordance with the progression of invasion and the decrease in GGO components. While specific pathways have been identified in certain stages or types of nodules45,46, the pathways that consistently contribute to nodule progression have been largely disregarded. Our study sheds light on the crucial role of metabolism-related, cell signaling and cytokine-cytokine receptor interaction, which become increasingly important as the GGO component decreases and cell adhesion and sugar chain biosynthesis become enriched in the high-risk stages. These biological processes represent continuously up-regulated pathways throughout the reduction of GGO and the invasion processes, thus serving as a robust foundation for further clinical investigation. Cells within the TME exhibit significant heterogeneity47. Aligning with recent findings24,30,48,49, exhausted cells and Tregs are predominantly observed in IA stage, serving as immune suppressive mechanisms during tumor progression. Chen et al. uncovered that GGO-associated lung cancers display a less active metabolism and immune microenvironment compared to lung cancers presenting as SNs46. In our study, we observed an upregulation of Treg-related genes and an increased presence of Tregs in SNs, while the number of NK cells was lower in SNs. Therefore, during nodule progression, the TME undergoes varying degrees of remodeling across different nodules, leading to heterogeneity in the TME between nodules. During TME remodeling, cytotoxic cells are significantly decreased, while immunosuppressive cells are markedly increased, thereby providing a suitable environment for nodule solidification and invasion.

This study has certain limitations, such as a small cohort size. Therefore, further experiments involving larger populations are necessary to validate the obtained results.

In conclusion, our study has unveiled significant heterogeneity and distinct origins of MPLCs within the same lung lobe at the genomic level. Throughout the initiation and progression, specific genetic alterations, such as EGFR and KRAS mutations shape the patterns and characteristics of immune gene expression, leading to varying immune microenvironments and responses to immunotherapy along the trajectory of progression. Concurrently, the increasing mutation burden and chromatin instability contribute to the remodeling of the microenvironment, particularly through the notable elevation of immunosuppressive cells. This process fosters the progression and deterioration of the nodules by establishing a favorable ecosystem.

Methods

Ethics Statement

This study was conducted according to the guidelines of the Ethics Committee of the Guangdong Provincial People’s Hospital (No.GDREC2020092H) and written informed consent was obtained from all participants and also complied with all relevant ethical regulations including the declaration of Helsinki.

Sample collection

Patients diagnosed with MPLCs based on imaging and pathology at Guangdong Provincial People’s Hospital (Guangdong, China) between September 2018 and September 2019 were enrolled in this study. Eligible patients had no signs of distant metastasis based on CT scanning. Nodules were classified into pGGO, mGGO, and solid based on their radiological features on CT imaging. Histological nodule subtypes were defined according to the Lung Cancer/American Thoracic Society/European Respiratory Society (IASLC/ATS/ERS) classification. In brief, the differentiation of lesions is based on the invasive degree using pathological sections stained with hematoxylin and eosin. It is divided into three stages: adenocarcinoma in situ (AIS), minimally invasive adenocarcinoma (MIA), and invasive adenocarcinoma (IA). The lesion, adjacent normal tissue, and matched blood were collected from each patient. All patients signed informed consent.

Whole-exome sequencing and read alignment

WES was implemented on the paraffin section tissues and matched peripheral blood samples. Mag-Bind Blood&Tissue DNA HDQ 96 Kit (QIAGEN, GER) was performed for fresh sections and blood samples extraction. The dsDNA HS Assay Kit (ThermoFisher Scientific, USA) was used for DNA quantification. Sequencing libraries were built by SureSelect XT Human All Exon V6 (Agilent), and sequencing procedures were utilized by NextSeq 550AR platform with 150-bp paired-end reads. SOAPnuke was implemented to cut adapter and remove low-quality raw reads50. Clean reads were aligned against the human reference genome (hg19) with BWA (v0.7.12) and duplicated reads were removed by sambamba (v0.5.4)51,52. Subsequently, BAM files were generated and used for downstream analysis.

Somatic variant calling

We compared nodules, adjacent normal tissue and matched blood sequencing data to identify the somatic mutations, including single-base variants, small insertions, and deletions (indels) using the varscan (v2.4) software53. Both substitutions and indels with a low variant allelic fraction (VAF < 0.02) or that had a low total read coverage (<10 reads for tumor samples; < 10 reads for germline samples) were filtered out. In addition, the filtered mutations were annotated by snpEff (v4.3) with NCBIrefseq (https://www.ncbi.nlm.nih.gov/refseq/).

Tumor mutational burden and tumor neoantigen burden calculation

TMB- was defined by the number of non-synonymous somatic mutation sites examined per megabase. The human leukocyte antigen (HLA) typing of tumor and paired blood sample were determined by POLYSOLVER (v1.0) and Bwakit (v0.7.11)51,54. 21-mer polypeptides centered on mutated residues were scanned to identify candidate peptides binding to class I HLAs. A sliding window approach was applied to create 9 ~ 11 mer peptides for major histocompatibility complex (MHC) class I binding affinity prediction. Next, NetMHCpan was performed on the HLA type and the selected peptides to calculate the MHC affinity55. Eventually, the peptide with IC50 < 500, which was represented the peptide had a strong binding affinity to patient-specific HLA allele, was selected. TNB was evaluated as the number of neoantigens of exome examined per megabase as previously described56.

Chromosomal instability estimation

Ascatngs (v3.1.0) was implemented on the read alignments from WES data to identify copy number variants, by correcting for GC content, tumor purity and comparing to the matched blood sample. Tumor purity and ploidy were measured by ascatngs as well. Chromosomal instability was evaluated by the Weighted Chromosomal Instability Number57.

Transcriptome sequencing

The mRNA of nodules and adjacent normal samples were isolated using RNeasy Plus Universal Mini Kits (Qiagen, GER) according to the manufacturer’s instructions. The concentrations of RNA were quantified using QubitTM RNA HS Assay Kit (ThermoFisher Scientific, USA). RNA purity and integrity were checked using Take3 (BioTek, USA) and the RNA Cartridge kit of the Qseq100 Bio-Fragment Analyzer (Bioptic, CHN), respectively. Then, RNA-seq libraries were constructed using VAHTS mRNA-seq V3 Library Prep Kit for Illumina (Vazyme, CHN). The libraries were sequenced on the NextSeq 550AR platform with 150 bp paired-end reads.

Quality control of RNA-Seq raw data and differential expression genes analysis

Raw sequencing data (raw reads) from Illumina 550AR sequencer was processed to filter out low-quality reads. Clean reads from each sample were obtained and used in the following analysis. The RNA reads were aligned against reference hg19 and gencodev27lift37 database (download from https://www.gencodegenes.org) by STAR (v2.7.8a). Based on the aligned reads, raw counts and transcripts per million (TPM) values were calculated in Rsem (v1.3.0). Then, gene expression level was summarized from the transcript level. Differential expression genes (DEGs) were identified by DESeq2 package58. The genes with |log2FoldChange | > 1.5 and p-value < 0.05 were considered as significantly DEGs. Volcano and heatmap diagram were conducted in R with ggpubr and Complexheatmap package. KEGG pathway enrichment were analyzed on KOBAS-i webtool59.

Immune signature and infiltration abundance of immune cells

A series of immune signatures were implemented to assess tumor immune signatures comprised of cytolytic, IFN-gamma, T-cell, Batf3-DC, and HLA60. In brief, each immune feature is scored based on the average expression of specific genes associated with the respective immune feature. Additionally, based on the gene expression matrix, ImmuCellAI and R packages Cibersort were used to estimate the infiltration abundance of immune cells61,62.

multiplex immunofluorescence (mIF) Staining

Samples from 8 independent cohorts were subjected to the mIF staining. The 5 μm-thick slides cut from the FFPE blocks were dewaxed with xylene. Then the slides were rehydrated with a decreasing ethanol series. After rehydrating, the slides were fixed with 10% neutral buffered formalin for 10 min. Next, the slides were stained with markers of CD20, CD56 and Foxp3(akoyo biosciences), followed by incubation with blocking proteins for 10 min. After blocking, the slides were incubated with horseradish peroxidase (HRP)-conjugated secondary antibody and tyramide signal amplification (TSA). Finally, the slides were stained with 4’-6’-diamidino-2-phenylindole (DAPI) for 10 min and images were acquired with vectrapolaris (akoyo biosciences).

Single-cell RNA-seq data processing

The generation of raw gene expression matrices was performed using CellRanger, followed by analysis using the Seurat R package (v5.0.0)63 in R (v4.0.0). Cells expressing less than 300 genes, as well as those with less than 3% ribosomal genes, more than 0.1% hemoglobin genes, and over 20% mitochondrial counts, were removed. Genes expressed in fewer than 3 cells were also excluded. Default parameters of Seurat were utilized, unless otherwise specified. Independent tissue sections’ data were normalized using the SCTransform function of Seurat. Principal component analysis (PCA) was employed for dimensionality reduction and clustering, with a resolution of 0.8 for the first 30 PCAs. The integration of data was achieved through the Seurat functions FindIntegrationAnchors and IntegrateData. Clustering was executed using the FindClusters function, incorporating 30 PCA components and a resolution parameter set to 1.2. Cell types were annotated using known cell-type markers25. Differentially expressed genes (DEGs) characterizing the clusters were determined using the default Wilcoxon rank-sum test in the FindAllMarkers function from Seurat, with parameters set to only.pos = TRUE, min.pct = 0.25, and logfc = 0.25. Genes with p values below 0.05 were considered differentially expressed.

Spatial transcriptome data processing

Reads were demultiplexed and mapped to the reference genome GRCh38 using Space Ranger software (v.1.0.0) (10x Genomics). Count matrices were loaded into Seurat for subsequent data filtering, normalization, dimensional reduction, and visualization. Data from independent tissue sections were normalized using the SCTransform function of Seurat. Dimensionality reduction and clustering were performed using PCA at a resolution of 0.8 for the first 30 PCAs. We combined the data of single-cell sequencing as the cell type reference and then applied the ‘anchor’-based integration workflow introduced in Seurat v5 to enable the probabilistic transfer of cell type annotations from a reference to ST data.

Statistical analysis

All statistical analyses were implemented by R (v4.0.0). Correlations between genes mutation status were assessed by the Spearman’s rank correlation coefficient. The comparison between groups was estimated by two-tailed wilcoxon’s rank-sum test, or two-tailed wilcoxon’s signed-rank test, as appropriate. The Fisher’s exact test was utilized for the category type data. The p-value less than 0.05 were regarded as statistical significance. The following convention for symbols indicating statistical significance: ns p > 0.05, *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. Bar graph represents mean ± standard error of the mean (SEM).
