Introduction

Cellular sheets of epithelia act as barriers separating the internal and external environments, generating distinct fluid compartments within the body. Tight junctions (TJs) are epithelial cell junctions formed at the most apical region of the lateral membrane. To establish compartmentalization, TJs restrict free diffusion of solutes through paracellular routes and thereby contribute to epithelial barrier function1,2,3,4. Electron microscopy using ultrathin sections shows that TJs are the region where two plasma membranes of neighboring cells fuse and obliterate the intercellular space5. While TJs are visualized as an anastomosing network of intramembranous particle strands (known as TJ strands) by freeze-fracture electron microscopy6. Claudins (CLDNs) are major integral membrane proteins constituting TJ strands7,8. CLDN1–8 have a PDZ-binding motif (YV sequence) in the C-terminus that binds to PDZ1 domains of the zonula occludens (ZO) family proteins (ZO1, ZO2, and ZO3), which are cytoplasmic scaffolding proteins9. Importantly, ZO1 and ZO2 are required not only for TJ formation but also the restriction of apical and basolateral membrane protein intermixing, which maintains epithelial polarity in cultured epithelial cells10. In addition to CLDNs, other integral membrane proteins such as occludin (OCLN) and junctional adhesion molecules (JAMs) are localized to TJs11,12.

In the testis, TJs form between adjacent Sertoli cells near the basement membrane of seminiferous tubules to establish the blood–testis barrier13. Sertoli cell TJs (SCTJs) are associated with ectoplasmic specializations composed of subsurface bundles of actin filaments and the more deeply located endoplasmic reticulum in the cytoplasm of Sertoli cells13,14. SCTJs physically divide seminiferous tubules into adluminal and basal compartments13. In the adluminal compartment, spermatocytes/spermatids express autoantigens on their cell surface15,16 and are sequestered from the systemic circulation by SCTJs. Thus, in the past several decades, SCTJs have been believed to form an immunological barrier that protects spermatocytes/spermatids from the immune system by preventing autoimmune responses against spermatogenic cells. To unravel the role of SCTJs in spermatogenesis, several male mice lacking genes encoding TJ-associated transmembrane proteins have been generated. Cldn11-deficient mice exhibit smaller testes and defective spermatogenesis, leading to infertility17,18. Moreover, Cldn3-deficient mice have structurally and functionally intact SCTJs, and are capable of supporting spermatogenesis19. Ocln-deficient mice show atrophy in the seminiferous tubules when the mice reach around 40–60 weeks of age20. Deletion of Jam1 results in subfertility due to defects in sperm tail formation and sperm motility, although the histological appearance of Jam1-deficient mouse testes is normal21. Jam2-deficient mice are fertile and exhibit normal spermatogenesis22. However, it remains unclear whether SCTJs act as an immunological barrier to support spermatogenesis.

Spermatogonia are divided into “undifferentiated” and “differentiating” populations in mice. Undifferentiated spermatogonia differentiate into preleptotene spermatocytes via differentiating spermatogonia in the basal compartment of seminiferous tubules. Preleptotene spermatocytes migrate into the adluminal compartment across SCTJs for further differentiation23,24. Stem cell factor (SCF) is a key molecule for preserving the population of differentiating spermatogonia25, and is encoded by the Steel (Sl) locus26,27,28. In particular, SCF from Sertoli cells, but not other somatic cells, including Leydig cells, endothelial cells, or smooth muscle cells, is indispensable for the maintenance of differentiating spermatogonia29. Alternative splicing produces two Scf mRNAs, encoding either a transmembrane or secretory form30. In Sl/Sld mutant mice, which express only the secretory form of SCF, the development of male germ cells is impaired30, suggesting that a transmembrane form of SCF is critical for its biological function. Stable expression of a transmembrane form of SCF, in which GFP is inserted into the extracellular region, in cultured epithelial cells shows that this type of SCF localizes to the basolateral membrane31. However, it is largely unknown how SCF distributes on the Sertoli cell surface in seminiferous tubules and how its localization is regulated.

In the present study, we examined the role of CLDN11 in immunological barrier formation in the testis using Cldn11-deficient mice. We show that CLDN11 is necessary for SCTJ formation, and Sertoli cell barrier function, and also prevents the production of autoantibodies against antigens of spermatocytes/spermatids. These results support the idea that SCTJs restrict leakage of antigens from the adluminal compartment of seminiferous tubules to inhibit autoantibody production. Furthermore, we show that CLDN11 inhibits penetration of autoantibodies from the testicular interstitium into the seminiferous tubules, suggesting that CLDN11 acts as an immunological barrier to suppress humoral immune responses to spermatogenic cells with autoantigens. Importantly, however, our results demonstrate that CLDN11-mediated suppression of the humoral autoimmune responses is dispensable for spermatogenesis. Finally, we suggest that CLDN11 is required for Sertoli cell polarization and localization of SCF at the basal compartment of seminiferous tubules, contributing to the proliferation of differentiating spermatogonia. Our findings have prompted us to reconsider the classical concept of SCTJ-mediated immunological barriers for spermatogenic cells and shed new light on the role of CLDN11 in Sertoli cell polarization during spermatogenesis.

Results

CLDN11 is required for spermatogenesis in mice

CLDN11 is a component of SCTJs17,32. Published single-cell RNA sequencing (RNA-seq) data using spermatogenic cells from adult humans and adult mice suggest that human CLDN11 and mouse Cldn11 mRNA are predominantly expressed in Sertoli cells, but not spermatogenic cells of seminiferous tubules (Supplementary Fig. 1a–d)33. To identify the role of SCTJs in adult steady-state spermatogenesis, we used Cldn11 knockout (Cldn11−/−) mice34. Testis size of Cldn11+/+ mice was comparable with that of Cldn11+/− mice (Fig. 1a). In addition, histological and immunohistochemical analyses showed that there were no remarkable differences in testicular histology, accumulation of spermatozoa in the cauda epididymides, and localization of TJ-associated proteins (CLDN11, OCLN, and ZO1) in seminiferous tubules between Cldn11+/+ and Cldn11+/− mice (Supplementary Fig. 2a–e). Thus, we used Cldn11+/+ and Cldn11+/− mice as control mice for Cldn11−/− mice in this study. Cldn11−/− mice had smaller-sized testes and decreased testis weight compared with control mice (Fig. 1a). Immunohistochemical analyses using frozen testis sections showed loss of CLDN11 in seminiferous tubules of Cldn11−/− mice (Supplementary Fig. 2f). We also confirmed complete loss of CLDN11 by western blotting using whole testis lysates prepared from Cldn11−/− mice (Supplementary Fig. 2g). Histological examination revealed that Cldn11 knockout impaired spermatogenesis in the testis and resulted in loss of spermatozoa in the cauda epididymis (Fig. 1b, c). These findings suggest that CLDN11 plays a pivotal role in spermatogenesis in mice. To further characterize this role, we performed immunohistochemistry using spermatogenic cell markers. We confirmed nearly complete loss of peanut agglutinin (PNA) lectin-positive cells (a marker of spermatids) in Cldn11−/− mice (Supplementary Fig. 3a, b). We also observed a decrease in the number of DEAD-box helicase 4 (DDX4)-positive cells (a marker of spermatids and spermatocytes) and synaptonemal complex protein 3 (SCP3)-positive cells (a marker of spermatocytes) in Cldn11−/− mice (Supplementary Fig. 3c, d). In addition, normalization of the number of KIT-positive cells (a marker of differentiating spermatogonia) to the number of Wilms tumor 1 (WT1)-positive cells (a marker of Sertoli cells) showed that the number of differentiating spermatogonia was significantly decreased in seminiferous tubules of Cldn11−/− mice (Fig. 1d). The proportion of KIT-positive cells expressing Ki67, a proliferation marker, in Cldn11−/− mice was comparable with that in Cldn11+/− mice (Supplementary Fig. 4). This suggests that the proliferative capacity of residual differentiating spermatogonia was maintained in Cldn11−/− mice. In contrast, normalization of the number of cells expressing undifferentiated spermatogonium markers, such as GDNF family receptor alpha 1 (GFRA1), promyelocytic leukemia zinc finger (PLZF), or Lin-28 homolog A (LIN28A), to the number of WT1-positive cells indicated that the number of undifferentiated spermatogonia was largely unaffected in Cldn11−/− mice (Fig. 1e and Supplementary Fig. 5a, b). To further investigate the cause for the decrease in spermatogenic cells in Cldn11−/− mice, we performed terminal deoxynucleotidyl transferase-mediated dUTP nick-end labeling (TUNEL) assay to detect apoptotic cells. We found that Cldn11−/− mice had a higher number of TUNEL-positive cells in seminiferous tubules compared with Cldn11+/− mice (Fig. 1f). Furthermore, we detected TUNEL signals in DDX4-positive and SCP3-positive cells of Cldn11−/− mice, but not KIT-positive, PLZF-positive, or WT1-positive cells (Fig. 1g and Supplementary Fig. 6). These results suggest that defective spermatogenesis in Cldn11−/− mice is caused by a reduction in the number of differentiating spermatogonia and an increase in apoptosis of spermatocytes. This demonstrates that CLDN11 is essential for adult steady-state spermatogenesis in mice.

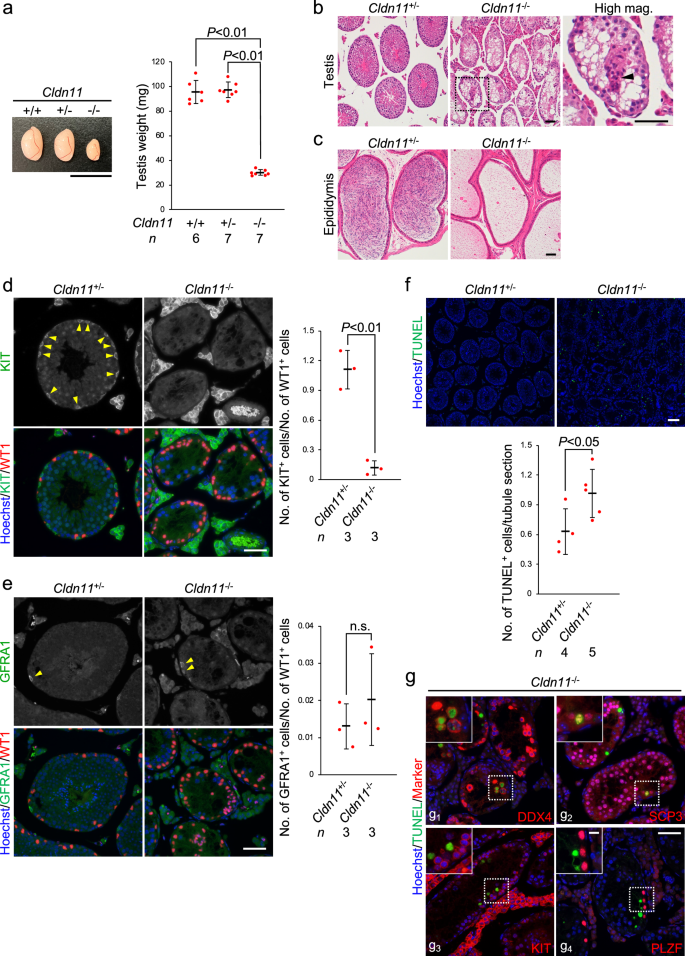

Fig. 1: CLDN11 is required for spermatogenesis in mice.
figure 1

a Appearance and weight of testes from Cldn11+/+, Cldn11+/−, and Cldn11−/− mice. The number of biologically independent mice in each group is shown as n in the graph. Red dots indicate biological replicates of mice. Data are shown as mean ± SD and were analyzed by Dunnett’s test. Hematoxylin and eosin staining of sections prepared from testes (b) and the cauda epididymides (c) of Cldn11+/− and Cldn11−/− mice. The black dotted square is the region shown in a high magnification image (High mag.). A black arrowhead indicates a Sertoli cell cluster. Immunohistochemistry of testis sections prepared from Cldn11+/− and Cldn11−/− mice using anti-KIT and anti-WT1 (d) or anti-GFRA1 and anti-WT1 antibodies (e). Cells expressing KIT (d) or GFRA1 (e) in seminiferous tubules are shown by yellow arrowheads. The number of KIT+ (d) or GFRA1+ (e) cells on seminiferous tubule sections from testes of Cldn11+/− and Cldn11−/− mice were normalized to the number of WT1+ Sertoli cells in the graph. A total of 228–247 seminiferous tubules on testis sections from three biologically independent Cldn11+/− or Cldn11−/− mice were analyzed. Red dots indicate biological replicates of mice. Data are shown as mean ± SD and were analyzed by Student’s t-test. n.s. (not significant): P > 0.05. f TUNEL assay using testis sections prepared from Cldn11+/− and Cldn11−/− mice. The number of TUNEL+ cells per seminiferous tubule section was counted. A total of 541 or 709 seminiferous tubules on testis sections from four Cldn11+/− or five Cldn11−/− biologically independent mice, respectively, were analyzed. Red dots indicate biological replicates of mice. Data are shown as mean ± SD and were analyzed by Student’s t-test. g TUNEL assay with immunohistochemistry of testis sections from Cldn11+/− mice using anti-DDX4 (g1), anti-SCP3 (g2), anti-KIT (g3), or anti-PLZF antibody (g4). Insets are magnified images of the regions indicated by white dotted squares. Scale bars: 1 cm (a), 50 μm (b–e, g), 100 μm (f), and 10 μm (g, inset).

Full size image

Next, we examined the role of CLDN11 during the first wave of spermatogenesis. We investigated localization of CLDN11 and ZO1 in seminiferous tubules of postnatal day (P)-10, P20, and P30 wild-type mice by immunohistochemistry. At P10, CLDN11 and ZO1 signals were detected within seminiferous tubules but did not accumulate near the basement membrane of tubules (Supplementary Fig. 7a). However, at P20 and P30, CLDN11 colocalized with ZO1 near the basement membrane (Supplementary Fig. 7a), suggesting that SCTJs form between P10 and P20 in mice. Our observations are consistent with previous results obtained by electron microscopy analyses of mouse testes35,36. Although testis weight was not significantly altered at P10, P20, or P30 in Cldn11−/− mice compared with control mice (Supplementary Fig. 7b), histological abnormalities, including Sertoli cell clusters at the adluminal compartment of seminiferous tubules, were found at P20 and P30, but not P10, in Cldn11−/− mice (Supplementary Fig. 7c). No elongated spermatids were observed at P30 in Cldn11−/− mice, but were present at P30 in Cldn11+/− mice (Supplementary Fig. 7c). Collectively, our findings suggest that CLDN11-mediated SCTJ formation is necessary to accomplish the first wave of spermatogenesis, although CLDN11 is dispensable for its onset.

CLDN11 is required for SCTJ formation and Sertoli cell barrier function

To clarify the effect of Cldn11 knockout on SCTJ formation, we examined localization of TJ-associated proteins in seminiferous tubules. Immunohistochemical analyses of frozen testis sections showed that OCLN and ZO1 still colocalized near the basement membrane of seminiferous tubules in Cldn11−/− mice (Supplementary Fig. 8a). Colocalization of JAM1 and ZO1 decreased with Cldn11 knockout (Supplementary Fig. 8b). In addition to CLDN11, CLDN3 and CLDN5 are thought to be expressed in mouse Sertoli cells37,38. Thus, we investigated localization of CLDN3 and CLDN5. We found partial colocalization of CLDN3 with ZO1 in seminiferous tubules of wild-type mice, which was lost in Cldn11−/− mice (Supplementary Fig. 8c). Prominent CLDN5 signals were not detected in seminiferous tubules of wild-type or Cldn11−/− mice (Supplementary Fig. 8d). Next, we examined ZO1 localization by whole-mount immunofluorescence of seminiferous tubules. ZO1 showed junctional localization in seminiferous tubules of Cldn11+/− mice. Intriguingly, however, ZO1 localization was discontinuous and fragmented in seminiferous tubules of Cldn11−/− mice (Fig. 2a), raising the possibility that CLDN11 regulates ZO1 localization. To examine this, we overexpressed mouse CLDN11 in mouse L fibroblasts lacking cadherin-mediated cell adhesion39. In L fibroblasts stably expressing CLDN11, ZO1 was recruited to cell–cell contacts and colocalized with CLDN11 (Fig. 2b). To determine whether CLDN11 binds to ZO1, similar to other CLDNs (CLDN1–8) with YV sequences in their C-termini9, we next performed in vitro binding assays. We generated bacterial glutathione S-transferase (GST) fusion proteins for the C-terminal 29 amino acids of mouse CLDN11 (aa 179–207: GST-CL11) and its deletion mutant lacking the two C-terminal amino acids corresponding to a putative PDZ-binding motif (HV sequence) (aa 179–205: GST-CL11ΔHV). To determine which PDZ domain of ZO1 binds to CLDN11, we also generated bacterial maltose-binding protein (MBP) fusion proteins for PDZ1 (aa 19–113: MBP-zPDZ1), PDZ2 (aa 181–292: MBP-zPDZ2), and PDZ3 (aa 423–503: MBP-zPDZ3) of ZO1 (Fig. 2c). GST pull-down assays showed that GST-CL11 bound to MBP-zPDZ1 (Fig. 2d), while GST-CL11ΔHV did not (Fig. 2e), indicating that CLDN11 directly binds to PDZ1 of ZO1 via its PDZ-binding motif (HV sequence). These findings support the idea that CLDN11 directly regulates ZO1 localization in seminiferous tubules.

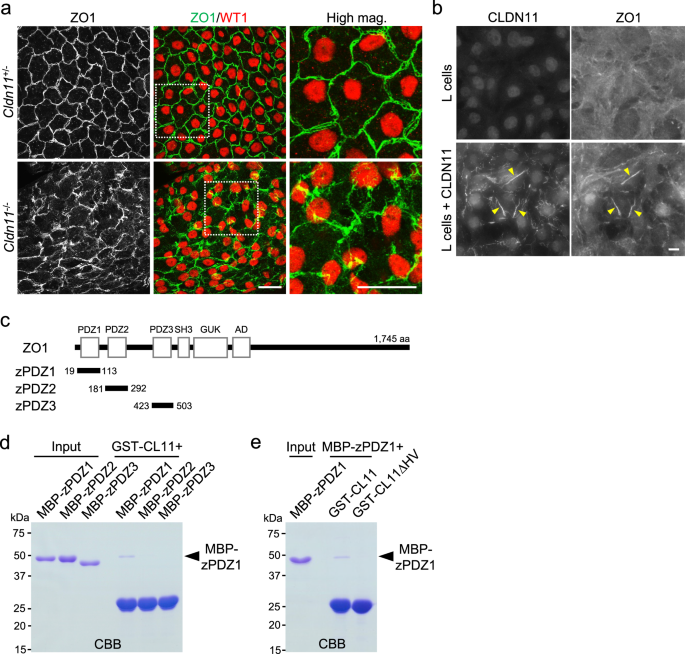

Fig. 2: CLDN11 regulates ZO1 localization in seminiferous tubules.
figure 2

a Whole-mount immunofluorescence staining of seminiferous tubules from Cldn11+/− and Cldn11−/− mice using anti-ZO1 and anti-WT1 antibodies. White dotted squares indicate the regions shown in high magnification images (High mag.). b Immunofluorescence staining of parental L cells and L cells stably expressing mouse CLDN11 using anti-CLDN11 and anti-ZO1 antibodies. Yellow arrowheads show colocalization of CLDN11 with ZO1. c Schematic diagram of the domain structure of the mouse ZO1 protein (1,745 amino acids). The N-terminal portion of ZO1 contains three PDZ domains, an SH3 domain, a guanylate kinase (GUK) domain, and an acidic domain (AD). Distinct portions of the ZO1 protein were fused to maltose-binding protein (MBP); shown by three black lines with amino acid numbers. Glutathione S-transferase (GST)-fused proteins of aa 179–207 and aa 179–205 of mouse CLDN11 were designated as GST-CL11 and GST-CL11ΔHV, respectively. MBP-fused proteins of PDZ1 (aa 19–113), PDZ2 (aa 181–292), and PDZ3 domain (aa 423–503) of ZO1 were designated as MBP-zPDZ1, MBP-zPDZ2, and MBP-zPDZ3, respectively. Input: purified MBP-fused proteins. GST pull-down assays were performed using GST-CL11, MBP-zPDZ1, MBP-zPDZ2, and MBP-zPDZ3 (d) or GST-CL11, GST-CL11ΔHV, and MBP-zPDZ1 (e). The resulting samples were separated by SDS–PAGE followed by Coomassie Brilliant Blue (CBB) staining. Scale bars: 30 μm (a) and 10 μm (b).

Full size image

To investigate the effect of Cldn11 knockout on the ultrastructure of SCTJs, we used ultrathin sections for electron microscopy of seminiferous tubules. In Cldn11+/− mice, close contacts between neighboring plasma membranes of Sertoli cells were observed (Fig. 3a). However, these plasma membrane contacts were lost in Cldn11−/− mice, with large gaps observed between Sertoli cell plasma membranes associated with ectoplasmic specializations (Fig. 3a). Next, we analyzed Sertoli cell barrier function by injection of a tracer, specifically a primary amine-reactive biotinylation reagent (557 Da)40, into the interstitium of the testis. Diffusion of the biotinylation reagent from the interstitium stopped at ZO1-positive SCTJs in Cldn11+/− mice (Fig. 3b). In contrast, the biotinylation reagent reached the adluminal compartment of seminiferous tubules in Cldn11−/− mice (Fig. 3b, c). Taken together, these findings indicate that CLDN11 is essential for SCTJ formation and Sertoli cell barrier function.

Fig. 3: CLDN11 is required for SCTJ formation and Sertoli cell barrier function.
figure 3

a Ultrathin section electron microscopy of seminiferous tubules from Cldn11+/− and Cldn11−/− mice. Yellow arrowheads indicate close contacts between neighboring plasma membranes of Sertoli cells. Yellow arrows indicate intercellular spaces without plasma membrane contacts between adjacent Sertoli cells. Blue asterisks indicate endoplasmic reticulum cisternae constituting ectoplasmic specializations. Red asterisks indicate large gaps between Sertoli cell plasma membranes associated with ectoplasmic specializations. Biotin tracer assay. Sulfo-NHS-LC-Biotin was injected into the interstitium of testes from Cldn11+/− and Cldn11−/− mice. Immunohistochemistry of testis sections from Cldn11+/− and Cldn11−/− mice using anti-ZO1 antibody and streptavidin conjugated to a fluorescent dye (b). Testis sections from Cldn11+/− and Cldn11−/− mice were labeled with streptavidin (c). Scale bars: 200 nm (a), 10 μm (b), and 50 μm (c).

Full size image

CLDN11 prevents the production of autoantibodies against antigens in spermatocytes/spermatids and penetration of IgG into seminiferous tubules

SCTJs are thought to act as an immunological barrier by restricting leakage of autoantigens in spermatocytes/spermatids from the adluminal compartment of seminiferous tubules. Thus, structural and functional defects in SCTJs are expected to generate autoantibodies against autoantigens. To examine this, we investigated whether autoantibodies are present in sera from Cldn11−/− mice by immunohistochemistry of wild-type testis sections. Antigens were not detected within seminiferous tubules in 24 of 26 sera from control mice (Fig. 4a). In contrast, 3 of 20 sera and 4 of 20 sera from Cldn11−/− mice reacted to antigens in nuclei of SCP3-positive cells or at the acrosome labeled with PNA lectin, respectively (Fig. 4b). In addition, we detected dot-like signals or signals from flagella of elongated spermatids at the adluminal compartment of wild-type seminiferous tubules using 2 of 20 sera from Cldn11−/− mice as primary antibodies (Supplementary Fig. 9a). We also observed fluorescence signals similar to that in Fig. 4b1 or Supplementary Fig. 9a2 by immunohistochemistry using 2 of 26 sera from control mice (data not shown). Considering that autoantibodies against antigens of spermatocytes/spermatids are present in 9 of 20 sera from Cldn11−/− mice compared with 2 of 26 sera from control mice (P < 0.01, Fisher’s exact test), our findings suggest that Cldn11−/− mice tend to produce autoantibodies. Moreover, western blotting of whole wild-type testis lysates using sera from Cldn11−/− mice detected extra bands that were not detected using sera from Cldn11+/− mice (Fig. 4c). This suggests the presence of autoantibodies against testicular antigens in sera from Cldn11−/− mice. Next, we tested the possibility that autoantibodies against antigens of spermatocytes/spermatids penetrate into the adluminal compartment of seminiferous tubules in Cldn11−/− mice. Since it is difficult to visualize autoantibodies themselves, we investigated distribution of IgG by immunohistochemistry of frozen testis sections. We found that IgG localized outside CLDN11-positive SCTJs in Cldn11+/− mice (Fig. 4d), while IgG accumulated at the adluminal compartment of seminiferous tubules in Cldn11−/− mice (Fig. 4e). In addition, tracer assays showed that flux of 150 kDa dextran, which has about the same molecular weight as IgG, from the interstitium into the adluminal compartment of seminiferous tubules was increased in Cldn11−/− mouse testes (Fig. 4f). These results suggest that CLDN11 forms a physical barrier to macromolecules such as IgG, including autoantibodies. Meanwhile, CD45-positive cells (a marker of leukocytes) were not observed in seminiferous tubules of Cldn11+/− or Cldn11−/− mice (Supplementary Fig. 9b), suggesting that CLDN11 is dispensable for preventing infiltration of leukocytes into seminiferous tubules.

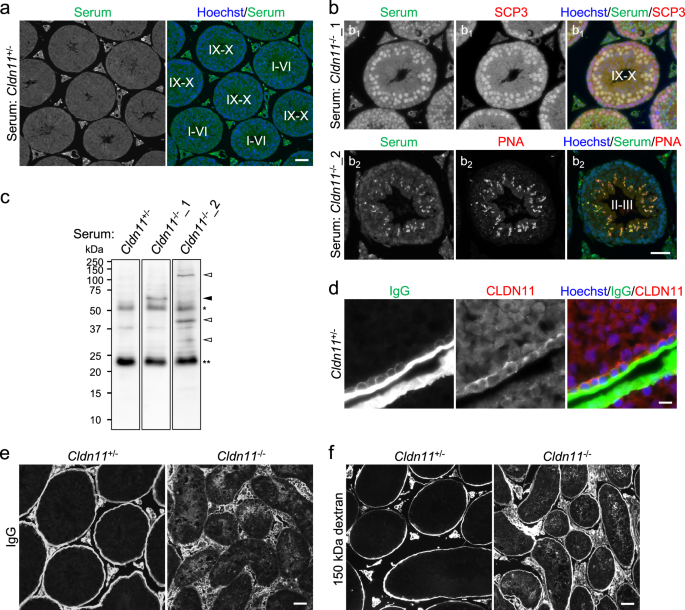

Fig. 4: Production of autoantibodies against antigens of spermatocytes/spermatids and penetration of IgG into seminiferous tubules in Cldn11−/− mice.
figure 4

a Immunohistochemistry of wild-type testis sections using serum from a Cldn11+/− mouse as a primary antibody. Stages of spermatogenesis are shown by Roman numerals. b Immunohistochemistry of wild-type testis sections using serum from a Cldn11−/− mouse (Cldn11−/−_1) and anti-SCP3 antibody (b1), or serum from a Cldn11−/− mouse (Cldn11−/−_2) and PNA lectin (b2). Stages of spermatogenesis are shown by Roman numerals. c Western blotting of wild-type testis lysates with serum from a Cldn11+/− mouse and sera from Cldn11−/− mice used in (b). A black arrowhead and white arrowheads indicate testicular antigens detected by sera in (b1) and (b2), respectively. *IgG heavy chains. **IgG light chains. d Immunohistochemistry of frozen testis sections from Cldn11+/− mice using anti-mouse IgG and anti-CLDN11 antibodies. e Immunohistochemistry of frozen testis sections from Cldn11+/− and Cldn11−/− mice using anti-mouse IgG antibody. f Tracer assay. Dextran (150 kDa) conjugated to a fluorescent dye was injected into the interstitium of testes from Cldn11+/− and Cldn11−/− mice. Scale bars: 50 μm (a, b, e, f) and 10 μm (d).

Full size image

Rag2 knockout does not restore defective spermatogenesis caused by Cldn11 knockout

Our findings suggest that CLDN11 prevents the production of autoantibodies against antigens of spermatocytes/spermatids, which penetrate into the adluminal compartment of seminiferous tubules. This raises the possibility that CLDN11 contributes to spermatogenesis by inhibiting humoral immune responses against spermatogenic cells with autoantigens. To test this, we generated Cldn11−/−/recombination activating gene 2 (Rag2)−/− male mice by crossing Cldn11−/− mice and Rag2−/−/Janus kinase 3 (Jak3)−/− mice41, in which spermatogenesis occurs normally (Supplementary Fig. 10a–c). In the present study, we used Cldn11−/−/Rag2−/− mice with wild-type alleles of Jak3. Rag2−/− mice fail to produce mature T and B lymphocytes due to an inability to initiate V(D)J rearrangement, leading to a severe combined immune deficient phenotype42. Thus, on a Rag2 knockout background, Cldn11−/− mice are expected to lack an adaptive immune response. Testis size was smaller in Cldn11−/− mice and Cldn11−/−/Rag2−/− mice compared with control mice (Fig. 5a). There was also no significant difference in testis weight between Cldn11−/− mice and Cldn11−/−/Rag2−/− mice (Fig. 5a). As expected, western blotting of whole testis lysates showed that IgG proteins were completely lost on a Rag2 knockout background (Fig. 5b). Cldn11−/−/Rag2−/− mice exhibited abnormal testis histology and complete loss of spermatozoa in the cauda epididymides, similar to Cldn11−/− mice (Fig. 5c, d). In addition, there were no notable differences in populations of PNA lectin-positive cells and SCP3-positive cells between Cldn11−/− mice and Cldn11−/−/Rag2−/− mice (Fig. 5e). These results demonstrate that CLDN11-mediated spermatogenesis is independent of RAG2 function, and also suggest that humoral and cellular immune responses against spermatogenic cells with autoantigens are not a cause of defective spermatogenesis in Cldn11−/− mice.

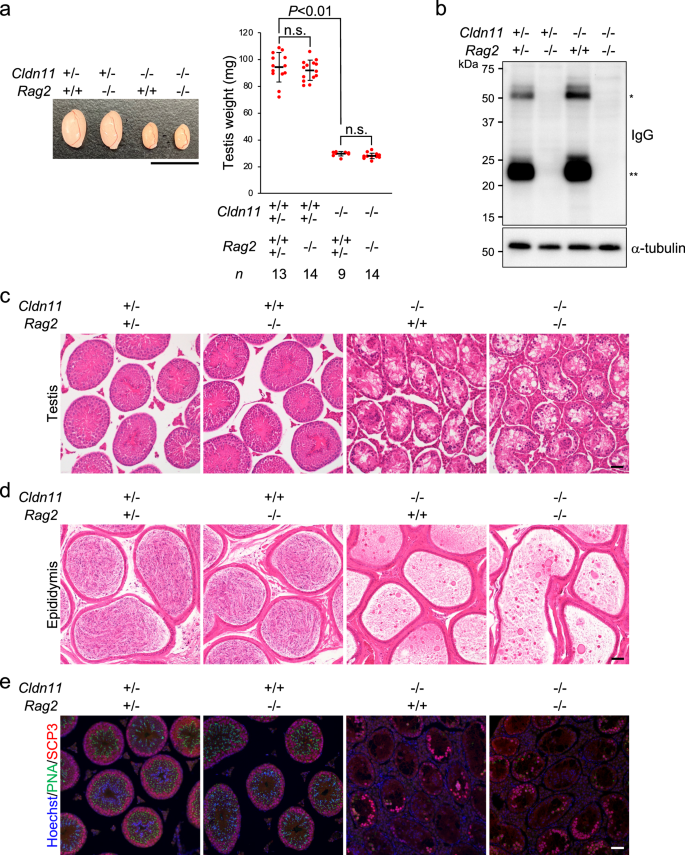

Fig. 5: Defective spermatogenesis in Cldn11−/− mice is not restored by additional Rag2 knockout.
figure 5

a Appearance of testes from Cldn11+/−/Rag2+/+, Cldn11+/−/Rag2−/−, Cldn11−/−/Rag2+/+, and Cldn11−/−/Rag2−/− mice. Testis weight of mice from each genotype is shown in the graph. The number of biologically independent mice in each group is shown as n in the graph. Red dots indicate biological replicates of mice. Data are shown as mean ± SD and were analyzed by Tukey–Kramer test. n.s. (not significant): P > 0.05. b Western blotting of testis lysates prepared from Cldn11+/−/Rag2+/−, Cldn11+/−/Rag2−/−, Cldn11−/−/Rag2+/+, and Cldn11−/−/Rag2−/− mice using anti-mouse IgG and anti-α-tubulin antibodies. *IgG heavy chains. **IgG light chains. Hematoxylin and eosin staining of sections prepared from testes (c) and the cauda epididymides (d) of Cldn11+/−/Rag2+/−, Cldn11+/+/Rag2−/−, Cldn11−/−/Rag2+/+, and Cldn11−/−/Rag2−/− mice. e Immunohistochemistry of testis sections from Cldn11+/−/Rag2+/−, Cldn11+/+/Rag2−/−, Cldn11−/−/Rag2+/+, and Cldn11−/−/Rag2−/− mice using PNA lectin and anti-SCP3 antibody. Scale bars: 1 cm (a) and 50 μm (c–e).

Full size image

CLDN11 contributes to Sertoli cell polarization and localization of cell junctional components at Sertoli cell–Sertoli cell contacts

Analyses of ZO1/ZO2 double knockout Madin–Darby canine kidney (MDCK) II epithelial cells previously showed that ZO1/ZO2 is required for epithelial polarization, and can prevent apical and basolateral membrane protein intermixing on the cell surface10. Since Cldn11 knockout severely impairs the junctional localization of ZO1 in seminiferous tubules (Fig. 2a), we examined the role of CLDN11 in Sertoli cell polarization. To clarify the precise localization of membrane proteins in Sertoli cells, we depleted spermatogenic cells in the testes of Cldn11+/− and Cldn11−/− mice by busulfan treatment. Immunohistochemical analyses showed that ezrin (EZR), an apical marker, was located at the adluminal compartment in seminiferous tubules of busulfan-treated Cldn11+/− mice (Fig. 6a). However, EZR mislocalized near the basement membrane in seminiferous tubules of busulfan-treated Cldn11−/− mice (Fig. 6a). The basolateral marker, Na/K ATPase α1 subunit (ATP1A1), localized to the basolateral membrane of Sertoli cells, with some ATP1A1 closely localized with a TJ marker in seminiferous tubules of busulfan-treated Cldn11+/− mice (Fig. 6b). In contrast, ATP1A1 diffusely localized to adluminal and basal regions in seminiferous tubules of busulfan-treated Cldn11−/− mice (Fig. 6b). A polarity protein complex composed of PAR3/PAR6/aPKC localizes to TJs43. However, we could not confirm SCTJ localization of polarity proteins by immunohistochemistry of wild-type testis sections (data not shown). The mRNA expression levels of Par3, Par6a, Prkcz, and Prkci are quite low in Sertoli cells, as indicated by published single-cell RNA-seq data using spermatogenic cells from adult mice (Supplementary Fig. 11)33, which may explain this discrepancy. We also found that Cldn11 knockout affected localization of nectin-2 (NECTIN2), an adherens junction protein, and gap junction α1 protein (GJA1), a gap junction protein, in seminiferous tubules. In busulfan-treated Cldn11+/− mice, NECTIN2 and GJA1 closely localized with a TJ marker near the basement membrane in seminiferous tubules (Fig. 6c, d). However, in busulfan-treated Cldn11−/− mice, NECTIN2 diffusely localized to the adluminal and basal regions (Fig. 6c), while GJA1 mislocalized from Sertoli cell–Sertoli cell contacts (Fig. 6d). These results suggest that CLDN11 contributes to Sertoli cell polarization and localization of cell junctional components at Sertoli cell–Sertoli cell contacts.

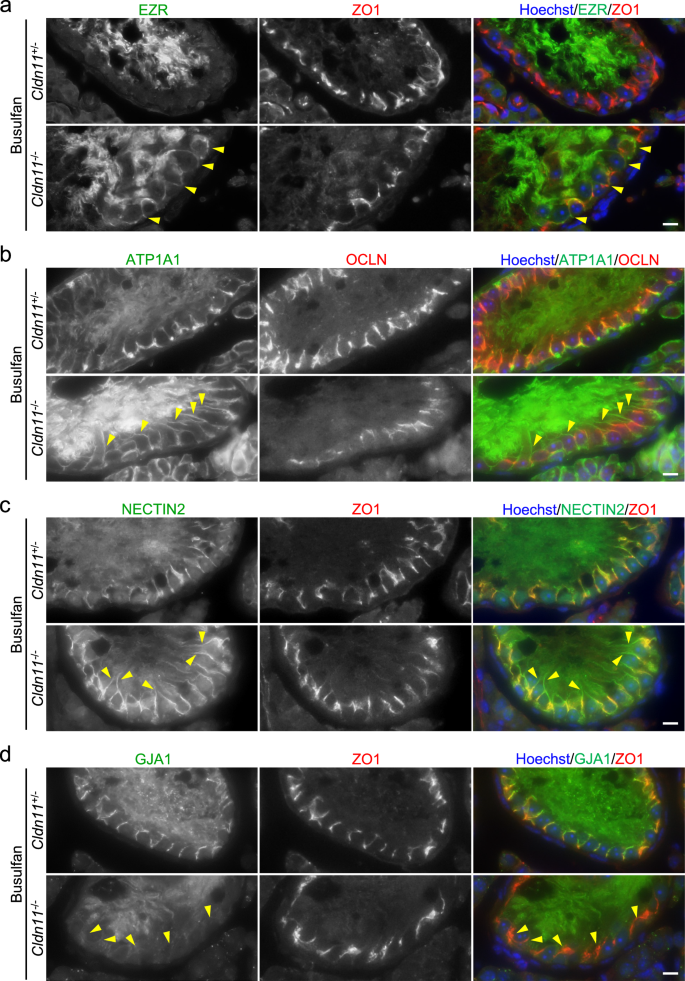

Fig. 6: Epithelial polarity markers and components of junctional complexes are mislocalized in Sertoli cells of busulfan-treated Cldn11−/− mice.
figure 6

Immunohistochemistry of testis sections prepared from busulfan-treated Cldn11+/− and Cldn11−/− mice using anti-EZR and anti-ZO1 (a), anti-ATP1A1 and anti-OCLN (b), anti-NECTIN2 and anti-ZO1 (c), or anti-GJA1 and anti-ZO1 antibodies (d). Yellow arrowheads show mislocalization of EZR near the basement membrane (a), diffuse localization of ATP1A1 (b) and NECTIN2 (c) to the adluminal region, and delocalization of GJA1 from Sertoli cell–Sertoli cell junctions (d) in seminiferous tubules of busulfan-treated Cldn11−/− mice. Scale bars: 10 μm (a–d).

Full size image

CLDN11 contributes to the proliferation of differentiating spermatogonia through SCF

It has been suggested that SCF, a ligand of the KIT receptor, is necessary for the proliferation of differentiating spermatogonia, but not undifferentiated spermatogonia25. Taking into consideration that the number of differentiating spermatogonia was reduced in Cldn11−/− mice (Fig. 1d), we hypothesized that CLDN11 maintains differentiating spermatogonia through SCF. First, we attempted to confirm the role of SCF in spermatogenesis using Sl/Sld mutant mice lacking a transmembrane form of SCF30. Immunohistochemistry showed that PLZF-positive undifferentiated spermatogonia resided in some seminiferous tubules on testis sections prepared from Sl/Sld mutant mice (Supplementary Fig. 12a, b), consistent with previous observations25. In the seminiferous tubules, LIN28A-positive undifferentiated spermatogonia were also observed (Supplementary Fig. 12c), while a population of KIT-positive differentiating spermatogonia was decreased (Supplementary Fig. 12d). This suggests that a transmembrane form of SCF is necessary for the maintenance of differentiating spermatogonia. A recent study demonstrated that SCF in Sertoli cells, but not other somatic cells in the testis, is required for the maintenance of differentiating spermatogonia29. Thus, we examined SCF localization in Sertoli cells of busulfan-treated testes. Immunohistochemical analyses showed that SCF closely localized with a TJ marker near the basement membrane in busulfan-treated Cldn11+/− testes (Fig. 7a). To further clarify SCF localization in polarized epithelial cells, we generated MDCK II cells stably expressing a transmembrane form of SCF tagged with C-terminal hemagglutinin (HA) (Supplementary Fig. 13a). Immunofluorescence showed that HA-tagged SCF localized to the lateral membrane in MDCK II cells (Supplementary Fig. 13b, c). In contrast, SCF mislocalized from Sertoli cell–Sertoli cell junctions in busulfan-treated Cldn11−/− testes (Fig. 7a). These results suggest that SCF preferentially localizes at the basal compartment of seminiferous tubules, and its localization in Sertoli cells is regulated by CLDN11. Next, to test the possibility that a reduction in the number of differentiating spermatogonia in Cldn11−/− mice is caused by SCF delocalization from the basal compartment, we treated seminiferous tubules of Cldn11−/− mice with recombinant SCF proteins corresponding to the extracellular region. Recombinant proteins were administered from the interstitium for 10 days using gel beads labeled with a fluorescent dye44. To distinguish areas of seminiferous tubules close to bovine serum albumin (BSA)- or SCF-soaked beads, the areas were labeled with a red fluorescent dye, CM-DiI (Fig. 7b). The cell density of KIT-positive cells in seminiferous tubules labeled with CM-DiI was significantly increased by transplantation of SCF-soaked beads, but not BSA-soaked beads (Fig. 7c, d). In addition, we observed KIT-positive cells in seminiferous tubules close to SCF-soaked beads, but not BSA-soaked beads, on testis sections (Supplementary Fig. 14). Taken together, our findings suggest that CLDN11 contributes to the proliferation of differentiating spermatogonia through SCF (Fig. 7e).

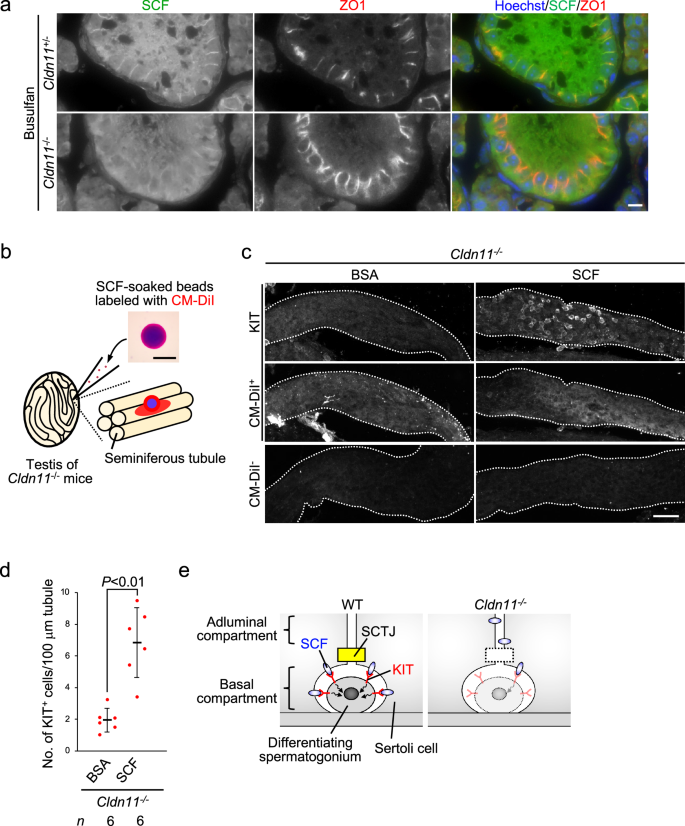

Fig. 7: In vivo transplantation of SCF-soaked/CM-DiI-labeled beads into the testicular interstitium induces proliferation of differentiating spermatogonia in Cldn11−/− mice.
figure 7

a Immunohistochemistry of testis sections prepared from busulfan-treated Cldn11+/− and Cldn11−/− mice using anti-SCF and anti-ZO1 antibodies. b Schema for in vivo transplantation of SCF-soaked/CM-DiI-labeled beads into the interstitium of Cldn11−/− mouse testes. Appearance of a SCF-soaked/CM-DiI-labeled bead is shown. CM-DiI labels seminiferous tubules in proximity to the beads. c Whole-mount immunofluorescence staining using anti-KIT antibody on seminiferous tubules from Cldn11−/− mouse testes, with bovine serum albumin (BSA)- or SCF-soaked beads transplanted into the interstitium. Seminiferous tubules with or without CM-DiI labeling are shown as CM-DiI+ and CM-DiI-, respectively. White dotted lines outline the seminiferous tubules. d BSA- and SCF-soaked beads were separately transplanted into distinct testes of a Cldn11−/− mouse. Transplantation was performed using six biologically independent Cldn11−/− mice. After, 67 and 72 seminiferous tubules labeled with CM-DiI derived from BSA- or SCF-soaked beads, respectively, were analyzed. The number of KIT+ cells per 100 μm seminiferous tubule labeled with CM-DiI was quantified. Red dots indicate biological replicates of mice. Data are shown as mean ± SD and were analyzed by Welch’s t-test. e Working model showing the role of CLDN11 in maintenance of differentiating spermatogonia. CLDN11-based Sertoli cell tight junctions (SCTJs) physically divide seminiferous tubules into adluminal and basal compartments. KIT-positive differentiating spermatogonia are located at the basal compartment. Interaction of Sertoli cell-derived SCF with KIT is essential for survival of differentiating spermatogonia. SCF accumulates at the basal compartment through Sertoli cell polarization after SCTJ formation, presumably promoting KIT activation in differentiating spermatogonia. Cldn11 knockout delocalizes SCF from the basal compartment and reduces the number of differentiating spermatogonia, likely due to a decrease in KIT activity. Scale bars: 10 μm (a), 100 μm (b), and 50 μm (c).

Full size image

Discussion

Classically, SCTJs have been thought to form immunological barriers to sequester autoantigens of spermatocytes/spermatids within the adluminal compartment, leading to prevention of autoimmune responses against spermatogenic cells. This well-known concept was established based upon certain observations. First, SCTJs are appropriate structures to restrict the permeability of autoantigens, autoantibodies, and immune cells through the paracellular pathway by eliminating the intercellular space. Second, SCTJ formation and the appearance of pachytene spermatocytes occur around the same time (P14–P16) in seminiferous tubules of mice35,36,45, implying that SCTJs protect spermatocytes from the immune system. However, previous studies using mice lacking TJ-associated genes, such as Cldn11, Cldn3, Ocln, Jam1, or Jam2, have not provided direct evidence of the immunological barrier function of SCTJs17,18,19,20,21,22. In the present study, we show that Cldn11 knockout induces production of autoantibodies against antigens expressed in spermatocytes/spermatids, suggesting that CLDN11 acts as an immunological barrier and likely restricts leakage of autoantigens from the adluminal compartment of seminiferous tubules into the systemic circulation. Moreover, previous studies show the likely involvement of SCTJs in immunological barrier formation. Analyses of mice with Sertoli cell-specific ablation of the androgen receptor demonstrate that the receptor in Sertoli cells regulates SCTJ formation at the ultrastructural level and inhibits production of autoantibodies against germ cell antigens46. This suggests that androgen receptor-mediated maintenance of testicular immune privilege may depend on SCTJ structures. Furthermore, mice with conditional knockout of rho guanine nucleotide exchange factor 15 (Arhgef15) in Sertoli cells exhibit disruption of Sertoli cell barrier function and defects in testicular immune homeostasis characterized by production of autoantibodies against testicular antigens47. These results imply that ARHGEF15 may maintain immune homeostasis in the testis through SCTJ function. In addition to SCTJs, it is suggested that regulatory T cells (Tregs) play an important role in suppression of the production of autoantibodies against spermatogenic cell antigens48,49. Considering that Sertoli cells can induce Treg conversion and expansion in a transforming growth factor (TGF)-β-dependent manner50,51, the effect of Cldn11 knockout on TGF-β expression in Sertoli cells and Treg function should be clarified in the future to further understand how CLDN11 prevents autoantibody production.

Permeability barriers against ions and small molecules, but not macromolecules, are reportedly disrupted in MDCK II cells lacking CLDN-based TJ strands10. Similar barrier defects are observed in Cldn5-deficient mouse endothelial cells with size-selective loosening of the blood–brain barrier52. Consistent with those observations, we found that permeability barriers against small molecules (Sulfo-NHS-LC-Biotin: 557 Da) were disrupted in seminiferous epithelia of Cldn11−/− mice. Interestingly, however, IgG (approximately 150 kDa), which could not diffuse across normal SCTJs from the interstitium, accumulated at the adluminal compartment of seminiferous tubules in Cldn11−/− mice, suggesting that CLDN11 can form permeability barriers against IgG. This is supported by our results that flux of 150 kDa dextran from the interstitium into the adluminal region was increased in Cldn11−/− mice. JAM1 is suggested to control macromolecule permeability barriers in the absence of CLDN-based TJ strands in MDCK II cells10. Since JAM1 is mislocalized in seminiferous tubules of Cldn11−/− mice, CLDN11 may regulate permeability barriers against IgG through JAM1. Taking into consideration that Cldn11 knockout disrupts physical barriers to IgG, penetration of autoantibodies against antigens in spermatocytes/spermatids into the adluminal compartment of seminiferous tubules may be a cause of defective spermatogenesis in Cldn11−/− mice via humoral immune responses. Intriguingly, however, Rag2 knockout severely impairs the adaptive immune system but did not restore defective spermatogenesis on a Cldn11 knockout background. Thus, we concluded that CLDN11-mediated spermatogenesis occurs independently of suppressing humoral and cellular immune responses to spermatocytes/spermatids. This is partially supported by our observations that spermatogenesis was impaired without leukocyte infiltration into seminiferous tubules of Cldn11−/− mice. Electron microscopy shows that while some junctional complexes between myoid cells surrounding seminiferous tubules exhibit a continuous interspace of 20 nm, the majority display TJs that effectively prevent the passage of perfused lanthanum into seminiferous epithelia13. Thus, myoid cells may act as a semi-permeable barrier to prevent the entry of leukocytes into seminiferous tubules in Cldn11−/− mice. It should also be noted that some immunological events in Cldn11−/− mice are likely masked due to profound effects of SCTJ disorganization by Cldn11 knockout on structural integrity of seminiferous epithelia and differentiation of spermatocytes/spermatids even if the immunological reactions could partially contribute to spermatogenic defects.

Gow et al. also investigated whether CLDN11 plays a key role in immunological barrier formation using Cldn11−/− mice17, although their data are not shown. In contrast to our results, they have described that four sera derived from Cldn11−/− mice do not label sections from wild-type testes, and mouse autoantibodies are not detected in the lumina of seminiferous tubules using sheep anti-mouse secondary antibodies to label sections of testes from Cldn11−/− mice17. These results indicate that autoantibodies against testis-specific antigens are not present in the blood of Cldn11−/− mice. However, it is possible that none of the sera Gow et al. analyzed reacted to testicular antigens since autoantibodies were not detected in all sera from Cldn11−/− mice as shown by our immunohistochemistry. It should also be noted that the titer and amount of autoantibodies may differ among samples, and our immunohistochemical methods, including heat-induced antigen retrieval after deparaffinization of testis sections, may be different from theirs. Those differences can influence the experimental results of autoantibody detection. Gow et al. also found no evidence of CD4-positive cell infiltrates in testes of Cldn11−/− mice17, which is consistent with our results. Although there is dissimilarity between our and the Gow et al.’s findings associated with autoantibody production in Cldn11−/− mice, the spermatogenic phenotypes they observed in Cldn11−/− mice (smaller testis size and aberrant spermatogenesis)17 are basically similar to those we observed.

The last issue to discuss is how CLDN11 maintains spermatogenesis in mice. We found a significant decrease in the population of differentiating spermatogonia in testes of Cldn11−/− mice, which is consistent with previous results18, suggesting that CLDN11 is necessary for maintenance of differentiating spermatogonia. A key factor for preserving differentiating spermatogonia is the KIT-mediated signaling pathway. KIT is a tyrosine kinase receptor that is widely used as a marker for differentiating spermatogonia. It is reported that intravenous injection of anti-KIT monoclonal antibody (ACK2), as an antagonistic blocker for KIT function, into adult mice causes depletion of differentiating spermatogonia without affecting undifferentiated spermatogonia53. Similar defects in proliferation of differentiating spermatogonia are observed in mice where the codon for Tyr719, a phosphatidylinositol 3-kinase (PI3K) binding site in KIT, is mutated to Phe54. The mutation disrupts PI3K binding to KIT and reduces SCF-induced PI3K-dependent activation of AKT54. SCF as a ligand for KIT is also a key molecule to maintain differentiating spermatogonia. A recent study using mice with conditional knockout of Scf in Sertoli cells demonstrated that SCF derived from Sertoli cells, but not other somatic cells, is crucial for maintenance of the pool of differentiating spermatogonia29. Considering that differentiating spermatogonia are located at the basal compartment of seminiferous tubules, SCF is expected to accumulate at the basal compartment to enhance its interaction efficiency with KIT. Consistent with this idea, SCF was localized at Sertoli cell–Sertoli cell junctions near the basement membrane in seminiferous epithelia lacking spermatogenic cells by busulfan treatment. The Sertoli cell junctional localization of SCF was impaired by Cldn11 knockout. Thus, it is likely that SCF localizes to the plasma membrane of Sertoli cells at the basal compartment, and that SCF localization is regulated by CLDN11. It has been reported that ZO1/ZO2 double knockout MDCK II cells exhibit epithelial polarity defects characterized by intramembrane diffusion of membrane proteins between the apical and basolateral cell surfaces10, although the molecular mechanisms through which ZO1/ZO2 control epithelial polarization remain unclear. Since ZO1 localization is severely disorganized in seminiferous tubules of Cldn11−/− mice, it is possible that distribution of SCF on the Cldn11 knockout Sertoli cell surface is affected by epithelial polarity defects. Indeed, apical and basolateral markers were mislocalized in Sertoli cells of busulfan-treated Cldn11−/− mice. These findings support the idea that CLDN11 contributes to Sertoli cell polarization, creating a microenvironment for spermatogonial proliferation at the basal compartment of seminiferous tubules through SCF. The vast majority of differentiating spermatogonia were lost in Cldn11−/− mice, while the surviving differentiating spermatogonia exhibited normal cell proliferative activity, which allowed them to differentiate into spermatocytes/spermatids. However, increased apoptosis in spermatocytes and complete loss of elongated spermatids were observed in Cldn11−/− mice, suggesting that CLDN11 may also promote differentiation from differentiating spermatogonia to elongated spermatids independently of maintenance of differentiating spermatogonia. To further understand the role of SCTJs in spermatogenesis, we need to investigate them in terms of CLDN11-mediated Sertoli cell polarization as well as Sertoli cell barrier function in the future.

Methods

Animals

Cldn11−/− mice on a C57BL/6 background were provided from M. Furuse (National Institute for Physiological Sciences, Okazaki, Japan)34. Rag2−/−/Jak3−/− mice on a C57BL/6 background were obtained from the Center for Animal Resources and Development (Kumamoto University, Japan; ID576)41. To generate Cldn11−/−/Rag2−/− mice with wild-type alleles of Jak3, Cldn11+/−/(Rag2+/− or Rag2−/−)/(Jak3+/+ or Jak3+/−) male mice were mated with Cldn11−/−/(Rag2+/− or Rag2−/−)/(Jak3+/+ or Jak3+/−) female mice. To generate (Cldn11+/− or Cldn11−/−)/(Rag2+/− or Rag2−/−)/(Jak3+/+ or Jak3+/−) mice within at least 3 generations, Cldn11+/+/Rag2−/−/Jak3−/− male mice were mated with Cldn11−/−/Rag2+/+/Jak3+/+ female mice, and the obtained pups were mated with one another. Cldn11−/− mice and Cldn11−/−/Rag2−/− mice were compared with littermates or age-matched non-littermates from the same colony. Wild-type mice (C57BL/6), WBB6F1-+/+ mice, and WBB6F1-Sl/Sld mice were purchased from Japan SLC, Inc., (Hamamatsu, Japan). Unless specified otherwise, male mice were analyzed at 10–12 weeks of age. To deplete endogenous spermatogenic cells, mice were intraperitoneally treated with busulfan (44 mg/kg; #B7973; LKT Laboratories). Five weeks after busulfan treatment, testes were collected and fixed. All animals were housed under a 12-h dark–light cycle (light from 7:00 to 19:00) at 22 ± 1°C with ad libitum food and water. The Animal Care and Use Committee of Kumamoto University approved the protocols for animal experiments (approval IDs: A2021-016 and A2023-126). We have complied with all relevant ethical regulations for animal use.

Cell culture and expression vectors

L cells, MDCK II cells, and human embryonic kidney (HEK) 293 cells were provided by Masatoshi Takeichi (RIKEN Center for Biosystems Dynamics Research, Kobe, Japan), Masayuki Murata (Tokyo Institute of Technology, Yokohama, Japan), and Akira Tsuji (Kanazawa University, Kanazawa, Japan), respectively. Cells were cultured in Dulbecco’s modified Eagle medium (#05919; Nissui) supplemented with 10% fetal bovine serum (FBS) at 37 °C under 5% CO2. Total RNA was purified from mouse testis using NucleoSpin RNA (#740955.10; Takara). A cDNA library was synthesized from total RNA using ReverTra Ace qPCR RT Kit (#FSQ-101; Toyobo). cDNA encoding mouse CLDN11 (aa 1–207: NCBI accession number NM_008770) or a transmembrane form of mouse SCF (aa 1–245: NCBI accession number NM_001347156) was amplified by polymerase chain reaction (PCR) with KOD-Plus-Ver.2 DNA polymerase (#KOD-211; Toyobo) using a mouse testis cDNA library as a template. For expression of CLDN11 and SCF in mammalian cultured cells, amplified DNA fragments were digested with NotI/XhoI and subcloned into NotI/XhoI-digested pCAGGSneodelEcoRI55 with or without DNA sequence encoding a C-terminal HA tag. The following primers were used for amplification of cDNA: Forward 5′-AAAGCGGCCGCAGATGGTAGCCACTTGCCTTCAGGTGG-3′, Reverse 5′-AAACTCGAGTTAGACATGGGCACTCTTGGCATGCG-3′ for CLDN11; Forward 5′-AAAGCGGCCGCAGATGAAGAAGACACAAACTTGGATTATC-3′, Reverse 5′-AAACTCGAGCCACCTCTTGAAATTCTCTCTC-3′ for SCF. For bacterial expression, cDNA encoding full-length mouse CLDN11 was amplified by PCR using KOD-Plus-Ver.2 DNA polymerase, digested with SalI/NotI, and subcloned into SalI/NotI-digested pGEX-6p-1 (#28-9546-48; GE Healthcare). The following primers were used for amplification of cDNA: Forward 5′-AAAGTCGACTCATGGTAGCCACTTGCCTTCAGGTGG-3′, Reverse 5′-AAAGCGGCCGCTTAGACATGGGCACTCTTGGCATGCG-3′. To produce GST-fused proteins of the C-terminus of CLDN11 (aa 179–207), expression vectors were constructed by inverse PCR using pGEX-6p-1, in which DNA fragments encoding full-length CLDN11 were inserted into a multicloning site, as a template. The following primers were used for inverse PCR: Forward 5′-TCCGGGGATGCACAGTCATTTGGAG-3′, Reverse 5′-GAGTCGACCCGGGAATTCCGGGGATC-3′. To produce GST-fused proteins of the C-terminus of CLDN11 lacking HV sequence (aa 179–205), expression vectors were constructed by inverse PCR using pGEX-6p-1, in which DNA fragments encoding CLDN11 (aa 179–207) were inserted into a multicloning site, as a template. The following primers were used for inverse PCR: Forward 5′-TAAGCGGCCGCATCGTGACTGACTG-3′, Reverse 5′-GGCACTCTTGGCATGCGTTGGCGAG-3′. Expression vectors for MBP-fused proteins of PDZ1, PDZ2, and PDZ3 domains of mouse ZO1 were kindly provided by Masahiko Itoh (Dokkyo Medical University, Tochigi, Japan)56. DNA transfection into mammalian cultured cells was performed using Lipofectamine LTX Reagent with Plus Reagent (#15338-030; Thermo Fisher Scientific), according to the manufacturer’s instructions. Stable cell lines were selected by treatment with 500 μg/ml G-418 (#09380-86; Nacalai Tesque).

Antibodies

The following primary antibodies were used: rat monoclonal anti-ZO1 (1:1; R26.4 C; Developmental Studies Hybridoma Bank)57; mouse monoclonal anti-ZO1 (1:10; T8-754)58; rat monoclonal anti-OCLN (1:1; MOC37)59; rabbit polyclonal anti-OCLN (1:500)59; rabbit polyclonal anti-CLDN3 (1:300; #34-1700; Thermo Fisher Scientific); rabbit polyclonal anti-CLDN5 (1:300; #34-1600; Thermo Fisher Scientific); rabbit polyclonal anti-CLDN11 (1:500 for immunofluorescence)32; rabbit polyclonal anti-CLDN11 (1:1500 for western blotting; #ab53041; Abcam); rabbit polyclonal anti-JAM1 (1:300; #36-1700; Thermo Fisher Scientific); rat monoclonal anti-CDH1 (1:500; #M108; Takara); rat monoclonal anti-NECTIN2 (1:300; #ab16912; Abcam); rabbit polyclonal anti-GJA1 (1:300; #C6219; Sigma–Aldrich); rabbit polyclonal anti-EZR (1:300; #sc-20773; Santa Cruz Biotechnology); mouse monoclonal anti-ATP1A1 (1:600; #NB300-146; Novus Biologicals); goat polyclonal anti-GFRA1 (1:300; #AF560; R&D Systems); rabbit polyclonal anti-PLZF (1:500; #HPA001499; Sigma–Aldrich); goat polyclonal anti-PLZF (1:300; #AF2944; R&D Systems); goat polyclonal anti-LIN28A (1:300; #AF3757; R&D Systems); goat polyclonal anti-KIT (1:300; #AF1356; R&D Systems); rabbit polyclonal anti-SCP3 (1:300; #ab15093; Abcam); rabbit polyclonal anti-DDX4 (1:500; #ab13840; Abcam); rabbit monoclonal anti-WT1 (1:500; #ab89901; Abcam); rabbit polyclonal anti-SCF (1:100 for immunofluorescence or 1:1500 for western blotting; #ab64677; Abcam; characterized in Supplementary Fig. 15a, b); rabbit polyclonal anti-Ki67 (1:300; #ab15580; Abcam); rat monoclonal anti-CD45 (1:300; #103101; BioLegend); rabbit polyclonal anti-HA (1:500 for immunofluorescence or 1:1500 for western blotting; #561; MBL); and mouse monoclonal anti-α-tubulin (1:2000; #T6199; Sigma–Aldrich). To obtain 100–200 μl serum, 400–600 μl blood was collected from mouse heart, incubated for 30 min at room temperature, and centrifuged at 2000 × g for 20 min. The following secondary antibodies and detection reagents were used: Alexa Fluor 488-conjugated donkey anti-rabbit IgG (1:400; #ab150073; Abcam); Alexa Fluor 555-conjugated donkey anti-rabbit IgG (1:400; #ab150074; Abcam); Alexa Fluor 488-conjugated donkey anti-mouse IgG (1:400; #ab150105; Abcam); Alexa Fluor 594-conjugated donkey anti-mouse IgG (1:400; #ab150108; Abcam); Alexa Fluor 488-conjugated donkey anti-rat IgG (1:400; #ab150153; Abcam); Alexa Fluor 594-conjugated donkey anti-rat IgG (1:400; #ab150156; Abcam); Alexa Fluor 488-conjugated donkey anti-goat IgG (1:400; #ab150129; Abcam); Alexa Fluor 594-conjugated donkey anti-goat IgG (1:400; #ab150132; Abcam); Alexa Fluor 594-conjugated streptavidin (1:250; #S32356; Thermo Fisher Scientific); Alexa Fluor 488-conjugated PNA lectin (1:800; #L21409; Thermo Fisher Scientific); horseradish peroxidase (HRP)-conjugated goat anti-rabbit IgG (1:1500; #ab6721; Abcam); and HRP-conjugated goat anti-mouse IgG (1:1500; #ab6789; Abcam).

Histology and immunohistochemistry

Testes were fixed with 4% paraformaldehyde (PFA) in 0.1 M phosphate buffer (PB) at 4 °C overnight, dehydrated through an ethanol series, and then embedded in paraffin. Paraffin sections (4 μm thickness) were stained with hematoxylin and eosin, according to standard procedures. For immunohistochemistry, sections were subjected to heat-induced antigen retrieval (20 mM Tris-HCl buffer [pH 9.0], 95 °C, 15 min). For immunofluorescence staining for IgG, testes were fixed with 4% PFA in 0.1 M PB at 4 °C overnight, embedded in OCT compound (#4583; Sakura Finetek), and frozen in liquid nitrogen. Frozen testes were cut into 8-μm thick sections with a cryostat at −20 °C. Frozen sections were mounted on microscope slides (#83-1881; Matsunami) and air-dried for 30 min. For immunofluorescence staining using rabbit polyclonal antibodies against TJ-associated transmembrane proteins (OCLN, JAM1, CLDN3, CLDN5, and CLDN11), fresh testes were directly embedded in OCT compound, frozen in liquid nitrogen, and cut into 8-μm thick sections with a cryostat at −20 °C. Frozen sections were mounted on coverslips, air-dried for 30 min, fixed in 95% ethanol on ice for 30 min, and treated with 100% acetone for 1 min at room temperature. All sections were washed with phosphate-buffered saline (PBS) and blocked with 5% BSA/10% FBS in PBS containing 0.1% Tween 20 for 1 h at room temperature. Primary antibodies and sera (1:300) were diluted in blocking solution and incubated with sections at 4 °C overnight. After three PBS washes, sections were incubated with secondary antibodies for 1 h at room temperature. After three PBS washes, samples were mounted in FluorSave Reagent (#345789; Millipore). TUNEL assay was performed using ApopTag Fluorescein In Situ Apoptosis Detection Kit (#S7110; Sigma–Aldrich), according to the manufacturer’s instructions.

For immunofluorescence microscopy of cultured cells, L cells, MDCK II cells, and HEK293 cells were seeded as follows: L cells, 7.5 × 105 cells on coverslips in a 35 mm dish; MDCK II cells, 1.0 × 105 cells on Transwell polycarbonate filters with 12 mm diameter (#3401; Corning); HEK293 cells, 3.0 × 105 cells on coverslips in a 35 mm dish. Two days after cell seeding, L cells were fixed with 1% formaldehyde in PBS containing 0.5 mM CaCl2 for 10 min at room temperature. At 3–4 days after cell seeding, MDCK II cells were fixed with 4% formaldehyde in PBS containing 0.5 mM CaCl2 for 10 min at room temperature. The day after cell seeding, HEK293 cells were transfected with an expression vector. Two days after transfection, HEK293 cells were fixed with 4% formaldehyde in PBS containing 0.5 mM CaCl2 for 10 min at room temperature. After three PBS washes, all samples were permeabilized with 0.2% Triton X-100 in PBS for 10 min at room temperature. Coverslips and filters excised with scalpels were blocked with 1% BSA in PBS for 30 min at room temperature. Primary antibodies were diluted with blocking solution and incubated with samples for 30–60 min at room temperature. After three PBS washes, samples were incubated with secondary antibodies for 30–60 min at room temperature. After three PBS washes, samples were mounted in FluorSave Reagent.

All samples were observed using a fluorescence microscope (BX53; Olympus) equipped with a DP74 camera (Olympus) or a confocal laser scanning microscope (FV3000; Olympus). Image acquisition was performed using cellSens Standard software in BX53 or FV31S-SW software in FV3000. Image processing was performed using Fiji/ImageJ (ver. 2.9.0/1.53t; National Institutes of Health).

Whole-mount immunofluorescence of seminiferous tubules

Testes were collected from mice and transferred into PBS. The tunica albuginea was removed, and the seminiferous tubules teased apart. The interstitial cells were removed by incubating the tubules in 1 mg/ml collagenase (#C0130; Sigma–Aldrich) for 5 min at room temperature. The tubules were then washed with PBS three times and fixed with 1% PFA (for ZO1) or 4% PFA (for KIT) in PBS containing 2 mM CaCl2 for 5 h at 4 °C. The tubules were washed with PBS three times and permeabilized with 0.25% Triton X-100 in PBS containing 0.05% Tween 20 for 25 min at room temperature. The tubules were again washed with PBS three times and blocked with 5% BSA/10% FBS in PBS containing 0.1% Tween 20 for 1–2 h. Primary antibodies were diluted with blocking solution and incubated with the tubules at 4°C overnight. The tubules were washed with PBS three times and incubated with secondary antibodies for 1–2 h at room temperature. The tubules were washed with PBS three times and mounted in FluorSave Reagent. Samples were observed using FV3000, and Z-stacked images were obtained. Images were processed using Fiji/ImageJ to generate maximum-intensity projection views.

Bead preparation and transplantation

Affi-Gel blue beads (#153-7302; Bio-Rad) were soaked in a solution of BSA (0.5 mg/ml; #A2153; Sigma–Aldrich) or recombinant mouse SCF protein (0.5 mg/ml; #579708; BioLegend) for 1 h at room temperature, as described previously44 but with modifications. To distinguish seminiferous tubules adjacent to the transplanted beads, the beads were immersed in 0.83 mg/ml CM-DiI (#C7000; Thermo Fisher Scientific) for 15 min at room temperature and then washed with PBS three times. A volume of 10 μl of PBS containing 26.0 ± 9.0 (mean ± SD) beads labeled with CM-DiI was injected into the central regions of Cldn11−/− mouse testes using insulin syringes with 29 G needles (#326666; BD). At 10 days after bead transplantation, testes were collected from mice. The seminiferous tubules were obtained and subjected to whole-mount immunofluorescence staining.

Tracer assay

PBS containing 2 mM CaCl2 and a tracer (EZ-link Sulfo-NHS-LC-Biotin [10 mg/ml; #21335; Thermo Fisher Scientific] as reported previously40 or CF488A-conjugated 150 kDa fixable dextran [10 mg/ml; #80131; Biotium]) was prepared. A volume of 15 or 10 μl of solution was injected into the interstitium of testes harvested from Cldn11+/− or Cldn11−/− mice, respectively, using insulin syringes with 29 G needles. After incubation for 30 min on ice, testes were fixed with 4% PFA in 0.1 M PB at 4 °C overnight. Testes were dehydrated through an ethanol series and embedded in paraffin to obtain sections.

Transmission electron microscopy

Testes were fixed by immersion in 2% PFA and 2.5% glutaraldehyde in 0.1 M PB (pH 7.4) for 4 h at 4 °C. After washing in 0.1 M PB at 4 °C, specimens were postfixed in 1% osmium tetroxide for 2 h at 4 °C. They were then washed repeatedly in distilled water, stained with 1% uranyl acetate for 30 min, dehydrated through graded ethanol series and propylene oxide, and embedded in Quetol-812 (#341-H; Nissin EM). Ultrathin sections were cut and mounted onto nickel grids, stained with 1% uranyl acetate for 10 min, followed by Reynolds lead citrate for 5 min, and then examined under a HT7700 electron microscope (Hitachi High-Tech).

Western blotting

Testes were homogenized on ice in radioimmunoprecipitation assay buffer containing protease inhibitor cocktail (#08714-04; Nacalai Tesque). Homogenates were centrifuged at 15,000 × g for 20 min at 4 °C. Supernatants were collected, mixed with equal volumes of 2× Laemmli sample buffer supplemented with 200 mM dithiothreitol (DTT), and boiled for 5 min at 100 °C. Protein extracts were separated by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE) using 12.5% or 15% polyacrylamide gels. Separated proteins were electrotransferred to Immobilon-P polyvinylidene difluoride membranes with 0.45-μm pore size (#IPVH00010; Millipore). Membranes were blocked with 5% skim milk in Tris-buffered saline (TBS) containing 0.1% Tween 20 (TBS-T) for 1 h at room temperature. Primary antibodies and sera (1:500) were diluted with blocking solution and incubated with membranes at 4 °C overnight. Membranes were washed with TBS-T three times and incubated with HRP-conjugated secondary antibodies for 1 h at 37 °C. After washing with TBS-T three times, signals were detected by chemiluminescence using Immobilon Western Chemiluminescent HRP Substrate (#WBKLS0100; Millipore), and images were captured using the ChemiDoc Touch Imaging System (Bio-Rad). Image processing was performed using Fiji/ImageJ.

GST pull-down assay

For in vitro binding assays, GST-fused or MBP-fused proteins were expressed in Escherichia coli (BL21) (#230280; Agilent) or Escherichia coli (DH5α) (#DNA-913F; Toyobo), respectively. Protein expression was induced by the addition of 0.3 mM isopropyl β-D-1-thiogalactopyranoside into bacterial culture media, and then bacteria were cultured for 3 h at 37 °C. Bacteria were centrifuged at 4000 × g for 15 min. Pellets were resuspended with chilled buffer A (50 mM Tris-HCl [pH8.0], 50 mM NaCl, 1 mM EDTA, and 1 mM DTT), sonicated on ice, and centrifuged at 15,000 × g for 25 min at 4 °C. Supernatant fluids containing GST-fused proteins or MBP-fused proteins were incubated with Glutathione Sepharose 4B beads (#17-0756-01; Cytiva) or amylose resin (#E8021; New England Biolabs), respectively, for 1 h at 4 °C. MBP-fused proteins were eluted from amylose resin by incubation with buffer A containing 10 mM maltose. Eluted MBP-fused proteins were incubated with the Glutathione Sepharose 4B beads coupled with GST-fused proteins at 4 °C overnight. Beads were washed three times with buffer A, mixed with equal volumes of 2× Laemmli sample buffer supplemented with 200 mM DTT, and boiled for 5 min at 100 °C. Proteins in the supernatant were separated by SDS–PAGE using 12.5% polyacrylamide gels, and gels were subjected to Coomassie Brilliant Blue staining.

In silico data analysis

Single-cell RNA-seq data using spermatogenic cells from adult humans and adult mice were obtained from https://doi.org/10.17632/kxd5f8vpt4.133. Gene expression levels were re-analyzed using Loupe Browser (ver. 6.5.0; 10x Genomics).

Statistics and reproducibility

In this study, “n” refers to the number of mice used for analyses. Data for statistical analyses are shown as mean ± SD with red dots indicating biological replicates of mice. Two-tailed unpaired Student’s t-test and Welch’s t-test were performed using Microsoft Excel (ver. 16.78). Dunnett’s test, Fisher’s exact test, and Tukey–Kramer test were performed using RStudio (ver. 2023.03.1 + 446; Posit PBC). A P-value < 0.05 was considered statistically significant.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
