Introduction

The skeleton’s main mechanical function is to provide support for muscles to keep the body upright against gravity1. Furthermore, many bones are subjected to thousands of repetitive loads (impacts) each day1. Mechanical loading is essential for bone health and development because it plays a critical role in maintaining bone structure, density, and strength2. Alterations in the skeleton’s dynamic process of bone resorption and formation1 lead to bone diseases, including osteoporosis, the most common bone problem in elderly populations. A reduction in mechanical loading due to prolonged bed rest3 or long-term exposure to microgravity4 can lead to a reduction in bone mass. This understanding supports the general recommendation of weight-bearing exercise (together with getting adequate calcium, sunlight, and vitamin D5) to decrease osteoporosis risk6. However, the molecular mechanism through which weight-bearing exercises prevent osteoporosis is not fully understood. Several studies in the field of mechanobiology have determined the roles of some cell types, cellular membrane receptors, and bone extracellular matrix (ECM) proteins in mechanical loading1,7,8,9. Osteocytes function as mechanosensing cells in bone tissue by transduction of mechanical signals to biochemical responses7. PIEZO1, as a mechanosensing protein10, regulates homeostasis via crosstalk of osteoblasts and osteoclasts8. Osteopontin is a non-collagenous protein in the ECM related to mechanical stress9. However, the bone ECM proteome comprises hundreds of proteins11 that are poorly understood and may play a major regulatory role in bone responses to mechanical loading (Table S1).

Wolff’s law postulates that bone adapts its structure in response to mechanical loading, suggesting that mechanical stimuli can be converted into biological signals that drive bone remodeling12. Piezoelectricity in bone collagen fibrils, which represent 90% of the organic components of the bone ECM, has been proposed as the mechanism for the conversion of mechanical stimuli into biological signals during weight-bearing exercises13. In a previous study, we showed that the electricity mechanically produced in collagen fibrils is stored in the inorganic components of the ECM14, suggesting that bone ECM plays a critical regulatory role in bone responses to mechanical loading. Since bone ECM plays both a structural role as a mechanical support and a regulatory role as a key component of stem cell niches, we hypothesize that non-collagenous organic components of the bone matrix should have a key function in bone remodeling through mechanical loading. Thus, to identify the key bone ECM proteins, we utilized the principles of biological evolution. We hypothesized that two of the major locomotion transitions in the evolution of vertebrates shaped the role of non-collagenous proteins in humans. The first locomotion transition was the water-to-land transition, which occurred at the time of origin of the tetrapods (~400 Ma), and involved stronger mechanical stress on the limbs of tetrapods, in addition to ecological, cognitive, and physiological adaptations15. The second locomotion transition occurred during the evolution to bipedalism in the Hominini (~11.6–4.4 Mya16,17) and was characterized by a striking skeletal adaptation for walking upright on two feet17,18, leading to a differential mechanical stress on arms (less stress) and legs (more stress). Furthermore, other locomotion transitions in the evolution of vertebrates19 may have played a role in shaping the structure and composition of the bone ECM proteins.

Results

Conservation of bone ECM proteins

Humans (Homo sapiens) are vertebrates that have acquired the spinal function to support the body against gravity and achieve upright bipedal locomotion20. Here, we hypothesize that poorly conserved bone ECM proteins, with a large number of adaptive mutations during major locomotion transitions in the evolution of vertebrates, play a major role in bone mechano-responses to mechanical loading in humans. Zebrafish (Danio rerio) and humans share more than 98% of bone ECM protein families based on data from the Phylobone database11. These proteins show a wide range of amino acid conservation (percentage of identity in pairwise sequence alignments from 0.00% to 99.86%) (Fig. 1a, Table S2). Highly conserved homologous proteins between zebrafish and human are also structurally conserved (Table S3). Furthermore, some homologous proteins with poorly conserved amino acid sequences are structurally conserved due to functional constraints of the protein (e.g., Fetuin A, also known as Alpha-2-HS-glycoprotein) (Fig. 1a, b, Table S4).

Fig. 1: Analysis of the evolution of bone ECM proteins in vertebrates.
figure 1

a Percentage identity of bone ECM homologous proteins between H. sapiens and D. rerio (Table S2). b Correlation of the root mean square deviation (RMSD) and the template modeling score (TM-Score) of bone ECM homologous proteins between Homo sapiens and Danio rerio (full results are available in supplementary Table S3). c Schematic representation of the positive selection analysis of bone ECM proteins in vertebrate evolution (full results are available in Tables S4–6). d Contingency table of mechanical stimulation and positive selection. The table is divided into four groups. Proteins in group i (osteopontin, fetuin A, fetuin B, BSP, and MATN3) showed expression differences under mechanical stimulation and experienced positive selection during vertebrate evolution. Group ii proteins exhibited no positive selection and no differential expression under mechanical stimulation. None of the proteins tested belonged to group ii. The proteins in group iii (osteonectin, ALP, and TGF-β3) were under purifying selection and exhibited differences in protein expression under the static versus the mechanical stimulation conditions. The proteins in group iv (annexin A1 and RSPO1) were under purifying selection and exhibited no differences in protein expression during the mechanical stimulation experiments. Created in BioRender. Nakamura, M. (2025) https://BioRender.com/0lkt0g1.

Full size image

To test the conservation hypothesis of bone ECM protein mechano-responses, we cultured osteoblast cells under static and mechanical stimulation conditions and quantified protein expression levels of ten selected bone ECM proteins based on an initial screening of the conservation level between human and zebrafish proteins (Fig. 1). The selected proteins for the mechanical stimulation experiments included those with low, medium, and high similarity in their amino acid sequences (Fig. 1a). Seven proteins (osteonectin, alkaline phosphatase [ALP], transforming growth factor-β3 [TGF-β3], osteopontin, bone sialoprotein [BSP], annexin A1, and R-spondin 1 (RSPO1) have similar sequence and structure conservation values. However, three poorly conserved proteins at the sequence level (MATN3, fetuin A, and fetuin B) are moderately conserved at the structure level (Fig. 1a, b, Table S4). Moreover, we performed a selection analysis (see Materials and Methods) of all protein groups (N = 255) from the Phylobone database11 to determine the putative effect of evolutionary transitions in mechano-skeletal adaptations to mechanical loading.

Mechanical loading experiments

We speculated that highly conserved bone ECM proteins (under purifying selection) play a major role in bone homeostasis of vertebrates. In contrast, poorly conserved proteins (under positive selection in the major locomotion transitions of evolution (Fig. 1c)) are crucial to achieve mecano-skeletal adaptations in the evolution of vertebrates, including upright bipedal locomotion in humans. Indeed, the expressions of poorly (osteopontin, BSP, fetuin A, and fetuin B) and moderately (MATN3) conserved proteins (Fig. 1d) was enhanced in osteoblasts under mechanical stimulation conditions (Figs. 2 and 3). The osteoblast-like cells were confluent after 1 week, and osteoblast differentiation was observed in some cells, as indicated by ALP staining (Fig. 2). The ALP-positive area increased with culture time. Under the static condition, osteoblast differentiation started after 1 week and differentiated into mature osteoblasts after 4 weeks. The cells exposed to mechanical stimulation differentiated into osteoblasts after 2 weeks, and mineral deposition occurred after 4 weeks. ALP staining revealed that the mechanical stimulation enhanced osteoblast differentiation.

Fig. 2: Staining of osteoblasts with or without mechanical stimulation.
figure 2

Osteoblasts were cultured in osteoinductive media with or without mechanical stimulation. The cells under the static condition started the osteoblast differentiation after 1 week and differentiated into mature osteoblasts after 4 weeks. The cells exposed to mechanical stimulation differentiated into osteoblasts after 2 weeks, and mineral deposition occurred after 4 weeks. ALP staining revealed that the mechanical stimulation enhanced osteoblast differentiation. Scale bar for ALP images = 500 μm. Immunofluorescent staining shows that the osteoblasts expressed the target proteins. Merged images of actin (rhodamine phalloidin, red), nuclei (Hoechst, blue) and the targeted proteins (green) are shown. The red, green, and blue color-separated images are available in Fig. S1–5. Four proteins (RSPO1, annexin A1, osteonectin, and TGF-β3) were expressed from early to late stages of osteoblast differentiation. Two proteins (RSPO1 and annexin A1) were expressed under both the static and mechanical stimulation conditions. Five proteins (BSP, MATN3, osteopontin, fetuin A, and fetuin B) were observed as dot-like structures in the early stage of osteoblast differentiation and bundle-like structures or aggregated structures in the late stage of osteoblast differentiation. Scale bar for immunofluorescent images = 100 μm.

Full size image

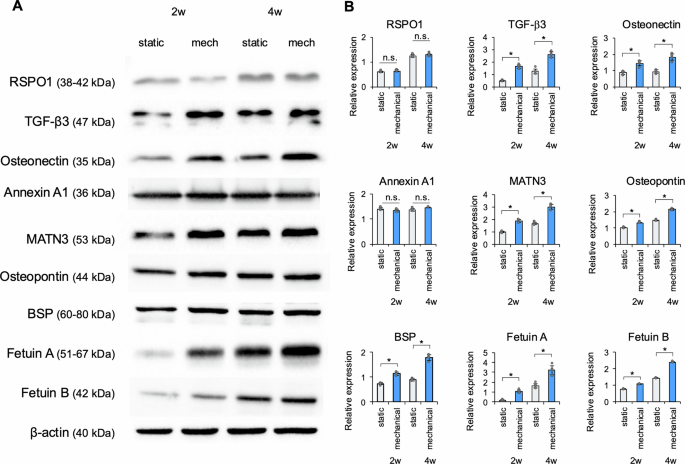

Fig. 3: Western blot analyses of osteoblasts with or without mechanical stimulation.
figure 3

A Western blot of the cell lysates of the osteoblasts cultured in osteoinductive media with or without mechanical stimulation for 2 and 4 weeks. B Densities of western blotting bands of the target proteins normalized with β-actin. There were no significant differences in the expressions of RSPO1 and annexin A1 between the static and mechanical stimulation conditions. The expressions of the other target proteins (TGF-β3, osteonectin, MATN3, osteopontin, BSP, fetuin A, and fetuin B) was ~1.5–2-times greater under the mechanical stimulation condition compared to the static condition. As compared with the static condition, the expression of fetuin A was six times greater with mechanical stimulation for 2 weeks. Osteonectin and BSP expression increased between 2 and 4 weeks under the mechanical stimulation condition but not under the static condition. Data are reported as means ± standard deviation (SD). *p < 0.05 for the comparison of the static condition versus the mechanical stimulation condition. n = 5 for each experiment. n.s. not significant p > 0.05.

Full size image

Immunofluorescent staining showed that the osteoblasts expressed the target proteins, including annexin A1, TGF-β3, osteonectin, RSPO1, MATN3, osteopontin, BSP, fetuin A, and fetuin B (Fig. 2). Three proteins (RSPO1, annexin A1 and osteonectin) were expressed from early to late stages of osteoblast differentiation. Two proteins (RSPO1 and annexin A1) were expressed under both static and mechanical stimulation conditions. TGF-β3 expression was weak after 1 week but gradually increased after 2 weeks. Two proteins (BSP and MATN3) were seen as dot-like structures after mechanical stimulation for 2 weeks and as bundle-like structures after mechanical stimulation for 4 weeks. The expression of osteopontin was weak after 1 week under the mechanical stimulation condition and after 2 weeks under the static condition. After 4 weeks, osteopontin was seen as dot-like structures under the static condition and as bundle-like structures under the mechanical stimulation condition. The expression of fetuin A was weak after 2 weeks and increased after 4 weeks. After 4 weeks, fetuin A was seen as dot-like structures under the static condition and as aggregated structures under the mechanical stimulation condition. The expression of fetuin B was weak after 1 week of mechanical stimulation, but increased after 2 weeks under the mechanical stimulation condition. After 2 weeks and 4 weeks of mechanical stimulation, fetuin B was observed as bundle-like structures.

Western blotting revealed that there were no significant differences between the static and mechanical stimulation conditions in the expressions of RSPO1 and annexin A1 (Fig. 3). The expressions of the other target proteins, including TGF-β3, osteonectin, MATN3, osteopontin, BSP, fetuin A, and fetuin B was increased ~1.5–2-times under the mechanical stimulation condition compared to the static condition. After mechanical stimulation for 2 weeks, fetuin A expression was 6 times greater than in the static condition. Osteonectin and BSP expression increased between 2 and 4 weeks under the mechanical stimulation condition but not under the static condition.

Evolutionary adaptations

Positive selection, also known as Darwinian selection, is an evolutionary process in which advantageous mutations thrive in the population and promote the emergence of new phenotypes21. The proteins under positive selection during the studied locomotor transitions in vertebrate evolution (osteopontin, BSP, fetuin A, fetuin B, and MATN3) (Fig. 1c, Tables S5 and S6) exhibited increased expression during mechanical stimulation (Fig. 1d). These proteins showed a positive ratio of non-synonymous and synonymous mutations (dN/dS > 1). Notably, we could not find any protein under positive selection with no differential expression under the mechanical stimulation condition (Fig. 1d). These results are in agreement with the conservation hypothesis, i.e., proteins with a large number of accumulated adaptive mutations (positive selection) during locomotion transitions play a major role in bone mechano-responses to mechanical stimulation (Fig. 4).

Fig. 4: Proteins involved in bone mechano-responses.
figure 4

A Schematic representation of proteins under purifying (dN/dS < 1) and positive (dN/dS > 1) selection during the water-to-land transition in terrestrial vertebrates and the bipedal locomotion transition in humans. Proteins in the bone extracellular matrix (ECM) involved in mechano-response are hypothesized to accumulate adaptive mutations (shown as positive selection) during the evolutionary transitions that altered locomotion mechanisms in vertebrates. B In the mechanical stimulation experiments, the expression of eight regulatory bone ECM proteins was enhanced: six glycoproteins (BSP, osteopontin, fetuin A, fetuin B, and osteonectin) with functions involved in molecular binding (e.g., binding of calcium) and cell adhesion and two non-glycoproteins (MATN3 involved in collagen assembly, and the cytokine, TGF-β3). C Additional bone ECM proteins, that present signs of positive selections during water-to-land and bipedalism transitions, and with functions potentially involved in bone mechano-responses (TNXB Tenascin-X, ACAN Aggrecan core protein, NID2 Nidogen-2, PROZ Vitamin K-dependent protein Z, EMID1 EMI domain-containing protein1, LAMC2 Laminin subunit gamma-2, FBN3 Fibrillin-3, MATN4 Matrilin-4, FST Follistatin, CD44 CD44 antigen, RSPO4 R-spondin-4). Created in BioRender. Nakamura, M. (2025) https://BioRender.com/v5u4w7l.

Full size image

The opposite of positive selection is purifying selection, also known as negative selection, a process whereby adverse mutations are eliminated from the population22. Conserved bone ECM proteins throughout vertebrate evolution, under purifying selection, are expected to play a major role across vertebrates (from zebrafish to human), independently of mechanical stimulation and static conditions. The expression patterns of two proteins under purifying selection (RSPO1 and annexin A), were not significantly altered by the mechanical stimulation experiments (Fig. 1d). However, three proteins (osteonectin, ALP, TGF-β3), with dN/dS<1 between zebrafish and human (under purifying selection), showed enhanced expression during the mechanical stimulation experiments (Fig. 1c, d, Tables S5 and S6).

Discussion

Our results present evidence of selection associated with locomotion-related loading regimes in the bone ECM proteome, raising the question of how these changes have accumulated. However, this study focuses on a limited set of model species and two major locomotor transitions. Given the small taxon sample and the complexity of vertebrate evolution, it is not possible to determine specific evolutionary models. Furthermore, other significant transitions—such as those from early tetrapods to amniotes, or from non-mammalian synapsids to mammals—may also involve important adaptive changes19. As such, our findings should be seen as addressing a subset of the broader evolutionary landscape, with further research needed to explore additional transitions.

The proteins under positive selection showed higher expression rates during the mechanical stimulation experiments compared to the static condition, making positive selection an evolutionary marker of their key role. We identified these associations in all proteins under positive selection (five out of ten proteins: Osteopontin, Fetuin A, BSP, MATN3, and Fetuin B), each showing significant differences in expression during mechanical stimulation experiments, in line with the conservation hypothesis. We hypothesize that these proteins experienced adaptive mutations during locomotion transitions in vertebrate evolution. In contrast, proteins not under positive selection showed variable responses: three out of five exhibited differential expression, whereas two did not—likely reflecting additional regulatory or functional constraints beyond those encompassed by the conservation hypothesis.

Differential protein expression rates in proteins under both positive and purifying selection arise due to genetic, genomic, epigenetic, and post-translational modification factors. Gene duplications have contributed to the evolution of the vertebrate skeleton. For example, after vertebrates evolved the mineralized skeleton, the proteins from the secretory calcium-binding phosphoprotein (such as proteins SPARC [i.e., osteonectin] and SPARCL1) originated by whole genome duplication23. Gene duplications can lead to novel functions, as well as to a beneficial increase in gene expression24. However, no significant differences were found between human and zebrafish in the gene copy number of the selected proteins (Table S7). Differential expression rates between the static and mechanical stimulation conditions may also have arisen due to translational selection (i.e., a differential adaptation of the protein to the translational machinery of the cell that results in higher expression rates)25. Translational selection is a strong driver of evolution of vertebrate genomes that shape codon usage patterns26, and it has been well described in the three domains of life (eukaryotes, bacteria and archaea)27,28. Although the selected proteins are putatively highly expressed based on codon usage biases (Table S8), codon biases may not explain functional adaptations, such as cells growing under mechanical and static conditions. Furthermore, non-collagenous proteins in the bone matrix are in a highly complex environment, closely intertwined with collagen fibrils, and are differentially expressed in different anatomical locations and body tissues (Table S9 and S10). Thus, further experiments beyond the scope of this article are needed to determine the role of epigenetics, post-translational modifications and protein-protein interaction factors in the gene expression of bone ECM proteins29.

Mechanical loading increases bone mass by stimulating bone-forming osteoblasts and osteocytes through a cascade of intracellular pathways involving several biomolecules, such as nitric oxide, prostaglandins, bone morphogenetic proteins (BMP), and Wnts30. Moreover, experiments in knockout mice have shown the role of an ECM protein (osteopontin) in response to mechanical stimulation9. In this study, we identified eight proteins that exhibited higher expression during mechanical stimulation (ALP, BSP, fetuin A, fetuin B, MATN3, osteonectin, osteopontin, and TGF-β3) and two proteins with no differential expression in mechanically stimulated cell cultures (annexin A1 and RSPO1). Proteins in the bone ECM can be classified into structural and regulatory roles11. Additionally, regulatory proteins can be further divided into those that regulate bone matrix structure and those that control bone cell growth and differentiation. In our experiments, seven proteins that exhibited a higher expression during mechanical stimulation are involved in the regulation of the bone matrix, with functions that encompass glycoproteins (BSP, osteopontin, osteonectin, ALP, fetuin A, and fetuin B), calcium-binding proteins (BSP), and collagen assembly regulation (MATN3) (Fig. 4B, Table S11–13). In addition, the expression of the cytokine TGF-β3, which regulates the early stages of osteoblast differentiation31, was enhanced by mechanical stimulation. However, the proteins involved in the regulation of osteoclast differentiation (annexin A1) and osteoblast differentiation to osteocytes (RSPO1) were not enhanced by mechanical stimulation.

The water-to-land transition in vertebrates involved the evolution of the skeletal system to support locomotor activity in the terrestrial environment32. The evolution of the skeletal system has been linked with immune molecules; for example, the receptor activator of the nuclear factor-κB ligand (RANKL)–RANK system has been conserved since the emergence of the adaptive immune system with T and B cells in cartilaginous fish32. Furthermore, during the evolution to bipedalism in humans, the skeletal system was adapted for walking regularly in an upright position17,18. This involved molecular changes in the BMP33. In agreement with the conservation hypothesis presented in this study, functionally relevant proteins can be predicted by observing changes during the two significant locomotion transitions in the evolution of vertebrates (Fig. 4A). Fetuin A (and Osteopontin9) showed the most striking change in protein expression during mechanical stimulation, with the immunofluorescent staining and Western blotting revealing that its expression was enhanced in osteoblasts by mechanical stimulation (Figs. 2 and 3). In agreement with the conservation hypothesis, fetuin A exhibits strong signs of positive selection during the water-to-land transition of vertebrates and the bipedalism transition in humans. Furthermore, fetuin A protein shows low amino acid conservation (Fig. 1a, Table S2) and medium structural conservation (Fig. 1b, Table S4). Fetuin A is known to influence the production of inflammation mediators, inhibit ectopic calcification in soft tissue34, and reduce biomaterial particle-induced osteolysis35. Therefore, Fetuin A is a strong candidate as a biomarker for skeletal disorders like osteoporosis and rheumatoid arthritis, and a potential target for drug treatment.

The first line of osteoporosis treatments is bisphosphonates and the monoclonal RANKL antibodies. The targets of these drugs are calcium minerals in bone ECM and RANK receptors on osteoclast precursors36, respectively. Among the selected proteins, fetuin A is potentially the strongest candidate for further exploration. However, additional proteins involved in mechanical loading (ALP, BSP, fetuin B, MATN3, osteonectin, osteopontin, and TGF-β3) could be potential drug targets for the treatment and prevention of osteoporosis. Moreover, other proteins of the bone ECM that play a regulatory role, such as those with roles in osteogenesis and bone degradation37, may be targets for new treatments for bone regeneration11. Furthermore, we speculate that ECM proteins with signs of positive selection during the water-to-land and bipedalism transitions, with regulatory functions in the bone matrix (Fig. 4C), may play a significant role in the bone mechano-response to mechanical loading.

Methods

Protein sequences

Protein sequences were collected from the Phylobone database11. This database contains a list of 255 putative bone ECM proteins found in 31 species of vertebrates, including the species selected for this study. We selected one representative species from each of the major taxonomic groups of vertebrates: bony fishes (D. rerio), amphibians (Xenopus laevis), reptiles (Alligator sinensis), rodents (Mus musculus), and primates (Pan troglodytes and H. sapiens).

Protein sequence similarity (percentage of identity between D. rerio and H. sapiens)

All protein homologs from H. sapiens and D. rerio were compared. Sequence pairs were aligned using the program Muscle38, and an in-house script was utilized to calculate the percentage of identity between pairs of proteins (i.e., the number of amino acid matches and mismatches between H. sapiens and D. rerio). In cases where the protein sequences of D. rerio were not found (e.g., BSP), we assigned 0.0% identity for operational reasons.

Selection of proteins for mechanical stimulation experiments

Ten bone ECM proteins were selected for the mechanical stimulation experiments (Table S11 and Fig. 1a) based on the following: 1) the length of the sequences (proteins between 250 and 1000 amino acids long); 2) percentage of identity (low: <33.0%, medium: ≥33.0–66.0%, and high: ≥66.0%); and 3) putative functional importance of these proteins in bone ECM based on the literature11. The ten proteins selected were: 1) five proteins, with less than 30% of protein identity were selected (Osteopontin, Fetuin A, Fetuin B, Bone sialoprotein (BSP), and RSPO1); 2) one moderately conserved protein was selected (Matrilin 3 (MATN3)); and 3) three highly conserved proteins (osteonectin (also known as secreted protein acidic and rich in cysteine, SPARC), annexin A1, ALP, and TGF-β3).

Pairwise structure alignment

All proteins from H. sapiens were compared with their homologs in D. rerio (when the sequence was available) using a pairwise structure alignment tool to align the 3D structure of the protein39. Predictions of protein structures were based on artificial intelligence AlphaFold models40. The root mean square deviation (RMSD) and the TM-Score were used to quantify similarities between the protein structures41.

Preparation of sequences for the selection analysis

Multiple sequence alignments (MSAs) were performed, and phylogenetic trees were reconstructed using the server NGPhylogeny42. This server aligns proteins (raw MSAs) using the program MAFFT43, and removes non-conserved regions in the alignment (clean MSAs) with the program Block Mapping and Gathering with Entropy (BMGE)44. The Clean MSAs are used for the reconstruction of phylogenetic trees using the program PhyML45. The raw MSAs together with the corresponding coding sequences of DNA, were used as input for the server PAL2NAL46 to convert the raw MSAs of proteins to the corresponding DNA sequence alignment of codon alignment (codon MSAs). The resulting codon MSAs were used for the calculation of non-synonymous (dN) and synonymous (dS) substitution rates.

Codon pairwise alignments

Pairwise alignments of protein sequences were performed with the Sequence Manipulation server47. The Smith-Waterman algorithm and the BLOSUM62 matrix were used to perform the pairwise alignments. These protein alignments were converted into codon pairwise alignments using the program PAL2NAL46 and used for the calculation of dN and dS ratios.

Selection analysis based on dN and dS ratios

Predictions of positive selection were estimated with the dN/dS ratio, which is the ratio of the number of non-synonymous substitutions per non-synonymous site (pN) to synonymous substitutions per synonymous site (pS)48. We have analyzed the dN/dS ratio in five vertebrate species (Table S1) using an indel-aware algorithm (https://github.com/clarabrunet/iDNDS) that analyzes the ratio at different levels of the species tree and uses an indel-aware table of expected synonymous and non-synonymous mutations (Table S14). Proteins with a dN/dS >1 are considered to be under positive selection. To assess the statistical significance of positive selection, a binomial z-test was performed on site-specific dN/dS values (i.e., codon-wise dN/dS values were obtained for each sequence pair). The objective was to determine whether the proportion of codon sites under positive selection (dN/dS > 1) was significantly higher than expected under the null hypothesis of neutral evolution. The one-tailed binomial test was applied using the binomtest function from the SciPy package in Python49. The resulting p-value was used to determine statistical significance, with thresholds set at p ≤ 0.05 (*), p ≤ 0.01 (**), and p ≤ 0.001 (***), corresponding to confidence levels of 95%, 99%, and 99.9%, respectively.

Cell culture

Osteoblast-like cells (MG-63 cell line) were seeded into 12-well cell culture plates at a density of 2 × 104 cells/well and cultured in Dulbecco’s modified Eagle’s medium (DMEM; Gibco 21969-035, NY, USA) supplemented with 10% fetal bovine serum (Gibco 10270-098, NY, USA), L-glutamine (Gibco 25030081, NY, USA), and 100 U/ml penicillin-streptomycin (Gibco 15140-122, NY, USA) in a humidified atmosphere of 5% CO2 in air at 37 °C. After reaching confluence, the cells were cultured in osteoinductive medium including 100 nM dexamethasone (Sigma-Aldrich, St. Louis, MO, USA), 10 mM β-glycerophosphate (Sigma-Aldrich, St. Louis, MO, USA) and 50 µg/ml ascorbic acid (Sigma-Aldrich, St. Louis, MO, USA). The cell culture plates were placed on a see-saw rocker for 30 min/day to induce mechanical stimulation50.

After culturing for 1, 2, and 4 weeks, the cells were fixed in 4% paraformaldehyde for 20 min. To visualize the differentiation into osteoblasts, the cells were stained with ALP (Sigma-Aldrich, St. Louis, MO, USA) and observed using a microscope (Olympus BX60).

Immunofluorescent staining

After the cell culture for 1, 2 and 4 weeks, the cells were fixed with 4% paraformaldehyde for 20 min. The cells were incubated in a solution for blocking and permeabilization, including 0.2% Tween 20 and 1% bovine serum albumin (BSA) in phosphate-buffered saline (PBS). Anti-human primary antibodies (osteonectin, PA578178; RSPO1, PA5121183; TGF β-3, PA599186; annexin A1, 713400; MATN3, PA520727; fetuin A. PA551594; fetuin B, PA529468; BSP, Bs-2668R; osteopontin, 229521AP, Invitrogen, CA, USA) diluted at a 1:100 in PBS including 0.2% BSA were added for 1 h at room temperature. Following PBS washes, the cells were incubated in a secondary antibody (Alexa Fluor ™ 488 Goat anti-rabbit IgG antibody, A11008, CA, USA) diluted at a 1:500 in PBS including 0.2% BSA. The cells were stained for rhodamine phalloidin (Invitrogen R415, CA, USA) and Hoechst 33258 (Sigma-Aldrich, 94403, St. Louis, MO, USA). The fluorescent signals were observed using a fluorescence microscope (Olympus BX60).

Western blotting

After the cell culture for 2 and 4 weeks, the cells were lysed with 300 µl of lysis buffer containing 50 mM Tris-HCl (pH6), 150 mM NaCl and 1% Triton X-100. The cells were scraped, collected into tubes and sonicated for 10 seconds. The cell lysates were frozen at -80 °C until use.

The protein samples were mixed with 4× Laemmli sample buffer (Bio-rad 1610747, CA, USA) and heated at 95 °C for 5 min. The protein samples were electrophoresed at 60 V for 15 min and further 120 V for 120 min on 5% stacking gel with 10% (for BSP, Fetuin A, Fetuin B, and MATN3) or 12% (for osteonectin, RSPO1, TGF-β3, annexin A1, osteopontin, and β-actin) SDS polyacrylamide. The proteins were transformed from SDS gel to Trans-Blot Turbo Midi 0.2 µm nitrocellulose membrane (Bio-Rad, CA, USA) at 15 V for 30 min using a semi-dry transfer system Trans-Blot® Turbo™ (Bio-Rad, CA, USA). The nitrocellulose membrane was incubated in blocking solution including 5% skim milk in TBST (Tris-buffered saline including 0.1% Tween 20) for 60 min at room temperature with shaking. After washing the nitrocellulose membrane in TBST for 10 min at room temperature with shaking three times, the membrane was incubated in blocking solution including primary antibodies at dilutions of 1:1000 (for Fetuin A and osteopontin) or 1:500 (for BSP, Fetuin B, MATN 3, osteonectin, RSPO1, TGF-β3, annexin A1, and β-actin) at 4 °C overnight. Each target protein was analyzed using a separate gel and membrane. No stripping and reprobing were performed. After washing with TBST, goat anti-rabbit IgG horseradish peroxidase (HRP)-conjugated secondary antibody (Invitrogen 31460, CA, USA) was diluted at a 1:10000 in blocking solution and added to the membrane at room temperature for 60 min. After washing with TBST, the protein bands were visualized using a chemiluminescence reagent (Thermo Scientific™ 34585, MA, USA), captured with a ChemiDoc (Bio-Rad, CA, USA) and quantified using Image J software (version 1.41, National Institute of Health).

Statistics and reproducibility

Accurate quantifications of the different samples in the cell study were achieved by performing four independent experiments. All the western blot experiments were conducted at least in duplicate, triplicate, or quadruplicate experiments. The protein bands of the western blotting were presented as a representative of several experiments. Statistical analysis across the experimental groups was performed using the analysis of variance with Tukey’s post hoc test for multiple comparisons, using the SPSS software package (version 29, Chicago, IL, USA). The statistically significant level was set at p < 0.05 for all the tests. All data have been expressed as mean ± standard deviation.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
