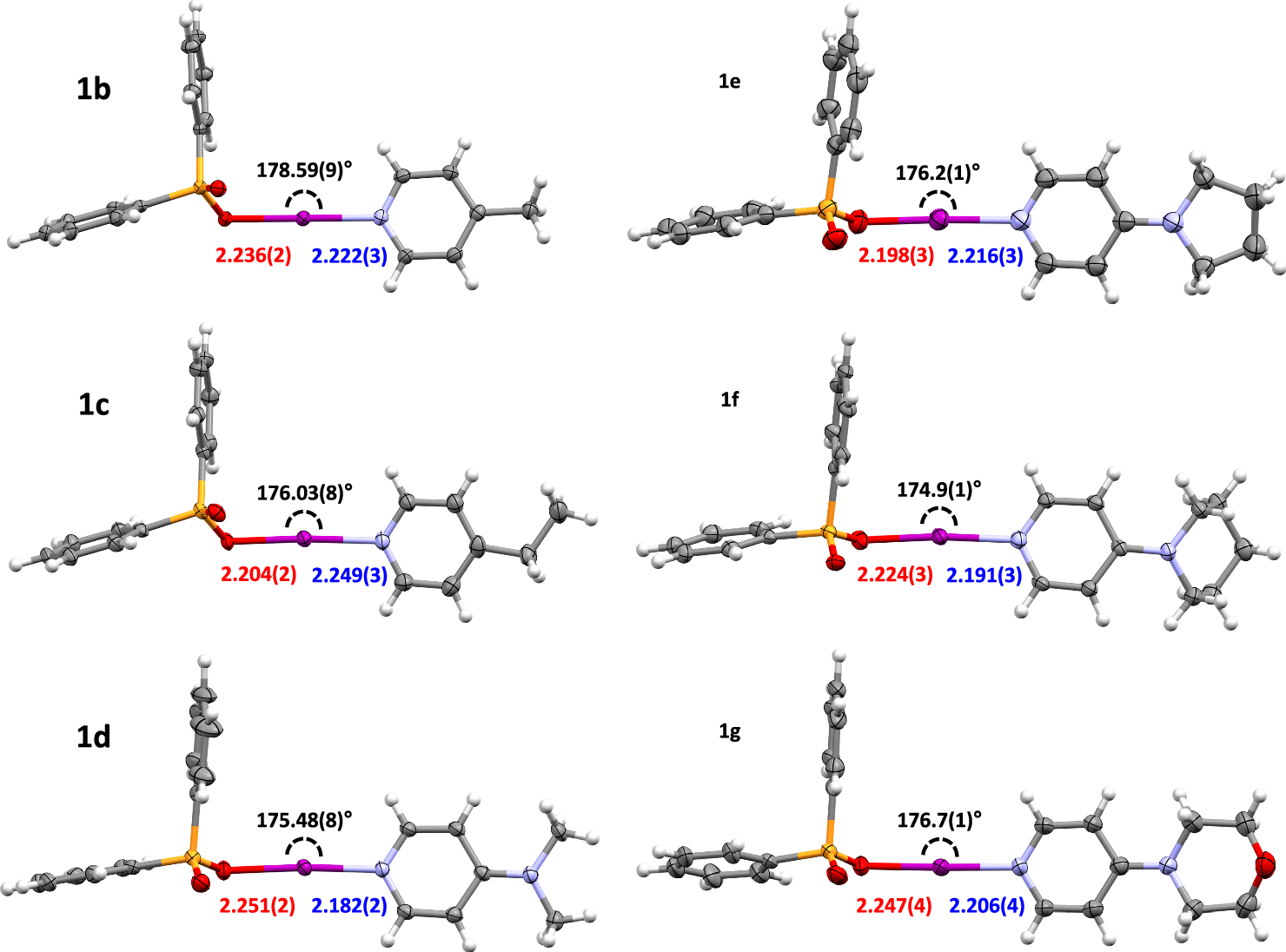

Fig. 3: The solid-state structures of 1b–1g.
From: Iodine(I) pnictogenate complexes as Iodination reagents
Structures annotated with their O─I─N bond angles (black), as well as their O─I (red) and I─N (blue) bond lengths in Å (thermal ellipsoids at 50% probability; minor disordered positions and solvates omitted for clarity).
