Introduction

Metal complexes are organic–inorganic hybrid compounds that have been widely used in the fabrication of molecular photofunctional materials, such as photosensitizers1,2, luminophores3,4, and photocatalysts5,6. Controlling the photoinduced charge transfer (CT) between metals and organic ligands is key to their photofunctionality. Numerous transition metal complexes reportedly exhibit prominent photofunctionality due to ligand-to-metal charge transfer (LMCT) or metal-to-ligand charge transfer (MLCT)7,8,9. Kinoshita successfully constructed a wide-band (∼1000 nm) sensitized solar cell based on the MLCT excited states of ruthenium complexes7. Recently, Bauer suggested dual emission from 3d-orbital-based LMCT and MLCT states using an Fe(III) complex8. Zhang successfully constructed a Zr(IV) complex with long-lived LMCT excited states, featuring strong emission, and verified its applicability as an effective photoredox catalyst9. Previous research has expanded the application scope of CT excitons in various metal complexes; however, the investigation of CT excitons has been limited to the d-orbital. The properties of CT excitons are closely linked to the characteristics of the transition orbitals. Investigating unexplored CT excitons is essential for the development of new photo-functional metal complexes.

Herein, we focused on the CT excited state between the 4f- and π-orbitals in trivalent lanthanide (Ln(III)) complexes (Fig. 1a). The first study on the CT excited states of lanthanide complexes was reported by Jørgensen in 196210. He observed a broad absorption band in the visible region for a trivalent europium (Eu(III)) complex with dithiocarbamate ligands, which was assigned to the CT transition from the π- to 4f-orbital. This Eu(III) complex exhibited the lowest redox potential ([Eu(III)/Eu(II) = −0.35 V vs. NHE])11 among trivalent lanthanides and formed a low-energy CT level based on the 4f-orbital. Following this groundbreaking observation, subsequent studies have been conducted on CT excited states between the 4f- and π-orbitals for exploring phenomena, such as absorption and 4f-4f emission quenching, the photosensitization effect, and investigating perturbation effects on the chiroptical properties of Eu(III) complexes12,13,14,15,16,17,18,19,20,21,22,23,24,25,26. The demonstration of CT emission based on a combined experimental and theoretical study will open new scientific avenues for the development of photofunctional metal complexes.

Fig. 1: Charge transfer state and chemical structures.
Fig. 1: Charge transfer state and chemical structures.
Full size image

a Schematic image of photo-induced charge transfer state between the 4f- and π-orbitals. b Molecular structures of Eu-MCPO and Gd-MCPO.

To demonstrate CT emission from 4f- to π-orbitals, we designed an eight-coordinate Eu(III) complex (Fig. 1b, [Eu(NO3)3(MCPO)2], Eu-MCPO). An electron-donating neutral ligand, (3,6-dimethoxy-9H-carbazol-9-yl)diphenyl phosphine oxide (MCPO), was designed to form a CT excited energy level based on the 4f-orbital lower than the localized π-π* excited energy level. The formation of a low-energy level is essential for suppressing the relaxation process from the CT excited state to the ligand-localized excited state. An anionic nitrate ligand with low steric hindrance was selected for the formation of stable coordination structures. The photophysical properties of the eight-coordinate Gd(III) complex ([Gd(NO3)3(MCPO)2], Gd-MCPO, Fig. 1b) and nine-coordinate Eu(III) complex ([Eu(NO3)3(MCPO)2(H2O)], Eu-MCPO-H2O, Fig. S1) were also evaluated for the comparison of the CT transition properties. The CT emission properties were analyzed by steady and time-resolved emission spectroscopy. Quantum chemical calculations were performed to investigate the electronic structures of the CT excited states.

Results and discussion

Structural analysis

Steric structures of Ln-MCPO and Ln-MCPO-H2O (Ln = Eu or Gd) were analyzed by X-ray crystallography and quantum chemical calculations. Eu-MCPO-H2O was found to possess a triclinic crystal system, with space group P-1 (for crystallographic data, see Fig. S6 and Table S1). We observed that the coordination site in the Eu(III) complex comprises three bidentate nitric ligands, two phosphine oxide ligands, and one water molecule. The bidentate nitric acid and MCPO ligands have average Eu−O (NO3) and Eu–O (MCPO) distances of 2.498 and 2.368 Å, respectively. We prepared Eu-MCPO by the elimination of H2O from Eu-MCPO-H2O toward the formation of the stabilized CT excited states between the 4f- and π-orbitals24. The PXRD pattern of dehydrated Eu-MCPO is different from that of Eu-MCPO-H2O (Fig. S7). The Eu-MCPO structure optimized using quantum chemical calculations (Supplementary Note 1, Fig. S8a) demonstrates a shorter distance between the Eu(III) center and coordination oxygen atoms [average Eu−O (NO3): 2.474 Å, average Eu–O (MCPO): 2.321 Å] than the Eu-MCPO-H2O structure (For the optimized structure of Eu-MCPO-H2O (Fig. S8b), the bidentate nitric acid and MCPO ligands have average Eu–O (NO3) and Eu–O (MCPO) distances of 2.482 and 2.386 Å, respectively.). The PXRD pattern of Gd-MCPO was almost the same as that of Eu-MCPO (Fig. S7), indicating the presence of a similar crystal structure independent of the type of lanthanide ions. Thus, a comparative photophysical study using Gd-MCPO is reasonable for investigating the CT excited state between the 4f- and π-orbitals in Eu-MCPO.

Photophysical properties

The diffuse reflectance spectra of Eu-MCPO and Gd-MCPO are shown in Fig. 2. The absorption bands at 340 nm (29,400 cm−1) for Eu-MCPO were assigned to singlet π−π* transitions of the MCPO ligands, which agree with the absorption spectrum of Gd-MCPO. We also observed additional absorption bands at approximately 440 nm (22,700 cm−1) for Eu-MCPO, which were not observed for Gd-MCPO (Fig. 2, inset). Quantum chemical calculations were performed to determine the origin of the characteristic absorption band observed in the Eu-MCPO spectrum. According to the calculations, in the Eu-MCPO spectrum, the absorption bands in the visible region originated in the CT transition from the MCPO ligand to the Eu(III) ion (Table S2, Fig. S9). The analysis of atomic contributions to molecular orbitals indicates minimal mixing between the π-orbital and the 4f-orbital of Eu(III) (Table S3). In addition, the occupied π- and unoccupied 4f-orbitals exhibit slight mixing with the NO3 orbitals. These findings suggest that the NO3 orbitals may also contribute to the CT transition. The absorption coefficient at the CT absorption band is relatively low (ε < 10 cm−1 M−1, Fig. S10), which is correlated with the calculated small oscillator strength for the CT transition (f = 0.0019, Table S2). This low transition probability is likely due to the minimal orbital overlap between the 4f- and π-orbitals mediated by the phosphine oxide spacer.

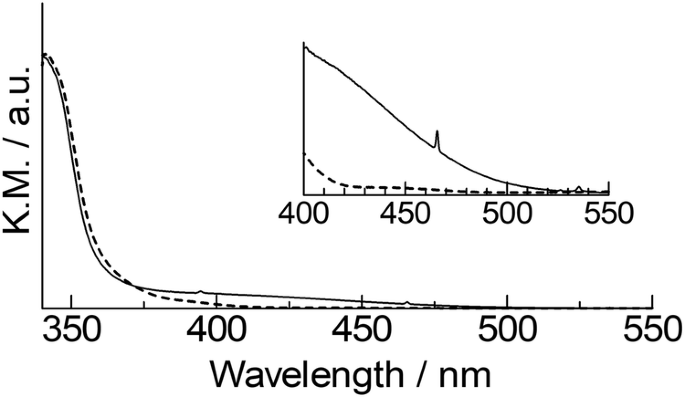

Fig. 2: Diffuse reflectance spectra.
Fig. 2: Diffuse reflectance spectra.
Full size image

Diffuse reflectance spectra of solid state Eu-MCPO (black solid line) and Gd-MCPO (black broken line). The weak absorption peak at approximately 465 nm corresponds to the 7F0 → 5D2 transition for Eu(III).

To gain a more detailed understanding of the CT states in Eu-MCPO, cyclic voltammetry measurements were conducted (Fig. S11). The first oxidation potential was determined to be 0.97 V, closely matching that of the free MCPO ligand (Fig. S12, 1.00 V). Quantum chemical calculations also indicate that the observed oxidation potential corresponds to the MCPO cation (Table S4). Distinct redox waves were not observed in the voltammograms, and the reduction potential of the Eu(III) ion could not be determined; however, quantum chemical calculations suggest that the first reduction potential mainly corresponds to Eu(II) (Table S4). The π−π* and CT absorption bands of the eight-coordinate Eu-MCPO were found to be blue-shifted and red-shifted, respectively, compared to those of the nine-coordinate Eu-MCPO-H2O (Tables S5 and S6, Figs. S13 and S14). This shift indicates a change in MCPO ligand orientation and the formation of stable CT excited states upon the elimination of H2O. The stabilization of the CT excited state by reducing the coordination number is consistent with previously reported phenomena24, according to which this phenomenon is ascribed to enhanced interaction between the Eu(III) ion and the organic ligand due to the reduced coordination bonding distance. The results of quantum chemical calculation with the solvent effect suggest that the stable CT excited states of Eu-MCPO were also formed in the solution state (Figs. S15 and S16, Tables S7 and S8) (Unfortunately, emission properties of Eu-MCPO in solution state cannot be estimated experimentally because of poor photo-stability (Supplementary Note 3–4, Figs. S25–S32).).

Eu-MCPO shows sharp emission bands at approximately 580, 590, 610, 635, and 700 nm, which correspond to the 5D0 → 7F0, 5D0 → 7F1, 5D0 → 7F2, 5D0 → 7F3, and 5D0 → 7F4 transitions, respectively (Fig. S17, 100 K). The time-resolved emission spectra were also measured for Eu-MCPO and Gd-MCPO (Fig. 3). The Eu-MCPO spectrum showed four emission bands at approximately 430 nm, 490 nm (shoulder), 550 nm, and 610 nm on a nanosecond timescale after light excitation (Fig. 3a). Two emission bands were also observed at 430 and 490 nm in the Gd-MCPO spectrum (Fig. 3b); these bands were assigned to the fluorescence and phosphorescence exhibited by the localized MCPO excited states, respectively (Fig. S18). These results confirm that the additional emission bands at 550 nm and 610 nm for Eu-MCPO are associated with specific Eu(III) orbitals (Fig. 3a). The emission band at 610 nm corresponds to the 5D0 → 7F2 transition. Time-resolved emission spectra (Fig. S19) revealed an emission lifetime (τ) of 4.1 ns in the transition at 550 nm, characterized by fluorescence from the septet state (The characteristic emission band at 550 nm is also observed for Eu-MCPO excited by 440 nm (Supplementary Note 5, Fig. S33).). This fluorescence band was not observed for Eu-MCPO-H2O (Fig. S20). To determine the origin of the fluorescence band at 550 nm in the spectrum of Eu-MCPO, we investigated its structural relaxation in the lowest CT excited state between the 4f- and π-orbitals and associated changes in the electronic transition property using quantum chemical calculations. The calculations indicated that the CT excited state of Eu-MCPO would be strongly stabilized by structural relaxation after the transition from the ground state (Fig. S21). Transition orbital analysis of the structure with large oscillator strength during structural relaxation confirmed that the emissive transition originated from the CT excited states between the 4f- and π-orbitals (Fig. 3c). To reveal the excited state dynamics related to the CT excited state between the 4f and π-orbitals, we used kinetic analysis to estimate the energy transfer rate constants (kEnT) from 4f-4f to the CT excited state. The temperature dependence of kEnT was expected to follow an Arrhenius-type equation:

$${{{\mathrm{ln}}}}\left(\frac{1}{{\tau }_{{obs}}}-\frac{1}{{\tau }_{{const}}}\right)={{ln}}\left({k}_{{{{EnT}}}}\right)={{ln}}A-\frac{{E}_{{{{\rm{a}}}}}}{R}\times {T}^{-1}$$

where A and Ea denote the frequency factor and activation energy, respectively. According to the temperature-dependent emission lifetime (Fig. S23), the activation energy is estimated to be 740 cm−1. The sum of the 5D0 energy level and Ea is 17,990 cm−1, which is similar in energy to the CT excited state. Arrhenius analyses suggested an energy migration channel between 5D0 and the CT excited state (depicted in the energy diagram shown in Fig. 4). Based on the experimental findings and theoretical analyses, the observed emission at around 550 nm is conclusively attributed to transition from the 4f- to π-orbital in a Eu(III) complex.

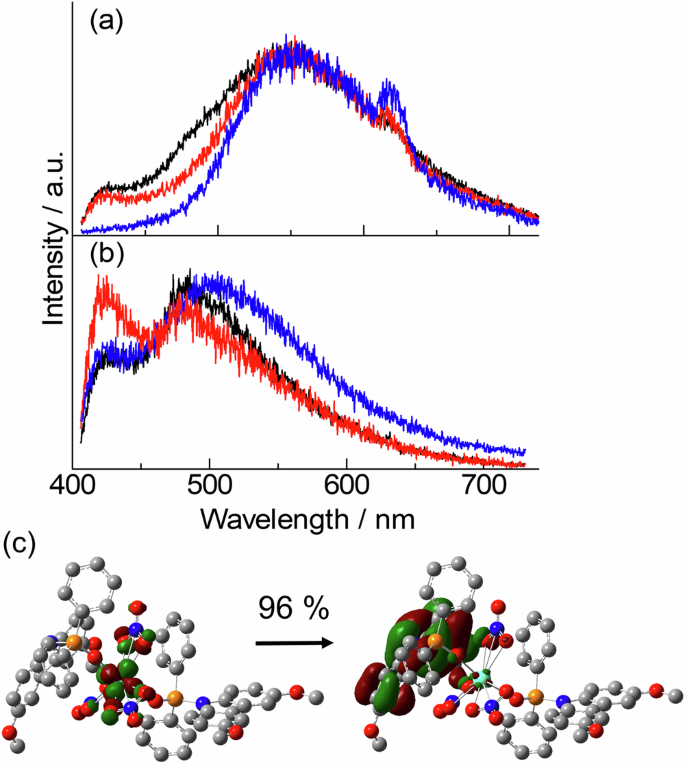

Fig. 3: Time-resolved emission spectra and transition orbital.
Fig. 3: Time-resolved emission spectra and transition orbital.
Full size image

Time-resolved emission spectra (λex = 368 nm) of solid-state a Eu-MCPO and b Gd-MCPO at 100 K (a, black line: 0–0.5 ns, red line: 0.5–1.0 ns, blue line: 2.0–3.0 ns, b black line: 0–0.5 ns, red line: 0.5–1.0 ns, blue line: 5.0–44 ns). Normalized by intensity maxima. c Results of the transition orbital analysis from the CT excited to ground state at the structure with large oscillator strength appeared during the structural relaxation using quantum chemical calculations (Fig. S21). Gray spheres represent carbon; red spheres, oxygen; blue spheres, nitrogen; orange spheres, phosphorus; and green spheres, europium.

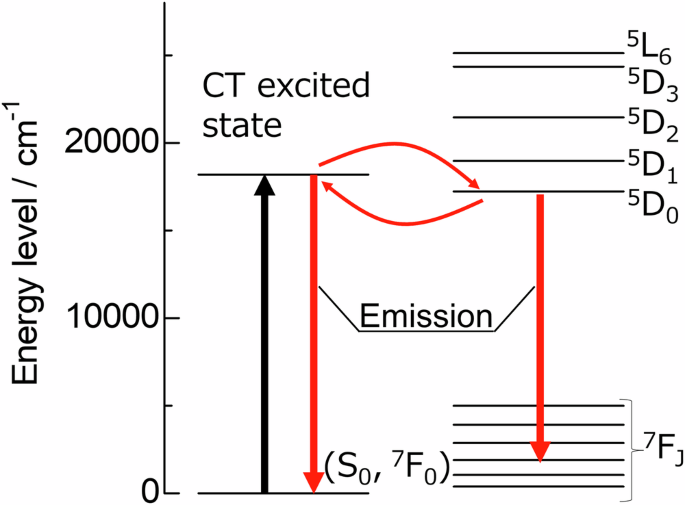

Fig. 4: Energy diagram.
Fig. 4: Energy diagram.
Full size image

Energy diagram and proposed emission mechanism for Eu-MCPO.

To obtain a more detailed understanding of excited-state dynamics for Eu-MCPO, we calculated the energy transfer rate constants from the MCPO to the Eu(III) ion using LUMPAC software (the detail procedure is summarized in Supplementary Note 2)27. The calculated energy transfer rates from T1 to 5D1 and from T1 to 5D0 are 6.5 × 108 and 5.9 × 108 s−1, respectively. The T1 → S0 deactivation rate was experimentally estimated to be 2.2 s−1 at 100 K using Gd-MCPO (Fig. S24), which is significantly lower than the calculated energy transfer rate. The observed phosphorescence at 490 nm in the nanosecond range for Eu-MCPO (Fig. 3a) is extremely weak, which reveals that the CT emission is also extremely weak. This relatively low emission intensity is caused by small radiative and large non-radiative rate constants. The small radiative rate constant induced by the phosphine oxide spacer was also confirmed in the CT excited state (Fig. S22). The large non-radiative rate constant is related to the drastic excited energy level changes in the CT excited states. Based on these photophysical findings and theoretical considerations, it is evident that designing an Eu(III) complex with donor-type ligands that strongly overlap with the 4f-orbital and provide a rigid structure is crucial for achieving strong CT emissions from 4f- to π-orbitals.

Conclusion

In summary, the CT emission from 4f- to π-orbitals in the solid-state Eu(III) complex was demonstrated using time-resolved emission spectroscopy. The observed CT emission underwent a nanosecond-scale fast decay, indicating the occurrence of fluorescence from the septet states. Quantum chemical calculations revealed the contribution of CT transitions, energy variability within the CT excited states, and slight mixing between the π- and 4f-orbitals. The small radiative rate constant and large non-radiative rate constant, as predicted by electronic absorption and quantum chemical calculations, resulted in weak emission intensity. Based on these photophysical and theoretical findings, it is evident that designing donor-type ligands that strongly overlap with the 4f-orbital and provide a rigid structure is crucial for achieving strong CT emissions from 4f- to π-orbitals. The effective use of CT excitons based on the 4f-orbital provides new insights into the design of next-generation nanomaterials and promotes the development of a research domain within the field of light science and technology.

Methods

General methods

NMR spectra were recorded on a JEOL ECS-400 spectrometer (1H: 400 MHz, 13C: 100 MHz, 31P: 162 MHz). Tetramethylsilane (δ = 0.00 ppm for 1H NMR), CDCl3 (δ = 77.0 ppm for 13C NMR), and H3PO4 (δ = 0.00 ppm for 31P NMR) were employed as internal standards. Electrospray ionization (ESI) mass spectrometry was performed using JEOL JMS-T100 LP instrument. Elemental analyses were performed using MICRO CORDER JM10. Fourier transform infrared (FT-IR) spectra were recorded on a JASCO FT/IR-4600 spectrometer. Thermogravimetry (TG) analysis was performed on a Seiko Instruments Inc. EXSTAR 6000 (TG/DTA6300) under a nitrogen atmosphere at a heating rate of 5 °C min–1. Cyclic voltammetry experiments were conducted using a BAS Model 2325 electrochemical apparatus.

Optical measurements

Diffuse reflection spectra were obtained using a JASCO V‐670 spectrophotometer with an ISN‐723 integrating sphere unit. Steady-state emission spectroscopy for solid-state Eu(III) and Gd(III) complexes was conducted using a Horiba Fluorolog-3 spectrofluorometer equipped with a cryostat (Thermal Block Company, SA-SB1905HA). The delayed emission spectrum for the solid-state Gd(III) complex was recorded on an FP-6300 spectrofluorometer with a cryostat (Thermal Block Company, SA-SB1905HA). Time-resolved emission spectroscopy for the evaluation of solid-state Eu(III) and Gd(III) complexes was performed on an optical setup consisting of Ti : Sapphire solid-state laser with an optical parametric oscillator (OPO), a 3D Raman confocal microscope system, a high-resolution monochromator, and a streak camera. The particle was directly dispersed on a copper substrate. It was excited with an OPO (Chameleon Vision-S, Coherent, Inc.) pumped by a pulsed Ti:Sapphire laser with an emission wavelength at 365 nm, which is able to generate the SHG laser beam at 730 nm with 75 fs pulse width and 2 MHz repetition rate. The 3D Raman confocal microscope system (Nanofinder 30, Tokyo Instruments, Inc.) functions as a real-time imaging spectrometer to monitor the emission from single-particle phosphors under the OPO laser excitation. The reflected optical signals, collected through a fluorescence microscope (BX51M, Olympus Co., Ltd.) was directed to a high-resolution monochromator (SpectraPro HRS-300, Princeton Instruments, Inc.) and a streak camera (C14831-110, Hamamatsu Photonics Co., Ltd.). The emission spectral range was monitored between 406 nm and 730 nm with a 40 g mm−1 grating. The measurement timescale was set to 50 ns, and low temperature experiments (100 K) were performed in a microscopy cryostat (Janis ST-500, Lake Shore Cryotronics, Inc.). Temperature-dependent 4f-4f emission lifetimes for Eu-MCPO were measured using the third harmonic (λex  =  355 nm) of a Q-switched Nd:YAG laser (Spectra Physics, INDI-50, fwhm = 5 ns, λ  = 1064 nm) and a photomultiplier (Hamamatsu Photonics, R5108, response time ≤1.1 ns) with a cryostat (Thermal Block Company SA-SB245T) and a temperature controller (Scientific Instruments Model 9700).

Materials

Europium(III) nitrate hexahydrate, 3N5, gadolinium nitrate hexahydrate, 3N5, n-butyllithium (n-BuLi) in n-hexane (1.6 mol/L), and chloroform-d (99.8%) were purchased from Kanto Chemical Co., Inc. Dichloromethane (for organic synthesis), methanol, super dehydrated (for organic synthesis), tetrahydrofuran, super dehydrated, with a stabilizer (for organic synthesis), hydrogen peroxide (30%), and sodium sulfate, anhydrous were purchased from Wako Pure Chemical Industries, Ltd. 3,6-Dimethoxy-9H-carbazole (>98.0%) and chlorodiphenylphosphine (>97.0%) were purchased from Tokyo Chemical Industry Co., Ltd.

Preparation of (3,6-dimethoxy-9H-carbazol-9-yl)diphenylphosphine oxide (MCPO)

MCPO was synthesized by a previously reported method. 3,6-Dimethoxy-9H-carbazole (1.0 g, 4.4 mmol) was dissolved in anhydrous THF (30 mL) under argon. n-BuLi (5.0 mL, 7.8 mmol) was added slowly dropwise to the solution at −78 °C and stirred for 3 h. Then PPh2Cl (1.5 mL, 8.4 mmol) was added at −78 °C and stirred for 18 h. The product was extracted using CH2Cl2, and the extract was washed with water. The extract was dried over anhydrous Na2SO4 and concentrated by a rotary evaporator. The reaction mixture was dissolved in CH2Cl2 (10 mL) and the solution was cooled at 0 °C. A 30% hydrogen peroxide aqueous solution (7.5 mL) was added to the solution, and the reaction mixture was stirred for 4 h. The product was extracted using CH2Cl2, and the extract was washed with water. The extract was dried over anhydrous Na2SO4 and the solution was evaporated. The product was purified by silica gel chromatography (3% CH2Cl2-MeOH). A white powder was obtained by reprecipitation using CH2Cl2-hexane.

Yield: 879.6 mg (47%). 1H NMR (400 MHz, CDCl3, Fig. S2) δ/ppm = 7.75–7.68 (m, 4H), 7.61 (td, J = 7.3, 1.4 Hz, 2H), 7.47 (td, J = 7.5, 3.4 Hz, 4H), 7.42 (d, J = 2.4 Hz, 1H), 7.15 (d, J = 9.1 Hz, 2H), 6.80 (dd, J = 9.1, 2.4 Hz, 2H), 3.88 (s, 3H). 13C NMR (100 MHz, CDCl3, Fig. S3) δ/ppm = 155.1, 136.7, 133.1, 132.0, 130.3, 128.9, 127.2, 115.8, 114.8, 102.7, 55.8. 31P NMR (162 MHz, CDCl3, Fig. S4) d/ppm = 25.9 (s). FT-IR \(\bar{\nu }\)/cm−1 = 1196 (s, P = O). MS (ESI): m/z calcd for C26H23NO3P [M + H]+ = 428.14; found: 428.14. Elemental analysis calc. (%) for [C26H22NO3P]: C 73.06, H 5.19, N 3.28; found: C 72.70, H 5.13, N 3.22.

Preparation of Eu(NO3)3(MCPO)(H2O) (Eu-MCPO-H2O)

MeOH solution (5 mL) containing Eu(NO3)3･6H2O (625.0 mg, 1.401 mmol) and MCPO (298.4 mg, 0.6981 mmol) was stirred for 2 h. The solution was evaporated, and recrystallization in CH3OH gave colorless crystals. Yield: 270.5 mg (32%).

FT-IR \(\bar{\nu }\)/cm−1 = 3116-3681 (st, O–H), 1158 (st, P=O). Elemental analysis calc. (%) for [C52H46EuN5O16P2]: C 51.58, H 3.83, N 5.78; found: C 51.28, H 3.66, N 5.64.

Preparation of Eu(NO3)3(MCPO) (Eu-MCPO)

Eu-MCPO was prepared from Eu-MCPO-H2O by heat treatment (400 K, 1 h) under vacuum condition. The elimination of the coordination water was confirmed by thermogravimetric analysis (Fig. S5).

FT-IR \(\bar{\nu }\)/cm−1 = 1149 (st, P=O). Elemental analysis calc. (%) for [C52H44EuN5O15P2]: C 52.36, H 3.72, N 5.87; found: C 51.90, H 3.63, N 5.74.

Preparation of Gd(NO3)3(MCPO)(H2O) (Gd-MCPO-H2O)

MeOH solution (4 mL) containing Gd(NO3)3･6H2O (430.0 mg, 0.9527 mmol) and MCPO (199.8 mg, 0.4674 mmol) was stirred for 2 h. The solution was evaporated, and recrystallization in CH3OH gave colorless crystals. Yield: 164.7 mg (29%).

FT-IR \(\bar{\nu }\)/cm−1 = 3122–3696 (st, O–H), 1162 (st, P=O). Elemental analysis calc. (%) for [C52H46GdN5O16P2]: C 51.36, H 3.81, N 5.76; found: C 50.84, H 3.63, N 5.63.

Preparation of Gd(NO3)3(MCPO) (Gd-MCPO)

Gd-MCPO was prepared from Gd-MCPO-H2O according to the same procedure of preparation of Eu-MCPO.

FT-IR \(\bar{\nu }\)/cm−1 = 1152 (st, P=O). Elemental analysis calc. (%) for [C52H44GdN5O15P2]: C 52.13, H 3.70, N 5.85; found: C 51.65, H 3.61, N 5.69.

Crystal structure determinations

The X-ray crystal structures of Eu-MCPO-H2O is shown in Fig. S6. The crystallographic data are shown in Table S1. Single crystal X-ray diffraction data were obtained using a Rigaku XtaLAB Synergy-DW equipped with a HyPix-6000HE detector (MoKα radiation, λ = 0.71073 Å). Non-hydrogen atoms were refined anisotropically using the SHELX system. Hydrogen atoms were refined using the riding model. All calculations were performed using the crystal structure crystallographic and Olex 2 software package. The CIF data were confirmed by the check CIF/PLATON service. CCDC-2324703 (for Eu-MCPO-H2O) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. Powder X-ray diffractometry (PXRD) was performed on a Rigaku SmartLab using Cu Kα radiation (λ = 1.5418 Å).
