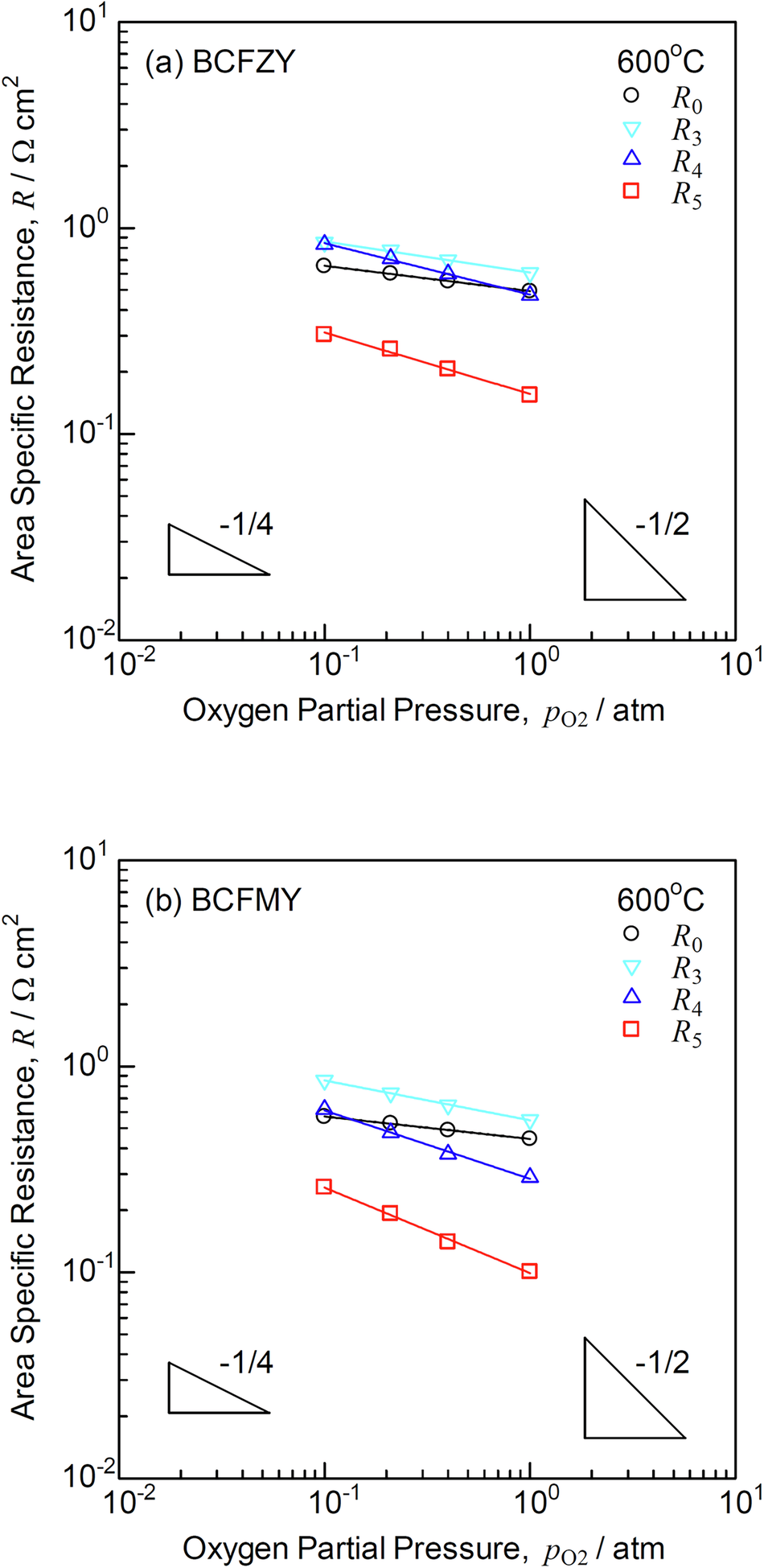

Fig. 3: Ohmic and polarization resistances for the SOFCs.

a BCFZY and b BCFMY positrodes are used at 600 ^oC. The slopes of the polarization resistances ascribed to the oxygen surface exchange and diffusion processes (R₄) for the SOFCs are approximately −1/4.
