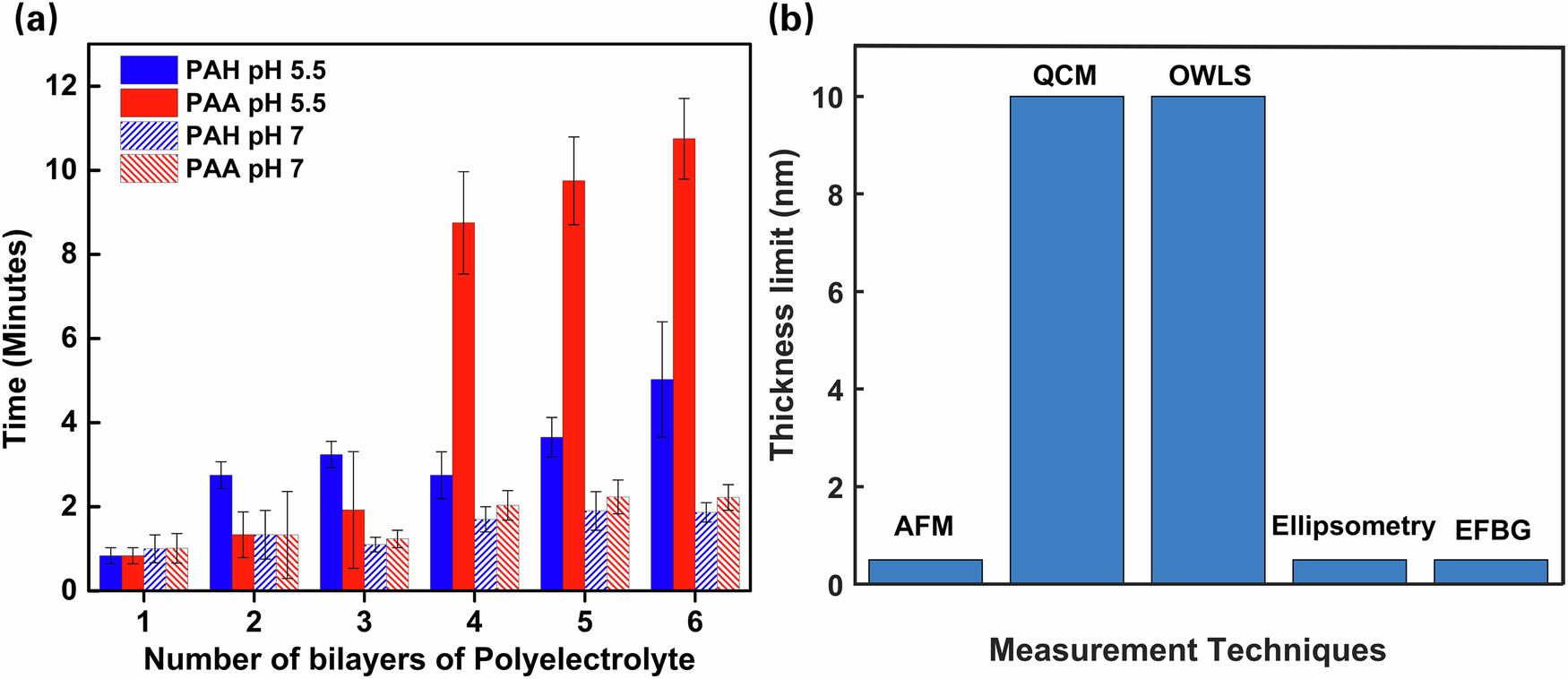

Fig. 6: Kinetics of PEM deposition and Limit of detection (LoD) of different sub-nanometer scale monitoring techniques.

a Analysis of kinetics of pH 5.5 and pH 7 systems. Error bars indicate one standard deviation from the mean value, n = 3. b Comparison of the limit of detection of different PEM thickness monitoring techniques.
