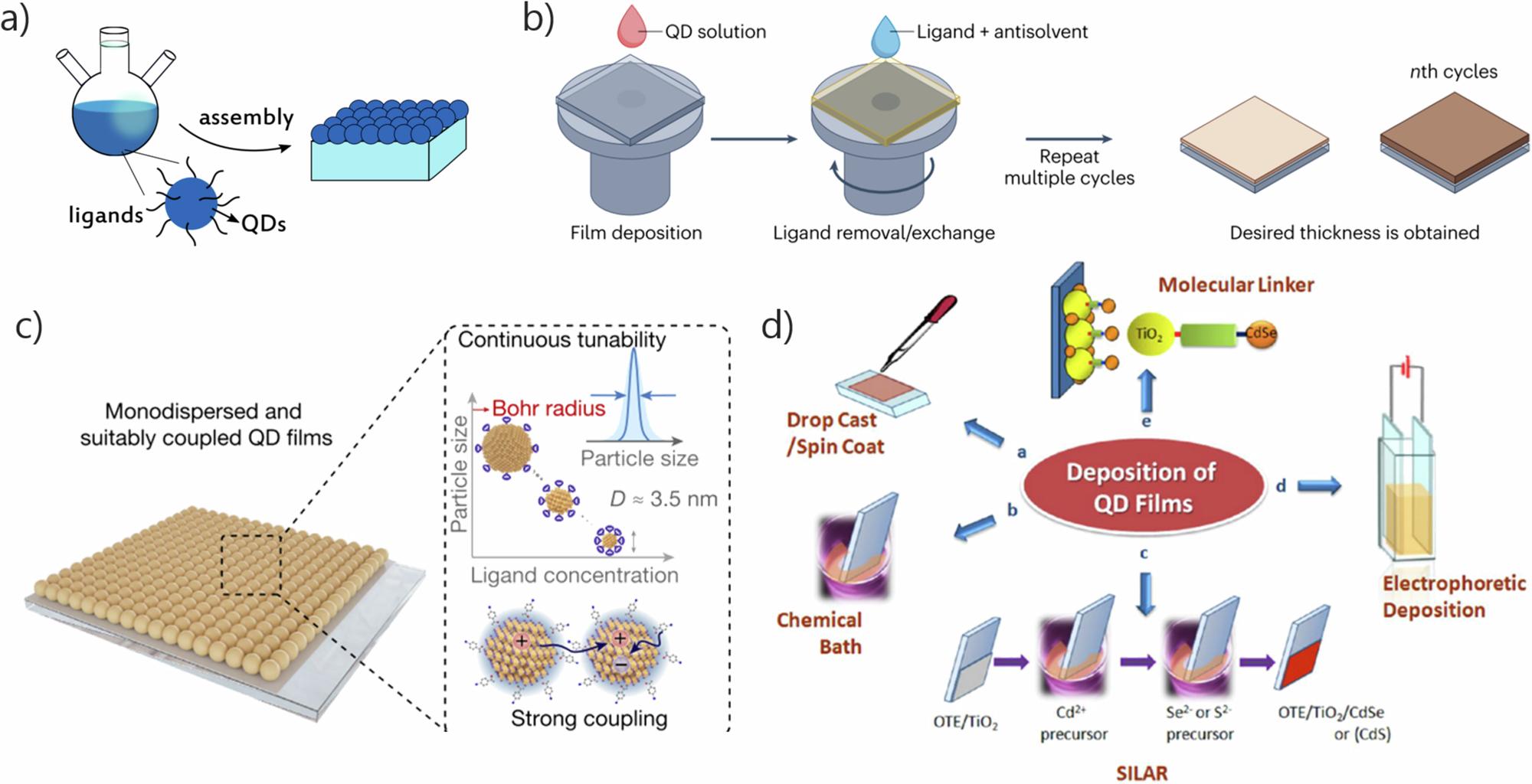

Fig. 2: Fundamental strategies for preparing QDs-based photoelectrodes.
From: Role of quantum dots in photoelectrocatalytic technology
a Solution-assisted direct assembly of colloidally synthesized QDs onto a conductive substrate. Reproduced with permission from ref. 5. Copyright 2021, Science. b In situ ligand-stabilized spin-coating deposition of QDs for thin-film photoelectrode fabrication. Reproduced with permission from ref. 29. Copyright 2025, Springer US Nature. c Uniform deposition of monodispersed CsPbBr3-QDs directly on a substrate. Reproduced with permission from ref. 123. Copyright 2022, Springer US Nature. d Common solution-based techniques for preparing high-quality thin-film photoelectrodes. Reproduced with permission from ref. 69. Copyright 2013, American Chemical Society.
