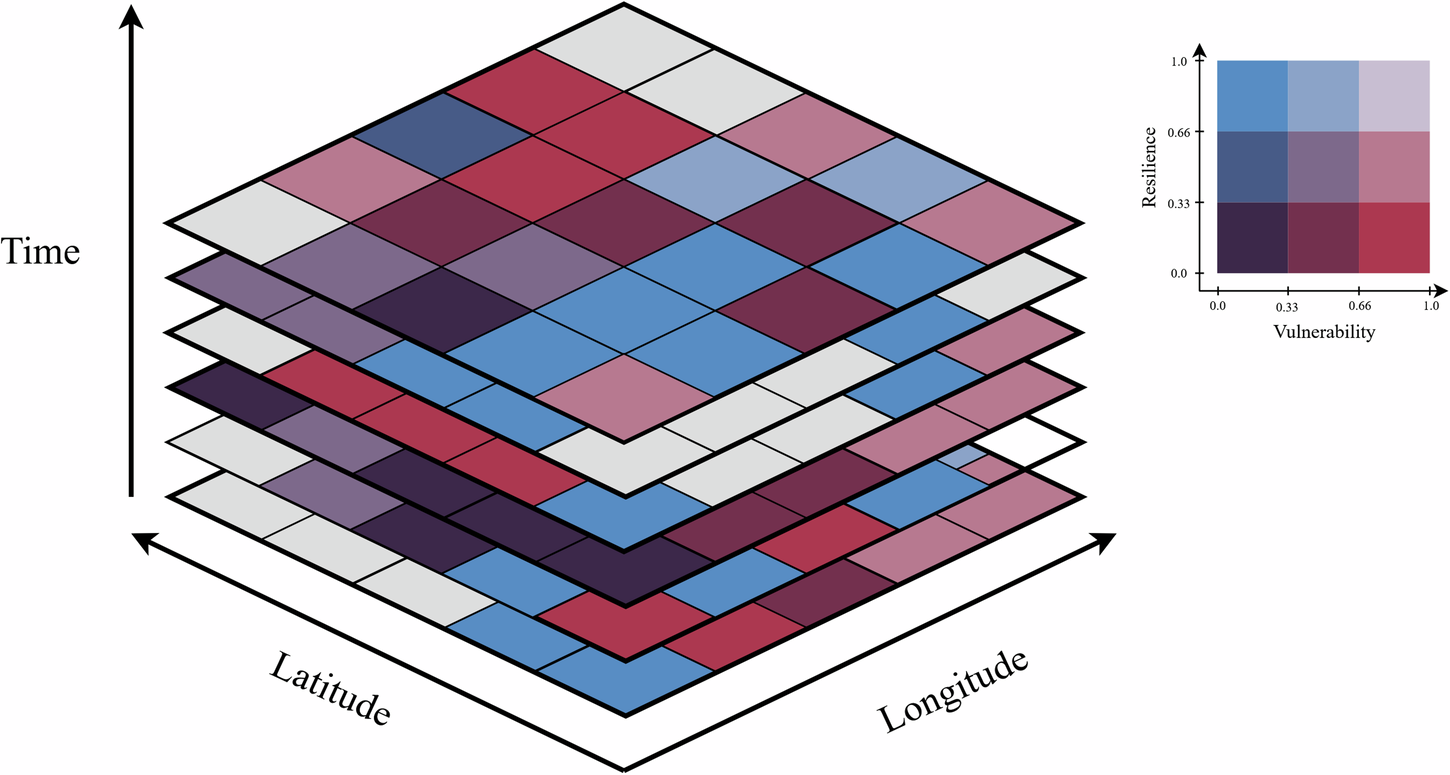

Fig. 9: The data model (spatio-temporal cube) for assessing the co-evolution of vulnerability and resilience in urban areas over time and space.
From: Urban heatwaves reverse vulnerability-resilience relationships throughout the day
Each grid cell depicts a specific area in a city with a unique urban and social fabric, while the stacked surfaces correspond to different time intervals. Colours indicate the bi-variate relationships between resilience and vulnerability, capturing both static and dynamic aspects influenced by adaptive behaviours and environmental change.
