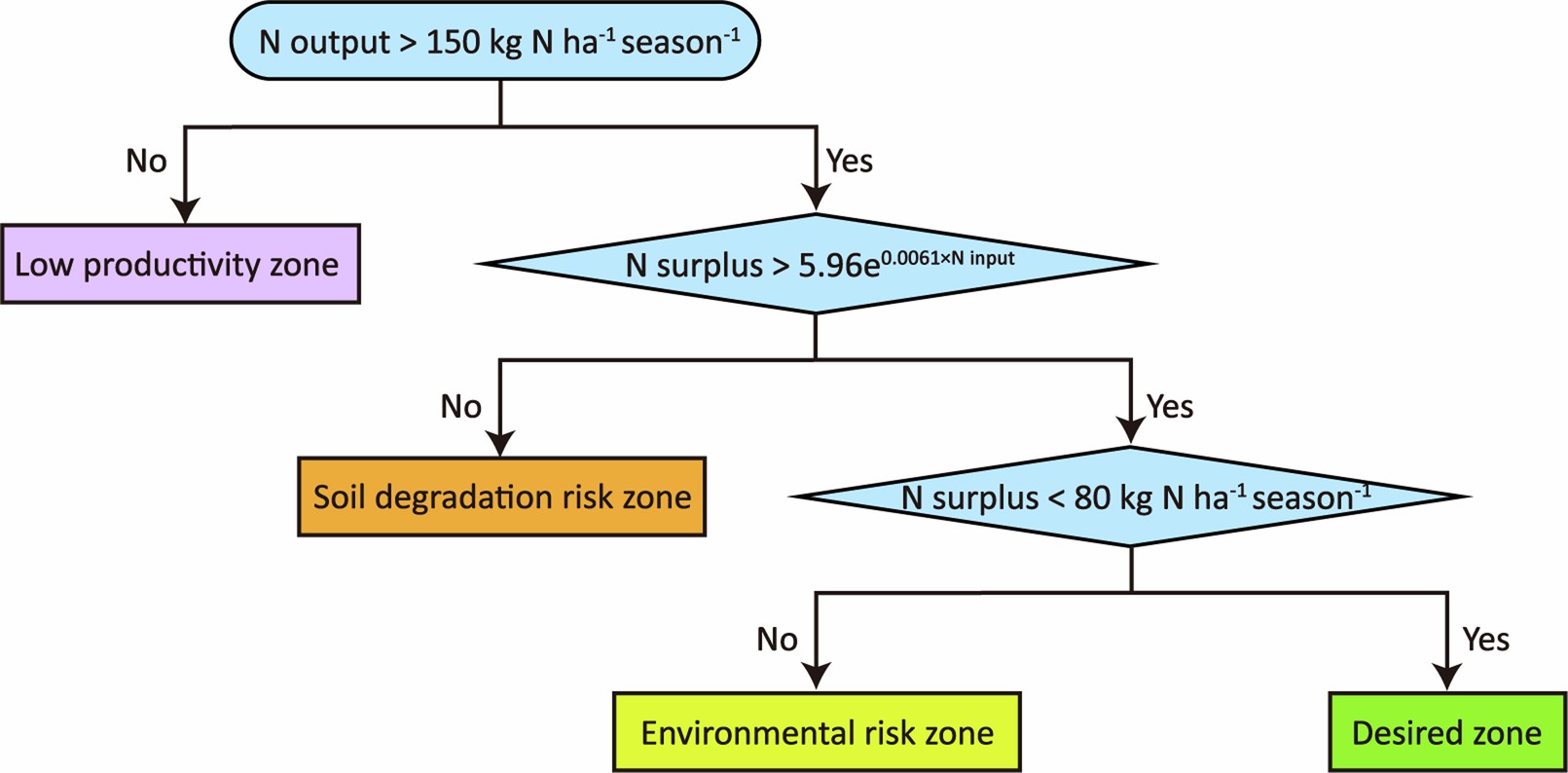

Extended Data Fig. 1: Flowchart for determining wheat production zone based on N management benchmarks at national and regional scales. | Nature Food

Extended Data Fig. 1: Flowchart for determining wheat production zone based on N management benchmarks at national and regional scales.

From: Data-driven nitrogen management benchmarks support China’s wheat self-sufficiency by 2030

Extended Data Fig. 1: Flowchart for determining wheat production zone based on N management benchmarks at national and regional scales.The alternative text for this image may have been generated using AI.

The boundaries for determining crop N output is 150 kg N ha−1 season−1, and N surplus is between 5.96e0.0061×N input and 80 kg N ha−1 season−1 in China. In the spring wheat area of North China, the winter wheat area of North China, the winter wheat area of North China Plain, the winter wheat area of South China, the boundaries for determining crop N output is 115, 115, 175, and 130 kg N ha−1 season−1, and N surplus is between 6.39e0.0059×N input and 85 kg N ha−1 season−1, 6.39e0.0059×N input and 80 kg N ha−1 season−1, 8.60e0.0049×N input and 80 kg N ha−1 season−1, and 4.66e0.0065×N input and 85 kg N ha−1 season−1, respectively.
