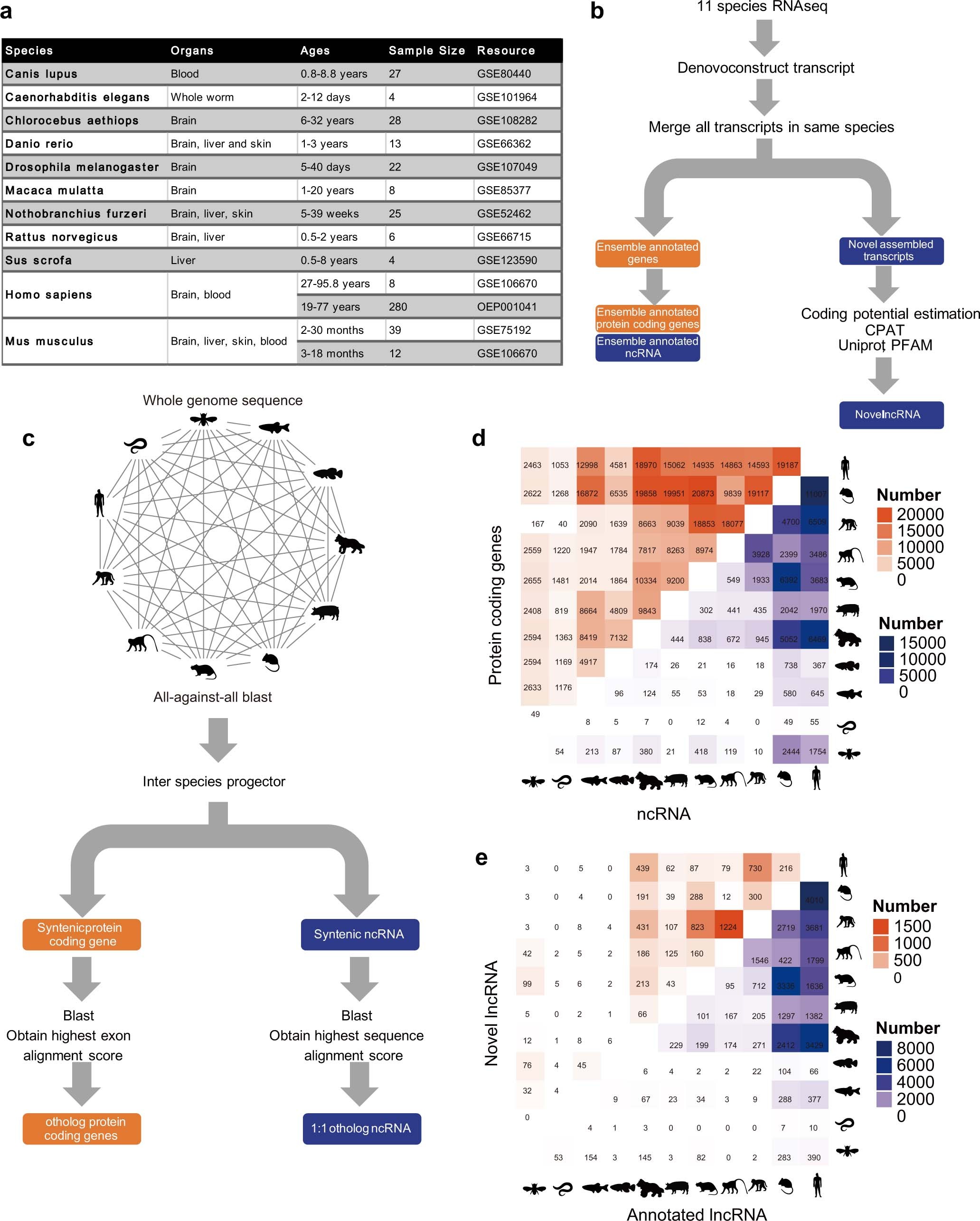

Extended Data Fig. 1: Identification of novel lncRNAs and evolutionarily conserved lncRNAs.
From: Aging-associated lncRNAs are evolutionarily conserved and participate in NFκB signaling
a, The public RNA-seq data of 11 species for evolutionary associated lncRNAs analysis. b, Pipeline for de novo assembly of transcripts and annotation of lncRNAs. c, Schematic presentation of pipeline for detecting one-to-one orthologous lncRNA families. d, Distribution of one-to-one orthologous protein-coding genes (red) and ncRNAs (blue) in 11 species. e, Distribution of one-to-one ortholog annotated novel lncRNAs (red) and Ensembl annotated lncRNAs (blue) in 11 species.
