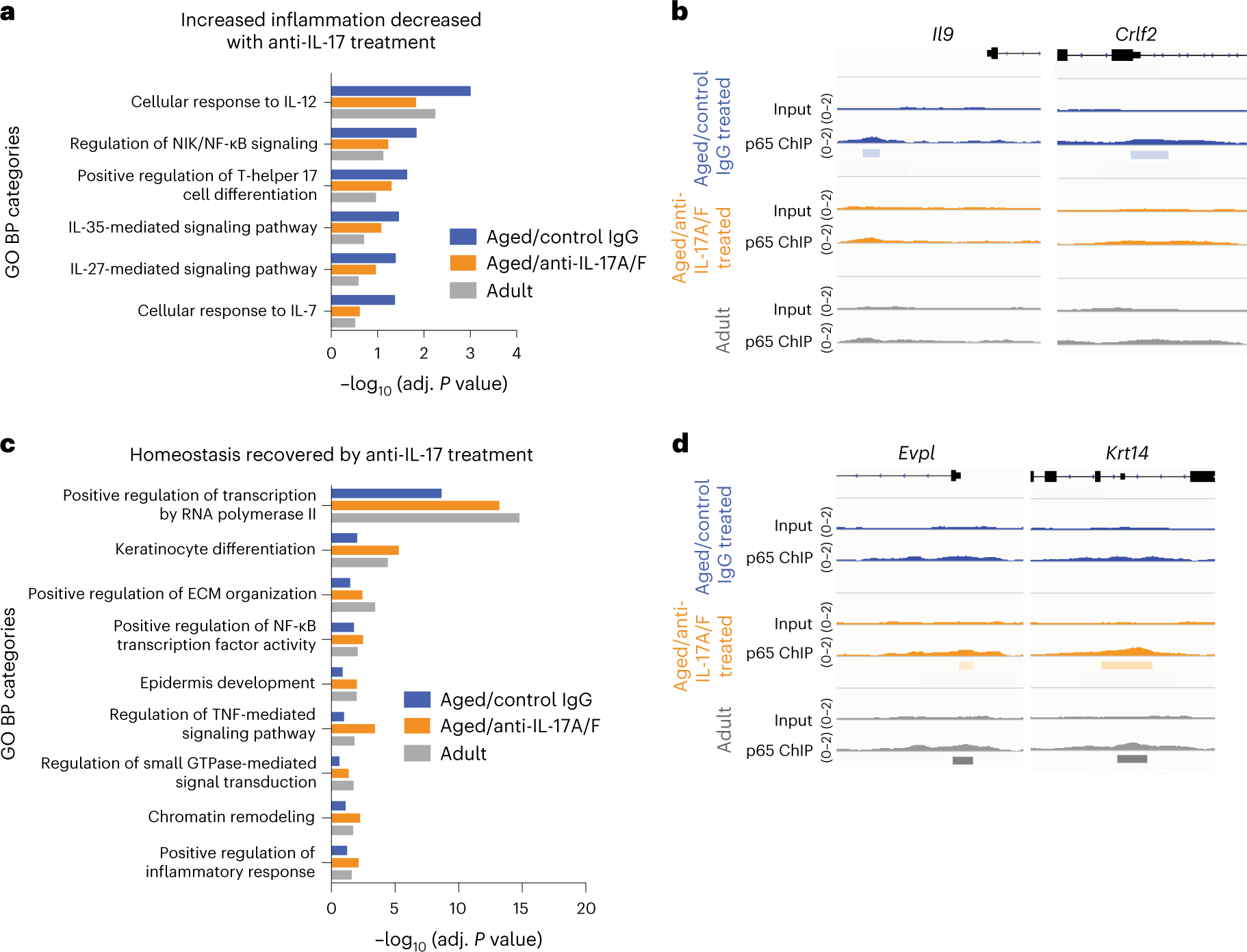

Fig. 6: IL-17 signaling is partially transduced by p65/NFκB signaling in epidermal cells.
From: Targeting lymphoid-derived IL-17 signaling to delay skin aging
a, Plot comparing the adjusted P values of selected inflammation-related GO categories of genes bound by p65 in aged/IgG control, aged/anti-IL-17A/F-treated and adult mice. b, Representative images of genes belonging to inflammation-related GO categories showing binding of p65 to their regulatory areas. c, Plot comparing adjusted P values of selected homeostasis-related GO categories of genes bound by p65 in aged/IgG control, aged/anti-IL-17A/F-treated and adult mice. d, Representative images of genes belonging to the selected epidermal homeostasis-related GO categories showing binding of p65 to their regulatory areas.
