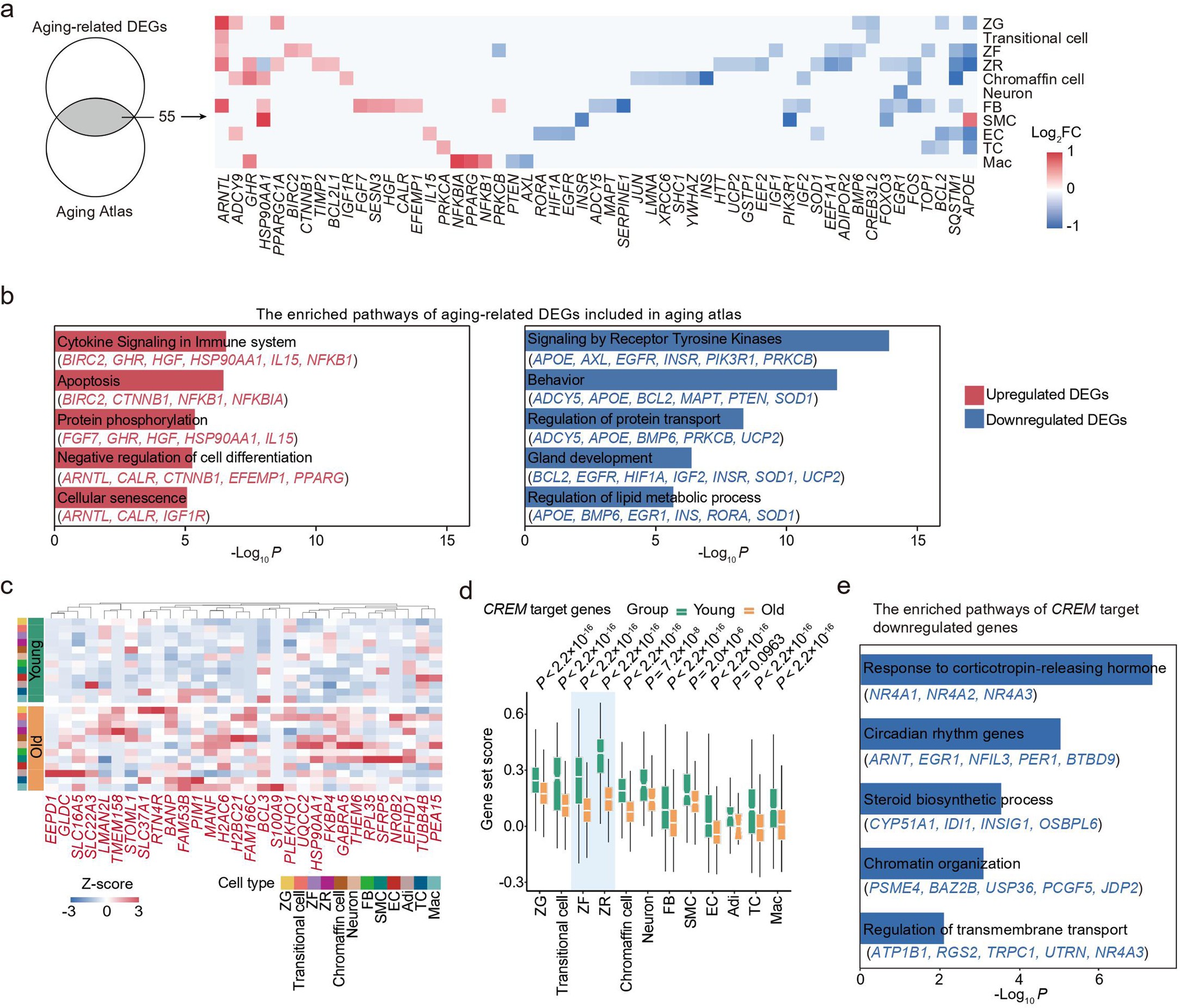

Extended Data Fig. 4: Molecular signatures underpinning NHP adrenal gland aging.
From: Aging induces region-specific dysregulation of hormone synthesis in the primate adrenal gland
(a) Heatmap showing the aging-related DEGs included in Aging Atlas database. (b) Bar plots showing representative pathways of upregulated (left) and downregulated (right) DEGs included in Aging Atlas database. (c) Heatmap showing expression of upregulated DEGs in bulk RNA-seq across different cell types of young and aged groups. Gene expression levels across different DEGs are Z-score transformed. (d) Box plot showing the gene set scores of CREM target genes across different cell types in young and aged groups. (e) Bar plot showing representative pathways of CREM target genes.
