Fig. 2: Immune phenotyping of H&E and survival analysis.

From: Integrative analysis of H&E and IHC identifies prognostic immune subtypes in HPV related oropharyngeal cancer

Fig. 2: Immune phenotyping of H&E and survival analysis.

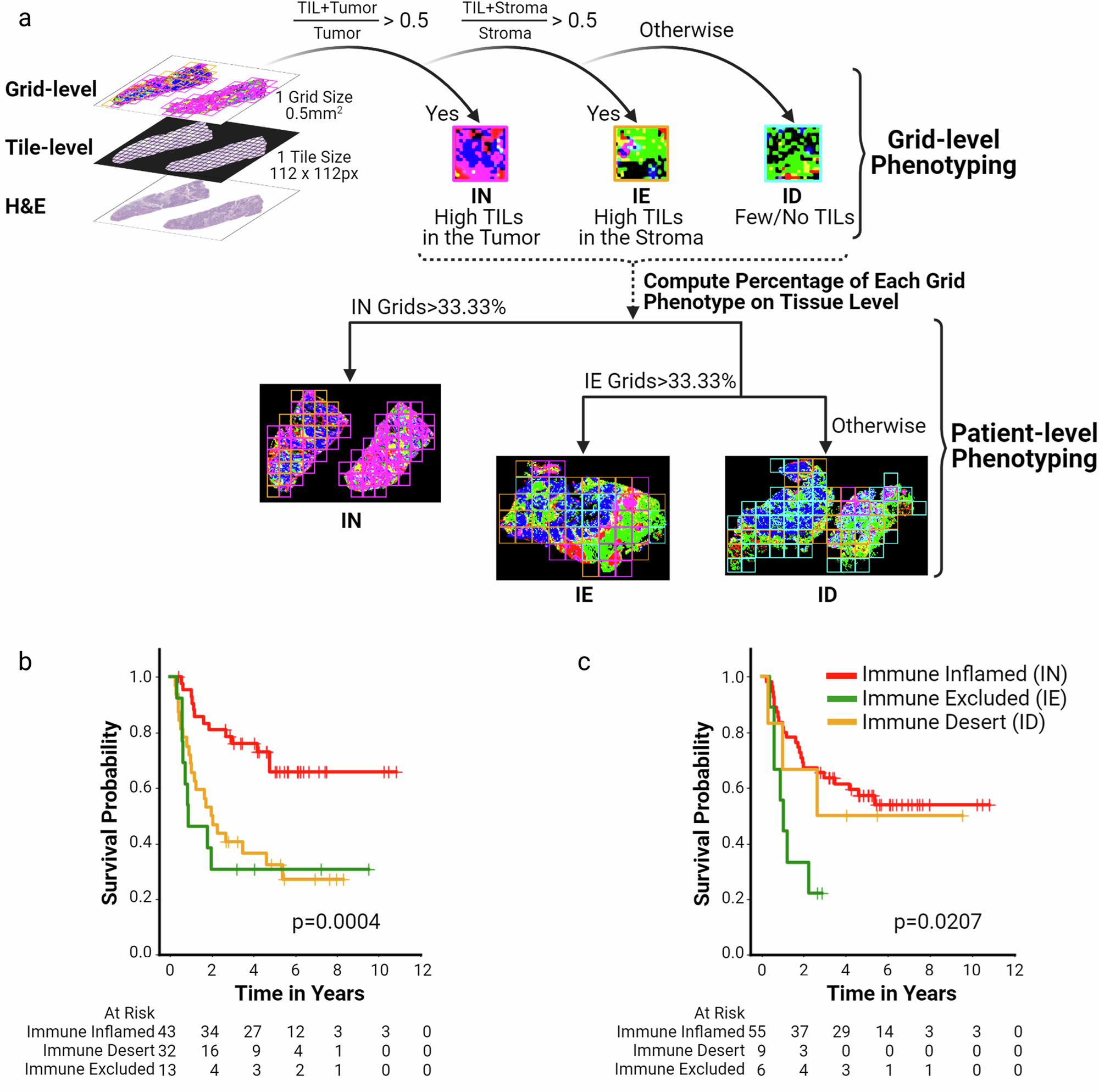

a Examples of patient-level phenotyping based on the corresponding 0.5 mm2 grid phenotyping (top) and thresholding scheme (bottom). Kaplan–Meier analysis of progression-free survival based on H&E analysis for primary tumor (b) and pN+ lymph node (c) tissue. IN immune inflamed, ID immune desert, IE immune excluded.
