Introduction

Atrial fibrillation (AFib) is the most common cardiac arrhythmia, affecting 1-2% of the world’s population and significantly contributing to morbidity and mortality1. Pulmonary vein isolation (PVI) is an established rhythm control strategy and is the cornerstone of catheter ablation for AFib treatment, but it results in recurrent atrial arrhythmia (AA) in ~20–40% of patients2,3. Differentiating patients at risk for post-ablation AA recurrence from those who will remain arrhythmia-free is challenging. Developing a method to predict recurrent arrhythmia following ablation via explainable machine learning (xML) could provide valuable insights for ablation planning and decision-making, leading to improved outcomes in AFib patients.

Prior work has investigated mechanisms and risk factors associated with AFib recurrence. These studies have considered clinical features such as hypertension4, obesity5, diabetes6, cardiomyopathy7, and smoking status8. Left atrial (LA) models derived from late gadolinium enhanced magnetic resonance imaging (LGE-MRI) also offer a means to characterize potential arrhythmogenic substrate9. These models have been leveraged to investigate fibrosis10, ablation-delivered scar11,12,13, and LA shape characteristics as risk factors for recurrent arrhythmia14,15. 12 lead electrocardiograms (ECGs) also enable spectral analysis of atrial fibrillatory waves (f-waves), and others report the amplitude and dominant frequency of pre-ablation f-waves correlate with durable ablation success16,17,18,19,20. Integrating this rich multi-modal risk factor data for prediction of post-ablation recurrence is a potential avenue for generating a robust classifier and furthering our scientific understanding of AFib.

Existing machine learning algorithms have leveraged various features such as pre-ablation LGE-MRI imaging data, patient-specific simulations, and electronic health records (EHRs) to predict recurrent AFib21,22,23,24, with varying degrees of success; area under the receiver operating characteristic curve (ROC AUCs) values ranged from 0.61 to 0.85. Notably, these algorithms lack robust explainability metrics to elucidate how input features influence the final decision, which has hindered clinical implementation25. Moreover, quantitative characterization of the extent and location of ablation-induced scar (e.g., from post-ablation LGE-MRI) has not yet been included in these algorithms despite its substantial impact on procedural outcomes26,27.

In this proof-of-concept study, we develop an xML-based recurrent arrhythmia prediction model that combines patient-specific fibrotic tissue, ablation-delivered scar (assessed post-ablation), LA geometry metrics, simulations conducted in computational models reconstructed from pre- and post-ablation patient MRI, and clinically relevant EHR data. This method accurately predicts the likelihood of recurrence (mean receiver operating characteristic [ROC] area under the curve [AUC]: 0.80 ± 0.04; mean precision-recall [PR] AUC: 0.82 ± 0.08). This performance is validated (80% correct) in a 15-patient retrospective holdout cohort comprising data never seen in during model training or validation. The algorithm’s output points to risk factors that are most influential in the algorithm’s decision, specifically large left atrium, low LGE-quantified post-ablation scar in the atrial floor region, and previous attempts at direct current cardioversion. These risk factors can be analyzed on a cohort-wide or patient-specific scale, offering important contextualization to xML findings that can be further tested in randomized trials.

Methods

Patient cohort and image acquisition

This study retrospectively included patients from University of Washington (UW) Medical Center with documented persistent AFib or paroxysmal AFib who had already received both pre- and post-procedural LGE-MRI scans and underwent either cryoballoon or radiofrequency (RF) ablation. Paroxysmal AFib was defined by AFib episodes at least 30 s in duration that terminated within 7 days spontaneously or in response to intervention28. Persistent AFib was defined by AFib episodes that persisted for a minimum of 7 days28. Cardiac LGE-MRIs were obtained using previously described protocols for all participants within 90 days prior to their ablation procedure and again 3–6 months post-ablation to quantify the extent of LA fibrosis and scar, respectively29. Exclusion criteria for AFib patients included those who had a prior catheter ablation, patients with cardiac implantable electronic devices, severe claustrophobia, renal dysfunction, and contraindications to MRI or gadolinium-based contrast. Scans were performed on the Philips Ingenia system, 15–25 min after contrast injection, using a three-dimensional inversion-recovery, respiration-navigated, ECG-gated, gradient echo pulse sequence. Acquisition parameters included transverse imaging volume with a voxel size of 1.25 × 1.25 × 2.5 mm (reconstructed to 0.625 × 0.625 × 1.25 mm). Scan time was 5–10 min dependent on respiration and heart rate.

Patients had clinical assessment and catheter ablation in the UW AFib program. All patients underwent PVI, and some had additional substrate modification at the operator’s discretion. Patients’ clinical features were determined at time of initial visit and are tabulated in Supplementary Data 1, including persistent vs. paroxysmal AFib status30, comorbidities, and medications. The symptom severity feature was determined by assessing the burden of self-reported AFib symptoms on a scale of 1 to 431. Presence of cardiomyopathy was defined by myocardial dysfunction with or without heart failure, including genetic cardiomyopathies, valvular cardiomyopathy, and cardiac sarcoidosis. Following ablation, patients were followed longitudinally at UW with 7-day ambulatory electrocardiogram monitoring at 3, 6, and 12 months after ablation. Recurrence was defined by at least 30 s of documented AA after a 90-day blanking period30. The recurrence rhythm was classified as either AFib or atrial flutter by expert ECG interpretation. Loss-to-follow-up bias was limited as all patients completed at least 2 years of prespecified follow-up. There was no missing data for any patient.

Anatomical model reconstruction

Geometric models were reconstructed from both pre- and post- ablation LGE-MRI scans by Merisight Inc. (Salt Lake City, UT) to assess LA volume and surface area. Geometric models were reconstructed from pre-ablation scans, and the relative extent of fibrosis in the LA was quantified via an adaptive histogram thresholding algorithm to determine pre-ablation LGE-MRI derived fibrosis32. For post-ablation models, ablation scar was quantified on post-ablation LGE-MRI using previously established methods9,13,33. Non-rigid registration was used to map LGE-derived post-ablation scar patterns onto existing LA pre-ablation fibrotic models. Hyper-enhancement on post-ablation scans was assumed to be ablation-induced scar; this accounts for the fact that hyperenhancement from ablation scar is at a higher absolute level than that of native fibrosis. Consequently, regions labeled as fibrotic pre-ablation fall below the hyperenhancement threshold in post-procedure scans.

Extraction of LGE-MRI derived fibrosis and ablation-delivered scar features

In pre- and post-ablation models, we characterized fibrosis and ablation-delivered scar area in five regions defined with respect to LA landmarks, as in our prior work: left pulmonary veins (LPVs), right pulmonary veins (RPVs), posterior wall, anterior wall, and atrial floor34. First, the LA was subdivided into three broad anatomical areas LA floor, posterior wall, and anterior wall including left atrial appendage using standardized cutoff values in the UAC space35. Then, LPV and RPV areas were established using a region-growing approach such that each accounted for 15% of the total LA surface area.

Average fibrosis entropy and density were also calculated for pre- and post-ablation models. Prior computational and clinical work has shown that regions tending to harbor reentrant driver (RD) activity are characterized by fibrotic boundary zones with high fibrosis entropy (FE) and high fibrosis density (FD)10,36. Thus, we calculated the extent of such regions in each patient-specific model using the same equation derived via machine learning, as in prior studies10,37:

0.4096(FD)2 + 3.28(FD)(FE) − 0.1036(FE)2 – 0.7112(FD) – (FE) + 0.0429.

Prior computational work suggests ablation-induced scar and certain non-conductive anatomical landmarks (i.e., mitral valve annuli, pulmonary vein ostia) contribute to recurrent AA13. Any region of hyper-enhancement in the post-ablation LGE-MRI, compared to the pre-ablation LGE-MRI, was considered ablation-delivered scar. We counted the total number of scar regions with area >1 cm2. Within this set we also counted the number of LGE-derived scar areas and non-conductive anatomical landmarks of specific size (area from 2 to 20 cm2; perimeter from 15 to 60 cm) and in proximity to fibrosis (>30% fibrosis in the surrounding 1 cm area), as these indicate potentially arrhythmogenic substrate13.

Design and evaluation of random forest machine learning classifier

Figure 1 provides a simple flowchart of the model development and explanation workflow. The Least Absolute Shrinkage and Selection Operator (LASSO) approach was used to reduce the overall number of features38. This algorithm performs well when the number of observations is low and the number of features is high. LASSO attempts to eliminate variables that are irrelevant (i.e., unrelated to the outcome) or highly collinear. Five-fold cross-validation, considering only data from the original cohort, identified the optimal parameterization (Supplementary Fig. 1). LASSO regression was applied to the full original cohort with the optimal hyperparameter (Fig. 1A). The resulting set of features was then used to train a random forest machine learning classifier to recognize risk factors associated with recurrent AA (Fig. 1B)39,40. We used five-fold stratified, 80:20-split cross-validation to mitigate the risk of overfitting the model; this approach ensured an equal distribution of recurrent and non-recurrent AFib patients in training and test sets. At no point were data from the holdout cohort incorporated in LASSO regression or random forest model development.

Fig. 1: Flowchart outlining the complete model development process.
Fig. 1: Flowchart outlining the complete model development process.
Full size image

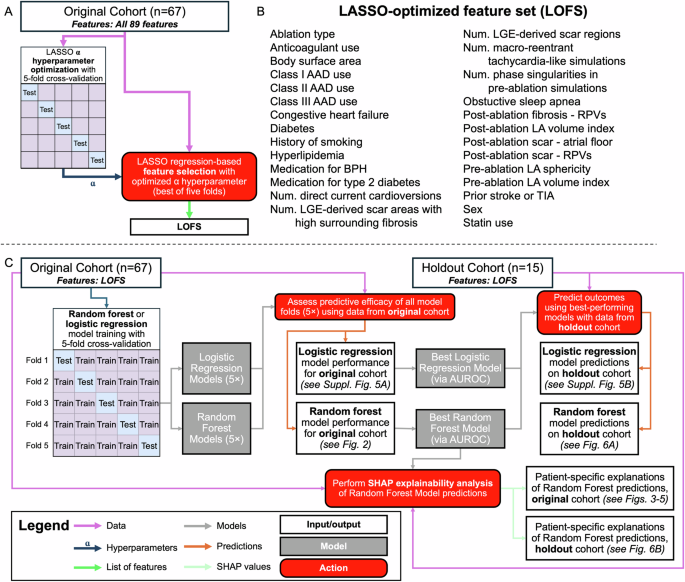

A To address multicollinearity between the 89 risk factors compiled for this study, LASSO regression removed the least important and collinear features. B The product of this first stage was the 27-element LASSO-optimized feature set (LOFS). C Subsequently, the LOFS were used to train and test either random forest machine learning (ML) or logistic regression models using five-fold, 80:20-split cross-validation. The random forest and logistic regression models were then tested on data from a never-before-seen 15-patient holdout cohort. To assess model explainability, the marginal contributions of individual LOFS values on overall random forest model predictions in the original and holdout cohorts were evaluated by SHAP analysis. SHAP analysis was not needed for the logistic regression model, as each feature had a coefficient explicitly describing its impact on model predictions. Holdout and explainability tests were always performed on the single best logistic regression or random forest model, as assessed during the predictive efficacy stage via the area under the receiver operating characteristic curve (AUROC) metric. Links to relevant figures later in the study in which specific results are presented are provided in Output panels.

The Shapley Additive exPlanations (SHAP) framework facilitates algorithmic model interpretations via calculation of marginal contributions (SHAP values) of each risk factor for each prediction. Briefly, SHAP values are calculated by evaluating the model’s response to perturbation of each feature, revealing the relative influence on the model’s final prediction41. We applied SHAP to probe feature importance in the trained random forest classifier, providing insight into the overall influence of each risk factor42,43.

Finally, we applied the fully trained and validated random forest classifier to a completely new holdout cohort of 15 patients never seen by the classifier in any prior training or test set. Only the features used in the random forest classifier were extracted for this cohort. As for the original model, we used SHAP to examine each feature’s importance for each patient in the holdout set.

Computational simulations of patient-specific electrophysiology

A detailed description of computational simulation methods can be found in the “Supplementary Methods” section of the Supplementary Information. Briefly, fibrotic LA models were constructed and parameterized as in previous work13,35,44. Our methodology for computational modeling at the cell45 and tissue scales46 can also be found in previously published papers10,47,48. Simulations were performed on the Hyak supercomputer system at UW using the openCARP simulation environment for cardiac electrophysiology49. In each pre- and post-ablation model, virtual burst pacing to attempt reentry initiation was applied at 15 LA sites at locations corresponding to common AFib trigger origins50. The presence of RDs was characterized by detecting persistent phase singularities (i.e., organizing centers of reentry)51,52. We also counted the number of macro-reentrant tachycardia morphologies in pre- and post-ablation simulations. For each patient, we aggregated simulation features tabulated in Supplementary Data 1.

Electrocardiographic f-wave analysis

Others have reported the value of f-wave analysis for AFib recurrence risk stratification16,17,18,19,20. Raw signal data for each pre-ablation 12-lead electrocardiogram (ECG) interpreted by an expert clinician as AA were analyzed for f-wave characteristics. Patients were included in this analysis if we had access to raw electrical recordings from a 10 s, resting, 12-lead ECG performed at a UW-affiliated hospital or clinic; individuals whose AFib diagnosis was confirmed via ECG at unaffiliated institutions were thus excluded from this part of the analysis for lack of access to raw ECG recordings. If multiple pre-ablation ECGs were available showing AA, the most recent recording was used. The signal was decomposed into atrial and ventricular components by spatiotemporal QRST cancellation53. The atrial component was analyzed to find the dominant frequency in lead I between 4.83 and 11.67 Hz (290–700 bpm). A sliding window was used to approximate the mean amplitude across the signal.

Statistics and reproducibility

Random forest and logistic regression models (coded using Python v3.10.11, developed with scikit-learn54) were evaluated with receiver operator characteristic (ROC) and precision-recall (PR) curves. The area under the curve (AUC) was reported in either case, along with F1-scores. SHAP analysis indicated relationships between patient features and random forest model classifications41,42,43. Reference the Data Availability and Code Availability statements for more information about accessing the data and code underlying this work55,56. This study was approved by the UW institutional review board (IRB), and all participants provided written informed consent.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Results

In the cohort used for training and testing (Table 1), 40 of 67 patients (59.7%) experienced recurrence of either AFib (29/40; 72.5%) or atrial flutter (11/40; 27.5%) in the two-year follow-up period. 36 of 67 patients (53.7%) underwent circumferential wide area RF or segmental cryoballoon ablation around the PVs without additional substrate modification. The remaining 31 of 67 patients (46.3%) had additional substrate modification via RF ablation (e.g., posterior wall isolation). The median time to reported recurrence was 153 days. Follow-up time was limited to two years for every patient. No patients were lost to follow-up.

Table 1 Patient characteristics in combined training and testing cohort
Full size table

A table of all 89 features with sub-classifications of patient-specific (1) clinical attributes, (2) LA geometry, (3) fibrosis patterns, (4) ablation-induced scar patterns, and (5) biophysically detailed simulation results is provided in Supplementary Data 1. Feature selection by LASSO yielded the LASSO-optimized feature set (LOFS), with the total number of risk factors reduced to 27 (Table 2, Supplementary Fig. 1).

Table 2 List of the 27 features comprising the LASSO-optimized feature set (LOFS)
Full size table

The LOFS from the original cohort was input into a random forest algorithm with 80:20 split five-fold cross validation. This algorithm was exposed to 40 recurrent AFib or atrial flutter cases and 27 non-recurrent cases. Our classifier was successful in retrospectively predicting recurrent arrhythmia (Fig. 2A; mean ROC AUC: 0.80 ± 0.04). AUC values in each data partition (i.e., ROC fold) ranged from 0.73 to 0.85. Our classifier had a balanced precision-recall score (Fig. 2B; mean PR AUC: 0.82 ± 0.08), with fold values ranging from 0.78 to 0.92. This fold of the model with the best ROC AUC is henceforth referred to as the optimal classifier.

Fig. 2: Random forest prediction algorithm efficacy in testing sets across five folds.
Fig. 2: Random forest prediction algorithm efficacy in testing sets across five folds.
Full size image

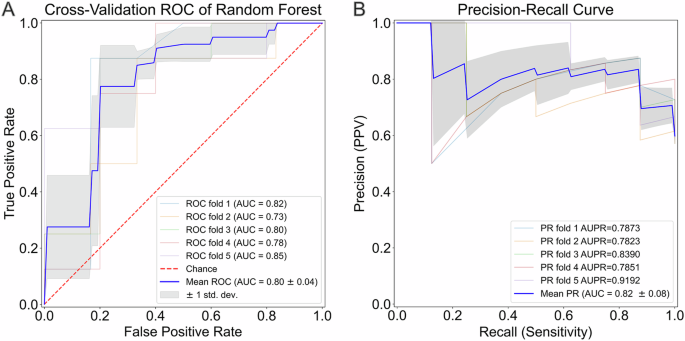

A ROC curves for testing set (AUC: 0.80 ± 0.04). B Precision-Recall curves for testing set. (AUC: 0.82 ± 0.08).

Figure 3 shows the LOFS and marginal contributions of each individual feature to the resulting random forest model, extracted by SHAP analysis. The features are arranged in decreasing order of importance. Within feature rows, individual patients are represented by each data point, and color coding indicates the patient’s respective feature value. The same data are shown with more detail by dependence plots (Supplementary Fig. 2), presented in the same order as Fig. 3. Post-ablation LA volume index (LAVI) was the most important feature. Patients with a high post-ablation LAVI were at risk for recurrent arrhythmia, while patients with low post-ablation LA volume indices were more likely to be arrhythmia free. Similar trends were observed for pre-ablation LA sphericity and LAVI. Fibrosis in the RPV region was associated with risk of recurrence, as was a smaller number of LGE-derived scar clusters with high surrounding fibrosis. Low burden (or absence) of post-ablation scar in the atrial floor and fewer total LGE-derived ablation regions also steered the model towards predicting recurrence. High or low scar near the RPVs also corresponded to recurrence risk, but intermediate levels of scar had the opposite relationship. In pre-ablation patient-specific simulations, the presence of two to four macro-reentrant tachycardias steered the model away from predicting recurrence, while the number of RD organizing centers had no clear effect. Lastly, many clinical attributes contributed to model predictions. Factors contributing to the model predicting AA recurrence included more direct current (DC) cardioversions, and low body surface area (BSA); RF as opposed to cryoballoon ablation also had a weak effect. Histories of congestive heart failure (CHF), stroke/transient ischemic attack (TIA), and statin use all steered the model toward predicting recurrence, whereas hyperlipidemia and use of class I/III antiarrhythmic drugs (AADs) or anticoagulants steered the model away from predicting recurrence. No clear effect on model outcome was observed for sex, obstructive sleep apnea (OSA), diabetes diagnosis or medication use, smoking history, class II AAD use, or benign prostatic hyperplasia (BPH) medication use. All features related to medication use refer to pre-ablation patient treatment.

Fig. 3: Summary of feature importance.
Fig. 3: Summary of feature importance.
Full size image

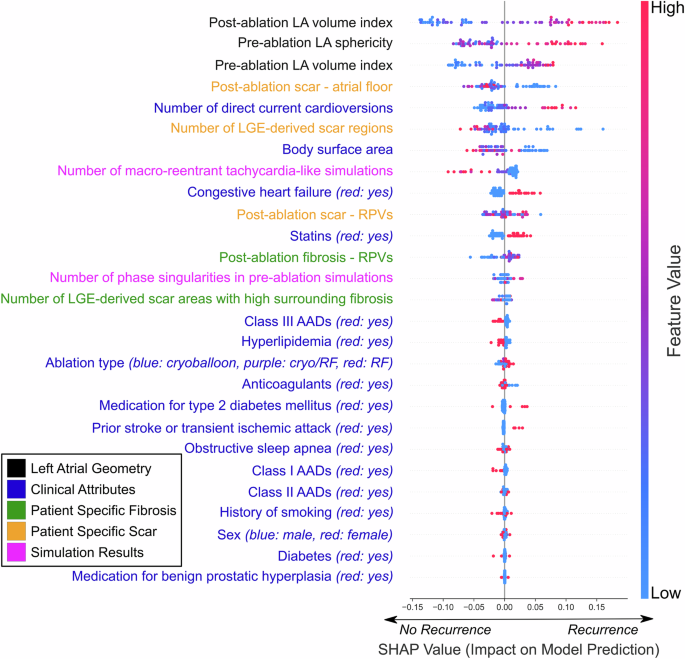

Features are sorted in descending order of importance. Features are classified as either LA geometry (black), clinical attributes (blue), fibrosis (green), ablation-delivered scar (orange), or results from biophysically detailed simulations (magenta). Red dots indicate patients with a high feature value for continuous variables, or presence of variable in binary cases. The vertical center line represents no impact on model outcome, while right-shifted data suggests association with recurrence and left-shifted data indicates non-recurrence. AAD antiarrhythmic drug, RPV right pulmonary veins.

Relationships between feature value and impact on model output (i.e., SHAP value) are shown in Fig. 4 (most impactful cases with distinct behaviors) and Supplementary Fig. 2. Figure 4A highlights an S-shaped SHAP relationship between for post-ablation LAVI SHAP values. The maximal slope occurs at ~51 mL/m2, with patients above this threshold having higher risk of recurrence. We fit an exponential decay model for the SHAP relationship with post-ablation scar on the atrial floor, indicating that patients with very little atrial floor scar often recurred, but above a certain threshold the effect of this feature had diminishing returns (Fig. 4B). We identified a positive, linear SHAP relationship with increasing number of pre-ablation DC cardioversions pressuring our model to predict recurrence (Fig. 4C). Finally, we used a moving average filter to characterize the SHAP relationship for post-ablation scar in the RPV. Patients with between 5 and 20 cm2 of scar in the RPV region had a marginally decreased model-predicted recurrence risk (Fig. 4D).

Fig. 4: Dependence plots of SHAP importance vs. raw feature values.
Fig. 4: Dependence plots of SHAP importance vs. raw feature values.
Full size image

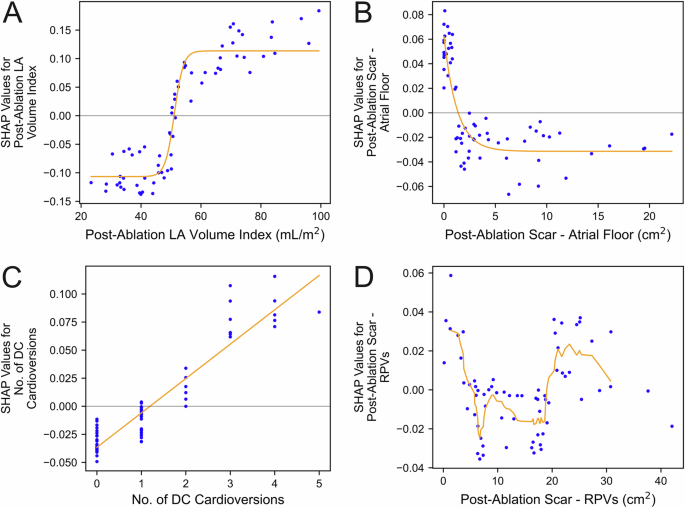

SHAP values greater than zero correlate to increased risk of recurrence, and those less than 0 correlate with reduced recurrence risk. A Dependence plot for post-ablation LA volume index (LAVI), demonstrating increased recurrence in patients with a post-ablation LAVI above 51.121 mL/m2. y = 0.220/(1+e^(−0.668*(x-51.121))–0.107. B Dependence plot for post-ablation scar in the atrial floor region, showing less scar on the atrial floor was associated with increased recurrence. y = 0.0934*e^(–0.788x)–0.031. C Dependence plot for number of direct current (DC) cardioversions, indicating recurrence was more likely in patients who received more DC cardioversions. y = 0.0306x–0.0366; R² = 0.8699. D Dependence plot for post-ablation scar in the region of the RPVs, fit with a 7-period moving average trendline, suggesting the random forest model identified a complex relationship between scar in the region of the RPVs and recurrence risk.

We summed positive and negative SHAP values for all features to derive patient-specific arrhythmia recurrence prediction profiles. Figure 5 shows example profiles for three patients for whom the model correctly predicted AA recurrence (or the lack thereof). Each risk factor is represented by an arrow that indicates the direction in which the feature forces the model (rightward for features that favor recurrence, and vice-versa); arrow length encodes the strength of each feature’s influence. Figure 5A shows a recurrent AA prediction with model confidence for a patient who experienced post-ablation atrial fibrillation. The most important factors contributing to this decision were elevated post-ablation LAVI and posterior wall fibrosis in the pre-ablation scan. The use of class III anti-arrhythmic drugs prior to ablation was one of a few attributes that led the model to suspect this patient would not recur, but in aggregate, the SHAP values of these features was greatly outweighed by those that suggested recurrence. Figure 5B represents the model’s prediction for a patient who was arrhythmia free for the entire 2-year follow-up; our xML algorithm correctly classified this patient based on low LAVI, no prior cardioversions, and several other features. Figure 5C highlights a case where our model correctly predicted AA recurrence despite the mitigating influence of elevated LAVI, which was outweighed by several substrate features: CHF, 10 LGE-derived scar regions, statin use, 25.5 cm2 of post-ablation scar in the region of the RPVs, etc. This emphasizes that even in cases where the leading predictor of adverse outcome appears favorable, other features combine in aggregate to steer the model to the correct prediction.

Fig. 5: Explanation of individual patient prediction scores for representative patients in the original dataset.
Fig. 5: Explanation of individual patient prediction scores for representative patients in the original dataset.
Full size image

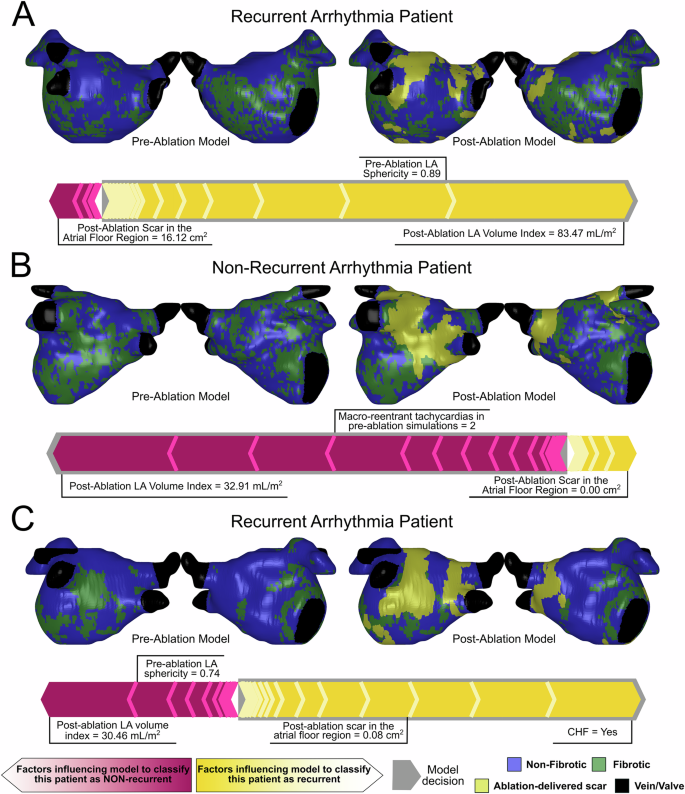

Yellow and magenta arrows indicate the marginal contribution of each feature, and the grey outline indicates the model’s prediction. Black indicator lines provide more detailed information about the features corresponding to the arrows they intersect. A Visualization of pre- and post-ablation models and explanation of a correct recurrent arrhythmia prediction driven by geometry and substrate features. This patient recurred with atrial fibrillation (AFib). B Pre- and post-ablation models of patient and explanation of a correct non-recurrent arrhythmia prediction driven by geometry and clinical features. C Visualization of pre- and post-ablation patient-specific models and explanation of a correct non-recurrent arrhythmia prediction driven by pre- and post-ablation substrate features. This patient also recurred with AFib.

We performed a retrospective internal validation study in a 15-patient holdout cohort to quantify model performance in the most unbiased manner possible with the data available. None of these data were previously seen by the model in any iteration of training or testing. Patient characteristics of the holdout cohort did not significantly differ from the training and validation cohorts except in BMI (Table 3). The recurrence rate between the two groups was similar (59.7% vs 53.3%) and the proportion of patients receiving each ablation type was similar. The median time to reported recurrence was 305 days; follow-up was limited to two years. Only the LOFS were used for ablation outcome prediction in these cases; these data were exposed to the optimal classifier with no further changes to the model or parameter tuning whatsoever. Figure 6A shows the breakdown of model performance for each of the 15 patients. 12/15 (80%) patients were correctly classified as recurrent or non-recurrent with three false positives (20%) and no false negatives (0%). SHAP breakdowns for representative correct and incorrect predictions are shown in Fig. 6B, C, respectively. For the case where recurrence was correctly predicted, the model decision was driven by high post-ablation LAVI and LA sphericity. For the example where the model predicted recurrence but the patient remained arrhythmia-free, two features steered the model dramatically towards the incorrect conclusion: high LA sphericity and prior statin use. The model was notably near equipoise in this case, with other features forcing it nearer to the correct prediction (e.g., low post-ablation LAVI, low residual fibrosis near the RPVs).

Table 3 Patient characteristics in original (training and testing) and holdout (internal validation) cohorts
Full size table
Fig. 6: Summary of model performance on a previously unseen internal validation (holdout) cohort.
Fig. 6: Summary of model performance on a previously unseen internal validation (holdout) cohort.
Full size image

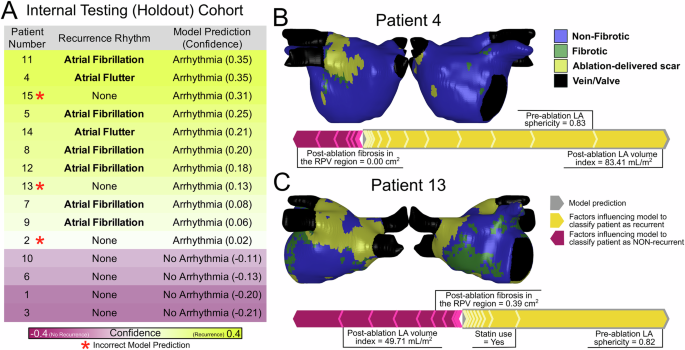

A Chart of each patient outcome and model prediction in the 15-patient cohort. Gradient indicates relative confidence (summed SHAP values offset by the model’s decision threshold of 0.10) of non-recurrence and recurrence, respectively, calculated as the sum of SHAP values. B Example for correct prediction with post-ablation patient-specific anatomical model and prediction breakdown via SHAP analysis. C Example for incorrect positive prediction.

We created complementary alternate models to address scientific and clinical questions. To address potential co-linearity between post- and pre-ablation LAVI (first- and third-most important features in the final model, respectively) we trained a new random forest model with all LOFS except pre-ablation LAVI (i.e., 26 features). Removing pre-ablation LAVI had no meaningful impact on performance (ROC AUC: 0.81 ± 0.07, 80% accuracy in holdout cohort; Supplementary Fig. 3A). Second, we repeated the entire machine learning workflow (LASSO + random forest) with the change in LAVI (ΔLAVI = post- minus pre-ablation LAVI) added as a distinct feature. The resulting models performed poorly. Across 200 LASSO attempts, model accuracy on the holdout cohort ranged from 40 to 80% (median: 60%). ΔLAVI was selected as a feature in only one single LASSO attempt; the resulting random forest had a favorable ROC AUC (0.87 ± 0.10), but reduced holdout accuracy (67%), suggesting model overfitting (Supplementary Fig. 3B). Finally, replacing pre-ablation LAVI in the LOFS with ΔLAVI resulted in slightly improved model performance (ROC AUC: 0.85 ± 0.03, 80% holdout accuracy; Fig. 7A). In the context of this alternate model, only optimal LAVI reduction (from 0 to –20 mL/m2) steered the algorithm away from predicting recurrence (Fig. 7B). In all alternate models considered, LA geometric features remained important drivers of model predictions.

Fig. 7: Performance of a model trained with the change in LA volume index (LAVI) in place of the pre-ablation LAVI.
Fig. 7: Performance of a model trained with the change in LA volume index (LAVI) in place of the pre-ablation LAVI.
Full size image

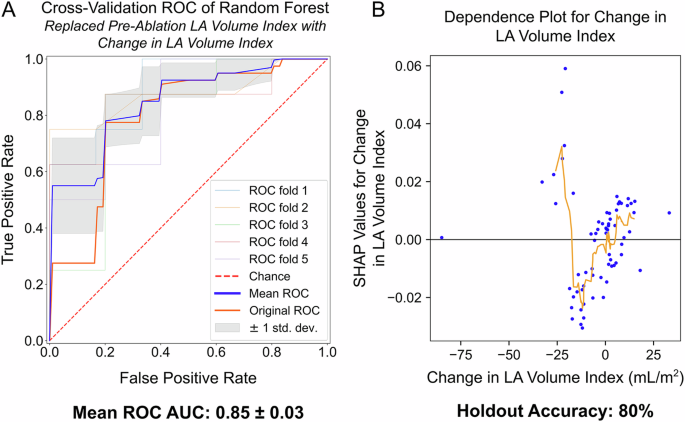

A ROC curve from five-fold training and cross-validation of the model, showing a mean ROC AUC of 0.85 ± 0.03, with individual fold ROC AUCs ranging from 0.80 to 0.90. The model retained its 80% accuracy on the holdout set. B Dependence plot showing the relationship between the change in LAVI and the marginal contribution to model outcome.

Clinically oriented alternate models were also trained and tested. Considering the potential utility of predicting AA recurrence prior to ablation, three post-ablation features were dropped from the LOFS, and post-ablation fibrosis in the region of the RPVs was replaced with its pre-ablation equivalent. This model had reduced performance (ROC AUC: 0.75 ± 0.07, 67% holdout accuracy; Supplementary Fig. 3C). Due to limited access to the computational facilities required for biophysically detailed LA electrophysiology modeling, we created an alternate model in which the two simulation-derived features were removed at the random forest training and testing phase. ROC AUC remained high, 0.81 ± 0.09, but holdout accuracy decreased to 73% (one additional patient misclassified; Supplementary Fig. 3D).

Lastly, we considered incorporating features derived from f-wave analysis. Since fewer patients were eligible for inclusion (see Methods), we performed a completely new model creation process. Alongside the LOFS, we supplied f-wave amplitude and dominant frequency in lead I for 41 of 67 patients from the train/test cohort and 6 of 15 patients from the holdout cohort (Supplementary Fig. 4A). The ROC AUC of the new model was 0.76 ± 0.14 and holdout accuracy was 4 of 6 (66%) (Supplementary Fig. 4B). Direct comparison of this model to those discussed in prior sections is ill-advised due to the difference in cohort sizes. SHAP analysis for this version of the model including f-wave features suggested lower amplitude may correspond to increased recurrence risk; the influence of dominant frequency was unclear (Supplementary Fig. 4C, D).

To compare our random forest model against a linear model, we fit a logistic regression model to the LOFS. The mean ROC AUC of the logistic regression model across five-fold cross-validation was slightly lower at 0.77 ± 0.11 (Supplementary Fig. 5A). The logistic regression model also performed slightly worse in the holdout cohort, misclassifying 4/15 patients (Supplementary Fig. 5B). Accordingly, the logistic regression model’s F1-score of 0.78 was worse than the F1-score for the random forest model.

Discussion

We designed an xML algorithm to integrate multi-modal data for prediction of recurrent arrhythmias following catheter ablation of AFib. Compared to prior studies21,22,24,57, we achieved similar performance (ROC AUC of 0.80 ± 0.04 versus 0.61-0.85) in predicting recurrent arrhythmia risk, with the added benefit of interpretable explanations. When tested on a previously unseen holdout cohort, the model maintained 80% accuracy and an F1-score of 0.84 (Fig. 6). This exceeded the performance of a comparable logistic regression model, which was 73% accurate with an F1-score of 0.78 when tested on the same cohort (Supplementary Fig. 5B). The combined accuracy and interpretability of models like ours will allow electrophysiologists to receive optimized prediction scores while also gaining scientific insight into why those predictions were made. We present three distinct data perspectives: population-based (Fig. 3), risk factor-based (Fig. 4), and patient-specific (Fig. 5). We also explore potential clinical application of our work and assess for overfitting by testing our model on a holdout cohort, previously unseen at any stage of training or testing (Fig. 6).

To minimize the influence of confounders on our algorithm, we used rigorous feature selection. Definitionally, observed confounders are highly correlated features, while unobserved confounders are features that are unmeasurable or unaccounted for. To mitigate effects from observed confounders and reduce the dimensionality of the data supplied to our random forest model, we used LASSO regression (Supplementary Fig. 1). This ensured independence of feature information, which improves generalizability by eliminating redundant variables. Unobserved confounders are a central barrier to drawing causal inferences from observational data and introduce bias that can be difficult to avoid. To address this, we prioritized features that have been previously examined in the literature for their impact on procedure outcome (Supplementary Data 1).

Random forest learning is a versatile algorithm and was specifically chosen for this problem because feature values are not altered during the learning process. This approach can outperform linear models by identifying nonlinear relationships between features (Supplementary Fig. 5). However, if we had used other machine learning methods like support vector machines, we would have lost the ability to observe how specific feature values impact model outcomes in a reliable and confident manner. This is a key aspect of our xML approach because risk factor quantifications like those presented in Fig. 4 would be difficult to obtain from other machine learning methods.

When applying SHAP analysis to understand feature importance from a population perspective, we identified important influences from LA geometry and changes in LA geometry on AA recurrence. Our model gained important insight from the indexed post-ablation LA volume, its change after the ablation procedure, and LA sphericity. This is consistent with prior work indicating that mild reverse remodeling of the LA associated with ablation may predict long-term ablation success, especially in patients with lower baseline fibrosis58. While the work presented here does not (and cannot) prove causal relationships between features and outcomes, LA dilation is known to play a role in recurrence59 and is independently associated with AA-free survival60. Previous machine learning models achieved an ROC AUC of 0.67 when predicting AFib recurrence using LA shape metrics from pre-ablation CT61. Post-ablation atrial enlargement is also associated with adverse long-term ablation outcomes independent of left ventricular function62. Mechanistically, LA enlargement promotes AFib directly (larger physical area for rotor perpetuation63) and indirectly (via properties like atrial stretch64). In our study, higher LA volume indices (>51 mL/m2) or a more spherical pre-ablation LA (>0.81) were associated with recurrence.

Our model suggests the creation of fewer distinct ablation-induced scar areas and less scar in the LA floor (Fig. 4B) is associated with elevated AA recurrence risk. Poor scar formation during ablation is indeed associated with AFib recurrence26. Notably, surface area of ablation-delivered scar and percentage of scar with respect to total LA size were included in our study but eliminated during feature selection. This suggests the number of ablation-induced scar areas is a more robust predictor. We also note the complicated relationship between scar in the RPV region and AA recurrence. While more data are needed, there may be an optimal ablation extent between ~5.0 cm2 and 20.0 cm2 in this area, reducing risk of AA recurrence (Fig. 4D). This likely approximates the extent of RPV tissue typically ablated during PVI. Future work could investigate if the creation of many independent scar areas during ablation might yield favorable outcomes; follow-up studies could be used to validate the number of LGE-derived scar areas created, especially in the LA floor and RPV regions, as a predictor of AA recurrence.

Many studies have investigated the influence of patient characteristics like sex and age on risk of AA recurrence after ablation. DECAAF I found slightly higher (not statistically significant) incidence of AA recurrence in females than males65; other work suggests higher recurrence rates in females is attributable to extra-PV triggers in females66. CABANA indicated this may be confounded by lower referral rates for women, compounded by the fact that that women tend to be referred later in AFib progression67,68. Like more recent studies69, our model did not indicate recurrence was more likely for males or females (Fig. 3, Supplementary Fig. 2Y). Similarly, the relationship between age and AA recurrence remains unclear. CABANA showed no age-related variations in ablation effectiveness70. In our dataset, LASSO regression did not select age as a potentially valuable feature. These results support the notion that factors derived from imaging studies are superior to demographic metrics for evaluating recurrence risk.

The ability of xML models to incorporate and explain effects of imaging data is appealing. DECAAF-II found no difference in AA recurrence for patients randomized to receive MRI-guided ablation compared to those receiving PVI alone71. It is thus noteworthy that our model had reduced performance when supplied with pre-ablation data only (Supplementary Fig. 3C). The application of explainability tools like SHAP offers valuable insights on the clinical challenge of predicting AA recurrence. In our proof-of-concept study, we reveal LA changes corresponding to durable ablation success. Specifically, we identify the optimal extent of reverse remodeling associated with freedom from AA (Fig. 7) and we characterize the extent and spatial distribution of durable ablation-delivered scar associated with successful procedures (Fig. 3). While ΔLAVI itself was not considered useful by LASSO regression, we suspect this was due to LASSO regression’s bias favoring features that linearly relate to outcome, whereas the relationship between ΔLAVI and outcome was highly nonlinear (Fig. 7B). Future studies with larger sample sizes may opt to prospectively include ΔLAVI to reinforce these findings. We also show the utility of pre-ablation computational simulations built from LGE-MRI imaging data (Fig. 3). Future work in larger, prospective studies may use these findings to determine ablation strategies that reduce overall population-level AA recurrence.

An advantage of xML is that it facilitates post-hoc model tuning to remove unintended sources of overfitting, which is especially relevant when working with small cohorts. For instance, in our model the SHAP value corresponding to patients who smoke corresponds to a slight lean towards predicting non-recurrence. In contrast, research consistently indicates that smoking worsens ablation outcomes8,72. We can thus conclude that the SHAP value for the few patients in our original cohort with a smoking history (17.9%) is likely due to overfitting. Fault diagnosis and identification of improperly weighted variables is a key xML feature compared to conventional “black box” ML73. The example described above emphasizes how specific features can be identified for removal to improve model accuracy in future work with minimal time spent problem-solving. We caution that feature importance assessed by SHAP analysis does not translate to clinical risk. Due to the individual and collective contributions of each feature to the model it would not be sufficient to derive a simplified model considering only the most important features indicated by SHAP analysis without repeating the model development and validation process.

Precision medicine is an emerging approach that integrates multi-modal data to customize treatment and further disease understanding. Using SHAP analysis, we can generate recurrence predictions and feature importance breakdowns to create personalized, data-rich risk snapshots. In some cases, features combine synergistically to produce a high confidence prediction; more often, the model identifies multiple key features that contribute for and against a prediction, leading to a multi-faceted decision-making process. Since feature relationships shown in this study are not causal, it must be clarified that modifying these features (e.g., avoiding statins for a patient whose statin use coaxes the model towards predicting recurrence) may not improve health outcomes. Nonetheless, xML provides a platform for further research and validation that could help guide the care and advising of post-ablation patients.

Interestingly, key decision drivers for specific individuals often diverge from the most important population-based features. For example, if the low post-ablation LAVI for the patient in Fig. 5C was considered in isolation, it might lead to an incorrect conclusion that this individual was at low risk for recurrence. In effect, xML enables holistic assessment of each patient’s risk factors, informed by but not adhering strictly to population trends. The prediction “breakdowns” shown in our study are a promising tool for medical professionals and potentially the patients themselves, allowing them to assess relative risk factor impacts and make more data-informed decisions, agnostic to population trends that may not apply.

The role of biophysically detailed simulation-derived features in the model was interesting. LASSO regression only selected two such features to include in the model: the number of macro-reentrant tachycardia circuits in pre-ablation simulations, and the number of phase singularities (i.e., organizing centers) in pre-ablation simulations (Fig. 3, Supplementary Fig. 2H, M). Patients with more macro-reentrant tachycardia circuits in pre-ablation simulations generally had lower risk of recurrence. This is mechanistically interesting as it suggests patients with pre-ablation fibrotic substrate susceptible to anatomic reentry (as opposed to functional reentrant spiral waves) more commonly experienced durable benefit from AFib ablation. The effect of the number of phase singularities was unclear, suggesting the influence of this feature was highly dependent on other feature values.

We also incorporated f-wave analysis in a variant of our model, but limited data availability prevents a meaningful interpretation of the resulting model. Consistent with others’ findings17,19, our recurrence was more common in patients with low f-wave amplitude (Supplementary Fig. 4C); low power likely prevented the model from finding a clear relationship between recurrence and dominant frequency (Supplementary Fig. 4D). This sub-analysis supports the incorporation of ECG-derived features in future efforts to stratify recurrence risk.

Our use of a holdout cohort aims to simulate how our model could work in a clinical environment and assess this method’s generalizability in a broader population. The model was blind to these data throughout its training and cross-validation. Differences existed between these two cohorts (e.g., BMI; Table 3), as we would expect if the model were applied to a new patient population. Figure 6C highlights a false positive prediction in which we could visually troubleshoot the model’s incorrect decision. In this case, the model may have over-weighted the relevance of LA sphericity and the history of statin use or under-weighted the influence of the post-ablation LAVI fibrosis near the RPVs. Additionally, a healthcare provider could consider the broader clinical context, such as fibrosis in non-RPV areas, and confidently weigh the model’s prediction against their own clinical judgement. As the field evolves and we learn more about independent associations between features like these and adverse outcomes, our xML approach provides a ready-made scaffolding for incorporating that new knowledge in clinical decision-making. Overall, we expect model-agnostic explanations of feature weights from xML algorithms will increase physician understanding and confidence in predictive models25.

Due to the nature of “black box” ML algorithms, it has been difficult to understand how their predictions relate to physiological mechanisms of AA recurrence. There is risk associated with clinical use of these complex models since predictions are difficult to interpret and might thus lead to physician frustration or distrust. It is challenging to decide which predictions should be seen as actionable and which are safe to ignore. Our work shows how xML could pave the way towards solutions that reduce obscurity by prioritizing interpretability, transforming the current paradigm by creating models that can coherently explains why a particular prediction is made.

Our algorithm shows proof-of-concept for several clinical applications: (1) repeat ablation planning, (2) post-ablation care, (3) patient-clinician communication, and (4) future hypothesis-driven research. Based on key fibrosis and ablation-delivered scar features identified for each patient, selection of ideal candidates for redo procedures and identification of sites for optimal targeted re-ablation sites could be feasible. Following an ablation procedure and follow-up MRI scan, healthcare teams could use xML-based predictions to make informed decisions about monitoring for recurrence or adjust medications. We also believe xML has great potential to foster patient-clinician communication, facilitating better understanding of risk factors and their associations with outcomes in a digestible, visual format. Finally, while we have emphasized that associations between feature values and outcomes in this study do not imply causality, we have identified potential drivers of recurrence that could be validated in hypothesis-driven research.

Our work should be seen as a promising preliminary exploration of xML-based prediction of catheter ablation recurrence. Our sample size was modest, and all patients were from a single center. While measures were taken to ensure proper feature selection and model design to limit overfitting, a larger cohort is needed to confirm these findings. Notably, it is essential that any future study seeking to expand upon our work in a different or larger cohort must repeat our entire methodology, including both feature selection and ML model development stages – in other words, it would be inappropriate to use the LOFS from this study as the starting point for new work in a distinct dataset. Potential future studies with larger cohorts could explore more extensive model optimization techniques to further enhance model performance. It is also important that our approach be subjected to further testing using an external holdout cohort (i.e., using data from non-UW patients) to ensure its generalizability to data from other institutions. Additionally, patients presenting to their pre-ablation MRI in AFib in our study were not cardioverted into sinus rhythm before their pre-ablation MRI, nor were these patients assigned to a different cohort, introducing a potential source of confounding. A larger, more diverse, and prospective cohort would give us the flexibility of designing a model that can handle more features, opening the door to using other clinical data like ECGs or electroanatomic maps. We anticipate that this would enrich our algorithm, potentially improving accuracy. Like other clinical trials, distinct models could also be considered for patients with persistent or paroxysmal AFib, given the differing recurrence rates between these populations74,75. Prospective trials of this classifier and randomized trials assessing ML-identified features to verify causal relationships would also be valuable steps prior to clinical deployment.

Other research has suggested that simulations meaningfully improve the ability of machine learning models to predict recurrent arrhythmias21,22. In our study, LASSO regression selected features from pre-ablation simulations to supply to the random forest model, but did not select features from post-ablation simulations. Additionally, when simulation results were removed from the model, its performance only slightly decreased (Supplementary Fig. 3D). We attribute this to our extensive analysis of LGE-MRI, which added post-ablation scans and assessed a larger gamut of fibrosis-derived and ablation-scar derived features. A complementary reason is that prior studies performed more extensive simulations, with changes in fibrosis representation and features selected by deductive algorithms. Simulations are a valuable platform for mechanistic inquiry and custom-tailored ablation planning76,77, but calculation of the associated features is computationally complex and requires infrastructure inaccessible in many clinical settings. As such, since our goal was proof-of-concept for using xML to predict recurrence in a clinically feasible way, we are pleased our model performed well with or without simulation features.

Notably, the recurrence rate in the cohort studied here was high (59.7%) compared to other contemporary studies examining mixed groups of paroxysmal and persistent AFib patients (e.g., 49.9% AFib recurrence rate in ablation arm of CABANA trial68). This may be a result of selection bias, since patients who have already recurred or who are deemed by clinicians to be at higher risk for recurrence are more likely to be scheduled for post-ablation LGE-MRI scan.

Conclusions

We developed an xML classifier to accurately predict arrhythmia recurrence following catheter ablation from EHR data alongside pre- and post-ablation LGE-MRI scans. Critically, our classifier only uses clinical data obtained non-invasively, with features guided by existing knowledge of arrhythmia recurrence mechanisms. We envision the coupling of our ML model with an explainability technique as a framework for using ML-enabled clinical tools to strengthen the engagement of clinicians and stakeholders in informed and shared decision-making. In addition to presenting a predictive solution that avoids obscurity by favoring model interpretation, we present novel mechanistic hypotheses generated from critically evaluating the influence of each feature on our ML model, which was developed without enforcing a priori hypotheses about the nature of relationships between these features and risk of AF recurrence. Future work should explore larger datasets, including external holdout cohorts, to confirm our findings, further optimize feature selection, improve model accuracy, and investigate potential mechanistic relationships uncovered by our analysis.
