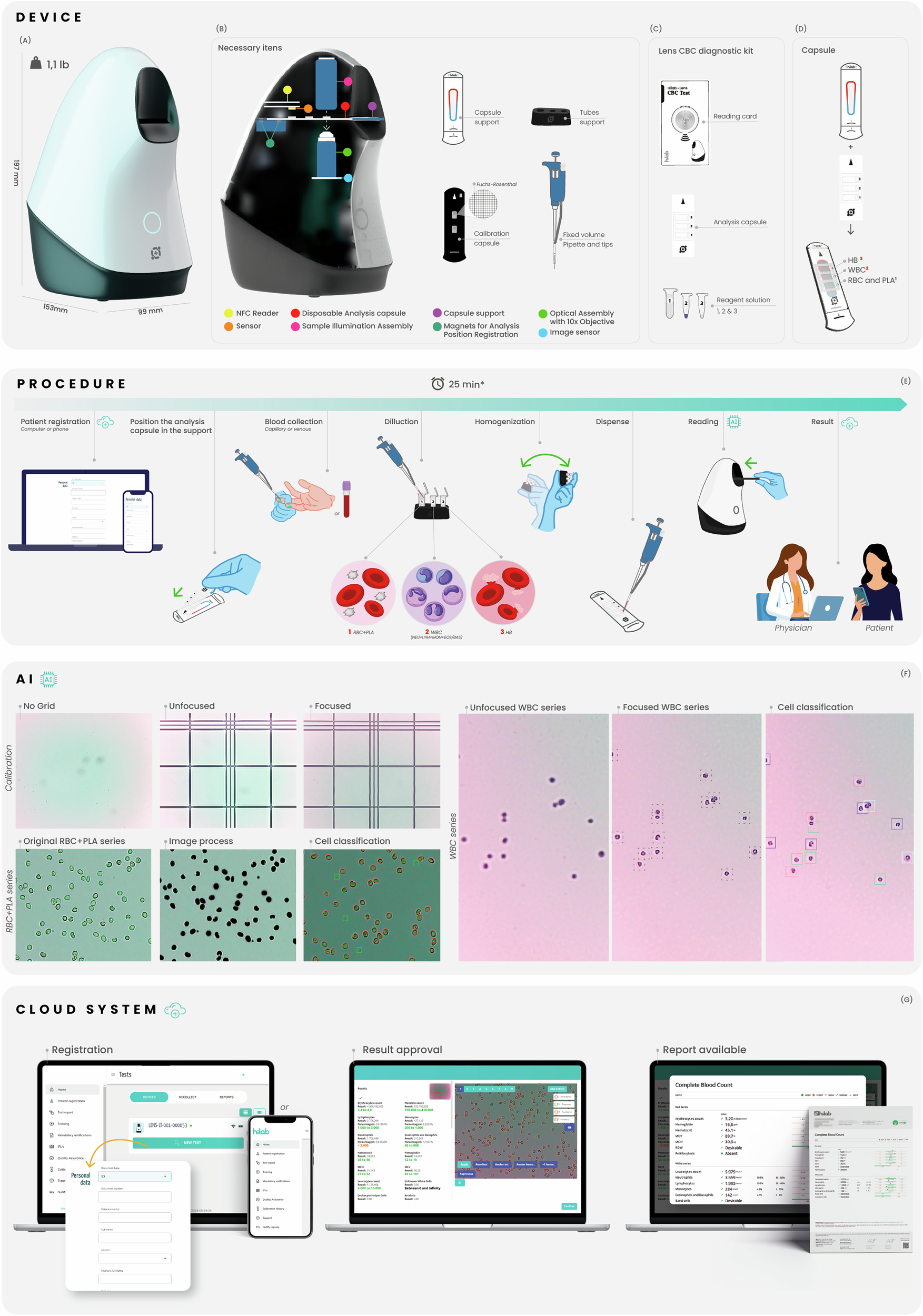

Fig. 1: The Hilab Lens.
A The Hilab Lens design. B Key components of the device including NFC reader, sensor, sample illumination assembly, magnets for analysis position registration, and an optical assembly equipped with an objective and image sensor. Accessories included with the device: tube and capsule support, calibration capsule, and a fixed-volume pipette (10 µL). C The diagnostic kit components: an analysis capsule, reagent solutions, and NFC card that stores essential data such as calibration curves, expiration date, and traceability information. D Analysis capsule overview: analysis of RBC and PLA (1), WBC (2), and HB (3). E The step-by-step testing workflow, including patient registration (Specialist Portal), assembly of the analysis capsule, blood collection and dilution, homogenization, dispensing, reading (with AI), and result generation (Specialist Portal). F AI functionalities of the Hilab Lens, covering: calibration step; image processing and cell detection of RBC/PLA series (1st chamber); Fine-focus adjustments used for WBC series, enabling differential WBC analysis (2nd chamber). G Specialist Portal: Cloud-Based system utilized by the Hilab Lens.
