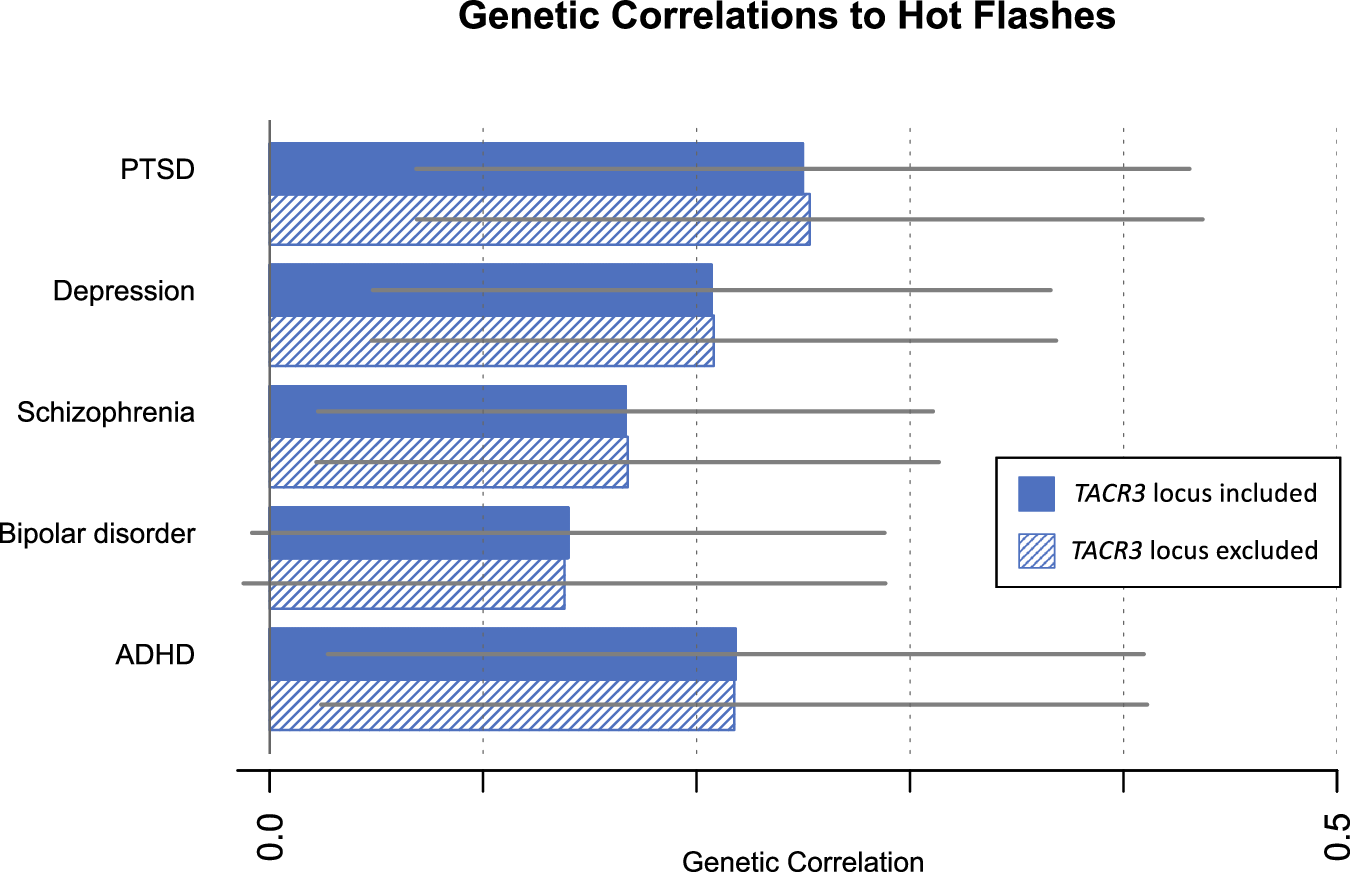

Fig. 6: Genetic correlations between hot flashes and psychiatric phenotypes.

From: Trans-ancestry GWAS of hot flashes reveals potent treatment target and overlap with psychiatric disorders

Fig. 6: Genetic correlations between hot flashes and psychiatric phenotypes.

Genetic correlations were calculated between the European ancestry hot flash meta-analysis (n = 32,979 post-menopausal women) and the listed phenotypes. Each genetic correlation is plotted as a bar along with its 95% confidence interval; the measure of center for the error bars is the estimate of the genetic correlation. Each phenotype has two bars: the solid bar is the genetic correlation with the hot flash meta-analysis including all loci, while the striped bar excludes the top locus (4:104556732). PTSD: posttraumatic stress disorder, ADHD: attention-deficit/hyperactivity disorder.
