Synthesis pathways to thin films of stable layered nitrides

Nature Synthesis volume 3, pages 1471–1480 (2024) Cite this article

Subjects

Abstract

Controlled synthesis of metastable materials away from equilibrium is of interest in materials chemistry. Thin-film deposition methods with rapid condensation of vapour precursors can readily synthesize metastable phases but often struggle to yield the thermodynamic ground state. Growing thermodynamically stable structures using kinetically limited synthesis methods is important for practical applications in electronics and energy conversion. Here we reveal a synthesis pathway to thermodynamically stable, ordered layered ternary nitride materials, and discuss why disordered metastable intermediate phases tend to form. We show that starting from elemental vapour precursors leads to a 3D long-range-disordered MgMoN2 thin-film metastable intermediate structure, with a layered short-range order that has a low-energy transformation barrier to the layered 2D-like stable structure. This synthesis approach is extended to ScTaN2, MgWN2 and MgTa2N3, and may lead to the synthesis of other layered nitride thin films with unique semiconducting and quantum properties.

The alternative text for this image may have been generated using AI.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Fig. 1: Examples of layered, 2D-like crystal structures among multivalent ternary nitrides.
The alternative text for this image may have been generated using AI.

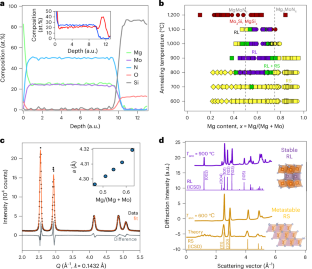

Fig. 2: Chemical composition and crystal structure of MgMoN2.
The alternative text for this image may have been generated using AI.

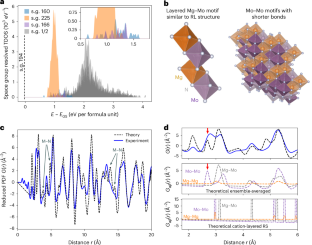

Fig. 3: Local short-range atomic order in metastable RS-MgMoN2.
The alternative text for this image may have been generated using AI.

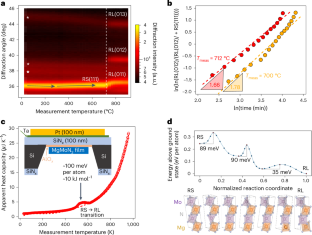

Fig. 4: In situ measurements of the MgMoN2 RS–RL phase transformation.
The alternative text for this image may have been generated using AI.

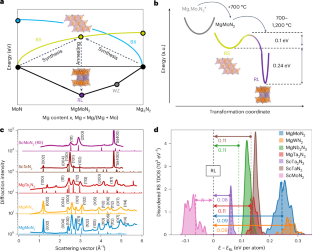

Fig. 5: 3D-to-2D synthesis pathway for MgMoN2 and extension to other materials chemistries.
