Extended Data Fig. 7: Sequence alignment of SidF with selected KSs. | Nature Synthesis

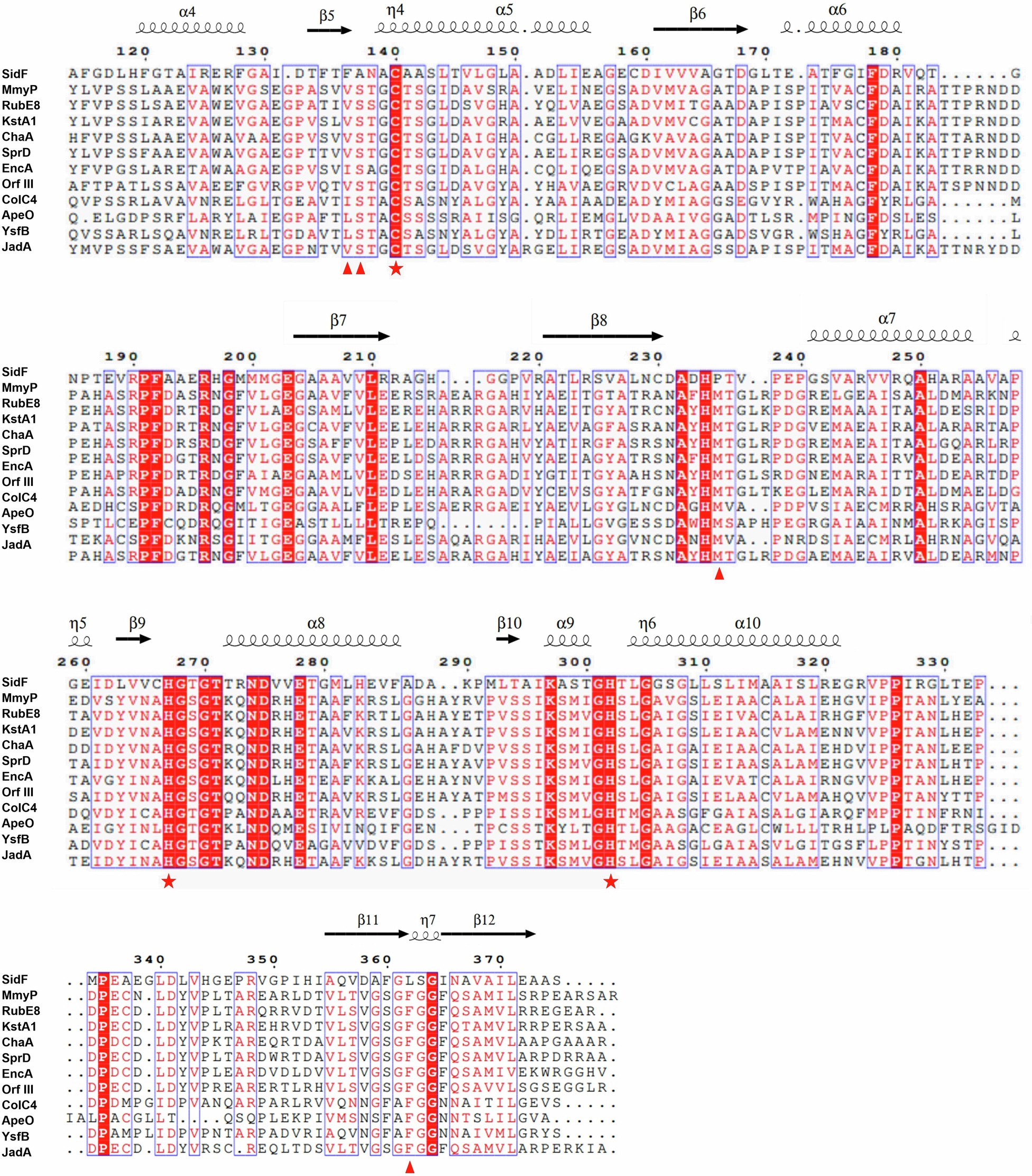

Extended Data Fig. 7: Sequence alignment of SidF with selected KSs.

From: Analysis of siderochelin biosynthesis reveals that a type II polyketide synthase catalyses diketide formation

Extended Data Fig. 7

These KSs are involved in the biosynthesis of metathramycin (MmyP, QVQ68799.1), rubrolone (RubE8, AOZ61212.1), kosinostati (KstA1, AFJ52674.1), chartreusin (ChaA, CAH10161.1), saprolmycin (SprD, BAV16999.1), enterocin (EncA, QIC03940.1), whiE pigment (Orf III, CAA39408.1), colabomycin E (ColC4, AIL50166.1), aryl polyene (ApeO, 6QSP_A), youssoufene (YsfB, URG41680.1) and jadomycin (JadA, AAB36562.1). The conserved CHH motif was indicated by red star (). Four residues (that is, Phe136, Ala137, Pro235 and Leu362) that were unique to SidF were indicated by red triangle ().
