Abstract

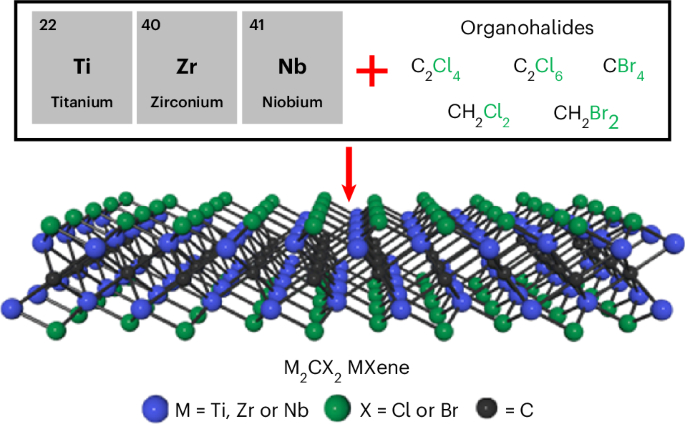

Two-dimensional transition metal carbides and nitrides (MXenes) are a class of materials that have drawn substantial attention for their diverse application, particularly in the field of energy storage. These materials are commonly derived from layered ternary solids, MAX phases, through etching processes. Efforts have been made to expand the scope of MXene synthesis beyond these top-down approaches to include bottom-up synthesis. Here we demonstrate a general direct synthetic route for scalable and atom-economic synthesis of various MXenes using different organohalide compounds as precursors for both carbon and surface termination groups. By reacting organochlorides (such as C2Cl4, C2Cl6 and CH2Cl2) or organobromides (CBr4 and CH2Br2) with transition metals, we synthesized a variety of MXenes (Ti2CCl2, Ti2CBr2, Zr2CCl2, Zr2CBr2 and Nb2CCl2), including a Nb2CBr2 MXene phase not accessed by other routes. The use of molecular precursors enables precise control of their reactivity, which allows the direct synthesis of MXene nanostructures. We demonstrate that nanometre-scale MXenes show higher surface reactivity compared with MXenes with micrometre-size flakes.
This is a preview of subscription content, access via your institution
Access options
Subscribe to this journal
Receive 12 digital issues and online access to articles
$119.00 per year
only $9.92 per issue
Buy this article
- Purchase on SpringerLink
- Instant access to the full article PDF.
USD 39.95
Prices may be subject to local taxes which are calculated during checkout
Similar content being viewed by others
Data availability
The data supporting the findings of this study are provided in the Supplementary Information. Source data are published with this paper.
References
Anasori, B., Lukatskaya, M. R. & Gogotsi, Y. 2D metal carbides and nitrides (MXenes) for energy storage. Nat. Rev. Mater. 2, 16098 (2017).
Xia, Y. et al. Thickness-independent capacitance of vertically aligned liquid-crystalline MXenes. Nature 557, 409–412 (2018).
Lukatskaya, M. R. et al. Cation intercalation and high volumetric capacitance of two-dimensional titanium carbide. Science 341, 1502–1505 (2013).
Halim, J. et al. Transparent conductive two-dimensional titanium carbide epitaxial thin films. Chem. Mater. 26, 2374–2381 (2014).
Liu, Z. X. & Alshareef, H. N. MXenes for optoelectronic devices. Adv. Electron. Mater. 7, 2100295 (2021).
Kandemir, Z. et al. Optical properties of metallic MXene multilayers through advanced first-principles calculations. Phys. Rev. Mater. 8, 075201 (2024).
Duan, X. H., Sun, N., Fu, L. Q., Zhou, B. Z. & Wang, X. C. Dirac-like band structure and strain-tunable electronic structure of Zr2CCl2 monolayer. Appl. Surf. Sci. 577, 151931 (2022).
Iqbal, A. et al. Anomalous absorption of electromagnetic waves by 2D transition metal carbonitride Ti3CNTx (MXene). Science 369, 446–450 (2020).
Shahzad, F. et al. Electromagnetic interference shielding with 2D transition metal carbides (MXenes). Science 353, 1137–1140 (2016).
Li, Z. & Wu, Y. 2D early transition metal carbides (MXenes) for catalysis. Small 15, 1804736 (2019).
Ahmed, B., El Ghazaly, A. & Rosen, J. i-MXenes for energy storage and catalysis. Adv. Funct. Mater. 30, 2000894 (2020).
Ghidiu, M., Lukatskaya, M. R., Zhao, M. Q., Gogotsi, Y. & Barsoum, M. W. Conductive two-dimensional titanium carbide ‘clay’ with high volumetric capacitance. Nature 516, 78–81 (2014).
Naguib, M. et al. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 23, 4248–4253 (2011).
Li, Y. B. et al. A general Lewis acidic etching route for preparing MXenes with enhanced electrochemical performance in non-aqueous electrolyte. Nat. Mater. 19, 894–899 (2020).
Kamysbayev, V. et al. Covalent surface modifications and superconductivity of two-dimensional metal carbide MXenes. Science 369, 979–983 (2020).
Wang, C. D. et al. HCl-Based hydrothermal etching strategy toward fluoride-free MXenes. Adv. Mater. 33, 2101015 (2021).
Du, Z. et al. Transformation and reconstruction towards two-dimensional atomic laminates. Preprint at https://arxiv.org/abs/2302.07718 (2023).
Wang, D. et al. Direct synthesis and chemical vapor deposition of 2D carbide and nitride MXenes. Science 379, 1242–1247 (2023).
Kapias, T. & Griffiths, R. F. Accidental releases of titanium tetrachloride (TiCl4) in the context of major hazards-spill behaviour using REACTPOOL. J. Hazard. Mater. 119, 41–52 (2005).
Wang, W. C. & Shigeto, S. Infrared electroabsorption spectroscopy of N,N-dimethyl-p-nitroaniline in acetonitrile/C2Cl4: solvation of the solute and self-association of acetonitrile. J. Phys. Chem. A 115, 4448–4456 (2011).
Ullmann, F. in Ullmann’s Encyclopedia of Industrial Chemistry Vol. A6 (eds Elvers, B. et al.) 233–398 (Verlag Chemie Hoboken, 1991).
Natu, V. et al. A critical analysis of the X-ray photoelectron spectra of Ti3C2Tz MXenes. Matter 4, 1224–1251 (2021).
Ju, Z. C. et al. Synthesis of uniform TiC hollow spheres by a co-reduction route at low temperature. J. Phys. Chem. C 111, 16202–16206 (2007).
Ding, H. M. et al. Chemical scissor-mediated structural editing of layered transition metal carbides. Science 379, 1130–1135 (2023).
Murao, R. et al. Microtexture of shock reaction products of niobium and silica mixtures. J. Mater. Res. 14, 3169–3174 (1999).
Zhang, L., Dong, J. & Ding, F. Strategies, status, and challenges in wafer scale single crystalline two-dimensional materials synthesis. Chem. Rev. 121, 6321–6372 (2021).
Won, Y. S. Thermal decomposition of tetrachloroethylene with excess hydrogen. J. Indust. Engin. Chem. 15, 510–515 (2009).
Xiang, M. Q. et al. Gas-phase synthesis of Ti2CCl2 enables an efficient catalyst for lithium-sulfur batteries. Innovation 5, 100540 (2024).
Li, M. et al. Halogenated Ti3C2 MXenes with electrochemically active terminals for high-performance zinc ion batteries. ACS Nano 15, 1077–1085 (2021).
Afeefy, H. Y., Liebman, J. F. & Stein, S. E. in NIST Chemistry WebBook (eds P. J. Linstrom & W. G. Mallard) (National Institute of Standards and Technology, 2025); https://doi.org/10.18434/T4D303
Linstrom, P. J. & Mallard, W. G. The NIST Chemistry WebBook: a chemical data resource on the internet. J. Chem. Engin. Data 46, 1059–1063 (2001).
Shao, H. et al. Synthesis of MAX phase nanofibers and nanoflakes and the resulting MXenes. Adv. Sci. 10, 2205509 (2023).
Zhou, C. K. et al. Hybrid organic-inorganic two-dimensional metal carbide MXenes with amido- and imido-terminated surfaces. Nat. Chem. 15, 1722–1729 (2023).
Kresse, G. & Furthmuller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15–50 (1996).
Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865–3868 (1996).
Blochl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953–17979 (1994).
Grimme, S., Ehrlich, S. & Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 32, 1456–1465 (2011).
Acknowledgements
We thank A. Thakur and B. Anasori for exploring the electrochemical reactivity of directly synthesized MXene and M. Downes for the mechanistic studies of direct MXene synthesis. The authors are thankful J. S. Anderson and J. C. Ondry for helpful discussions. We are also grateful to A. Nelson for critical reading and editing of the manuscript. The work on direct MXene synthesis was supported by funding from the US National Science Foundation under grant no. CHE-2318105 (M-STAR CCI). N.L.M. acknowledges support by the National Science Foundation Graduate Research Fellowship Program under grant no. 2140001. The in-depth characterization of MXenes was supported by the Department of Defense Air Force Office of Scientific Research under grant no. FA9550-22-1-0283. F.K. and R.F.K. at UIC were supported by a grant from the National Science Foundation (grant no. NSF-DMR 2309396). Acquisition of UIC JEOL ARM200CF was supported by an MRI-R2 grant from the National Science Foundation (grant no. DMR-0959470). The Gatan Continuum GIF acquisition at UIC was supported by an MRI grant from the National Science Foundation (grant no. DMR-1626065). The work also used resources of the Center for Nanoscale Materials, a US Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under contract no. DE-AC02-06CH11357.
Author information
Authors and Affiliations
Contributions
D.W. conceived, designed and performed direct synthesis, CVD and solution processing of MXenes; analysed data; and cowrote the paper. N.L.M. conceived, designed and performed parametric studies and synthesis of MXenes using methylene halides, analysed data, and cowrote the paper. F.K. and R.F.K. performed high-resolution STEM studies and image analysis. Y.Y. and D.J. performed DFT calculations. A.S.F. contributed to X-ray measurements and data analysis. Y.H.K contributed to calculations and data analysis. C.Z. carried out data analysis. D.V.T. conceived and designed experiments, analysed data, cowrote the paper, acquired funding and supervised the project. All authors discussed the results and commented on the paper.
Corresponding author
Ethics declarations
Competing interests
D.W. and D.V.T. are inventors on patent application PCT/US2023/072474 submitted by the University of Chicago, which covers direct synthesis and CVD of MXenes using organohalides. D.W., N.L.M. and D.V.T. are inventors on patent application US 63/777,897 submitted by the University of Chicago, which covers the direct synthesis of MXenes using CH2X2, where X is halogen. The other authors declare no competing interests.
Peer review
Peer review information
Nature Synthesis thanks Martin Dahlqvist, Zifeng Lin and Bin Xu for their contribution to the peer review of this work. Primary Handling Editor: Alexandra Groves, in collaboration with the Nature Synthesis team.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary information
Supplementary Information (download PDF )
Supplementary Methods, Notes 1 and 2, Figs. 1–34, Tables 1–17 and references.
Source data
Source Data Fig. 1 (download XLSX )
Source data for Fig. 1.
Source Data Fig. 3 (download XLSX )
Source data for Fig. 3.
Source Data Fig. 4 (download XLSX )
Source data for Fig. 4.
Source Data Fig. 5 (download XLSX )
Source data for Fig. 5.
Source Data Fig. 6 (download XLSX )
Source data for Fig. 6.
Rights and permissions
Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.
About this article
Cite this article
Wang, D., Mason, N.L., Karimi, F. et al. Molecular organohalides as general precursors for direct synthesis of two-dimensional transition metal carbide MXenes. Nat. Synth (2025). https://doi.org/10.1038/s44160-025-00946-w
Received:
Accepted:
Published:
Version of record:
DOI: https://doi.org/10.1038/s44160-025-00946-w
