Extended Data Fig. 2: Characterization of TM cells. | Nature Cardiovascular Research

Extended Data Fig. 2: Characterization of TM cells.

From: Human ocular fluid outflow on-chip reveals trabecular meshwork-mediated Schlemm’s canal endothelial dysfunction in steroid-induced glaucoma

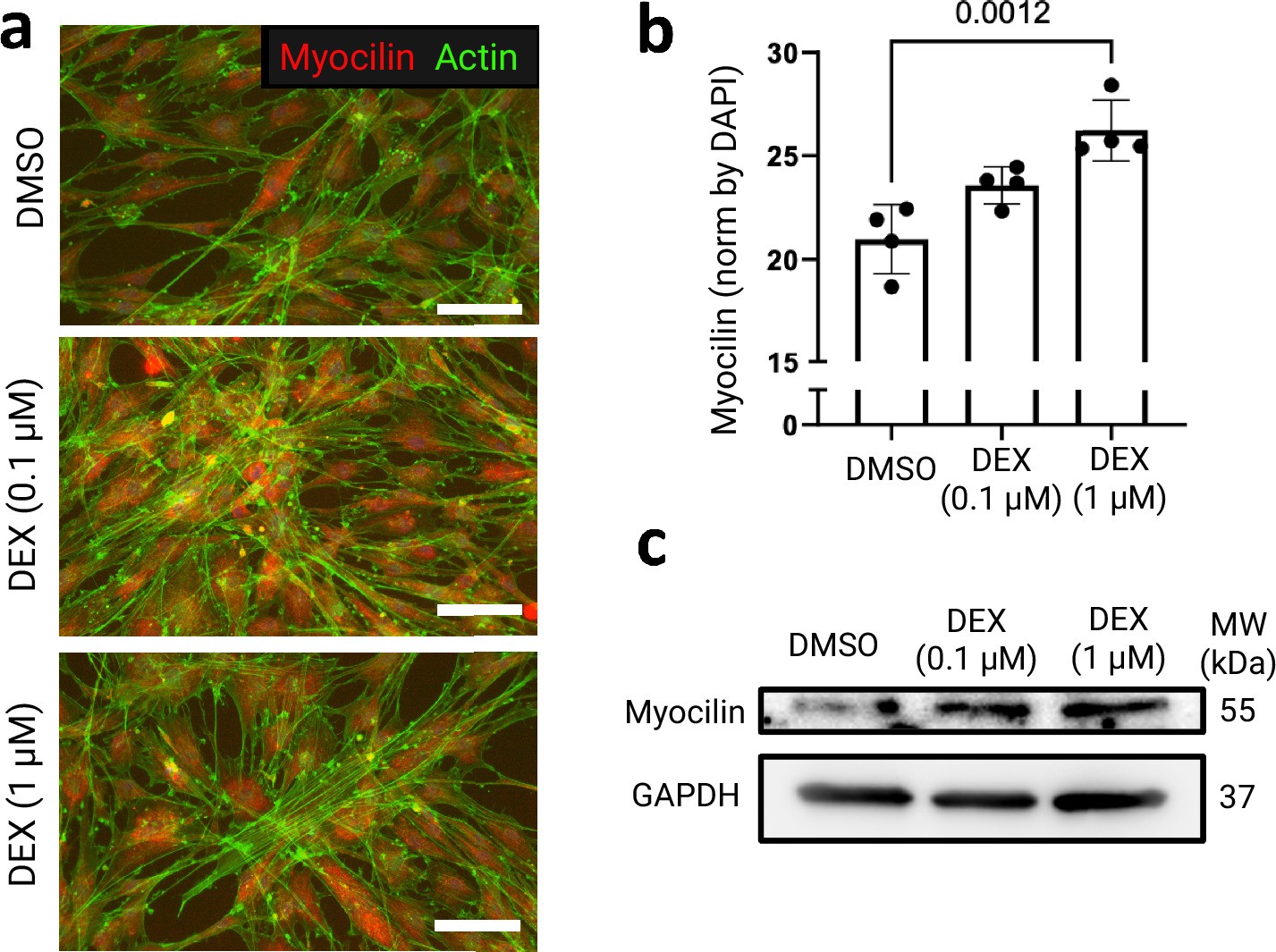

Extended Data Fig. 2

a, Myocilin images of TM cells with or without DEX treatment (DEX concentration: 0.1 and 1 μM). b, Quantification of myocilin signal normalized by DAPI (N = 4). c, Western blot of myocilin with or without DEX treatment. Commercially obtained TM cells (ScienCell) were used in this experiment. Scale bars (a) = 100 μm. All data are presented as mean ± SD. Statistical comparisons were performed using one-way ANOVA with Tukey’s post hoc test (two-sided). An exact p-value is shown in the figure b.
