Fig. 6: Measurement of the axial resolution and range of the custom-built OCT system. | Communications Engineering

Fig. 6: Measurement of the axial resolution and range of the custom-built OCT system.

From: Design and application of a realistic and multifunctional retinal phantom for standardizing ophthalmic imaging systems

Fig. 6: Measurement of the axial resolution and range of the custom-built OCT system.The alt text for this image may have been generated using AI.

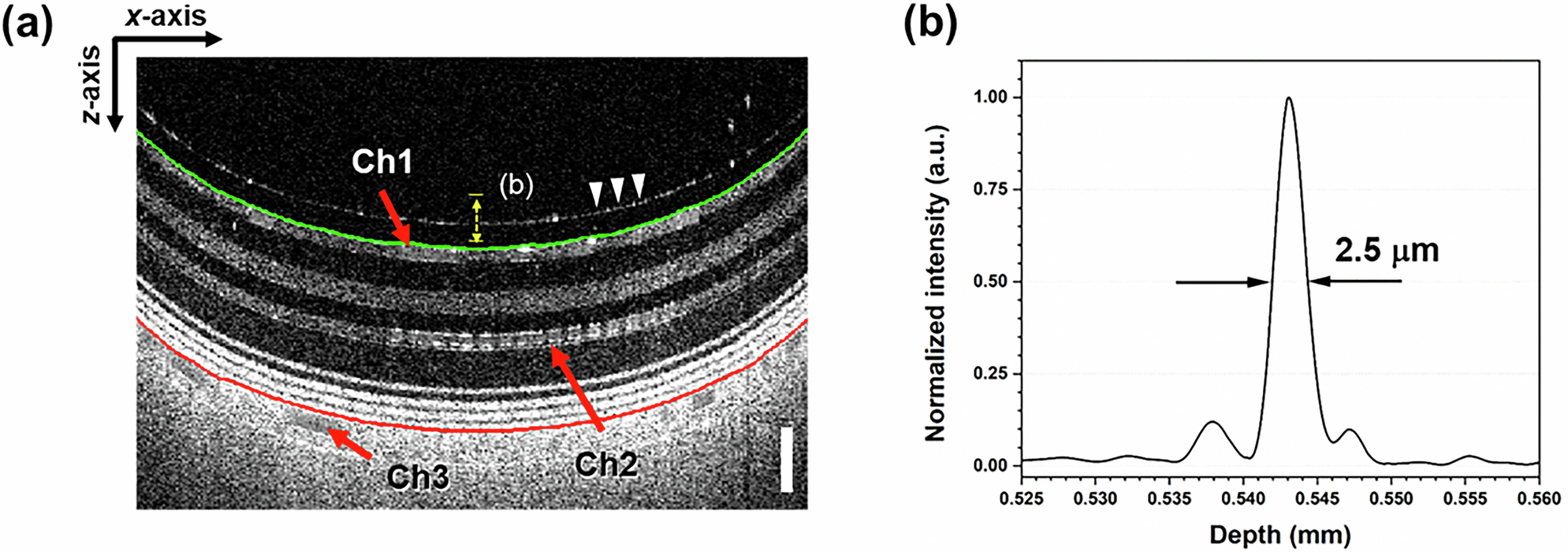

a Cross-sectional OCT image of the retinal phantom. Ch1, the first microfluidic channel, mimics superficial vessels. Ch2 and Ch3 are the second and third microfluidic channels and replicate the deep and choroidal vessels, respectively. Scale bar is 100 μm. b Result of the axial resolution measurement from the line spread function (yellow line) in (a) after zero-padding from the original axial resolution measurement data in Supplementary Data 2.
