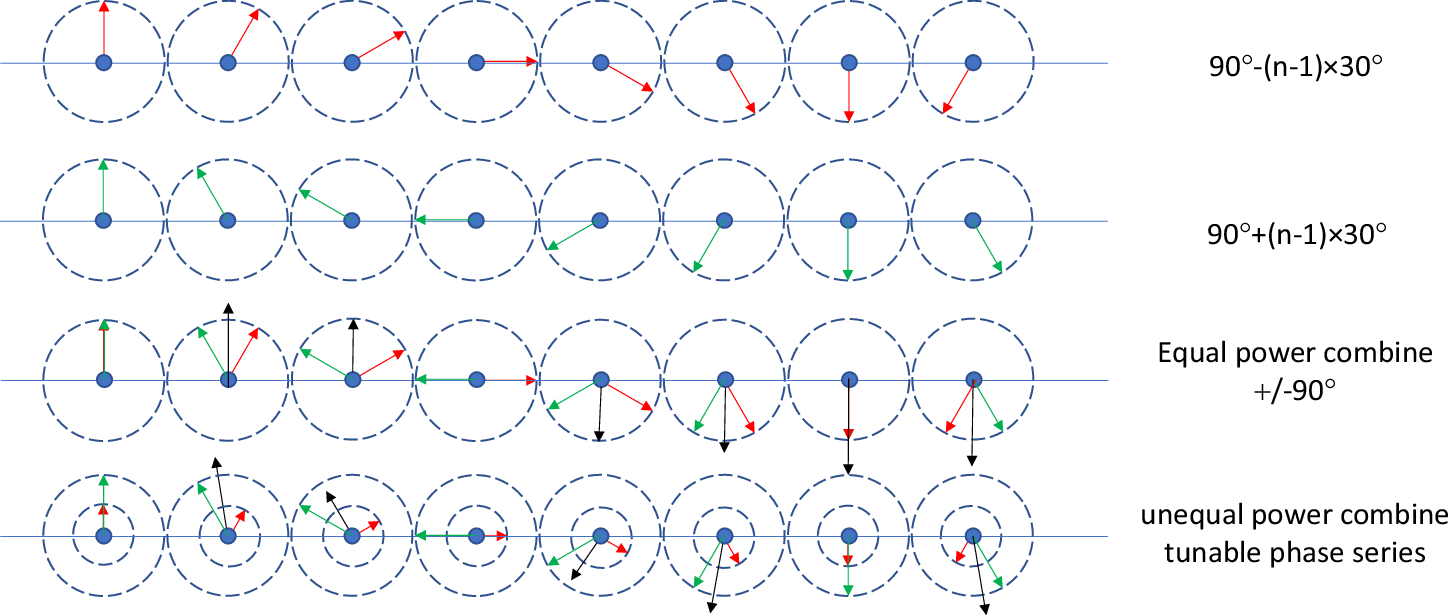

Fig. 2: The basic concept of cascaded angle offset phased array.

From: Dimensionality reduced antenna array for beamforming/steering

Fig. 2: The basic concept of cascaded angle offset phased array.

The green and red arrows represent two cascaded angle offset groups. The black arrows represent the combination of the weighted cascaded angle offset groups. Arrows represent phase offsets, with direction indicating phase value and length proportional to amplitude ratios determined by power combiners.
