Extended Data Fig. 5: Relationship Between Groundwater Trends and Vertical Land Motion (VLM) Across US Cities.
From: Land subsidence risk to infrastructure in US metropolises

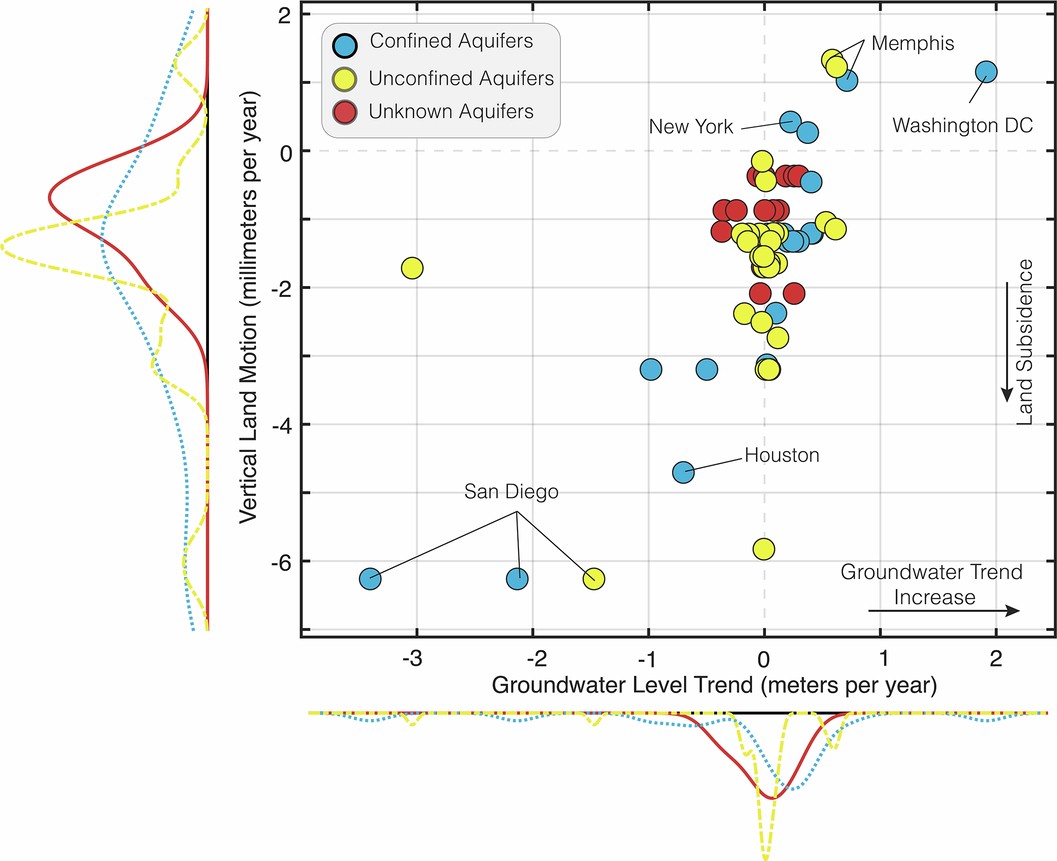

Plot of groundwater level trends and VLM for 13 US cities, with confined, unconfined, and unknown aquifers represented by blue, yellow, and red markers, respectively. The density plots along the axes, color-coded to the aquifer type, illustrate the distributions of groundwater trends and VLM rate. This figure expands on Fig. 3a to highlight the dataset’s distribution.
