Fig. 1: Comparison of MRI-Derived cellular properties from Histology-Based Simulations Across Tissue Types and SNR Levels.

From: Noninvasive assessment of liver inflammation in metabolic dysfunction associated steatohepatitis using MR cytometry

Fig. 1: Comparison of MRI-Derived cellular properties from Histology-Based Simulations Across Tissue Types and SNR Levels.

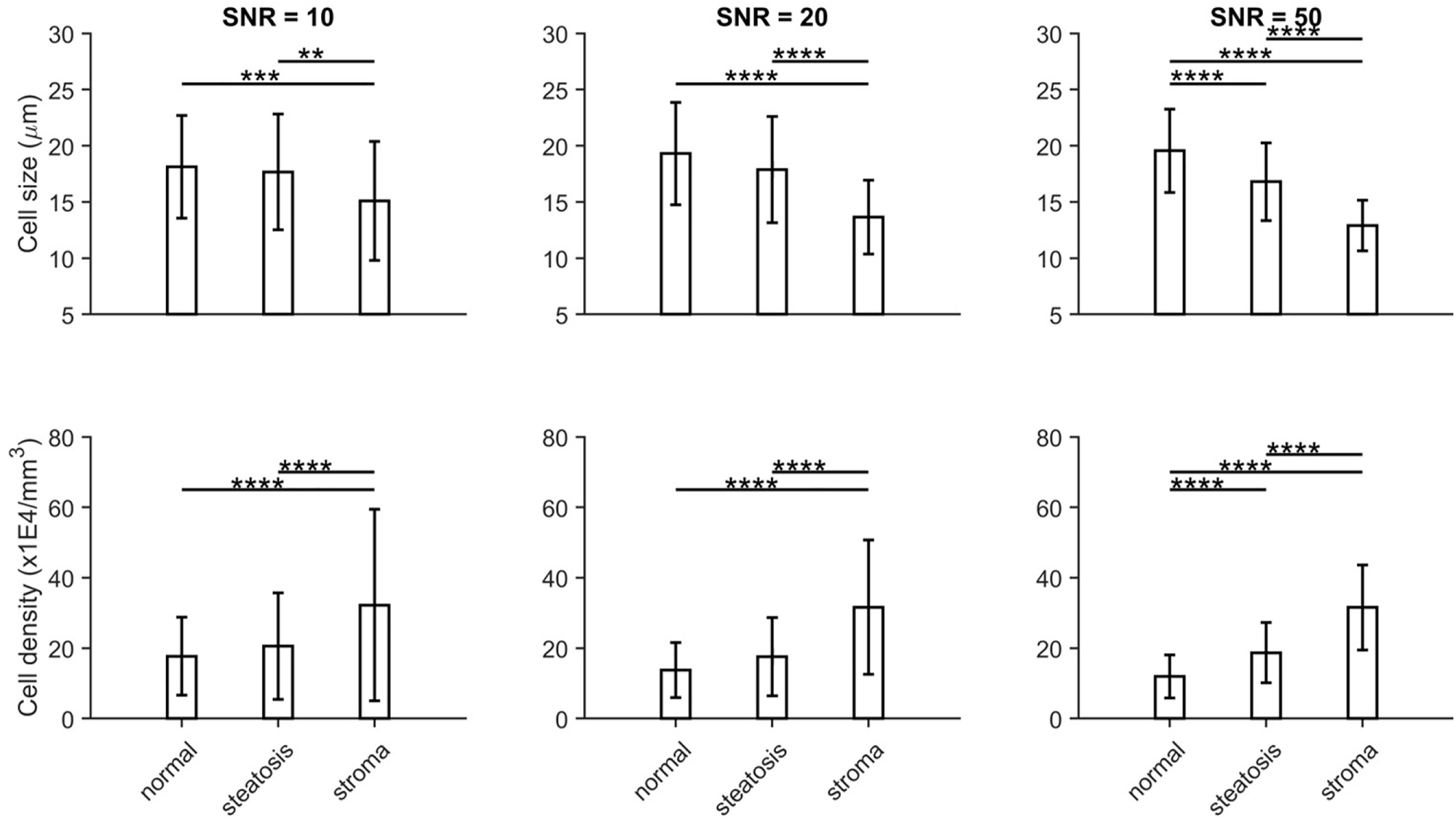

Fitted cell sizes (top row) and densities (bottom row) from histology-based simulated diffusion signals for normal liver tissues, steatosis, and stroma (a combination of inflammatory cells and fibrosis) at three different SNR levels (10, 20, and 50, from left to right). *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001 as measured by one-way analysis of variance (ANOVA) with Bonferroni correction.
