Introduction

Non-invasive characterization of brain tumors remains a significant challenge. With its high sensitivity, anatomical magnetic resonance imaging (MRI) provides detailed structural information, but the low specificity of MRI cannot sufficiently characterize brain tumor lesions. This shortcoming becomes especially pronounced during treatment, when therapy itself can induce changes on structural MRI that are indistinguishable from brain tumor growth1,2,3,4. Alternative methods, including existing metabolic imaging techniques, can offer unique complementary information to anatomical MRI5. However, many of these techniques are limited by inconsistent tumor-to-normal-appearing brain (NAB) image contrast or challenges in clinical translation, underscoring the need for more robust and reliable imaging approaches6. One such novel method is deuterium metabolic imaging (DMI), a technique that integrates deuterium magnetic resonance spectroscopic imaging (2H MRSI) with the administration of a deuterated substrate of interest7,8. Proof-of-concept experiments in a patient with glioma have already demonstrated that DMI-based maps, generated after administration of 2H-labeled glucose, showed image contrast with NAB. This contrast originated from the aberrant glucose metabolism in high-grade brain tumors7. Another substrate with potentially high specificity for brain tumor imaging is choline (Cho), an essential nutrient involved in the synthesis of phospholipids, which are critical components of cell membranes9. In many cancers, both Cho uptake and Cho metabolism are increased. Specifically, choline kinase alpha (CKA) is often upregulated in tumors, the first step in converting Cho to the downstream metabolites phosphocholine (PC) and glycerophosphocholine (GPC) in the Kennedy pathway (Fig. 1)10,11,12,13,14. The combined trimethyl groups of Cho, PC, and GPC can be routinely detected in vivo with 1H MRSI or 2H MRSI following deuterium labeling. However, for both methods, their similar chemical structures (Fig. 1) prevent spectral separation in vivo and result in a combined peak that is referred to as total Cho (tCho).

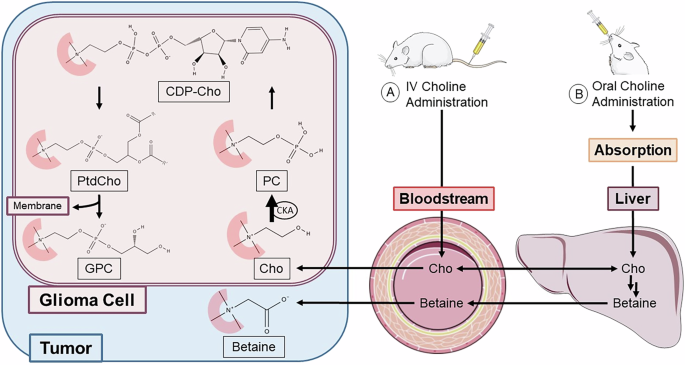

Fig. 1: Overview of choline metabolism and study design.
figure 1

Schematic illustrating choline metabolism in glioma cells, and the differences between IV (A) and oral (per os, PO) (B) administration of 2H9-choline. The 2H9 label, located on the trimethyl group, is highlighted in red on the molecular structures within the glioma cell. Previous studies have indicated increased choline kinase alpha (CKA) activity in cancer cells, thereby rapidly converting Cho compared to the slower conversion of PC to CDP-Cho. We hypothesize that this enzymatic rate difference can be leveraged with serial low PO doses of 2H9-Cho to accumulate a 2H9-PC pool that results in tumor-to-NAB contrast comparable to a single, high IV dose. PO administration implies that 2H9-Cho enters the circulation via the liver, where betaine is synthesized from Cho. Betaine could contribute to the DMI maps; however, it has not been shown to be related to tumor metabolism, and it remains unclear whether betaine is taken up by RG2 glioma cells or remains extracellular. Cho choline, PC phosphocholine, CDP-Cho cytidine diphosphate-choline, PtdCho phosphatidylcholine, GPC glycerophosphocholine, CKA choline kinase alpha. Parts of the figure were adapted from Servier Medical Art, licensed under a Creative Commons Attribution 4.0 Unported License (https://creativecommons.org/licenses/by/4.0/).

Full size image

Previous research demonstrated that tCho-based DMI can provide a high signal-to-noise ratio (SNR) for deuterated tCho and generate high tumor-to-NAB image contrast in a rodent model of glioblastoma (GBM), both during and after intravenous (IV) infusion of deuterated choline (2H9-Cho). Twenty-four hours after a single IV dose of 2H9-Cho, deuterated tCho in tumors was only ~25% lower compared to the levels detected in vivo during infusion15. Furthermore, using high-resolution 2H nuclear magnetic resonance (NMR) on metabolite extracts from excised tumor tissue, it was shown that the residual 2H9-tCho signal consisted mostly of 2H-labeled PC and GPC. These previous results indicated a higher uptake and conversion rate of free Cho to PC compared to the slower metabolism downstream of PC (Fig. 1)16,17,18.

In translating tCho-DMI to humans, the logistics and potential side effects of IV Cho infusion could represent a significant hurdle. Though most of the possible side effects can be considered relatively mild, high plasma levels of Cho after IV infusion can lead to lower blood pressure via cholinergic stimulation, which raises safety concerns for potential clinical use19. Alternatively, oral intake of Cho is safe and often used as a nutritional supplement, with 3.5 g recommended as the maximum daily intake for adults20. We hypothesized that the natural metabolic rate differences within the Cho pathway could be leveraged to accumulate 2H9-tCho signal in vivo with repeated oral doses, which are at or below the maximum recommended daily intake for adults, while altogether being >5 times lower than the amount of Cho used so far in previous IV protocols. Specifically, by administering 2H9-Cho over multiple consecutive days, at an equivalent dose recommended for humans, we anticipated that the 2H9-tCho peak detected in vivo would increase with each dose. We also predicted that the 2H9-tCho peak would consist mostly of 2H-labeled PC and GPC, as with every oral dose, free 2H9-Cho would rapidly enter the tumor and get phosphorylated to PC. Further conversion of labeled PC is relatively slow, while the remaining 2H9-Cho in plasma is rapidly cleared21,22. Each consecutive oral dose could therefore add to the existing PC labeling and increase the in vivo 2H9-tCho peak.

This strategy was tested in a rat model of GBM by measuring the concentration (i.e., [2H9-tCho]) in tumors and NAB, in vivo with DMI. Tumor-to-NAB image contrast was compared between animals receiving a single, high IV dose and animals that were administered multiple low doses PO. To identify the different Cho metabolites that contribute to the in vivo 2H9-tCho peak, tumor tissue was harvested at the end of the in vivo experiments. 2H NMR and 2D 1H-14N Heteronuclear Single Quantum Coherence (HSQC) NMR experiments were performed on metabolite extracts from excised tumor tissue to detect 2H-labeled Cho, PC and GPC, as well as betaine, a metabolite formed in the liver and kidneys that could also contribute to the 2H9-tCho peak in vivo but would not be specific for tumor metabolism23.

Results

In vivo

All tumor-bearing rats showed a clear lesion on contrast-enhanced T1-weighted MRI (CE T1W MRI). This confirmed that the blood-brain barrier was compromised, a characteristic of GBM and congruent with previous reports using the RG2 model (Fig. 2a). Anatomical MRIs were used to create segmentations of the tumor and NAB. For the IV group (n = 10), the tumor volume-of-interest (VOI) range was 38.2 to 187.5 mm³ (mean ± SD: 103 ± 51 mm³), and the range of NAB values was 52.7 to 188.4 mm3 (mean ± SD: 107 ± 40 mm³). In the PO group (n = 9), the range of tumor volumes was 62.5 to 187.9 mm3 (mean ± SD: 136 ± 39 mm3), and 54.7 to 175.0 mm3 (mean ± SD: 134 ± 39 mm³) for NAB volumes.

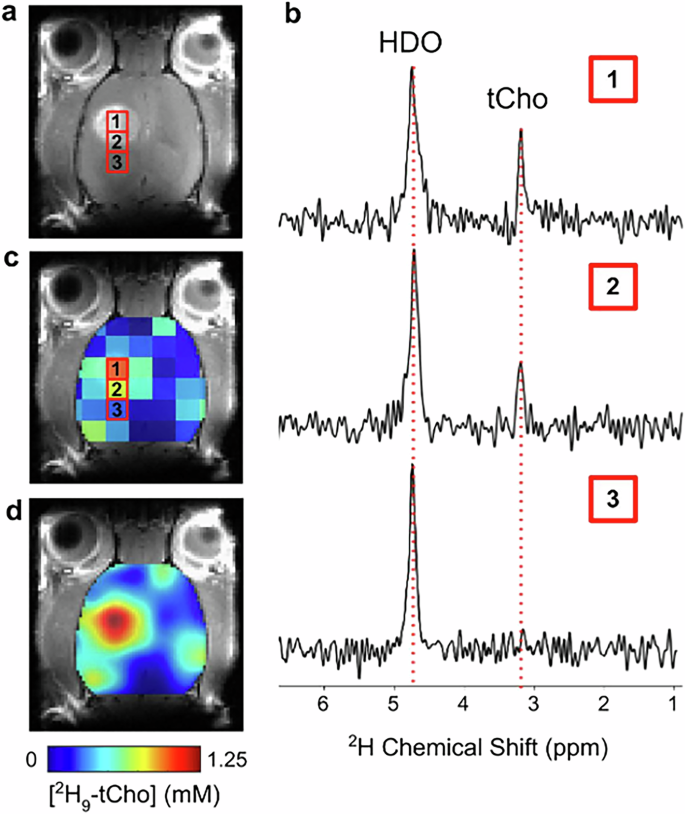

Fig. 2: DMI following administration of 2H9-Cho.
figure 2

a Coronal slice of CE T1W MRI from an RG2-bearing rat, showing the tumor lesion and individual voxel positions selected from the 2H MRSI grid. b Selected individual 2H spectra (phase-corrected and line broadened with a 3 Hz Lorentzian function) from the 3 voxel positions indicated on the MRI shown in (a). c Complete color-coded ²H MRSI grid overlaid on anatomical MRI, with color scale representing [²H₉-tCho] concentration quantified from all 2H MRSI spectra. d Interpolated version of the map shown in (c). The color scale bar applies to panels (c, d). tCho: total choline; HDO: 2H-labeled H2O.

Full size image

Figure 2 shows an example of the raw data obtained from an animal after three consecutive days of 2H9-Cho administration PO. The figure panels show 2H MRSI spectra, color-coded values of peak fitting results, and smoothed metabolic maps of [2H9-tCho] overlaid on anatomical MRIs. Assessment of individual spectra shows that voxels containing a mix of tumor and NAB have a lower [2H9-tCho] than a voxel located entirely within the contrast-enhancing lesion, which contains almost exclusively tumor tissue.

To test if [2H9-tCho] was increasing with each additional gavage dose, two animals underwent DMI scans on each day of PO administration. The average tumor [2H9-tCho] was near the noise level on day 1, increasing to 0.51 ± 0.02 mM on day 2 and 0.66 ± 0.15 mM on day 3 (n = 2). The corresponding metabolic maps reflect this steady increase in tumor [2H9-tCho], as shown in Fig. 3.

Visual comparison of metabolic maps showed similar image contrast between the groups of IV and 3 days of PO 2H9-Cho administration, as shown by representative data in Fig. 4. To measure tissue-specific [2H9-tCho], VOIs of tumor and NAB were multiplied with the tCho-DMI-based metabolic maps (Fig. S1 and Fig. 5). The average [2H9-tCho] following IV administration (n = 10) was 0.67 ± 0.15 mM in tumors and 0.23 ± 0.08 mM for NAB. The [2H9-tCho] in animals that underwent 3 days of PO administration (n = 9) was 0.70 ± 0.22 mM in tumors (p > 0.99 vs. IV group) and 0.20 ± 0.06 mM in NAB (p = 0.85 vs. IV group). The average tumor-to-NAB [2H9-tCho] ratio was 3.3 ± 1.6 for the IV group and 3.9 ± 1.7 for the PO group (p = 0.43) (Fig. 5).

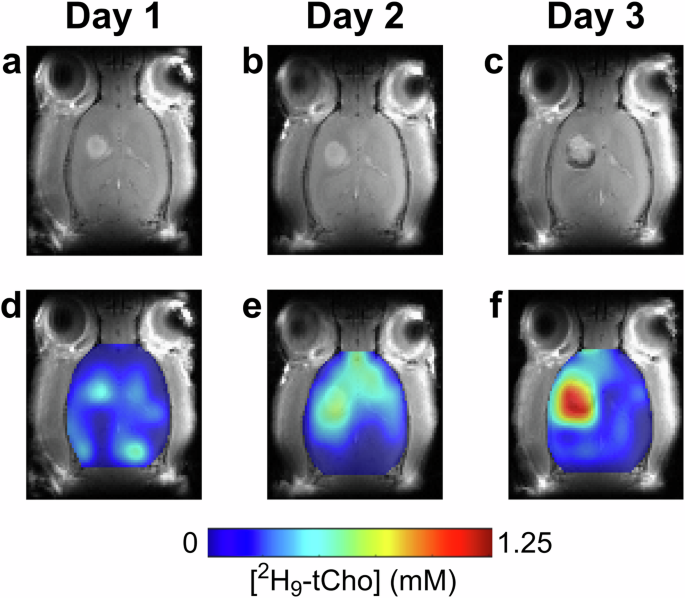

Fig. 3: Buildup of tCho-DMI image contrast following serial oral doses.
figure 3

Example of a tumor-bearing rat that was scanned for each day of PO 2H9-Cho administration. CE T1W MRIs (a–c), and accompanying DMI-based maps of 2H9-tCho concentration (mM) (d–f).

Full size image

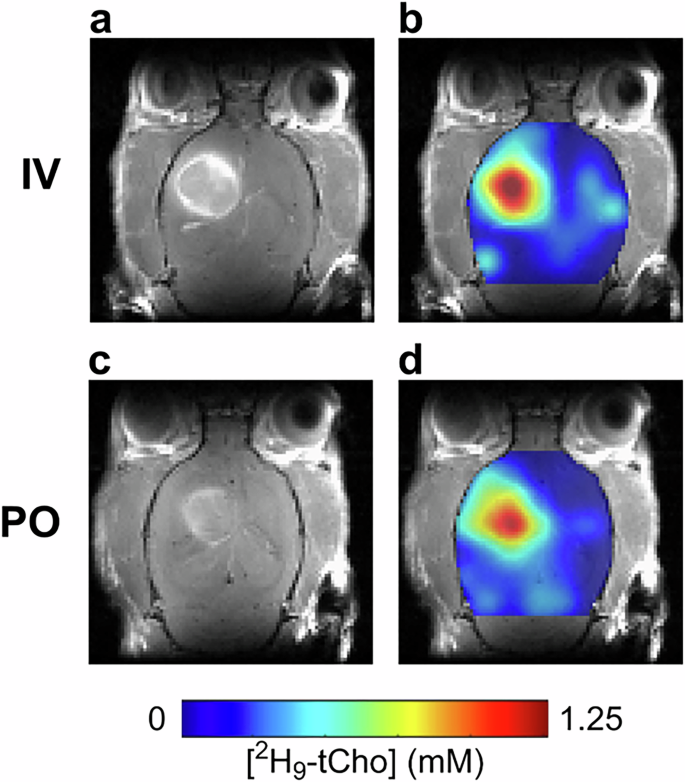

Fig. 4: Comparison of in vivo DMI maps between IV and PO administration.
figure 4

a, c CE T1W MRI of RG2-bearing rats acquired during DMI scan sessions. b, d color-coded maps of [2H9-tCho] based on DMI data acquired during 36 min IV infusion of 2H9-Cho (b), and ~2 h after PO gavage of 2H9-Cho on day 3 (d).

Full size image

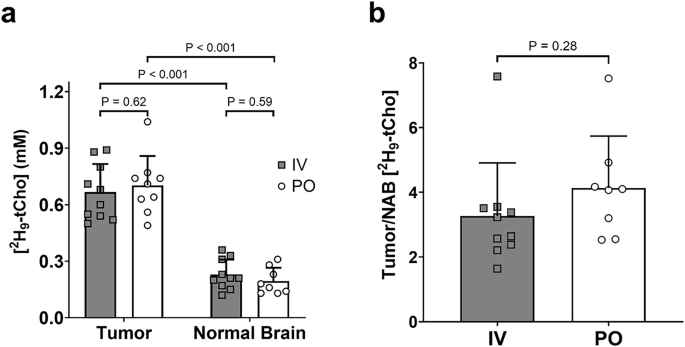

Fig. 5: Quantification of in vivo [2H9-tCho].
figure 5

a [2H9-tCho] (mM) in tumor and NAB for IV (n = 10) and PO (n = 9) administration groups. b Tumor-to-NAB image contrast for IV and PO administration groups. All plots indicate individual animal values and mean ± SD error bars. p-values represent the results of a two-tailed, independent sample t-test.

Full size image

Ex vivo

To identify the different Cho species that contribute to the single 2H9-tCho peak observed in vivo, high-resolution NMR was performed on metabolite extracts generated from excised tumor tissue (Fig. 6). Analysis of the 2H NMR data (Fig. 6a) showed a combined peak (2H9-tCho’) of the overlapping resonances of deuterated Cho, PC, and GPC at 3.2 ppm, and a peak assigned to betaine at 3.25 ppm (2H9-tCho’ = 2H9-tCho − 2H9-betaine). Spectral fitting showed that tCho’ reflected 93.1 ± 3.6% and betaine 6.9 ± 3.6% of the [2H9-tCho] detected in vivo in the IV group (n = 8). In the PO group, tCho’ was 72.0 ± 8.2% (p < 0.001 vs. IV) and betaine 28.0 ± 8.2% (p < 0.001 vs. IV) of the [2H9-tCho] detected in vivo (n = 6).

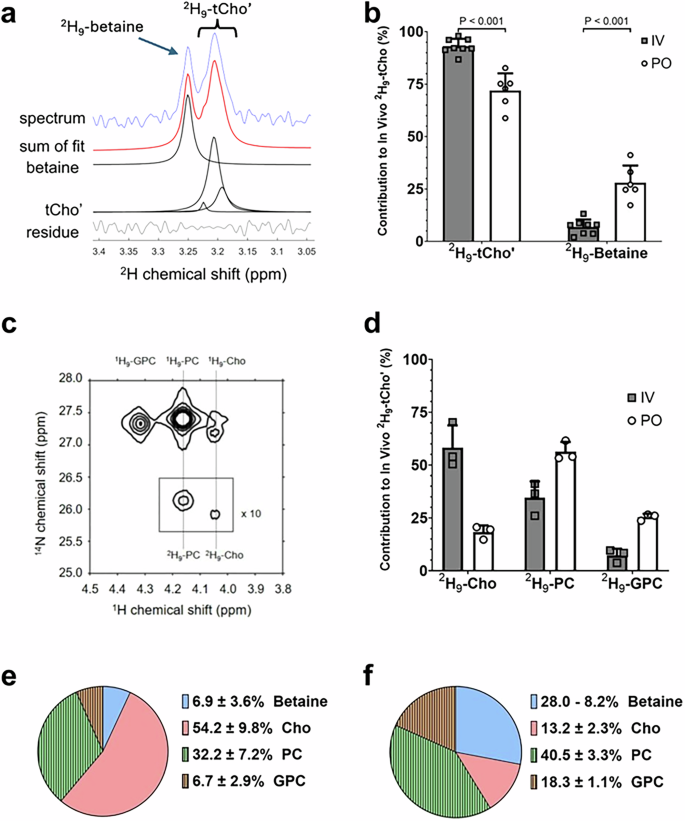

Fig. 6: Ex vivo methods and quantification of individual 2H9-tCho metabolites.
figure 6

a Example of a 2H NMR spectrum acquired from a pooled tumor tissue sample of 2 animals following 3 days of PO-administered 2H9-Cho. Spectral fitting of the 2H9-tCho’ and 2H9-betaine peaks is shown. To estimate the mixed ²H₉-tCho’ signal, peak fits of ²H₉-Cho (~3.19 ppm), ²H₉-PC (~3.21 ppm), and ²H₉-GPC (~3.2 ppm) were combined. b Relative contribution of 2H9-tCho’ and 2H9-betaine to 2H9-tCho. Individual points within bar graphs represent tumor samples from 2–3 animals combined, values are shown as mean ± SD for the IV group (n = 8) and the PO group (n = 6). All p-values represent the results of a two-tailed, independent sample, non-parametric t-test. c Example of a 2D 1H-14N HSQC NMR spectrum acquired from the same sample shown in (a). Note the peaks of both protonated and deuterated forms of the Cho metabolites. The intensity of deuterated metabolites was scaled 10-fold. d Relative contribution of 2H9-Cho, 2H9-PC, 2H9-GPC to 2H9-tCho’ for IV (n = 3) and PO (n = 3) administration groups. e, f Combined breakdown of the different molecules contributing to the in vivo [2H9-tCho] signal for the IV (e) and PO (f) groups. The shaded sections (2H9-PC and 2H9-GPC) in the pie chart indicate the contribution from active tumor metabolism.

Full size image

To identify the different Cho species in the remaining 2H9-tCho’ peak, 2D 1H-14N HSQC was performed, and the ratios of 2H9-Cho, 2H9-PC, and 2H9-GPC to 2H9-tCho’ were calculated24. The corresponding values for the IV group (n = 3) were 58.2 ± 10.6% for 2H9-Cho, 34.6 ± 7.7% for 2H9-PC, and 7.2 ± 3.1% for 2H9-GPC, while for the PO group (n = 3), they were 18.3 ± 3.1% for 2H9-Cho, 56.3 ± 4.6% 2H9-PC, and 25.4 ± 1.6% 2H9-GPC. To account for the presence of betaine within the overall tCho signal in vivo, tCho’ metabolite fractions were multiplied by the tCho’ contribution from the 2H-NMR data. This enabled a comprehensive breakdown of the in vivo 2H9-tCho peak composition for both groups. In the IV group, the in vivo 2H9-tCho peak labeling consisted of 54.2 ± 9.8% Cho, 32.2 ± 7.2% PC, 6.7 ± 2.9% GPC, and 6.9 ± 3.6% betaine. For the PO group, the tCho signal breakdown was 13.2 ± 2.3% Cho, 40.5 ± 3.3% PC, 18.3 ± 1.1% GPC, and 28.0 ± 8.2% betaine (Fig. 6 e, f).

The 2D 1H-14N HSQC data allowed quantification of both the protonated and deuterated forms of Cho, PC, and GPC, from which the fractional enrichment (FE) was calculated (Fig. 6d). In the IV group (n = 3), FE was 0.303 ± 0.067 for Cho, 0.082 ± 0.021 for PC, and 0.029 ± 0.014 for GPC. FEs in the PO group (n = 3) were 0.081 ± 0.037 for Cho, 0.054 ± 0.017 for PC, and 0.048 ± 0.015 for GPC.

Discussion

In the ongoing search for a metabolic imaging technique that can provide high image contrast between tumor and NAB, we investigated the performance of DMI with orally administered ²H₉-Cho. The involvement of Cho in the synthesis of phospholipids via the Kennedy pathway makes Cho uptake and metabolism an excellent target for cancer-specific imaging. In this study, we built on previous work that showed high image contrast in rat brain tumor models both during and following IV infusion of a relatively high dose of deuterated Cho. We demonstrated that even when using a significantly lower dose, equivalent to the maximum recommended daily Cho intake as a nutritional supplement for adult humans, this protocol resulted in significant image contrast in a rodent model of GBM. This result confirms our hypothesis, which was based on the previous work that showed a significant ²H₉-tCho peak 24 h after the initial IV infusion of ²H₉-Cho. The high level of labeling with low oral doses can seem counterintuitive at first, but can be explained by the ‘trapping’ of 2H-label from 2H9-Cho in its immediate downstream metabolite PC, and to a lesser extent in GPC. Therefore, consecutive oral doses can build up the labeled PC pool, which turns over at a slow rate compared to the phosphorylation of Cho by CKA. This mechanism is comparable to using the radioactively labeled glucose analog, 18F-2-deoxyglucose (FDG), as a tracer for positron emission tomography (PET). The lack of the glucose hydroxyl group on the 2-carbon, replaced by 18F through chemical modification, prevents further metabolism of 2-deoxyglucose and leads to the accumulation of FDG25. In contrast, within the time span of our experiment, the deuterium label of ²H₉-Cho is ‘trapped’ naturally in PC. The rapid conversion of free Cho to PC and relatively slow further conversion was also previously observed in vitro, in breast cancer cells26. The ability to accumulate 2H label in PC is key to using a low dose of 2H9-Cho while still achieving significant SNR and tumor-to-NAB image contrast.

Although the tCho DMI maps were similar for the two dosing strategies, the make-up of the 2H9-tCho peaks was not equal. In the IV group, a significant portion of tumor ²H₉-tCho originated from free Cho, which can be intra- or extracellular in the tumor. In contrast, in the PO group, the free Cho contribution was relatively low, and the bulk of the 2H9-tCho peak consisted of labeled PC and GPC. Both the sum and each individual contribution of labeled PC and GPC to the 2H9-tCho peak in the PO group were larger than in the IV group. Because PC and GPC are the result of activity by CKA and the Kennedy pathway, the 3-day PO protocol led to tCho-DMI maps that were arguably more specific for cancer metabolism as compared to the IV approach. In the IV group, the bulk of the 2H9-tCho peak originated from free Cho, which could be located in the blood, extracellularly, or in the intracellular space, and is therefore not representative of tumor metabolism.

Oral administration of 2H9-Cho also results in the formation of deuterated betaine, which contributes to the 2H9-tCho peak and the tumor-to-NAB image contrast. Betaine is irreversibly synthesized from choline predominantly in liver tissue, and appears to be easily transported into the tumor. We could not determine whether this tumor betaine resided intracellularly or extracellularly. In either scenario, we consider betaine a non-specific contributor to the image contrast because, to the best of our knowledge, conversion of betaine to Cho has only been described in fungal cells27.

We chose 3 days for the oral loading regimen because by the third day, the pilot studies showed in vivo SNR and image contrast for 2H9-tCho that were comparable to the single IV studies. It is currently unclear whether a longer period of oral loading would result in yet higher SNR of 2H9-tCho. Based on the relatively low fractional 2H enrichment (<10%) of 2H9-PC and GPC, there appears to be significant room to increase the 2H-labeling over a longer period of time. This potential higher SNR could be traded for higher spatial resolution of the DMI-based metabolic maps or shorter scan times. While using a longer loading period is conceptually straightforward, most rodent GBM models have a limited time span in which the tumor is large enough for an imaging study, and before the animal shows clinical signs of the disease that are humane endpoints. To what extent betaine would also be increased in a higher number of oral doses and contribute to the in vivo 2H9-tCho peak is unknown; therefore, future experiments to optimize the oral loading period will also need to include analyses of the different tumor-specific and non-specific Cho metabolites.

From previous work, we learned that the in vivo 2H9-tCho peak amplitude was ~25% lower the day after a high-dose IV infusion15. Currently, it is unclear how long it takes for the in vivo 2H9-tCho peak to disappear after 3 days of oral dosing. This becomes particularly relevant if tCho-DMI is explored as an early biomarker of treatment response. The expectation would be that a treatment-responsive tumor has lower or no phospholipid synthesis activity and thus reduced demand for Cho metabolism, which would result in low levels of 2H9-tCho after oral dosing with deuterated Cho. For tCho-DMI to be useful in a comparison between pre- and post-treatment, the 2H9-tCho from the pre-treatment scan would ideally have vanished before both the start of treatment and the follow-up tCho-DMI scan.

The tCho-DMI-based metabolic image contrast in vivo between tumor and NAB was high, in part because of the undetectable 2H9-tCho peak in NAB. The reported measurements of [2H9-tCho] in normal brain are, in fact, an overestimation as a result of peak fitting of the random noise peaks in the 2.2 ppm area of the spectrum, since we did not visually observe a 2H9-tCho peak in NAB. While the normal brain does require Cho for the synthesis of the neurotransmitter acetylcholine, uptake was below the in vivo detection limit of our 36 min tCho-DMI scan9. This observation highlights the potential role of the leaky blood-brain barrier that is typical for GBM, in the uptake of the blood-borne Cho. The regions with high 2H9-tCho levels also spatially match the areas with high contrast on CE T1W MRI, the indicator of the compromised blood-brain barrier. While the observed spatial overlap suggests that increased vascular permeability facilitates 2H9-tCho transport into tumor tissue, active metabolic trapping through choline metabolism is needed to explain the large contribution of labeled PC and GPC to the in vivo signal. As such, the in vivo maps predominantly reflect cancer metabolism, but a leaky blood-brain barrier might be required for this metabolic image contrast to appear. This is particularly relevant given that, even in high-grade tumors, the infiltrative edges can retain an intact or only partially compromised blood-brain barrier28. If 2H9-tCho is detected within such infiltrative tumor edges, this could indicate that metabolic activity alone is sufficient to generate the metabolic image contrast. This would be an area of future investigation, because—to the best of our knowledge—preclinical GBM models show only a small area of infiltration that cannot be captured with in vivo DMI or even anatomical MRI. To better understand the role of a leaky blood-brain barrier, animal models of low-grade brain tumors that have an intact blood-brain barrier could be studied.

The RG2 model of GBM harbors a number of features observed in human GBM29. Yet, this model is biologically not the best representation of the human disease. For example, unlike human brain tumors, RG2 rat tumors are relatively homogenous30. However, the goal of this work is not to discover new cancer biology, but to visualize well-established aspects of brain tumor metabolism and create high tumor-to-NAB image contrast. For this purpose, tumors grown in the F344 rat brain following injection of the isogeneic RG2 cells are an appropriate animal model.

Currently, there is limited insight into whether DMI combined with 2H9-Cho administration would be beneficial in other tumor types as well. Veltien et al. have shown high uptake of 2H9-Cho during IV infusion in a mouse model of renal cell carcinoma31. However, that study was focused on demonstrating that DMI data can be acquired during the co-infusion of both 2H9-Cho and [6,6’-2H2]-glucose, informing on two distinct metabolic pathways in a single imaging study. The study was performed in tumors growing subcutaneously, and therefore, we cannot speculate on any image contrast with surrounding normal kidney tissue. An earlier study in a mouse breast cancer model also shows an example of a high 2H9-tCho signal after IV infusion of deuterated Cho26. But the nature of rodent breast cancer models also does not facilitate comparison with non-tumor tissue, and probably needs to be performed in humans to get a clear answer.

Translation of tCho-DMI includes both the DMI data acquisition and the 2H9-Cho administration. DMI acquisition in combination with oral [6,6’-2H2]-glucose intake is currently being used in human subjects by different research groups and at different magnetic field strengths and is thus proven to be translatable32,33,34,35. Similarly, after showing relevant image contrast following IV infusion of deuterated fumarate in a mouse lymphoma model, Hesse et al. developed an oral dosing strategy that generated comparable metabolic images36. IV infusion of deuterated Cho would not be very challenging in a clinical setting, but might require the co-infusion of atropine to counter possible side effects. In contrast, an oral dosing regimen of 2H9-Cho at the dose used in this study would not need atropine and would have other benefits. Unlike IV contrast agents, orally administered choline potentially reduces the need for clinical staff and equipment for IV administration. A clinical version of the PO administration could rely on ingestion of tablets of 2H9-Cho for several days leading up to a DMI scan. Initial first-in-human tCho-DMI studies would need to focus on dose, loading period, SNR, and tumor-to-NAB image contrast. Further, plasma and excised tissue analysis would be needed to fully understand the dynamics driving the labeling in a brain tumor. The different metabolites contributing to the tCho peak would need to be defined using ex vivo high-resolution NMR, as was done in this study. Because most high-grade brain tumors are resected as part of standard-of-care, collecting tumor tissue after 2H-labeled Cho ingestion should be feasible. A clinical version of tCho-DMI could also include oral intake of [6,6’-2H2]-glucose, 60 to 90 min before the DMI scan. As shown by Veltien et al., the 2H9-tCho peak does not overlap with peaks of glucose or its metabolites, at least in a preclinical setting at ultra-high magnetic field31. Based on 2HMR spectra acquired in the human brain at 4 T after [6,6’-2H2]-glucose intake, it can be expected that the 2H9-tCho peak would minimally overlap with the labeled glutamate+glutamine peak, even at a lower magnetic field strength7,34. This indicates that at clinical field strengths, performing DMI combined with both [6,6’-2H2]-glucose and 2H9-Cho administration would be feasible as a single scan. Lastly, recent developments that make it feasible to acquire both DMI and MRI in parallel have resulted in a comprehensive anatomical and metabolic neuro-imaging protocol. Being able to acquire both the anatomical and metabolic imaging data without requiring extra scan time is an important step towards clinical integration37,38.

The clinical value of tCho-DMI potentially lies in its ability to noninvasively provide information on tumor-specific metabolic activity. While CE MRI remains the gold standard for structural delineation at high spatial resolution, this does not provide any biochemical information. In contrast, a choline metabolism-specific image contrast could enable more detailed tumor subtyping if the image contrast correlates with metabolic phenotypes. Additionally, tCho-DMI may provide an early indicator of treatment response, since therapeutic interventions can affect cell metabolism before changes are visible on anatomical MRI39. Given these advantages and potential ability to be run in parallel to standard MRI methods, tCho-DMI could offer valuable complementary information to existing scans37,38. Future studies should assess the utility of this method in patients.

This study demonstrated that serial oral administration of ²H₉-Cho can achieve image contrast in DMI-based metabolic maps comparable to IV administration, while using a dose recommended for human adults. The predominant contributions of Cho metabolites to the maps implied that the image contrast is not merely caused by Cho uptake but predominantly driven by tumor Cho metabolism. This approach offers a noninvasive, clinically translatable alternative for metabolic imaging of brain tumors, providing a foundation for future studies integrating DMI techniques into clinical practice.

Methods

Brain tumor animal model

All animal procedures were approved by the Yale University Institutional Animal Care and Use Committee. Brain tumors were induced in 26 Fischer 344 rats (Charles River, CT, USA) (235 ± 10 g) by intracerebral injection of 10,000 RG2 cells, as previously described15. During the injection procedure, rats were continually anesthetized through inhalation of 2–3% isoflurane via a nose cone. Using aseptic techniques, a burr hole was made in the skull to inject a 5 μL sterile saline solution with the RG2 cells. A Hamilton syringe (26 gauge) attached to a motorized injector and guided by a stereotaxic instrument was used to administer the cell solution at a rate of 1 μL/min. Peri- and post-operative care included the use of analgesics: Lidocaine at <7 mg/kg, Meloxicam at 1–2 mg/kg, and Buprenorphine at 0.01–0.05 mg/kg. After the tumor cell implantation, animals were monitored daily for recovery, and anatomical MRIs were performed regularly to monitor tumor growth.

Choline administration

For rats in the IV administration group (n = 14), the infusion protocol replicated the protocol conducted by Ip et al.15. In summary, catheters consisting of a 1-inch needle (30 gauge) and polyethylene tubing (PE10, Instech Laboratories, Plymouth Meeting, PA, USA) were placed in the rat’s lateral tail vein to allow for administration during the imaging studies. Twenty minutes before the Cho infusion, atropine sulfate (0.465 mg/kg, or 0.2 mg/kg free atropine base) was injected into the tail vein to counteract any cholinergic effects. 2H9-choline chloride (Cambridge Isotopes Laboratories, Cambridge, MA, USA) was dissolved in sterile water (400 mM) and administered through the catheter using a three-step bolus-continuous infusion protocol over 36 min, at a dose of 285 mg of the choline base per kg body weight. This infusion protocol resulted in an infused volume of 6.3 mL per kg body weight.

For rats in the PO administration group (n = 12), oral gavage was performed in lightly anesthetized animals with flexible polypropylene feeding tubes to administer a solution of 2H9-choline chloride dissolved in sterile water. The protocol resulted in an administered dose of 50 mg/kg of the choline base daily for three consecutive days. This dose was chosen based on the established choline daily upper limit for human adults set at 3500 mg and an assumption of average human adult body weight of 70 kg20.

In vivo DMI and MRI imaging

During imaging, all animals were free-breathing, anesthetized with isoflurane using ~60% O2 and ~40% N2O as carrier gas mixture, delivered through a nosecone15. A heating pad was used to maintain body temperature at ~37 °C.

All animals in the IV administration group started the in vivo scanning process concurrent with the start of 2H9-choline chloride IV infusion. All animals in the PO group were scanned ~2 h after completion of the oral gavage on day 3 of administration. Two animals were scanned following oral administration on days 1 and 2 to follow any build-up of 2H9-tCho over time.

All imaging studies were performed on an 11.74 T magnet interfaced to a Bruker Avance III HD spectrometer running on ParaVision 6.01, using a 20 × 15 mm elliptical 2H surface coil. Two additional orthogonal 20 mm 1H surface coils driven in quadrature were used for anatomical imaging and B0 shimming. Following scout MRIs to check animal position, CE T1W MRIs were acquired using a multi-slice spin-echo pulse sequence, repetition time (TR) of 1000 ms, and echo time of 6.4 ms, 10–20 min after a 150–200 μL bolus of the T1 contrast agent gadopentetate dimeglumine (Magnevist®, Bayer, NJ, USA) was administered subcutaneously. Following the acquisition of the anatomical MRIs, 3D B0 mapping and shimming were performed. After shimming with second-order spherical harmonics, the FWHM linewidth of water was 25–35 Hz in a ~ 350 μL volume. Deuterium MR signal acquisition used a pulse-acquire sequence extended with 3D phase-encoding during the initial 0.6 ms after excitation. DMI data was acquired as an 11 × 11 × 11 matrix in a 27.5 × 27.5 × 27.5 mm field of view (TR = 400 ms, 8 averages) and using spherical k-space sampling, resulting in a 2.5 × 2.5 × 2.5 mm = 15.6 μL nominal spatial resolution for a 36 min total scan time.

Collection and processing of brain and tumor tissue samples

Immediately following the completion of the final DMI scan, animals were euthanized by isoflurane overdose and decapitated. Tumor tissue (47.3–173.1 mg) was harvested, frozen in liquid N2, and stored at –80 °C until further processing. Tissue metabolite samples were homogenized using a bead mill (Omni International, Kennesaw, GA, USA) and a standard methanol-HCl extraction protocol40. For 2H NMR analysis, samples were dissolved in 600 μL of a water-based 100 mM phosphate buffer, pH = 7.3, using 5 mm NMR tubes. After the 2H NMR scans, the samples were dried, and groups of 2–3 samples were recombined during resuspension to achieve a total sample mass of ~200 mg, to enhance the detection sensitivity for 2D 1H-14N HSQC NMR. The solvent used for 2D 1H-14N HSQC NMR was 300 μL D2O-based pH-buffered solution, which was transferred to a Shigemi NMR tube, susceptibility matched to D2O (ATS Life Sciences, Wilmad, NJ, USA).

Ex vivo NMR spectroscopy

High-resolution 2H NMR and 2D 1H-14N HSQC NMR scans of tumor tissue metabolite extracts were performed on a 500 MHz Bruker Avance MR spectrometer (Bruker Instruments, Billerica, MA, USA) using the 2H channel typically used for signal locking. Deuterium NMR experiments were performed at 76.77 MHz, using a standard pulse-acquire sequence (TR: 1.5 s, ns: 2048–7200), with locking disabled. 2D 1H-14N HSQC NMR spectra were acquired as 2048 complex points over a 5 kHz spectral width for 1H and 128 t1 increments over a 0.4 kHz spectral width for 14N, as described in de Graaf et al.24. All experiments were performed at 298 K.

Data processing

All DMI data were processed in MATLAB (The Mathworks, Natick, MA, USA). DMIWizard, an in-house graphical interface within MATLAB, was used to perform the spectral fitting of the 2H MRSI spectra. Fitting was accomplished through a linear combination of two model spectra: the natural abundance water and the combined tCho peak. Spectral fitting included a variable zero-order and fixed first-order phase correction. Upon successful fitting, the tCho peak was quantified by converting signal amplitude to concentration values using the water signal as an internal concentration standard. We estimate the HDO internal concentration standard to be 13.2 mM, assuming a water content of 80% for both NAB and tumor tissue, and 0.015% 2H natural abundance41. Due to the similar T1 values for water and tCho, no corrections for T1 relaxation were performed7,15,42. The resulting concentrations of 2H9-tCho were used to create metabolic maps of the brain and to quantify the average concentration of 2H9-tCho within tumors and NAB.

To create the metabolic maps, 2D interpolation was used by convolving the nominal DMI data with a Gaussian kernel, whereby the convolution provided an inherent Gaussian smoothing of 1.2–1.8-pixel widths, as previously described7. For figures, the interpolated DMI maps were displayed as amplitude color maps overlaid on anatomical MRI.

The tumor-specific 2H9-tCho concentration was calculated by averaging the [2H9-tCho] values from all the tumor-containing MRI voxels. Tissue VOIs were generated via manual segmentation on CE T1W MRIs in ITK-SNAP (Version 3.8.0, www.itksnap.org)43. The tumor VOI was based on the enhanced region. The NAB VOI was based on moving the tumor VOI to the contralateral hemisphere and modifying it as needed for the VOI not to contain tumor or extra-cerebral tissue. The resulting segmentation matrices were multiplied by DMI data using an in-house written script in MATLAB to extrapolate the 11 × 11 × 11 DMI matrix to match the 88 × 88 × 88 MRI matrix, resulting in each DMI voxel containing 512 MRI voxels (8 × 8 × 8). Each MRI-based voxel was assigned the [2H9-tCho] of the overlapping DMI voxel (Fig. S1).

2H NMR data were processed in MATLAB with least-squares fitting. Peak fitting included a variable zero-order and fixed first-order phase correction and was accomplished through a linear combination of four model spectra for the trimethyl peaks of Cho (3.18 ppm), PC (3.20 ppm), GPC (3.22 ppm) and betaine (3.25 ppm). The betaine peak showed minimal overlap with other peaks, but because the Cho, PC, and GPC peaks were overlapping, their amplitude estimates were combined into a single peak labeled as tCho’. To resolve the contribution of the different metabolites within the tCho’ peak, a 2D 1H-14N HSQC NMR was performed.

The data from 2D 1H-14N HSQC NMR were processed following the procedures outlined in de Graaf et al.24. In short, data were processed offline where spectra were apodized (–1 Hz exponential, 5 Hz Gaussian in both dimensions), zero-filled to 4 K x 4 K data points, Fourier transformed, and displayed in absolute value. The resulting 2D spectra showed six trimethyl peaks, corresponding to the deuterated and non-deuterated forms of Cho, PC, and GPC, respectively. Before the quantification of deuterated species, a Hankel singular value decomposition (HSVD) algorithm was applied to remove the signal of the non-deuterated species and help with visual inspection44. Both deuterated and non-deuterated species were quantified with 2D least-squares fitting using a linear combination of model spectra.

Statistics and data analysis

All statistical tests were performed using GraphPad Prism version 10.4.0 for Windows (Boston, MA, USA, www.graphpad.com). A Shapiro–Wilk test performed on in vivo [2H9-tCho] data confirmed the normal distribution of data from tumor in the IV (n = 10, p = 0.18) and PO (n = 9, p = 0.34) groups, as well as NAB in the IV (n = 10, p = 0.46) and PO (n = 9, p = 0.14) groups. Two-tailed, independent samples t-tests were used to compare in vivo [2H9-tCho] values between tumor and NAB, as well as between IV and PO groups. Tumor-to-NAB was analyzed as the ratio of [2H9-tCho] in the tumor over [2H9-tCho] in NAB for each animal, and compared with a two-tailed, independent samples t-test. The analysis of high-resolution 2H NMR data included calculating betaine/tCho. The tCho’ fraction of tCho (tCho’/tCho) was used to determine the contribution of Cho, GPC, and PC (obtained from the 2D NMR) to the tCho signal. A two-tailed, independent samples t-test was used to compare betaine and tCho’ between the IV and PO groups. Data from 2D HSQC NMR and resulting fractional 2H enrichment values were analyzed using descriptive statistics because of small sample sizes (n = 3). Fractional 2H enrichment was calculated as 2H9-X/(1H9-X + 2H9-X), where X represents Cho, GPC, or PC.
